Polaris Ace RZR 570, RZR 570 EPS (2018 year). Manual - part 11

FEATURES AND CONTROLS

Instrument Cluster

Indicator Lamps

Lamp

Indicates

Condition

Vehicle
Speed

When standard mode is selected, speed displays in
miles per hour.

When metric mode is selected, speed displays in
kilometers per hour.

Over
Temperature

This lamp illuminates to indicate an overheated
engine. If the indicator flashes, the overheating
condition remains, and the system will automatically
reduce engine power.

EPS Warning
(if equipped)

This indicator illuminates briefly when the key is
turned to the ON position. If the light remains on, the
EPS system is inoperative. Your POLARIS dealer can
assist.

Neutral

This lamp illuminates when the transmission is in
neutral and the ignition key is in the ON position.

High Beam (if
equipped)

This lamp illuminates when the headlamp switch is
set to high beam.

Helmet/Seat
Belt

This lamp flashes for several seconds when the key is
turned to the ON position. The lamp is a reminder to
the operator to ensure all riders are wearing helmets
and seat belts before operating.

Check Engine This indicator appears if an EFI-related fault occurs.

Do not operate the vehicle if this warning appears.
Serious engine damage could result. Your POLARIS
dealer can assist.

FEATURES AND CONTROLS

Instrument Cluster

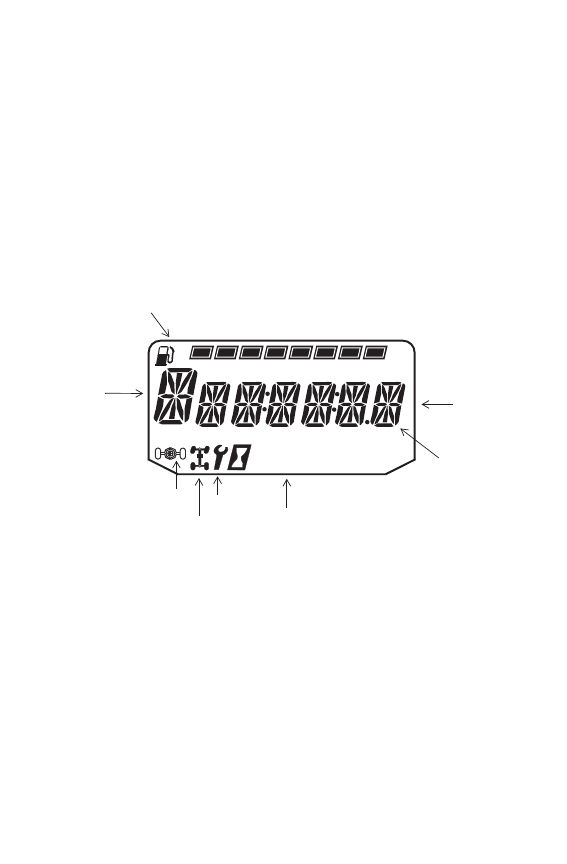

Rider Information Center

The rider information center is located in the instrument cluster. All
segments will light up for one second at start-up. If the instrument
cluster fails to illuminate, a battery over-voltage may have occurred and
the instrument cluster may have shut off to protect the electronic
speedometer. If this occurs, your POLARIS dealer can provide proper
diagnosis.

The information center is set to display standard units of measurement
and a 12-hour clock at the factory. To change to metric and/or a 24-hour
clock, see page 49.

1. Gear Indicator - This indicator displays gear shifter position.

H = High Gear
L = Low Gear
N = Neutral
R = Reverse Gear
P = Park
-- = Gear Signal Error (or shifter between gears)

Trip 1

RPM

FEATURES AND CONTROLS

Instrument Cluster

Rider Information Center

2. Fuel Gauge - The segments of the fuel gauge show the level of fuel

in the fuel tank. When the last segment clears, a low fuel warning is
activated. All segments including the fuel icon will flash. Refuel
immediately.

Tip: If the fuel icon fails to display, an open or short circuit has occurred in the

fuel sensor circuit. Your POLARIS dealer can assist.

3. Information Display Area - This area displays odometer, trip

meter, engine hour meter and programmable service hour interval.

4. Under / Over Voltage - This warning usually indicates that the

vehicle is operating at an RPM too low to keep the battery charged.
It may also occur when the engine is at idle and high electrical load
(lights, cooling fan, accessories) is applied. Drive at a higher RPM
or recharge the battery to clear the warning.

5. Clock - The clock displays time in a 12-hour or 24-hour format. See

page 49 for resetting instructions.

6. Service Indicator - A flashing wrench symbol alerts the operator

that the preset service interval has been reached. Your POLARIS
dealer can provide scheduled maintenance. See page 49 for
resetting instructions.

7. 4X4 Indicator - This indicator illuminates when the 4X4 system is

engaged (switch is on 4X4).

8. Turf Mode Indicator (if equipped) - This indicator illuminates

when the operator unlocks the differential. See page 43.

FEATURES AND CONTROLS

Instrument Cluster

Rider Information Center

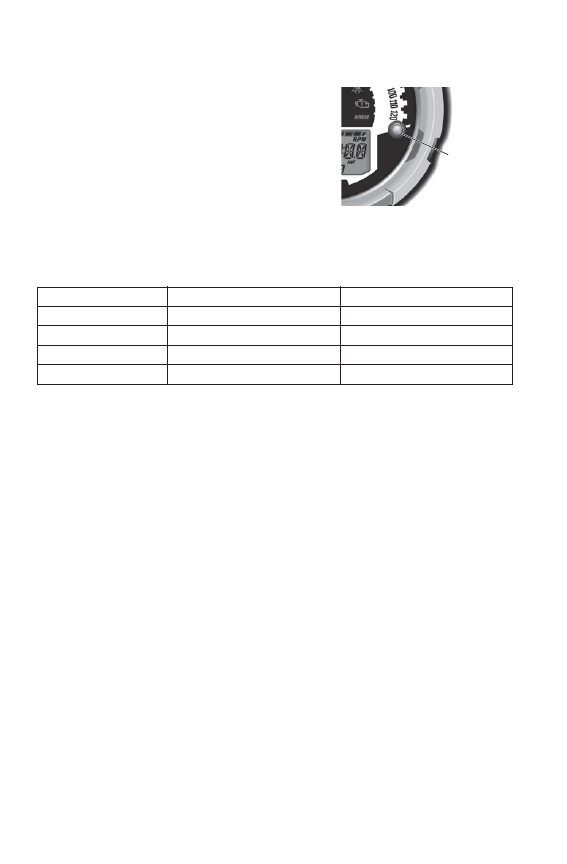

Use the MODE button to toggle through the
information area options.

Display Units (Standard/Metric)

The display can be changed to show either
standard or metric units of measurement for
each of the following settings.

Tip: To exit the set-up mode, turn the key off. Wait 5 seconds, then turn the key

on. The gauge display the mode that was displayed prior to setting the
units.

1. Turn the key to the OFF position.

2. Press and hold the MODE button while turning the key to the ON

position.

3. When the display flashes the distance setting, tap the MODE button

to advance to the desired setting.

4. Press and hold the MODE button to save the setting and advance to

the next display option.

5. Repeat the procedure to change remaining display settings.

Standard Display

Metric Display

Distance

Miles

Kilometers

Fuel

U.S. Gallons

Liters, Imperial Gallons

Temperature

Fahrenheit

Celsius

Time

12-Hour Clock

24-Hour Clock

MODE

Button
