100

MAINTENANCE

Fuses

If the engine stops or will not start, or if you experience other electrical

failures, a fuse may need replacement. Locate and correct any short

circuits that may have caused the blown fuse, then replace the fuse.

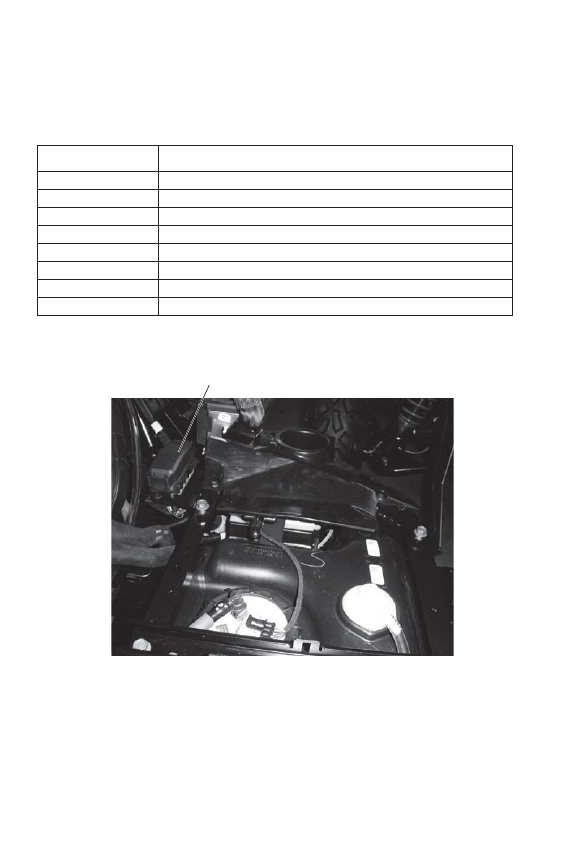

The fuse box is located under the seat. Spare fuses are provided in the

fuse box.

Main Fuse

Feature Supported

20A

Lights: Headlights, Taillights

20A

Drive: AWD

20A

Accessory: Winch Switch, 12V Power Receptacle

10A

Fuel Pump

20A

Electronic Engine Control, Starting

30A

Engine Control

10A

Constant Vehicle Power

15A

Fan Circuit Braker - Auto Reset

Fuse Box

101

MAINTENANCE

Fuses

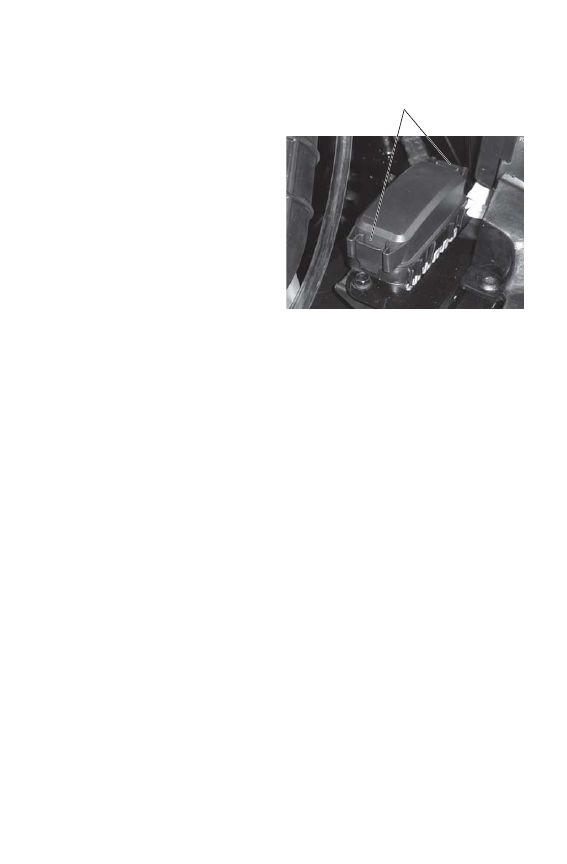

1. Remove the seat to access

the fuse box.

2. Squeeze the cover release

tabs inward and remove the

fuse box cover.

3. Remove the suspect fuse

from the fuse panel. If the

fuse is blown, install a new

fuse with the same amperage

rating.

4. Reinstall the fuse box cover.
5. Reinstall the seat.

Release Tabs

102

MAINTENANCE

Cooling System

Operation

The engine coolant level is controlled or maintained by the recovery

system. The recovery system components are the overflow bottle,

radiator filler neck, radiator pressure cap and connecting hose.
As coolant operating temperature increases, the expanding (heated)

excess coolant is forced out of the radiator, past the pressure cap, and

into the overflow bottle. As engine coolant temperature decreases, the

contracting (cooled) coolant is drawn back up from the tank, past the

pressure cap, and into the radiator.

Tip: Some coolant level drop on new vehicles is normal as the system is purging

itself of trapped air. Observe coolant levels and maintain as recommended

by adding coolant to the overflow bottle.

Adding or Changing Coolant

POLARIS recommends the use of POLARIS Antifreeze 50/50 Premix.

This antifreeze is already premixed and ready to use. Do not dilute with

water. See page 134 for the part numbers of POLARIS products.
To ensure that the coolant maintains its ability to protect the engine, we

recommend that the system be completely drained every five (5) years

and fresh Antifreeze 50/50 Premix added.
Any time the cooling system has been drained for maintenance or repair,

replace the coolant with fresh Antifreeze 50/50 Premix.

103

MAINTENANCE

Cooling System

Radiator and Cooling Fan

Always check and clean the screen and radiator fins at the intervals

outlined in the Periodic Maintenance Chart beginning on page 85. Do

not obstruct or deflect air flow through the radiator by installing

unauthorized accessories in front of the radiator or behind the cooling

fan. Interference with the radiator air flow can lead to overheating and

consequent engine damage.

NOTICE: Washing the vehicle with a high-pressure hose could damage the

radiator fins and impair the radiator's effectiveness. Using a high-

pressure system is not recommended.

Radiator Coolant Level

This procedure is required only if the cooling system has been drained

for maintenance and/or repair. But if the overflow bottle has run dry, the

level in the radiator should also be inspected.

CAUTION! Escaping steam can cause burns. Never remove the pressure cap

while the engine is warm or hot. Always allow the engine to cool before

removing the pressure cap.

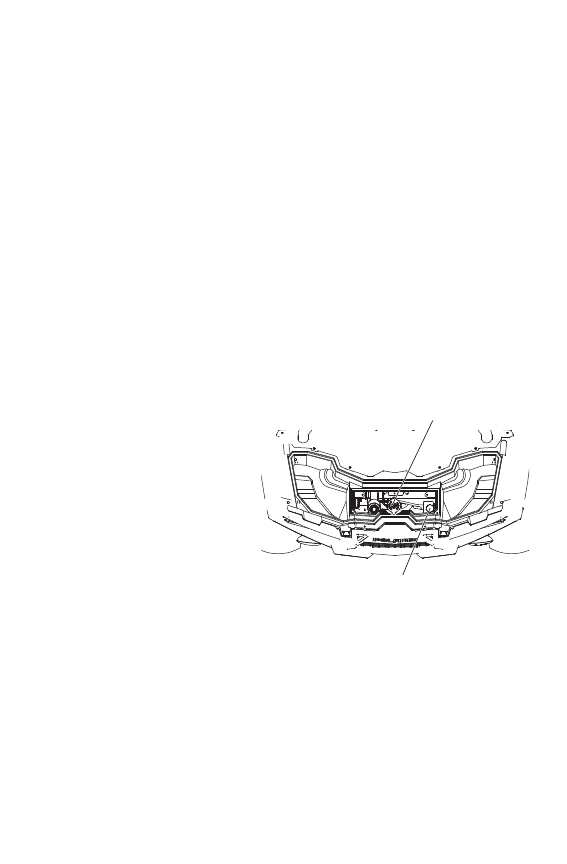

1. Remove the front box

cover and access panel.

See page 27.

2. Slowly remove the

radiator cap.

3. View the coolant level

through the opening.

4. Use a funnel and slowly

add coolant as needed.

Tip: Use of a non-standard

pressure cap will not allow

the recovery system to

function properly. See your

POLARIS dealer for the correct replacement part.

Radiator Cap

Overflow Bottle
