Polaris ACE 570 (2018 year). Manual - part 9

FEATURES AND CONTROLS

Instrument Cluster

Rider Information Center

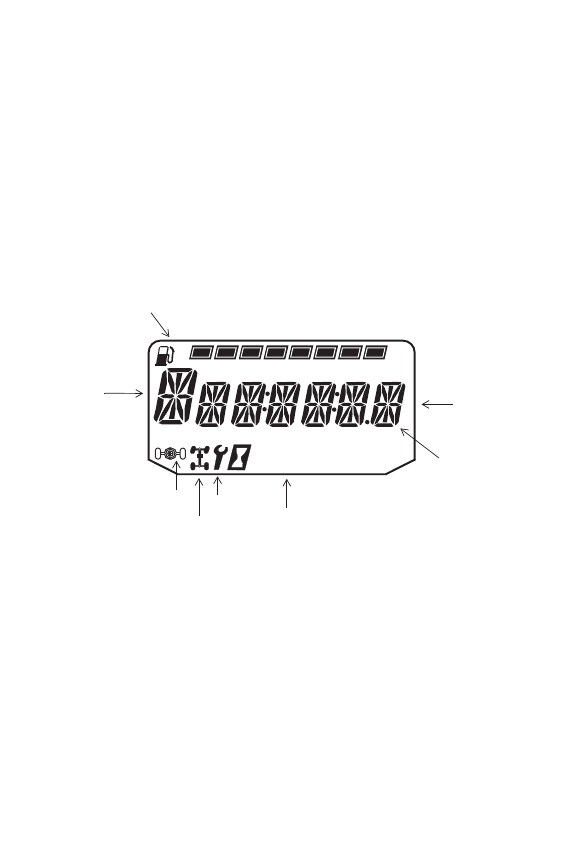

The rider information center is located in the instrument cluster. All

segments will light up for one second at start-up. If the instrument

cluster fails to illuminate, a battery over-voltage may have occurred and

the instrument cluster may have shut off to protect the electronic

speedometer. If this occurs, take the vehicle to your POLARIS dealer

for proper diagnosis.
The information center is set to display standard units of measurement

and a 12-hour clock at the factory. To change to metric and/or a 24-hour

clock, see page 43.

1. Gear Indicator - This indicator displays gear shifter position.

H = High Gear
L = Low Gear
N = Neutral
R = Reverse Gear
P = Park
-- = Gear Signal Error (or shifter between gears)

Trip 1

RPM

FEATURES AND CONTROLS

Instrument Cluster

Rider Information Center

2. Fuel Gauge - The segments of the fuel gauge show the level of fuel

in the fuel tank. When the last segment clears, a low fuel warning is

activated. All segments including the fuel icon will flash. Refuel

immediately.

Tip: If the fuel icon fails to display, an open or short circuit has occurred in the

fuel sensor circuit. See your POLARIS dealer.

3. Information Display Area - This area displays odometer, trip

meter, engine hour meter and programmable service hour interval.

4. Under / Over Voltage - This warning usually indicates that the

vehicle is operating at an RPM too low to keep the battery charged.

It may also occur when the engine is at idle and high electrical load

(lights, cooling fan, accessories) is applied. Drive at a higher RPM

or recharge the battery to clear the warning.

5. Clock - The clock displays time in a 12-hour or 24-hour format. See

page 43 for resetting instructions.

6. Service Indicator - A flashing wrench symbol alerts the operator

that the preset service interval has been reached. The vehicle should

be brought to your POLARIS dealer for scheduled maintenance.

See page 43 for resetting instructions.

7. 4X4 Indicator - This indicator illuminates when the 4X4 system is

engaged (switch is on 4X4).

8. Turf Mode Indicator (if equipped) - This indicator illuminates

when the operator unlocks the differential.

FEATURES AND CONTROLS

Instrument Cluster

Rider Information Center

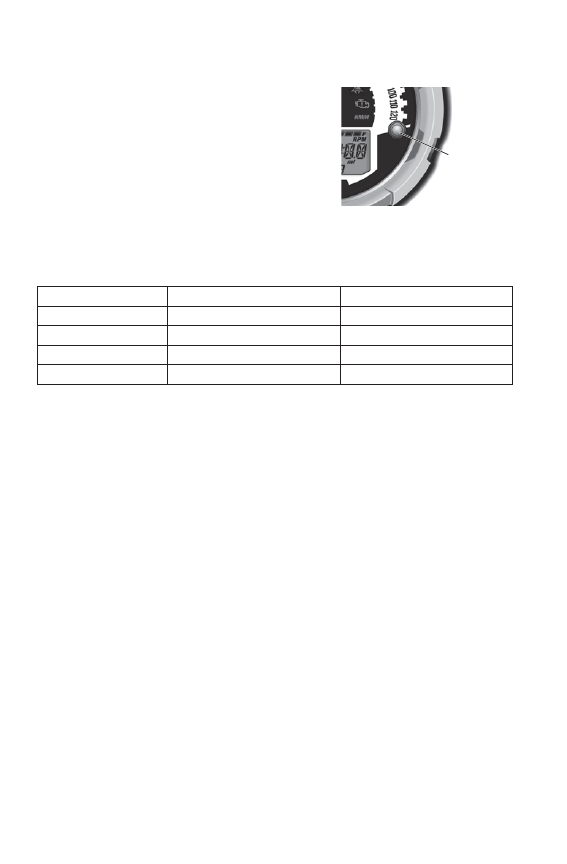

Use the MODE button to toggle through the

information area options.

Display Units (Standard/Metric)
The display can be changed to show either

standard or metric units of measurement for

each of the following settings.

Tip: To exit the set-up mode, turn the key off. Wait 5 seconds, then turn the key

on. The gauge displays the mode that was displayed prior to setting the

units.

1. Turn the key to the OFF position.
2. Press and hold the MODE button while turning the key to the ON

position.

3. When the display flashes the distance setting, tap the MODE button

to advance to the desired setting.

4. Press and hold the MODE button to save the setting and advance to

the next display option.

5. Repeat the procedure to change remaining display settings.

Standard Display

Metric Display

Distance

Miles

Kilometers

Fuel

U.S. Gallons

Liters, Imperial Gallons

Temperature

Fahrenheit

Celsius

Time

12-Hour Clock

24-Hour Clock

MODE

Button

FEATURES AND CONTROLS

Instrument Cluster

Rider Information Center

Clock Mode

Tip: The clock must be reset any time the battery has been disconnected or

discharged.

1. Turn the key to the ON position. Use the MODE button to toggle to

the odometer display.

2. Press and hold the MODE button until the hour segment flashes.

Release the button.

3. With the segment flashing, tap the MODE button to advance to the

desired setting.

4. Press and hold the MODE button until the next segment flashes.

Release the button.

5. Repeat steps 3-4 twice to set the 10-minute and 1-minute segments.

After completing the 1-minute segment, step 4 will save the new

settings and exit the clock mode.

6. Turn the key to the OFF position.

Odometer Mode
The odometer records and displays the distance traveled by the vehicle.

Trip Meter Mode
The trip meter records the distance traveled by the vehicle if reset before

each trip. To reset, select the trip meter mode. Press and hold the MODE

button until the meter resets to zero. In the Rider Information Center, the

trip meter display contains a decimal point, but the odometer displays

without a decimal point.

Hour Meter Mode
This mode logs the total hours the engine has been in operation.

Engine Temperature Mode
This mode displays current temperature of the coolant.

Tachometer Mode
The engine RPM is displayed digitally.

Tip: Small fluctuations in the RPM from day to day may be normal because of

changes in humidity, temperature and elevation.
