24

FEATURES AND CONTROLS

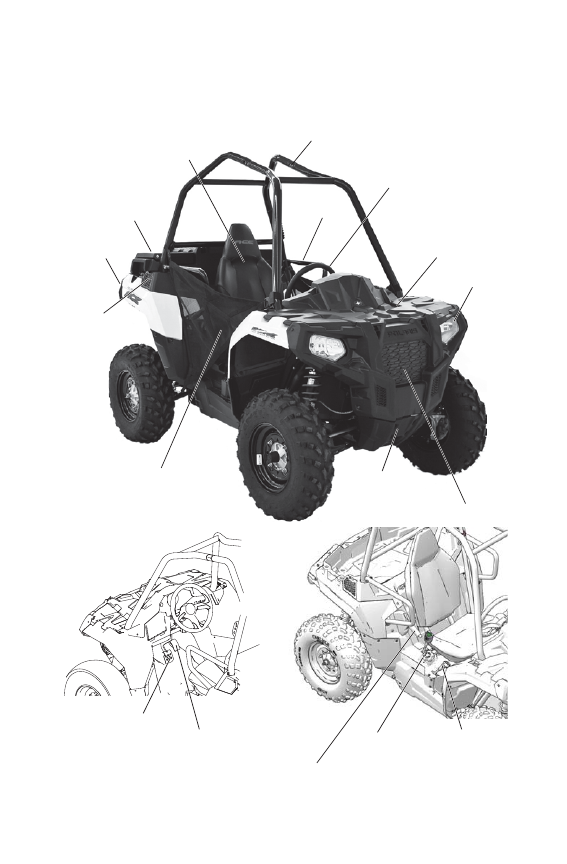

Component Locations

Hip

Bars

Cargo

Box

Shifter

Cab Nets

Steering

Wheel

Throttle

Pedal

Brake

Pedal

ROPS

Frame

Front Box

Cover

Headlights

Taillights

Engine

Intake

Pre-Filter

Radiator

Single-Rider

Seat

Brush Guard

Fuel Cap

Park Brake

25

FEATURES AND CONTROLS

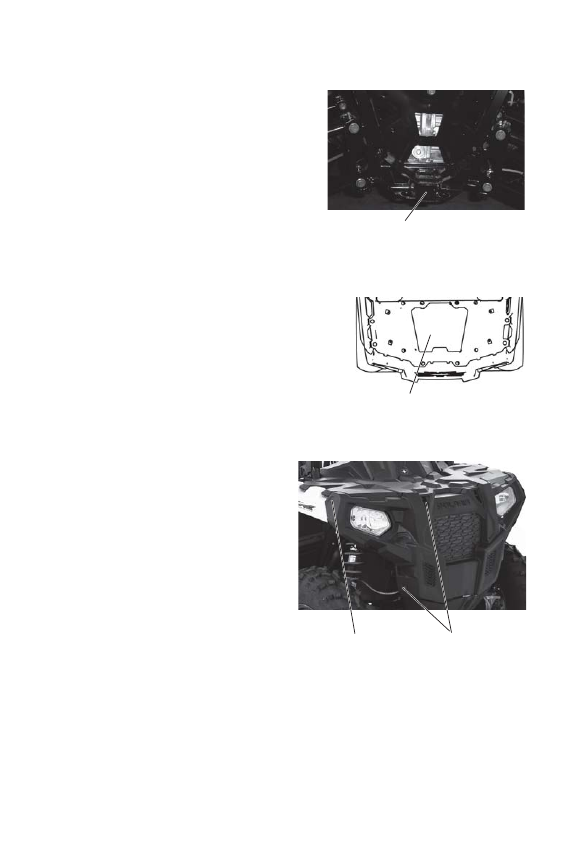

Trailer Receiver Hitch Bracket

This vehicle is equipped with a

receiver hitch bracket for a trailer

hitch. Trailer towing equipment is not

supplied with this vehicle.
To avoid injury and property damage,

always heed the warnings and towing

capacities outlined on pages 68-70.

Service Access Panels

Access serviceable engine

components through the engine access

panel behind the seat. Remove the seat

and release the access panel latches to

remove the access panel.
Remove rear access panel to access the

air box and spark plug. The rear access

panel is located in the bed of the cargo

box. Pull the rear edge of the access

panel upward to remove it.

Radiator Access/Bumper Removal

The front bumper can be

removed to clean debris from

the radiator.
1. Remove the four (4) torx

screws and six (6) plastic

rivets.

2. Lift the front bumper to

remove it from the vehicle.

Receiver Hitch

Rear Access Panel

Screws

Rivet

26

FEATURES AND CONTROLS

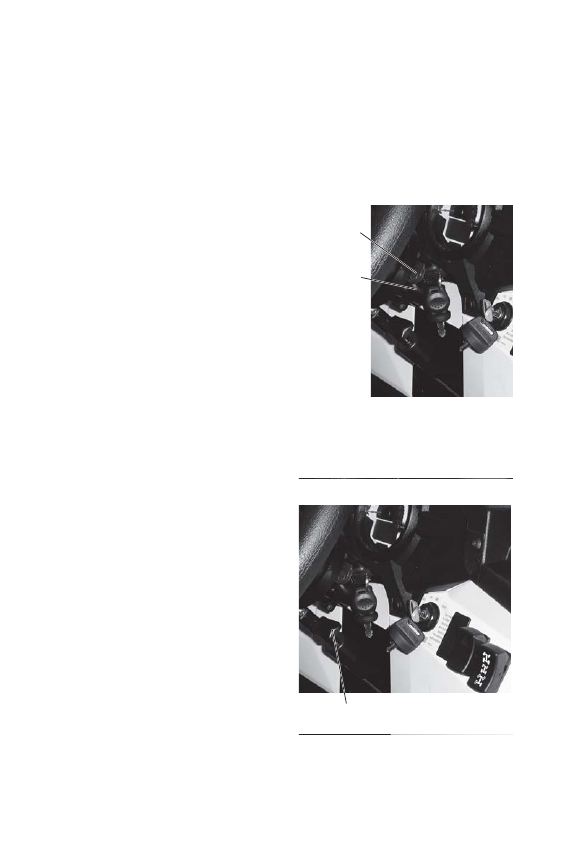

Steering Lock

Lock the steering to prevent unauthorized use or theft of the vehicle.

WARNING! Always unlock the steering before starting the engine.
NOTICE: Always remove the steering lock key before operating the vehicle.

Place the steering lock keys in a safe place. The lock must be

replaced if the keys are lost.

1. Turn the steering wheel full right or full left.
2. Open the steering lock cap.

Insert the steering lock key and

turn it clockwise.

3. Continue applying light

clockwise pressure to the key

while moving the steering

wheel slowly in the reverse

direction. When you feel a click

and slight movement of the key,

the steering has locked. Attempt

to move the steering wheel to

verify that it’s locked.

4. Remove the key. Reinstall the steering lock cap.
5. To unlock the steering, insert the steering lock key and turn it

counter-clockwise. Remove the key.

Steering Wheel

The steering wheel can be tilted

upward or downward for rider

preference.
Lift and hold the steering wheel

adjustment lever while moving the

steering wheel upward or

downward. Release the lever when

the steering wheel is at the desired

position.
Always make sure the steering

wheel position does not impede

proper operation of the brake pedal,

throttle pedal and all other controls.

Steering

Lock

Steering

Lock Cap

Adjustment Lever

27

FEATURES AND CONTROLS

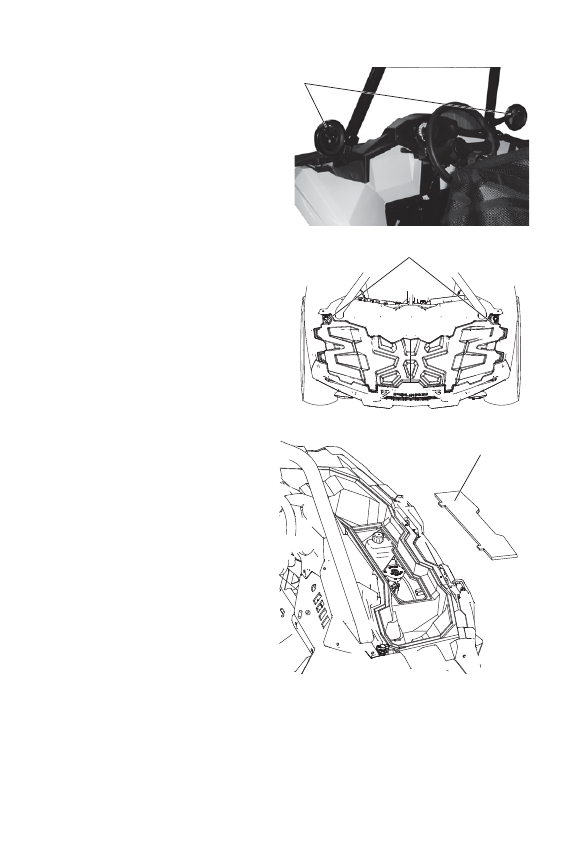

Mirrors

Use the mirrors to assist in

traffic maneuvers. Always

check and adjust the mirrors

before driving the vehicle.

Front Box Cover

Remove the front box cover

and access panel to access the

radiator cap, coolant overflow

bottle and brake master

cylinder reservoir.
1. Turn the box cover

fasteners 1/4 turn.

2. Lift the rear edge of the

box cover.

3. Using the pliers provided

in the tool kit, remove the

two (2) push darts from

the access panel. Remove

the panel.

Mirrors

Cover Fasteners

Access Panel
