MAINTENANCE

Drive Chain Lubrication

Lubricate the drive chain with POLARIS chain spray lube or an

approved chain lube at the general lubrication interval specified in the

Periodic Maintenance Chart beginning on page 57. Lubricate more

often under severe use, such as in dirty or wet conditions. See page

102 for the part numbers of POLARIS products.

NOTICE: Washing the drive chain with a high pressure washer or gasoline

can cause premature wear and drive chain failure. Don't use a high

pressure washer or gasoline to clean the drive chain.
Adjusting or operating the vehicle with improper rear drive chain

slack can result in severe damage to the transmission and drive

components. Always make sure the slack is within the stated

specifications.

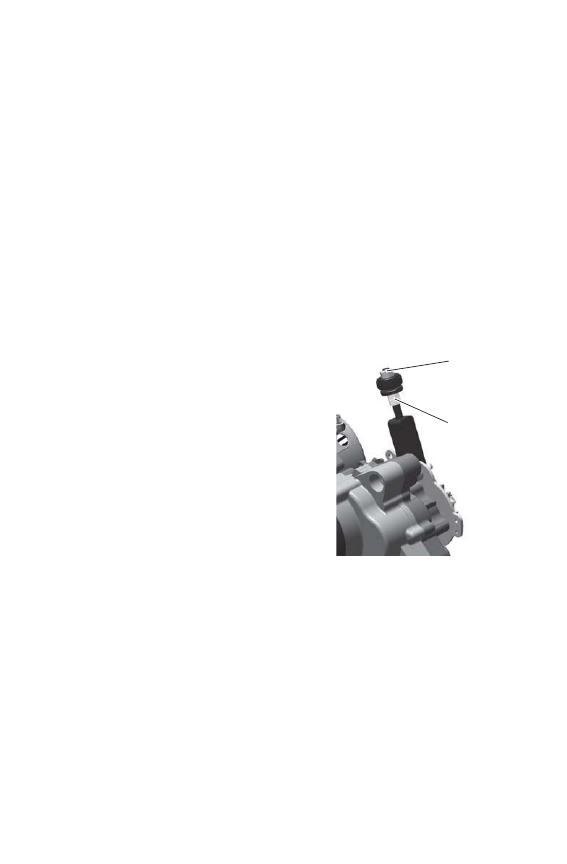

Drive Chain Slack Adjustment

1. Loosen the upper nut.
2. Turn lower nut clockwise in 1/2-turn

increments, then turn upper nut until

tight. Follow this procedure until

chain is at proper tension. Chain

should have 6 mm (1/4”) deflection.

3. Repeat these steps until chain is

adjusted to desired fit.

Lower Nut

Upper Nut

69

MAINTENANCE

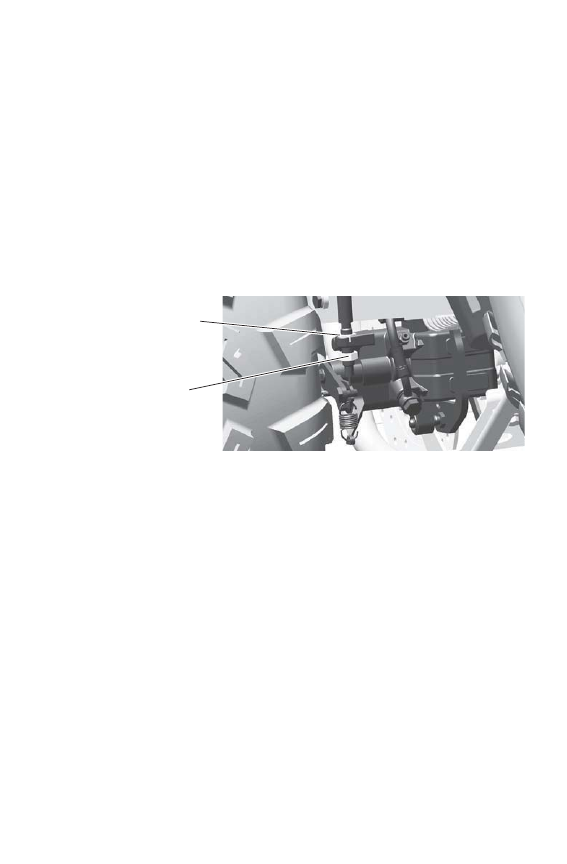

Parking Brake Cable Freeplay Adjustment

1. Inspect and perform any needed service on the brake pads before

adjusting parking brake cable freeplay.

2. Make sure the parking brake is NOT set (lever is DOWN).
3. Pull the brake cable back to inspect freeplay between the cable

end and the caliper bracket. Freeplay should be 1.6 mm (1/16”).

4. To adjust freeplay, loosen the jam nut. Turn the in-line adjuster nut

outward to decrease freeplay. Turn the adjuster nut inward to

increase freeplay.

5. Tighten the jam nut against the adjuster nut.

Adjustment Nut

Jam Nut

70

MAINTENANCE

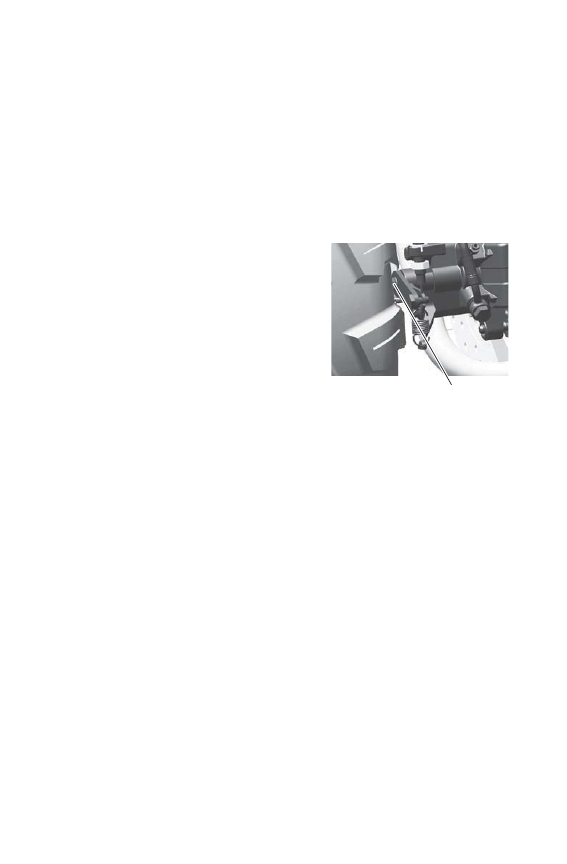

Parking Brake Adjustment

1. Inspect and perform any needed service on the brake pads before

adjusting the parking brake.

2. Position the vehicle on a level surface. Place the transmission in

neutral.

3. Carefully elevate the rear of the vehicle slightly. Use an

appropriate lift.

4. Loosen the jam nut on the parking

brake adjustment bolt.

5. While rotating the rear wheels by

hand, tighten the adjustment bolt until

significant brake drag is detected.

Then back the adjustment bolt out 1/4

turn, or until the wheel freely spins.

6. Hold the adjustment bolt in place and

tighten the jam nut securely against

the lever arm.

7. Check parking brake lever movement. Verify that the rear wheels

rotate freely with the parking brake off (lever in DOWN position)

and that the vehicle will not move when the parking brake is

applied (lever in UP position).

8. Verify that the park brake lever stays in the UP position when the

brake is fully applied.

Adjustment Bolt

71

MAINTENANCE

Spark Plug

Spark Plug Gap/Torque

NOTICE: Using non-recommended spark plugs can result in serious engine

damage. Use POLARIS-recommended spark plugs or their

equivalent. See page 100.

Spark plug condition is indicative of engine operation. The spark plug

firing end condition should be read after the engine is warmed up and

the vehicle is driven at higher speeds. Immediately check the spark

plug for correct color. See page 71.

A hot exhaust system and engine can cause burns. Wear protective

gloves when removing a spark plug for inspection.

Spark Plug Condition

Normal Plug
The normal insulator tip is gray, tan or light brown. There will be few

combustion deposits. The electrodes are not burned or eroded. This

indicates the proper type and heat range for the engine and the service.

Tip: The tip should not be white. A white insulator tip indicates overheating,

caused by use of an improper spark plug or incorrect throttle body

adjustments.

Wet Fouled Plug
The wet fouled insulator tip is black. A damp oil film covers the firing

end. There may be a carbon layer over the entire nose. Generally, the

electrodes are not worn. See your dealer for throttle body adjustments

.

Electrode Gap

New Plug Torque

Used Plug Torque

0.6-0.7 mm

12-15 Nm

(9-11 ft-lbs)

23-27 Nm

(17-20 ft-lbs)
