Snowmobile Polaris 2006 - 2007 FS / FST. Manual - part 71

13.6

WIRE DIAGRAM

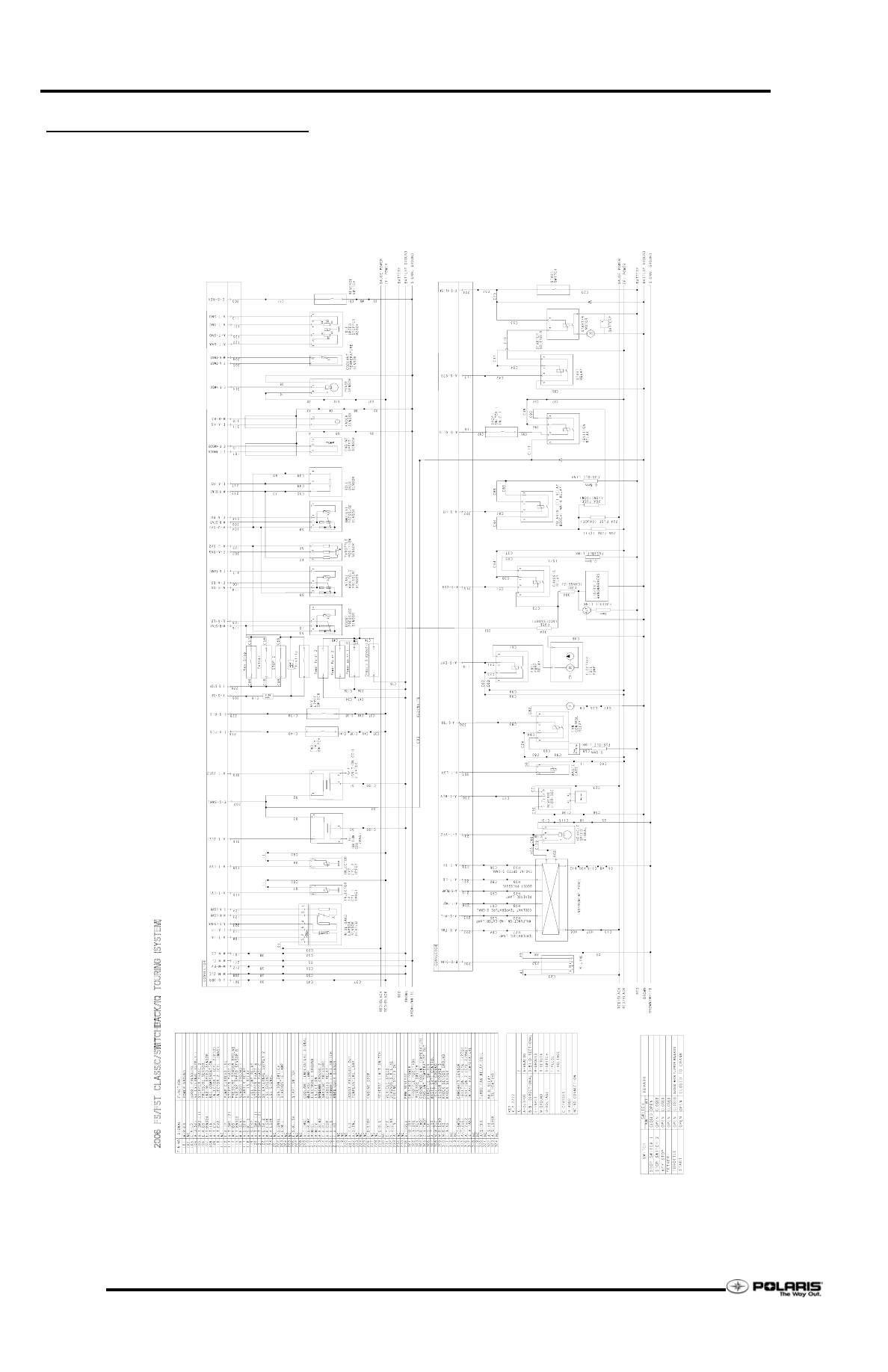

2006 FS / FST System Diagram

13.7

WIRE DIAGRAM

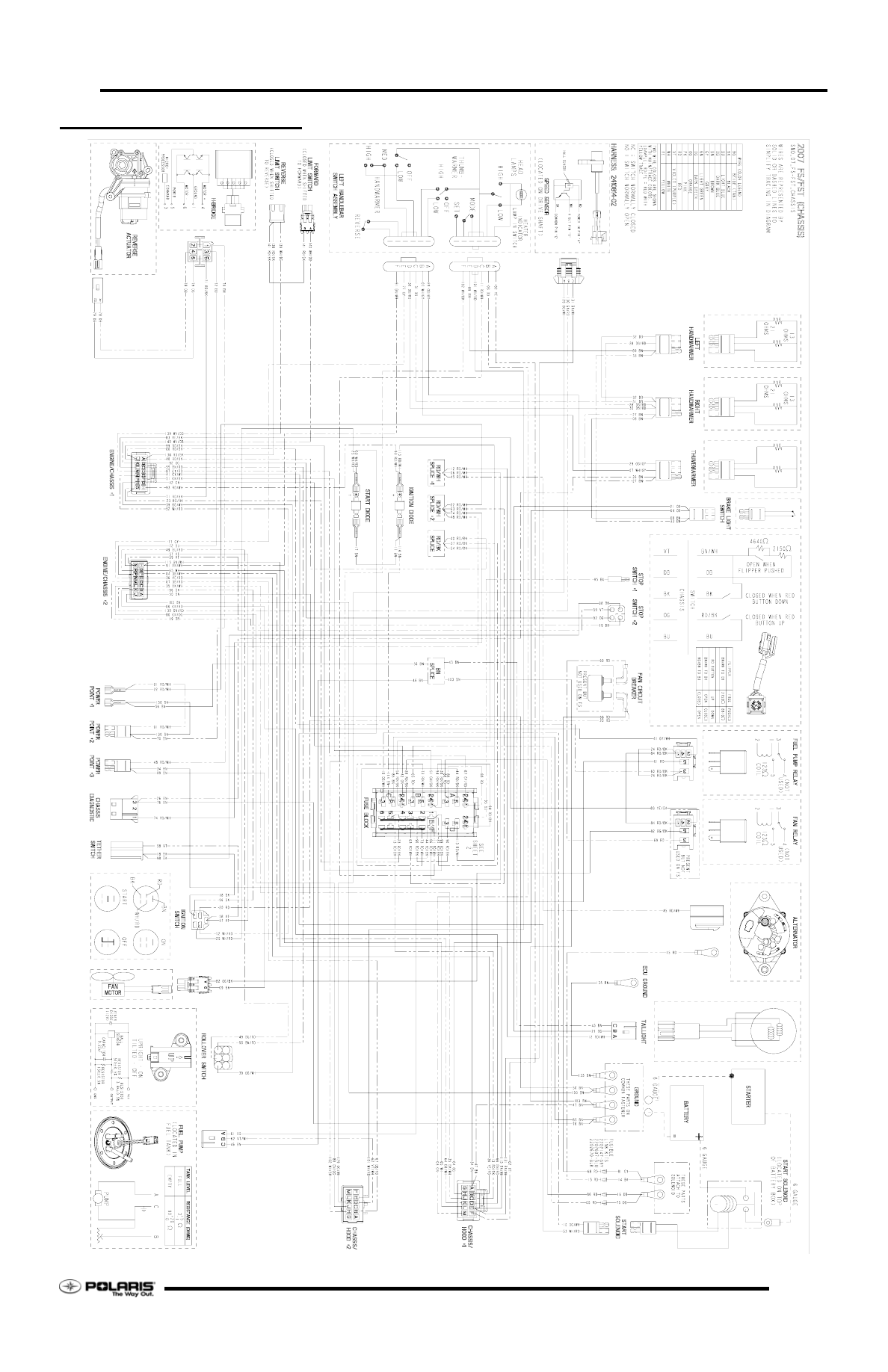

2007 FS / FST Chassis 1 of 2

13.8

WIRE DIAGRAM

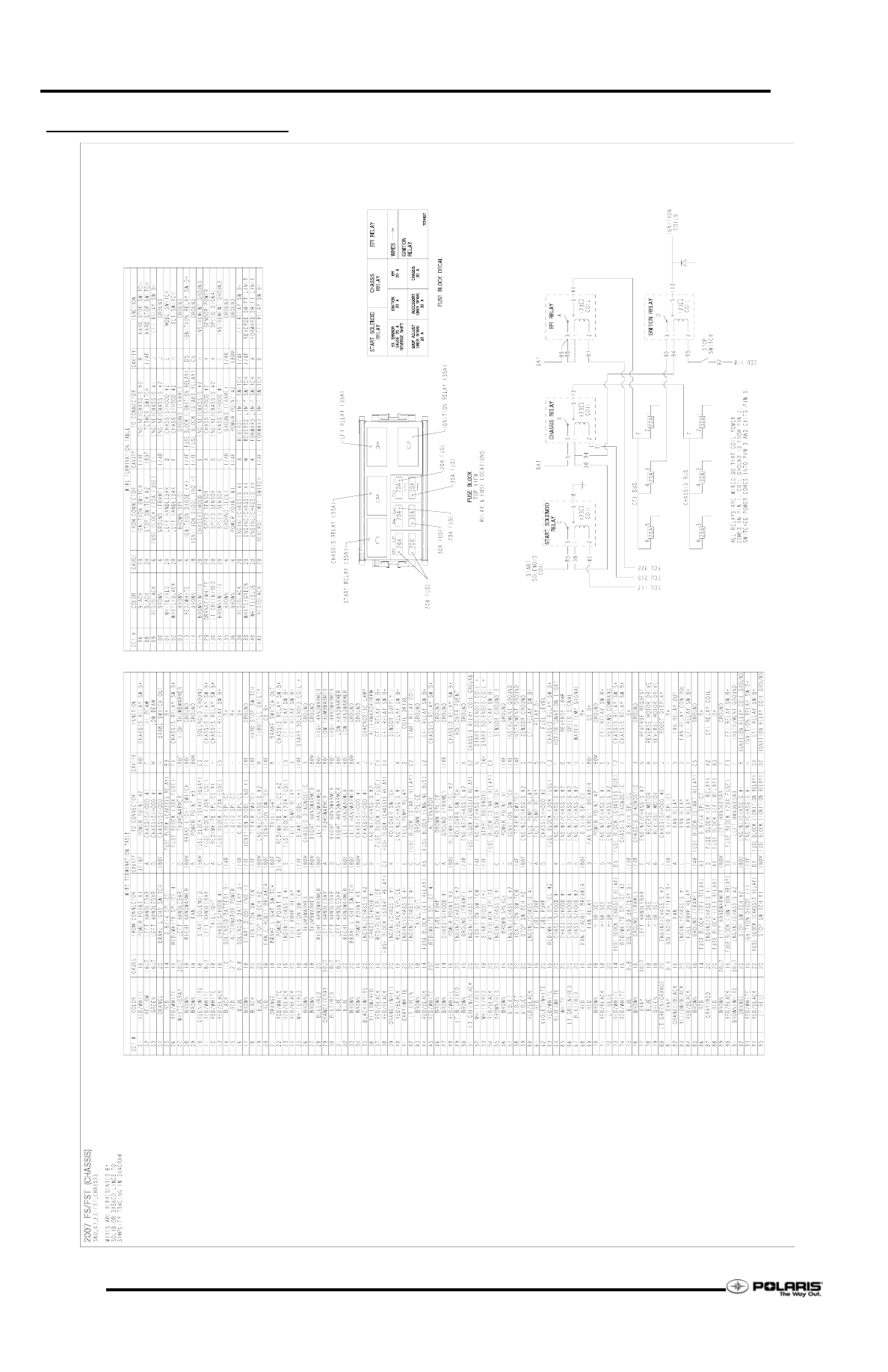

2007 FS / FST Chassis 2 of 2

13.9

WIRE DIAGRAM

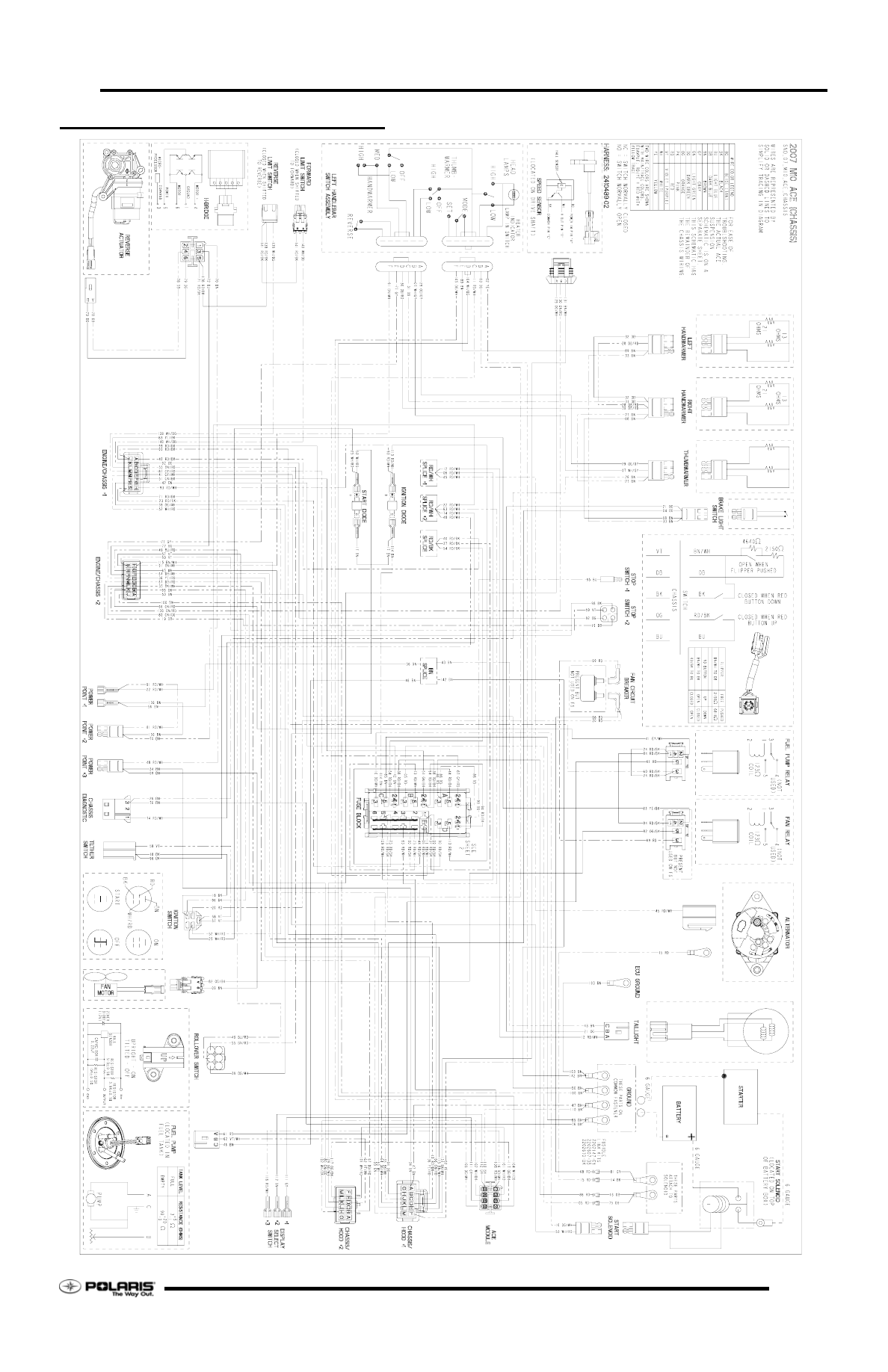

2007 FS / FST M10 ACE Chassis 1 of 2
