82

MAINTENANCE

Lubrication

Rear Suspension

Lubricate the suspension pivot shafts with POLARIS Premium All Sea-
son Grease at the intervals outlined in the Periodic Maintenance Table
beginning on page 78 and before seasonal storage. When operating in
heavy, wet snow conditions, lubricate every 500 miles (800 km).

Lack of lubrication will adversely affect your ride and the life of the sus-
pension. For more information about suspension lubrication and adjust-
ments, see your POLARIS dealer.

X

X

X

X

X

X

83

MAINTENANCE

Lubrication

Chaincase Oil

Check and change the chaincase oil at the intervals outlined in the main-
tenance charts beginning on page 77. Maintain the oil level at the top of
the fill plug hole. POLARIS recommends the use of POLARIS Syn-
thetic Chaincase Lube. See page 116 for the part numbers of POLARIS
products.

Oil Level

1. Position the vehicle on a level

surface.

2. Remove the fill plug.

3. Using a funnel, slowly add the

recommended oil until the fluid
begins to overflow.

4. Wipe the fill area with a clean

cloth.

5. Reinstall the fill plug. Torque to

6-10 ft. lbs. (8-13 Nm).

Oil Change

1. Position the vehicle on a level surface.

2. Place a drain pan under the drain plug. Remove the drain plug.

Allow the oil to drain completely.

3. Clean off all metal shavings from the plug.

TIP: The sealing surfaces on the drain plug and the oil tank should be clean and

free of burrs, nicks or scratches.

4. Reinstall the drain plug. Torque to 6-10 ft. lbs. (8-13 Nm).

5. Remove the fill plug. Clean off all metal shavings from the plug.

6. Using a funnel, slowly add the recommended oil until the fluid

begins to overflow. Fluid capacity is 9 oz. (266 ml).

7. Wipe the fill area with a clean cloth.

8. Reinstall the fill plug. Torque to 6-10 ft. lbs. (8-13 Nm).

Fill Plug

84

MAINTENANCE

Lubrication

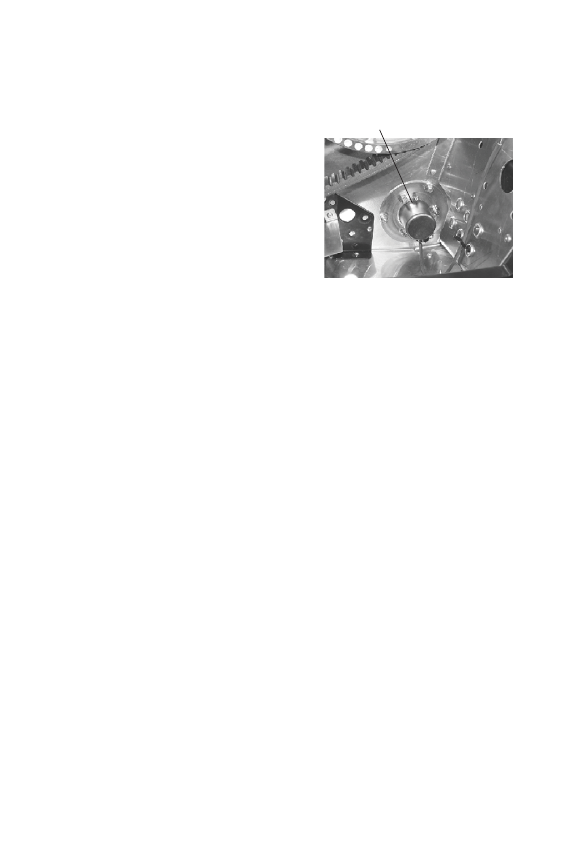

Driveshaft Bearing (RMK/ASSAULT RMK)

Inject grease into the fitting on the
speedometer sensor housing until
grease purges from the seal on the
inside of the tunnel. This should take
approximately two pumps. Do not use
more than four pumps.

Fitting

85

MAINTENANCE

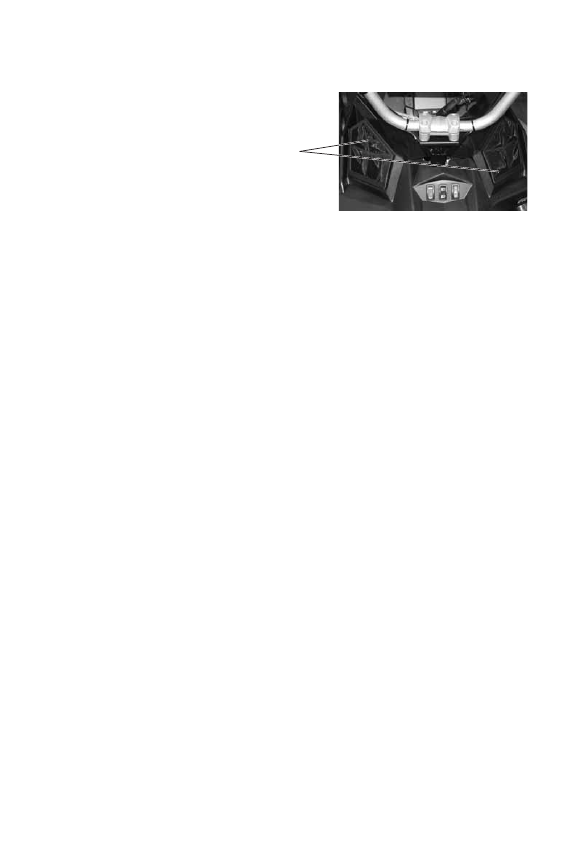

Intake Filters

The intake foam filters
limit snow ingestion into
the intake system. When
operating in loose powder
snow, check the foam fil-
ters periodically to
remove any accumula-
tion of snow.

Fuel Pump

All fuel pump service must be performed by an authorized POLARIS
dealer. Do not attempt to service the fuel pump.

Fuel Filter/Fuel Lines

See your POLARIS dealer for replacement of the fuel filter at the inter-
vals outlined in the Periodic Maintenance Table beginning on page 78.

Contaminated or poor quality fuel will shorten the life of the fuel filter
and result in poor engine performance. Always store fuel in clean fuel
containers. If low fuel pressure or reduced engine performance occurs
between the recommended fuel filter service intervals, the filter may
need replacement. See your dealer.

Inspect the fuel lines regularly for signs of deterioration or damage.
Always check fuel line condition after periods of storage. Normal dete-
rioration from weather and fuel compounds may occur. Replace worn or
damaged fuel lines promptly.

NOTICE: Kinking the fuel lines or using a pliers or similar tools to remove fuel

lines may cause damage to the lines. If a fuel line has been damaged
or kinked, replace it promptly.

Intake
Filters
