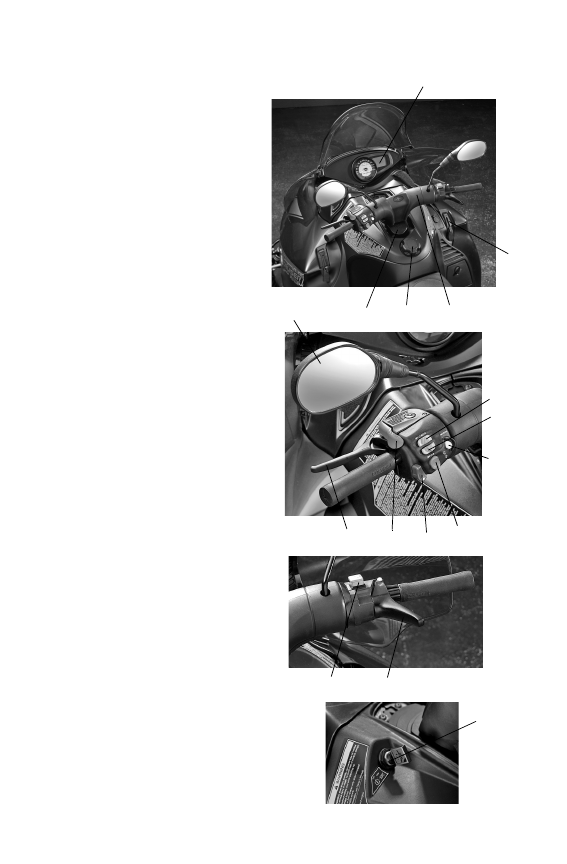

FEATURES

1. MFD Display
2. Mirrors
3. Rider Selectt
4. Fuel Filler Cap
5. Handlebar
6. Hood Hold Down

Straps

7. Handlebar Grip Warmer

Switch

8. Thumbwarmer Switch
9. Electronic Reverse

Button

10. MFD Control
11. Headlight Dimmer

Switch

12. Parking Brake Lock
13. Brake Lever
14. Engine Stop Switch
15. Throttle Control
16. Ignition Switch

16

1

13

14

15

12

7

8

9

10

11

3

1

6

4

5

30

FEATURES

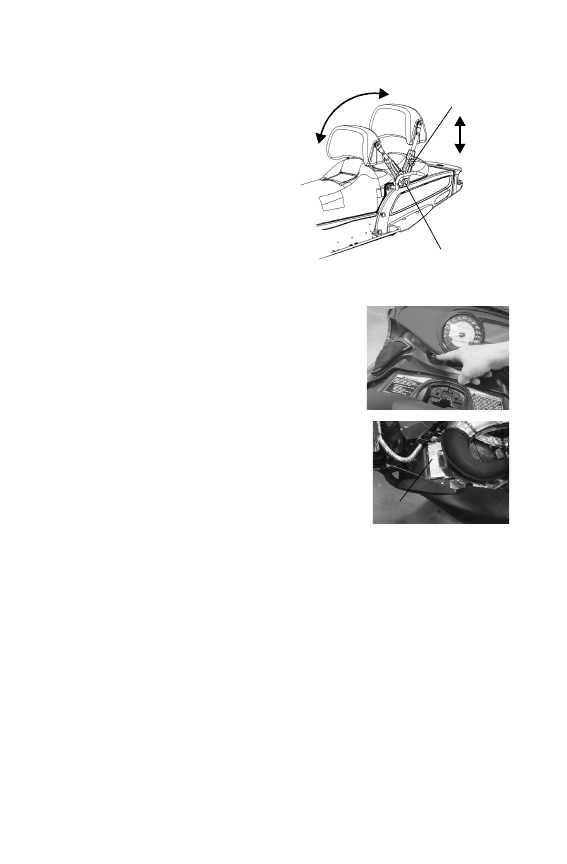

Backrest

The backrest is adjustable for either

operator or passenger use.
1. Loosen the upper adjustment

knobs to raise or lower the

backrest.

2. Loosen the lower adjustment

knobs to move the backrest for-

ward for operator use or rear-

ward for passenger use.

3. Always tighten the knobs

securely after adjusting.

Adjustable Headlights

Move the adjuster to the left to lower the

headlight beam.
Move the adjuster to the right to raise the

headlight beam.

Radiator Compartment

Access Panel

The access panel is provided for cleaning

debris from the radiator.

Operator/Passenger

Raise/Lower

+

31

FEATURES

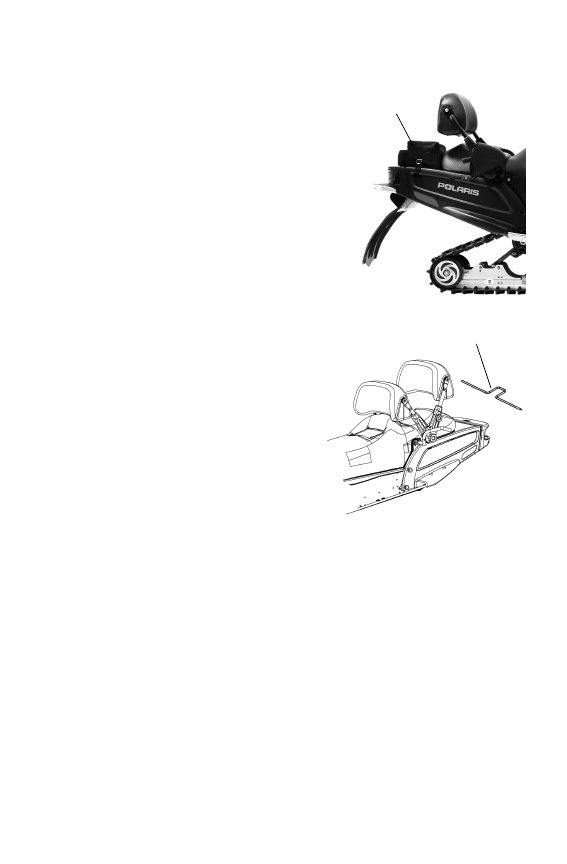

Cargo Bag

The cargo bag is secured to the rear of

the tunnel with straps. The cargo bag

and the passenger seat are removable to

provide open storage for transporting

larger items. The maximum weight

capacity for the cargo area is 30 lbs.

(14 kg). Always secure cargo before

operating. Do not exceed the weight

limit. Do not allow a passenger to sit on

the seat back or the cargo area.
1. Remove the cargo bag.
2. Push down on the seat latch lever,

which is located at the lower rear

of the passenger seat.

3. Lift up the seat and remove it from

the chassis.

4. Reverse the procedure to reinstall

the seat. Press down firmly on both

sides of the seat to engage the

latch. Verify that the latch is

engaged by firmly pulling the seat

upward.

Cargo Bag

Seat Latch

32

FEATURES

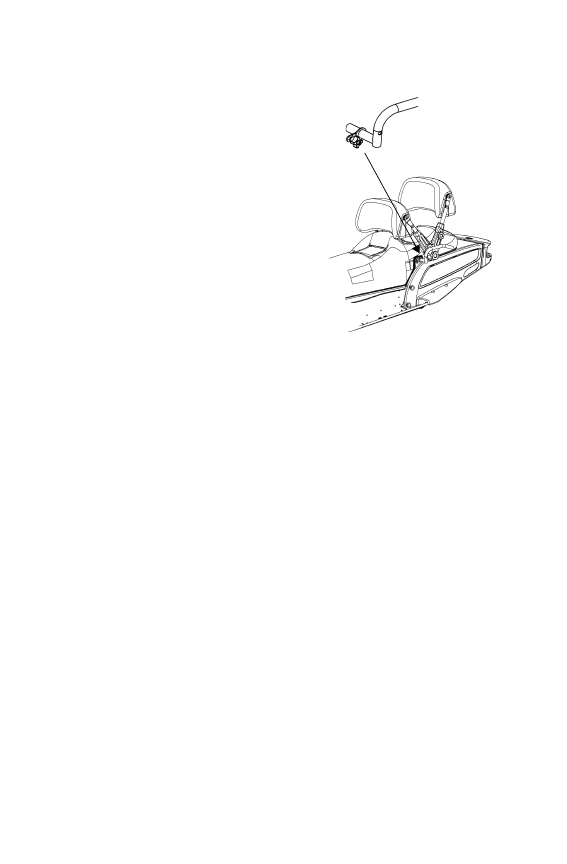

Passenger Grab Handle

On some models the position of the

passenger grab handles can be

adjusted for rider preference.
1. Unscrew and remove the knob

assemblies that secure the grab

handles.

2. Reposition the grab handles to

one of the three available posi-

tions on the grab handle tube

between the operator seat and the

passenger seat.

3. Reinstall the knob assemblies and

tighten securely.

Knob

Assembly
