98

MAINTENANCE

Track



Track Tension

Track adjustment is critical for proper handling. Always maintain cor-

rect tension and alignment.

NOTE: Tension adjustments should be made only after the track is

warmed up and limber.

1. Turn the engine off.
2. Lift the rear of the machine and safely support it off the ground.
3. Place the recommended weight or downward pressure on the track

at the specified distance (see chart) ahead of the center of the rear

idler wheel.

NOTE: Measure at the point where the weight is hanging.

WARNING

Moving parts can cut and crush body parts. When performing the checks and

adjustments recommended on the following pages, stay clear of all moving

parts. Never perform track measurement or adjustments with the engine run-

ning.

TRACK TENSION DATA CHART

Suspension

Weight

Measurement

Location

Slack

Measurement

EDGE 136

10 lbs. (4.54 kg)

16

I

 ahead of

rear idler shaft

1 1/8

I

-1 3/8

I

(2.9-3.5 cm)

99

MAINTENANCE

Track

Track Tension

4. Check for specified slack between the wear surface of the track clip

and the plastic slider. Refer to the Track Tension Data Chart on page

98.

If the track needs adjustment:

5. Loosen the rear idler

shaft bolts.

6. Loosen the locknuts.
7. Tighten or loosen the

track adjusting

screws to provide

equal adjustment on

both sides of the

track.

8. Repeat the measure-

ment on the other

side of the track.

NOTE: Check more fre-

quently when

the machine is

new.

9. Start the machine and slowly rotate the track at least five revolu-

tions. Let the track come to a stop (do not apply brakes).

10. Check track alignment (see page 100) and adjust as necessary.
11. Tighten the locknuts.
12. Tighten the idler shaft bolts.
13. (

n

) Torque idler shaft bolts to 35 ft. lbs. (47.5 Nm).

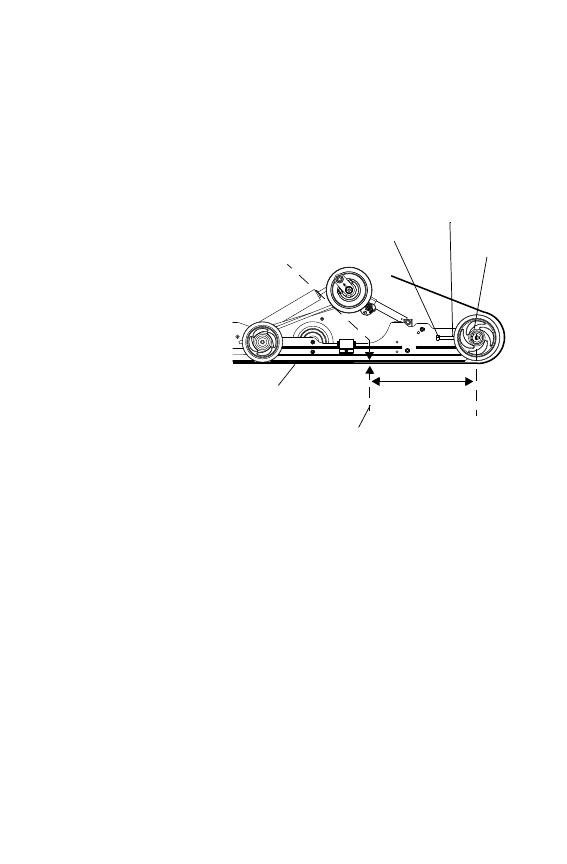

S

Slack

Measurement

Adjusting

Screw

Locknut

Shaft Bolt

Track

10 lbs. (4.54 kg)

16

I

 (40 cm)

100

MAINTENANCE

Track

n

Track Alignment

Periodically check that the track is centered and running evenly on the

slide rails. Misalignment will cause excessive wear to the track and slide

rail.

1. Safely support the rear of the machine with the track off the ground.
2. Start the engine and apply a small amount of throttle until the track

turns slowly at least five complete revolutions. Stop the engine and

let the track come to a stop (do not apply brakes).

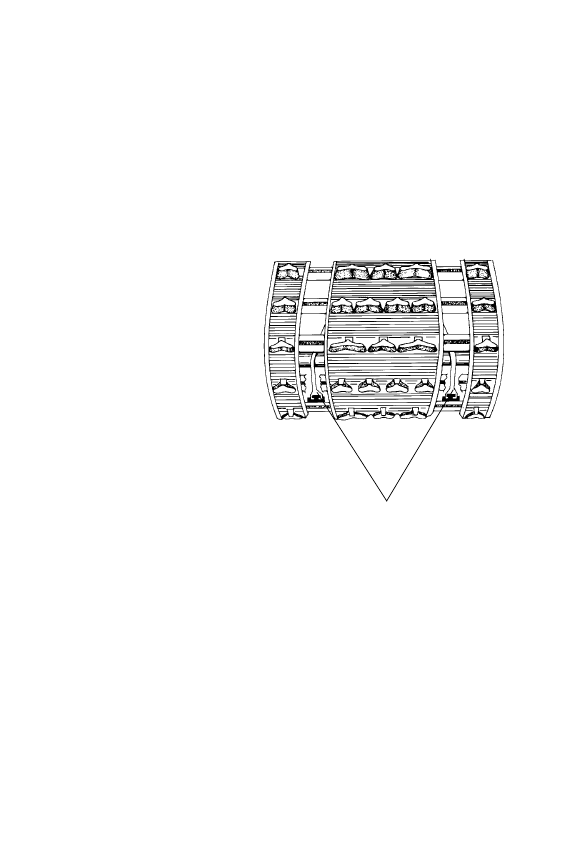

3. Inspect track alignment by

looking through the track

window to make sure the

rails (+) are evenly spaced

on each side. If the track

runs to the left, loosen the

idler shaft bolts, then

loosen the left locknut and

tighten the left adjusting

bolt. If the track runs to the

right, loosen the idler shaft

bolts, then loosen the right

locknut and tighten the

right adjusting bolt.

4. After adjustments are com-

plete, tighten the locknuts

and torque idler shaft bolts

to 35 ft. lbs. (47.5 Nm).

5. Repeat steps 2 and 3 to verify proper alignment.

+

101

MAINTENANCE

Steering System

n

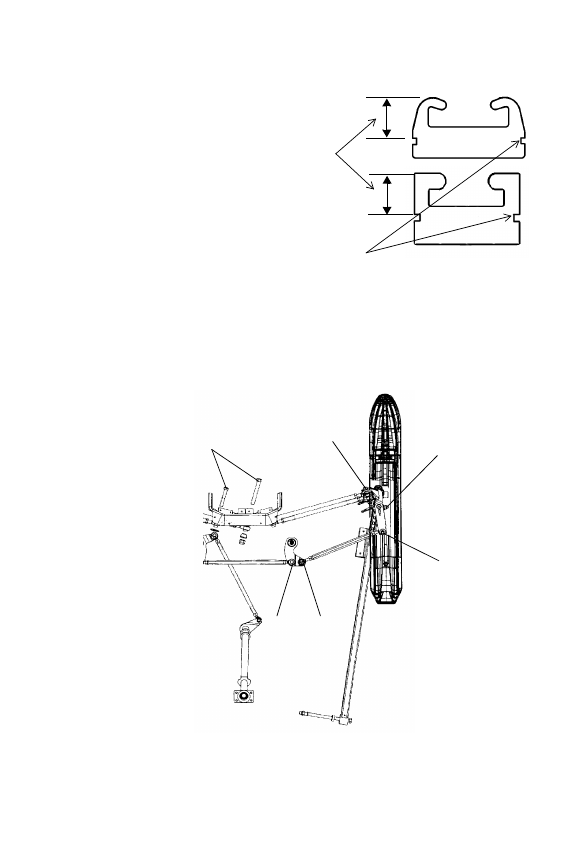

Rail Slide Wear

For ease of inspection, all

Polaris rail slides have a

wear limit indicator groove

to indicate the minimum

permissible slide thickness.

Replace the rail slides if

they are worn to the top of

the groove at any point

along their length.  Failure

to do so may result in per-

manent damage to the track

or rails.

Steering Inspection and Adjustment

Each week, or before a long ride, check all steering system fasteners and

tighten if necessary.

Minimum

Thickness

Replace when

worn to top of

groove

EDGE IFS

+

+

+

+

+

+
