EDGE 136 Rear Suspension Adjustments

Suspension Coupling

Rear To Front Coupling and the Rear Rear Scissor Stop

(RRSS)
The rear rear scissor stop (RRSS) couples the movement of the rear

torque arm with the front torque arm and limits the amount of indepen-

dent movement between the rear torque and the front torque arm.

Adjusting the RRSS either allows more weight to transfer to the rear for

more traction, or allows less weight to transfer to the rear, resulting in

improved cornering performance. An adjustment dot is located on the

RRSS. This dot is on the longest end of the scissor stop.

Moving the RRSS to a higher position will have the following effects on

the suspension:
• Reduced weight transfer.
• Improved chatter bump ride.
• Improved cornering performance.

39

THE PERFECT FIT

EDGE 136 Rear Suspension Adjustments

Weight Transfer During Acceleration

The preferred method for controlling

weight transfer during acceleration

is by adjusting the rear rear scissor

stop (RRSS). The factory setting is

the best for most trail riding condi-

tions.

To decrease weight transfer under

acceleration (for improved corner-

ing), rotate the RRSS to a higher

position.

To increase weight transfer or ski lift

during acceleration, move the RRSS

to the rearward hole on high posi-

tion. The RRSS may also be rotated

to a lower position for even more

weight transfer if desired.

Stock Position - This setting is most

desirable for trail riding.

Medium or High Position (standard

hole location) - This setting will

decrease weight transfer.

Rearward Upper Position

(optional hole location - This setting

will increase weight transfer.

NOTE: Your dealer can help you with initial setup and additional setup

instructions to help you achieve your optimum ride. A scissor

stop tool is also available from your dealer.

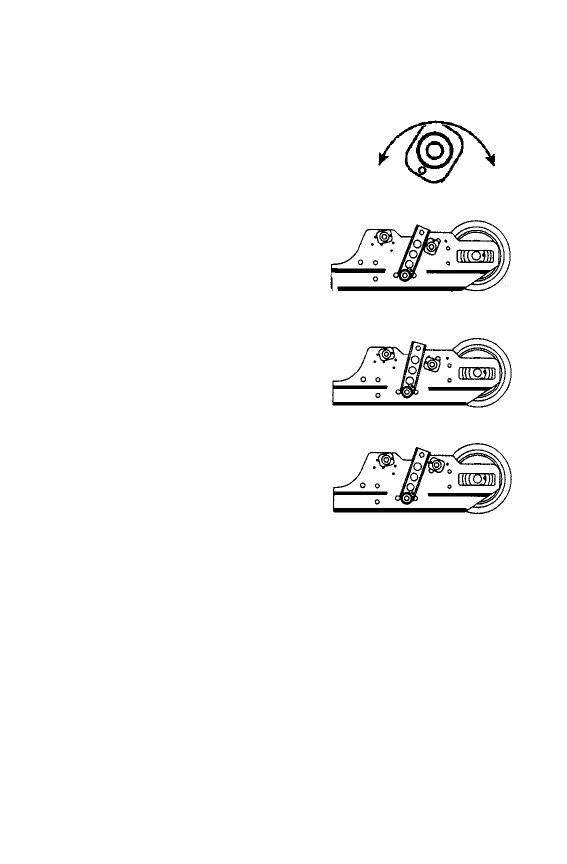

Medium/High

Stock

Rearward Upper

40

THE PERFECT FIT

Handlebar Adjustment

Follow these steps to adjust handlebar angle at the handlebar block.

1. Remove the handlebar cover

to expose the handlebar and

the four adjuster block bolts.

2. Using a 7/16-inch wrench,

loosen the four nuts on the

bottom of the adjuster block

(turn the handlebar either left

or right for access to the rear

nuts).

NOTE: If necessary, pry the

blocks apart with a

screwdriver.

3. Adjust the handlebar to the

desired angle. Be sure the

handlebar, brake lever and

throttle lever operate

smoothly and do not hit the

gas tank, windshield or any

other part of the machine when the handlebar is turned fully to the

left or right.

4. Torque the front bolts first, then torque the rear bolts. Torque the

bolts to 11-13 ft. lbs. (15-18 Nm).

5. Reinstall the handlebar cover.

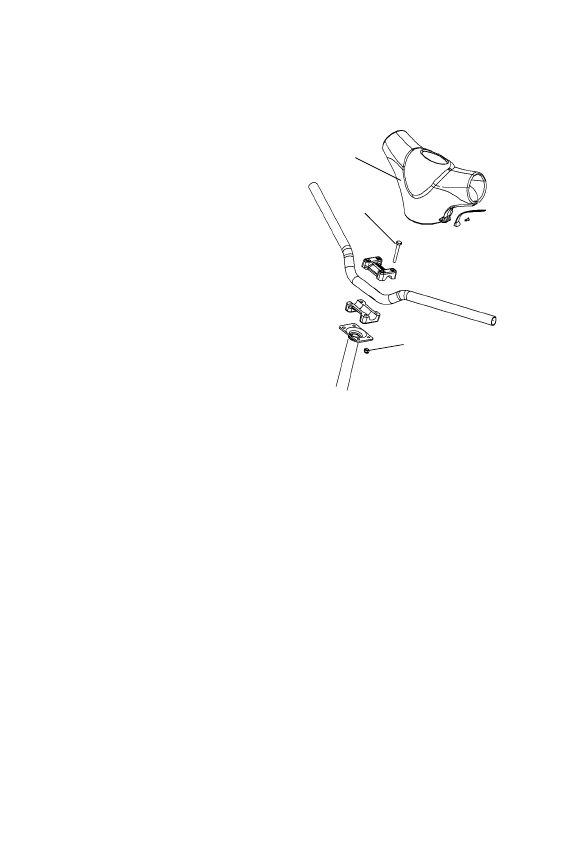

Cover

Nuts

Bolts

41

THE PERFECT FIT

Traction Products

Studs

Before equipping your machine with traction products, be aware of the

laws in your area pertaining to the use of traction products. See your

dealer about installing studs and/or carbides. Many tracks with deep lug

designs cannot be studded, but your dealer will be able to offer advice

and assistance.

Use only Polaris traction products on your snowmobile. Track warran-

ties are void if track damage or failure results from improper or exces-

sive stud installation or the use of non-Polaris traction products.

See your dealer about installing studs and/or carbides.

Track studding will enhance braking control on hard-packed snow or

ice, but extreme caution is still required on such surfaces. Steering abil-

ity may be reduced on hard-packed snow or ice.

When studded tracks are used, increased wear to the brake pads will

result from increased braking. Extended-wear brake pad kits are avail-

able. See your dealer.

CAUTION

Always install wear strips before installing studs. Failure to install wear strips

may result in cooler or tunnel damage. See page 43.
Never add shims to the wear strip. Track damage will result because of lack

of clearance between upper carrier wheels and track.
Use of studs longer than the recommended length on machines equipped

with center coolers will result in center cooler damage or damage to the tun-

nel.

CAUTION

Aggressive studding patterns may require grinding protruding stud bolts flush

to prevent idler wheel damage. Maintain track tension on studded tracks on

the tight side of the spec to prevent heat exchanger damage. The center of

the stud must be at least 1 1/8

I

 (2.86 cm) from the outside edge of the track.
