FEATURES

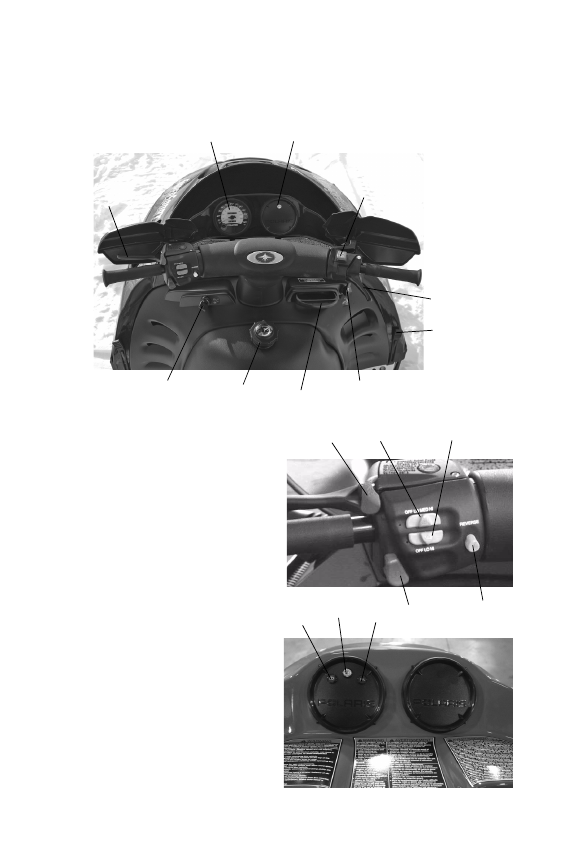

Some Polaris snowmobiles are equipped with special features. Operat-

ing controls and special feature controls are illustrated on this page. Not

all models come with all special features. See your Owner's Manual

Supplement.

1. Fuel Filler Cap

2. Ignition Switch

3. Brake Lever

4. Speedometer

5. Tachometer

6. Engine Stop Switch

7. Throttle Control

8. Hood Hold-Down Straps

9. Choke

10. Recoil Starter Handle

11. Parking Brake Lock

12. Handlebar Grip Warmer Switch

13. Thumbwarmer Switch

14. Electronic Reverse Button

15. Headlight Dimmer Switch

16. Low Oil Level Indicator (550)

17. Reverse Indicator (550)

18. High Beam Indicator (550)

1

5

2

3

4

6

7

8

10

9

General

Representation

12

15

11

13

14

550 Transport

18

17

16

27

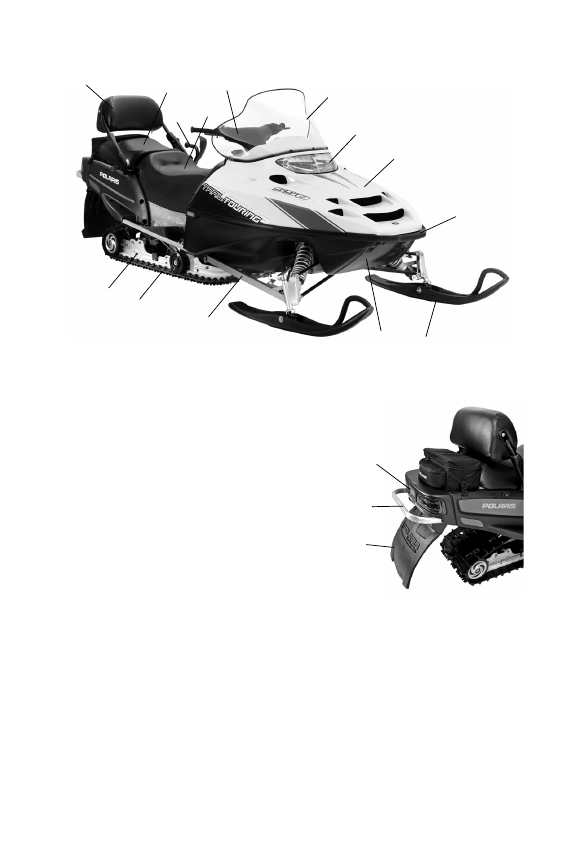

FEATURES

1. Front Bumper (do not use for pulling

or dragging the snowmobile)

2. Hood

3. Headlight

4. Windshield

5. Handlebar

6. Operator Seat

7. Passenger Grab Handle

8. Passenger Seat

9. Passenger Backrest

10. Suspension

11. Track

12. Trailing Arm

13. Nosepan

14. Ski

15. Taillights

16. Rear Bumper

17. Snow Flap

3

2

6

4

5

8

11

1

10

12

7

13

14

9

Trail Touring Shown

15

16

17

28

FEATURES

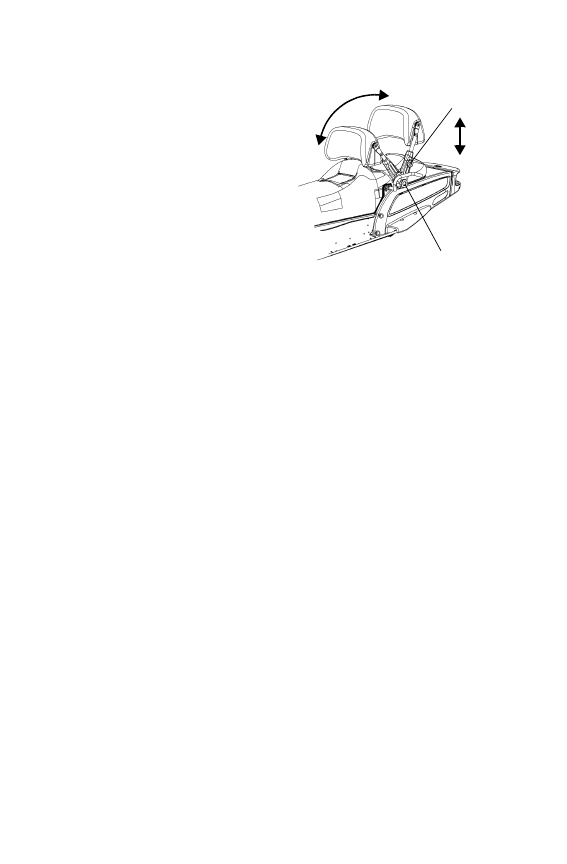

Backrest

The backrest is adjustable for either

operator or passenger use.

1. Loosen the upper adjustment

knobs to raise or lower the

backrest.

2. Loosen the lower adjustment

knobs to move the backrest

forward for operator use or

rearward for passenger use.

3. Always tighten the knobs

securely after adjusting.

Operator/Passenger

Raise/Lower

29

THE PERFECT FIT

Front Suspension Adjustments

Independent Front Suspension (IFS)

Break in the suspension for about 150 miles (240 km) before making

any fine-tuning adjustments.

Settings will vary from rider to rider, depending on rider weight, vehicle

speed, riding style, and trail conditions. We recommend starting with

factory settings and then customizing each adjustment individually to

suit rider preference. The machine should be methodically tested, one

change at a time, under the same conditions (trail and snow conditions,

vehicle speed, riding position, etc.) after each adjustment until the best

ride is achieved.

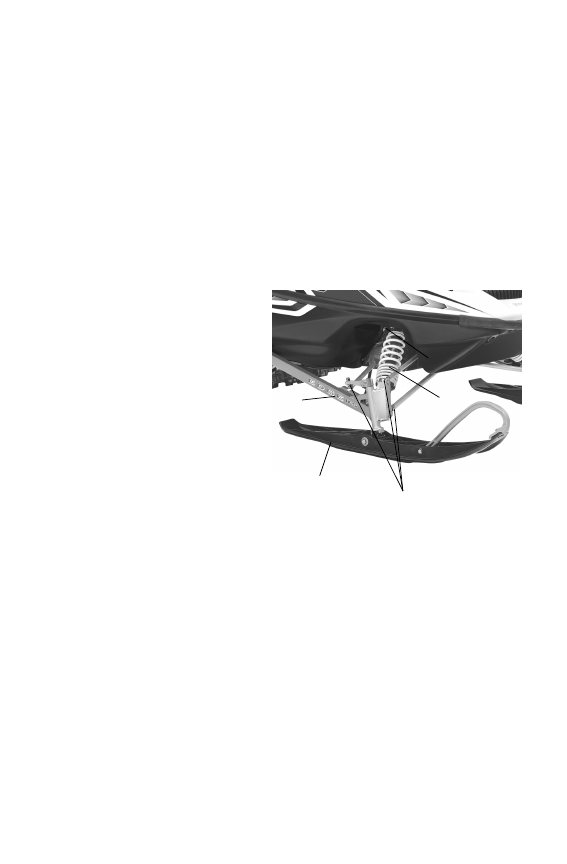

IFS Components
1. Skis
2. Front shocks and springs
3. Rod ends
4. Trailing arms

IFS Adjustment Options
• Front shock spring preload
• Optional springs
• Toe (ski alignment) (see

page 102)

• Camber (see your dealer)

2

3

4

1
