Snowmobile Polaris 550 IQ Shift / 550 IQ 136 / 550 IQ LXT (2013 year). Manual - part 22

90

MAINTENANCE

Track Maintenance

Track Alignment

Periodically check that the track is centered and running evenly on the
slide rails.  Misalignment will cause excessive wear to the track and
slide rail.

1. Safely support the rear of the machine with the track off the ground.

2. Start the engine and apply a small amount of throttle until the track

turns slowly at least five complete revolutions.  Stop the engine and
let the track come to a stop (do not apply brakes).

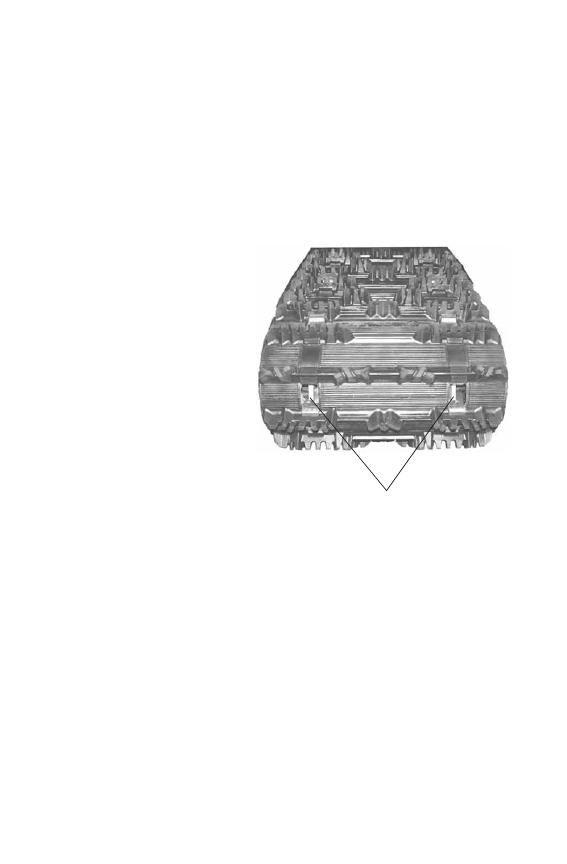

3. Inspect track alignment by

looking through the track
window to make sure the
rails (X) are evenly spaced
on each side. If the track
runs to the left, loosen the
idler shaft bolts, then
loosen the left locknut and
tighten the left adjusting
bolt. If the track runs to the
right, loosen the idler shaft
bolts, then loosen the right
locknut and tighten the
right adjusting bolt.

4. After adjustments are com-

plete, tighten the locknuts
and torque idler shaft bolts
to 35 ft. lbs. (47.5 Nm).

5. Repeat steps 2 and 3 to verify proper alignment.

X

91

MAINTENANCE

Steering System

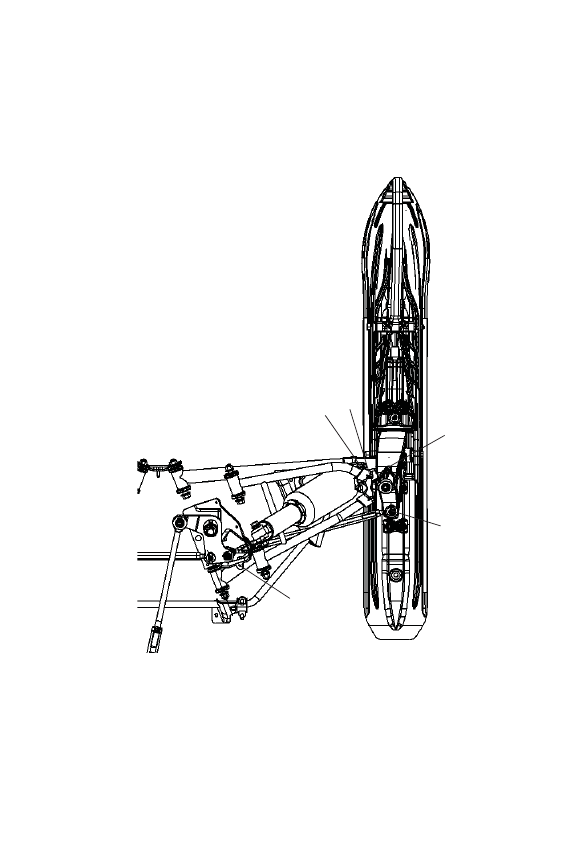

Steering Inspection and Adjustment

Each week, or before a long ride, check all steering system fasteners and
tighten if necessary.

X

X

X

X

X

92

MAINTENANCE

Steering System

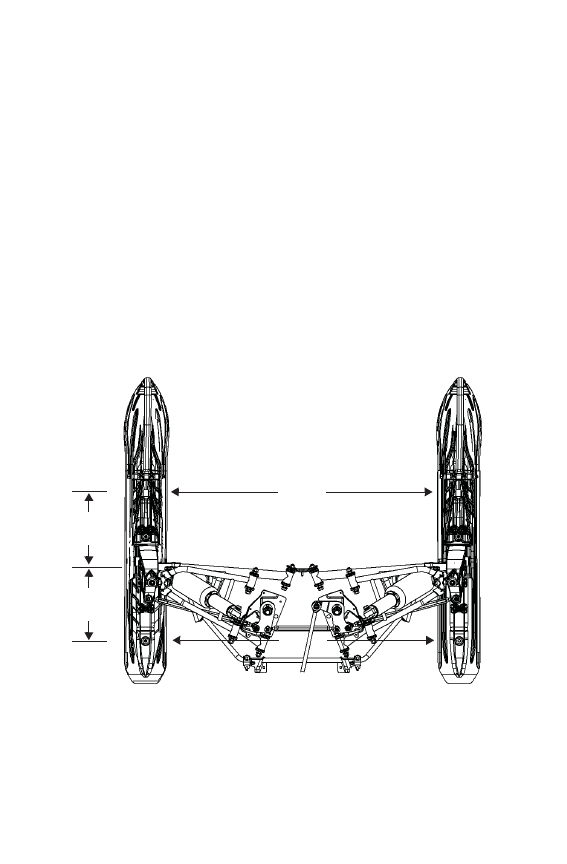

Ski Alignment

WARNING! Improper ski alignment or adjustment may cause loss of steering
control, resulting in serious injury or death. Do not attempt to change the ski
alignment or camber adjustment. See your POLARIS dealer.

1. Place the handlebars in a straight-ahead position.

2. With only vehicle weight compressing the suspension, measure 10

inches (25.4 cm) forward from the center of the ski mounting bolt.
See illustration. At this point, measure between the skis. This is
measurement X.

3. Perform the same measurement rearward from the center of the ski

mounting bolt. This is measurement Y.

4. The X measurement should be 1/8-1/4 inch (3-6 mm) greater than

the Y measurement. If the skis are misaligned, see your dealer for
alignment correction as camber adjustment may also be affected.

X

Y

10 in.

(25.4 cm)

10 in.

(25.4 cm)

93

MAINTENANCE

Steering System

Ski Skags

See your dealer's studding chart for recommended skags. If you install
longer or more aggressive carbide skags than the original equipment, it
may also be necessary to add track studs to maintain proper vehicle con-
trol while turning on hard-packed snow or ice.

WARNING! Worn skis and/or skags will adversely affect handling. Loss of
vehicle control may result, causing serious injury or death.

Check skags before each use of the snowmobile to ensure positive steer-
ing characteristics. Skags must be replaced when worn to half their orig-
inal diameter.

Tip: Carbide skags must be replaced if any abnormal wear or chipping is found.

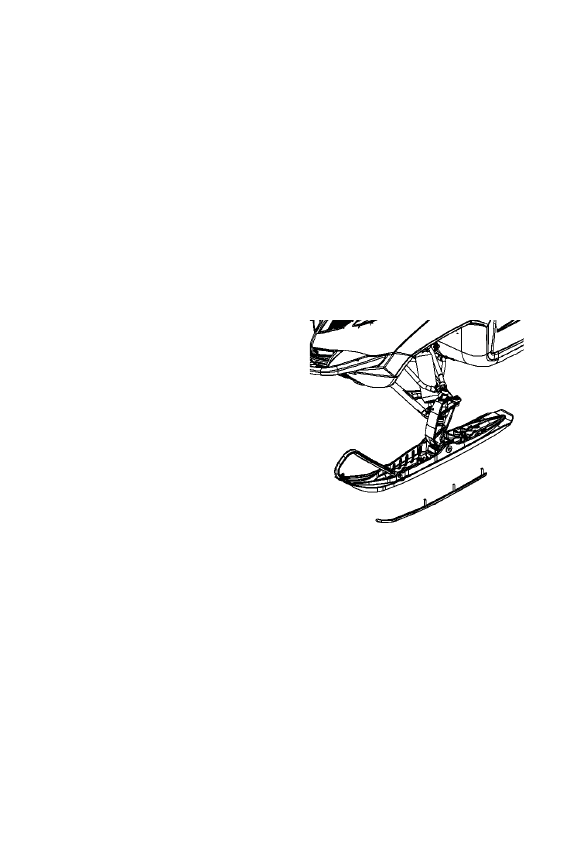

Skag Replacement

1. Raise and support the front of

the machine so the skis are
approximately 6 inches (15.2
cm) from the ground.

2. Remove the attaching nuts

and pry the skag downward.

3. Remove the rear end of the

skag.

4. Remove the front end of the

skag.

5. Reverse the steps to install a

skag.
