MAINTENANCE

Carburetor

The number stamped in the end of the main jet indicates the jet size. The
jet installed at the time of manufacture is not necessarily correct for your
elevation. It's your dealer's responsibility to make sure the correct main
jet is installed.

NOTICE: Operating the snowmobile with incorrect jetting can result in serious

engine damage. Have your POLARIS dealer perform all carburetor
adjustments to ensure all adjustments are done correctly.

Carburetor Adjustments

The frequency at which the carburetors are synchronized or balanced is
important.  Properly adjusted carburetors can greatly improve engine
performance, fuel economy, engine life, and reliability.

If you notice any of the following conditions, the carburetor may need
adjustment:
• Hard starting
• Poor idle
• Overheated pistons and cylinder walls
• Plug fouling
• Poor engine response to various throttle valve openings

75

MAINTENANCE

Carburetor Water/Sediment Trap

Most POLARIS snowmobiles contain patented carburetor bowl water/
sediment traps located at the bottom of each carburetor. The trap, con-
sisting of a hose with a plug, should be drained about every 1000 miles
(1600 km) and inspected for contamination.

WARNING! When draining the traps, fuel spillage will occur. Always work in a
well ventilated area away from anything that may cause the fuel to ignite, such
as open flames, sparks, heaters, trouble lights, cigarettes, etc. Review the fuel
warnings on page 51.

Cleaning Procedure

1. Turn the fuel valve off.

2. Place a container or shop

towels below the plug to
catch drained fuel.

3. Slide the clamp (1) away

from the drain plug (2) and
remove the drain plug from
the sediment tube.

4. Wipe residue from the plug and reinstall it.  Reposition and tighten

the clamp.

5. Repeat the draining procedure for any remaining traps.

1

2

76

MAINTENANCE

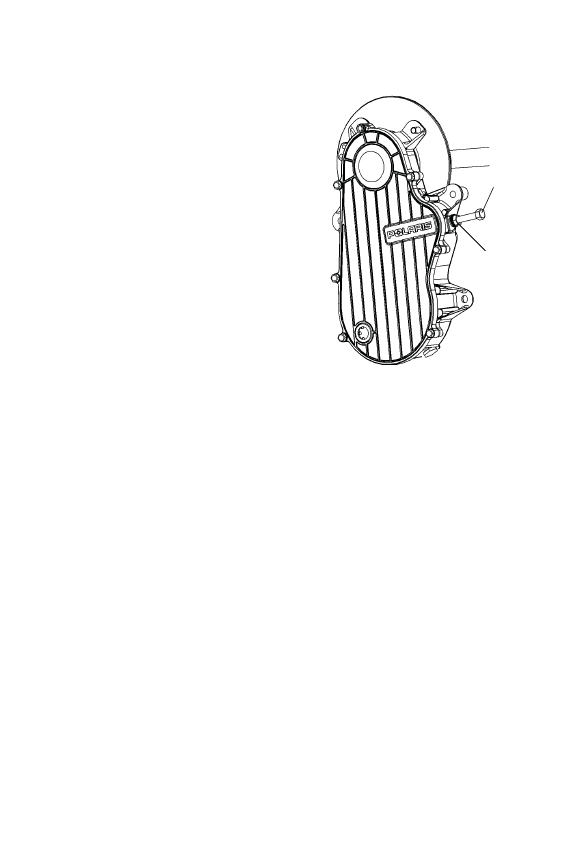

Drive Chain Tension

Check drive chain tension weekly and
before each long trip.  To obtain correct
chain tension:

1. Rotate the driven clutch counter-

clockwise to move all chain slack to
the tensioner side. Lock the brake
lever lock, or have an assistant hold
the brake lever firmly.

2. Loosen the adjuster bolt jam nut (1).

3. Finger tighten the adjuster bolt (2)

until it can no longer be adjusted by
hand, then back off 1/4 turn.

4. Tighten the jam nut while holding

the adjuster bolt.  Torque to 21 ft.
lbs. (28 Nm).

5. Release the brake lever lock.

1

1

2

77

MAINTENANCE

Brakes

Hydraulic Brake Inspection

Inspect brake lever travel before each use of the snowmobile. See page
42.

Brake pads must be replaced when the brake pad material becomes thin-
ner than the backing plate (approximately 1/16” or 1.5 mm). A kit is
available for replacing brake pads. See your dealer.

WARNING! Brake failure during operation can result in serious injury or death.
Properly functioning brakes are vital to your safety. Be sure the brake pads do
not drag on the disc and that brake lever travel is not excessive. Always replace
brake pads when the brake pad material becomes thinner than the backing plate
(approximately 1/16” or 1.5 mm

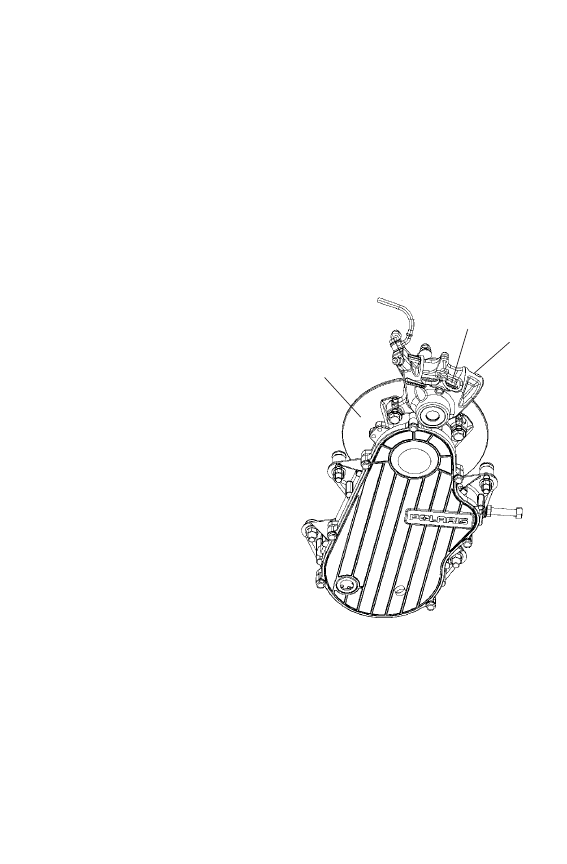

Brake Components

1. Brake Caliper

2. Brake Disc

3. Brake Pad Material

(Replace when thickness is
less than 1/16” or 1.5 mm).

Excessive Lever Travel

Hydraulic brakes are self-
adjusting, but if excessive
brake pad clearance develops,
bring the machine to an autho-
rized POLARIS dealer for
inspection and adjustment.
