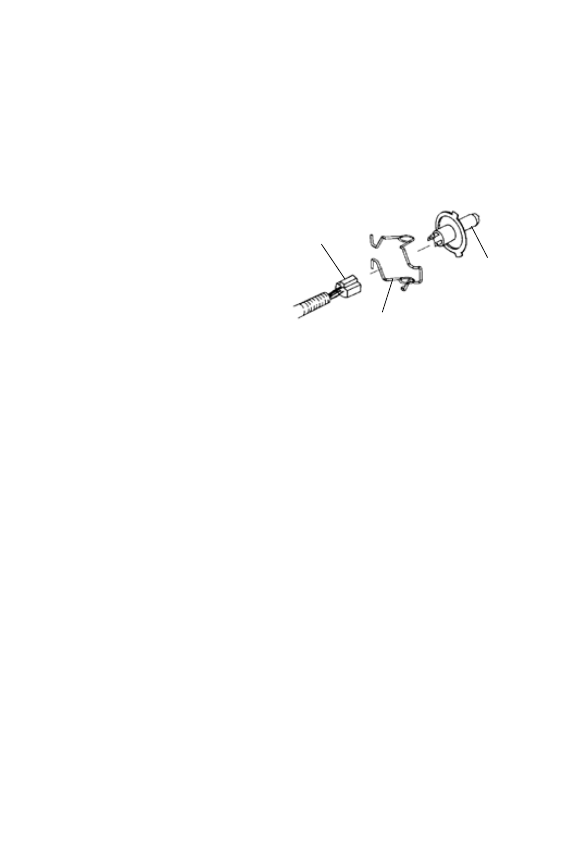

80 MAINTENANCE Lights Do not touch a halogen bulb with bare fingers. Oil from skin leaves a Headlight Bulb Removal 1. Remove the plenum covering from the headlight assembly. 2. Lift the rubber boot to expose the bulb. 3. Push down on the spring (1) to release it from the housing. 4. With the wire harness (2) attached to the bulb (3), with- 5. Grasp the bulb by its metal base and carefully separate the bulb from the harness. Headlight Bulb Installation 1. Hold the bulb by its metal base and install it into the wire harness. NOTE: Recommended replacement bulbs include H4, HB2 and 9003 bulbs. 2. Insert the bulb into the housing. 3. Connect the spring to the housing. 4. Carefully flip the spring back into the housing, placing it around the wire harness. 5. Reinstall the plenum covering on the headlight assembly. 6. Verify headlight aim. 1 2 3 |
