13.18

ELECTRICAL

IQ DETONATION ELIMINATION SENSOR
(DET)

A detonation sensor monitors the engine and responds to
detonation by automatically reducing the engine timing and
adding fuel. The activated sensor reduces engine detonation
by compensation of timing and fuel. This results in decreased
engine RPM and performance.

This sensor detects engine knock by converting pressure
pulses from the engine and converting the pulses to a voltage.
The ECU has a threshold voltage to differentiate between
normal and damaging detonation. This system operates
similar to existing DET system, but this system can
compensate with timing and fuel delivery.

13.19

ELECTRICAL

DET TROUBLESHOOTING

Use this chart to determine causes and solutions for
detonation. If none of these conditions exists and the sensor
remains activated you may need to remove the sensor from the
engine and test run the unit, and if the conditions are gone you
will need to check the possible causes again. If the conditions
remain the same you may need to replace the sensor.

EFFECT OF DET

Basic concept of the detonation system is to avoid damage to
the engine from detonation while developing the maximum
power of the engine safely. The system starts with a
predetermined engine perimeters. If the system senses
detonation that is beyond a preset limit, the system retards the
ignition timing to reduce the detonation and prevent engine

damage. When the detonation returns to a permissible level,
the system will incrementally advance the spark to increase the
output of the engine in a safe manner.

SENSOR FAIL SAFE

The Detonation Elimination Technology also includes a sensor
fail-safe system to prevent the engine from damage, when the
sensor has failed, been disconnected or is unable to detect
detonation. DET failure will add 10% injector duration and the
ECU will use other sensors. The rider will experience a loss in
power. The sensor will need to be reconnected or repaired to
once again achieve full power. Check engine light will flash 6
times if the sensor fails or becomes disconnected. The ECU
will default the DET value to a set percentage and will monitor
other sensors for reduced performance.

IQ TEMERATURE SENSOR

Resistive sensor which the resistive characteristics change due
to temperature. The ECU uses engine coolant temperature,
throttle opening and engine RPM information to adjust fuel
and ignition maps to warm up or cool down the engine.
Disconnected or Default temperature is 77.5_F (25_C).

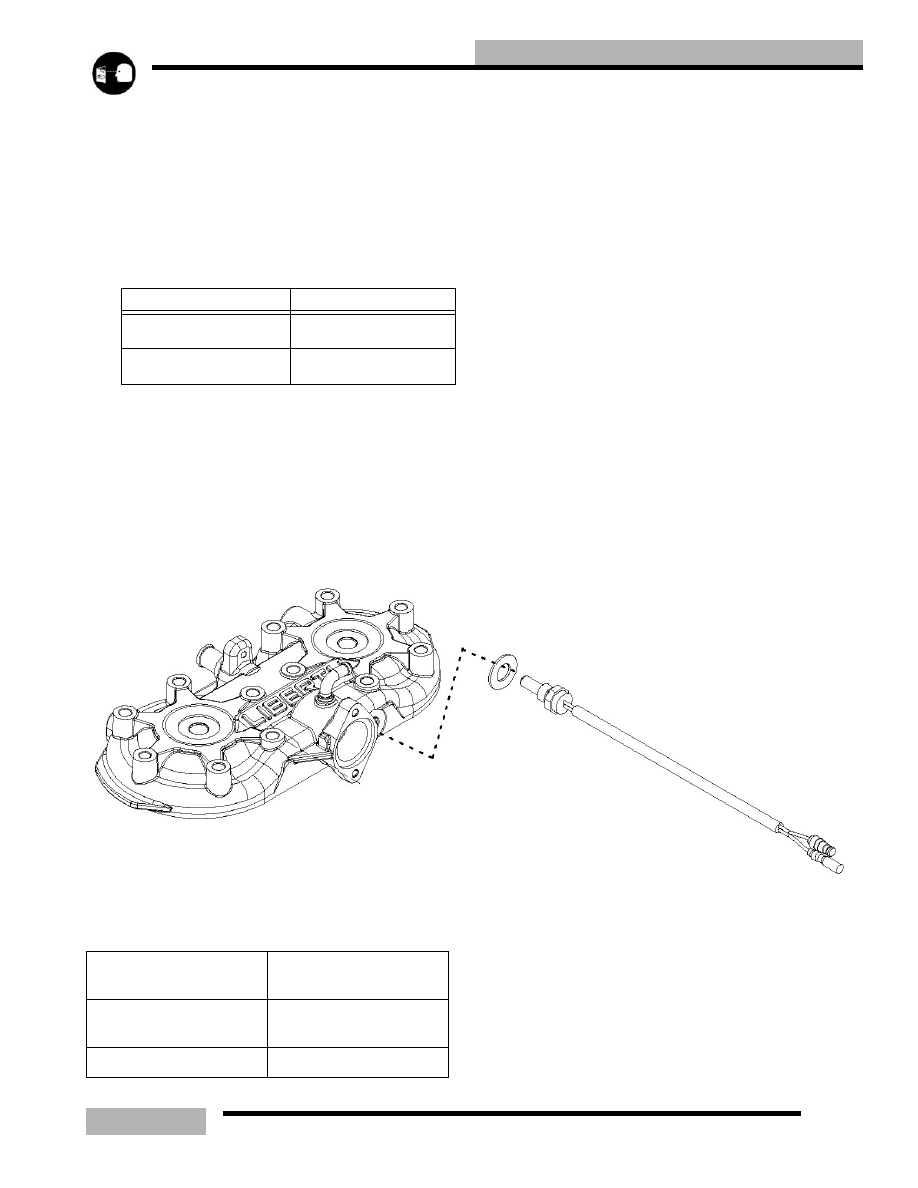

EXHAUST TEMPERATURE SENSOR

K-Type resistive sensor with resistive characteristics that
change due to temperature. The ECU senses this change in
resistance and uses this information to correct fuel and/or
timing. This sensor is difficult to measure if temperature is

Table 13-11: DET Troubleshooting

POSSIBLE CAUSE

SOLUTION

Poor quality fuel

Replace with higher
quality fuel

Improper engine
modifications

Do not modify the engine

Table 13-12: IQ Temperature Sensor

Specifications

Operating Temperature
Range

-22_F - +248 _F (-30_C -
120_C)

Resistance

2.4 - 2.6K

Ω@ 68_F

(20_C)

Installation Torque

29 ft.lbs. (39.2Nm)

13.20

ELECTRICAL

below 392_F (200_C). Disconnected or Default temperature
is 1100_F (593_C).

INTAKE AIR TEMPERATURE SENSOR

Resistive sensor with resistive characteristics that change due
to temperature. The intake air temperature sensor is located in
the lower air intake. The ECU senses this change in resistance
and uses this information to correct fuel and/or timing based
on intake air temperature. In case of circuit failure ECU goes
to calibrated default air temperature. Default temperature is -
20_F (-28_C).

BAROMETRIC PRESSURE SENSOR

Internal ECU sensor that provides ECU with Altitude
information to adjust fuel and ignition. This sensor is located
in side the ECU and is not serviceable. Default setting is 28.74
inches of mercury.

CRANKSHAFT POSITION SENSOR (CPS)

The 5 tooth crank position sensor (A) picks up all 5 flywheel
teeth (C).

The 2 tooth crank position sensor (B) picks up 2 off set
flywheel teeth (D).

Both crank position sensors will have a gap (E) to the
flywheel pick up of.035" (.90mm).

These sensors must be in the correct position or the engine
will not run as expected. A sheared flywheel key will cause
the engine to not start or kill if running.

The 2 tooth pick up detects the crank angle and obtains
minimal information of the crank angle when control enters
into limp home mode.

5 tooth pickup is to obtain the following information in
combination with the 2 tooth pickup.

• Judge direction of rotation (forward and backward)

• Ignition advance angle control

• Injector drive angle control

• Excess advance ignition control at reverse

Table 13-13: Exhaust Temperature Sensor

Specifications

Resistance

Values

2.3M

Ω @ 392_F (200_C) - 76Ω @

1652_F (900_C)

Table 13-14: Air Temperature Sensor

Specifications

Operating Temperature

Range

-22 _F - +248 _F (-30_C -

120_C)

Resistance

77_F(25_C) 9.7 - 10.3 K

Ω

13.21

ELECTRICAL

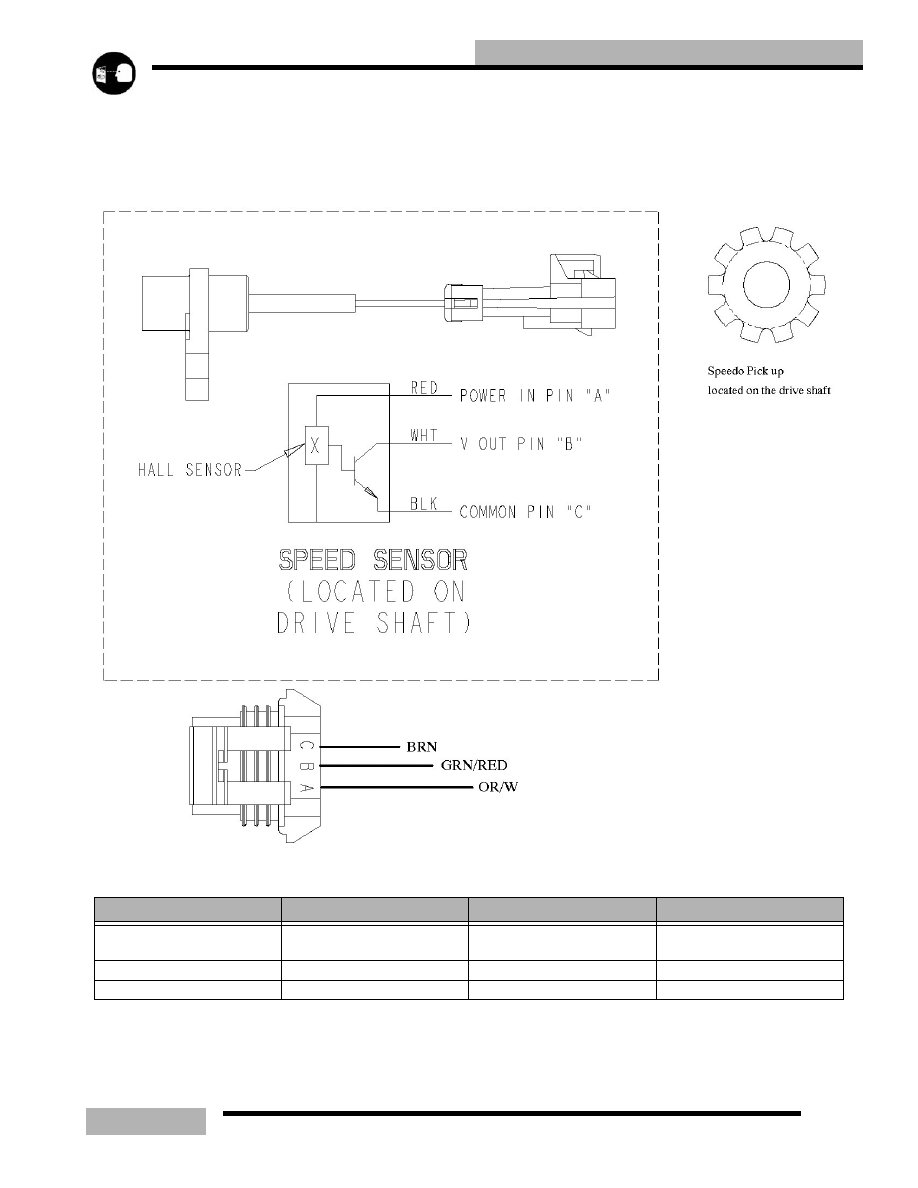

SPEED SENSOR

This is a hall effect sensor that measures the speed of the drive
shaft to give you the speed of the track.

Table 13-15: Speed Sensor Testing

PIN #

COLOR

ITEM

VALUE

A

Red

Gauge

Power 5 volts (powered bu
gauge)

B

White

Speed Signal to Gauge

Checking with Hall sensor

C

Black

Signal to Ground

Continuity to ground
