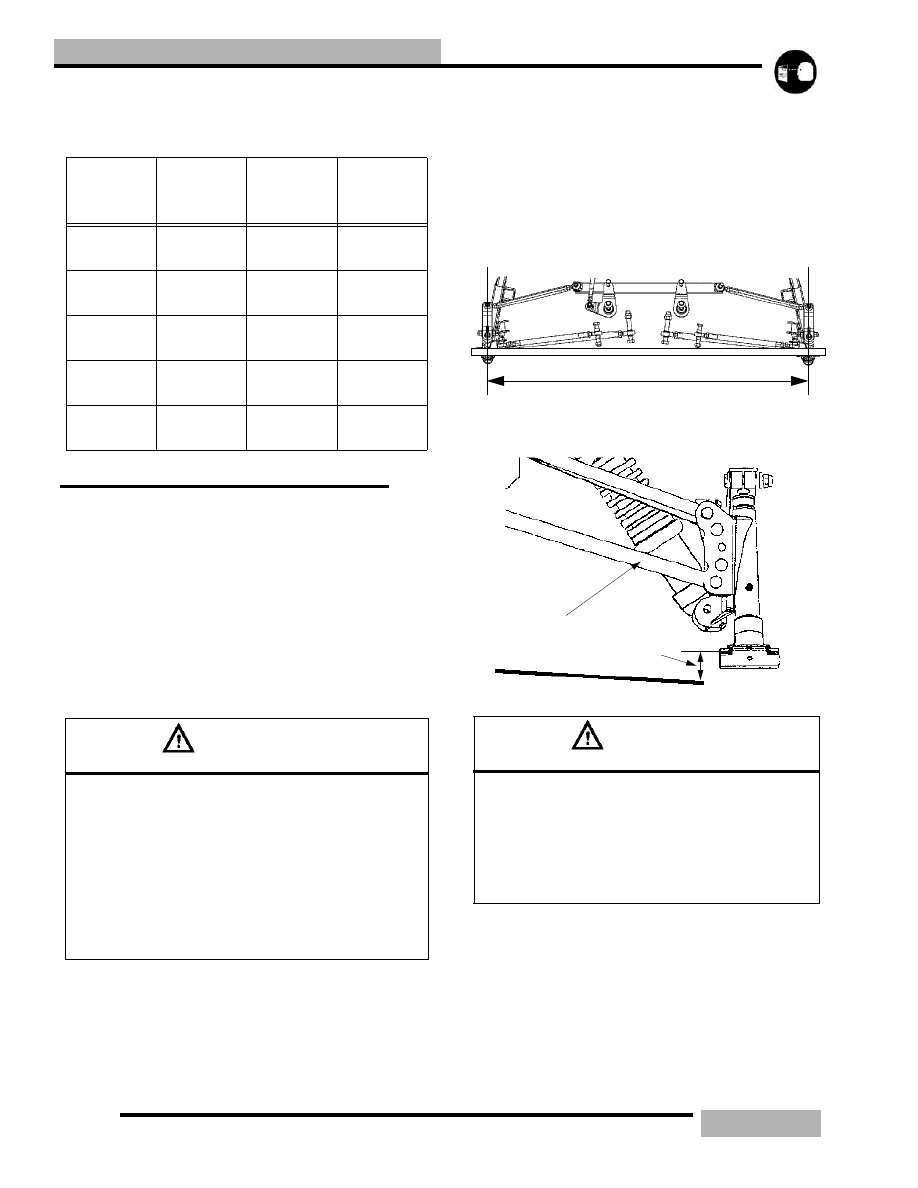

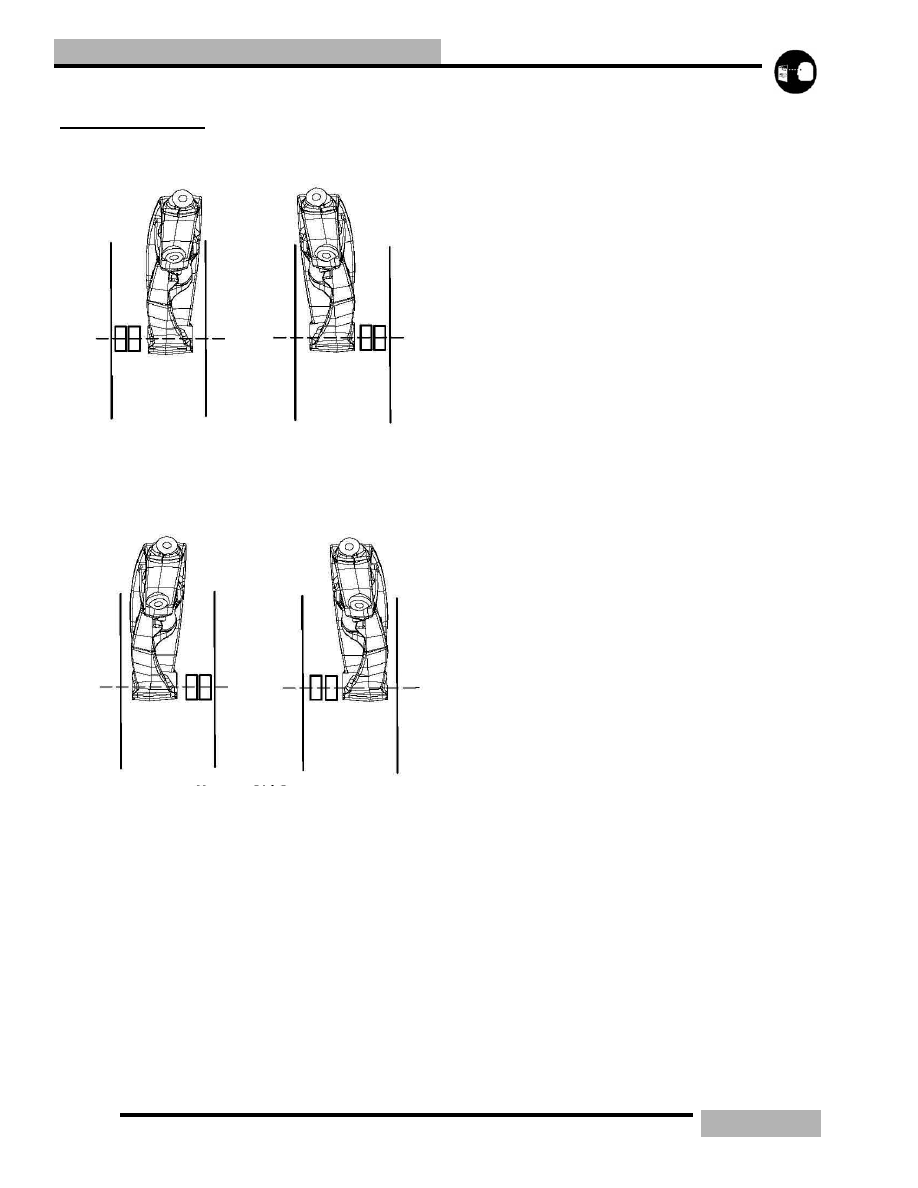

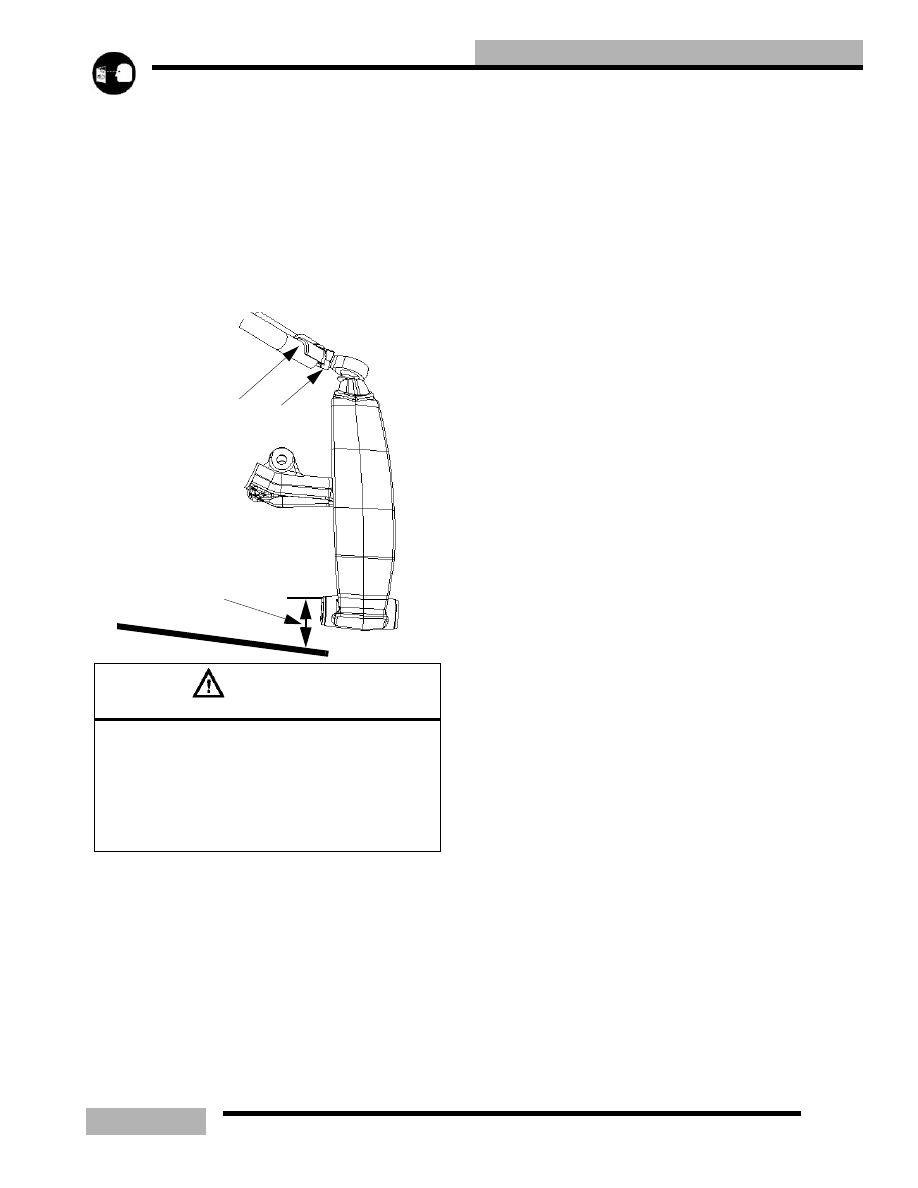

10.16 FRONT SUSPENSION/STEERING ALIGNMENT ADJUSTMENTS Alignment adjustments should be preformed in this order. EDGE SET UP WIDTH Prior to performing steering alignment, the suspension should IMPORTANT: Camber, width are dimensions that 1. Make sure that the track is properly aligned. Track 2. Support the front of the machine is at ride height. 3. Remove the skis and ski pivot bushings. 4. Disconnect the torsion bar. 5. Measure spindle to chassis centering and record the 6. The spindle centering and set up width is controlled by NOTE: Both spindle centers should be an equal EDGE CAMBER ADJUSTMENT 1. Raise the front of the machine so that the skis are off the 2. Remove the skis. 3. Determine which spindle requires the greatest amount of 4. Remove the alignment bar and install it to the opposite Table 10-9: 2006 Camber & Toe Specifications SUSPENSION MAXIMUM SET UP WIDTH in/cm (± .25in/.6cm) CAMBER in/ mm TOE OUT (At ride height) in/mm IQ 42.5 42.5/108 2.25±.31/ 57.2±7.9 0-.12/0-3.05 EDGE 42.5/108 .59±.31/ 14.97±7.9 .12-.25/3.05- 6.35 IQ RMK 41/104 2.17±.31/ 55.1±7.9 0-.12/0-3.05 Trail RMK 41/104 .735±.31/ 18.7±7.9 0-.12/0-3.05 Widetrack LX 38/96.5 .82±.72/ 20.8±18.3 0-.12/0-3.05 WARNING A maximum set up width is listed in Table 10-9 in this chapter. Maximum set up width is the maximum allow- able distance between ski spindle centers at ride height. The Maximum Set Up Width specifications are maximum width measurements, and are critical to en- sure adequate torsion bar engagement with the Trail- ing/Control Arms. If the suspension is set too wide, the torsion bar may disengage from trailing arm. Do not at- tempt to set the suspension wider than the specified maximum set up width. WARNING After camber adjustment is complete, be sure to measure set up width outlined in this chapter and compare to model specifications listed. Do not at- tempt to set suspension wider than the specified maximum set up width. If set up width exceeds maximum, adjust upper and lower radius rods equally to maintain camber adjustment. Center to center distance 1 2 |
