627333-A

3-57

Drive line

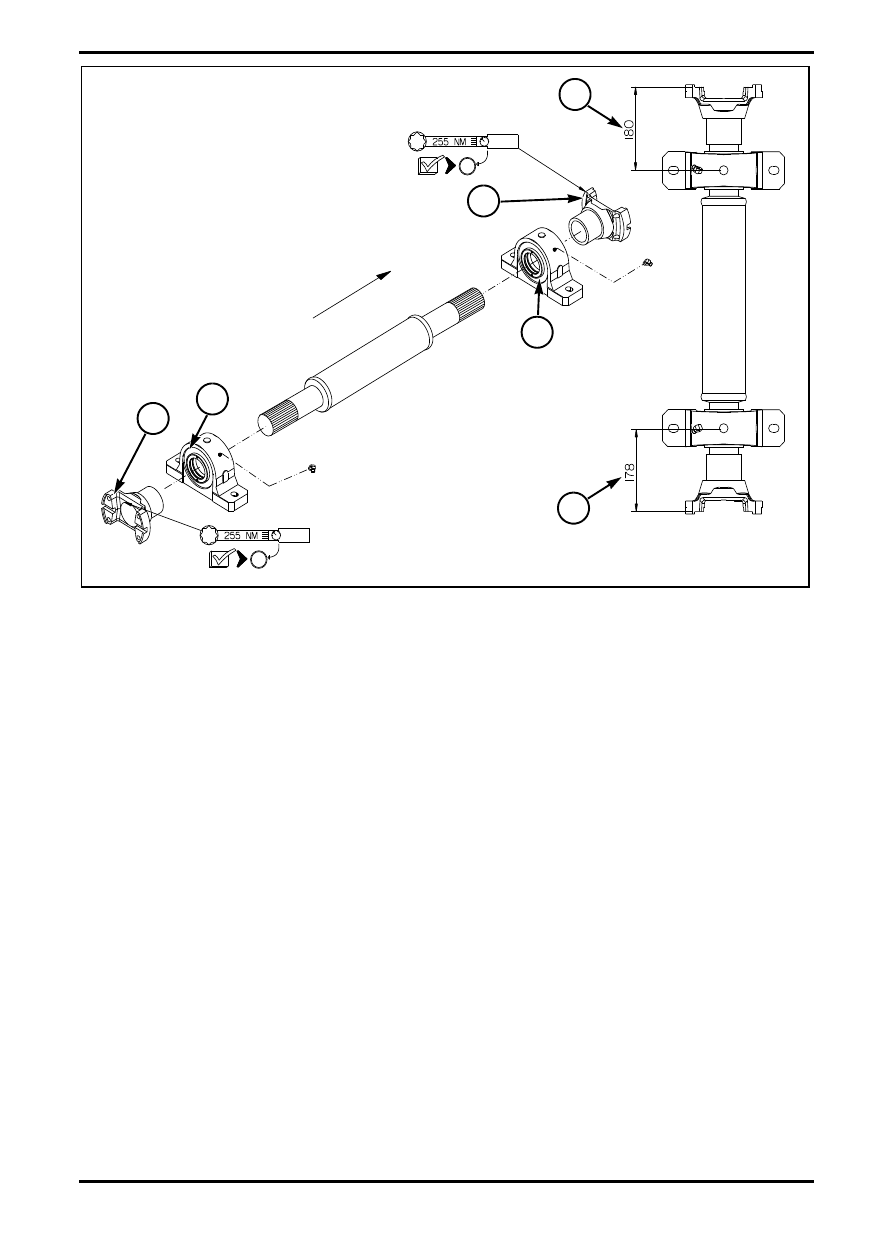

1. Measure from the face of the axle (180 mm);

2. Measure from the face of the axle (178 mm);

3. Torque the bolts of the cross bearing with 255 Nm;

Use a ring spanner.

4. Torque the bolts of the roller bearing with the

special wrench with 7,5 Nm. See “Mounting

instruction for SKF ConCentra roller bearing units,

SYNT” in the front of this chapter;

FIG. 11

Drive direction

Q000099S

1

2

3

3

4

4

Drive line

3-58

627333-A

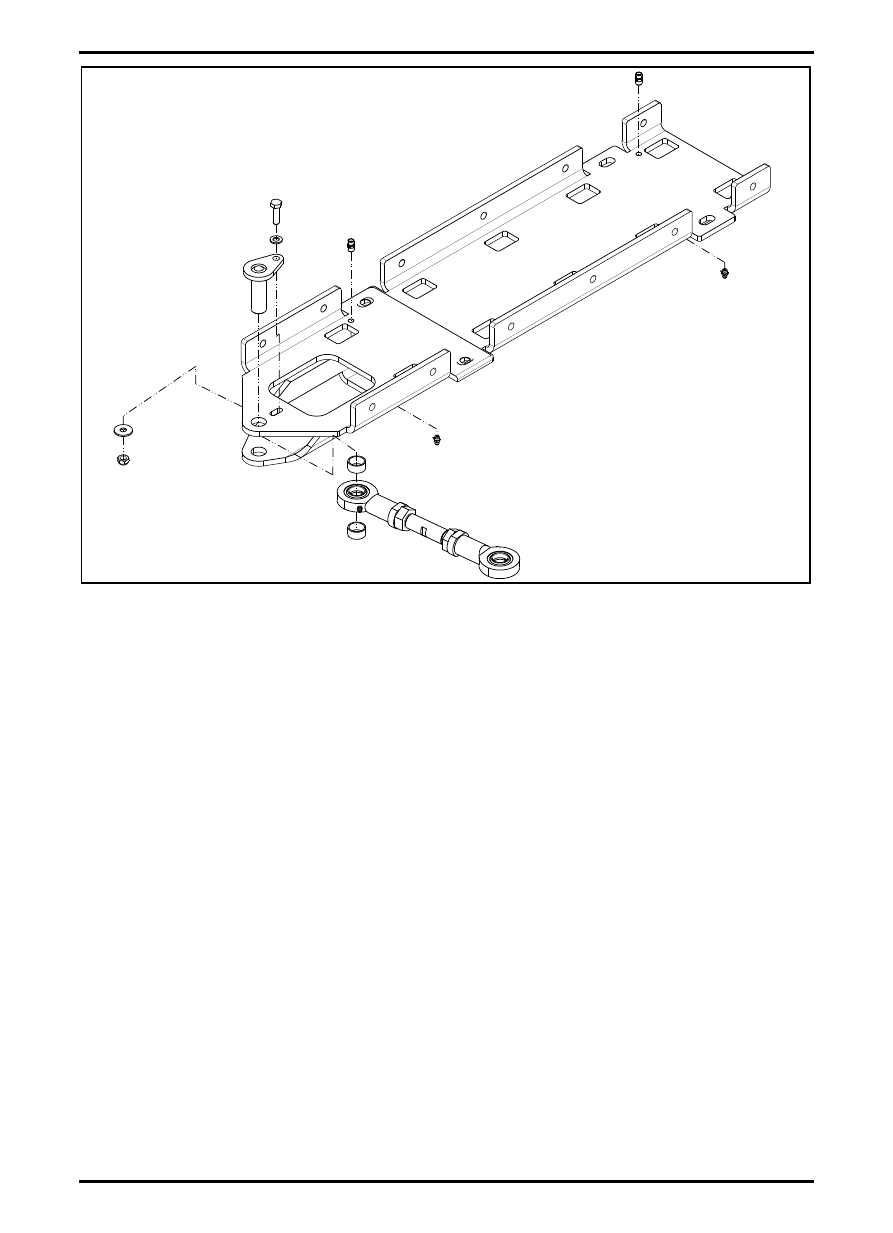

Mount the parts to the bottom of the Dog Walk Tunnel.

FIG. 12

Q000101S

627333-A

3-59

Drive line

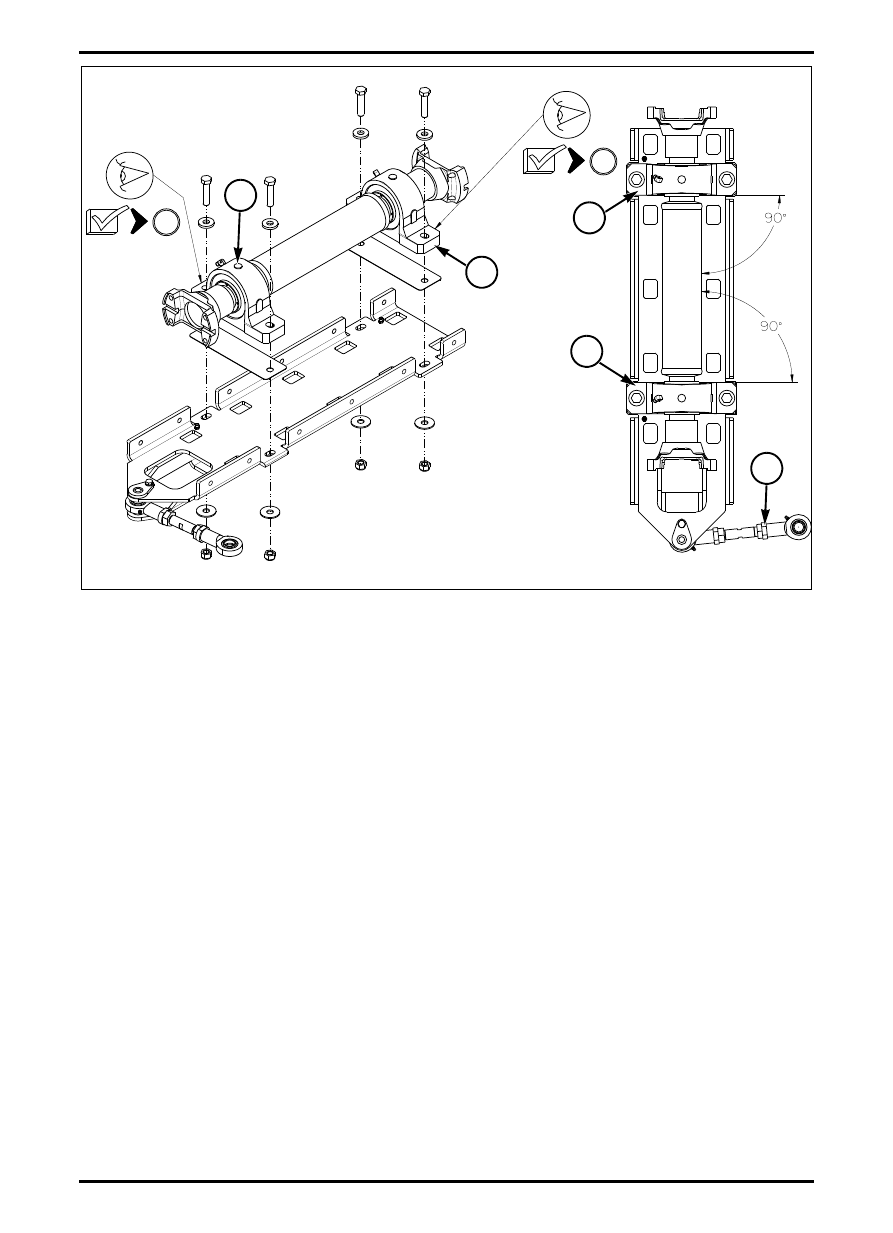

1. Fixed Bearing;

2. Sliding Bearing;

3. Position of the bearing is very important. A good

aligned position increase life time of the bearings.

The bearings have to been align horizontal and

vertical.  The horizontal alignment can be set with

the shims under the bearings

4. Adjust the bar untill the dog walk tunnel in straight

underneath the Terra Gator, when the Terra Gator

is not in Dog walk position.

FIG. 13

Q000102S

1

2

3

3

4

Drive line

3-60

627333-A

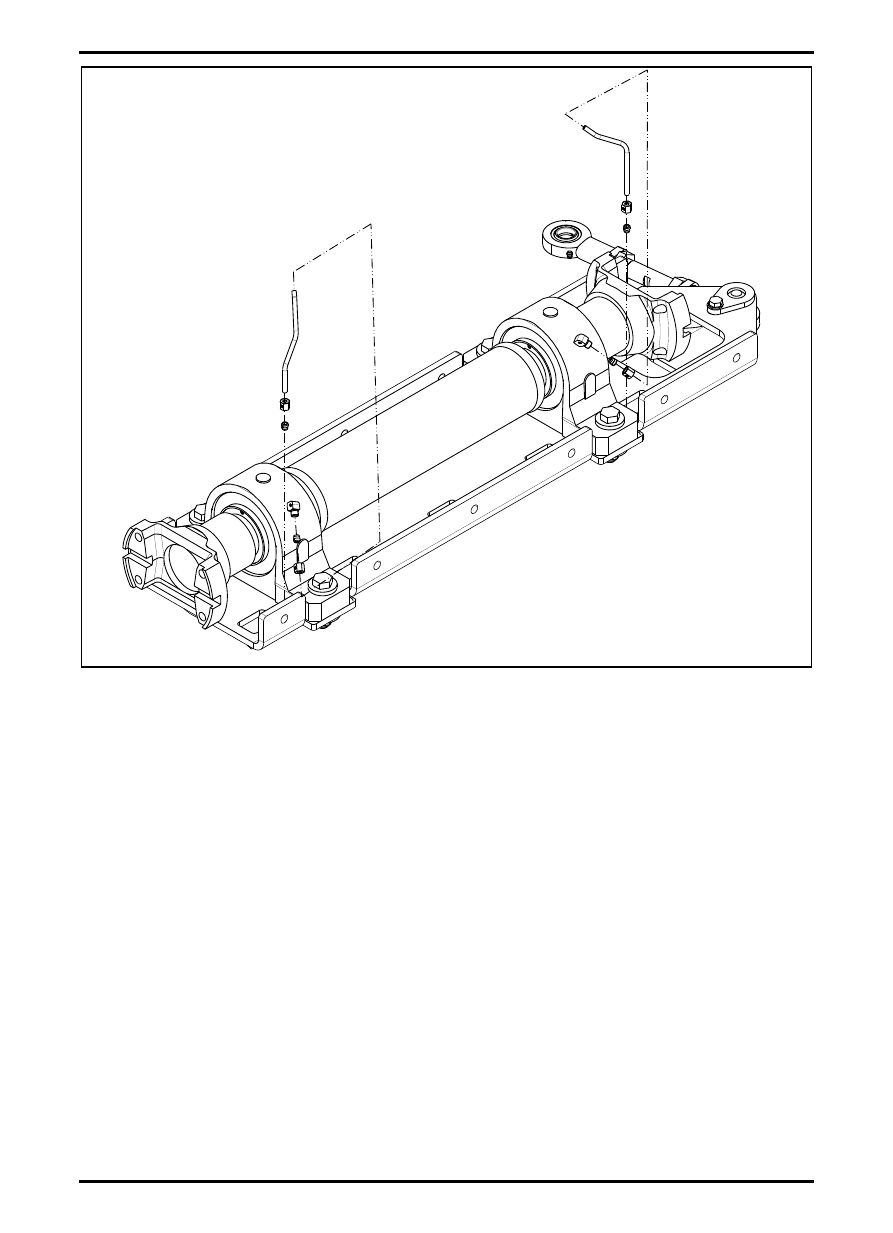

Mount the grease line the to bearings. The Grease

nipples are mount at the bottom of the Dog Walk

Tunnel.

m

WARNING: Never connect the bearing to

the central lubrication system.

FIG. 14

Q000103S
