General

GENERAL

SERVICE MANUAL

This service manual has been prepared with the latest

service information available at publication time. Read

service manual carefully before performing any service

on machine.

Right-hand and left-hand, as used in manual, are

determined by facing the direction machine travels

when in use.

Photos, illustrations and data used in manual were

current at time of printing, but due to possible

production changes, each machine can vary.

Manufacturer reserves the right to redesign and

change machine as necessary without notification.

m

WARNING: Some photographs in manual

show machine with shields removed for a

better view of subject matter. Never

operate machine with any shields

removed.

Divisions And Page Numbers

Service manual is separated into divisions. Refer to

Master Table of Contents.

Each division has an identifying part number with an

alpha revision level indicator. Each division has a Table

of Contents and an Index.

Each page is identified with division part number and

revision level. Pages are in simple numeric order within

each division.

Units Of Measurement

Measurements are given in metric units followed by

U.S. equivalent. Hardware sizes are given in

millimeters for metric and inches for U.S. hardware.

REPLACEMENT PARTS

To receive prompt efficient service, always remember

to have:

•

Correct part description and part number

•

Model and serial number of machine

General

1-38

627333-A

SERIAL NUMBER IDENTIFICATION
PLATE

Write the Serial Numbers in the spaces below. Use

these numbers when referring to the Terra Gator. The

Serial Number Identification Plate is located inside the

cab on the storage compartment panel.

Serial Number Plate Machine

FIG. 1: Serial Number Identification Plate, dealer sales

machine. (Used by machine from MY2010.)

FIG. 2: Serial Number Identification Plate, direct sales

machine. (Used by machine from MY2010.)

FIG. 3: Serial Number Identification Plate. (Used by

machine till MY2010)

FIG. 1

Q627360-C

FIG. 2

QE770002-E

FIG. 3

Q000002S

627333-A

1-39

General

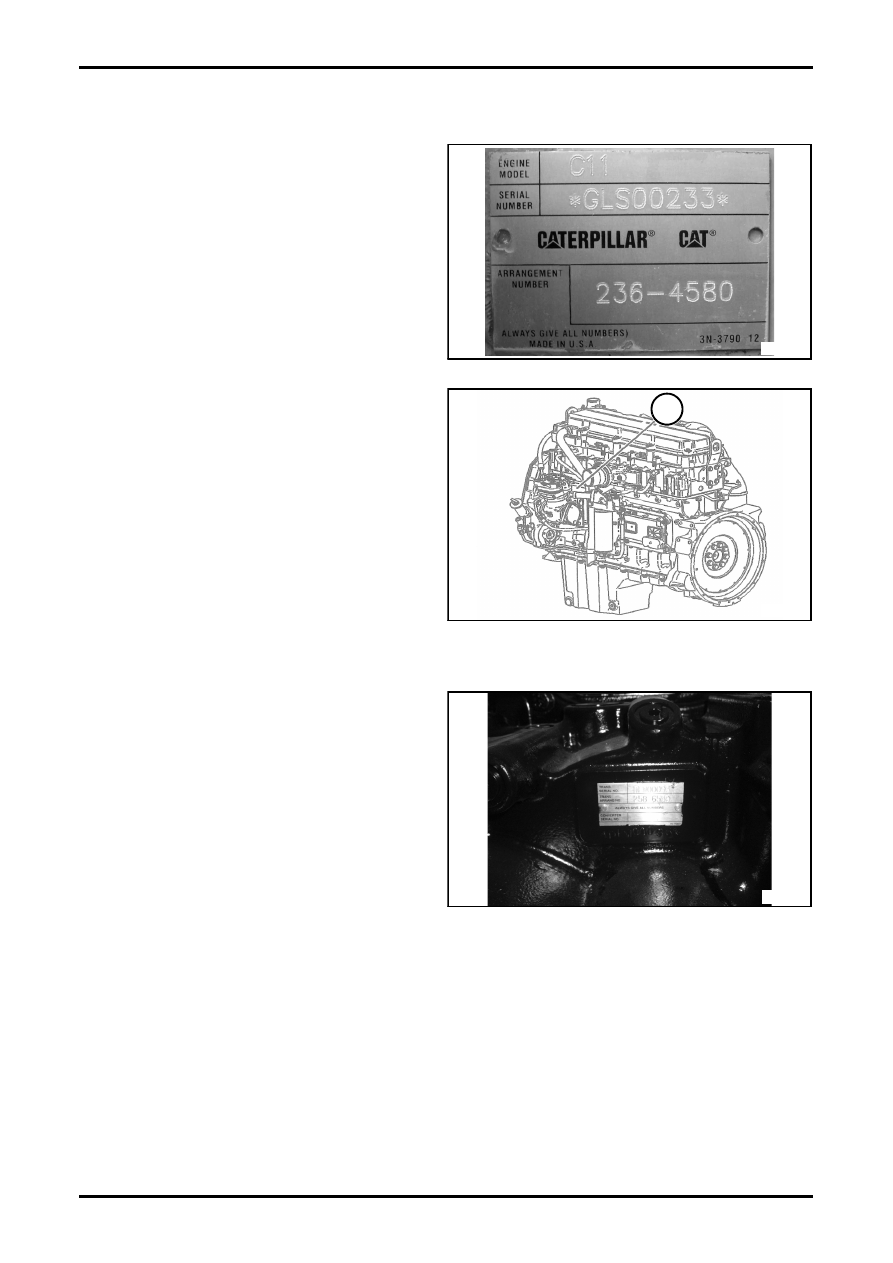

Engine Serial Number And Informatie
Plate

FIG. 4: The Engine Serial Number Plate is located on

the upper right side of the engine block.

ENGINE MODEL

__________________________________________

SERIAL NUMBER

__________________________________________

ARRANGEMENT NUMBER

__________________________________________

FIG. 5: (1) Serial Number Location

Transmission Serial Number

FIG. 6: Plate is located on rear of transmission.

Transmission Serial Number:

______________________

FIG. 4

Q000003S

FIG. 5

Q000004S

1

FIG. 6

Q000006S

General

1-40

627333-A

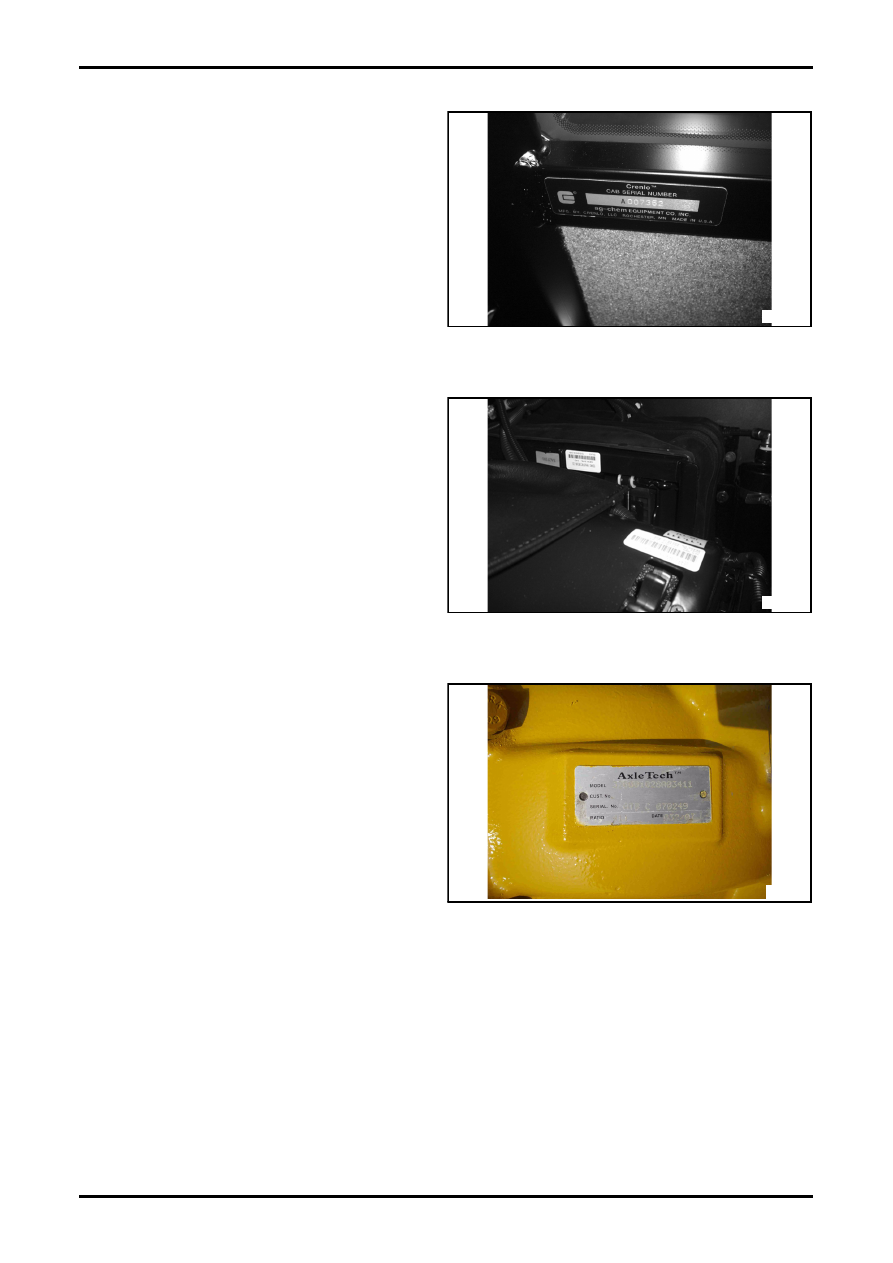

Cab Serial Number

FIG. 7: Plate is located inside cab, below rear window,

behind operator’s seat.

Cab Serial Number:

_____________________________

Operator’s Seat Serial Number

FIG. 8: Tag (1) is located on right rear of operator’s

seat.

Seat Serial Number:

____________________________

Axles

FIG. 9: Tag is located in the front on the top of the axle.

Model: ____________________________

Serial: ____________________________

FIG. 7

Q000005S

FIG. 8

Q000001S

FIG. 9

q000147s
