2 Product Architecture

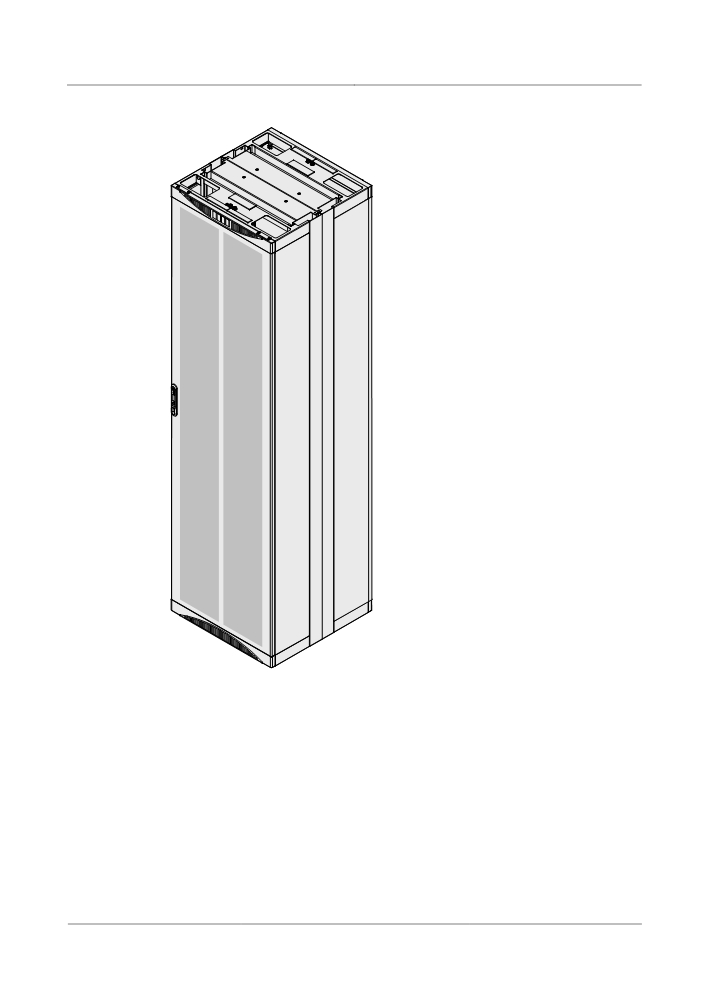

Figure 2-3 N66B cabinet appearance

Configuration of the Integrated N66B Cabinet

Typical configuration of the N66B cabinet involves settings of the following items: the

subrack type, the number of subracks, DCM and CRPC frames, and the PDU model.

Table 2-2 lists the typical configurations of the N66B cabinet.

Issue 03 (2012-03-29)

OptiX OSN 6800 Intelligent Optical Transport Platform

Product Overview

2 Product Architecture

Table 2-2 Typical configurations of the N66B cabinet

Typic

Number of

PDU

Circuit

Maximum

Power

Subracks and

Mode

Breaker a

Power

Consumptio

Confi

Frames

Consumptio

n for the

gurat

n of

Typical

ion

Integrated

Configuratio

Equipment b

1 x OptiX OSN

TN16

Sixteen 63

10800 W

< 6000 W

8800 T64 + 2 x

A circuit

OptiX OSN

breakers

8800 T32 + 2 x

DCM frame

1 x OptiX OSN

TN16

Eight 63 A

10800 W

< 6000 W

8800 T64 + 4 x

and eight

OptiX OSN

32 A circuit

6800 + 4 x DCM

breakers

frame

1 x OptiX OSN

TN16

Sixteen 63

10000 W

< 6000 W

8800 T64 + 4 x

A circuit

OptiX OSN

breakers

8800 T16 + 2 x

DCM frame

a: This column lists the number of circuit breakers required on the PDF.

b: The maximum power consumption of the integrated equipment refers to the maximum

power consumption of the cabinet or the maximum heat dissipation capacity of the

integrated equipment. The power consumption of the integrated equipment do not exceed

the maximum power consumption.

In the case of transmission equipment, power consumption is generally transformed into heat

consumption. Hence, heat consumption (BTU/h) and power consumption (W) can be converted to each

other in the formula: Heat consumption (BTU/h) = Power consumption (W) / 0.2931 (Wh).

Power consumption for the typical configuration refers to the average power consumption of the device

in normal scenarios. The maximum power consumption refers to the maximum power consumption of

the device under extreme conditions.

2.2.2 Subrack

The OptiX OSN 6800 takes subracks as the basic working units.

Subracks should be installed in the cabinet with 50 mm spacing above and below to allow

airing. The DC power distribution box in the cabinet supply power to the subrack, and the

subracks has independent power supply.

Structure

Subracks are the basic working units of the OptiX OSN 6800. The subrack of the OptiX OSN

6800 has an independent power supply.

Figure 2-4 shows the structure of the subrack.

Issue 03 (2012-03-29)

OptiX OSN 6800 Intelligent Optical Transport Platform

Product Overview

2 Product Architecture

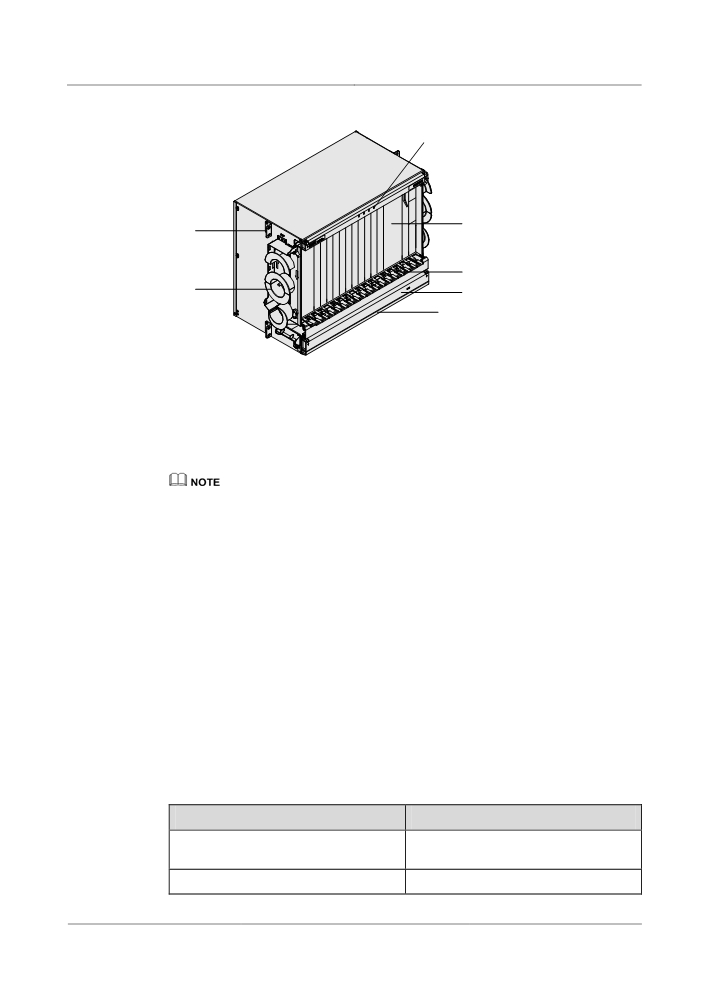

Figure 2-4 OptiX OSN 6800 subrack structure diagram

1. Indicator

2. Board area

3. Fiber cabling area

4. Fan tray assembly

5. Air filter

6. Fiber spool

7. Mounting ear

The interface area is behind the indicator panel in the upper part of the subrack. Remove the indicator

panel before you connect cables.

 Indicators: indicate the running status and alarm status of the subrack.

 Board area: All service boards are installed in this area. 21 slots are available.

 Fiber cabling area: Fiber jumpers from the ports on the front panel of each board are

routed to the fiber cabling area before being routed on a side of the open rack. The

mechanical VOA is also installed in this area.

 Fan tray assembly: Fan tray assembly contains ten fans that provide ventilation and heat

dissipation for the subrack.

 Air filter: The air filter protects the subrack from dust in the air and requires periodic

cleaning.

 Fiber spool: Fixed fiber spools are on two sides of the subrack. Extra fibers are coiled in

the fiber spool on the open rack side before being routed to another subrack.

 Mounting ears: The mounting ears attach the subrack in the cabinet.

 Interface area: The interface area provides functional interfaces, such as management

interface, inter-subrack communication interface, alarm output and cascading interface,

alarm input and output interface. It is behind the subrack indicator panel.

Table 2-3 Mechanical specifications of the OptiX OSN 6800

Item

Specification

Dimensions

497 mm (W) x 295 mm (D) x 400 mm (H)

(19.6 in. (W) × 11.6 in. (D) × 15.7 in. (H))

Weight (empty subracka)

13 kg (28.6 lb.)

Issue 03 (2012-03-29)

OptiX OSN 6800 Intelligent Optical Transport Platform

Product Overview

2 Product Architecture

Item

Specification

a: An empty subrack means no boards are installed in the board area, and no fan tray

assembly or air filter is installed.

Slot Description

The board area of the subrack has 21 slots, labeled IU1 to IU21 from left to right.

Slots of the subrack are shown in Figure 2-5.

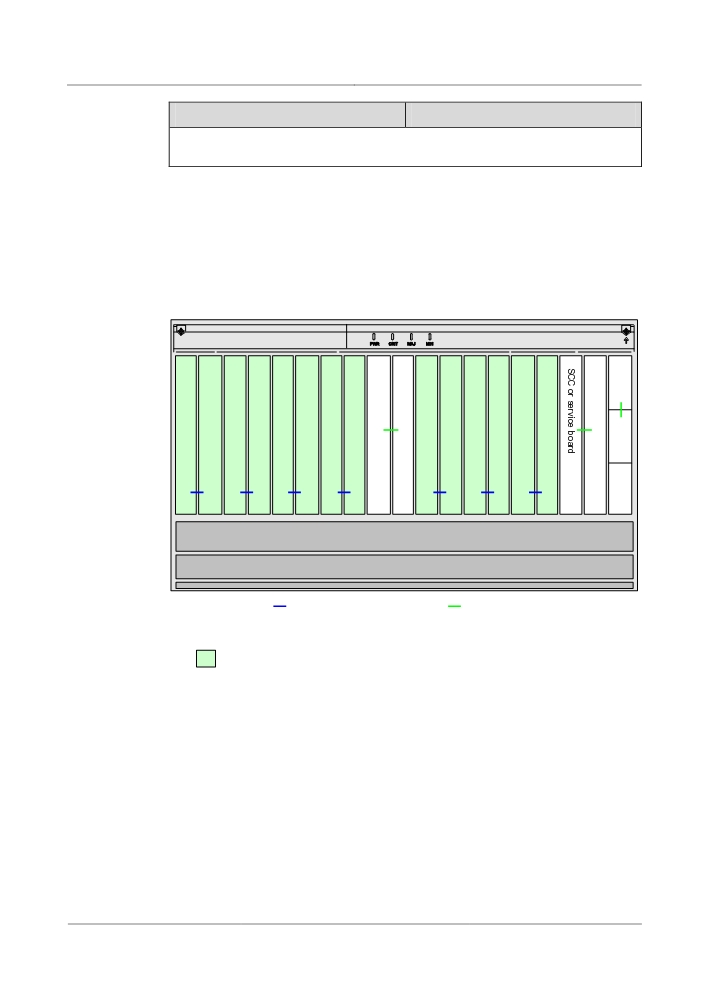

Figure 2-5 Slots of the subrack

IU19

PIU

XCS

SCC

IU1

IU2

IU3

IU4

IU5

IU6

IU7

IU8

IU11 IU12

IU13

IU14

IU15

IU16

IU20

PIU

IU9

IU10

IU17

IU18

IU21

AUX

VOA area

Fan

Paired slots

Mutual backup



: houses service boards and supports service cross-connections.

 IU15 and IU16 are also available for the STG.

 Pair slots refer to a pair of slots whose resident boards' overhead can be processed by the

buses on the backplanes. For the two boards in the paired slots, the inter-board

cross-connection can be directly configured, and the cross-connect grooming of services

can be achieved without the cross-connect board. The pair slots support distributed

grooming.

2.2.3 Board

Function Boards

There are many types of functional boards, such as optical transponder boards and optical

multiplexer/demultiplexer boards.

Issue 03 (2012-03-29)

OptiX OSN 6800 Intelligent Optical Transport Platform

Product Overview

2 Product Architecture

The boards can be divided into several functional boards, as shown in Table 2-4.

Table 2-4 Functional boards

Functional boards

Boards

Optical transponder board

ECOM, L4G, LDGD, LDGS, LDMD, LDX,

LEM24, LEX4, LDMS, LDM, LQG, LQM,

LQMD, LQMS, LSX, LSQ, LSXR, LWX2,

LWXD, LWXS, LOG, LOM, LSXL, LSXLR,

LOA,TMX

Tributary board

TBE, TDG, TDX, TQS, TQM, TOM, TOG,

TQX, TSXL

Line board

NS2, ND2, NQ2, NS3

PID board

PTQX, ELQX, BMD4, BMD8

Optical multiplexer/demultiplexer board

FIU, D40, D40V, M40, M40V, ITL, SFIU

Fixed optical add/drop multiplexer board

CMR2, CMR4, DMR1, MR2, MR4, MR8,

MR8V, SBM2

Reconfigurable optical add and drop

RMU9, RDU9, ROAM, WSD9, WSM9,

multiplexer board

WSMD2, WSMD9, WSMD4

Optical amplifier board

CRPC, HBA ,OAU1, OBU1, OBU2, DAS1

Cross-connect unit and system and

AUX, SCC, XCS

communication unit

Optical supervisory channel (OSC) board

SC1, SC2, HSC1, ST2

Clock board

STG

Optical protection board

DCP, OLP, SCS

Spectrum analyzer board

MCA4, MCA8, OPM8, WMU

Variable optical attenuator board

VA1, VA4

Optical power and dispersion equalizing

DCU, GFU, TDC

board

2.2.4 Small Form-Factor Pluggable (SFP) Module

There are four types of pluggable optical modules: the enhanced small form-factor pluggable

(eSFP), the small form-factor pluggable plus (SFP+), the tunable 10 Gbit/s small form-factor

pluggable (TXFP) and the 10 Gbit/s small form-factor pluggable (XFP). Because they are

pluggable, when you need to adjust the type of accessed services or replace a faulty optical

module, you can directly replace it without replacing its dominant board.

Issue 03 (2012-03-29)

OptiX OSN 6800 Intelligent Optical Transport Platform

Product Overview

2 Product Architecture

2.3 Software Architecture

The system software includes the board software, NE software and the network management

system.

2.3.1 Overview

The system software is of a modular design. Each module provides specific functions and

works with the other modules.

The entire software is distributed in three modules including board software, NE software and

NM system.

The system software is designed with a hierarchical structure. Each layer performs specific

functions and provides service for the upper layer.

The system software architecture is shown in Figure 2-6.

In the diagram, all the modules are NE software except the "Network Management System"

and "Board Software" modules.

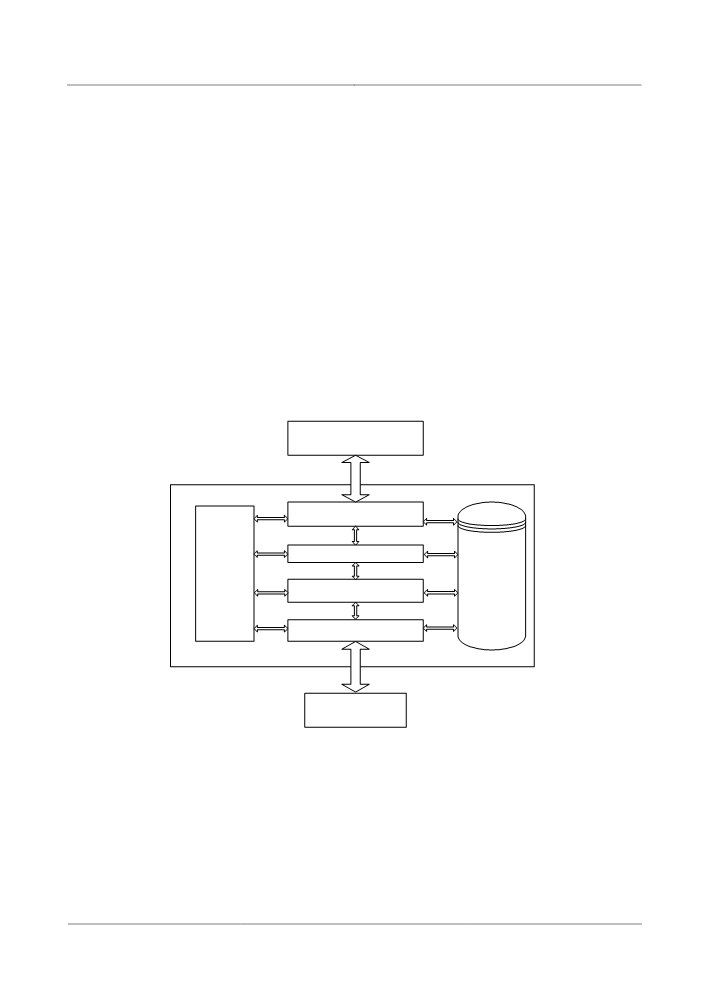

Figure 2-6 Software architecture

Network Management

System

High Level

Communication Module

Real-time

Network side Module

multi-task

Database

operating

Management

Equipment Management

system

Module

Communication Module

NE software

Board Software

2.3.2 Communication Protocols and Interfaces

The Qx interface is used for communication. Complete protocol stack and messages of the Qx

interface are described in ITU-T G.773, Q.811 and Q.812.

The Qx interface is mainly used to connect the mediation device (MD), Q adaptation (QA)

and NE (NE) equipment with the operating system (OS) through local communication

network (LCN).

Issue 03 (2012-03-29)

OptiX OSN 6800 Intelligent Optical Transport Platform

Product Overview

2 Product Architecture

At present, QA is provided by the NE management layer. MD and OS are provided by the NM

layer. They are connected to each other through the Qx interface.

According to the Recommendations, the Qx interface provided by the system is developed on

the basis of TCP/IP connectionless network layer service (CLNS1) protocol stack.

In addition, to support remote access of the NM through Modem, the IP layer uses serial line

internet protocol (SLIP).

Issue 03 (2012-03-29)

OptiX OSN 6800 Intelligent Optical Transport Platform

Product Overview

3 Functions and Features

Functions and Features

About This Chapter

3.1 Service Access

The OptiX OSN 6800 supports synchronous digital hierarchy (SDH) service, synchronous

optical network (SONET), Ethernet service, storage area network (SAN) service, optical

transmission network (OTN) service, video service and others.

3.2 Electrical Layer Grooming

The OptiX OSN 6800 provides two types of electrical grooming.

3.3 Optical Layer Grooming

3.4 Transmission System

3.5 Protection

The OptiX OSN 6800 provides various types of equipment-level protection and network-level

protection.

3.6 Data Characteristics

The OptiX OSN 6800 supports the Ethernet features and mainly supports the following

Ethernet services: EPL, EVPL (QinQ), and EPLAN.

3.7 Optical Power Management

The optical power management includes IPA, IPA of Raman System, ALC, APE , EAPE, OPA

and AGC.

3.8 WDM Technologies

This chapter describes the WDM technologies and functions implemented on the OptiX OSN

6800.

3.9 Clock Feature

OptiX OSN 6800 supports the physical layer clock and PTP clock to realize the

synchronization of the clock and the time.

3.10 ASON Management

An automatically switched optical network (ASON) is a new-generation optical transmission

network.

Issue 03 (2012-03-29)

OptiX OSN 6800 Intelligent Optical Transport Platform

Product Overview

3 Functions and Features

3.1 Service Access

The OptiX OSN 6800 supports synchronous digital hierarchy (SDH) service, synchronous

optical network (SONET), Ethernet service, storage area network (SAN) service, optical

transmission network (OTN) service, video service and others.

3.1.1 Service Types

The OptiX OSN 6800 supports synchronous digital hierarchy (SDH) services, synchronous

optical network (SONET) services, Ethernet services, storage area network (SAN) services,

optical transmission network (OTN) services, and video services.

Table 3-1 lists the service types and rates that the OptiX OSN 6800 supports.

Table 3-1 Service types and rates that the OptiX OSN 6800 supports

Service

Service Type

Service Rate

Reference Standard
