TM-9-2320-289-20 (4x4 M1000 Series). Manual - part 61

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 3303 WINTERIZATION KITS

FIG. 222 WARM AIR HEATER WIRING
HARNESS

1

PAOZZ

11862

14076236

WIRING HARNESS,BRAN

1

2

PAOZZ

11862

3816659

.STRAP,LINE SUPPORTI

10

3

PAOZZ

11862

2098912

.RELAY

1

4

PAOZZ

96906

MS27183-10

WASHER,FLAT

1

5

PAOZZ

96906

MS35489-121

GROMMET,NONMETALLIC

1

6

PAOZZ

96906

MS9549-10

WASHER,FLAT

2

7

PAOZZ

96906

MS90728-3

SCREW,CAP,HEXAGON H

1

8

PAOZZ

11862

14061352

STRAP,RETAINING

1

9

PAOZZ

11862

15599920

SPACER,SLEEVE

1

10

PAOZZ

96906

MS35691-406

NUT,PLAIN,HEXAGON

1

11

PAOZZ

24617

9415163

SCREW,ASSEMBLED WAS

2

12

PAOZZ

78385

G704410-1

SWITCH,THERMOSTATIC

1

13

PAOZZ

11862

14076270

GASKET

1

14

PAOZZ

11862

9440178

NUT,PLAIN,DODECAGON

2

15

PAOZZ

96906

MS21333-62

CLAMP,LOOP

1

END OF FIGURE

222-1

SECTION II

TM 9-2320-289-20P

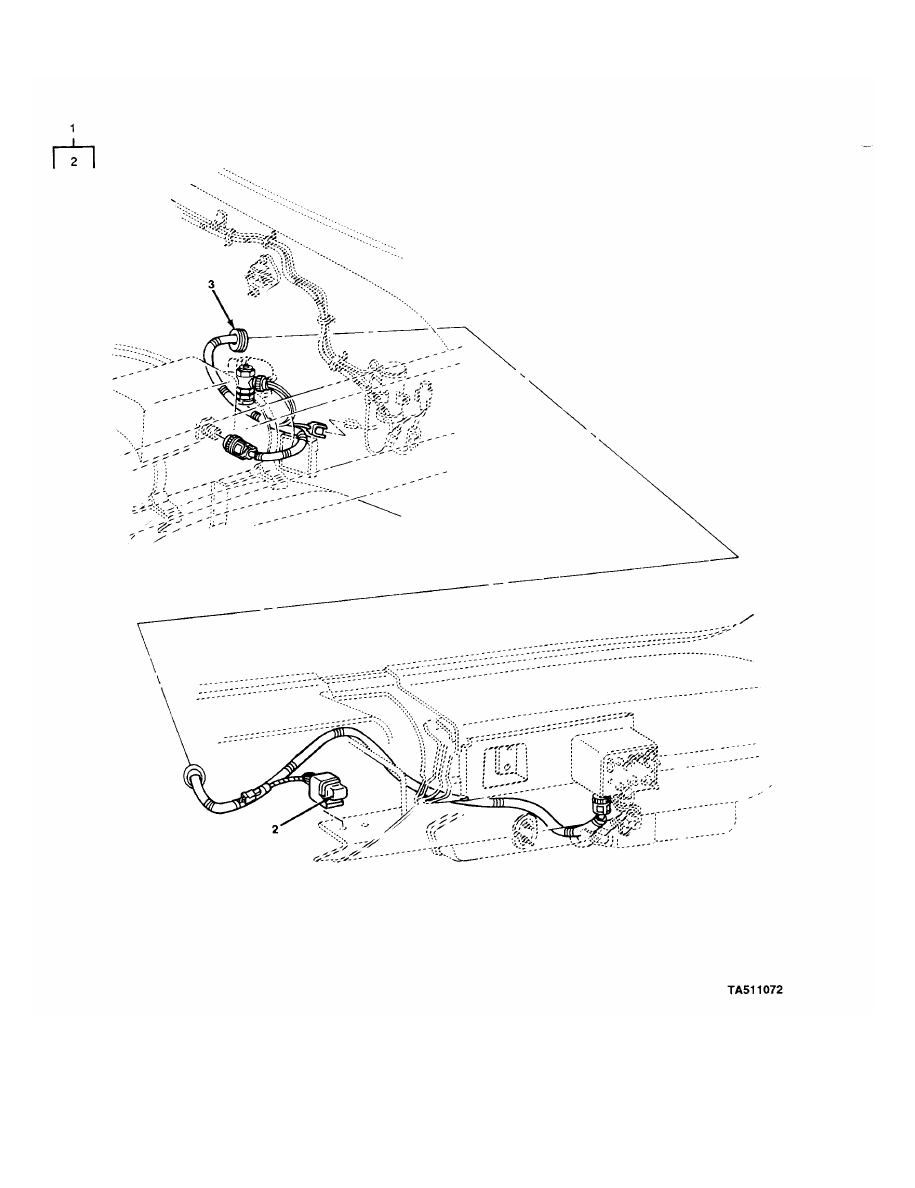

FIGURE 223. COOLANT HEATER WIRING HARNESS

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 3303 WINTERIZATION KITS

FIG. 223 COOLANT HEATER WIRING
HARNESS

1

PAOOO

11862

14075888

WIRING HARNESS,BRAN

1

2

PAOZZ

11862

14074461PC6

.RELAY

1

3

PAOZZ

96906

MS35489-121

GROMMET,NONMETALLIC

1

END OF FIGURE

223-1

SECTION II

TM 9-2320-289-20P

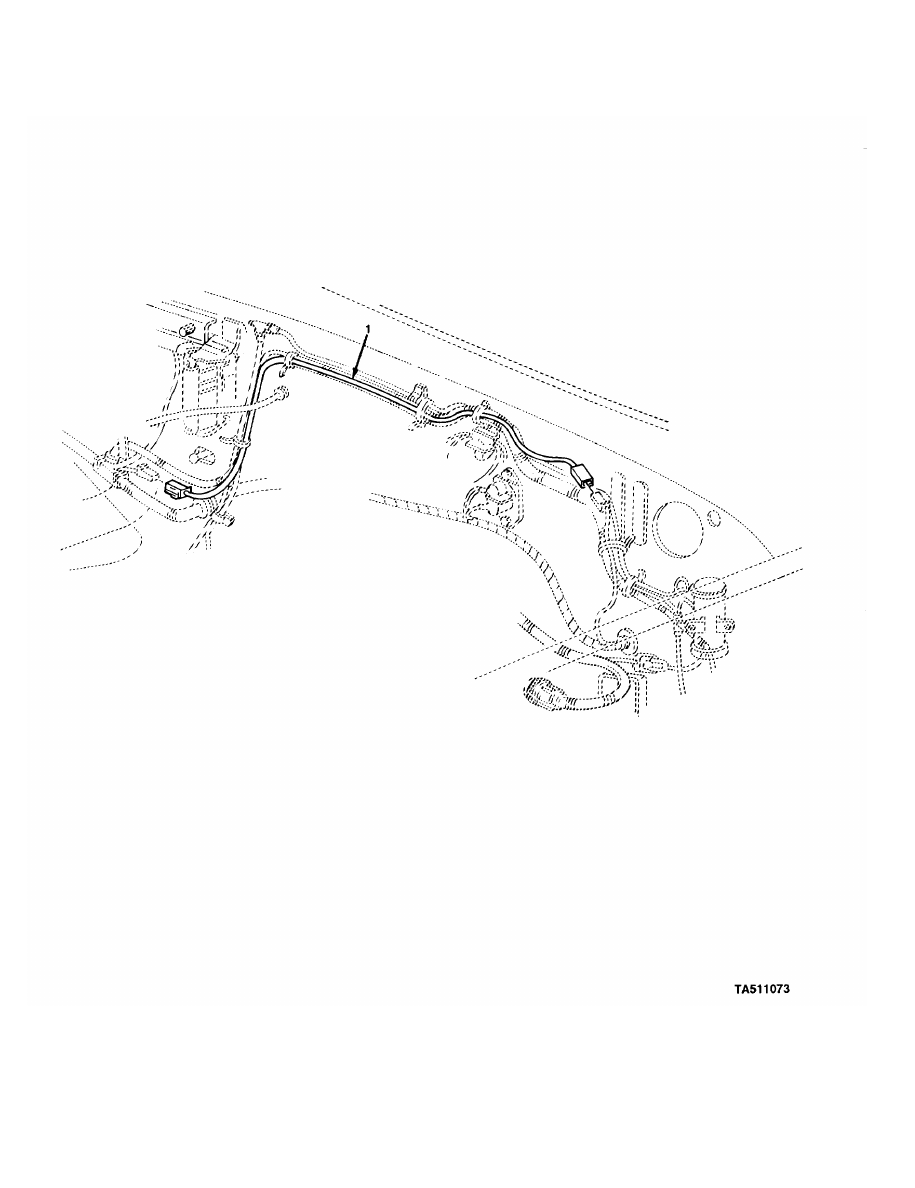

FIGURE 224. WARM AIR FUEL PUMP EXTENSION HARNESS (M1010).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 3303 WINTERIZATION KITS

FIG. 224 WARM AIR FUEL PUMP
EXTENSION HARNESS (M1010)

1

PAOZZ

11862

15599968

LEAD,ELECTRICAL

1

UOC:210

END OF FIGURE

224-1

SECTION II

TM 9-2320-289-20P

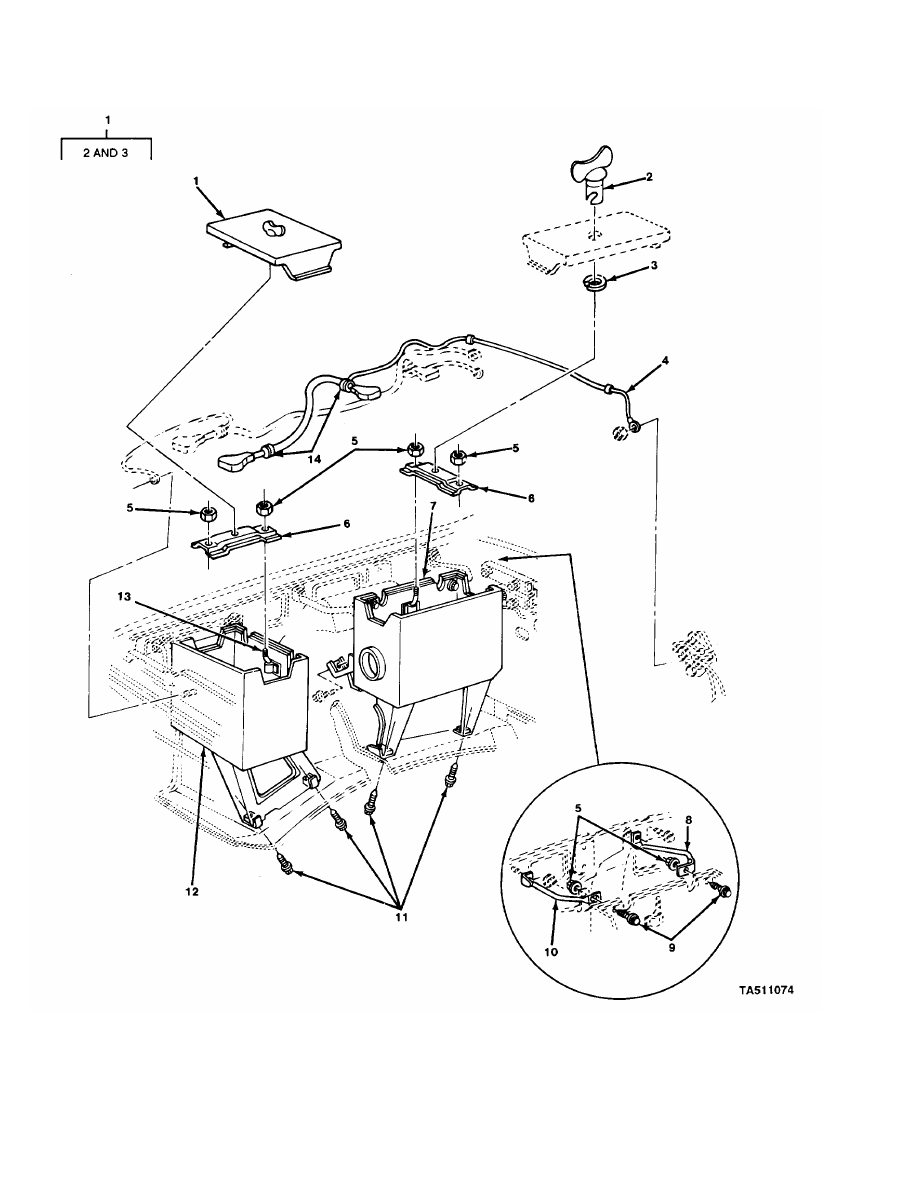

FIGURE 225. BATTERY BOXES AND CABLES.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 3303 WINTERIZATION KITS

FIG. 225 BATTERY BOXES AND CABLES

1

PAOZZ

11862

14076246

COVER,BATTERY BOX

2

2

PAOZZ

72794

AJW7-70

.STUD,TURNLOCK FASTE

2

3

PAOZZ

72794

X-840-SR7C

.RING,RETAINING

2

4

PAOZZ

11862

12039294

LEAD,STORAGE BATTER

1

5

PAOZZ

24617

11506003

NUT,PLAIN,ASSEMBLED

6

6

PAOZZ

11862

14076852

RETAINER,BATTERY

2

7

PAOZZ

11862

14076243

BATTERY BOX

1

8

PAOZZ

11862

14076250

SUPPORT,BATTERY BOX

1

9

PAOZZ

11862

9440334

BOLT,ASSEMBLED WASH

2

10

PFOZZ

11862

14076249

SUPPORT,BATTERY BOX

1

11

PAOZZ

11862

2014469

BOLT,ASSEMBLED WASH

4

12

PAOZZ

11862

14076241

BOX AND SUPPORT ASS

1

13

PAOZZ

11862

14076248

BOLT,HOOK

4

14

PAOZZ

96906

MS35489-11

GROMMET,NONMETALLIC

4

END OF FIGURE

225-1

TM 9-2320-289-20P

SECTION II

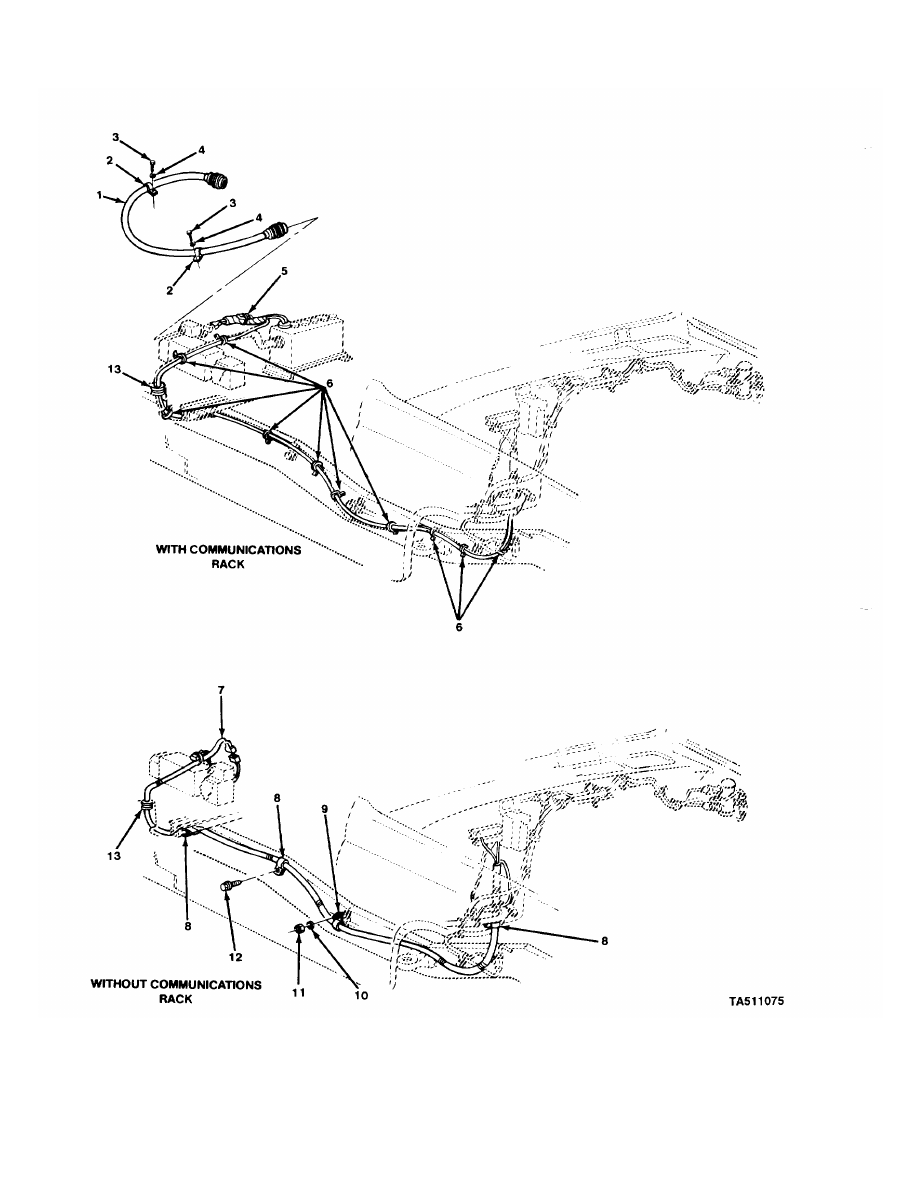

FIGURE 226. PERSONNEL HEATER WIRING HARNESS.
