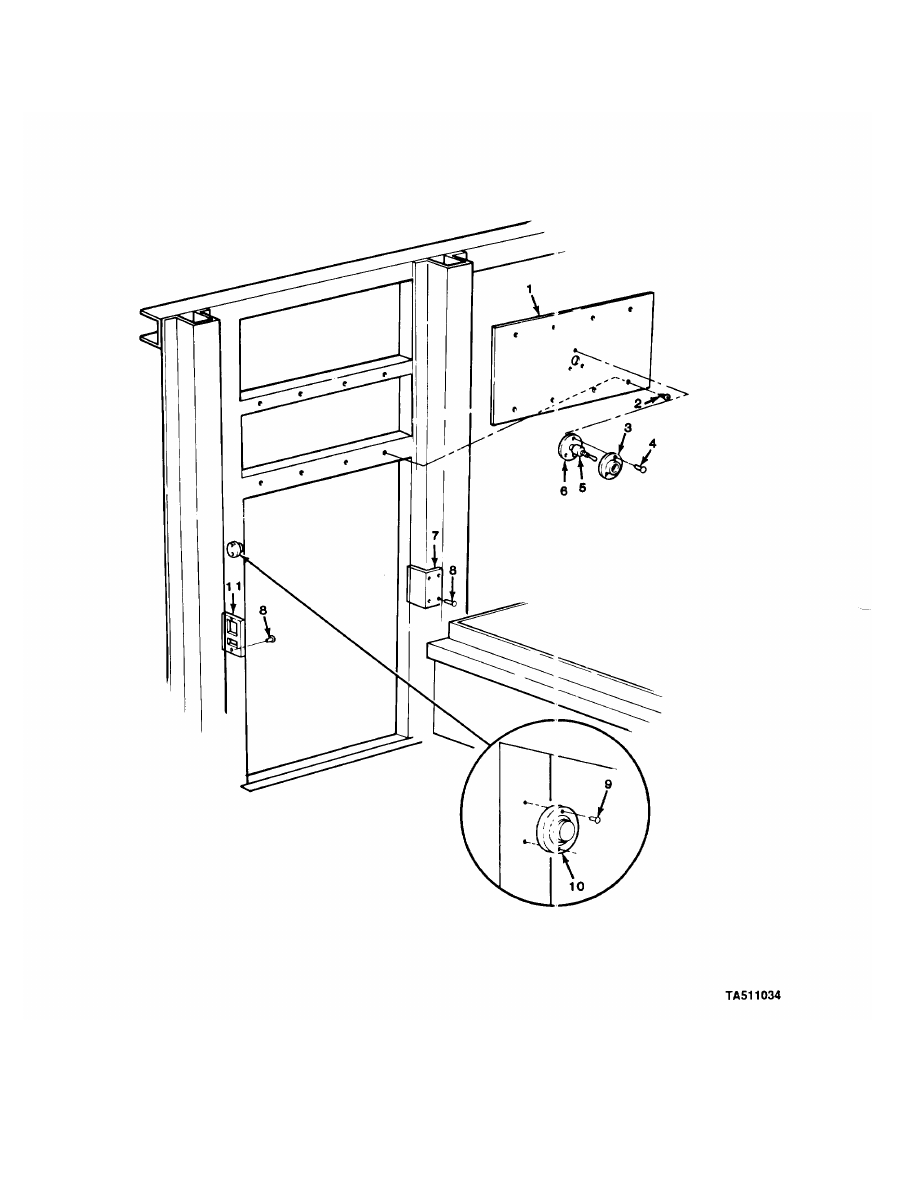

FIGURE 192. FRONT FRAME ASSEMBLY COMPONENTS (M1010).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1812 SPECIAL PURPOSE BODIES

FIG. 192 FRONT FRAME ASSEMBLY
COMPONENTS (M1010)

1

PAOZZ

25022

99-4282-1

PANEL,SWITCH MOUNTI

1

UOC:210

2

PAOZZ

24617

9414714

SCREW,MACHINE

8

UOC:210

3

PAOZZ

25022

37-0019

COVER,ELECTRICAL SW

1

UOC:210

4

PAOZZ

96906

MS20600B6W4

RIVET,BLIND

3

UOC:210

5

PAOZZ

25022

51-1959

SWITCH,TOGGLE

1

UOC:210

6

PAOZZ

25022

37-0020

PLATE,SWITCH

1

UOC:210

7

PAOZZ

25022

99-4408-1

STRIKER,STOP

1

UOC:210

8

PAOZZ

96906

MS21141-U0604

RIVET,BLIND

6

UOC:210

9

PAOZZ

96906

MS20600-B4W4

RIVET,BLIND

2

UOC:210

10

PAOZZ

25022

51-1926

SWITCH,SENSITIVE

1

UOC:210

11

PAOZZ

25022

51-1304

STRIKE,CATCH

1

UOC:210

END OF FIGURE

192-1

SECTION II

TM 9-2320-289-20P

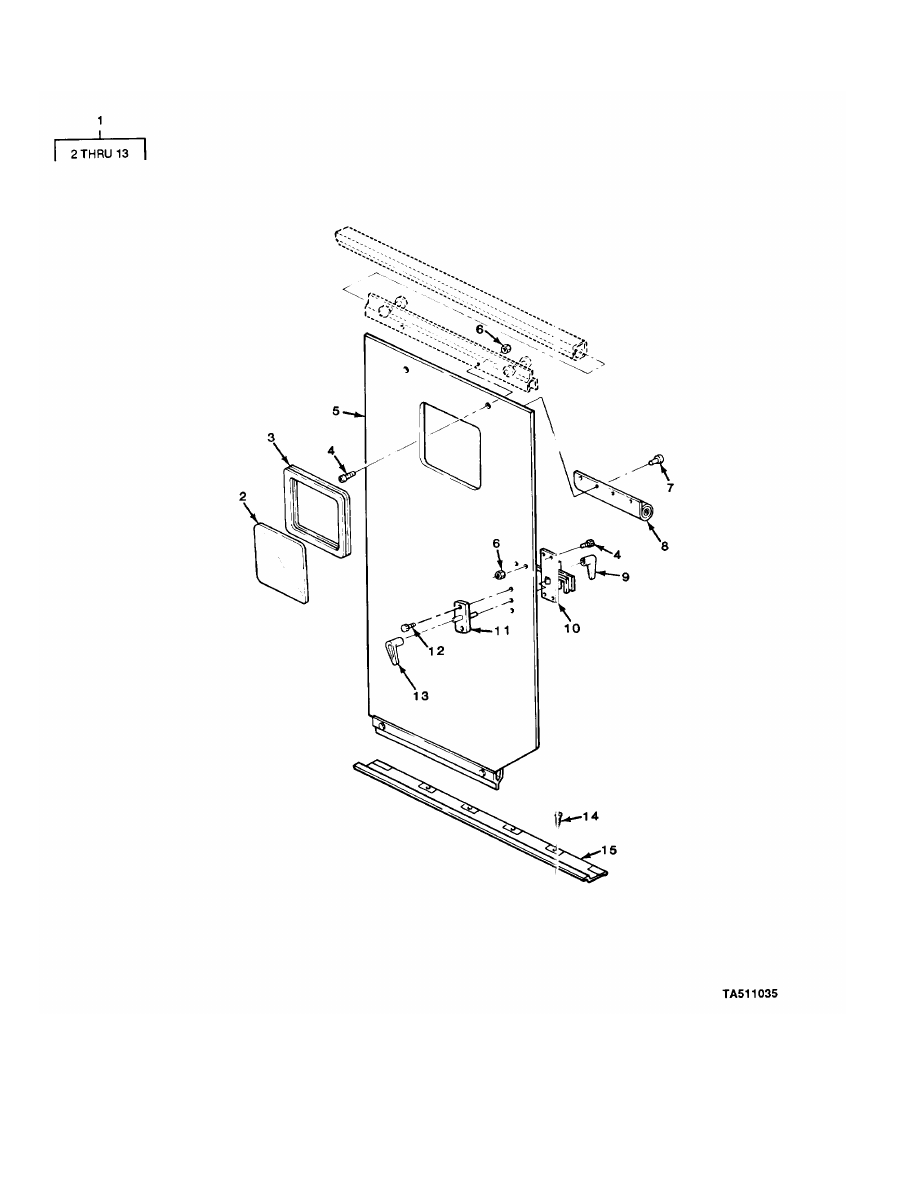

FIGURE 193. INTERIOR SLIDING DOOR ASSEMBLY AND COMPONENT PARTS (M1010).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1812 SPECIAL PURPOSE BODIES

FIG. 193 INTERIOR SLIDING DOOR
ASSEMBLY AND COMPONENT PARTS (M1010)

1

PAOOO

25022

99-4324-0

DOOR,VEHICULAR

1

UOC:210

2

PAOZZ

25022

51-1604

.WINDOW,OBSERVATION

1

UOC:210

3

PAOZZ

25022

51-1724

.SEAL,RUBBER SPECIAL

1

UOC:210

4

PAOZZ

21450

126281

.BOLT,SQUARE NECK

6

UOC:210

5

PAOOO

25022

22-0864

.DOOR,VEHICULAR

1

UOC:210

6

PAOZZ

88044

AN365-1024A

.NUT,SELF-LOCKING,HE

6

UOC:210

7

PAOZZ

96906

MS24662-153

.RIVET,BLIND

4

UOC:210

8

PAOZZ

25022

22-0873

.CURTAIN,BLACKOUT

1

UOC:210

9

PAOZZ

25022

09-0951

.HANDLE,DOOR

1

UOC:210

10

PAOZZ

25022

09-0952

.LOCK,DOOR,VEHICULAR

1

UOC:210

11

PAOZZ

25022

99-4683-1

.PIN

1

UOC:210

12

PAOZZ

96906

MS21207-10-10

.SCREW,TAPPING

2

UOC:210

13

PAOZZ

25022

08-0475

.HANDLE,DOOR

1

UOC:210

14

PAOZZ

24617

163881

RIVET

4

UOC:210

15

PFOZZ

25022

99-4257-1

TRACK,SLIDING DOOR

1

UOC:210

END OF FIGURE

193-1

SECTION II

TM 9-2320-289-20P

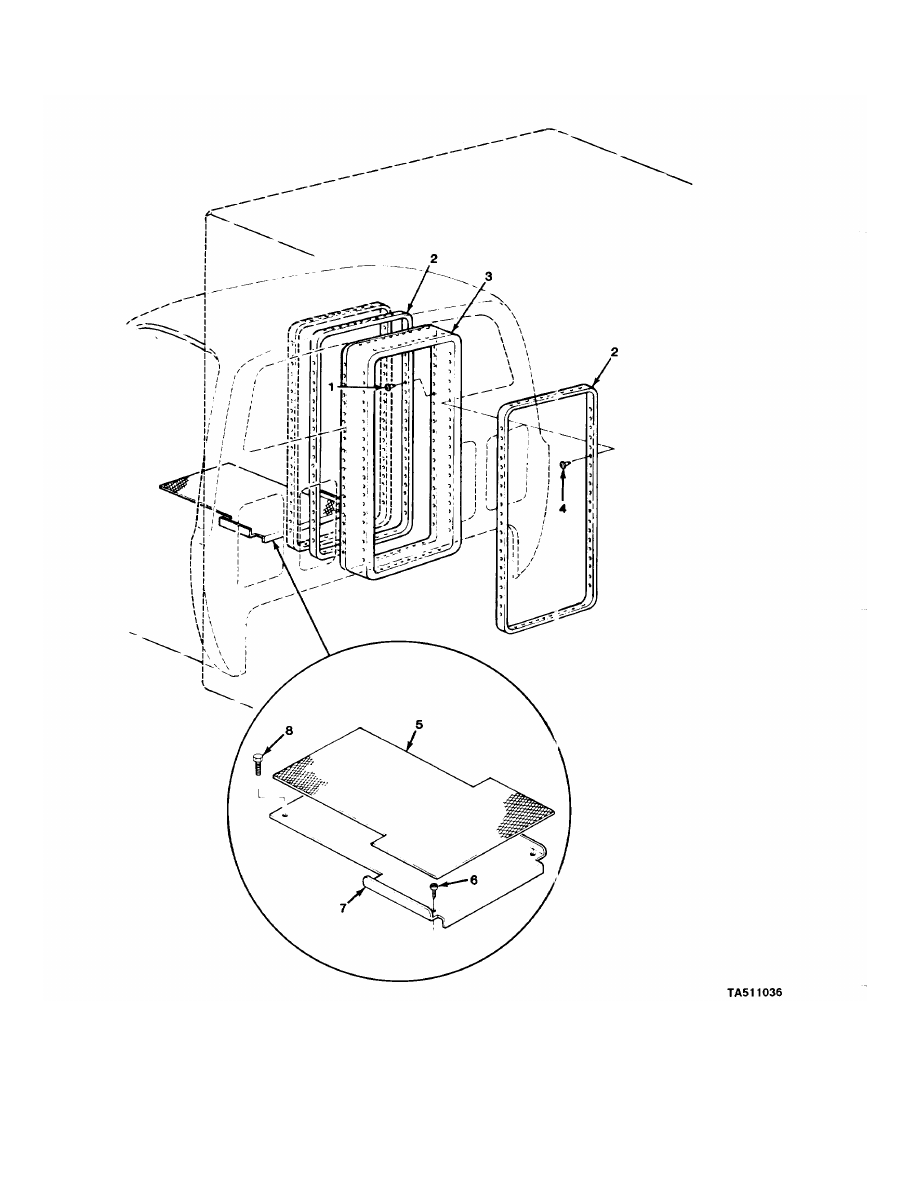

FIGURE 194. PULLMAN COLLAR AND RELATED PARTS (M1010).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1812 SPECIAL PURPOSE BODIES

FIG. 194 PULLMAN COLLAR AND RELATED
PARTS (M1010)

5

PAOZZ

25022

17-0195

MAT,FLOOR

1

UOC:210

6

PAOZZ

96906

MS24627-67

SCREW,TAPPING

2

UOC:210

7

PAOZZ

25022

99-4892-0

RAMP,CAB

1

UOC:210

8

PAOZZ

96906

MS90728-8

SCREW,CAP,HEXAGON H

2

UOC:210

END OF FIGURE

194-1

SECTION II

TM 9-2320-289-20P

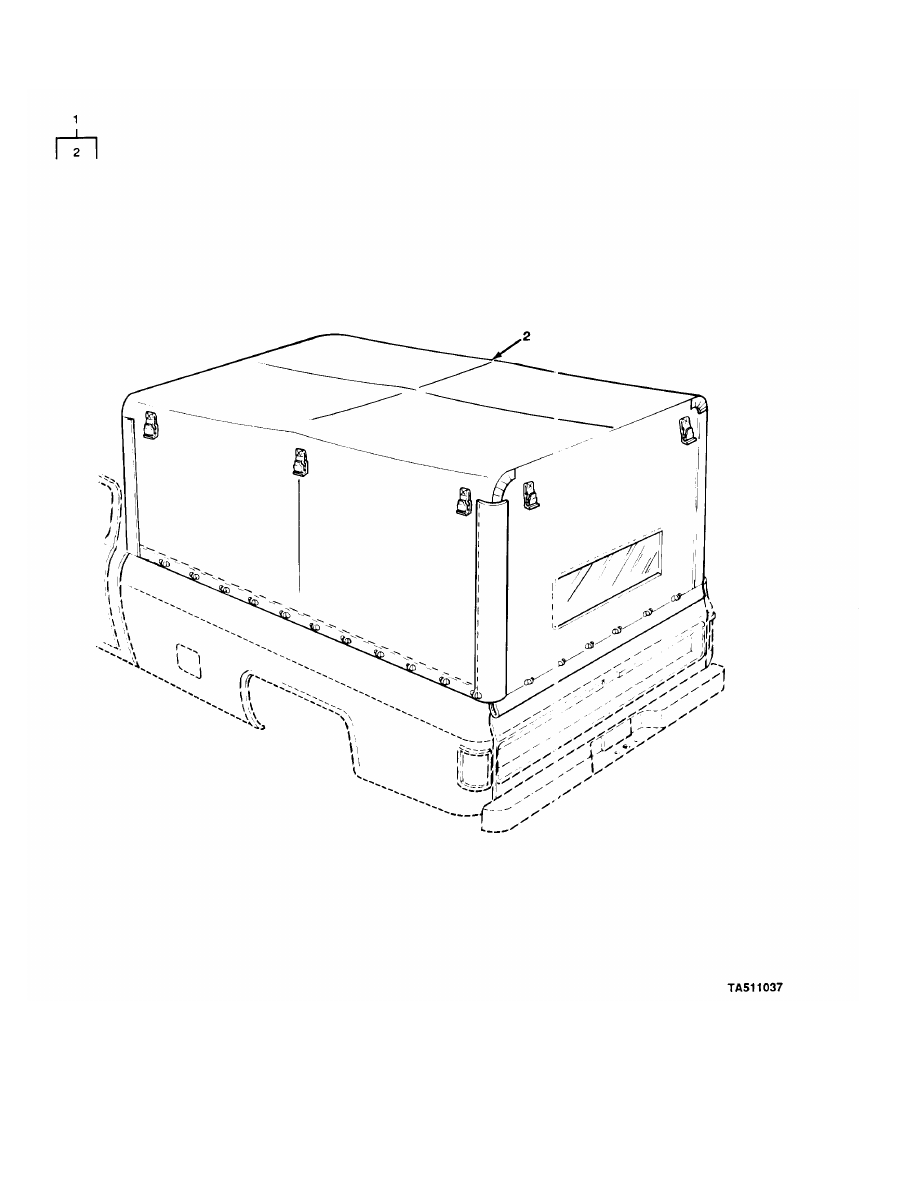

FIGURE 195. CARGO COVER ASSEMBLY (M1008 AND M1008A1).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 22 BODY, CHASSIS, AND HULL
ACCESSORY ITEMS

GROUP 2201 CANVAS, RUBBER, OR
PLASTIC ITEMS

FIG. 195 CARGO COVER ASSEMBLY (M1008
AND M1008A1)

1

PDOFF

11862

14072479

PARTS KIT,CARGO COV FOR COMPONENT

1

PARTS SEE FIG'S 196,197
UOC:194,208

2

PAOFF

11862

14072475

.TOP ASSEMBLY,TRUCK

1

UOC:194,208

END OF FIGURE

195-1
