SECTION II

TM 9-2320-289-20P

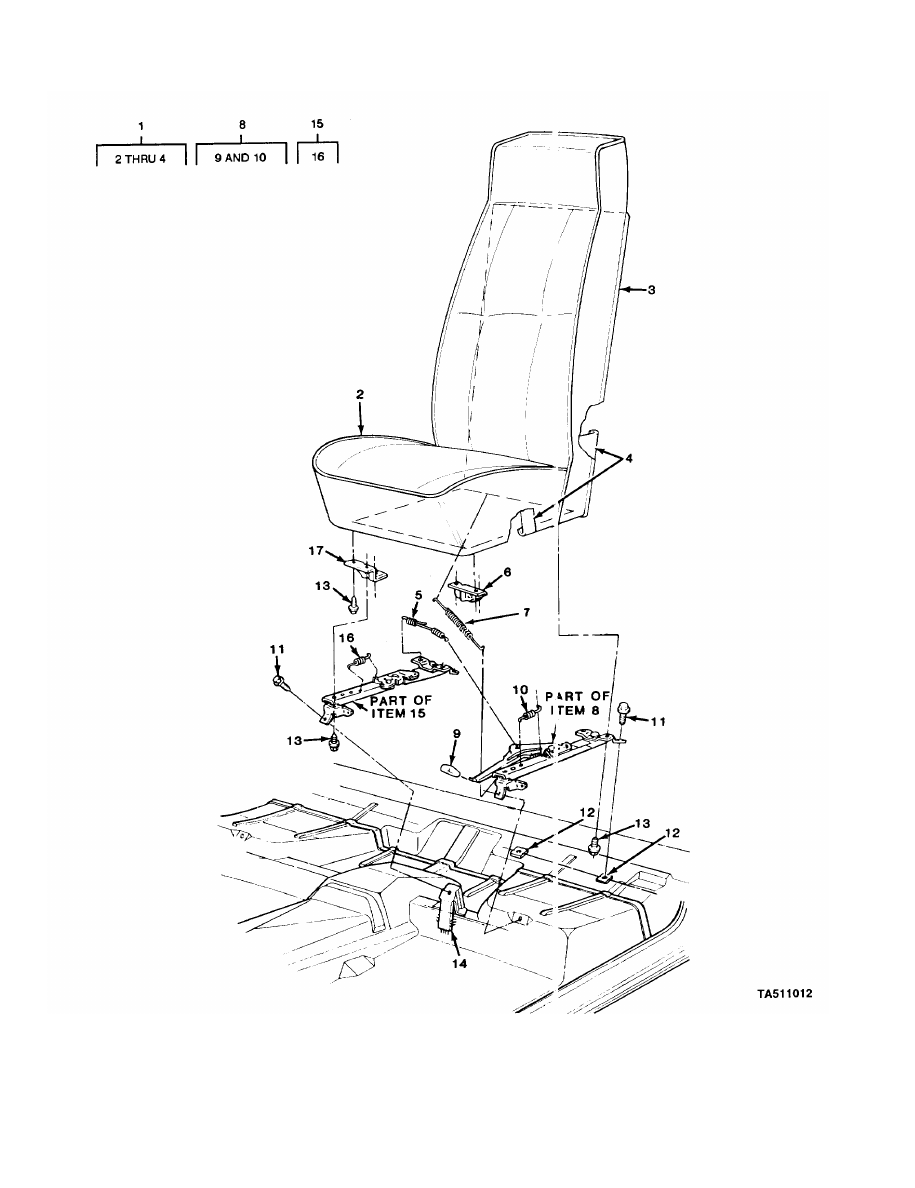

FIGURE 170. SEAT ASSEMBLY DRIVER'S SEAT, ADJUSTER ASSEMBLY,

AND RELATED PARTS (M1010).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1806 UPHOLSTERY, SEATS, AND
CARPETS

FIG. 170 SEAT ASSEMBLY, DRIVER'S
SEAT, ADJUSTER ASSEMBLY, AND RELATED
PARTS (M1010)

1

PAOFF

11862

14075815

CUSHION,SEAT,VEHICU

2

UOC:210

5

PAOZZ

11862

14025679

WIRE ASSEMBLY,LOCK

1

UOC:210

6

PAOZZ

11862

14025673

BRACKET,DOUBLE ANGL

1

UOC:210

7

PAOZZ

11862

20056525

SPRING,HELICAL,EXTE

1

UOC:210

8

PAOOO

11862

14023889

LEVER,MANUAL CONTRO  LEFT

1

UOC:210

9

PAOZZ

11862

465536

.KNOB

1

UOC:210

10

PAOZZ

11862

329457

.SPRING,HELICAL,EXTE

1

UOC:210

11

PAOZZ

11862

9438916

SCREW,TAPPING

4

UOC:210

13

PAOZZ

11862

2014469

BOLT,ASSEMBLED WASH

10

UOC:210

15

PAOOO

11862

14023890

LEVER,MANUAL CONTRO  RIGHT

1

UOC:210

16

PAOZZ

11862

329457

.SPRING,HELICAL,EXTE

1

UOC:210

17

PAOZZ

11862

14025674

BRACKET,DOUBLE ANGL

1

UOC:210

END OF FIGURE

170-1

SECTION II

TM 9-2320-289-20P

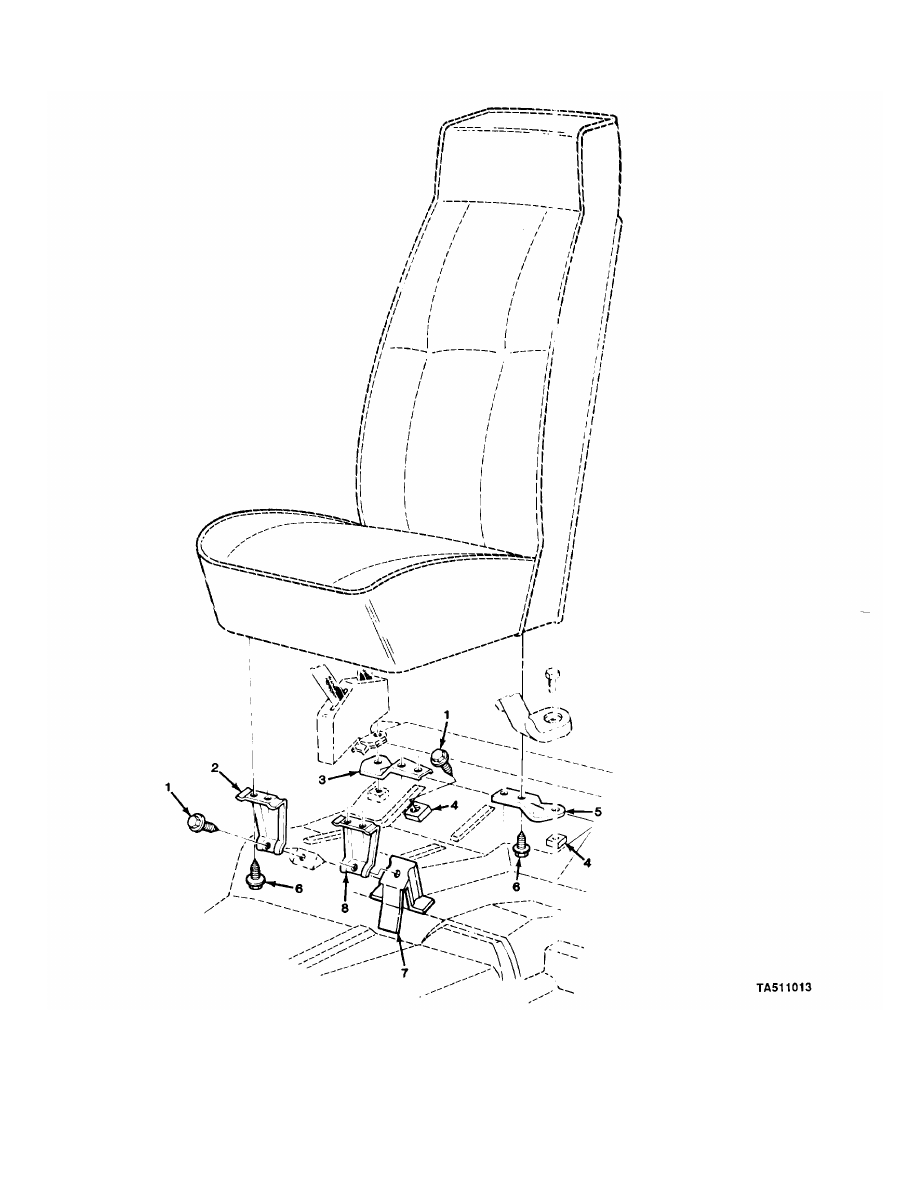

FIGURE 171. SEAT MOUNTING PARTS (M1010).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1806 UPHOLSTERY, SEATS, AND
CARPETS

FIG. 171 SEAT MOUNTING PARTS (M1010)

1

PAOZZ

11862

9438916

SCREW,TAPPING

3

UOC:210

2

PAOZZ

11862

14027346

SUPPORT,SEAT FRAME  RIGHT

1

UOC:210

3

PAOZZ

11862

14027348

SUPPORT,SEAT,VEHICU  RIGHT

1

UOC:210

5

PAOZZ

11862

14027347

SUPPORT,SEAT,VEHICU  LEFT

1

UOC:210

6

PAOZZ

11862

2014469

BOLT,ASSEMBLED WASH

8

UOC:210

8

PAOZZ

11862

14027345

SUPPORT,SEAT,VEHICU  LEFT

1

UOC:210

END OF FIGURE

171-1

SECTION II

TM 9-2320-289-20P

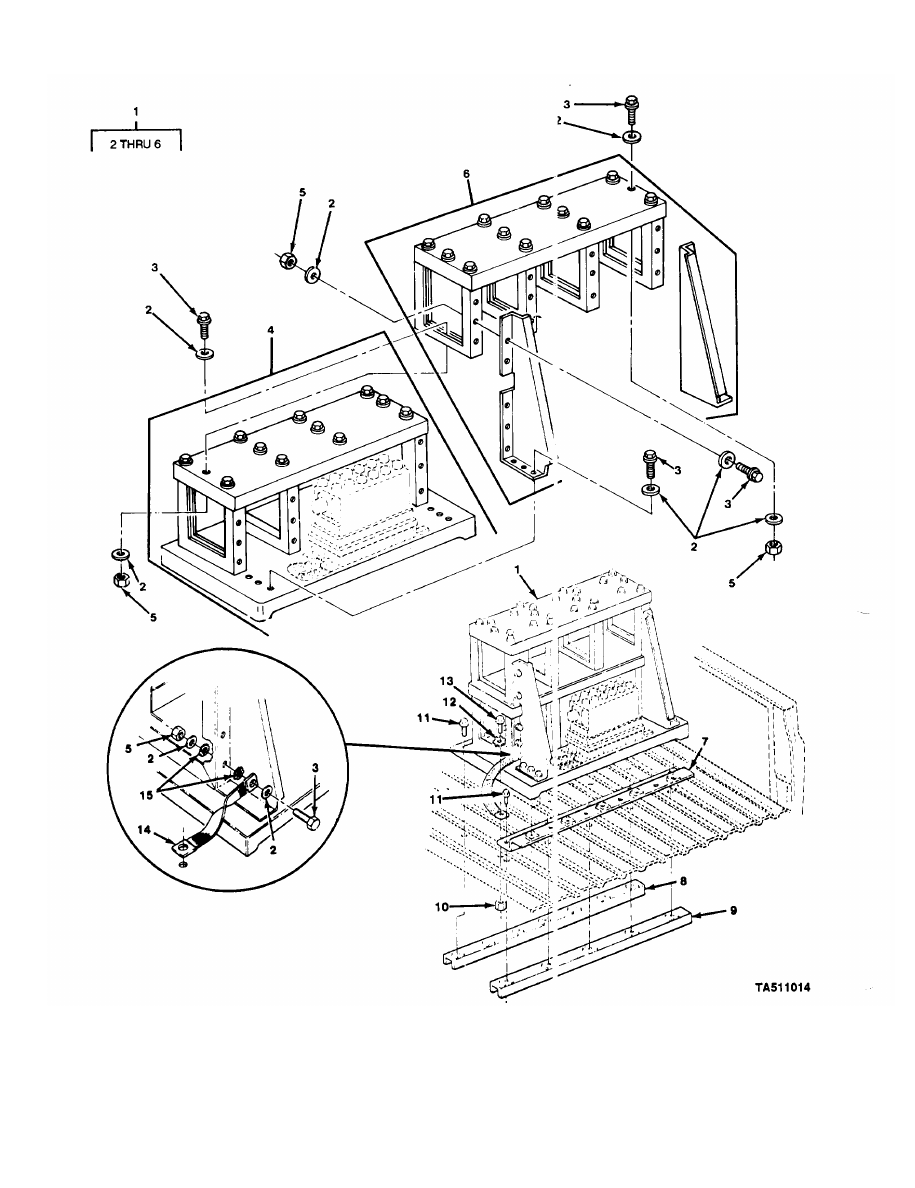

FIGURE 172. COMMUNICATIONS RACK ASSEMBLY AND RELATED PARTS (M1028A1).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1808 STOWAGE RACKS, BOXES,
STRAPS, CARRYING CASES, CABLE REELS,
HOSE REELS, ETC.

FIG. 172 COMMUNICATIONS RACK
ASSEMBLY AND RELATED PARTS (M1028A1)

1

PAOOO

80063

SC-D-866091

RACK,ELECTRICAL EQU

1

UOC:208

2

PAOZZ

96906

MS35338-139

.WASHER,LOCK

110

UOC:208

3

PAOZZ

96906

MS90725-6

.SCREW,CAP,HEXAGON H

61

UOC:208

4

PAOZZ

80063

DL-SC-B-691368

.RACK ASSEMBLY

1

UOC:194,208

5

PAOZZ

96906

MS51971-1

.NUT,PLAIN,HEXAGON

49

UOC:208

6

PAOZZ

80063

SC-D-691375

.RACK,ELECTRICAL EQU

1

UOC:194,208

7

PAOZZ

80063

SC-C-691545

BRACKET,DOUBLE ANGL

1

UOC:208

8

PAOZZ

11862

15599959

STRAP,RETAINING

1

UOC:208

9

PAOZZ

11862

15599958

STRAP,RETAINING

1

UOC:208

10

PAOZZ

24617

271172

NUT,SELF-LOCKING,AS

1

UOC:208

11

PAOZZ

11862

9440334

BOLT,ASSEMBLED WASH

12

UOC:208

12

PAOZZ

96906

MS35335-33

WASHER,LOCK

1

UOC:208

13

PAOZZ

96906

MS90728-6

SCREW,CAP,HEXAGON H

1

UOC:208

14

XDOZZ

80063

SC-B-75180-IV

LEAD,ELECTRICAL

1

UOC:208

15

PAOZZ

96906

MS45904-68

WASHER,LOCK

2

UOC:208

END OF FIGURE

172-1

SECTION II

T M   9-2320-289-20P



,

ALL EXCEPT Ml010 AND Ml009

Ml 009 ONLY

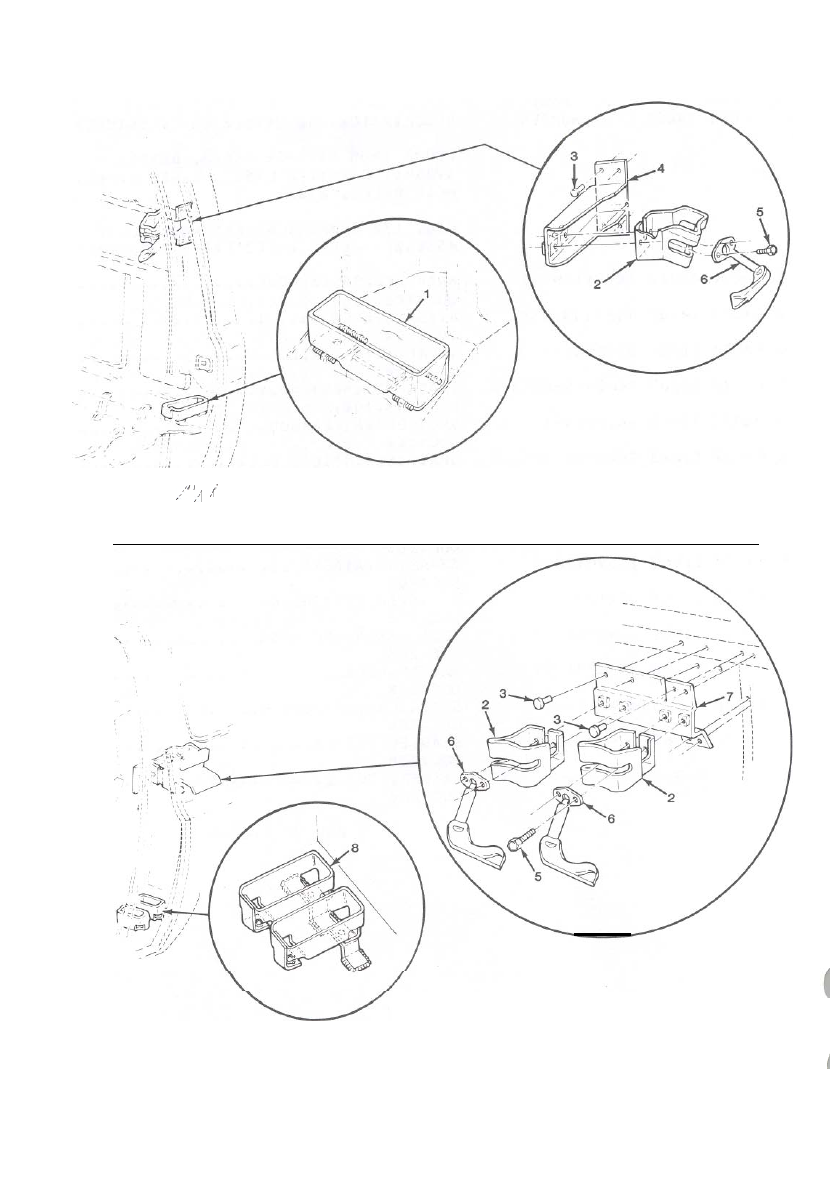

FIGURE 173. WEAPONS MOUNT (ALL EXCEPT  M1010).

TA511015

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1808 STOWAGE RACKS, BOXES,
STRAPS, CARRYING CASES, CABLE REELS,
HOSE REELS, ETC.

FIG. 173 WEAPONS MOUNT (ALL EXCEPT
M1010)

1

PAOZZ

11862

14074435

SUPPORT,WEAPON MOUN

2

UOC:194,208,230,231,252,254,256

2

PAOZZ

11862

14074437

BRACKET,MOUNTING,CA

2

UOC:194,208,209,230,231,252,254,256

3

PAOZZ

11862

2477054

RIVET,BLIND

8

UOC:194,208,209,230,231,252,254,256

4

PAOZZ

11862

14074441

BRACKET,WEAPON MOUN  LEFT

1

UOC:194,208,230,231,252,254,256

4

PAOZZ

11862

14074442

BRACKET,WEAPON MOUN  RIGHT

1

UOC:194,208,230,231,252,254,256

5

PAOZZ

11862

9440033

BOLT,MACHINE

4

UOC:194,208,209,230,231,252,254,256

6

PAOZZ

11862

14074438

LATCH ASSEMBLY,WEAP

2

UOC:194,208,209,230,231,252,254,256

7

PAOZZ

11862

15599965

BRACKET,MOUNTING  LEFT

1

UOC:209

8

PAOZZ

11862

15599271

SUPPORT,WEAPON

1

UOC:209

END OF FIGURE

173-1
