TM-9-2320-289-20 (4x4 M1000 Series). Manual - part 42

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 150 TOP ASSEMBLY AND COMPONENTS
(M1009)

10

PAOZZ

11862

458985

SCREW,TAPPING

10

UOC:209

END OF FIGURE

150-1

S E C T I O N   I I

TM 9-2320-289-20P

TA510992

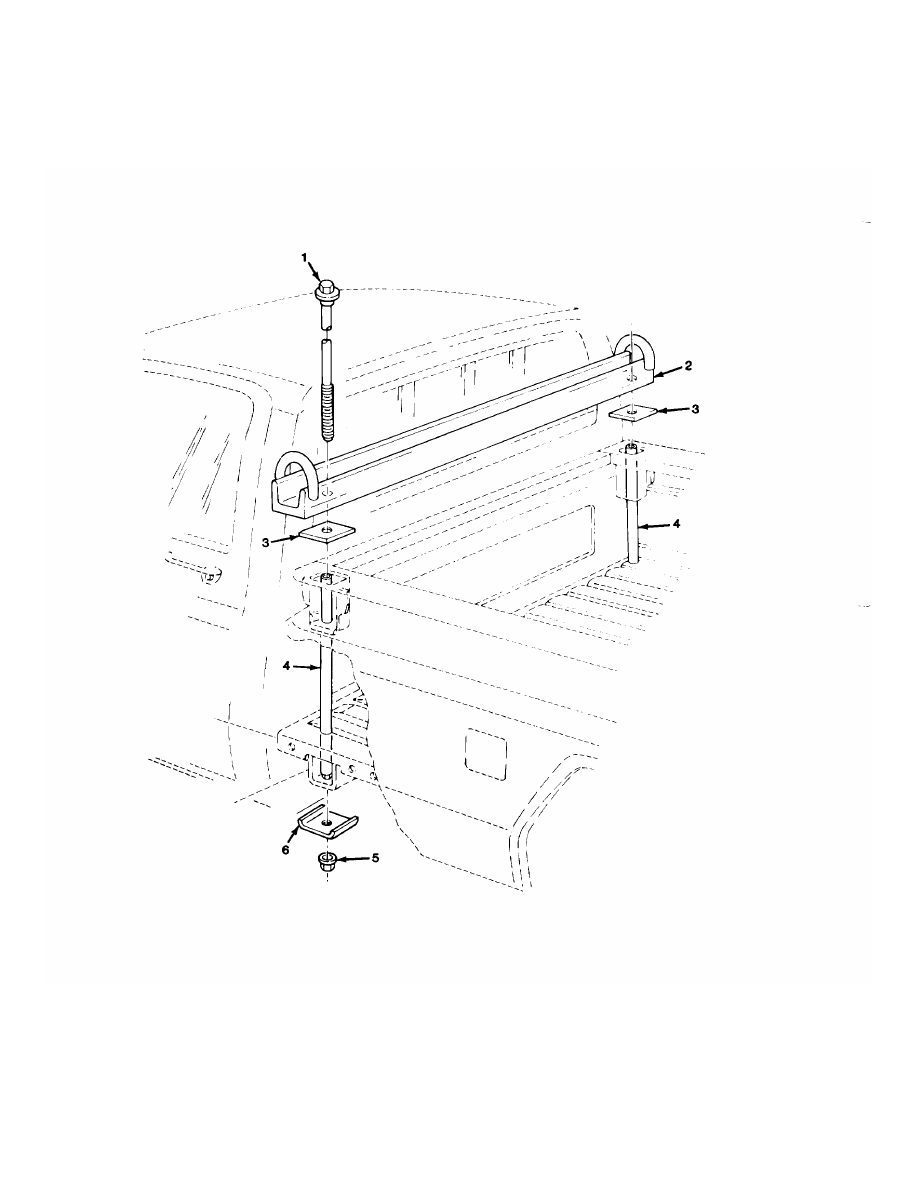

FIGURE 151. FRONT TIE-DOWN BRACKETS (M1028, M1028A1, M1028A2, AND M1028A3).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 151 FRONT TIE-DOWN BRACKETS
(M1028, M1028A1, M1028A2, ANC
M1028A3)

1

PAOZZ

11862

15599929

BOLT,EXTERNALLY REL

2

UOC:230,252,254,256

2

PAOZZ

11862

14072452

CLAMP,LOOP

1

UOC:230,252,254,256

3

PAOZZ

11862

14072460

PAD,BRACKET SUPPORT

2

UOC:230,252,254,256

4

PAOZZ

11862

14072454

SPACER,SLEEVE

2

UOC:230,252,254,256

5

PAOZZ

11862

9439757

NUT,PLAIN,EXTENDED

2

UOC:230,252,254,256

6

PAOZZ

11862

14072459

PLATE,REINFORCEMENT

2

UOC:230,252,254,256

END OF FIGURE

151-1

SECTION II

TM 9-2320-289-20P

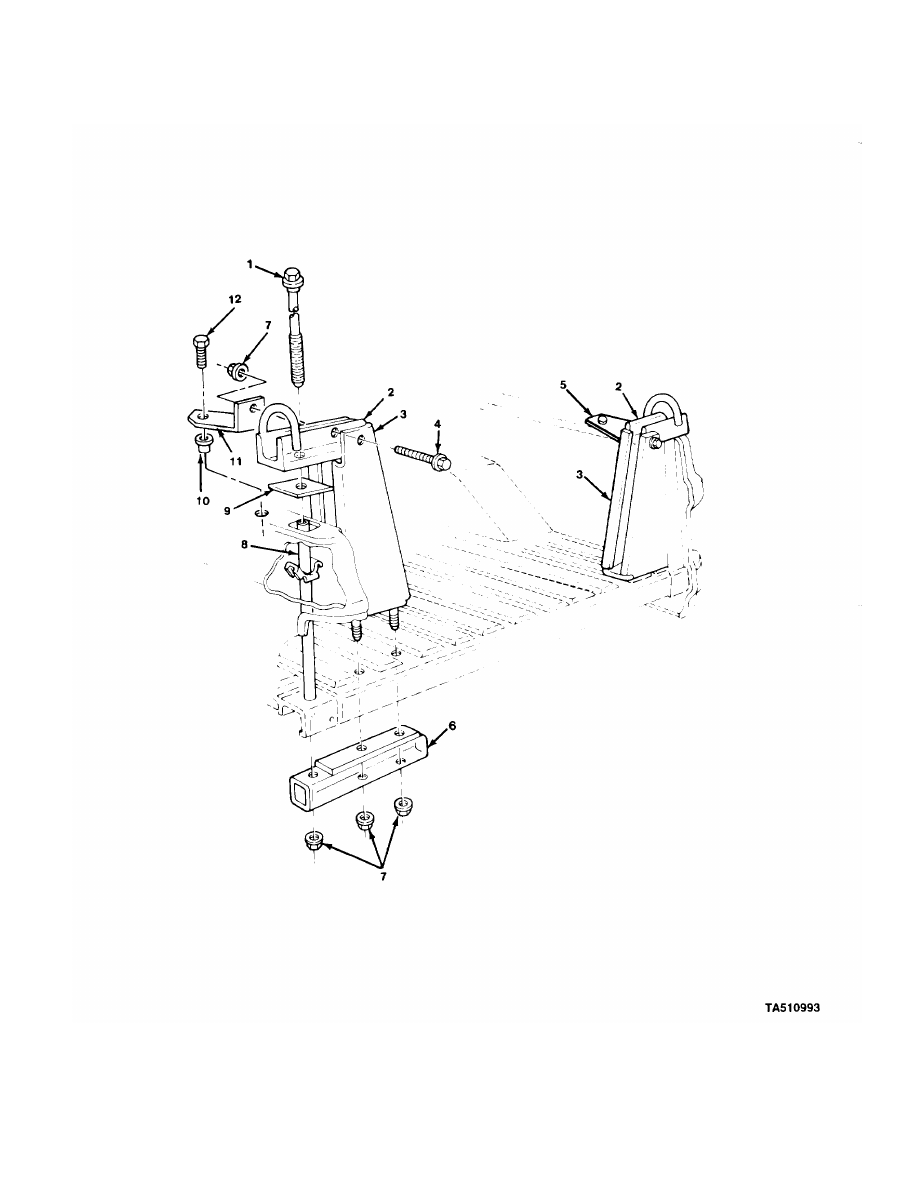

FIGURE 152. REAR TIE-DOWN BRACKETS (M1028, M1028A1 , M1028A2, AND M1028A3).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 152 REAR TIE-DOWN BRACKETS
(M1028,M1028A1, M1028A2,AND
M102A31)

1

PAOZZ

11862

15599929

BOLT,EXTERNALLY REL

2

UOC:230,252,254,256

2

PAOZZ

11862

15591705

BRACKET,TIE DOWN

2

UOC:230,252,254,256

3

PAOZZ

23862

15591706

BRACKET,TOW HOOK  RIGHT

1

UOC:230,252,254,256

3

PAOZZ

11862

15591709

BRACKET,TIE DOWN  LEFT

1

UOC:230,252,254,256

4

PAOZZ

11862

14072458

SETSCREW

2

UOC:230,252,254,256

5

PAOZZ

1T998

15591710

BRACKET,ANGLE  RIGHT

1

UOC:230,252,254,256

6

PAOZZ

11862

14072455

REINFORCEMENT,REAR

2

UOC:230,252,254,256

7

PAOZZ

96906

MS51967-14

NUT,PLAIN,HEXAGON

8

UOC:230,252,254,256

8

PAOZZ

11862

14072454

SPACER,SLEEVE

2

UOC:230,252,254,256

9

PAOZZ

11862

14072460

PAD,BRACKET SUPPORT

2

UOC:230,252,254,256

10

PAOZZ

11862

3792287

NUT,PLAIN,BLIND RIV

2

UOC:230,252,254,256

11

PAOZZ

11862

15591707

BRACKET,ANGLE  LEFT

1

UOC:230,252,254

12

PAOZZ

11862

9440300

SCREW,CAP,HEXAGON H

2

UOC:230,252,254,256

END OF FIGURE

152-1

SECTION II

TM 9-2320-289-20P

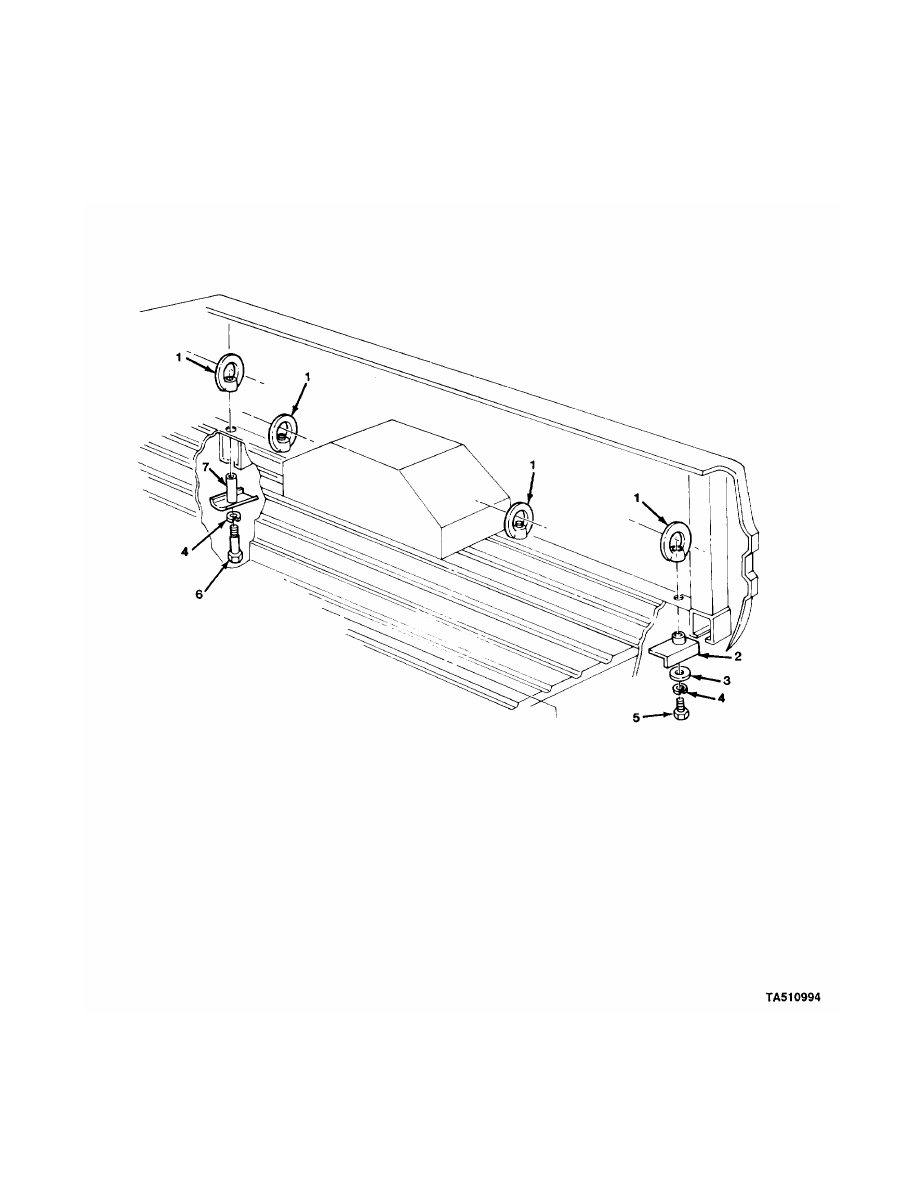

FIGURE 153. CARGO TIE-DOWNS (M1008 AND M1008A1).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 153 CARGO TIE-DOWNS (M1008 AND
M1008A1)

1

PAOZZ

11862

14072307

NUT,EYE

8

UOC:194,208

2

PAOZZ

11862

14072305

STRAP,RETAINING

2

UOC:194,208

3

PAOZZ

11862

94009398

WASHER,FLAT

2

UOC:194,208

4

PAOZZ

96906

MS35340-48

WASHER,LOCK

8

UOC:194,208

5

PAOZZ

96906

MS90728-114

SCREW,CAP,HEXAGON H

2

UOC:194,208

6

PAOZZ

96906

MS90728-125

SCREW,CAP,HEXAGON H

6

UOC:194,208

7

PAOZZ

11862

14072306

REINFORCEMENT,CARGO

6

UOC:194,208

END OF FIGURE

153-1

SECTION II

TM 9-2320-289-20P

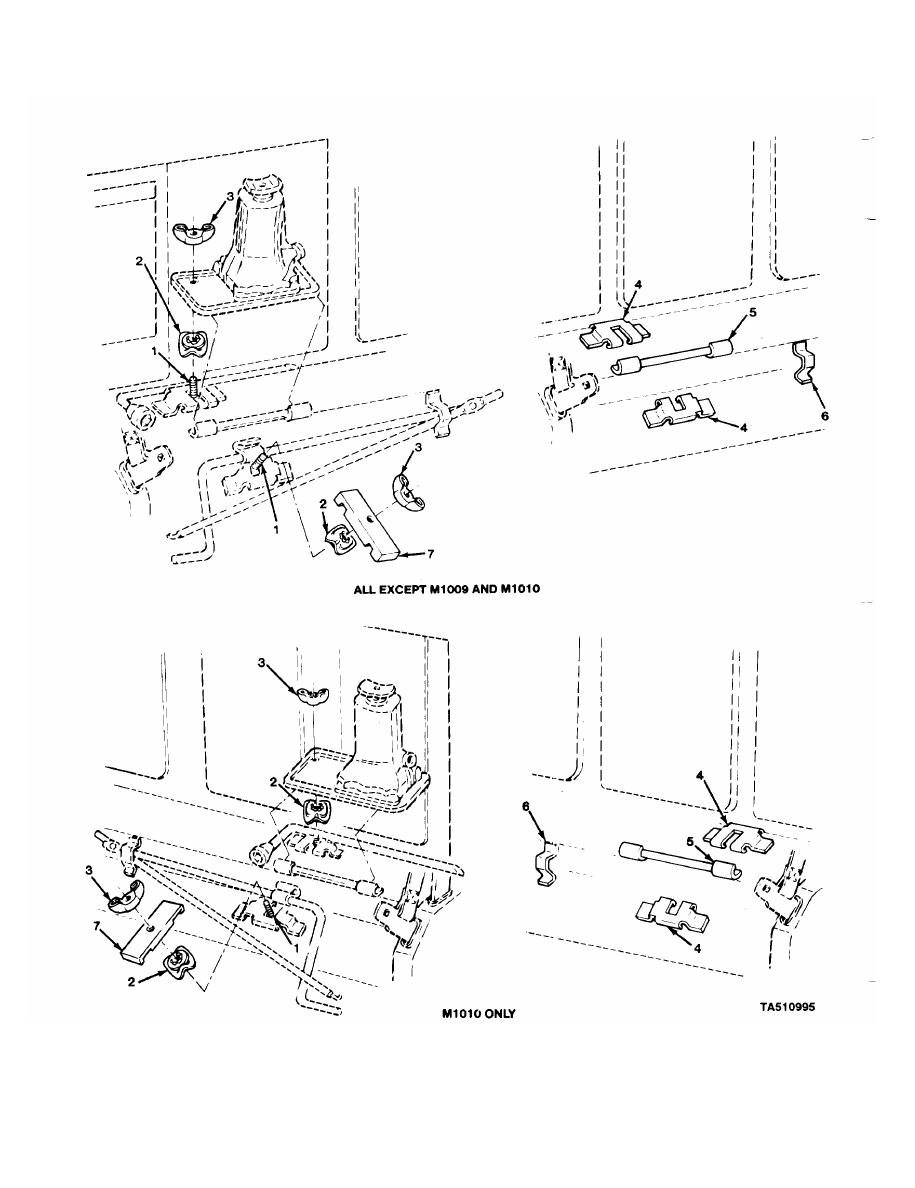

FIGURE 154. JACK STOWAGE COMPONENTS (ALL EXCEPT M1009).
