SECTION II

TM 9-2320-289-20P

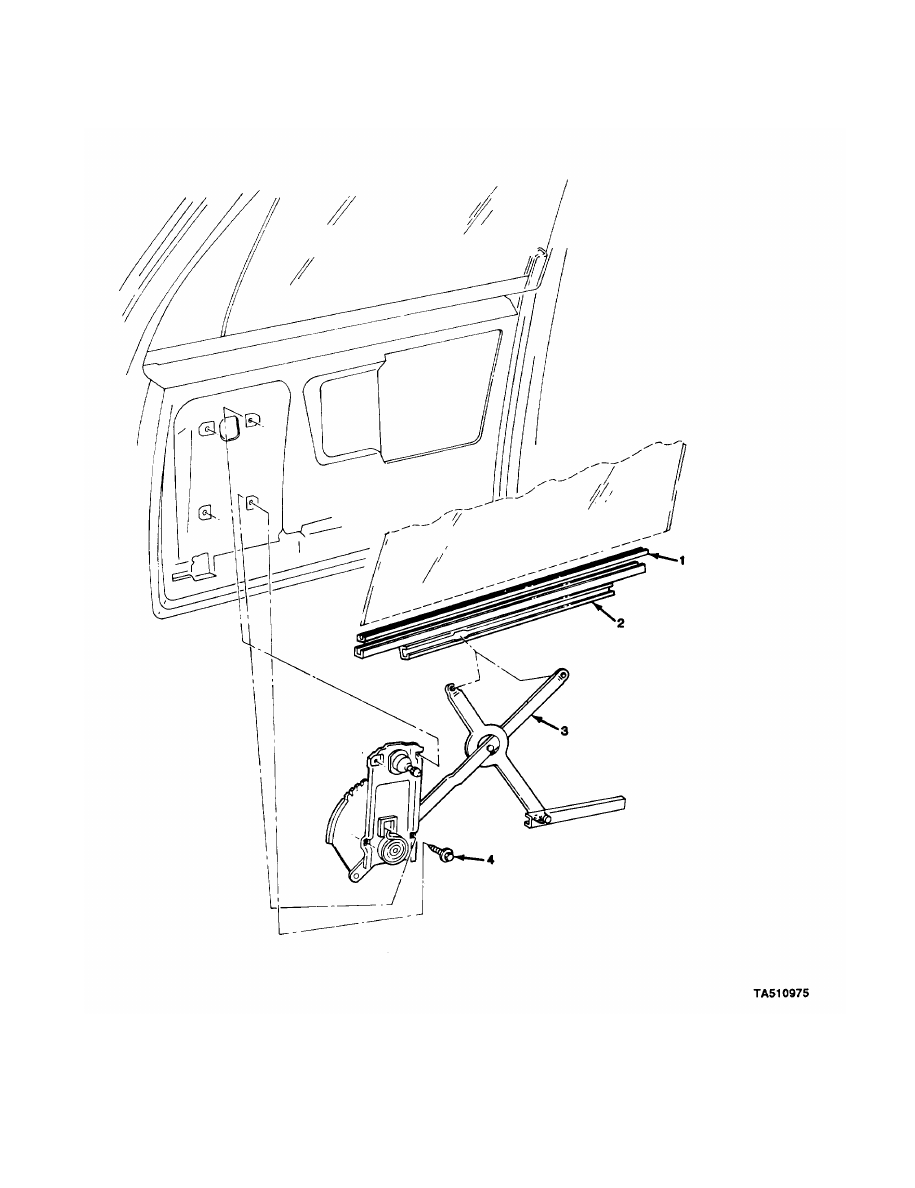

FIGURE 135. SIDE DOOR WINDOW REGULATOR.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 135 SIDE DOOR WINDOW REGULATOR

1

MOOZZ

11862

365953

FILLER,GLASS CHANNE  (25.62" LG.)

1

MAKE FROM FILLER,P/N 370389

2

PAOZZ

11862

15590401

CHANNEL,LIFT,VEHICL  LEFT

1

2

PAOZZ

11862

15590402

CHANNEL,LIFT,VEHICL  RIGHT

1

3

PAOZZ

11862

14027431

REGULATOR,VEHICLE W  LH

1

3

PAOZZ

11862

14027432

REGULATOR,VEHICLE W  RH

1

4

PAOZZ

11862

9439770

BOLT,ASSEMBLED WASH

8

END OF FIGURE

135-1

SECTION II

TM 9-2320-289-20P

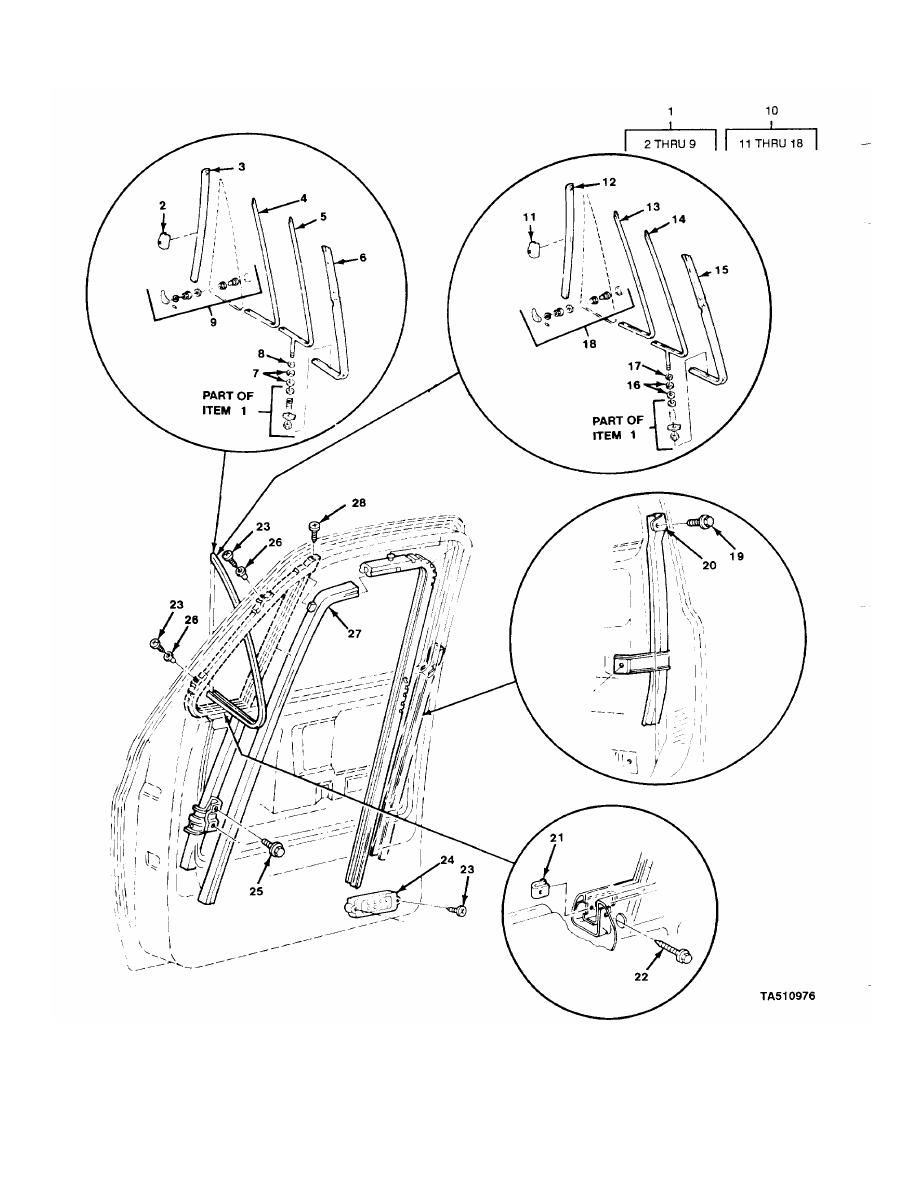

FIGURE 136. SIDE DOOR COMPONENTS.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 136 SIDE DOOR COMPONENTS

1

PAOOO

11862

15635685

VENT WING ASSEMBLY,  RIGHT

1

2

PAOZZ

11862

20264729

.STRIKE,CATCH

1

3

PAOZZ

11862

20264731

.SEAL,NONMETALLIC SP

1

4

MOOZZ

11862

365953-1

.FILLER,GLASS CHANNE  (25.10" LG.)

1

MAKE FROM RUBBER, P/N 370390

5

PAOZZ

11862

20264737

.CHANNEL,LIFT,VEHICL

1

6

PAOZZ

11862

20354946

.WEATHER STRIP

1

7

PAOZZ

11862

365443

.WASHER,FLAT

2

8

PAOZZ

11862

3762400

.STOP,DOOR VENTILATO

1

9

PAOZZ

11862

15617126

.PARTS KIT,VEHICULAR

1

10

PAOOO

11862

15635684

VENTILATOR,AIR CIRC  LEFT

1

11

PAOZZ

11862

20264728

.STRIKE,CATCH

1

12

PAOZZ

11862

20264730

.SEAL,RUBBER SPECIAL

1

13

MOOZZ

11862

365953-1

.FILLER,GLASS CHANNE  (25.10" LG.)

1

MAKE FROM RUBBER, P/N 370390

14

PAOZZ

11862

20264736

.VENTILLATOR,AIR CIRC

1

15

PAOZZ

11862

20354945

.WEATHER STRIP

1

16

PAOZZ

11862

365443

.WASHER,FLAT

2

17

PAOZZ

11862

3762400

.STOP,DOOR VENTILATO

1

18

PAOZZ

11862

12300197

.PARTS KIT,VEHICULAR

1

19

PAOZZ

11862

9439770

BOLT,ASSEMBLED WASH

4

20

PAOZZ

11862

337715

CHANNEL,LIFT,VEHICL  LEFT

1

20

PAOZZ

11862

337716

CHANNEL,LIFT,VEHICL  RIGHT

1

21

PAOZZ

96906

MS90724-34

NUT,SHEET SPRING

2

22

PAOZZ

11862

15531547

SCREW,TAPPING

2

23

PAOZZ

11862

11501149

SCREW,TAPPING

8

24

PAOZZ

11862

461610

VALVE ASSEMBLY,DOOR

2

25

PAOZZ

11862

9439770

BOLT,ASSEMBLED WASH

4

26

PAOZZ

11862

14013789

SPACER,SLEEVE

4

27

PAOZZ

11862

14027777

NONMETALLIC SPECIAL  LEFT

1

27

PAOZZ

11862

14027778

NONMETALLIC SPECIAL  RIGHT

1

28

PAOZZ

11862

15590443

SCREW,ASSEMBLED WAS

2

END OF FIGURE

136-1

SECTION II

TM 9-2320-289-20P

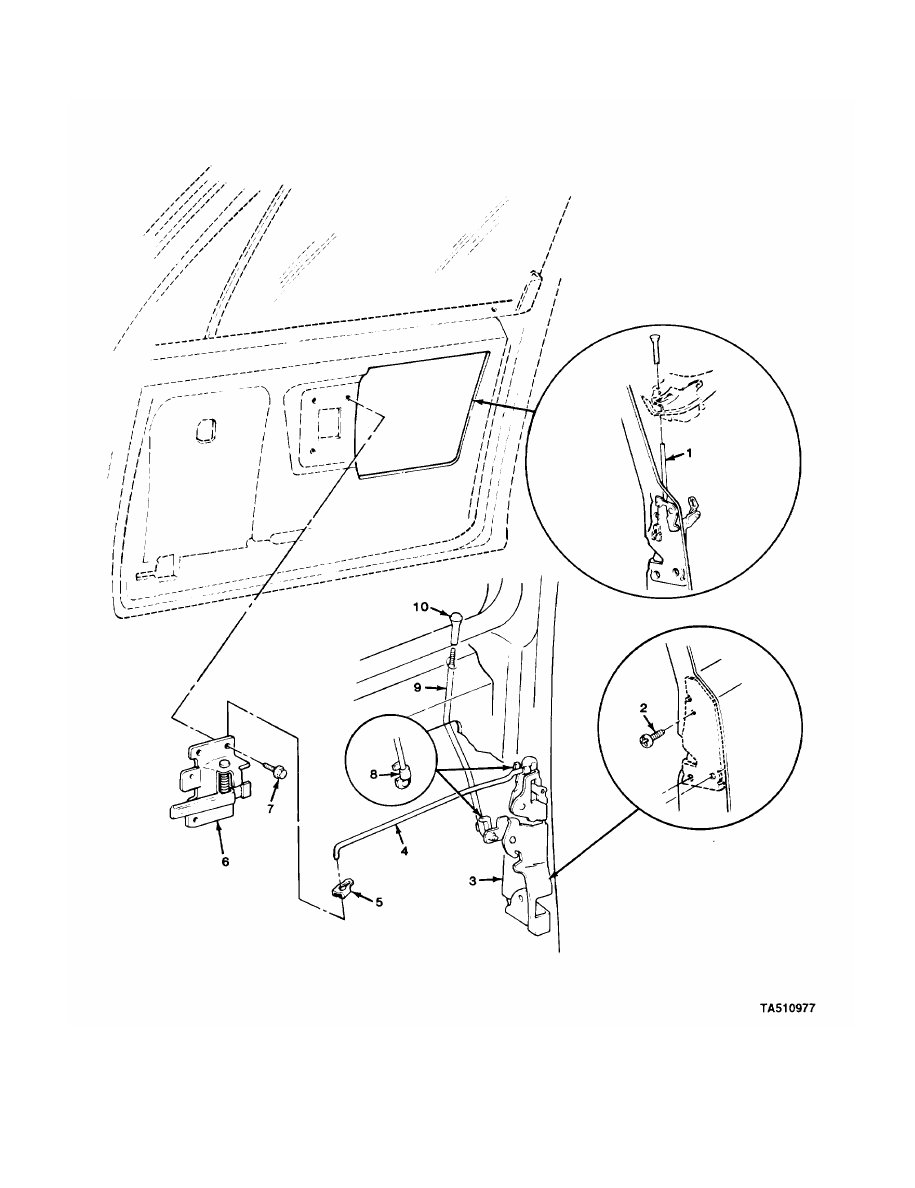

FIGURE 137. SIDE DOOR LOCK ASSEMBLY

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 137 SIDE DOOR LOCK ASSEMBLY

1

PAOZZ

11862

327067

CONNECTING LINK,RIG

2

2

PAOZZ

11862

9439772

SCREW,SELF-LOCKING

6

3

PAOZZ

11862

14039763

LOCK ASSEMBLY,VEHIC  LEFT

1

3

PAOZZ

11862

14039764

LOCK ASSEMBLY,VEHIC  RIGHT

1

4

PAOZZ

11862

14039765

CONNECTING LINK,RIG  LEFT

1

4

PAOZZ

11862

14039766

CONNECTING LINK,RIG  RIGHT

1

5

PAOZZ

11862

375180

CLIP,SPRING TENSION

2

6

PAOZZ

11862

15597653

CONTROL ASSEMBLY,RE  LEFT

1

6

PAOZZ

11862

15597654

CONTROL ASSEMBLY,LC  RIGHT

1

7

PAOZZ

11862

9439770

BOLT,ASSEMBLED WASH

6

8

PAOZZ

11862

15545178

CLIP,RETAINING

4

9

PAOZZ

11862

14039767

CONNECTING LINK,RIG  LEFT

1

9

PAOZZ

11862

14039768

CONNECTING LINK,RIG  RIGHT

1

10

PAOZZ

11862

7591126

KNOB

2

END OF FIGURE

137-1

SECTION II

TM 9-2320-289-20P

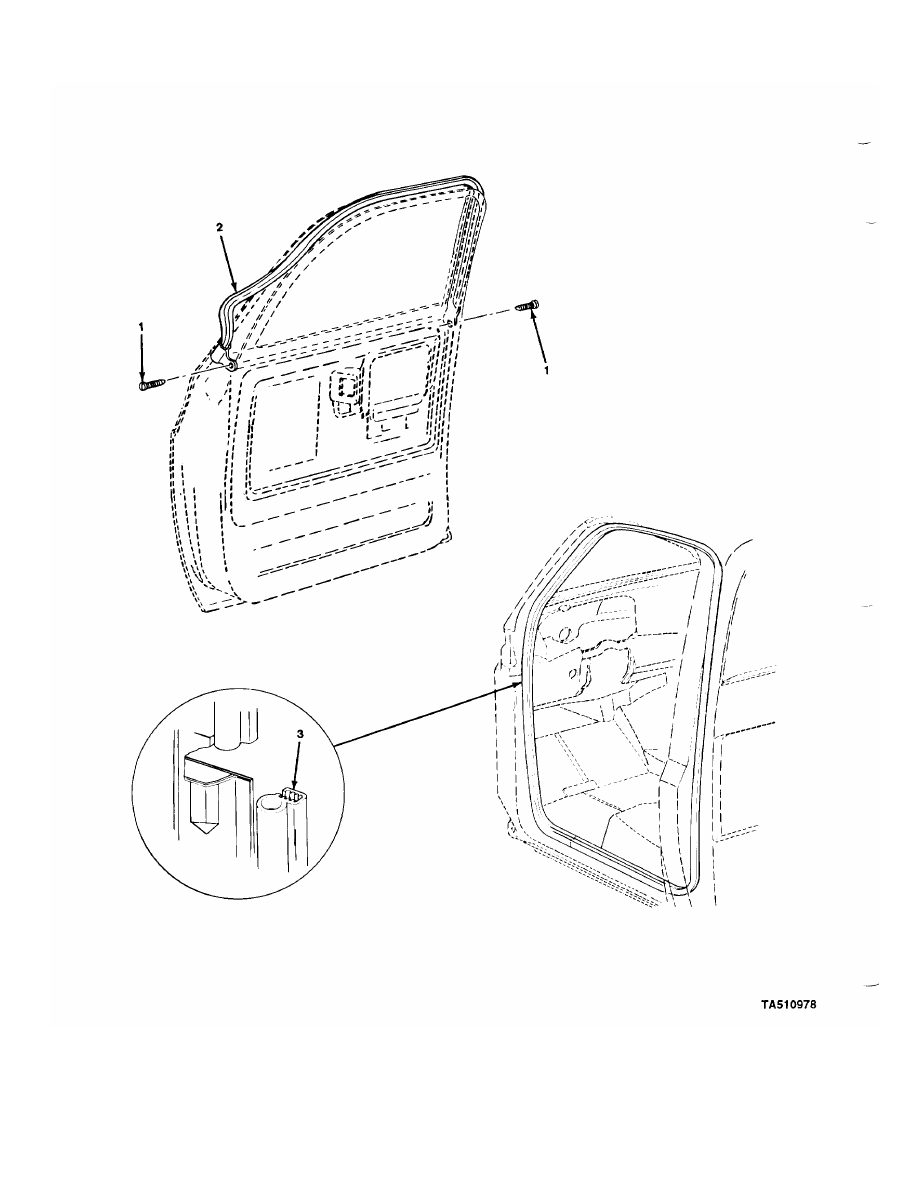

FIGURE 138. SIDE DOOR WEATHERSTRIPS.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 138 SIDE DOOR WEATHERSTRIPS

1

PAOZZ

11862

14022885

SCREW,TAPPING

4

UOC:209

2

PAOZZ

11862

14016511

MOLDING,FRAME  LEFT

1

UOC:209

2

PAOZZ

11862

14016512

MOLDING,FRAME  RIGHT

1

UOC:209

3

PAOZZ

11862

15522764

WEATHER STRIP

2

END OF FIGURE

138-1
