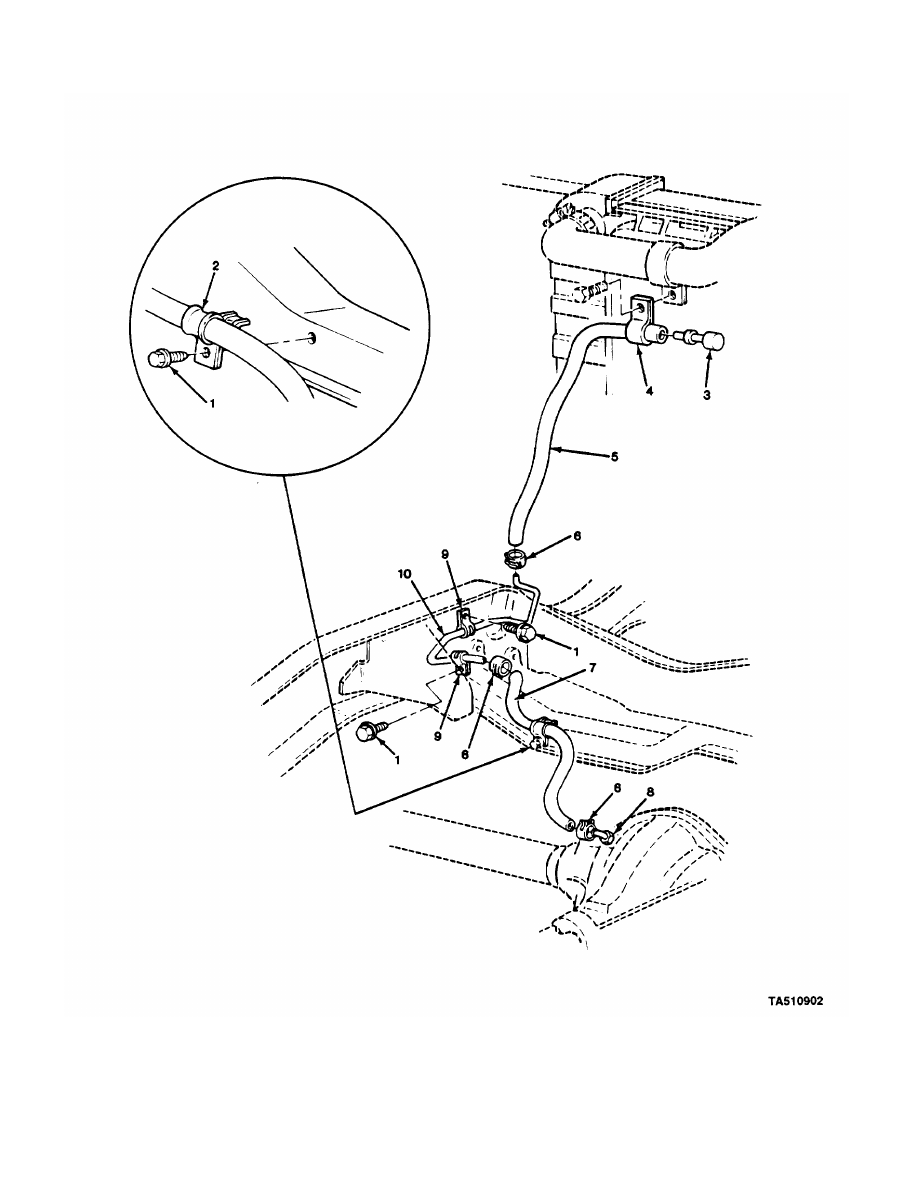

FIGURE 75. FRONT AXLE BREATHER.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 10 FRONT AXLE

GROUP 1000 FRONT AXLE ASSEMBLY

FIG. 75 FRONT AXLE BREATHER

1

PAOZZ

11862

11504447

SCREW,TAPPING

3

2

PAOZZ

96906

MS21333-112

CLAMP,LOOP

1

3

PAOZZ

11862

8640496

SHAFT,SHOULDERED

1

4

PAOZZ

96906

MS21333-48

CLAMP,LOOP

1

5

MOOZZ

11862

9439088

HOSE-FRT AX VENT (20.67"LG)MAKE

1

FROM HOSE,P/N 9439104

6

PAOZZ

96906

MS35842-10

CLAMP,HOSE

3

7

MOOZZ

11862

9439091

HOSE-FRT AX VENT (23.62"LG)MAKE

1

FROM HOSE,P/N 9439104

8

PAOZZ

11862

14056299

ELBOW,HOSE

1

UOC:194,208,210,230,231,252,254,256

9

PAOZZ

96906

MS21333-110

CLAMP,LOOP

2

10

MFOZZ

11862

14029235

PIPE-FRT AX VNT (23.82"LG) MAKE

1

FROM TUBE, P/N 465246

END OF FIGURE

75-1

TM 9-2320-289-20P

SECTION II

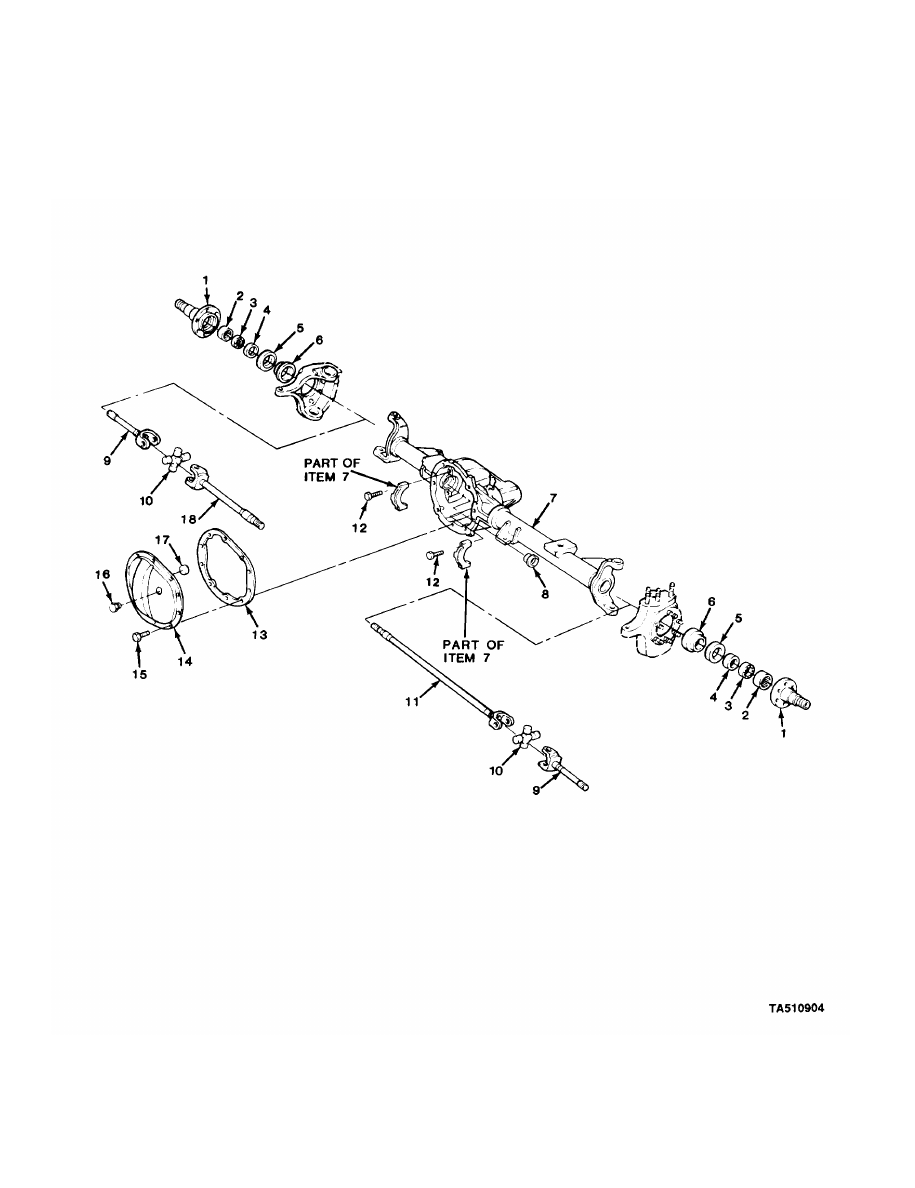

FIGURE 76. FRONT AXLE COMPONENT PARTS AND SPINDLE ASSEMBLIES

(ALL EXCEPT M1009).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1000 FRONT AXLE ASSEMBLY

FIG. 76 FRONT AXLE COMPONENTS PARTS
AND SPINDLE ASSEMBLIES (ALL EXCEPT
M1009)

1

PAOZZ

97271

700013L

PARTS KIT,VEHICULAR INCLUDES ITEMS

2

4,5
UOC:194,208,210,230,231,252,254,256

2

PAOZZ

11862

14009626

PARTS KIT,STEERING INCLUDES ITEMS

2

3,4,5
UOC:194,208,210,230,231,252,254,256

3

PAOZZ

97271

620062-B

SEAL,PLAIN ENCASED

2

UOC:194,208,210,230,231,252,254,256

4

PAOZZ

97271

37312

SPACER,RING

2

UOC:194,208,210,230,231,252,254,256

5

PAOZZ

11862

462811

SEAL,PLAIN ENCASED

2

UOC:194,208,210,230,231,252,254,256

15

PAOZZ

72447

36472

PLUG,PIPE

1

UOC:194,208,210,230,231,252,254,256

END OF FIGURE

76-1

S E C T I O N   I I

TM 9-2320-289-20P

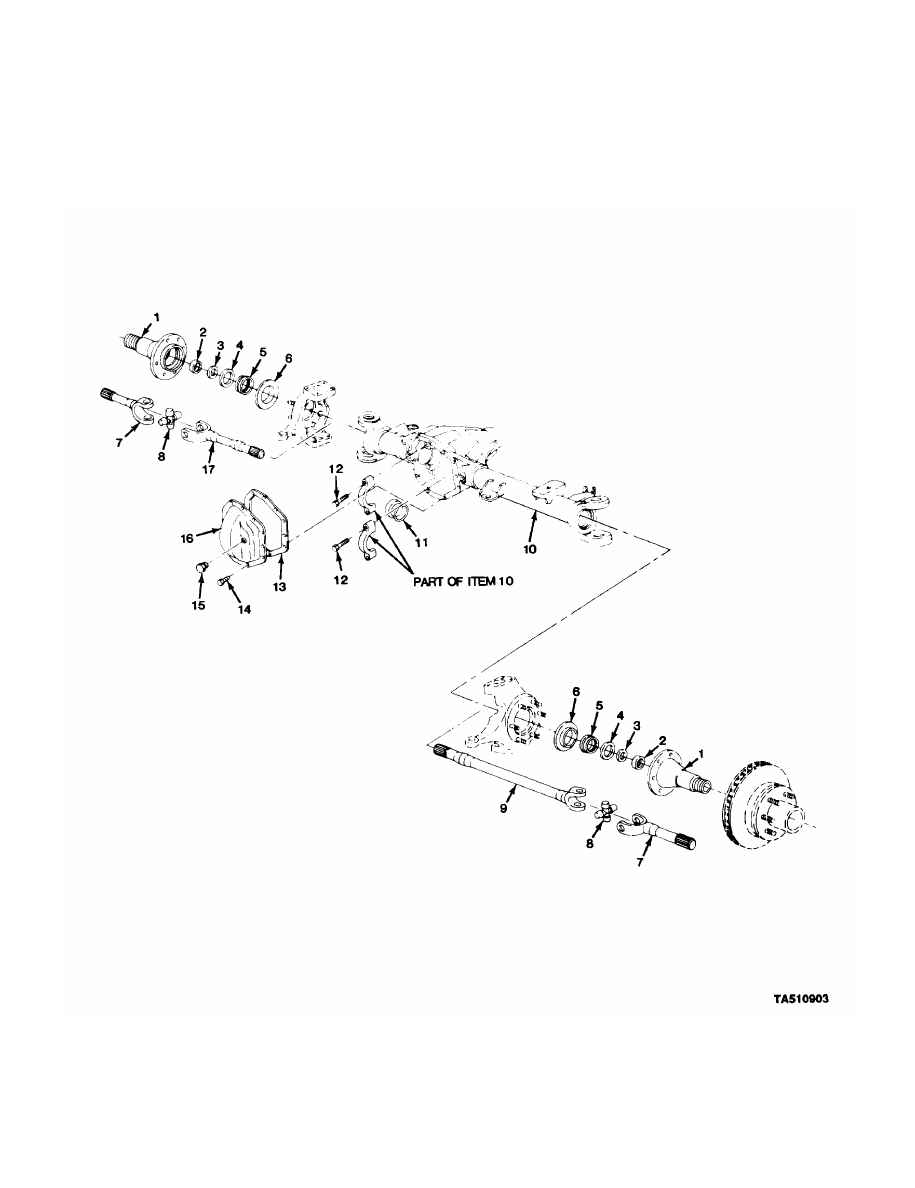

FIGURE 77. FRONT AXLE COMPONENT PARTS AND SPINDLE ASSEMBLIES (M1009).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1000 FRONT AXLE ASSEMBLY

FIG. 77 FRONT AXLE COMPONENT PARTS
AND SPINDLE ASSEMBLIES (M1009)

1

PAOZZ

11862

14072919

SPINDLE,WHEEL,NONDR INCLUDES ITEM

2

2,3 APPLIES TO 1984 MODELS ONLY
UOC:209

1

PAOZZ

97271

29907X

SPINDLE,WHEEL,NONDR INCLUDES ITEMS

2

2,3,4 AND APPLIES TO VEHICLES
STARTING WITH VIN ENDING WITH
F136169
UOC:209

1

PAOZZ

11862

464039

SPINDLE,WHELL,DRIVI INCLUDES ITEM

2

2,3,4
UOC:209

2

PAOZZ

11862

3965121

PARTS KIT,BEARING R

2

UOC:209

3

PAOZZ

11862

376855

SEAL,PLAIN ENCASED

2

UOC:209

4

PAOZZ

11862

376852

WASHER,RECESSED

2

UOC:209

5

PAOZZ

11862

376851

SEAL,PLAIN ENCASED

2

UOC:209

16

PAOZZ

96906

MS51884-9

PLUG,PIPE

1

UOC:209

END OF FIGURE

77-1

SECTION II

TM 9-2320-289-20P

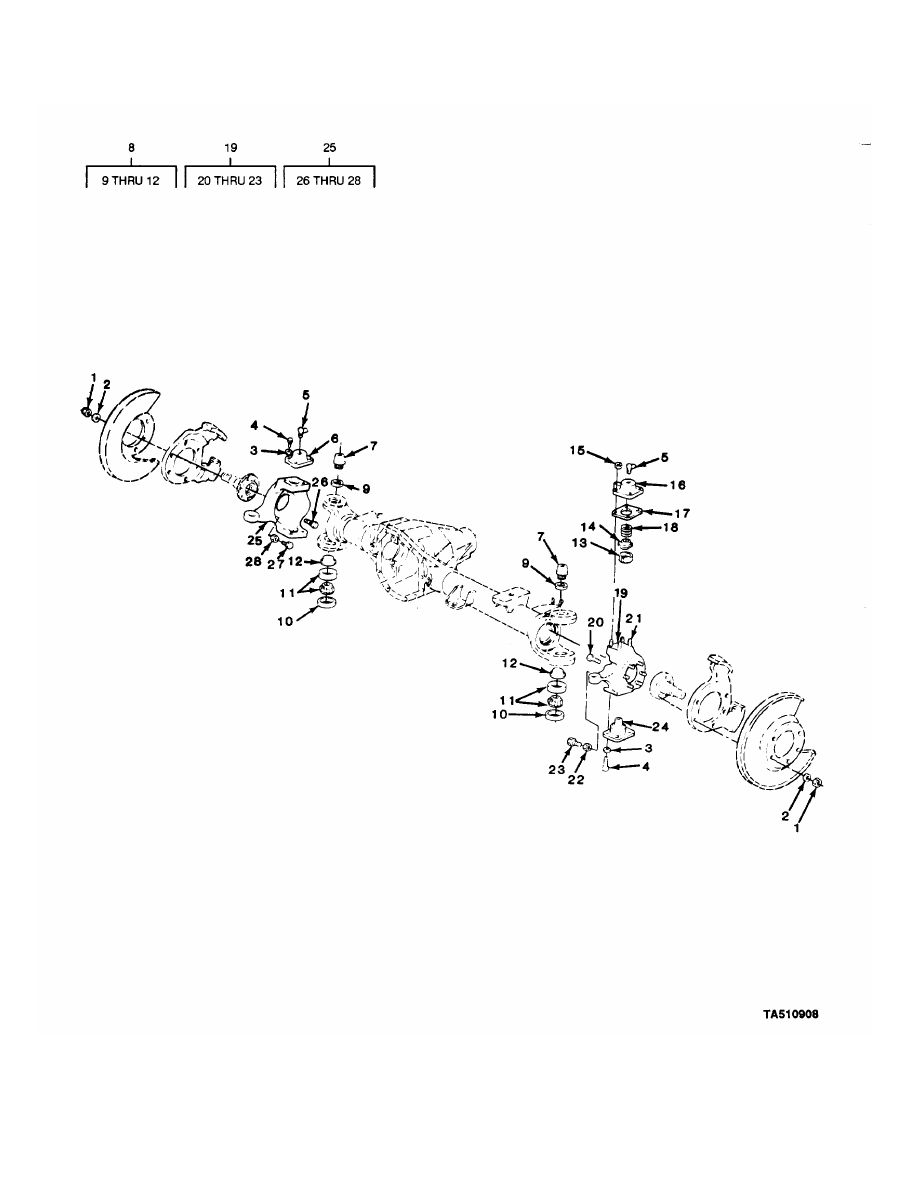

FIGURE 78. STEERING KNUCKLE ASSEMBLY (ALL EXCEPT M1009).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1004 STEERING AND LEANING
WHEEL MECHANISM

FIG. 78 STEERING KNUCKLE ASSEMBLY
(ALL EXCEPT M1009)

1

PAOZZ

97271

36880

NUT,PLAIN

12

UOC:194,208,210,230,231,252,254,256

2

PAOZZ

97271

38081-1

WASHER,LOCK

12

UOC:194,208,210,230,231,252,254,256

5

PAOZZ

24617

9411031

FITTING,LUBRICATION

4

UOC:194,208,210,230,231,252,254,256

END OF FIGURE

78-1
