TM 9-2320-289-20P

U N I T M A I N T E N A N C E R E P A I R P A R T S A N D S P E C I A L T O O L S L I S T S

( I N C L U D I N G D E P O T M A I N T E N A N C E

R E P A I R P A R T S A N D S P E C I A L

T O O L S L I S T S )

S E C T I O N I . I N T R O D U C T I O N

1. Scope.

This RPSTL lists and authorizes spares and repair parts;

in alphanumeric sequence and cross-references NSN,

Special tools; special test, measurement, and

CAGE, and part numbers.

diagnostic equipment (TMDE); and other special
support equipment required for performance of Unit
Maintenance of the CUCV Series Truck. It authorizes the

3. Explanation of Columns (Sections

and

III

requisitioning, issue, and disposition of spares, repair
parts and special tools as indicated by the source,

a. ITEM NO. (Column (1)). Indicates the number

maintenance and recoverability (SMR) codes.

used to identify items called out in the illustration.

b. SMR CODE (Column (2)). The S o u r c e ,

2. General.

Maintenance, and Recoverability (SMR) code is a

5-position

code containing supply/requisitioning

In addition to Section 1. Introduction, this Repair Paris

information,

maintenance category authorization

and Special Tools List is divided into the following

criteria, and disposition instructions, as shown in the

sections:

following breakout:

a. Section Il. Repair Parts List. A list of spares and

repair parts authorized by this RPSTL for use in the
performance of maintenance. The list also Includes
parts which must be removed for replacement of the
authorized parts. Parts lists are composed of functional
groups in ascending alphanumeric sequence, with the
parts in each group listed in ascending figure and item
number sequence. Bulk materials are listed in item
name sequence. Repair kits are listed separately in their
own functional group within Section Il. Repair parts for
reparable special tools are also listed in the section.
Items listed are

shown on the associated

illustration(s) /figure(s).

b. Section ///. Special Tools List. A list of special

tools, special TMDE, and other special support
equipment authorized by this RPSTL (as indicated by
Basis of Issue (BOI) information in DESCRIPTION AND
USABLE ON CODE column) for the performance of
maintenance.

c. Section IV. Cross-reference Indexes. A Iist, in Na-

tional Item Identification Number (NIIN) sequence, of all

National stock numbered items appearing in the listing,

followed by a list in alphanumeric sequence of all part

numbers appearing in the listings. National stock num-
bers and part numbers are cross-referenced to each
illustration/figure and item number appearance. The fig-
ure and item number index lists figure and item numbers

Source Code

How you get an item.

Maintenance Code

Who can install, replace,

Who can do complete

or use the item.

repair* on the item.

Recoverability Code

Who determines disposition action on

an unserviceable item.

✩

Comp/ete Repair: Maintenance capacity, capability,

and authority to perform all corrective maintenance

tasks of the “Repair” function in a use/user environment

in order to restore serviceability to a failed item.

(1) Source Code. The source code tells you

how to get an item needed for maintenance, repair, or
overhaul of an end item/equipment. Explanations of
source codes follows:

TM 9-2320-289-20P

Code

PA
PB
PC**
PD
PE
PF
PG

KD
KF
KB

Application/Explanation

Stocked items; use the applicable NSN to
request/requisition items with these source
codes. They are authorized to the category
indicated by the code entered in the 3d
position of the SMR code.

** Items coded PC are subject to
deterioration.

Items with these codes are not to be
requested/requisitioned individually. They
are part of a kit which is authorized to the
maintenance category indicated in the 3d
position of the SMR code. The complete kit
must be requisitioned and applied. ‘

MO - (Made at UM/

AVUM Level)

MF - (Made at DS/

AVUM Level)

MH - (Made at GS

Level)

ML- (Made at Spe-

cialized Repair

Activity (SRA))

MD - (Made at

Depot)

AO - (Assembled by

UM/ AVUM

Level)

AF - (Assembled by

DS/AVIM
Level)

AH - (Assembled by

GS Category)

AL- (Assembled by

SRA)

AD - (Assembled by

Depot)

Items with these codes are not to
be

requested/requisitioned

individually. They must be made

from bulk material which is

identified by the part number in

the DESCRIPTION AND USABLE

ON CODE (UOC) column and
listed in the Bulk Material group
of the repair parts list in this
RPSTL. If the item is authorized
to you by the 3d position code of

the SMR code, but the source

code indicates it is made at a
higher Ievel, order the item from
the higher level of maintenance.

Items with these codes are not to
be

requested/requisitioned

individually. The parts that make

up the assembled item must be
requisitioned or fabricated and
assembled at the level of
maintenance indicted by the
source code. If the 3d position
code

of the SMR code

authorizes you to replace the

item, but the source code
indicates the item is assembled

at a higher level, order the item

from the higher level of

maintenance.

XA -

Do not requisition an “XA’’-coded item. Or-
der its next higher assembly. (Also refer to

the NOTE following.)

XB -

If an “XB” item Is not available from salvage,
order it using the CAGE and part number
given.

XC -

Installation drawing, diagram, instruction
sheet, field service drawing, that is identified
by the manufacturer’s part number.

XD -

Item is not stocked. Order an “XD’’-coded
item through normal supply channels using

the CAGE and part number given, if no NSN

is available.

NOTE: Cannibalization or controlled exchange, when
authorized, may be used as a source of supply for items
with the above source codes, except for those source

coded "XA" or those aircraft support items restricted by
requirements of AR 700-42.

(2) Maintenance Code. Maintenance codes tell

you the level(s) of maintenance authorized to USE and
REPAIR support items. The maintenance codes are en-
tered in the third and fourth positions of the SMR code as
follows:

(a) The maintenance code entered in the

third position tells you the lowest maintenance level

authorized to remove, replace, and use an item. The
maintenance code entered in the third position will indi-

cate authorization to one of the following levels of
maintenance.

C o d e Application/Explanation

C -

Crew or operator maintenance done within
unit maintenance or aviation unit mainte-
nance.

O -

Unit maintenance or aviation unit category

can remove, replace, and use the item.

F -

Direct support or aviation intermediate level
can remove, replace, and use the item.

H -

General support level can remove, replace,
and use the item.

L -

Specialized repair activity can remove, re-
place, and use the item.

D -

Depot level can remove, replace, and use

the item.

(b) The maintenance code entered in the

fourth position tells whether or not the item is to be re-

paired and identifies the lowest maintenance level with

the capability to do complete repair (i.e., perform all

authorized repair functions), (NOTE: Some limited re-
pair may be done on the item at a lower level of
maintenance, if authorized by the Maintenance Alloca-

tion Chart (MAC) and SMR codes.) This position will

contain one of the following maintenance codes:

Code Application/Explanation

O -

Unit maintenance or aviation unit is the low-
est level that can do complete repair of the
item.

F -

Direct support or aviation intermediate is the
lowest level than can do complete repair of

the item.

TM 9-2320-289-20P

H -

L -

D -

Z -

B -

General support is the lowest level that can
do complete repair of the item.

Specialized repair activity is the lowest level

that can do complete repair of the item.

Depot is the lowest level that can do com-
plete repair of the item.

Nonreparable. No repair is authorized.

No repair is authorized. (No parts or special

tools are authorized for the maintenance of a

“B’’-coded item.) However, the item maybe

reconditioned by adjusting, lubricating, etc.,
at the user level.

(3) Recoverability Code. Recoverability codes

are assigned to items to indicate the disposition action
on unserviceable items. The recoverability code is en-

tered in the fifth position of the SMR code as follows:

Code

Application/Explanation

Z -

Nonreparable item. When unserviceable,

condemn and dispose of the item at the level
of maintenance shown in the 3d position of

the SMR code.

O -

Reparable item. When uneconomically
reparable, condemn and dispose of the item

at unit maintenance or aviation unit level.

F -

Reparable item. When uneconomically

reparable, condemn and dispose of the item
at the direct support or aviation intermediate

level.

H -

Reparable item.

When uneconomically

reparable, condemn and dispose of the item
at the general support level.

D -

Reparable item. When beyond lower level
repair capability, return to depot, Condem-

nation and disposal of item not authorized
below depot level.

L -

Reparable item. Condemnation and dis-
posal of item not authorized below
specialized repair activity (SRA).

A -

Item requires special handling or condem-
nation procedures because of specific
reasons (e.g., precious metal content, high
dollar value, critical material, or hazardous
material). Refer to appropriate manuals/di-
rectives for specific instructions.

c. CAGEC (Column (3)), me Commercial and

Government Entity (CAGE) Code (C) is a 5-digit
alphanumeric code which is used to Identify the
manufacturer, distributor, or Government agency, etc.,

that supplies the item.

d. PART NUMBER (Column (4)). Indicates the

primary number used by the manufacturer (individual,
company, firm, corporation, or Government activity),

which controls the design and characteristics of the item

by means of its engineering drawings, specifications
standards, and inspection requirements to identify an
item or range of items.

NOTE: When you use an NSN to requisition an item, the

item you receive may have a different part number from

the part ordered.

e. DESCRIPTION AND USABLE ON CODE (UOC)

(Column (5)). This column includes the following
information:

(1) The Federal item name and, when required,

a minimum description to Identify the Item.

(2) Physical security classification. Not Appli-

cable.

(3) Items that are included in kits and sets are

listed below the name of the kit or set on Figure KIT,

(4) Spare/repair parts that make up an assem-

bled item are listed immediately following the
assembled item line entry.

(5) Part numbers for bulk materials are refer-

enced in this column in the line item entry for the item to
be manufactured/fabricated.

(6) When the item is not used with ail serial num-

bers of the same model, the effective serial numbers are
shown on the last line(s) of the description (before

UOC).

(7) The usable on code, when applicable (see

paragraph 5, Special Information).

(8) In the Special Tools List section, the basis of

issue (BOI) appears as the last line(s) in the entry for
each special tool, special TMDE, and other special sup-
port equipment. When density of equipments supported
exceeds density spread indicated in the basis of issue,

the total authorization is increased proportionately.

(9) The statement “END OF FIGURE” appears

just below the last item description in Column 5 for a

given figure in both Section Il and Section Ill.

f. QTY (Column (6)). The QTY (quantity per figure

column) indicates the quantity of the item used in the
breakout shown on the illustration/figure, which is
prepared for a functional group, subfunctional group, or
an assembly. A “V” appearing in this column in lieu of a
quantity indicates that the quantity is variable and the
quantity may vary from application to application.

4. Explanation of Columns (Section IV).

a. NATIONAL STOCK NUMBER (NSN) INDEX.

(1) STOCK NUMBER column. This column lists

the NSN by National Item Identification Number (NIlN)

TM 9-2320-289-20P

sequence. The NIIN consists of the last nine

NSN

digits of the NSN (i.e.,

When

NIIN

using this column to locate an item, ignore the first 4 dig-
its of the NSN. However, the complete NSN should be
used when ordering items by stock number.

(2) FIG. column. This column lists the number of

the figure where the item is identified/located. The fig-
ures are in numerical order in Section II and Section Ill.

(3) ITEM column. The item number identifies the

item associated with the figure listed in the adjacent
FIG. column. This item is also identified by the NSN
listed on the same line.

b. PART NUMBER INDEX. Part numbers in this index

are listed by part number in ascending alphanumeric
sequence (i.e., vertical arrangement of letter and
number combination which places the first letter or digit
of each group in order A through Z, followed by the
numbers O through 9 and each following letter or digit in
like order).

(1) CAGEC column. The Commercial and Gov-

ernment Entity (CAGE) Code (C) is a 5-digit
alphanumeric code used to identify the manufacturer,
distributor, or Government agency, etc., that supplies
the item.

(2) PART NUMBER column. Indicates the pri-

mary number used by the manufacturer (individual, firm,
corporation, or Government activity), which controls the
design and characteristics of the item by means of its
engineering drawings, specifications standards, and in-
spection requirements to identify an item or range of
items.

(3) STOCK NUMBER column. This column lists

the NSN for the associated part number and manufac-
turer identified in the PART NUMBER and CAGE

columns to the left.

(4) FIG. column. This column Iists the number of

the figure where the item is identified/located in Sec-
tions II and Ill.

(5) ITEM column. The item number is that num-

ber assigned to the item as it appears in the figure
referenced in the adjacent figure number column.

c. FIGURE AND ITEM NUMBER INDEX.

(1) FIG. column. This column lists the number of

the figure where the item is identified/located in Sec-
tions II and Ill.

(2) ITEM column. The item number is that num-

ber assigned to the item as it appears in the figure
referenced in the adjacent figure number column.

5305-01-674-1467).

(3) STOCK NUMBER column. This column lists

the NSN for the item.

(4) CAGEC column. The Commercial and Gov-

ernment Entity (CAGE) Code (C) is a 5-digit alpha-
numeric code used to identify the manufacturer, distribu-

tor, or Government agency, etc., that supplies the item.

(5) PART NUMBER column. Indicates the pri-

mary number used by the manufacturer (individual, firm,
corporation, or Government activity), which controls the
design and characteristics of the item by means of its
engineering drawings, specifications standards and in-
spection requirements to identify an item or range of

items.

5. Special Information.

a. USABLE ON CODE. The usable on code appears

in the lower left comer of the Description column

heading. Usable on codes are shown as “UOC: . . . . . . “

in the Description column (justified left) on the first line

following applicable item description/nomenclature.

Uncoded items are applicable to all models.
Identification of the usable on codes used in the RPSTL
are:

Code

Used On

194

M1008,Type “B’’Cargo,
Shelter

208

M1008A1, Type “B”
Cargo, Troop Seat

209

M1009, Type “A” Utility

210

M1010, Type “C”
Ambulance

230

Ml 028, Type “E” Shelter
Carrier

252

M1028A1, Type”F”
Shelter Carrier w/PTO

254

M1028A2, Type “F”
Shelter Carrier w/PTO

256

M1028A3, Type “E

Shelter Carrier

231

M1031, Type “D”
Chassis

b. FABRICATION INSTRUCTIONS. Bulk materials

required to manufacture items are listed in the Bulk
Material Functional Group of this RPSTL. Part numbers

for bulk materials are also referenced in the Description
column of the line item entry for the item to be
manufactured/fabricated.

Detailed

fabrication

instructions for items source coded to be manufactured
or fabricated are found in TM 9-2320-28920 or TM 9-

2320-289-34.

c. ASSEMBLY INSTRUCTIONS. Detailed assembly

instructions for items source coded to be assembled

---

TM 9-2320-289-20P

from component spare/repair parts are found in TM 9
2320-289-20 or TM 9-2320-289-34. Items that makeup
the assembly are listed immediately following the

assembly item entry or reference is made to an
applicable figure.

d. KITS. Line item entries for repair parts kits appear

in group 9401 in Section Il.

e. INDEX NUMBERS. Items which have the word

BULK in the figure column will have an index number
shown in the item number column. This index number is

a cross-reference between the National Stock

Number/Part Number Index and the bulk material list in

Section Il.

f. ASSOCIATED PUBLICATIONS. The publica-

tions listed below pertain to the CUCV Series Truck and

its components:

Publication

Short Title

LO 9-2320-289-12

CUCV Series Truck

TM 9-2320-289-10

CUCV Series Truck

TM 9-2320-289-20

CUCV Series Truck

TM 9-2320-289-20P

CUCV Series Truck

TM 9-2320-289-34

CUCV Series Truck

g. The illustrations In this manual are identical to

those published in TM 9-2320-289-34P. Only those parts

. .

coded “C” or “O” in the third position of the SMR code
are listed in the tabular listing; therefore, there maybe a
break in the item number sequence. Only illustrations
containing organizational/unit level authorized items
appear in this manual.

6. How to Locate Repair Parts.

a. When National Stock Number or Part Number is

Not Known:

(1) First. Using the table of contents, determine

the assembly group or subassembly group to which the

item belongs. This is necessary since figures are pre-

pared for assembly groups and subassembly groups,
and listings are divided into the same groups.

(2) Second. Find the figure covering the assem-

bly group or subassembly group to which the item
belongs.

(3) Third. Identify the item on the figure and use

the Figure and Item Number Index to find the NSN.

b. When National Stock Number or Part Number is

Known:

(1) First. Using the National Stock Number or

Part Number Index, find the pertinent National Stock
Number or Part Number. The NSN index is in National
Item Identification Number (NIIN) sequence (see para-

graph 4.a.(1)). The part numbers in the Part Number

index are listed in ascending alphanumeric sequence
(see paragraph 4. b). Both indexes cross-reference you

to the illustration/figure and item number of the item you

are looking for.

(2) Second. Turn to the figure and item number,

verify that the item is the one you’re looking for, then lo-

cate the item number in the repair parts list for the figure.

7. Abbreviations.

For standard abbreviations see MlL-STD-12D, Military

Standard Abbreviations for Use on Drawings,
Specifications,
Documents.

Abbreviations

NIIN . . . . . . . . .

RPSTL . . . . . . .

Standards,

and in

Technical

Explanation

National Item Identification Number
(consists of the last 9 digits of the NSN)

Repair Parts and Special Tools List

SECTION II

TM 9-2320-289-20P

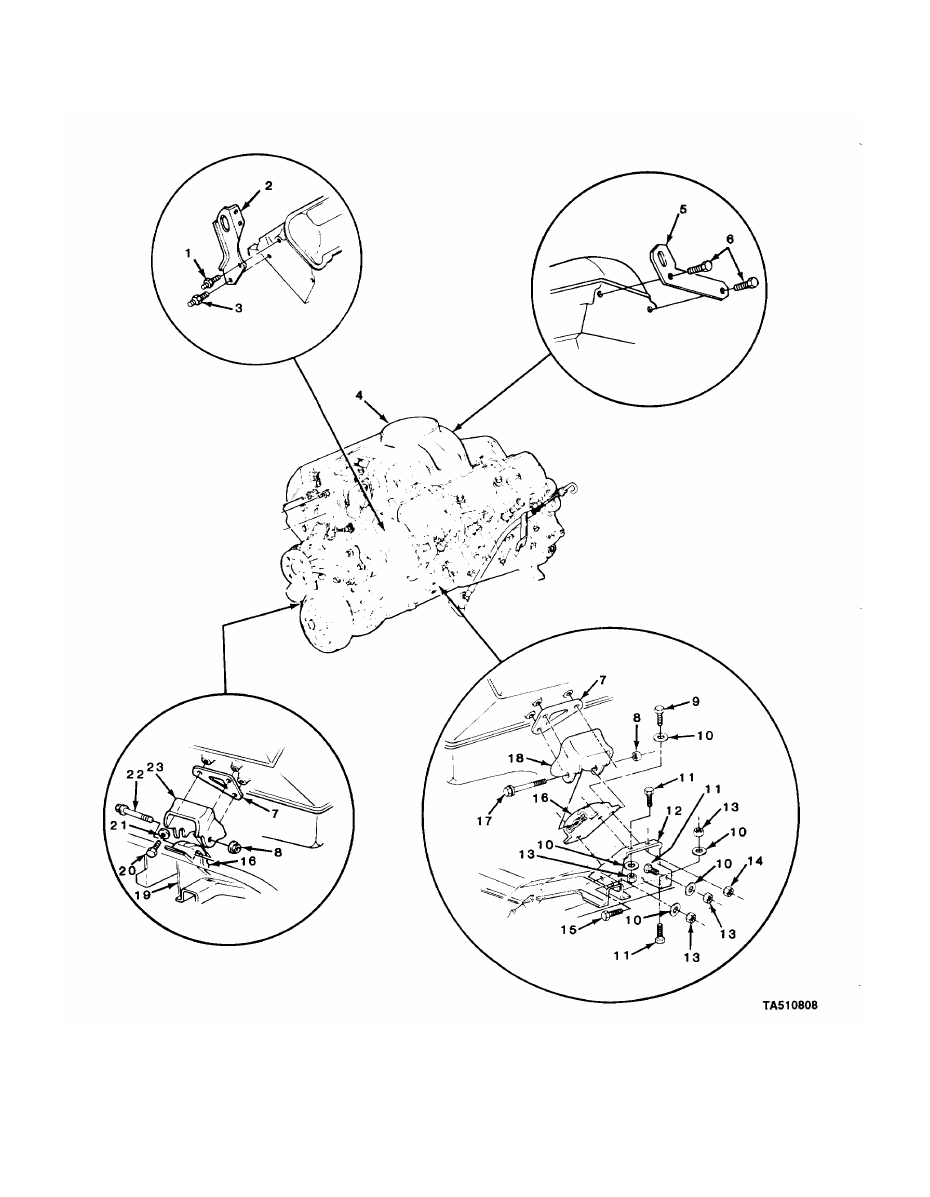

FIGURE 1. ENGINE ASSEMBLY MOUNTS, LIFTING BRACKETS,

AND MOUNTING HARDWARE.

Content .. 1 2 3 ..
