CFMoto ATV HX500-S, HX500-L 4x4. Service Manual - part 7

2. Lower the ATV/Quadricycle so that the wheel is on the ground.
3. Tighten the wheel nuts to the specified torque.

 Wheel nut torque: Front: 55 N m ( 5.5 m



kgf, 40  ft  lbf). Re ar: 55 N   m (5.5  m  kgf, 40 ft  lb f)

This machine is equipped with a sealed-type battery. Therefore it is not necessary to check the electrolyte or
add distilled water in the battery. If the battery seems to have discharged, consult your dealer.

Do not try to remove the sealing caps of the battery cells. You may damage the battery.

Avoid contact with skin, eyes or clothing. Always shield eyes when working near batteries. Keep out of
reach of children.

Antidote:
EXTERNAL: Flush with water. INTERNAL: Drink large quantities of water or milk. Follow with milk of
magnesia, beaten egg or vegetable oil.  Get prompt medical attention.
EYES: Flush with water for 15 minutes and get prompt medical attention. Keep batteries away from sparks,
flames, cigarettes or other sources of ignition. Ventilate when charging or using in a closed space.

1. When the machine is not used for a month or longer, remove the battery and store it in a cool, dark place.

Completely recharge the battery before reinstallation.

A special battery charger (constant voltage/ampere or constant voltage) is required for recharging a sealed-
type battery. Using a conventional battery charger may shorten
the battery life.

2. Always make sure the connections are correct when putting the
battery back in the machine.

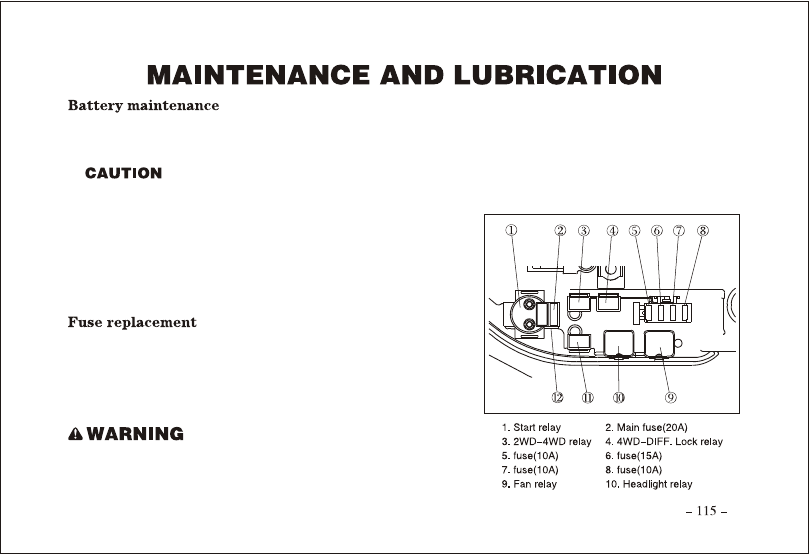

1. The main fuse case and the fuse box are located under the seat.
2. If a fuse is blown, turn off the main switch and install a new

fuse of the specified amperage. Then turn on the switches. If
the fuse immediately blows again, consult your dealer.

Always use a fuse of the specified rating.
Never use a material in place of the proper fuse.

To prevent accidental short-circuiting, turn off the main switch

when checking or replacing a fuse.

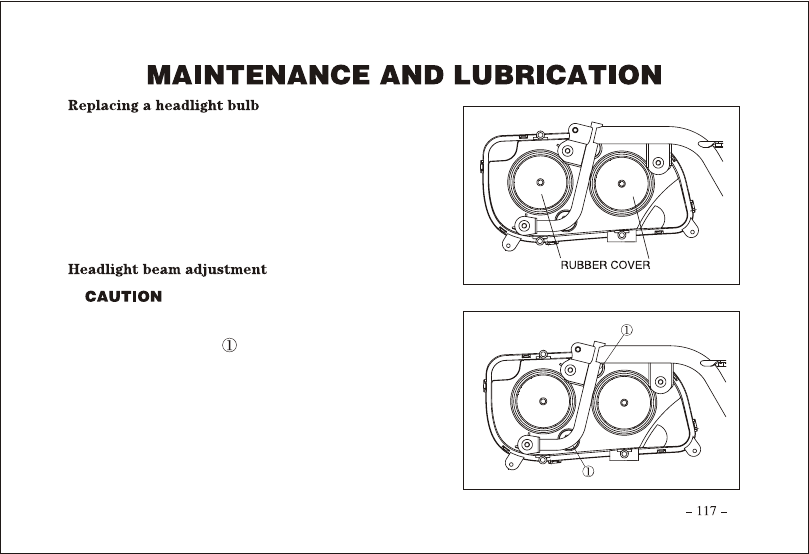

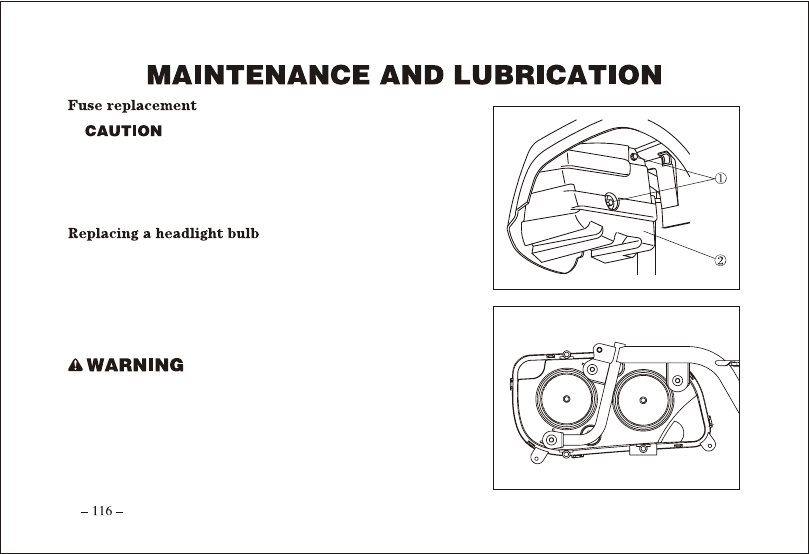

If a headlight bulb burns out, replace it as follows:
1. Remove the rubber cover at the rear of the headlight by pulling

it off.

2. Remove the headlight lock spring.
3. Pull headlight bulb out from the headlight bulb holder.

 Wait for the bulb to cool before touching or removing it.

5. Insert a new headlight bulb into the headlight bulb holder,

and then lock it by spring.

6. Install the bulb holder by turning it clock-wise.
7. Install the rubber cover at the rear of the headlight.
8. Install the headlight cover with the bolts.

It is advisable to have your dealer make this adjustment.

Turn the adjusting screws

 can raise or lower the beam.

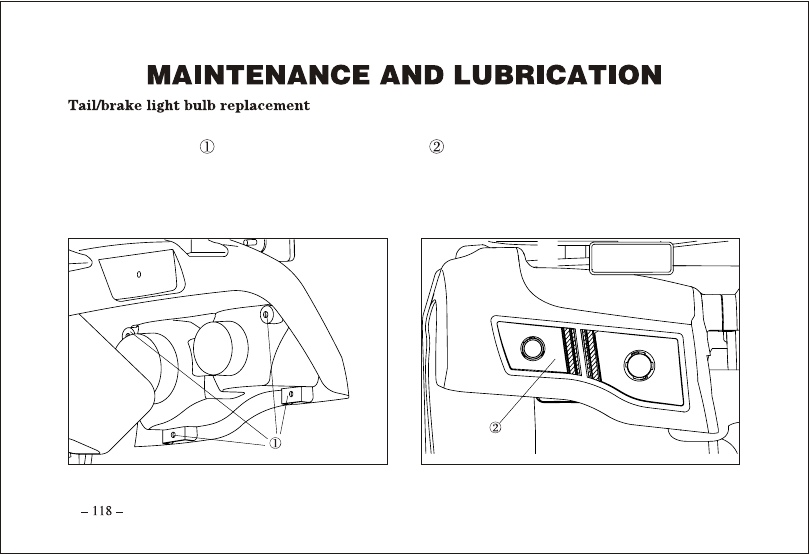

If the tail/brake light bulb burns out, replace it as follows:
1. Remove the screws

, and then pull tail/brake light cover

 out.

2. Remove the tail/brake light bulb by pushing it in and turning it counter-clockwise.
3. Insert a new tail/brake light bulb, push it in, and the turning it clockwise.
4. Install the tail/brake light cover with the screws.

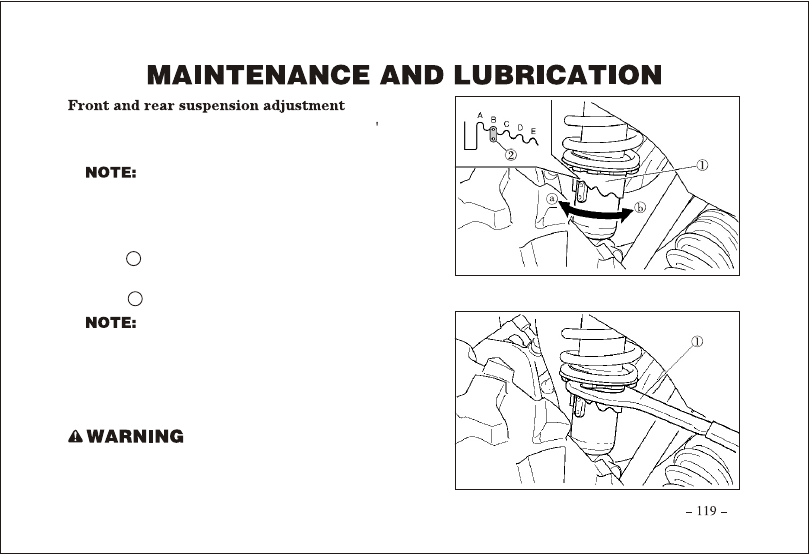

The spring preload can be adjusted to suit the rider s weight

and riding conditions.

When adjusting the rear shock absorbers, the

rear wheels need to be removed.

Adjust the spring preload as follows.
To increase the spring preload, turn the adjusting ring in
direction      .
To decrease the spring preload, turn the ad-justing ring in
direction       .

A special wrench can be obtained at a dealer to

make this adjustment.

Standard position: B
A- Minimum (soft)
E- Maximum (hard)

Always adjust the shock absorbers on the left and right
side to the same setting.

a

b

If your vehicle becomes immersed, major engine damage can result if the machine is not thoroughly
inspected.  Take the vehicle to your dealer before starting the engine.

If it s impossible to take your ATV/Quadricycle to a dealer before starting it, follow the steps outlined below.

1. Move the ATV/Quadricycle to dry land or at the very least, to water below the footrests.
2. Remove the spark plug.
3. Check the air box and drain if water is present.
4. Loosen the carburetor drain screw.
5. Turn the engine over several times using the electric start.
6. Dry the spark plug and reinstall, or replace it with a new plug.
7. Tighten the carburetor drain screw.
9. Attempt to start the engine.  If necessary, repeat the drying procedure.
10. Take the ATV/Quadricycle to your dealer for service as soon as possible, whether you succeed in starting it

or not.

If water has been ingested into the CVT, follow the procedure on page 104 for drying out the CVT

and any damage which may occur may be the owner s responsibility.

Keeping your ATV/Quadricycle clean will not only improve its appearance but it can also extend the life of
various components. With a few precautions, your ATV/Quadricycle can be cleaned much like an automobile.

The best and safest way to clean your ATV/Quadricycle is with a garden hose and a bucket of mild soap and
water. Use a professional type washing mitten, cleaning the upper body first and the lower parts last. Rinse with
water frequently and dry with a chamois to prevent water spots.

 If warning and safety labels are damaged, contact your dealer for replacement.

Your ATV/Quadricycle does not recommend the use of a high pressure type car wash system for washing the
ATV/Quadricycle. If a high pressure system is used, exercise extreme care to avoid water damage to the wheel
bearings, transmission seals, body panels, brakes and warning labels.

Grease all zerk fittings immediately after washing, and allow the vehicle to run for a while to

evaporate any water that may have entered the engine or exhaust system.

Your ATV/Quadricycle can be waxed with any non-abrasive automotive paste wax. Avoid the use of harsh
cleaners since they can scratch the body finish.

Certain products, including insect repellants and chemicals, will damage plastic surfaces. Use caution when
using these products near plastic surfaces.

Starting the engine during the storage period will disturb the protective film created by fogging and damage
could occur. Never start the engine during the storage period.

Make necessary repairs and then clean the ATV/Quadricycle thoroughly with mild soap and warm water to
remove all dirt and grime.  Don t use harsh detergents or high pressure washers. Some detergents deteriorate

rubber parts. Use dish soap type cleaners only.  High pressure washers may force water past seals.

Fill the fuel tank. Add Carbon Clean Fuel Treatment or Fuel Stabilizer. Follow the instructions on the container
for the recommended amount. (Carbon clean will also reduce the possibility of bacterial growth in the fuel
system.)  Allow 15-20 minutes of operation for the stabilizer to disperse through the fuel in the tank and
carburetor and then drain the carburetor bowl.

Warm the engine and change the oil and filter.

Inspect and clean or replace the pre-cleaner and air filter.  Clean the air box and drain the sediment tube.

Inspect and clean or replace the breather filter.

Inspect the following fluid levels and change if necessary: front gear case; transmission; brake fluid (change
every two years or as required if fluid looks dark or contaminated).

Remove the spark plug and add 2

3 tablespoons of 4 Synthetic 0W40 engine oil.  To access the plug hole, use

a section of clear 1/4  hose and a small plastic squeeze bottle filled with the pre-measured amount of oil.

 Do this carefully! If you miss the plug hole, oil will drain from the spark plug cavity into the hole at

the front of the cylinder head, and appear to be an oil leak.  Install the spark plug and pull the
engine over slowly with the recoil starter. Oil will be forced in and around the piston rings and ring
lands, coating the cylinder with a protective film of fresh oil.

If you choose not to use Fogging Oil, perform the following procedure.
1. Support the front end of the machine so the engine is level or tilted slightly rearward.
2. Remove the spark plug. Rotate the piston to BDC and pour approximately two ounces of oil into the cylinder.
3. Apply dielectric grease to the inside of the spark plug cap and install the cap onto the plug.
4. Turn the engine over several times to ensure coverage of piston rings, cylinder walls and crankshaft bearings.
5. Treat the fuel system with Carbon Clean.
6. If fuel system additive is not used, fuel tank, fuel lines, and carburetor should be completely drained of

gasoline. To eliminate any fuel remaining in the carburetor, run the engine until it stops.

Inspect all cables and lubricate with Cable Lubricant. Follow lubrication guidelines in the maintenance section
of the service or owner s manual to completely grease and lubricate the entire vehicle with All Season Grease.

Remove the battery from the vehicle and ensure that it's fully charged before placing it in storage.
Engine Anti-Freeze
Test engine coolant strength and change if necessary. Coolant should be replaced every two years.



Set the tire pressure and safely support the ATV/Quadricycle with the tires 1

2 off the ground. Be sure the

storage area is well ventilated, and cover the machine with a ATV/Quadricycle cover.

Do not use plastic or coated materials. They do not allow enough ventilation to prevent condensation,

and may promote corrosion and oxidation.

Follow these procedures when transporting the vehicle.
1. Turn off the engine and remove the key to prevent loss during transporting.
2. Always place the transmission in park.
3. Be sure the fuel cap, oil cap and seat are installed correctly.
4. Always tie the frame of the ATV/Quadricycle to the transporting unit securely using suitable straps or rope.

Proper maintenance will protect chrome wheels from corrosion, preserve wheel life and ensure a

like new

appearance for many years.
1. Wash chrome rims frequently. Use a mild detergent to remove any salt, dirt, mud or grime. Never use abrasive

cleaners on plated or painted surfaces.

2. Polish the clean chrome wheels periodically. Use an automotive grade chrome polish.
3. Routinely and liberally apply a weather resistant wax to each polished chrome wheel.

Choose a product suitable for chrome finishes. Read and follow the product labels and instructions.

4. Chrome wheels exposed to road salt ( or salt in the air in coastal areas ) are more susceptible to corrosion if

not properly cleaned. Clean chrome wheels more often if they're exposed to salt or other corrosive elements.

If light rust is found on the chrome finish, use steel wool ( # 0000

 OTT grade ) to remove it.  Gently rub the

affected areas with the steel wool until the corrosion has been removed.  Clean and polish the wheel as outlined
above.

Driving the ATV/Quadricycle onto a
pickup or tall trailer in high range.

Starting out going up a steep incline.

Driving at low RPM or low ground speed
(at approximately 3-7 MPH).

Insufficient warm-up of ATV/Quadricycles
exposed to low ambient temperatures.

Slow and easy clutch engagement.

Utility use/plowing snow, dirt, etc.

Towing/pushing at lowRPM/low ground
speed.

Shift transmission to low range during loading of the



ATV/Quadricycle



to

prevent belt burning.

When starting out on an incline, use low range or dismount the ATV/
Quadricycle (after first applying the park brake) and perform the K-turn as
described on page 73.

Drive at a higher speed or use low range more frequently. The use of low
range is highly recommended for cooler CVT operating temperatures and
longer component life.

Warm the engine at least 5 minutes. With the transmission in park, advance
the throttle to about 1/8 throttle in short bursts, 5 to 7 times.  The belt will
become more flexible and prevent belt burning.

Use the throttle quickly and effectively for efficient engagement.

Use low range only.

Use low range only.

Stuck in mud or snow.

Climbing over large objects from a
stopped position.

Belt slippage from water or snow
ingestion into the CVT system.

Shift



the



transmission



to



low



range,



and



carefully



use



fast,



aggressive

throttle



application



to



engage



clutch.





Excessive



throttle

may cause loss of control and vehicle overturn.

Shift the transmission to low range, and carefully use fast, brief, aggressive
throttle application to engage clutch.





Excessive throttle may

cause loss of control and vehicle overturn.

Shift



the



transmission



to



park.  Using



the throttle,



vary the



engine



RPM

from



idle



to



full



throttle.  Repeat



several



times



as



required.  During this

procedure,



the throttle should not be held at the full position for more than

10seconds. Clutch seals should be inspected for damage if repeated leaking
occurs.

Clutch malfunction.

Contact your dealer for inspection of clutch components.

Check



for



fouled



plugs



or



foreign



material



in



gas



tank,



fuel



lines,



or

carburetor.  Contact your dealer for service.

Poor engine performance.

Contact



your



dealer



for



service



if



you're



unable



to



identify



solutions



using



the



following



charts.







Tripped circuit breaker

Low battery voltage

Loose battery connections

Loose solenoid connections

Reset the breaker

Recharge battery to 12.5 VDC

Check all connections and tighten

Check all connections and tighten

Out of fuel

Clogged fuel valve or filter

Water is present in fuel

Fuel valve is out of use

Old or non-recommended fuel

Fouled or defective spark plug(s)

No spark to spark plug

Refuel

Inspect and clean or replace

Drain the fuel system and refuel

Replace

Replace with new fuel

Inspect plug(s), replace if necessary

Inspect plug(s), verify stop switch is on
