CFMoto ATV CF800-2 4x4. Service Manual - part 4

Fuel safety

WARNING

Gasoline is highly flammable and explosive under certain conditions

.

●

Always exercise extreme caution whenever handling gasoline.

●

Always refuel with the engine stopped, and outdoors or in a well ventilated area.

●

Never carry



a



plastic



container with gasoline



in the racks



while riding

.

Static electricity between



the rack and container could cause a spark.

●

Do not smoke or allow open flames or sparks in or near the area where refueling is performed or

 where gasoline is stored.

●

Do not overfill the tank. Do not fill the tank neck.

●

If gasoline spills on your skin or clothing, immediately wash it off with soap and water and change

clothing.

●



Never start the engine or let it run in an enclosed area. Engine exhaust fumes are poisonous and

can cause loss of consciousness or death in a short time.

The engine exhaust from this product contains chemicals known to cause cancer, birth defects or

 other reproductive harm.



Operate this vehicle only outdoors or in well-ventilated areas.



WARNING

-51-

Features & Controls

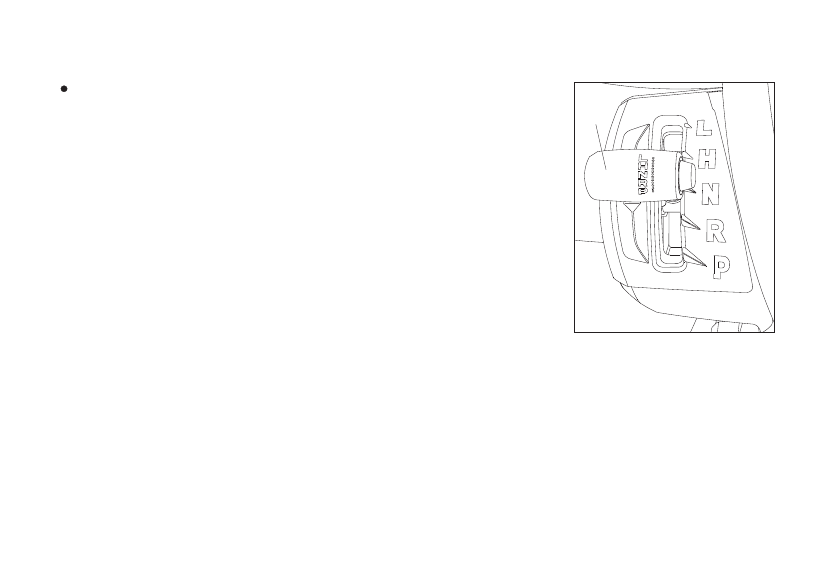

Automatic Transmission Gear Selector

The transmission gear selector

①

is located on the left

side of the vehicle.



L: Low Gear

H: High Gear

N: Neutral

R: Reverse

P: Parking

To shift from N to H or R, from L to H, from P to R, depress the button of gear selector. To shift from H

 to L or N, from R to N or P, it

'

s



not



necessary



to depress this button

.

When shifting among N,



R,



P, you must push the brake pedal.

-52-

①

Features & Controls

Shifting gears with the engine speed above idle or while the vehicle is moving could cause transmission

 damage. To change gears, stop the vehicle,



and with the engine idling

,

move the lever to the desired



gear

.

Push the brake pedal before attempting to shift into reverse or park

.

Whenever the



ATV



is left



unattended

,

always place the transmission in the park position. Maintaining shift linkage adjustment

 is important to assure proper transmission function. See your dealer if you experience any shifting

 problems.

CAUTION

Belt Life

To extend belt life, use low forward gear in heavy pulling situations and when operating at less than

 seven miles per hour for extended periods of time. If  towing the vehicle is necessary, shift the

transmission into neutral for better mobility and to prevent damage

 to the belt.

All Wheel Drive(AWD)System

-53-

②

①

Features & Controls

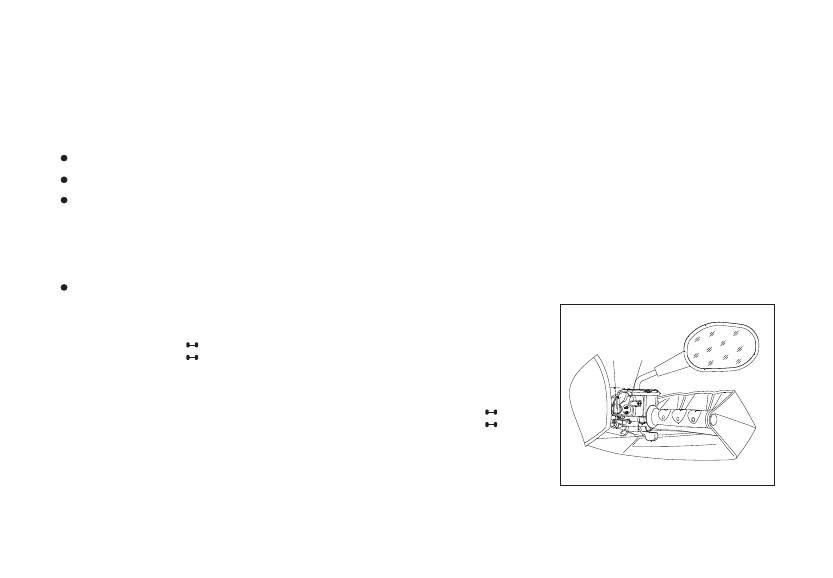

This ATV is equipped with an on-command four-wheel drive switch

“

2WD

”/”

4WD

”①

and a front

 diff-lock switch

“

LOCK

”/”

4WD

” ②.

Select the appropriate drive according to terrain and the

conditions.

Two-wheel drive

Power is supplied to the rear wheels only.

（

2WD

） ：

Four-wheel drive

Power is supplied to the rear and front



wheels

.

（

4WD

）：

Four-wheel drive with the front diff locked (4WD-LOCK): Power is supplied to the rear and front

wheels when the front diff is locked. Unlike the 4WD mode, all wheels turn at the same speed.

on-command four-wheel drive switch

“

2WD

”/”

4WD

”

②

：

change from 2WD to 4WD, stop the ATV,

To

and then set the switch to

“

4WD

”.

When



the



ATV



is



in

 4

WD

,

the

 4

WD



indicator

“   ”

will come on in the dashboard display.To

 change from 4WD to 2WD, stop the ATV, be sure the lever

①

is

 moved to the front diff lock switch

,

and



then



set



the



switch



②



to “2WD”. When the ATV is in 2WD, the 2WD indicator

“   ”

will come on in the dashboard display.

-54-

①

②

Features & Controls

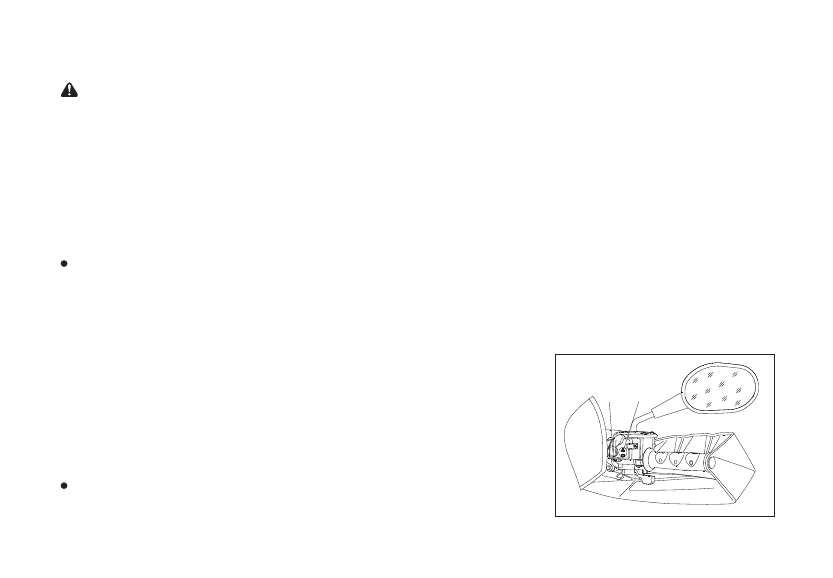

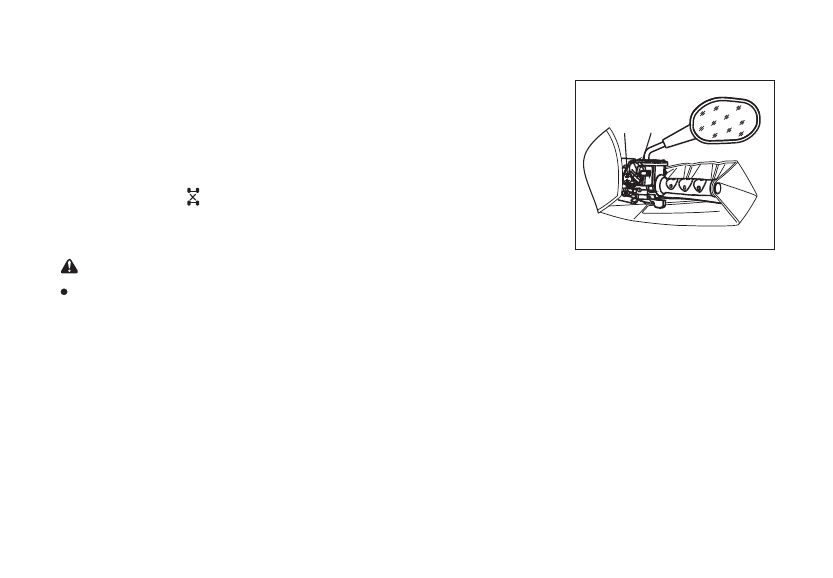

Front Diff-lock Switch “LOCK”/”4WD”①

To lock the front diff



in

 4

WD

,

make



sure



the on-command



four-wheel-drive switch is set to 4WD, stop the ATV, move

the lever

②

to 2WD/4WD switch, then set the switch

①



to LOCK, when the front diff is locked, the 4WD in lock



 indicator light

“   ”

will come on

.



NOTE

When the switch is set to

“

LOCK

”,

the front



diff-lock indicator light will flash until the front diff is



locked

.

●

When the indicator light is flashing, turning the handlebar left and right will help the front gear lock

 to engage.

●

Riding before the front diff lock is properly engaged (e.g., when the indicator light is flashing) will

 cause the engine speed to be limited until engagement is complete.

●

When the ATV is in 4WD-LOCK, the maximum traveling speed is limited to 35 km/h

 (

22 mph

).

However, if conditions require full engine power to be available, depress the override switch to disable

 the 4WD-LOCK speed limiter.

-55-

①

②

Features & Controls

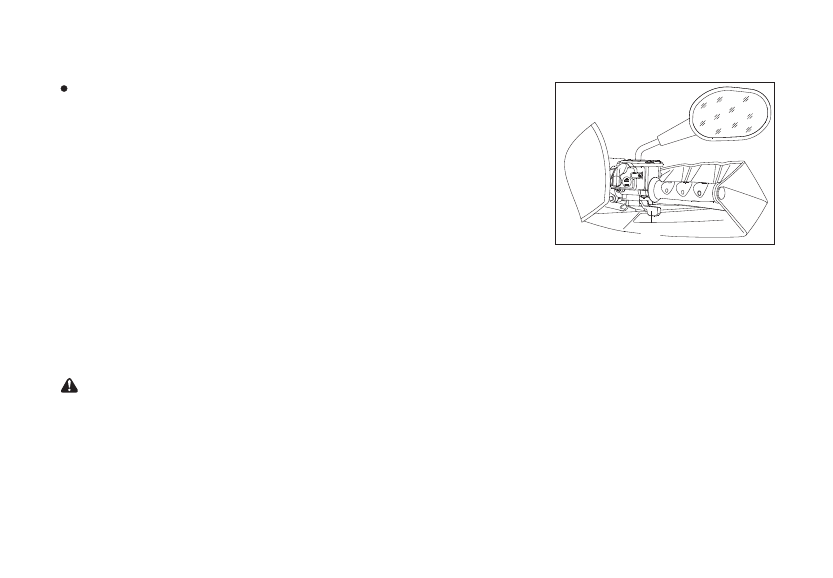

Throttle Lever

Once the engine is running, movement of the throttle lever will

 increase the engine speed. Regulate the speed of the machine

 by varying the throttle position. Because the throttle is spring-

loaded, the machine will decelerate, and the engine will return

 to an idle any time the hand is removed from the throttle lever.

Before starting the engine, check the throttle to be sure it is

operating smoothly. Make sure it returns to the idle position as soon as the lever is released.

CAUTION

Check the operation of the throttle lever before you start the engine. If it does not work smoothly,

 check for the cause. Correct the problem before riding the ATV. Consult your dealer if you can

'

t find

 or solve the problem yourself.

-56-

①

Features & Controls

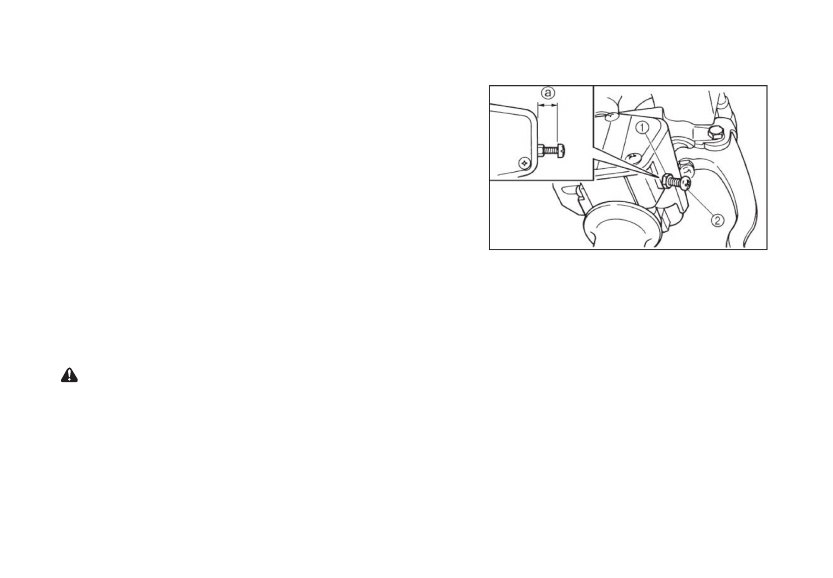

Speed Limiter



The speed limiter keeps the throttle from fully opening,
even when the throttle lever is pushed to the maximum.
Turning in the

②

limits the maximum engine power

available and decreases the maximum speed of the ATV.

CAUTION

Do not turn the adjusting screw out more than 12 mm

 (

0.47 in

).

Always make sure the throttle lever

 free play is adjusted to very easily (0.12-0.20 in).

-57-

Features & Controls

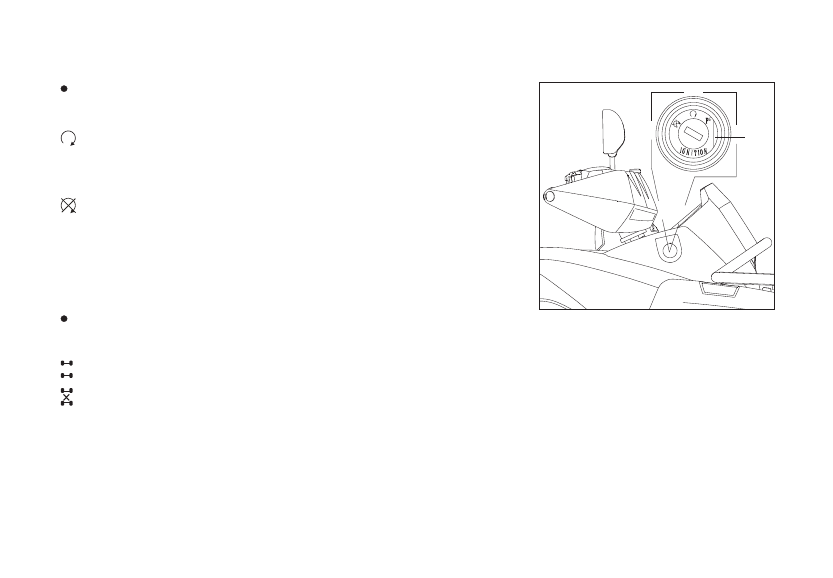

Main Switch

Functions of the respective switch positions are as follows:

：

The engine can be started only at this position and the

 headlights and taillight come on when the light switch

is on.  The key can not be removed in this position.

：

All electrical circuits are switched off.

The key can be removed in this position.

Indicator and Warning Lights

Four-wheel-drive indicator

 ①

：

This indicator comes on when the 2WD / 4WD switch is set to the

“

4WD

”

position

.

：

This indicator comes on when the 2WD / 4WD switch is set to the

“

4WD

”

and



LOCK

/4

WD



switch



is



set



to



LOCK

.

-58-

①

Features & Controls

NOTE

Due to the synchronizing mechanism in the front gear case, the four-wheel drive indicator may not
come on until the ATV starts moving.

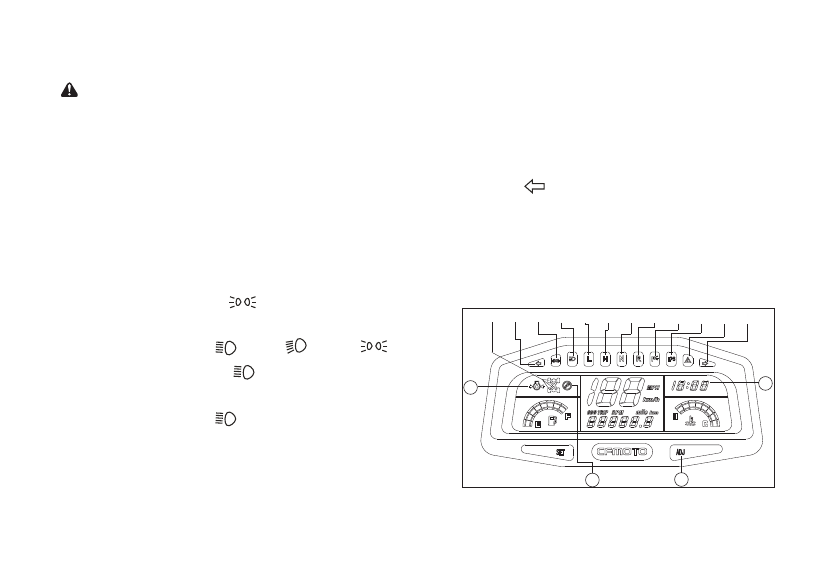

Left Turning Indicator

②

This indicator light comes on when moving



the turning switch to “     ”.

Pilot Light Indicator "         "

③



This indicator light comes on when moving the



head light switch to

“   ”、“   ”、“     ”.

High Beam Indicator

“   ”④

This indicator light comes on when moving the



head light switch to

“   ”.

-59-

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ②

11

②

12

13

14

15

16

Features & Controls

Lo Gear Indicator “L”⑤

This indicator light comes on when the gear selector is in the L position

.

Hi Gear Indicator “H”⑥

This indicator light comes on when the gear selector is in the H positio

n.

Neutral Indicator “N” ⑦

This indicator light comes on when the gear selector is in the N position

.

Reverse Gear Indicator “R” ⑧

This indicator light comes on when the gear selector is in the R position

.

Park Indicator“       ”⑨

This indicator light comes on when the gear selector is in the P position

.

EPS Indicator⑩

This indicator light is available only when EPS is configured in the vehicle, as EPS (Electronic Power

 Steering) is optional

.

Override Indicator

①

11

This indicator light comes on when pressing



the



override



switch

.

（

Always exercise caution to use

 override button. Refer to page 37 for detailed information.

）

Right turning signal Indicator

①

12

This indicator light comes on when moving the turning switch to

“    ”.

P

-60-

Features & Controls

Digital Clock

①

13

Time setting

：

Press and release ADJ

①

14

once to advance the setting by one hour

;

press and hold



the button to advance the minutes

.

EFI Indicator

①

15

This indicator light



comes



on



when troubles occur in EFI system

（

Refer to page127 for detailed

 information

）

Oil Pressure Warning Indicator

①

16

This indicator comes on



when the oil capacity or oil pressure is not enough



with



RPM



over



1000rpm.

In this case, please add oil. If this indicator light still goes on after enough oil added

,

please check



the sensor

,

meter and lubrication system

.

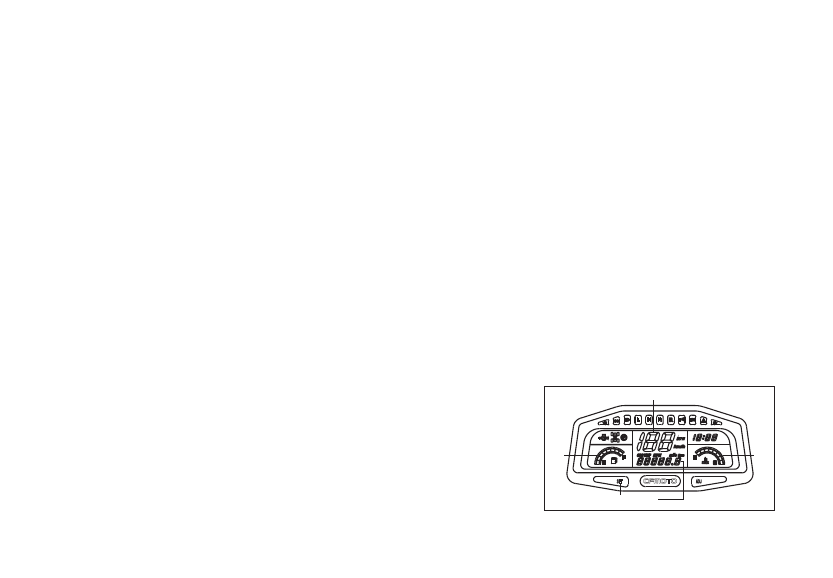

Dashboard

Coolant Temperature Indicator①

When the temperature indicator is in the red area of side H, it

indicates that the temperature is high. In that case please stop

the engine until the coolant temperature goes down. In case the

 temperature frequently goes high, check coolant capacity or

consult the local dealer.

-61-

②

①

④

③

⑤

Features & Controls

CAUTION

●

The engine may overheat if the ATV is overloaded. If this happens, reduce the load to specification.

●

After restarting, make sure that the temperature indicator is in the green area of side C. Continuous

 use while the temperature indicator is in the red area of side H may cause damage to the engine.



Speedometer

②

:

shows the riding speed. In ODO



mode

,

press and hold SET

⑤

to toggle between

KM and MP.

ODO/TRIP/RPM Toggle

③

:

Press and release SET



⑤



to toggle among



ODO



mode

,

TRIP



mode

,



RPM



mode

.

In



TRIP



mode

，

press and hold SET



⑤



to return the trip display to zero.



Fuel Gauge

④ :

“

F

”

Indicate the remaining amount of the gasoline in the fuel tank

.

indicates the

 total amount of fuel is 19L

.

When the indicator reaches the first point of the red mark

,

fuel should be



refilled as soon as possible

.

The red mark indicates that the remaining fuel is only about 4.0L

.

-62-

Features & Controls

Break-In Period

The break

-

in period for your new



ATV



is very important

,

it is not only a simple action for you

,

which



is as important as a proper break

-

in stated in manual

.

Careful treatment of



a new engine will result



in more efficient performance and longer life for the engine

.

Perform the following procedures carefully

.

-63-

Operation

CAUTION

Do not load or tow cargo during the first

 20

hours of use

,

do not operate at full throttle

.

It may damage



engine parts or decrease engine life if excessively increase throttle during the first

 2 0

hours of use

.



Do not run engine with throttle over

 1 / 2

open during the first

 1 0

hours of use

.

Do not run engine

with throttle over

 3/ 4

open during the first

 1 0

to

 2 0

hours of use

.

Operate this



ATV



in normal condition after break

-

in period

.

Use of any oils other than those recommended may cause serious engine damage

.

we recommend

 the use of special oil for 4-stroke engine：SAE 15W-40/SG.

Perform the following procedures before operation:

1.

Fill the fuel tank with gasoline

.

2.

Put



ATV



on a level surface to check the oil level

.

Add recommended oil if necessary to maintain



the oil level between the minimum and maximum level marks of the dipsticks

.

3.

Drive slowly at first

.

Select an open area that allows room to familiarize yourself with vehicle

operation and handling

.

4.

Vary throttle positions

.

Do not operate at sustained idle

.

5.

Perform regular checks on fluid levels

,

controls and areas outlined on the daily pre

-

ride inspection



checklist

.

See page

 65.

-64-

Operation

6.

Pull only light loads

.

7.

During the break

-

in



period

,

change both the oil and oil filter at

 20

hours or

 750

km

.

Pre-Ride Inspection

WARNING

If a proper inspection is not done before each use

,

severe injury or death could result

.

Always inspect



the vehicle before each use to ensure it is in proper operating condition

.

Pre-Ride Checklist

Item

Remarks

See Page

Brake



system

/

lever



travel

Ensure



proper



operation

45, 118

Brake



fluid

Ensure



proper



level

48

Front



suspension

Inspect

,

lubricate



if



necessary

128

Rear



suspension

Inspect

,

lubricate



if  necessary

128

-65-

Operation

Pre-Ride Checklist

Item

Remarks

See Page

Steering

necessary

Ensure



free



operation

Tires

Inspect



condition



and



pressure

wheels

 /

fasteners

Inspect

,

ensure



fastener



tightness

151

122, 123

Frame



nuts

,

bolts

,

fasteners



Inspect

,

ensure



fastener



tightness

Fuel



and



oil

Ensure



proper



levels

98

104

Coolant



level

Ensure



proper



levels

Coolant



hoses

Inspect



for



leaks

Throttle



Ensure



proper



operation

115

Gear



shifting

Ensure



proper



operation

Ensure



proper



operation

Indicator



lights

/

switches

58, 59

-66-
