12-14 BRAKES

Front Brake Pad Removal

●

 Remove the front caliper with the hose installed

   (see Front Caliper Removal).

●

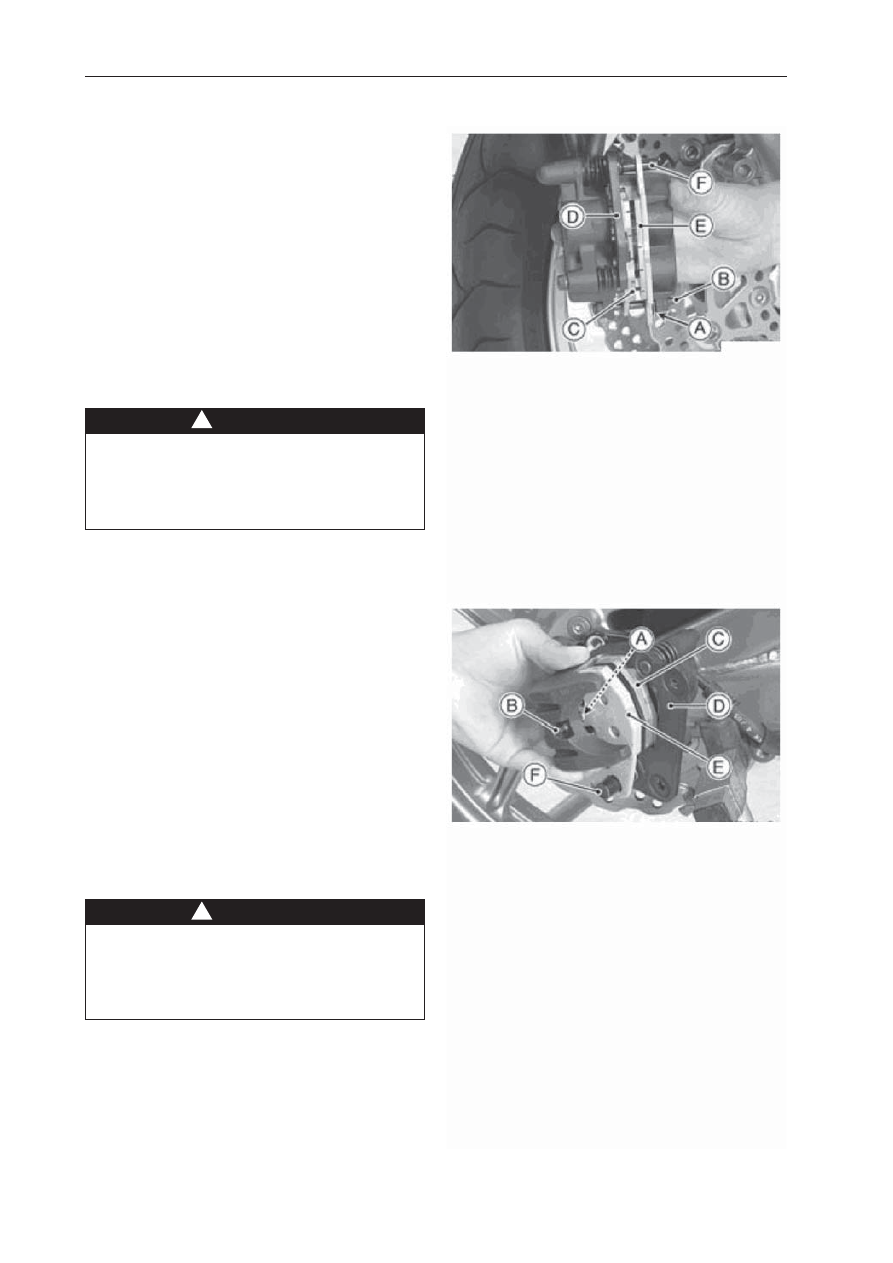

 Draw out the holder shaft pin [A], and take off the

   holder shaft [B].

●

 Remove the pad [C] on the piston side.

●

 Push the holder [D] towards the piston, and

   remove the pad of the other side [E] from the
   holder shaft [F].

Front Brake Pad Installation

●

 Push the caliper pistons in by hand as far as they

   will go.

●

 Install the anti-rattle spring in its correct position.

●

 Install the pad on the piston side

fi

 rst, then install

   the other pad on the holder.

●

 Install the front caliper (see Caliper Installation).

WARNING

Do not attempt to drive the motorcycle until
a full brake lever is obtained by pumping the
brake lever until the pads are against the
disc. The brake will not function on the first
application of the lever if this is not done.

Rear Brake Pad Removal

●

 Remove the rear caliper with the hose installed

   (see Rear Caliper Removal).

●

 Draw out the holder shaft pin [A], and take off the

   holder shaft [B].

●

 Remove the pad [C] on the piston side.

●

 Push the holder [D] towards the piston, and

   remove the pad of the other side [E] from the
   holder shaft [F].

Rear Brake Pad Installation

●

 Push the caliper piston in by hand as far as it will

   go.

●

 Install the anti-rattle spring in its correct position.

●

 Install the pad on the piston side

fi

 rst, then install

   the other pad on the holder.

●

 Install the rear caliper (see Caliper Installation).

WARNING

Do not attempt to drive the motorcycle until
a full brake pedal is obtained by pumping the
brake pedal until the pads are against the
disc. The brake will not function on the first
application of the pedal if this is not done.

Brake Pad Wear Inspection

●

 Refer to the Brake Pad Wear Inspection in the

   Periodic Maintenance chapter.

!

!

BRAKES 12-15

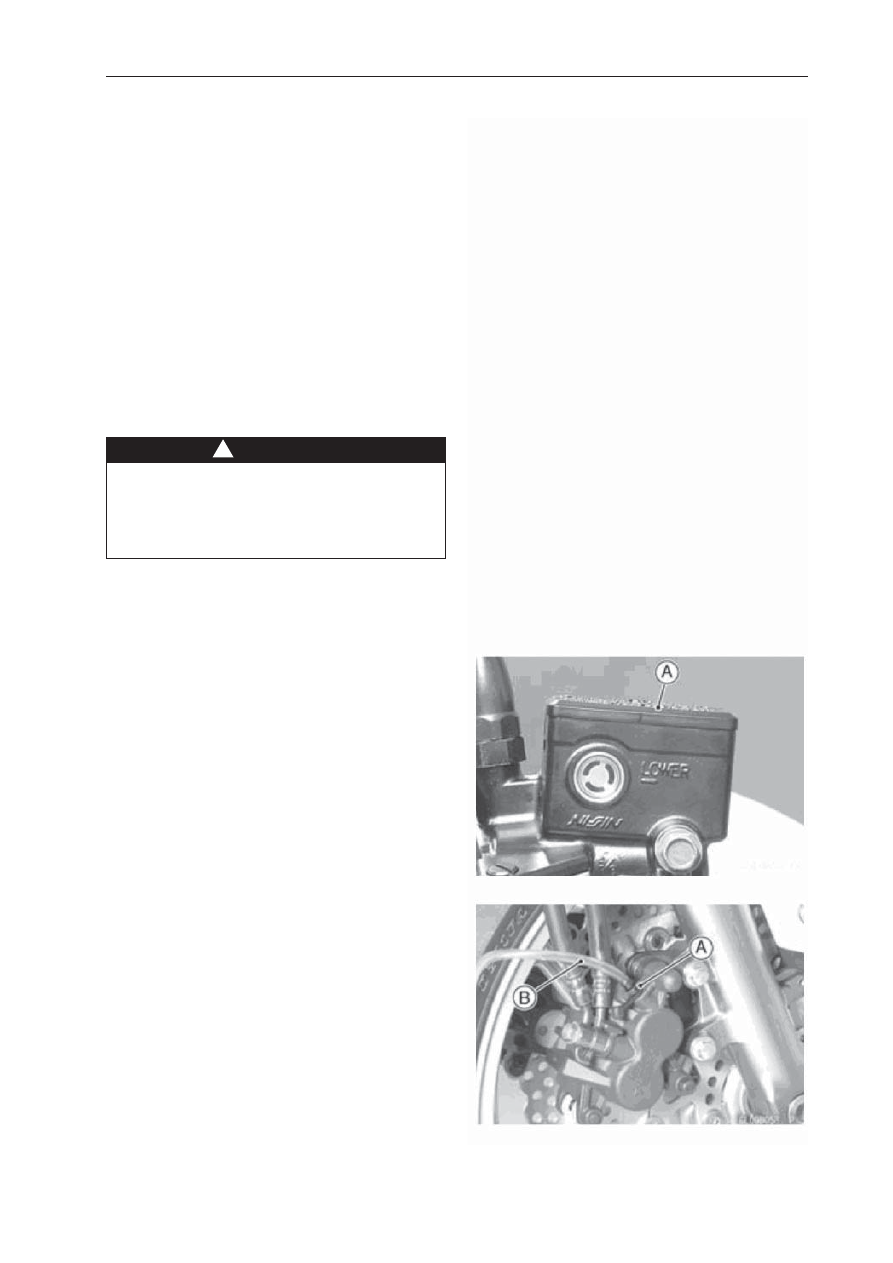

Front Master Cylinder Removal

●

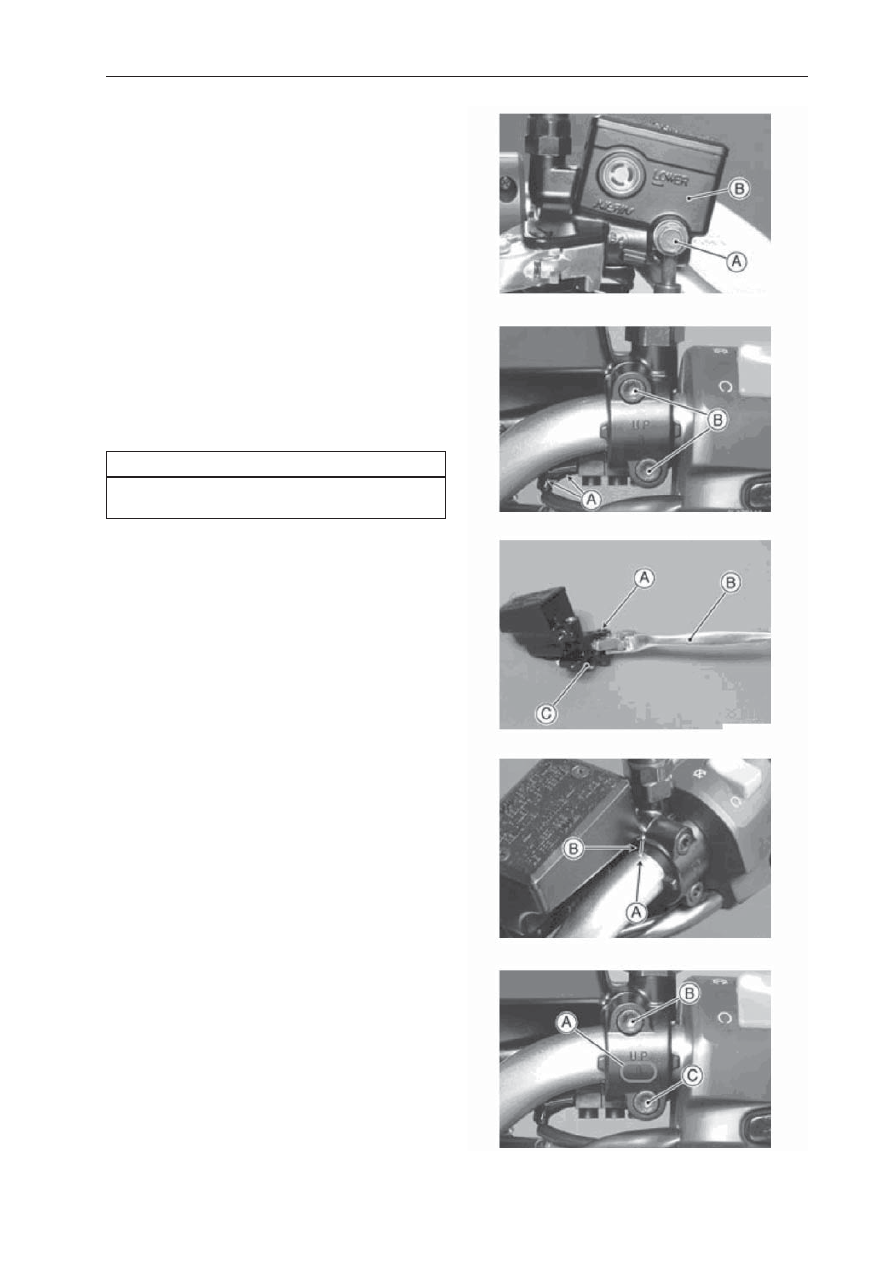

 Remove the banjo bolt [A] to disconnect the

   brake hose from themaster cylinder [B] (see
   Brake Hose Removal/Installation).

●

 Disconnect the front brake light switch connectors

   [A].

●

 Unscrew the clamp bolts [B], and take off the

   master cylinder as an assembly with the
   reservoir, brake lever and brake switch installed.

CAUTION

Immediately wash away any brake fl uid that
spills.

●

 Remove:

   Brake Lever Pivot Bolt [A] and Locknut
   Brake Lever [B]
   Front Brake Light Switch [C]


Front Master Cylinder Installation

●

 Install the front master cylinder so that the punch

   mark [A] of the handlebar is aligned with the
   mating surface [B] of the master cylinder clamp
   to level the reservoir.

●

 The master cylinder clamp must be installed with

   the arrow mark [A] upward.

●

 Tighten the upper clamp bolt [B]

fi

 rst, and then

   the lower clamp bolt [C]. There will be a gap at
   the lower part of the clamp after tightening.

   Torque - Front Master Cylinder Clamp Bolts:
   8.8 N·m (0.90 kgf·m, 78 in·lb)

●

 Replace the washers on each side of the hose



fi

 tting with new ones.

●

 Tighten the brake hose banjo bolt.



Torque - Brake Hose Banjo Bolt: 25 N·m (2.5

    kgf·m, 18 ft·lb)

●

 Bleed the brake line (see Brake Line Bleeding).

●

 Check the brake for good braking power, no

    brake drag, and no

fl

 uid leakage.

12-16 BRAKES

Rear Master Cylinder Removal

●

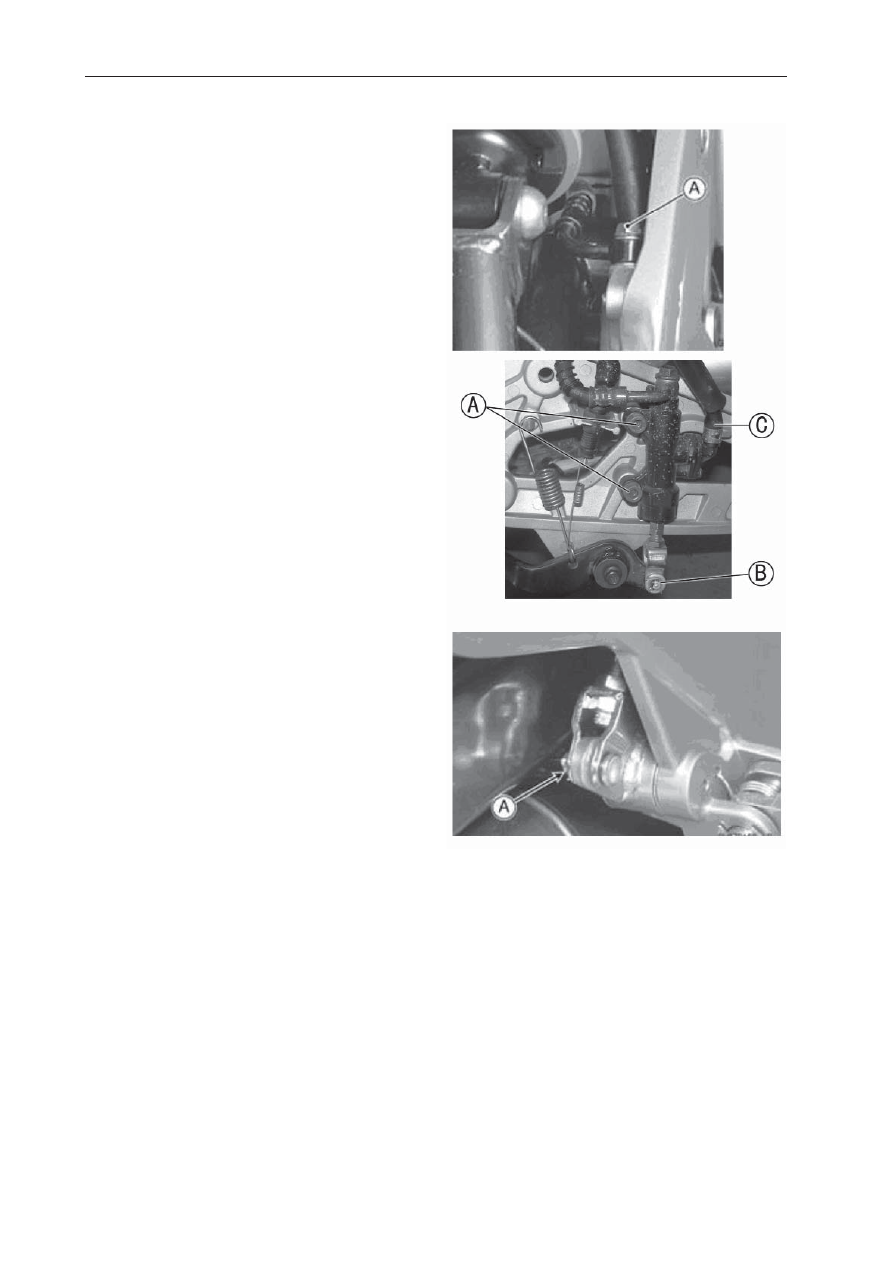

 Unscrew the brake hose banjo bolt [A] on

    themaster cylinder (see Brake Hose Removal/
    Installation).

●

 Unscrew the master cylinder mounting bolts [A].

●

 Remove the cotter pin [B].

NOTE

○



Pull off the joint pin while pressing down the

   brake pedal.

●

 Pull off the reservoir hose lower end [C], and

   drain the brake

fl

 uid into a container. •Remove

   the master cylinder.

Rear Master Cylinder Installation

●

 Replace the cotter pin [A] with a new one.

●

 Replace the washers on each side of hose

fi

 tting

   with new ones.

●

 Tighten the following bolts.

   Torque - Rear Master Cylinder Mounting
   Bolts: 25 N·m (2.5 kgf·m, 18 ft·lb)
   Brake Hose BanjoBolt: 25 N·m(2.5 kgf·m, 18
   ft·lb)

●

 Bleed the brake line (see Brake Line Bleeding).

●

 Check the brake for good braking power, no

   brake drag, and no

fl

 uid leakage.

Front Master Cylinder Disassembly

●

 Refer to the Master Cylinder Rubber Parts

   Replacement in the Periodic Maintenance
   chapter.

Rear Master Cylinder Disassembly

●

 Refer to the Master Cylinder Rubber Parts

   Replacement in the Periodic Maintenance
   chapter.

Master Cylinder Assembly

●

 Refer to the Master Cylinder Rubber Parts

   Replacement in the Periodic Maintenance
   chapter.

BRAKES 12-17

Master Cylinder Inspection

●

 Remove the master cylinders (see Front/Rear

   Master Cylinder Removal).

●

 Disassemble the front and rear master cylinders.

●

 Check that there are no scratches, rust or pitting

   on the inner wall [A] of each master cylinder and
   on the outside of each piston [B].
   If a master cylinder or piston shows any damage,
   replace them.

●

 Inspect the primary cup [C] and secondary cup

   [D].
   If a cup is worn, damaged softened (rotted), or
   swollen, the piston assembly should be replaced
   to renew the cups.
   If

fl

 uid leakage is noted at the brake lever, the

   piston assembly should be replaced to renew the
   cups.

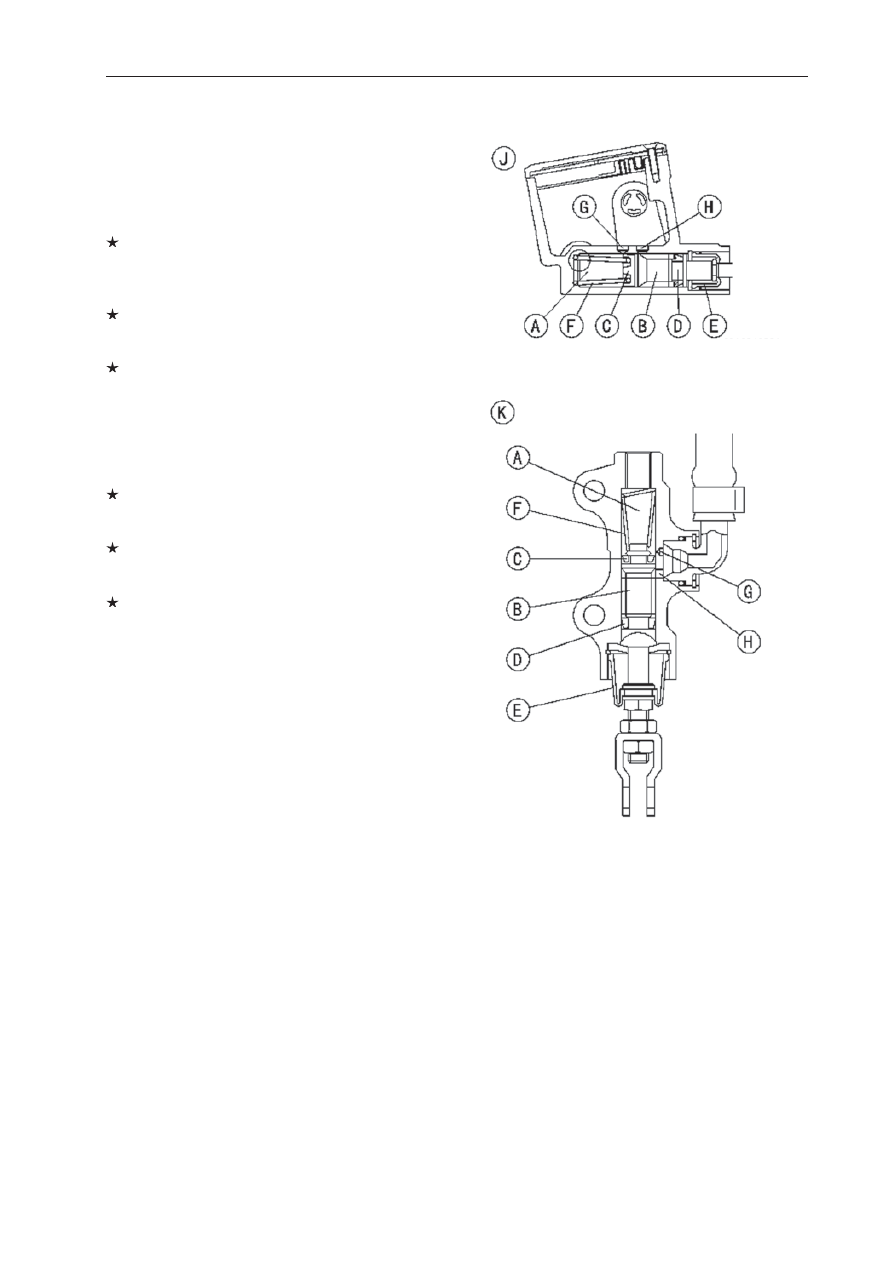

   Front Master Cylinder [J]

●

 Check the dust covers [E] for damage.

   If they are damaged, replace them.

●

 Check the piston return springs [F] for any

   damage.
   If the springs are damaged, replace them.

●

 Check that relief port [G] and supply port [H] are

   not plugged.
   If the relief port becomes plugged, the brake
   pads will drag on the disc. Blow the ports clean
   with compressed air.
   Rear Master Cylinder [K]

12-18 BRAKES

Brake Disc Removal

●

 Remove the wheel (see Front/Rear Wheel

   Removal in the Wheels/Tires chapter).

●

 Unscrew the mounting bolts, and take off the

   disc.

●

 Remove the gaskets.

Brake Disc Installation

●

 Replace the gaskets with new ones.

●

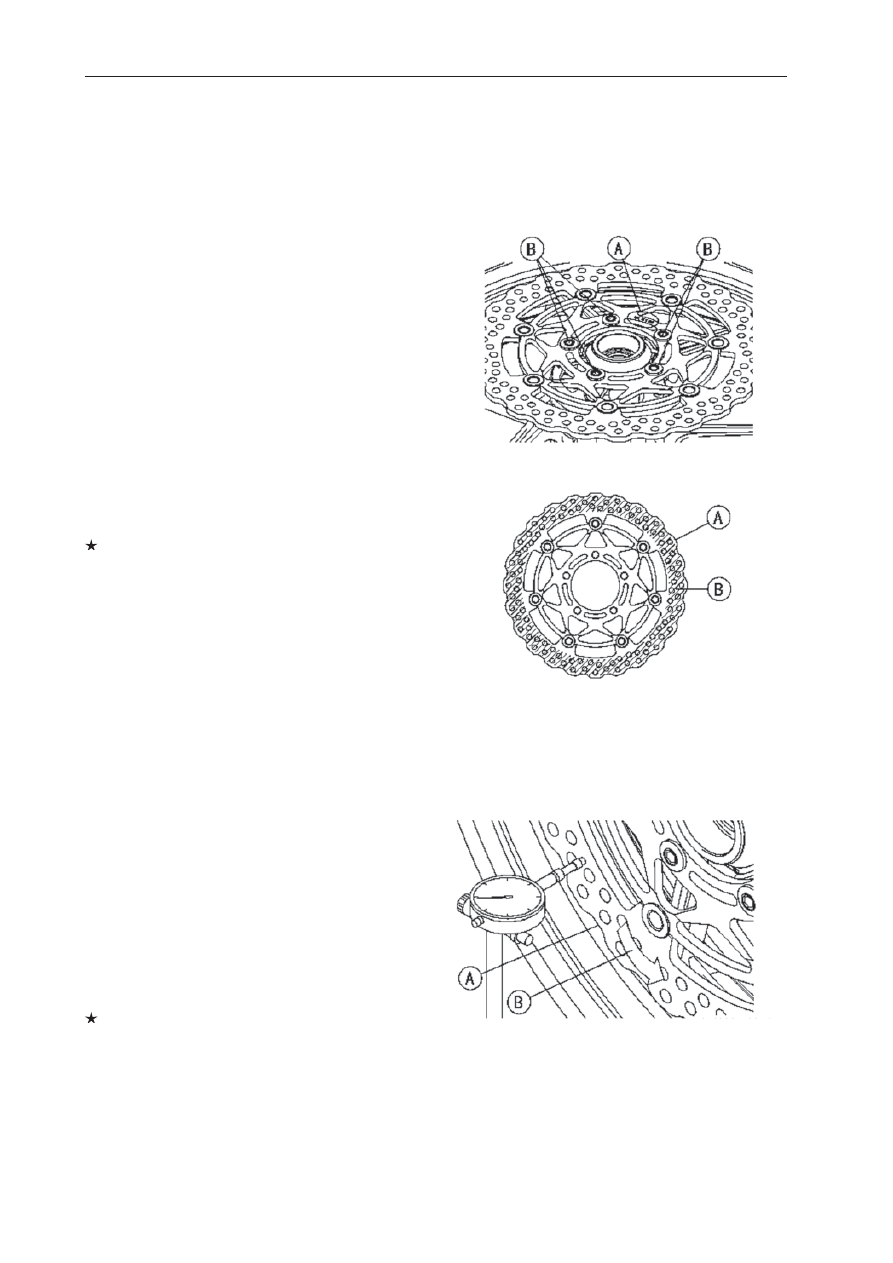

 Install the brake disc on the wheel so that the

   marked side [A] faces out.

●

 Apply a non-permanent locking agent to the

   threads of the front and rear brake disc mounting
   bolts [B].

●

 Tighten:



 Torque - Brake Disc Mounting Bolts: 27 N·m

   (2.8 kgf·m, 20 ft·lb)

Brake Disc Wear

●

 Measure the thickness of each disc [A] at the

   point where it has worn the most.
   If the disc has worn past the service limit, replace
   it.
   Measuring Area [B]


Brake Discs Thickness Standard:

   Front:
   4.3 ~ 4.7 mm (0.17 ~ 0.19 in.)
   Rear:
   4.8 ~ 5.2 mm (0.19 ~ 0.20 in.)
   Service Limit:
   Front:
   4.0 mm (0.16 in.)


Rear:



4.5 mm (0.18 in.)

Brake Disc Warp

●

 Raise the wheel off the ground with jack (see

   Front/Rear Wheel Removal in the Wheels/Tires
   chapter).



Special Tools - Jack, Jack Attachment

○

 For front disc inspection, turn the handlebar fully

   to one side.

●

 Set up a dial gauge against the disc [A] as shown

   and measure disc runout, while turning [B] the
   wheel by hand.
   If runout exceeds the service limit, replace the
   disc.



 Disc Runout

   Standard: 0.15 mm (0.006 in.) or less
   Service Limit: 0.3 mm (0.01 in.)

BRAKES 12-19

Brake Fluid Level Inspection

●

 Refer to the Brake Fluid Level Inspection in the

   Periodic Maintenance chapter.



Brake Fluid Change

●

 Refer to the Brake Fluid Change in the Periodic

   Maintenance chapter.

Brake Line Bleeding

  The brake fluid has a very low compression
coef

fi

 cient so that almost all the movement of the

brake lever or pedal is transmitted directly to the
caliper for braking action. Air, however, is easily
compressed. When air enters the brake lines,
brake lever or pedal movement will be partially
used in compressing the air. This will make the
lever or pedal feel spongy, and there will be a loss
in braking power.

WARNING

Be sure to bleed the air from the brake
line whenever brake lever or pedal action
feels soft or spongy after the brake fluid is
changed, or whenever a brake line fi tting has
been loosened for any reason.

NOTE

○



The procedure to bleed the front brake line is as

   follows. Bleeding the rear brake line is the same
   as for the front brake.

●

 Remove the reservoir cap [A] and diaphragm.

●

 Fill the reservoir with fresh brake

fl

 uid to the

   upper level line in the reservoir.

●

 Slowly pump the brake lever several times until

   no air bubbles can be seen rising up through the


fl

 uid from the holes at the bottom of the reservoir.

○

 Bleed the air completely from the master cylinder

   by this operation.

●

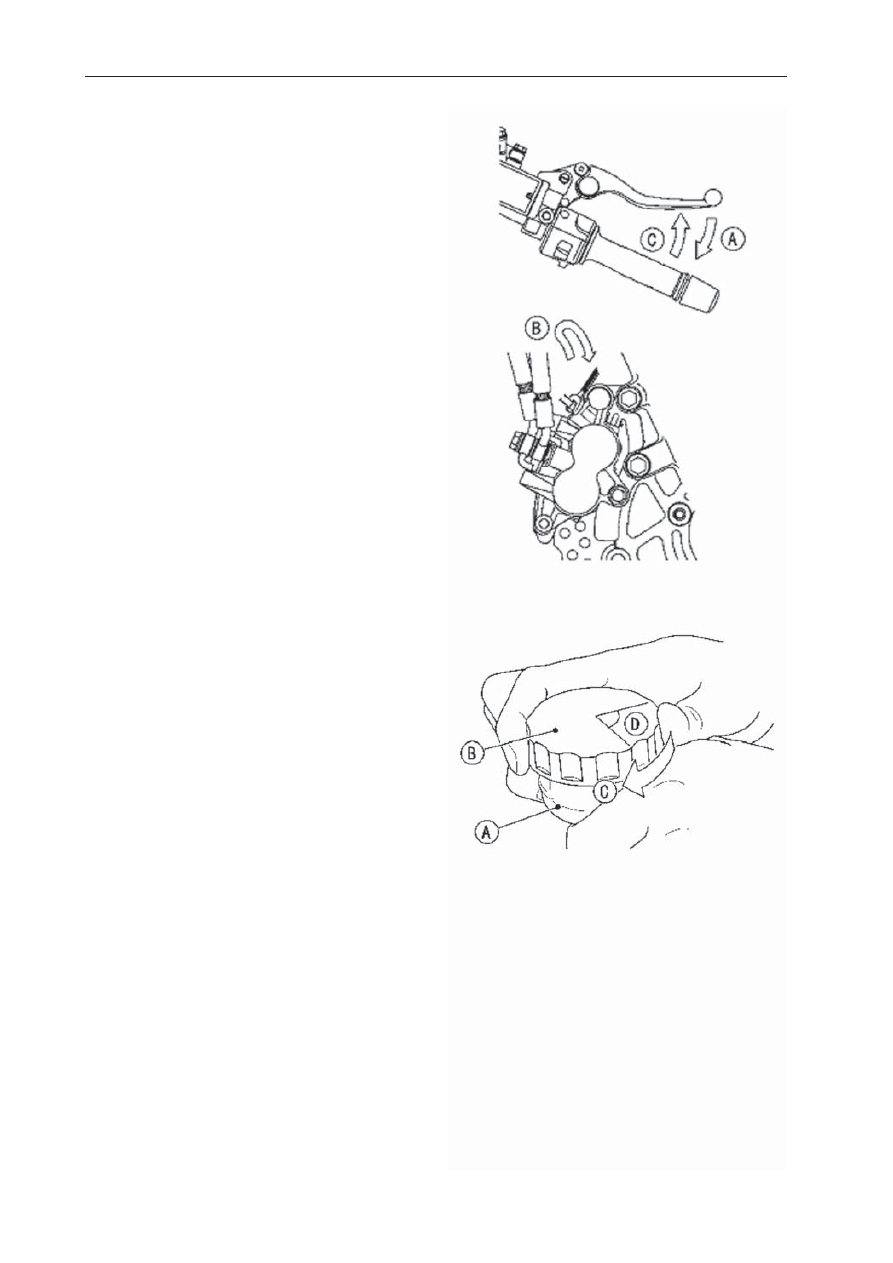

 Remove the rubber cap from the bleed valve [A]

   on the caliper.

●

 Attach a clear plastic hose [B] to the bleed valve,

   and run the other end of the hose into a
   container.

!

12-20 BRAKES

●

 Bleed the brake line and the caliper.

○

 Repeat this operation until no more air can be

   seen coming out into the plastic hose.
1. Pump the brake lever until it becomes hard, and
    apply the brake and hold it [A].
2. Quickly open and close [B] the bleed valve while
    holding the brake applied.
3. Release the brake [C].

NOTE

○



The

fl

 uid level must be checked often during

   the bleeding operation and replenished with
   fresh brake

fl

 uid as necessary. If the

fl

 uid in the

   reservoir runs completely out any time during
   bleeding, the bleeding operation must be done
   over again from the beginning since air will have
   entered the line.

○



Tap the brake hose lightly from the caliper to the

    reservoir for more complete bleeding.

○



Front Brake: First bleeding the right caliper then

   repeat the above steps for the left caliper.

●

 Remove the clear plastic hose.

●

 Install the diaphragm and reservoir cap.

●

 Tighten:



 Torque - Front Brake Reservoir Cap Screws:

   1.0 N·m (0.10 kgf·m, 9 in·lb)

●

 Follow the procedure below to install the rear

   brake

fl

 uid reservoir cap correctly.

○

 First, tighten the rear brake

fl

 uid reservoir cap [B]

   clockwise [C] by hand until slight resistance is felt
   indicating that the cap is seated on the reservoir
   body, then tighten the cap an additional 1/6 turn
   [D] while holding the brake

fl

 uid reservoir body [A].

●

 Tighten the bleed valve, and install the rubber

   cap.

   Torque - Bleed Valve: 7.8 N·m (0.80 kgf·m, 69
   in·lb)

●

 Check the

fl

 uid level (see Brake Fluid Level

   Inspection in the Periodic Maintenance chapter).

●

 After bleeding is done, check the brake for good

   braking power, no brake drag, and no

fl

 uid

   leakage.

BRAKES 12-21

WARNING

When working with the disc brake, observe
the precautions listed below.
1. Never reuse old brake fl uid.
2. Do not use fl uid from a container that has
    been left unsealed or that has been open
    for a long time.
3. Do not mix two types and brands of fl uid for
    use in the brake. This lowers the brake fl uid
    boiling point and could cause the brake to
    be ineffective. It may also cause the rubber
    brake parts to deteriorate.
4. Don’t leave the reservoir cap off for any
    length of time to avoid moisture
    contamination of the fl uid.
5. Don’t change the fl uid in the rain or when a
    strong wind is blowing.
6. Except for the disc pads and disc, use only
    disc brake fl uid, isopropyl alcohol, or ethyl
    alcohol for cleaning of the brake parts. Do
    not use any other fl uid for cleaning these
    parts. Gasoline, engine oil, or any other
    petroleum distillate will cause deterioration
    of the rubber parts. Oil spilled on any part
    will be diffi cult to wash off completely and
    will eventually deteriorate the rubber used
    in the disc brake.
7. When handling the disc pads or disc, be
    careful that no disc brake fl uid or any oil
    gets on them. Clean off any fl uid or oil that
    inadvertently gets on the pads or disc with
    a high-fl ash point solvent. Do not use one
    which will leave an oily residue. Replace the
    pads with new ones if they cannot be
    cleaned satisfactorily.
8. Brake fl uid quickly ruins painted surfaces;
    any spilled fl uid should be completely
    wiped up immediately.
9. If any of the brake line fi ttings or
    the bleed valve is opened at any time, the
    AIRMUSTBEBLEDFROM THE BRAKE LINE.

Brake Hose Removal/Installation

●

 Refer to the Brake Hose and Pipe Replacement

   in the Periodic Maintenance chapter.

Brake Hose Inspection

●

 Refer to the Brake Hose Damage and Installation

   Condition Inspection in the Periodic Maintenance
   chapter.

!

SUSPENSION 13-1

Suspension

Table of Contents

Front shock exploded View.........................................................................................................

13-2

Rear shock exploded View..........................................................................................................

13-4

Speci

fi

 cations..............................................................................................................................

13-6

Special Tools................................................................................................................................

13-7

Front Fork....................................................................................................................................

13-8

Front Fork Removal.................................................................................................................

13-8

Front Fork Installation..............................................................................................................

13-8

Front Fork Oil Change.............................................................................................................

13-8

Front Fork Disassembly........................................................................................................... 13-10
Front Fork Assembly................................................................................................................ 13-11
Inner Tube Inspection.............................................................................................................. 13-12
Dust Seal Inspection............................................................................................................... 13-12
Fork Spring Inspection............................................................................................................ 13-13

Rear Shock Absorber................................................................................................................... 13-14

Spring Preload Adjustment...................................................................................................... 13-14
Rear Shock Absorber Removal............................................................................................... 13-14
Rear Shock Absorber Installation............................................................................................ 13-15
Rear Shock Absorber Inspection............................................................................................. 13-15

Swingarm..................................................................................................................................... 13-16

Seingarm Removal.................................................................................................................. 13-16
Swingarm Installation.............................................................................................................. 13-16
Swingarm Bearing Removal.................................................................................................... 13-17
Swingarm Bearing Installation................................................................................................. 13-17
Swingarm Bearing, Sleeve Inspection..................................................................................... 13-18
Swingarm Bearing Lubrication................................................................................................ 13-19
Chain Guide Inspection........................................................................................................... 13-19

13-2 SUSPENSION

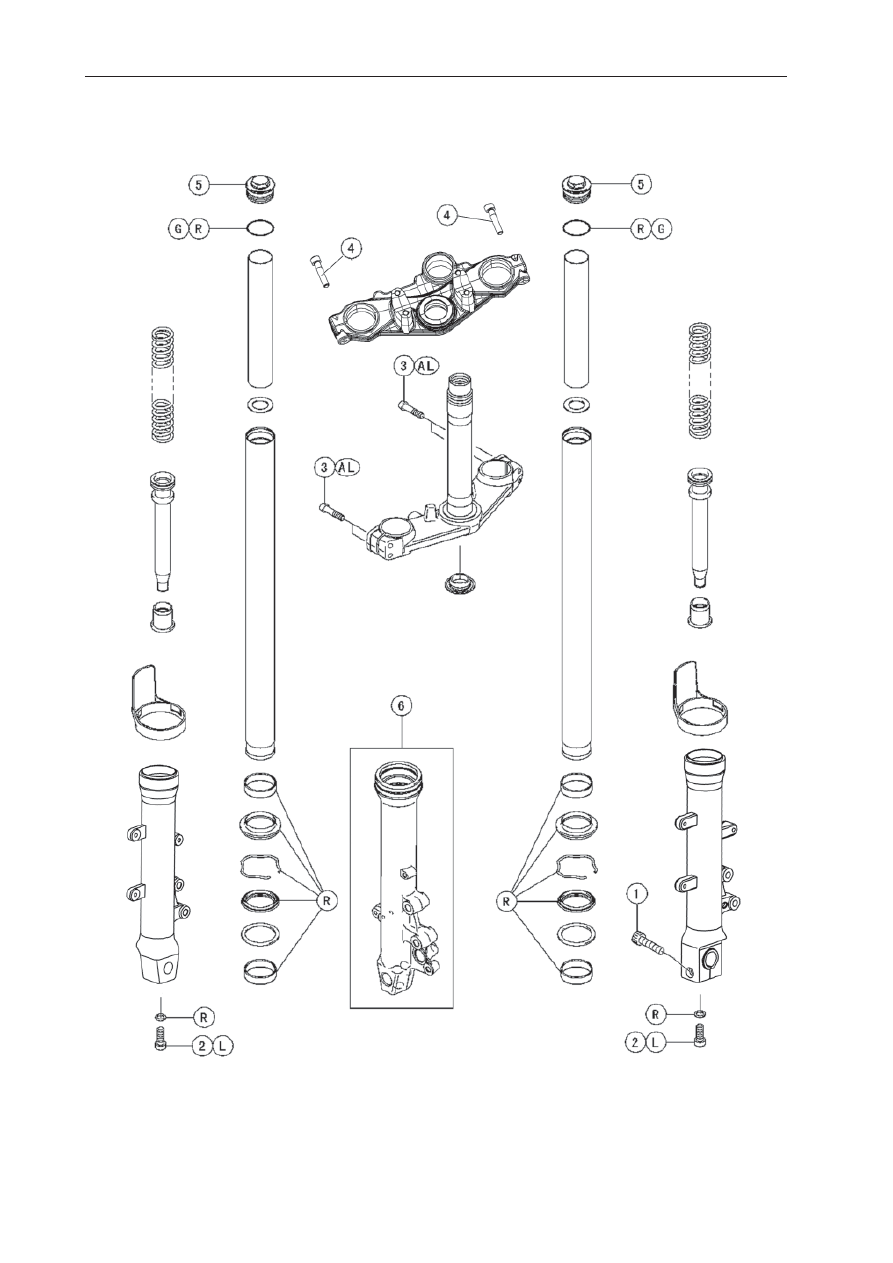

Exploded View

SUSPENSION 13-3

No

Fastener

Torque

Remarks

N·m

kgf·m

ft·lb

1

Front Axle Clamp Bolt

34

3.5

25

2

Front Fork Bottom Allen Bolts

30

3.1

22

L

3

Front Fork Clamp Bolts (Lower)

20

2.0

15

AL

4

Front Fork Clamp Bolts (Upper)

20

2.0

15

5

Front Fork Top Plugs

25

2.5

18

6.   Outer Tube

AL:   Tighten the two clamp bolts alternately two times to ensure even tightening torque..

G:   Apply grease.

L:   Apply a non-permanent locking agent.

R:   Replacement Parts

13-4 SUSPENSION

Exploded View

SUSPENSION 13-5

No.

Fastener

Torque

Remarks

N·m

kgf·m

ft·lb

1

Rear Shock Absorber Bolt

59

6.0

44

2

Rear Shock Absorber Nut

59

6.0

44

3

Swingarm Pivot Shaft Nut

108

11.0

80

G: Apply  grease.

R: Replacement Parts

13-6 SUSPENSION

Speci

fi

 cations

Item

Standard

Front Fork (Per One Unit)

Fork Inner Tube Outside Diameter

41 mm (1.6 in.)

Air Pressure

Atmospheric pressure (Non-adjustable)

Fork Spring Setting

Non-adjustable

Damper Setting

Non-adjustable

Fork Oil:

Viscosity

KAYABA KHL34-G10 or equivalent

Amount:

approx. 390 mL (13.2 US oz.) (when changing oil)
458 ±4 mL (15.5 ±0.14 US oz.)  (after disassembly and
completely dry)

Fork Oil Level:

115 ± 2 mm (4.5 ±0.08 in.) (below from inner tube top with
fully compressed, without fork spring)

Fork Spring Free Length

277.8 mm (10.94 in.) (Service limit 272 mm (10.7 in.))

Rear Shock Absorber

Spring Preload

3rd position (Adjustable Range: 1st ~ 7th position)

Gas Pressure

980 kPa (10 kgf/cm², 142 psi, Non-adjustable)

SUSPENSION 13-7

Special Tools

Inside Circlip Pliers

Jack

Fork Cylinder Holder Handle

Fork Oil Seal Driver,

Φ

41

Fork Cylinder Holder Adapter

Fork Oil Level Gauge

Oil Seal & Bearing Remover

Jack Attachment

Bearing Driver Set

Stem Bearing Driver,

Φ

28

Spacer,

Φ

28

13-8 SUSPENSION

Front Fork Removal

●

 Remove:

   Front Wheel (see Front Wheel Removal in the
   Wheels/Tires chapter)
   Front Fender (see Front Fender Removal in the
   Frame chapter)
   Loosen the upper fork clamp bolt [A] and fork top
  plug [B]beforehand if the fork leg is to be
   disassembled.

NOTE

○



Loosen the top plug after loosening the upper

    forkclamp bolt.

●

 Loosen the upper fork clamp bolt and lower fork

   clamp bolts [C].

●

 With a twisting motion, work the fork leg down

   and out.

Front Fork Installation

●

 Install the fork with the upper end of the inner

   tube

fl

 ush [A] against the top surface of the stem

   head [B]

●

 Tighten:



Torque - Front Fork Clamp Bolt (Upper):

   20 N•m (2.0 kgf•m,15 ft•lb)



 Front Fork Top Plug: 25 N•m (2.5 kgf•m, 18

    ft•lb)

NOTE

○



Tighten the top plug before tightening the upper

    Fork clamp bolt.

○



Tighten the two clamp bolts alternately two times

    to ensure even tightening torque.

●

 Tighten:



 Torque - Front Fork Clamp Bolt (Upper):

   20 N•m (2.0 kgf•m,15 ft•lb):
   20N•m(2.0kgf•m,15ft•lb)

●

 Install the removed parts (see appropriate

    chapters)

Front Fork Oil Change

●

 Remove the front fork (see Front Fork Removal).

●

 Remove:

   Top Plug [A] with O-ring Collar [B]
   Fork Spring Seat [C] Fork Spring [D]
