CFMoto motorcycle V-Night CF150-2C. Service Manual - part 1

-1-

1.CF150-2C Model Motorcycle Overview

With compact structure, CF150-2C



model motorcycle has featured

,

unique and novel appearance

.

The

riding is comfortable and driving stability is good

.

It adopts the latest water

-

cooled



engine



researched

and developed by the company and it adopts the electronic fuel injection system, which makes it more
environmental-friendly with lower fuel consumption and emission, reaching Chinese National Phase III

Emission Standards



Euro



III



Emission level

.

(1)Applicable Scope of CF150-2C Model Motorcycle

CF150-2C



is



one



motorcycle promoted by CFMOTO



with



independent



development

.

This vehicle can not only be the traffic tools for commuters and tourism and leisure activities and also can
be heavy transportation tool.
Therefore, CF150-2C



motorcycle is not only suitable for urban roads but also for countryside roads.

-2 -

(2)Characteristics of CF150-2C Model Motorcycle

1.Strong power and heavy load.

The engine model of this vehicle: 157MJ-3A(A1)



Maximum net power: 10.5kW

 (

9000rpm).When the engine is at



9000 RPM the output power is 10.5kw.

2. Big torque force and strong gradeability.

The maximum torque

: 1 2.2

N

·

m

 ( 6 5 0 0

rpm

) .

When the engine is at



6500 RPM the output torque is

12.2 N

·

m.

3.Fuel evaporation recovery system and optimized muffler catalyzer.

It makes it more environment-friendly with lower fuel consumption and more thorough combustion. The
combustion structure is more reasonable and the system completely reaches National Phase III Emission
Standard.

4.State-of-the-art water-cooling technology.

As the professional enterprise that produces water-cooled engines, the

“

Water-cooling

”

technologies



of



CFMOTO



are



at



the



top



level

.

Compared



to



the



air

-

cooled



engines



with



the



same



displacement

:

it has better heat dissipation and the temperature adjustment of the engine oil is more flexible with higher



power

,

lower



fuel



consumption



and



has prolonged service life of engine.

5. DC power supply system.

The charging efficiency is higher. More lighter and make it easier to drive in the night.

-3-

2.User's Guide

1.Regulations on load carrying:

Load carrying of CF150-2C



model



motorcycle

:

2



persons

(

including 1 driver and 1 passenger

).

The maximum allowable load carrying capacity is: 150kg.

2.Fuel

Since gasoline is highly flammable

,

if the fuel tank, fuel filter, fuel pipeline, and other accessories of the

vehicle cause oil leakage due to damage and aging, the users should use the vehicle after timely repair and
troubleshooting.

3.Electric system

The user cannot retrofit or change the circuit of the vehicle on its own nor enlarge or add electric equipment

.

It will make the electrical equipment of the vehicle overloaded, resulting in overheated circuit, melted fuse
or short circuit or even spark and car burning and so on

.

The company will not be responsible for any consequences due to retroftting or change of the vehicle circuit



or enlarging or adding electric equipment

.

4.Inspection

The user should strictly maintain the parts and accessories listed as per requirements of

“

Periodic

Maintenance Table

”.

The fuel used in this vehicle is: 93#



octane gasoline.

-4 -

3.Transportation, Storage and Unpacking Installation of

Motorcycle

1.



The motorcycle (with packaging box)should be reliably secured on the transportation vehicle. During

transit, there should be no damage or destruction

.

2.



The motorcycle (with packaging box)should be stored in clean

,

well

-

ventilated

,

dry

,

rain

-

proof and

sun

-

proof warehouse and should not be stored together with the inflammables

,

chemcial corrosives and

other hazardous substance.
3.



This motorcycle is completely installed at the dealer

'

s and is delivered to the users after commissioning.

The installation sequence is as follows:

①

Unpack the box and take out all accessories.

②

Install handle tube.

③

Disassemble the left, right and front shock absorber retaining



bolts

,

take out the rear wheel and support

the vehicle with the side stand or main process stand

(

matching

),

install front brake and front wheel

,

install

storage battery

,

install other accessories

(

rearview mirror and so on)

,

fasten bolts and nuts of the whole car

and inspect the circuit before starting the motorcycle

.

④

Adjust light signal, front and rear brakes, clutch, throttle, and so on and deliver it to users after testing.

The installation is completed.

Transportation, Storage and Unpacking Installation of Motorcycle are only for references
of  the dealers.

-5-

4. Safe Driving

This motorcycle is two-wheel motor-driven vehicle, which can bring convenience and rapidness to the
driver. To ensure the best performance of the motorcycle, you must maintain and service the vehicle
correctly. When using the motorcycle, the vehicle must be safe and normal

;

when driving or riding the

motorcycle, you must be healthy in order to control the vehicle in the best state.

Note：When driving the motorcycle, the traffic rules and regulations must be
observed; the vehicle must be carefully inspected before driving.

(1)Rules for Safe Driving

1. Before starting the motorcycle

,

it is necessary to inspect the vehicle carefully in order to ensure that the

vehicle is safe and normal

;

in this way

,

accidents can be prevented and damage of parts and accessories

can be avoided.



2.



The motorcycle drivers must pass the exam held by the traffic administration department and obtain

“

motorcycle driving license

”

before driving the motorcycle

;

the vehicle cannot be lent to people without

“

motorcycle driving license

”.

3.



To avoid injury

,

you should

:

●

Eye-catching clothing.

    Don

'

t be too close to the other vehicles when driving and use the turn lights

,

horn

,

brake lights and so on

correctly

.

    Do not drive in the



dead zone of other drivers

.

4.



Strictly pay attention to and observe traffic rules and regulations

(

including local traffic rules and

regulations

)

    Overspeed driving is the main cause of accidents. Therefore, do not exceed the allowable speed of the
specific road conditions (requirements).
    When turning or lane changing, it is necessary to use appropriate signal lights to warn the other drivers.

●

●

●

●

-6 -

5.



When driving on the road surface of the turning junction

,

crossroads

,

entrance and exit of the parking

lot

,

high speed road or with barriers and so on, the driver must be especially careful.

6.



When driving, it is necessary to grasp direction handles with both hands and step on the left and right

main pedals

;

the passenger should hold the handrail or hug the waist of the drivers and step on the left and



right auxiliary pedals with both feet.
7.



Besides looking front

,

left and right sides

,

the driver must observe the road surface conditions through



left and right rear mirrors

.

(2)Safety Protection Equipment

1.



The



injury and death accidents of the motorcycle drivers and passengers are mostly caused by head

injuries. To protect your safety, it is necessary to wear high-quality crash helmet, dust-proof goggles, gloves
and other protective products when driving

;

the passengers should also be equipped as said.

2.



During driving

,

the temperature of the silencer is very high and the driver and the



passenger must wear



high

-

quality leather clothing and boots against scalding

.

3.



Do not wear loose clothing and clothing with lacework in case the clothing is hooked by the controlling

handles, pedals or wheels. Or such clothing may be hooked to the other vehicles by wind and cause accidents.

It must bear in mind that the high-quality protective equipment is only for prevention and never ignore
traffic safety rules and regulations for wearing such protective equipment.
The excellent motorcycle driver is always

:

the



one drives the motorcycle prudently

.

-7-

Notes：

1、Vehicle retrofitting or replacement of the original vehicle at will cannot ensure
driving safety of the motorcycle and is illegal. The users must observe the use
rules of the traffic administration department.
2、To ensure that emission of the vehicle meets National Phase III Standards, the

users should not retrofit or disassemble the following parts without authorization.
Otherwise, the company will not be responsible for resultant consequences.
①. The silencer of the vehicle is installed with the optimized catalyst. If the silencer
is damaged, please send it to the “CFMOTO Repair Station” for repair or
replacement. Do not repair it yourself or purchase products of other manufacturers
for repalcement;

②. Carbon canister is the core part of the fuel evaporation recovery system and
should not be disassembled without authorization.

2、If you have good suggestions for retrofitting, please inform the company. The
company will be responsible for implementation after confirmation. Any change
to the vehicle at will may result in adverse consequence. If suggestion is not taken,
the user shall be responsible for all consequences.

(3)Vehicle Retroffting
Warning

1.



The user cannot retrofit or change the vehicle circuit and other electric equipment on their own.

Otherwise, the electric system of the vehicle will be overloaded, which results in melting of the fuse or
short circuit or even spark and car burning and other dangers.
2.



The company will not be responsible for any consequence due to retrofitting or change of the vehicle

circuit and other electrical equipment (including increase of the electric power) by the users.

-8 -

(4)Loading of the Goods


Note：

The motorcycle has certain requirements for distribution of the load capacity. If the
 loading of goods is improper, the performance of the vehicle will be damaged and
driving stability of the vehicle will be affected.

When loading the goods:

1

、

The center of the weight of the goods (center of gravity) should be at the lower part and close to the

center of the vehicle.
2.



Adjust the tire pressure according to the load and driving road conditions

(

Refer to page 21

).

3.



All goods must be fixed on the vehicle tightly to ensure stable operation.

4.



Do not attach large-scale and heavy articles to the steering handles, front shock absorber or front fender

,

otherwise driving is unstable or the steering doesn

'

t work.

5.



The maximum load requirements

( 1 5 0

kg

)

of the vehicle should not be exceeded

.

(5)Accessories

All accessories in the packaging box of the motorcycle are manufactured by the factory with special design
and production and have been tested on the motorcycle. Because our company cannot carry out tests of



products manufactured by other factories, the company will not be responsible for the accessories of other
manufacturers installed and used by you.
After installation of the accessories, the users should carefully inspect whether the accessories have visual
barrier, whether the road clearance or the side tilt angle are reduced

,

whether the control mechanism has



good steering capacity and whether the operation is restricted. If such problems exist, use the vehicle after
removing the accessories.

-9-

5.Operation Instruction

(1)Location of Parts

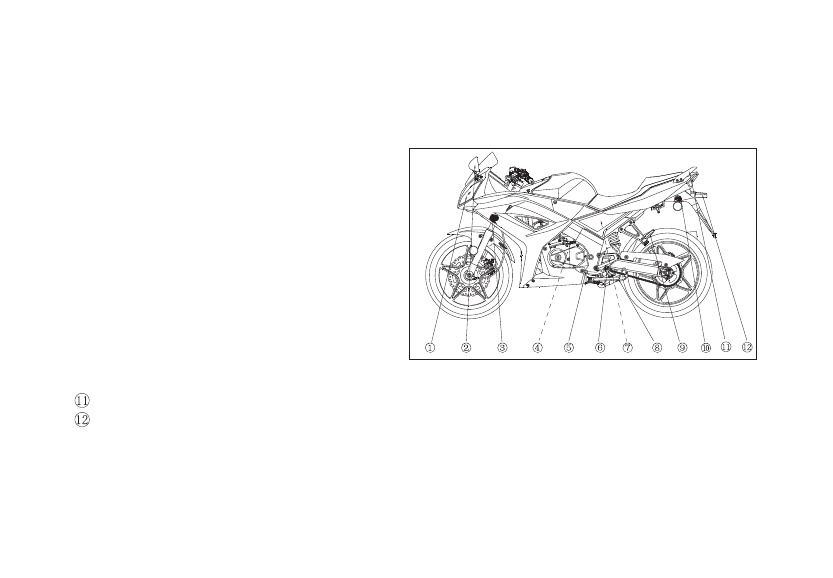

1. Left Side View (Figure1):

Figure 1   Left side view

①

Headlight

,

LH



②

Left rear



view mirror



③

Front turn signal, LH



④

Engine number

(

on the right side

)

⑤

Shift arm

⑥

LH pedal

,

Driver

⑦

Air filter

(

Inside



left



side



cover)

⑧

Side stand

⑨

LH pedal

,

Passenger

⑩

Front



turn signal, RH

Rear handrail

Rear license lamp

-1 0-

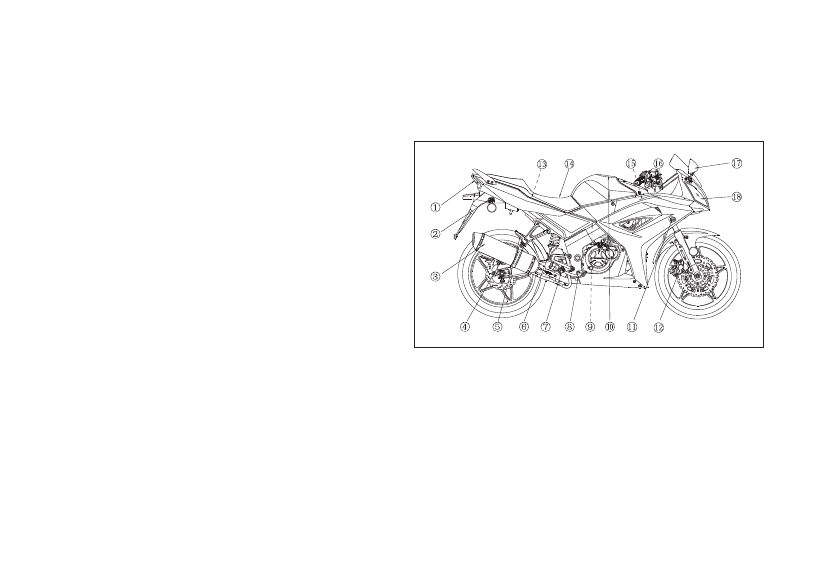

2. Right Side View (Figure 2):



Figure 2   Right side view

⑾
⑿
⒀

⒁
⒂

⒃
⒄
⒅

Front turn signal,RH
Front brake caliper
Battery(underneath
the seat cushion)
Seat
Name plate(underneath
the decoration plate)
VIN number
Rear view mirror, RH
Headlight, RH

①

Taillight

/

brake light

②

Rear



turn signal, RH

③

Muffler



④

Rear brake caliper



⑤

RH



pedal

,

Passenger

⑥

Rear shock absorber

⑦

RH pedal

,

Driver



⑧

Rear brake pedal

⑨

Carburetor

 (

Underneath



the



fuel tank)

⑩

Fuel tank



cap



- 11-

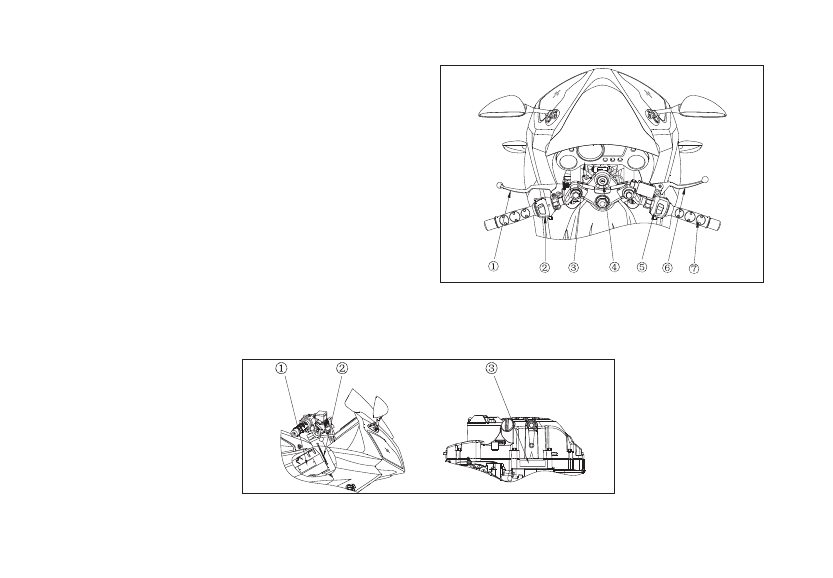

3. Front Vehicle

Part (Figure 3):

4. Locations of the vehicle identification number

(

VIN

),

name plate and engine serial number,

(

Figure 4

)

Figure 4 Vehicle identification number

(

VIN

) ,

name plate and engine serial number



Figure 3 Front Vehicle part

①

Clutch lever



②

Left handlebar



switch



set



③

Instrument

④

Ignition switch lock set

⑤

Right handlebar



switch



set



⑥

Front brake lever



  ⑦

Throttle handle



-1 2-

①

Name plate

:

it is on the right side of the vehicle frame

.

②

Vehicle identification number

 (

VIN

):

it is on the right side of steering column;

③

Engine serial number

:

it is on the right crankcase below the cylinder block

;

(2)Instrument and Ignition Switch
 [Instrument]

The following components are attached to the

“

Instrument

”

and



the



functions



are



as



in



Table 1

(

Refer to Figure 5

):

Table 1

S.N

Name

Functions

①

②

③

④

⑤

Left turn



indicator



light

Engine tachometer

Gear indicator

Speedometer

Indicate the front and rear left turn



light



flash



(

the



light



is



green

)

Show the speed of the engine

(

RPM

) .

Show the specific gear of the engine

(

such as 1.2.3

.

4.5.6

)

Indicate the instaneous speed of the vehicle driving.

Battery



power



indicator



Turn on the ignition light and the



light



is



on



when



the



engine



is



without



revolving



speed

;

when



the



battery voltage is

lower than 12 V, the light flashes.

- 13-

S.N

Name

Functions

⑥

⑦

⑧

⑨

⑩

⑾

⑿

Right



turn



indicator



light



Fuel level gauge

Upper beam indicator

Neutral gear indicator

Failure indicator

Water thermometer
indicator

Odometer

Indicate the front and rear  right turn



light



flash



(

the



light



is



green

)

Show the quantity

Indicate the upper beam is on (the light is blue)

It is neutral gear when the light is on (the light is green)

When the water thermometer indicates

“

C

”

area, the water

temperature is normal

;

when



it



indicates

 “

H

”

red area,

the water temperature is too high. It should immediately
stop the engine and check the cooling system.

Show the total mileage of the vehicle driving.

When the vehicle circuit has failures, the light flashes and is
on (the light is red,)



if



it



is



EFI



model

-1 4-

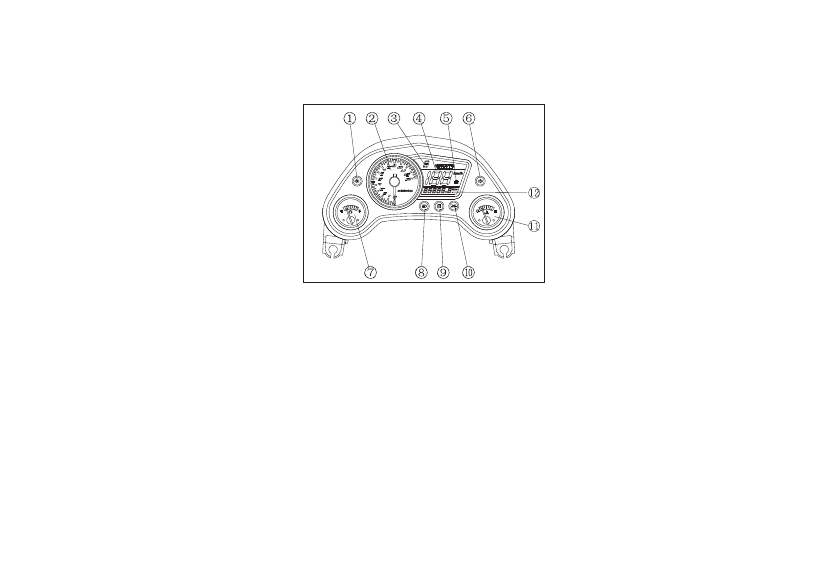

Figure 5   Instrument

[Ignition Switch]

“

Ignition switch

”

setting is underneath the instrument

 (

Refer



to



Figure

 3).

Turn



on



the



ignition



switch



before



starting



the



motorcycle

.

Refer



to



Table

 2

for



key



location



and



functions

:

- 15-

“     ”

”

“

“ ”



“   ”

P

On

On

Table 2

Key location

Functions

Key state

The entire circuit is disconnected, the engine cannot
be started and the indicator lamp is off.

The entire circuit is closed and the engine can be started

during neutral position.
The entire circuit is disconnected and the steering

mechanism is locked.

The vehicle location light is on and the steering

mechanism is locked.

Direction

lock

Location

lamp

The key can be taken

out

The key cannot be
taken out
The key can be taken

out

The key can be taken

out

Notes:

1.



When the vehicle is not used, the ignition switch must be at the position of

“     ”

(

when the user

stops the vehicle

,

the ignition switch is at the position



of

 “   ”

P

. The position lamp still consumes

power and it will result in insufficient or no power in the storage battery for long-term use.

)

2.



When stopping the vehicle and locking the direction

,

turn the steering handle to the left to the



maximum



extent

,

insert the key in the direction lock and turn 90

°

in counterclockwise to lock the



steering



mechanism

 (

after



turning it to

“     ”

,

press the key downward to continue to turn it )and

take out the key. If it needs to open the direction lock, insert the key in the direction keyhole and
turn 90

°

in



clockwise to open it and take out the key.

3.



When the vehicle is stopped and not used

,

it is necessary to lock the steering mechanism

.

-1 6-

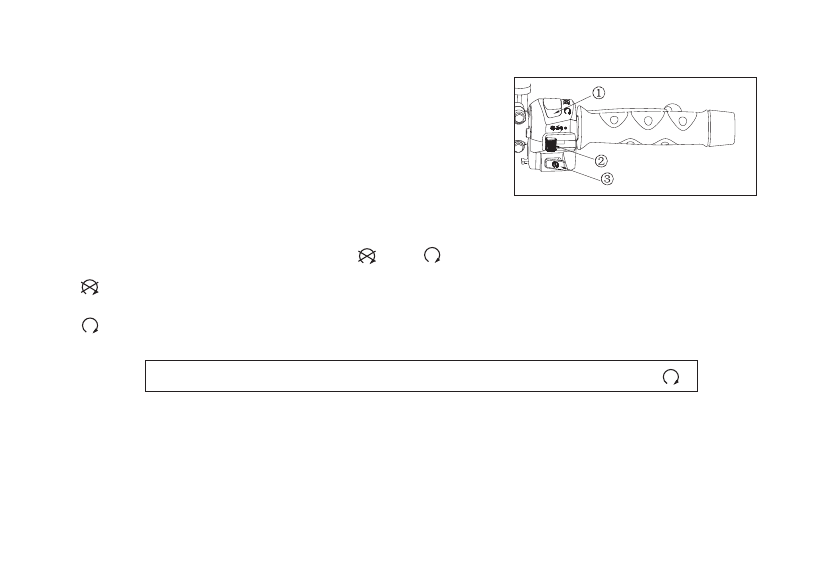

Figure 6 Right



Handle



Switch



Set

(3)Right Handlebar Switch Set (Figure 6)

Fire preset switch
Illuminator and position lamp switch
Electric start-up button

①
②
③

 [Flameout Preset Switch]

Flameout preset switch has two positions:

“     ”

and “      ”

“     ”

position

:

indicate the entire circuit is disconnected, the engine cannot be started or the running

engine is flameout

.

“     ”

position

:

Indicate the entire circuit it closed and the engine can be started.

Note：

When starting the motorcycle, the switch must be at the position of

“     ”

.
