3-2

Product Overview

Control Features

The inverter is fully featured when controlled using the optional Keypad (or a suitable pc programming tool).
The ‘General’ control features below are not user-selectable when the unit is controlled using the analog and digital inputs and outputs.

General

Output Frequency

Limited to Switching Frequency divided by 8, with a maximum of 590Hz.
e.g.

for 4kHz switching frequency it is 4000/8 = 500Hz,
for 16kHz switching frequency it is 590Hz. Refer to Parker SSD for higher output frequency.

Derating of output current may apply, refer to Appendix F Technical Specifications.

Switching Frequency

Minimum 2kHz.
Maximum 8kHz – 16kHz dependent on frame size and motor type (Induction or PMAC)

Voltage Boost for V/F control  0-25%
Motor Control Modes

Induction motor: VHz control, Sensorless Vector Control, or Closed Loop Vector Control (with
encoder).  Sensorless and Closed Loop Vector require autotune for IM.

Induction motor : Closed Loop Vector Control (with Resolver)

PMAC motor: Sensorless Vector Control

PMAC motor: Sensorless Vector Control or Closed Loop Vector Control (with resolver and
encoder (with power on constraints)

Skip Frequencies

Skip frequencies with adjustable skip band width

Preset Speeds

User selectable preset speeds

Stopping Modes

Ramp, Coast, DC Injection, Quickstop

S Ramp and Linear Ramp  Symmetric or asymmetric ramp up and down rates
Raise/Lower

Programmable MOP function

Jog

Programmable jog speed

Diagnostics

Full diagnostic and monitoring facilities

Protection

Trip Conditions

Output short line to line, and line to earth
Overcurrent > 220% HD current
Stall
Heatsink overtemperature
Motor Thermistor overtemperature (using optional GPIO)
Overvoltage and undervoltage

Current Limit

Adjustable 110% (Normal Duty) or 150% (Heavy Duty)
180% shock load limit (Heavy Duty)
Inverse Time

Dual Rating

Normal duty (110% overload for 60s)
Heavy duty (150% overload for 60s)

Inputs/
Outputs

Analog Inputs

2 configurable inputs; voltage or current

Analog Outputs

2 configurable outputs; voltage or current

Digital Inputs

3 configurable 24V dc inputs

Digital I/O

4 configurable 24V dc open collector outputs/digital inputs

Relay Outputs

2 configurable relay output

Table 3-1  Control Features

Product Overview

3-3



Functional Overview

L1

L2

L3

PE

EMC
Filter

MOVs

Input

rectifier

LINK – customer accessible

Filter

Earth

+

DB

X6

Inverter

stage

M1/U

M2/V

M3/W

I

u

I

W

DC+

DB+

DC-

PE

DC+

DC-

SMPS

DC+

DC-

Main cooling
Fan(s) (24V)

PWM

ISOLATION

DB control

stack

temperature

POWER

CONTROL

Switched fan supply

DB

EEPROM

Precharge
Control

Control Module

LINK – customer accessible

serviceable

&

testable

These elements are omitted from the DC-fed drive variants



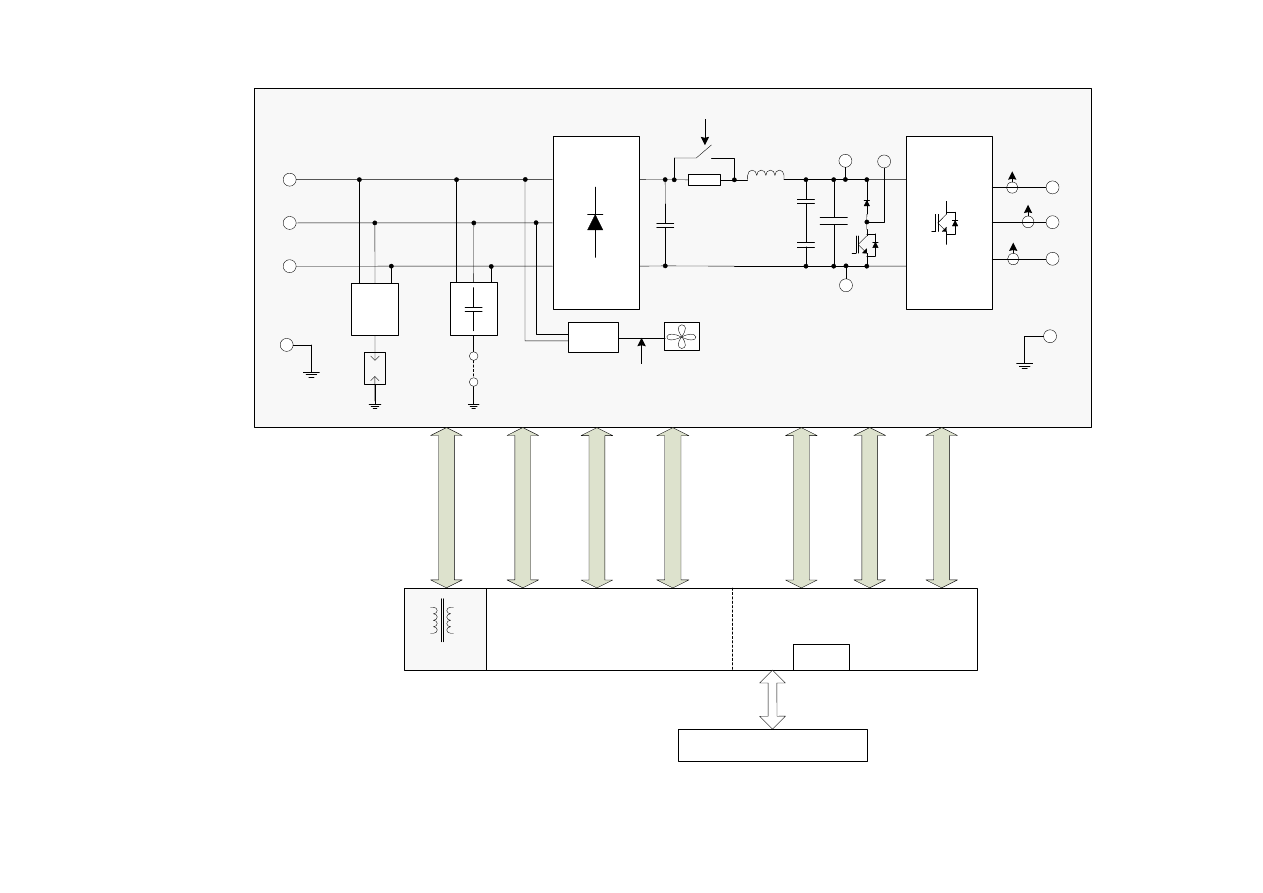

Block Diagram for Frames D, E, F




3-4

Product Overview



L1

L2

L3

PE

EMC
Filter

MOVs

Input

rectifier

LINKS   customer accessible

Filter

Earth

+

DB

X6

Inverter

stage

M1/U

M2/V

M3/ W

I

u

I

W

DC+

DB+

DC-

PE

DC+

DC-

SMPS

DC+

DC-

Main cooling

Fan (s) (24V)

PWM

ISOLATION

DB control

stack

temperature

POWER

CONTROL

Switched fan supply

DB

EEPROM

Precharge

Control

Control Module

LINK –

 customer accessible

serviceable

&

testable

Unswitched fan supply

Internal cooling

fans (24V)

These elements are omitted from the DC-fed drive variants





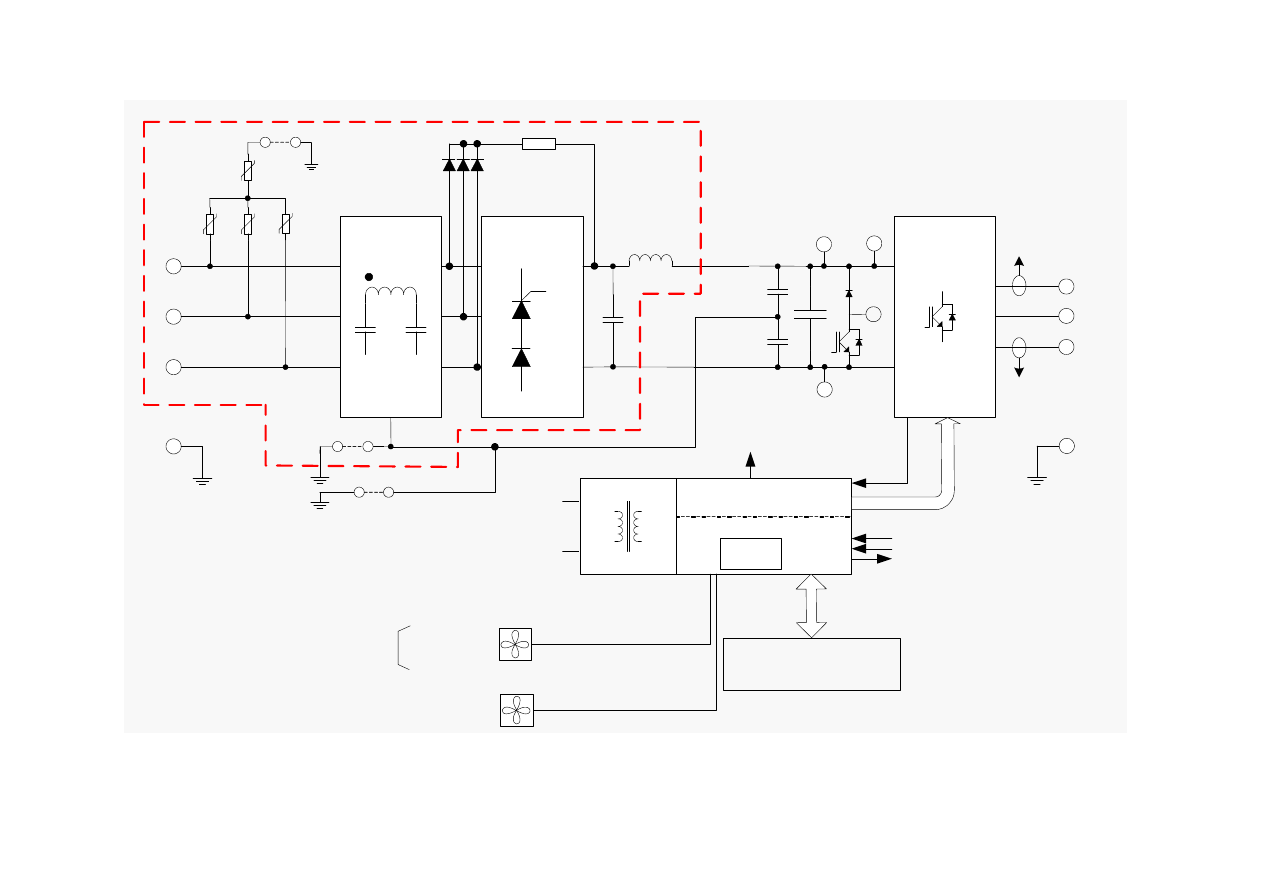

 Block Diagram for Frames G, H, J

Product Overview

3-5



L1

L2

L3

EMC
Filter

MOVs

Input

rectifier

DBR

Inverter

stage

M1/U

M2/V

M3/W

I

u

I

W

DC+

DC-

PWM

fan TX
supply

pre-charge

control

I

V

3 x current sensor interface

 +/- 15V o/l or  +/- 24V c/l

EEPROM

CM Interface PCB

PE

PE

7 x gate drive

7 x Vce sense

4 way cable assy

L1 L2 L3 sense

precharge

relay control

fan supply in

switched supply out

heatsink thermistor

SELV

fan control

SMPS

accessible

disconnect

VDC supply

& VDC sense

ISOLATION

Power Control





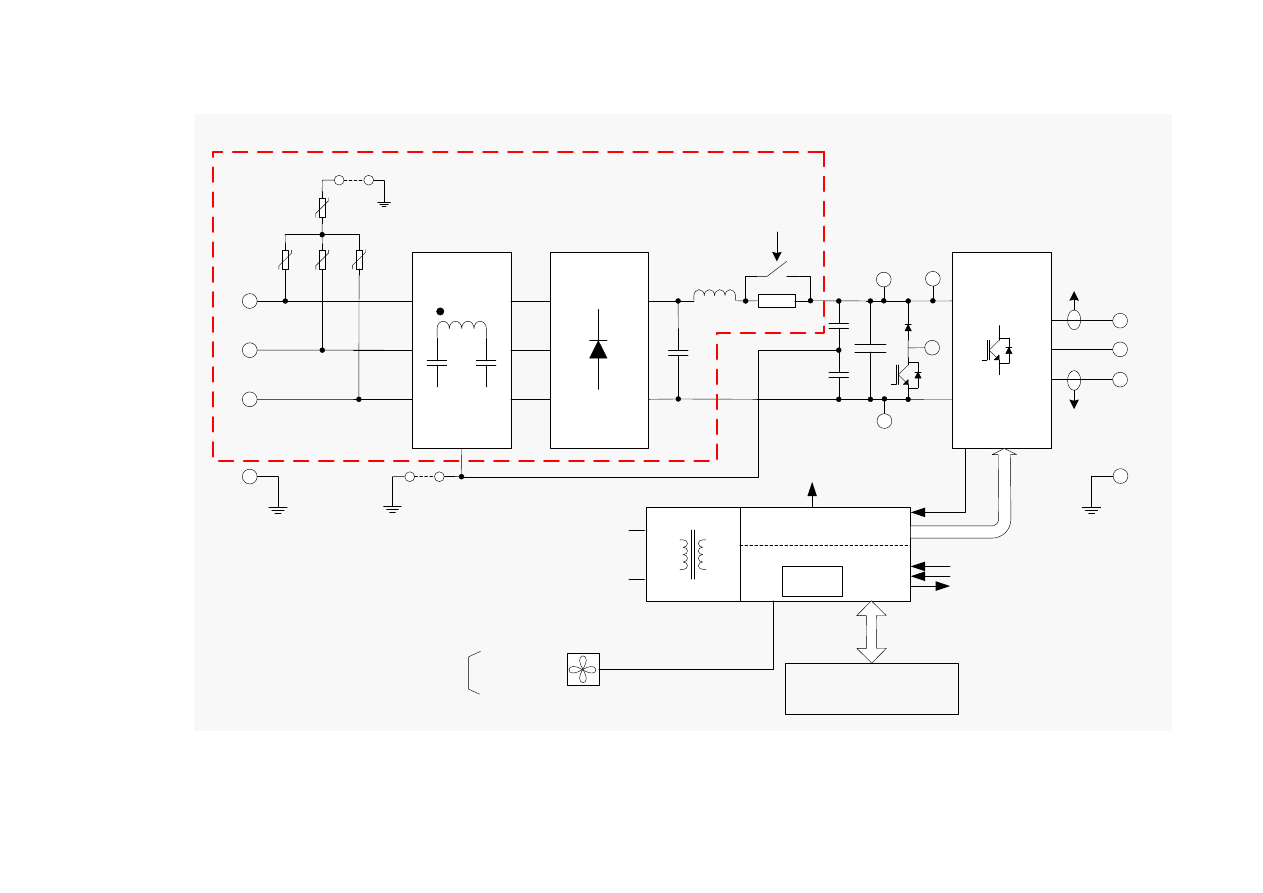

Block Diagram for Frames K

4-1

Installation



Chapter 4:

Installation



Read Appendix C: “Compliance” before installing this unit.

Cubicle Mount

DIMENSIONS FOR CUBICLE MOUNT INSTALLATION






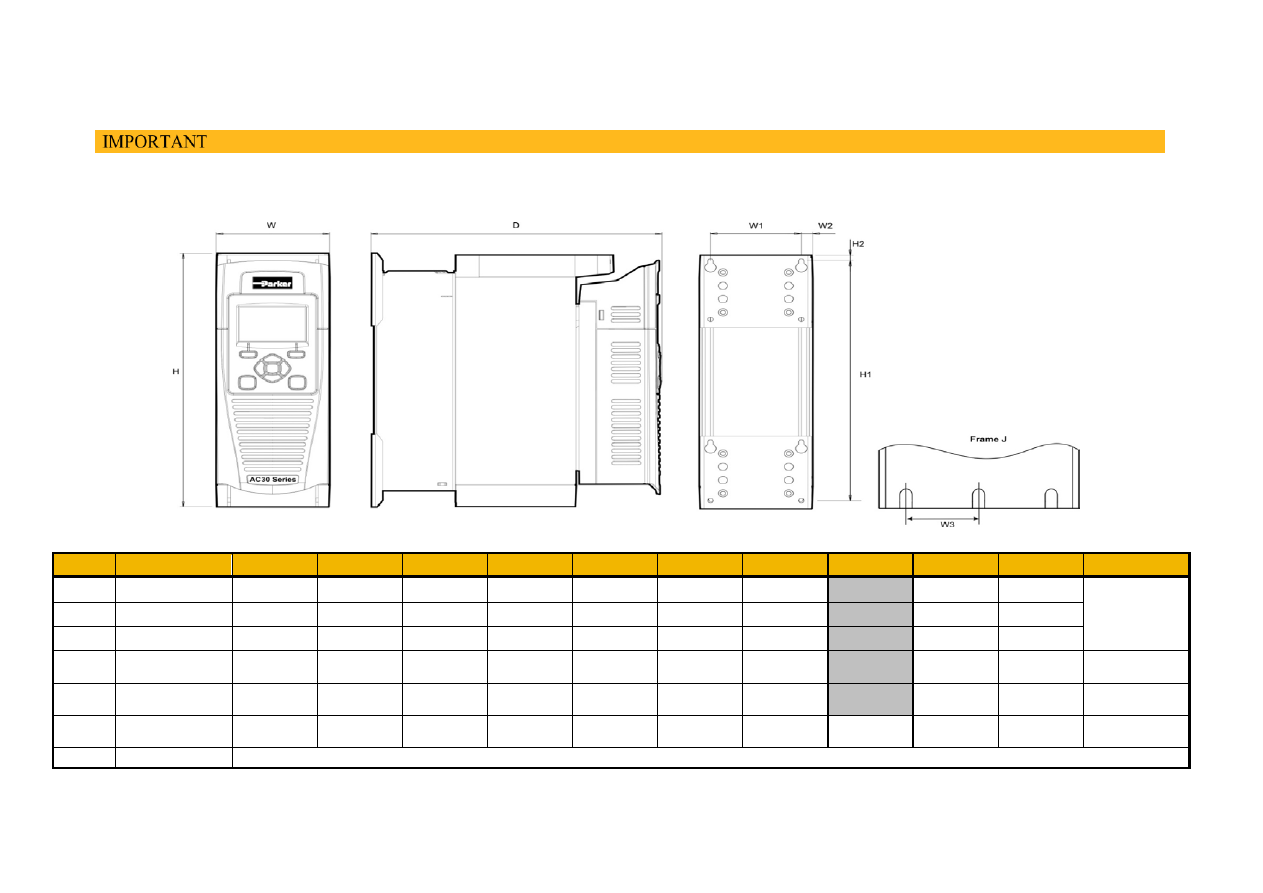

Figure 4-1  Mechanical Dimensions - Frame D Illustrated (

All dimensions are in millimetres (inches)

Inverters  Max. Weight  H – AC30V/P  H – AC30D

H1

H2

W1

W2

W3

D – AC30V/P  D – AC30D

Fixings

Frame D

4.5kg (10 lbs)

286.0 (11.26)  298.0 (11.73)

270.0 (10.6)

6.5 (0.25)

100.0 (3.93)

80.0 (3.15)

10.0 (0.39)



255.0 (10.0)

273.0 (10.75)

4.5mm slots &

holes, M4 fixings

Frame E

6.8kg (15 lbs)

333.0 (13.11)  333.0 (13.11)

320.0 (12.6)

6.5 (0.25)

125.0 (4.92)

100.0 (3.93)

12.5 (0.49)



255.0 (10.0)

273.0 (10.75)

Frame F

10.0kg (22 lbs)

383.0 (15.07)  383.0 (15.07)

370.0 (14.5)

6.5 (0.25)

150.0 (5.90)

125.0 (4.92)

12.5 (0.49)



255.0 (10.0)

273.0 (10.75)

Frame G

22.3kg (49.2 lbs)

480.0 (18.90)  480.0 (18.90)  465.0 (18.31)

7.25 (0.29)

220.0 (8.66)

190.0 (7.48)

13.0 (0.51)



287.0 (11.30)  305.0 (12.01)

5.5mm slots &

holes, M5 fixings

Frame H

42.8kg (94.6 lbs)

670.0 (26.38)  670.0 (26.38)  650.0 (25.59)

10.0 (0.39)

260.0(10.24)

220.0 (8.66)

20.0 (0.79)



316.0 (12.44)  334.0 (13.15)

6.8mm slots &

holes, M6 fixings

Frame J

89.0kg(196.2 lbs)

800.0 (31.50)  800.0 (31.50)  780.0 (30.71)

10.0 (0.39)

330.0(12.99)

285.0(11.22)

23.0(0.91)

142.5(5.61)



374.0(14.72)

392.0(15.43)

9.0mm slots &

holes, M8 fixings

Frame K  125kg (275.57 lbs)



See over page for dimensions and fixings

Installation

4-2







DIMENSIONS FOR CUBICLE MOUNT INSTALLATION – FRAME K






Fixings for main cover

(15.16)

(17.99)

(50.

47)



(51.

57)



(0.

59)



(2.36)

(7.87)

(15.75)

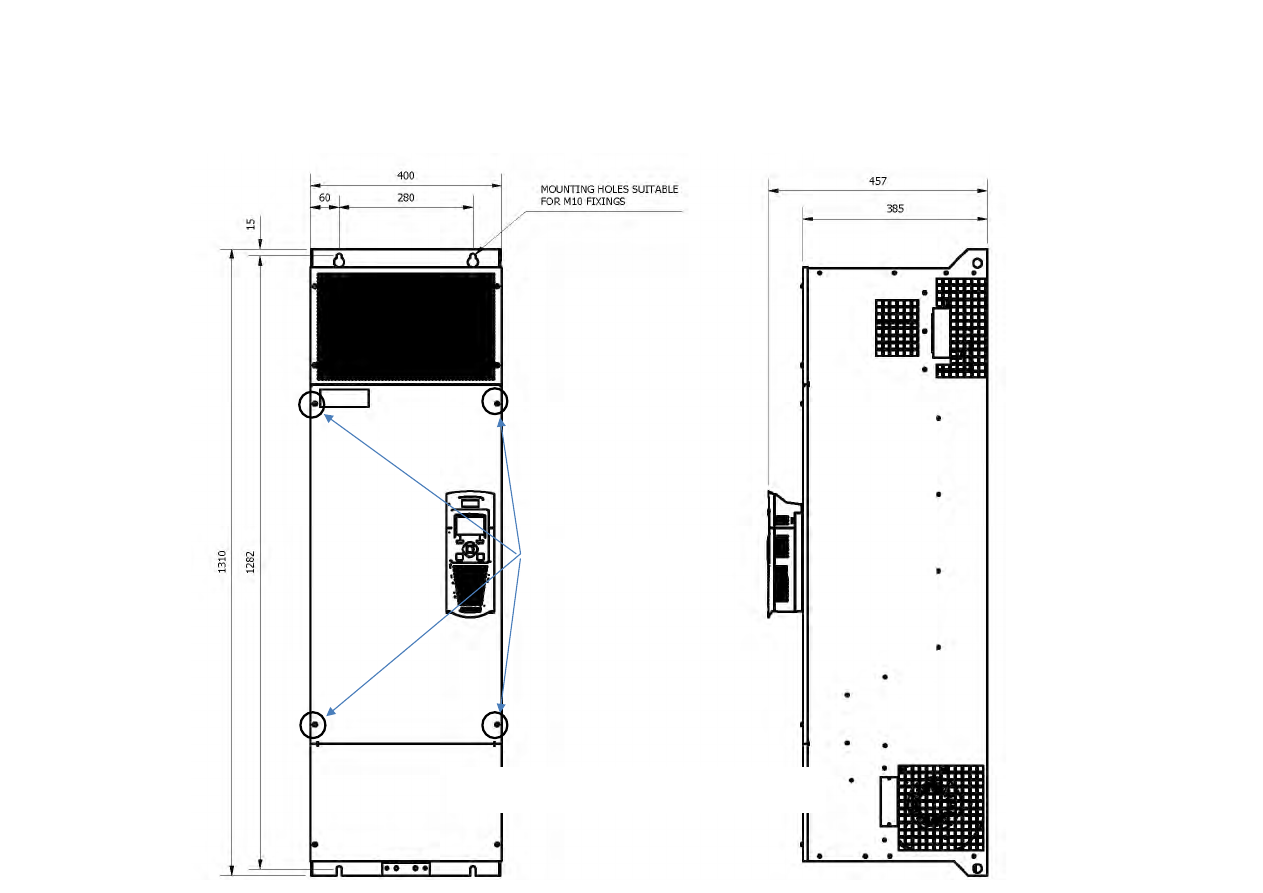

Figure 4-2  Mechanical Dimensions for Frame K



All dimensions are in millimetres (inches)

475 (18.70) for AC30D

4-3

Installation



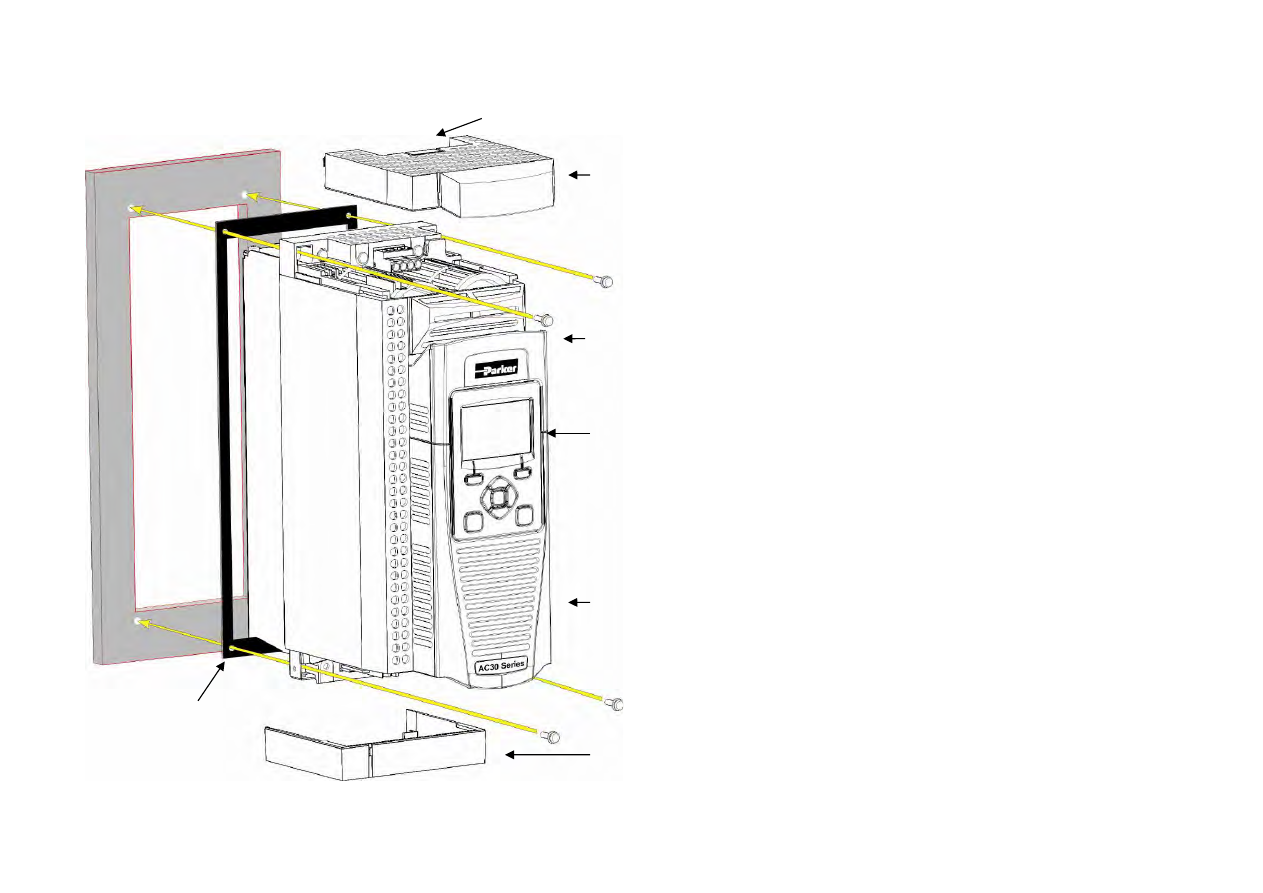

MOUNTING THE INVERTER

These units are not suitable for wall mounting. They must be mounted vertically inside an additional enclosure. Depending on required level of
EMC compliance refer to Appendix C "Compliance".

Note:  Frame H, J & K only

These models are heavy and will require two people to lift, or the use of a fork lift to install it.  The product will stand vertically on flat surfaces.

VENTILATION

The inverter gives off heat in normal operation and must therefore be mounted to allow the free flow of air through the ventilation slots and
heatsink. Maintain minimum clearances for ventilation as given in the tables below to ensure adequate cooling of the inverter, and that heat
generated by other adjacent equipment is not transmitted to the inverter. Be aware that other equipment may have its own clearance
requirements. When mounting two or more inverters together, these clearances are additive. Ensure that the mounting surface is normally cool.

Minimum Air Clearance

Cubicle-Mount Product/Application

(Europe: IP2x, USA/Canada: Open Type).
The inverter must be mounted in a suitable cubicle.
























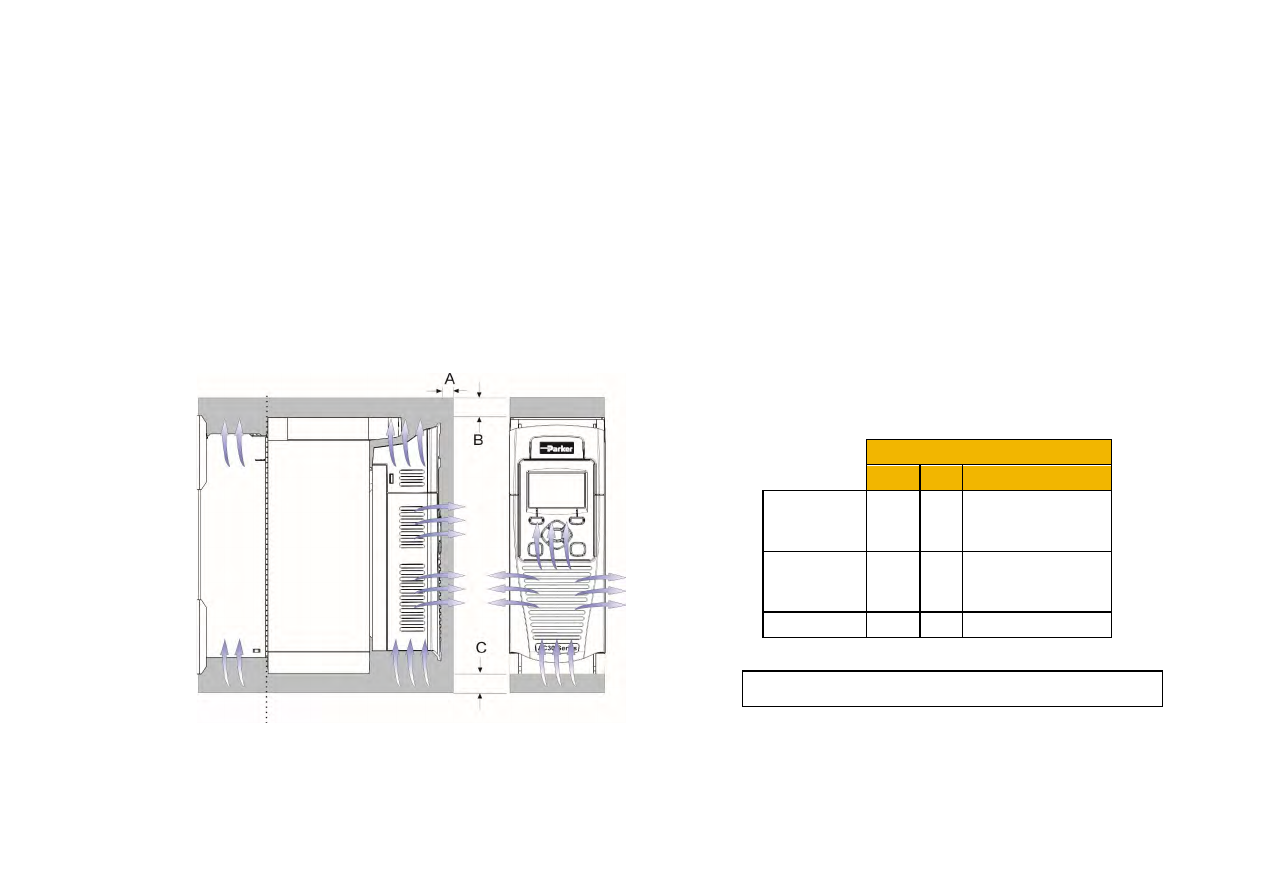

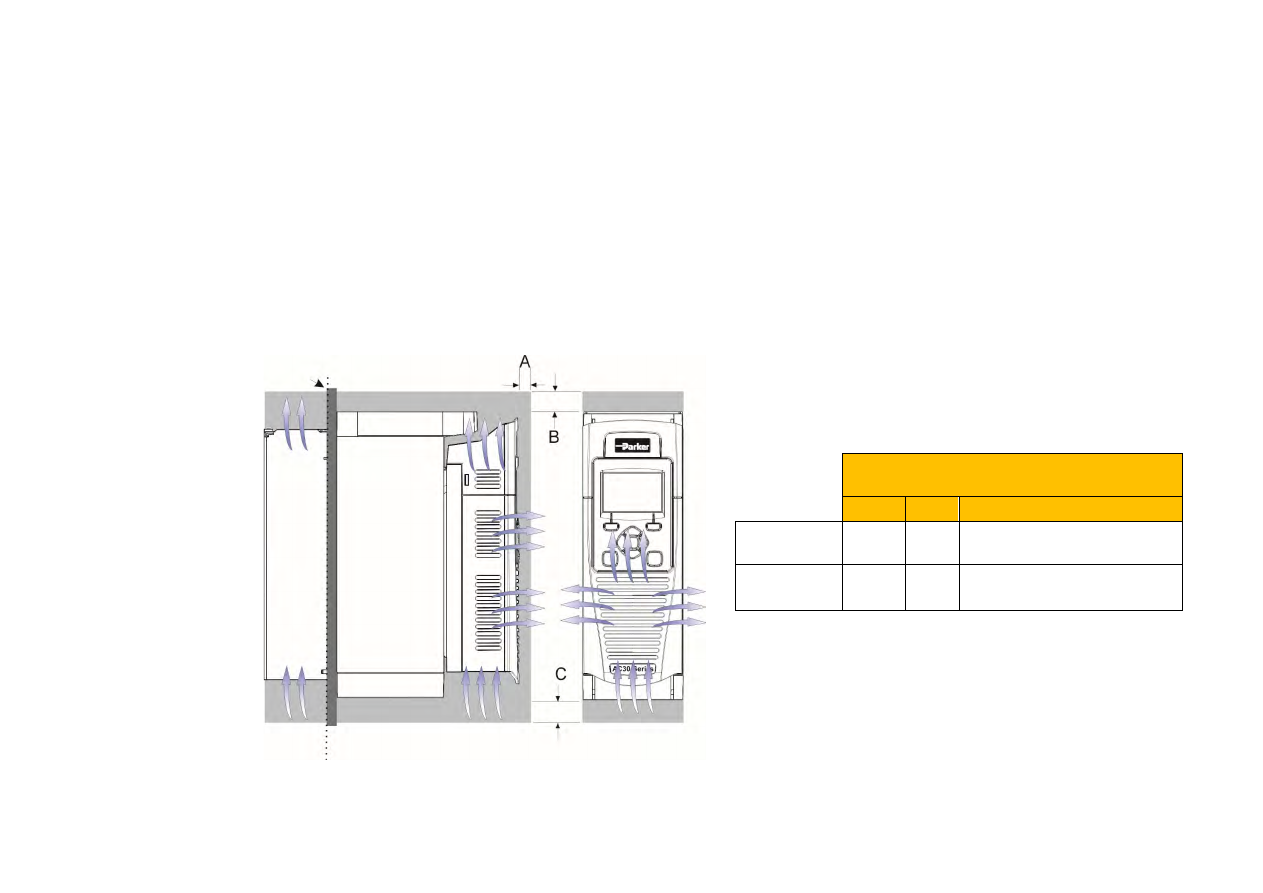

Figure 4-3  Air Clearance for a Cubicle Mount Product/Application, Frame D Illustrated.

Clearances for IP20 Product  (mm)

Frames D – H

10

75

75 minimum
(excludes cabling
requirements)

Frame J

10

100  100 minimum

(excludes cabling
requirements)

Frame K

10

200  200

Heatsink

Isolated

forced

air flow

Natural air flow on Frames D – F

Fan assisted air flow on Frames G - J



Frame K: 75mm clearance from adjacent vertical surfaces

Installation

4-4

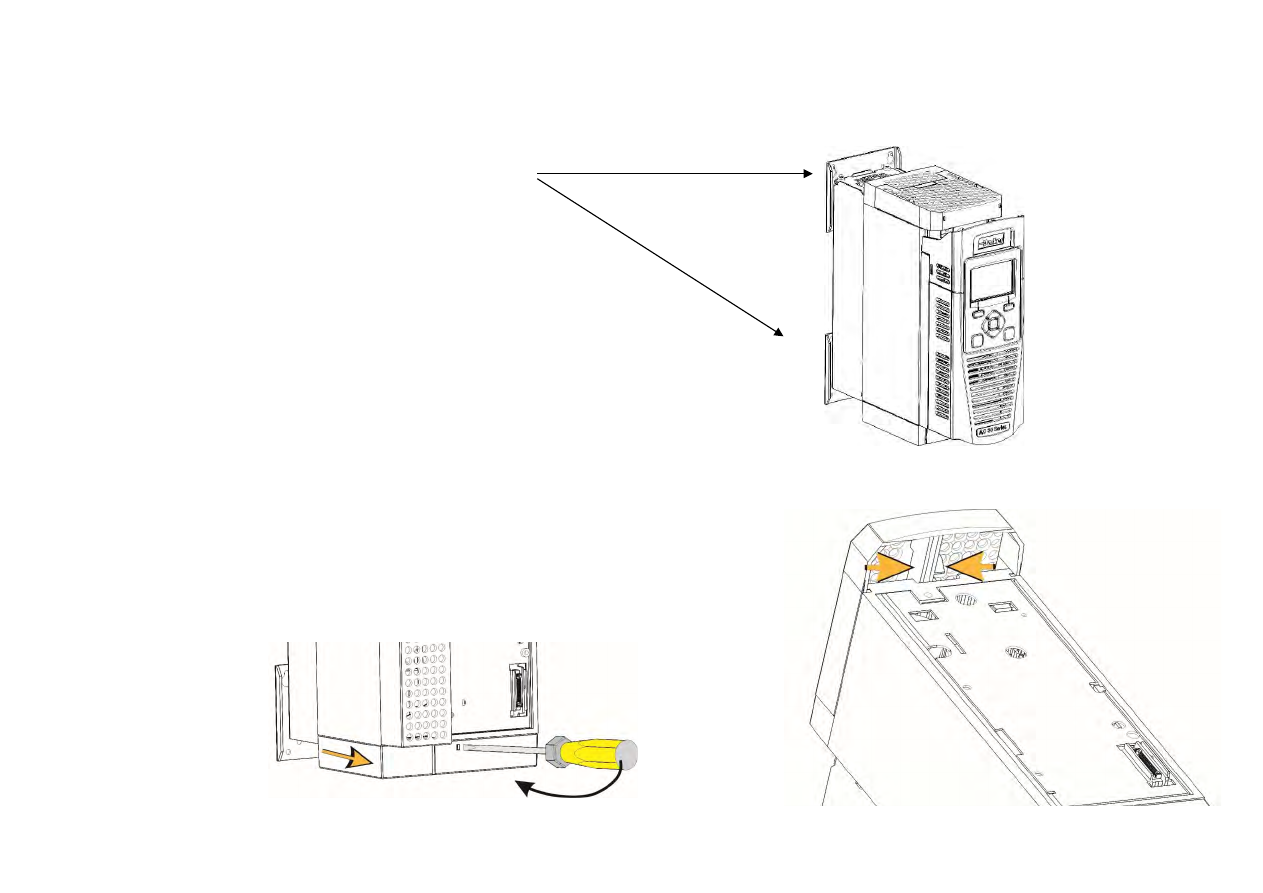

CUBICLE MOUNTING DETAILS

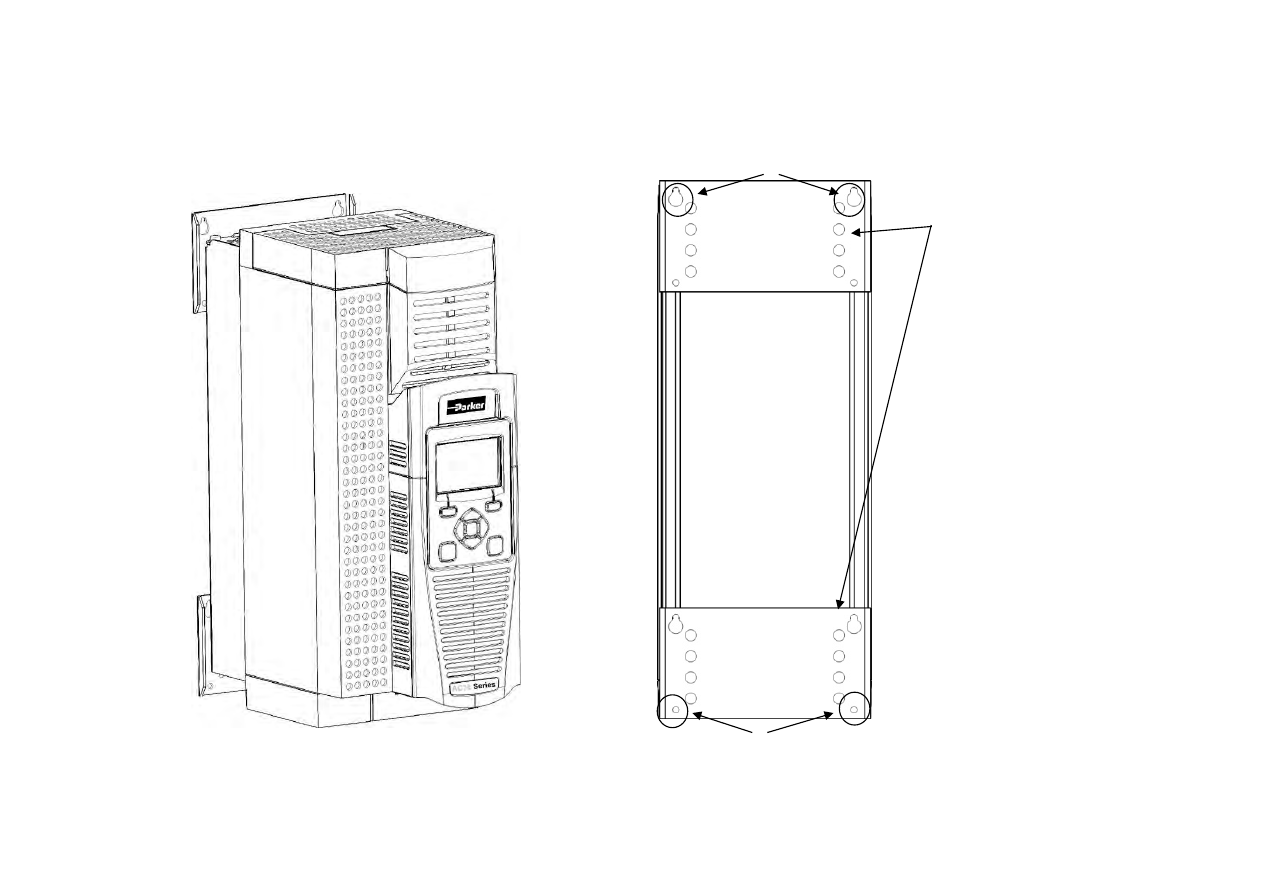

Mounting Brackets



Rear view showing fixing holes for

cubicle mount

Frames D, E, F & G
The brackets can be moved
up/down by using the alternative
holes, which are set at 15mm
intervals.

Frames H, J & K
Have a single mounting plate which
cannot be moved.

For hole and fixing dimensions see
previous pages.

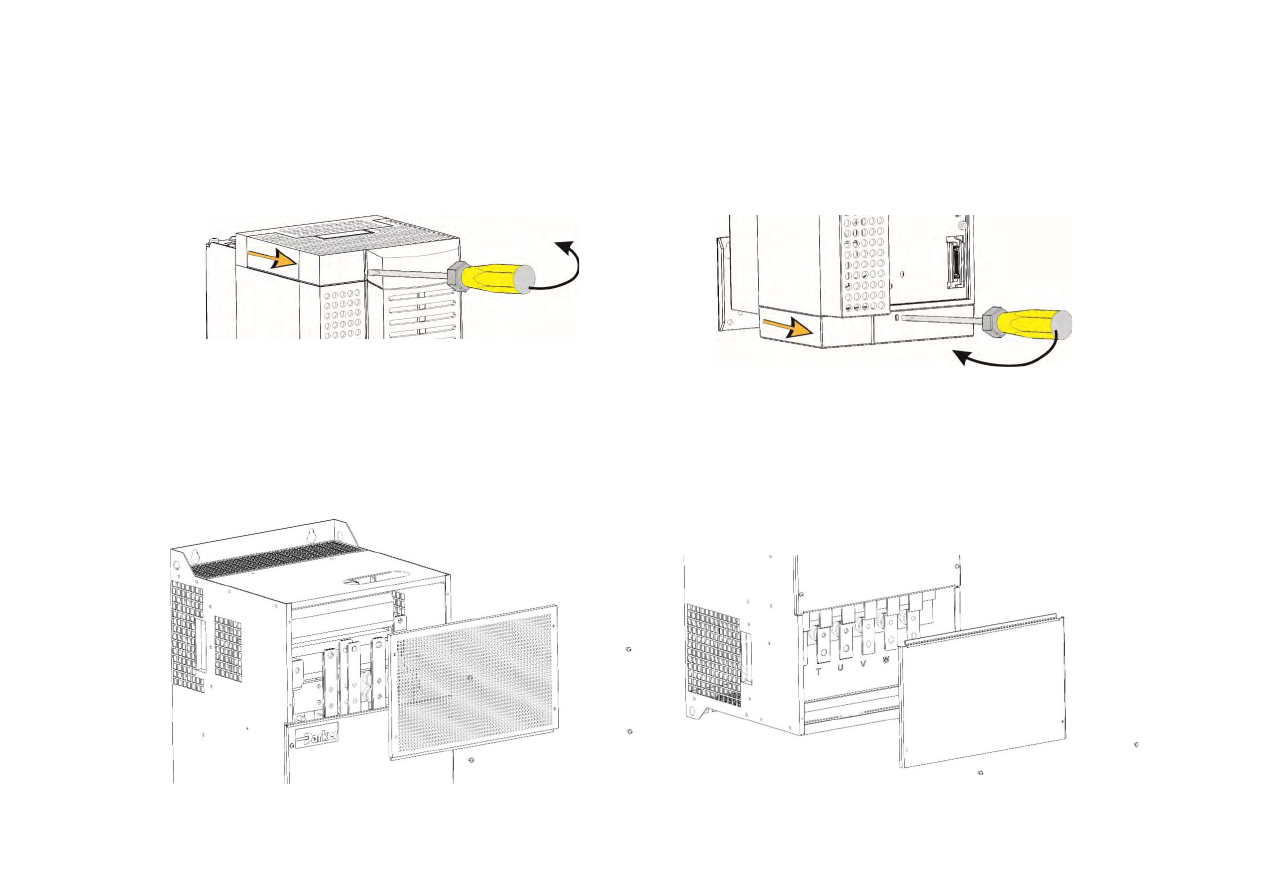

For top and bottom cover removal
see page 4-10.

Fixing holes

4-5

Installation



Through Panel Mount Frames D to J only

DIMENSIONS FOR THROUGH PANEL INSTALLATION

FRAMES D, E

Through panel mounting an inverter in a cubicle allows you to use a smaller cubicle because much of the heat generated by the inverter is
dissipated outside the cubicle.



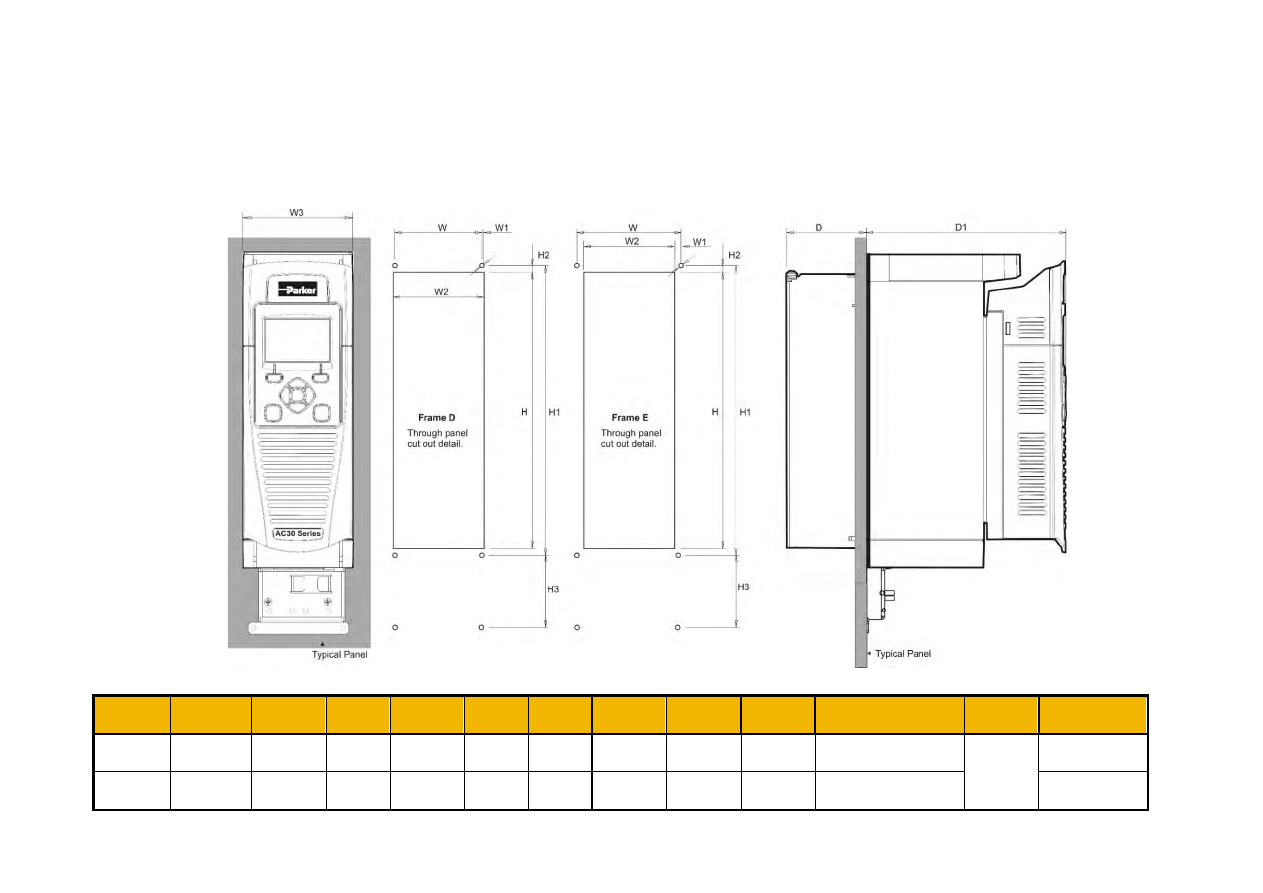

Figure 4-4  Mechanical Dimensions for Through Panel -  Frames D & E Inverters

Inverters

H1

H2

H3 *

W1

W2

W3



D1

AC30V/ AC30P

Fixings

Mounting Kits

Frame D

250 (9.8)

262 (10.3)

6 (0.2)

64 (2.51)

79 (3.1)  1.5 (0.06)  82 (3.2)

100 (3.93)

72 (2.8)

181 (7.1)



AC30D - 199 (7.83)



Use M4

fixings

LA502668

Frame E

297 (11.7)  309 (12.1)

6 (0.2)

80 (3.14)  104 (4.1)  1 (0.04)

102 (4)

125 (4.9)

72 (2.8)

181 (7.1)



AC30D - 199 (7.83)



LA502669

(* H3 only for wiring brackets)                              All dimensions are in millimetres (inches)



Installation

4-6





FRAMES F, G

Through panel mounting an inverter in a cubicle allows you to use a smaller cubicle because much of the heat generated by the inverter is
dissipated outside the cubicle.



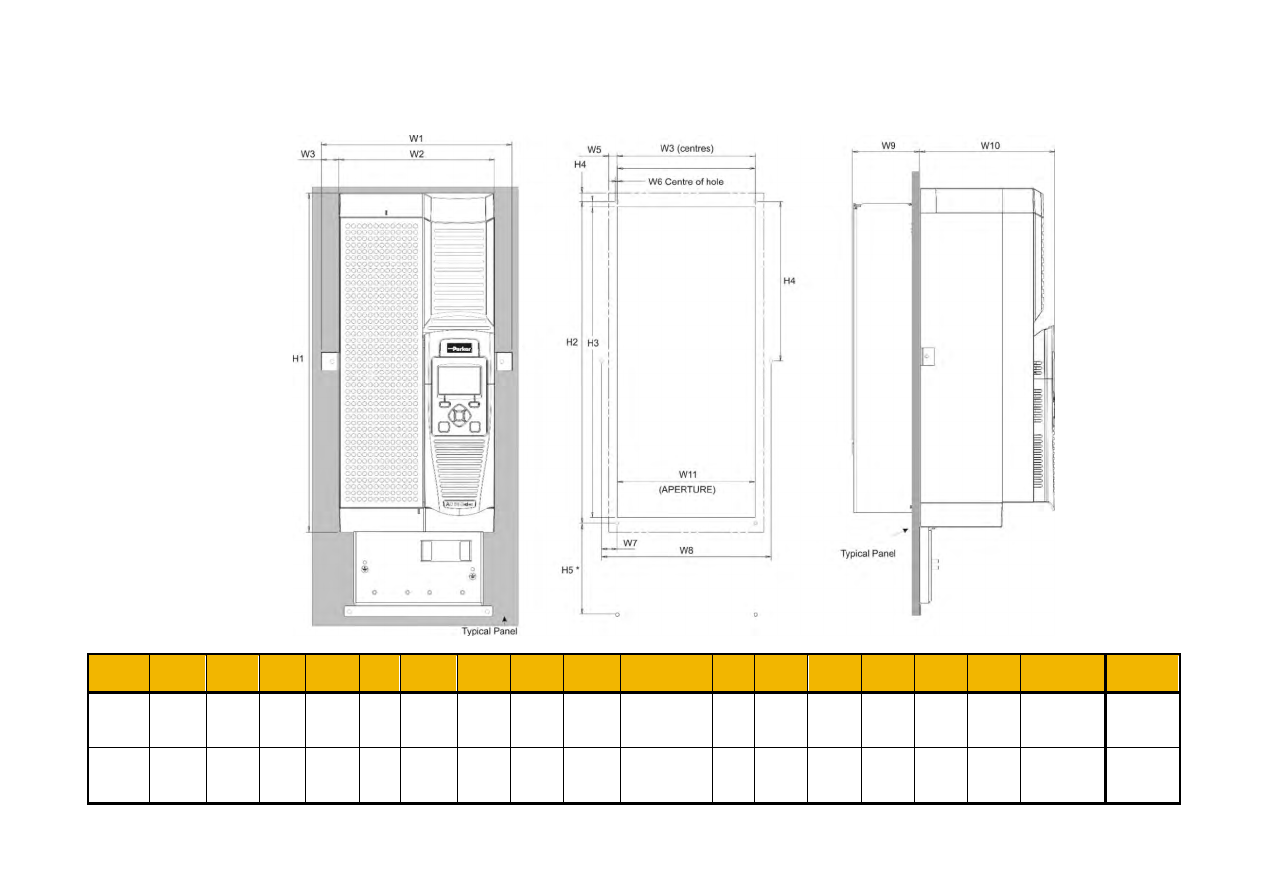

Figure 4-5  Mechanical Dimensions for Through Panel Frames F & G

Inverters  W1

W2

W3

W4

W5

W6

W7

W8

W9

W10

AC30VAC30P

W11

H1

H2

H3

H4

H5*

Fixings

Mounting

Kits

Frame F

200

(7.87)

150

(5.90)

25

(0.98)

129

(5.07)

12

(0.47)

0.1

(0.003)

20.5

(0.80)

170

(6.7)

72

(2.83)

181 (7.12)

AC30D

199 (7.83)

127

(5.0)

381

(15.0)

359

(14.13)

347

(13.66)

147.5
(5.80)

90

(3.54)

6 x 4.5mm

holes M4

fixings

LA502670

Frame G

270

(10.63)

220

(8.66)

25

(0.98)

195.8
(7.70)

12.1

(0.47)

0.4

(0.015)

22

(0.86)

240

(9.44)

95

(3.74)

192 (7.55)

AC30D

210 (8.27)

195

(7.67)

480

(18.89)

455.8

(17.94)

440

(17.32)

225.8
(8.88)

130

(5.11)

6 x 5.5mm

holes M5

fixings

LA502471

All dimensions are in millimetres (inches)                                                                                                    (* H5 only for wiring brackets)



4-7

Installation



FRAME H

Through panel mounting an inverter in a cubicle allows you to use a smaller cubicle because much of the heat generated by the inverter is
dissipated outside the cubicle.

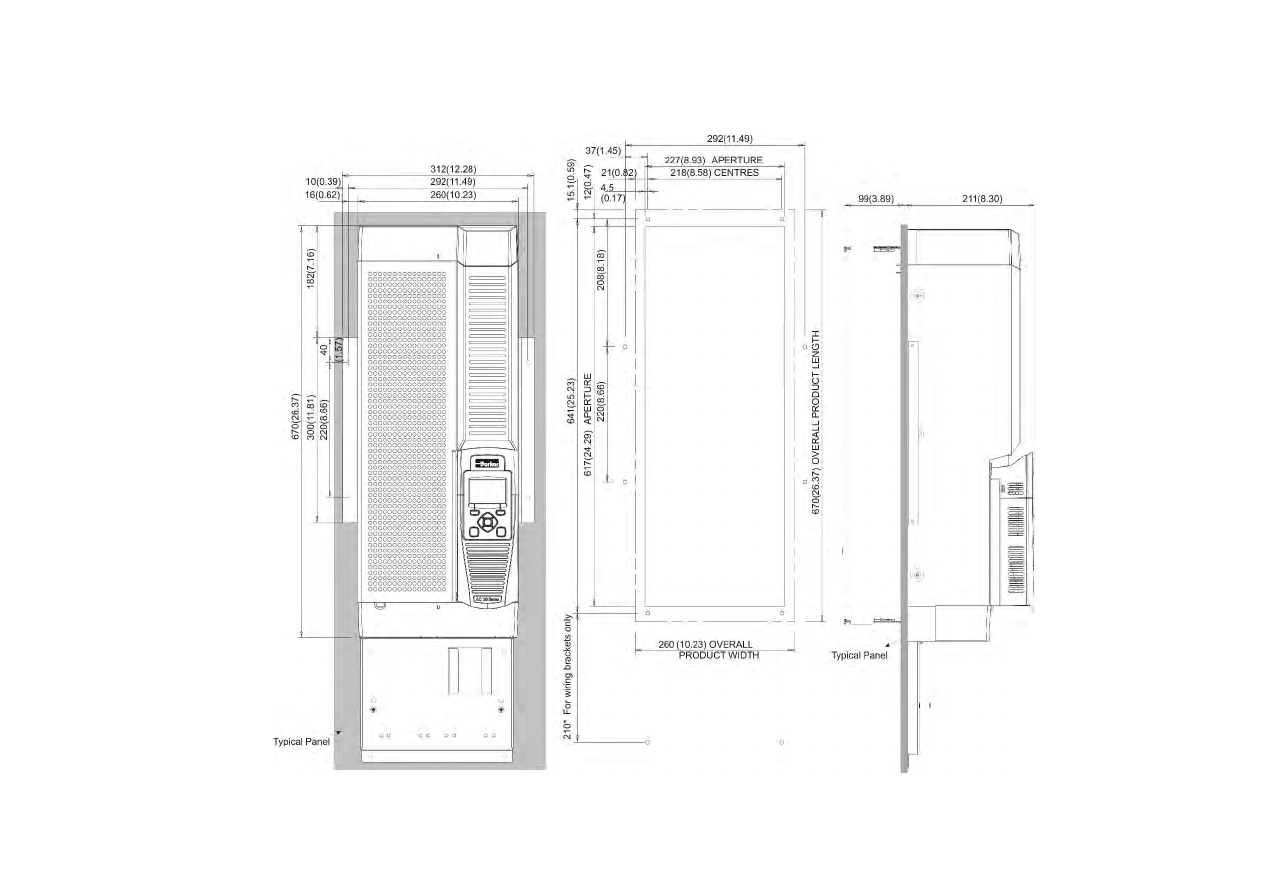

Figure 4-6  Mechanical Dimensions for Through Panel Frame H

All dimensions are in millimetres (inches)  -  Fixings: 8 x 6.5mm holes M6 fixings, refer to panel mounting kit part number LA502472



229 (9.02) for AC30D

Installation

4-8





FRAME J

Through panel mounting an inverter in a cubicle allows you to use a smaller cubicle because much of the heat generated by the inverter is
dissipated outside the cubicle.

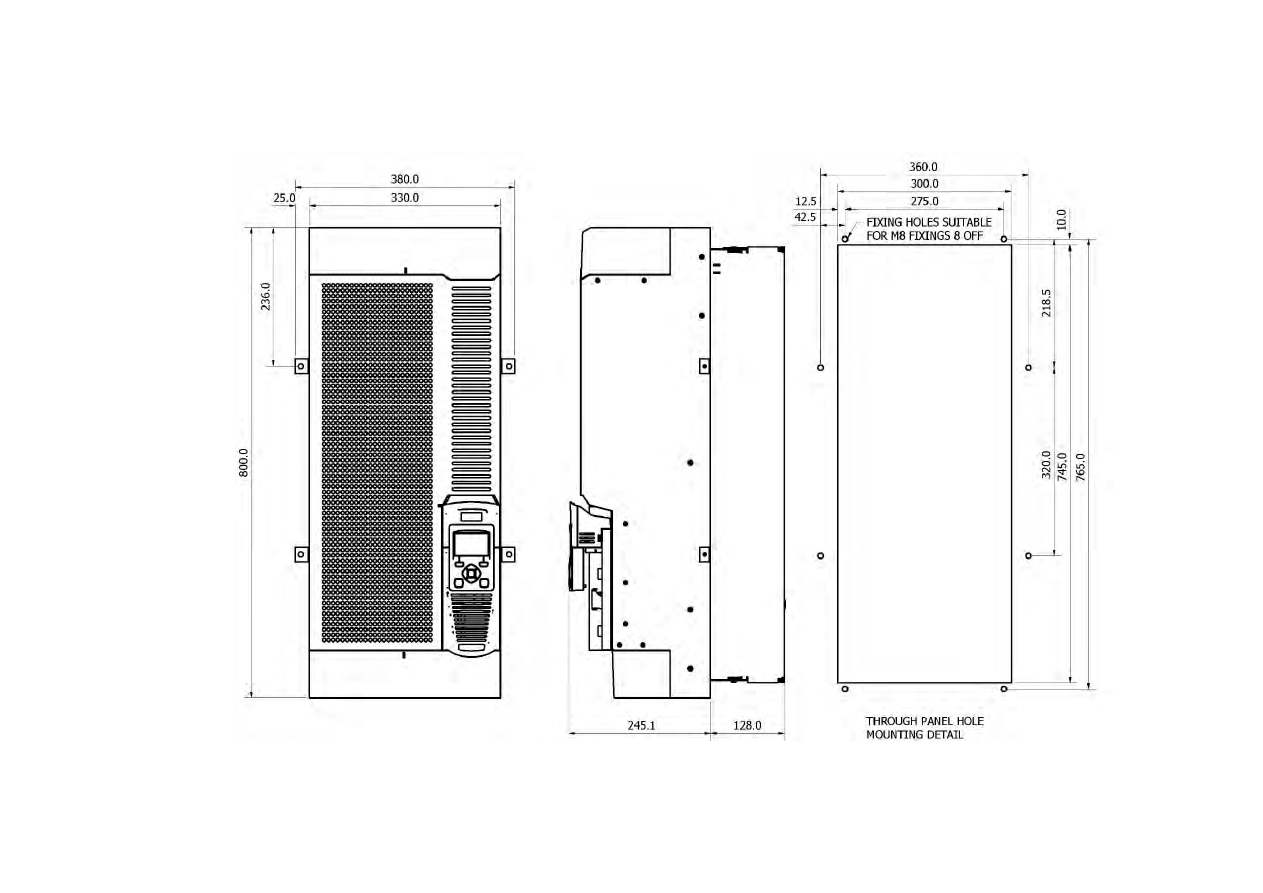

Figure 4-7  Mechanical Dimensions for Through Panel Frame J -

All dimensions are in millimetres (inches)

Fixings: 8 x 9.0mm holes M8 fixings, refer to panel mounting kit part number LA502793



(14.96)

(12.99)

(0.98)

(9.

29

(31.

49

(9.64)

(14.96)

(0.49)
(1.67)

(14.17)

(11.81)
(10.82)

(0

.39

(8.

60

(1

2

.5

9)



(29.

33

(30.

11

263.1 (10.36) for AC30D

4-9

Installation



MOUNTING THE INVERTER

These units are not suitable for wall mounting. They must be mounted vertically inside an additional enclosure. Depending on required level of
EMC compliance refer to Appendix C "Compliance".

Note:  Frame H & J only

These models are heavy and will require two people to lift, or the use of a fork lift to install it.  The product will stand vertically on flat surfaces, but
will need secondary restraining to keep upright when through panel mounting (after the panel mounting foot has been removed).

VENTILATION

The inverter gives off heat in normal operation and must therefore be mounted to allow the free flow of air through the ventilation slots and
heatsink. Maintain minimum clearances for ventilation as given in the tables below to ensure adequate cooling of the inverter, and that heat
generated by other adjacent equipment is not transmitted to the inverter. Be aware that other equipment may have its own clearance
requirements. When mounting two or more units together, these clearances are additive. Ensure that the mounting surface is normally cool.

Through-Panel Mount Product/Application (Frames D, E, F, G, H & J)

(Europe: IP2x, USA/Canada: Open Type).
The inverter can be mounted in a suitable cubicle.




Clearances for Through-Panel Mount IP20 Product
(mm)

Frames D – H

10

75

75 minimum
(excludes cabling requirements)

Frame J

10

100

100 minimum
(excludes cabling requirements)

Figure 4-8  Air Clearance for a Through-Panel
Mount Product/Application, Frame D Illustrated.

Panel

Natural air flow on Frames D - F

Fan assisted air flow on Frames G - J

Isolated forced

air flow

Heatsink



Installation

4-10





 THROUGH PANEL MOUNTING DETAIL (FRAMES D – J ONLY)


To allow mounting; first disassemble the inverter by following instructions 1 to 4 and then instructions 5 to 7 for mounting:-



1.

Unscrew and remove mounting bracket(s).












2.

Remove Control Module Cover (see page 4-18).



3.

Remove Control Module (see page 4-19).



COVER REMOVAL INSTRUCTIONS – ALL FRAMES



4.

Top & Bottom Cover Removal Instructions

 Frame D

Top Cover

:  Squeeze together the bracket under the top cover and lift off cover.





Bottom Cover

:  After inserting a screwdriver into the slot

slightly push to the left



to release the catch.















4-11

Installation



Frames E, F, G, H & J



Top Cover:

To remove insert a screwdriver into the slot and



move to the right

to release the catch, and then

slide off

 cover.

Bottom Cover:

To remove bottom cover insert a screwdriver into the
slot and

 move to the left

to release the catch, and

then

slide off

 cover.














Frame K



Top Cover:

To remove unscrew 4 x screws and then remove
cover.

Bottom Cover:

To remove unscrew 2 x screws and then

slide off



cover.





Installation

4-12

































































5.

Fit gasket to the inverter so that an air-tight seal
will be made between the inverter and the
panel.



Through Panel Kits, can be purchased from
Parker using the following part numbers:


Frame D – LA502668
Frame E – LA502669
Frame F – LA502670
Frame G – LA502471
Frame H – LA502472
Frame J –  LA502793
Frame K – not applicable




6.

Tighten all screws in place as shown, according
to panel insert requirements.

7.

At this stage you can wire the power cables, see
page 4-16.



Upper Terminal
Cover

Cover Front
Upper

GKP

Control Unit Terminal Cover
(Cover Front Lower)

Lower Terminal
Cover

Snap out to allow entry to the
braking terminals

Gasket















Content      ..      1      2      3      ..
