8-73-7

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

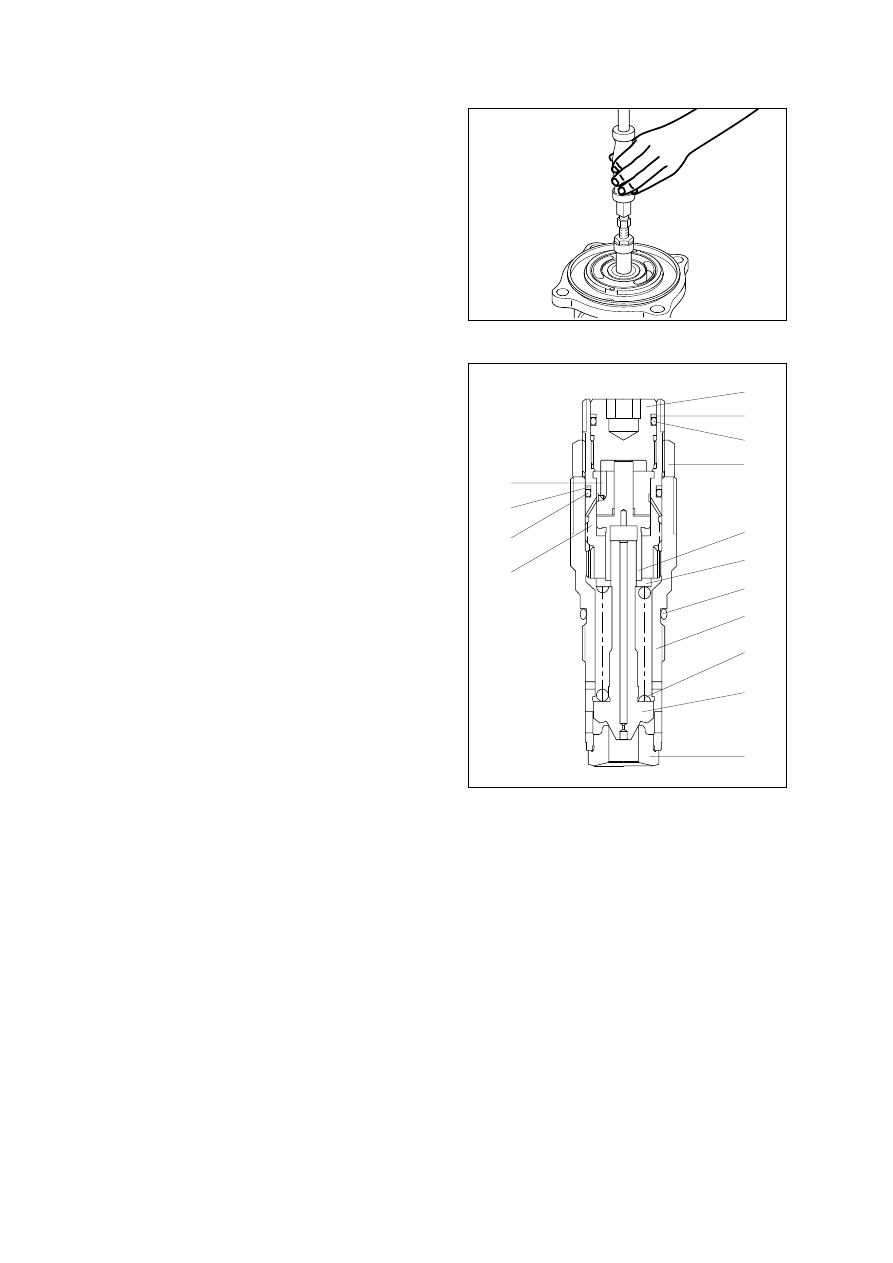

When disassembling the relief valve,
release the plug(3).
Remove the piston(7), spring seat(9),
spring(8) and plunger(6) with the body(1)
downwards.
Do not release the lock nut(15).

④

※

This completes disassembly.

Remove the roller bearing(444) from the
valve casing(303) by using slide hammer
bearing puller.

③

32038SM17

29078SM04

8-73-8

ASSEMBLY
Do the reassembly in the reverse procedure
of the disassembly.

Place the casing(301) on the workbench
with the valve casing(303) downward.

(1)

3)

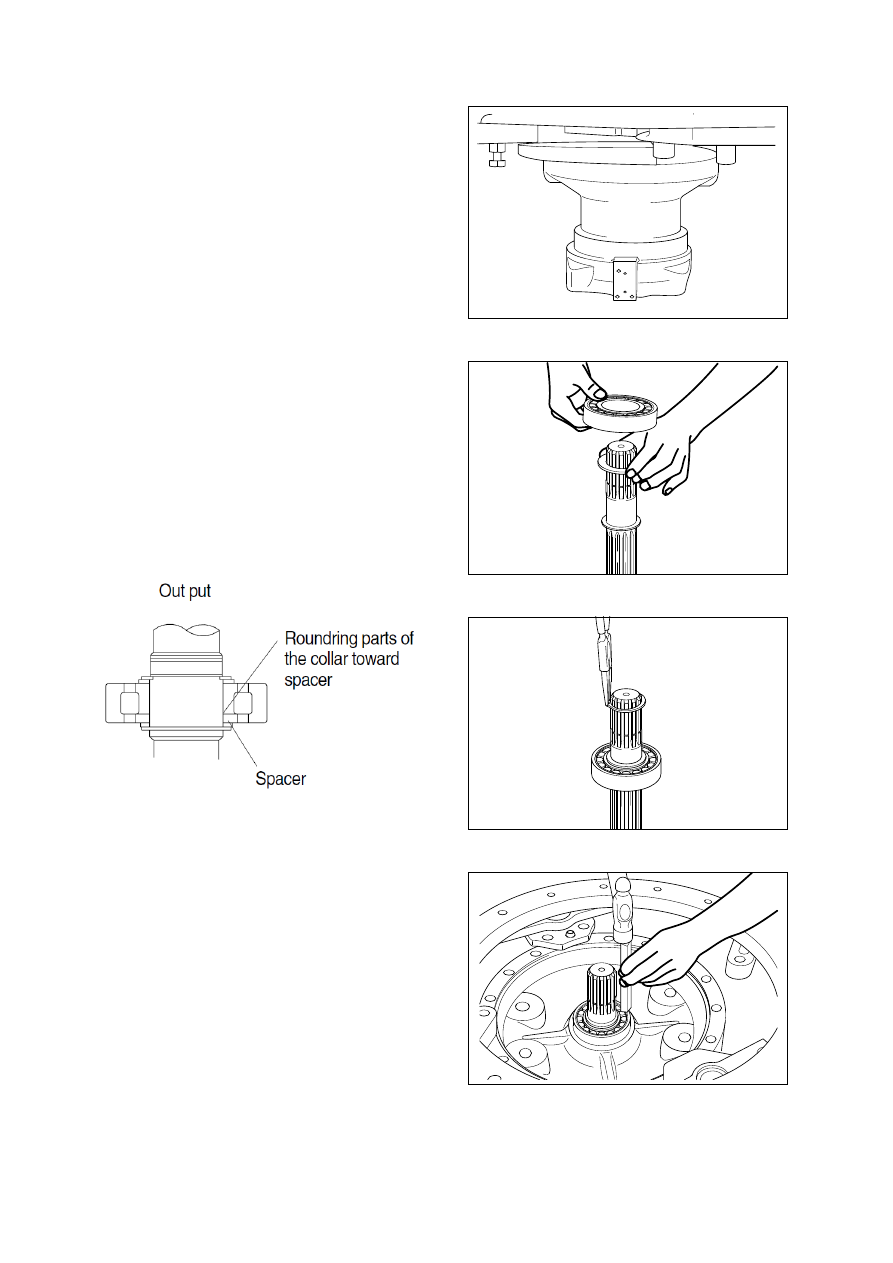

When reassembling the roller bearing,
install the snap ring(432), and
spacer(106) to the drive shaft(101).
Insert the collar and cone of the roller
bearing(443).   Install the spacer(106) and
snap ring(432).   Install snap ring(433) to
the output shaft (101) by heating the cone
of the roller bearing(444).

(2)

Insert the drive shaft(101) into the casing
(301) with the end of output shaft upward
and tap the outer race of roller bearing
with the hammer.

(3)

32038SM20

32038SM21

32038SM22

32038SM23

8-73-9

Install the snap ring(437) to the casing
(301).

(6)

Reassemble the front cover(304) to the
casing(301).
Apply grease to the rib of oil seal to avoid
damage to the rib.

(5)

※

Tack O-ring(471) to the casing(301).

(4)

Insert the shoe plate(124) with the casing
(301) position horizontally.

(7)

32038SM25

32038SM26

32038SM27

32038SM28

8-73-10

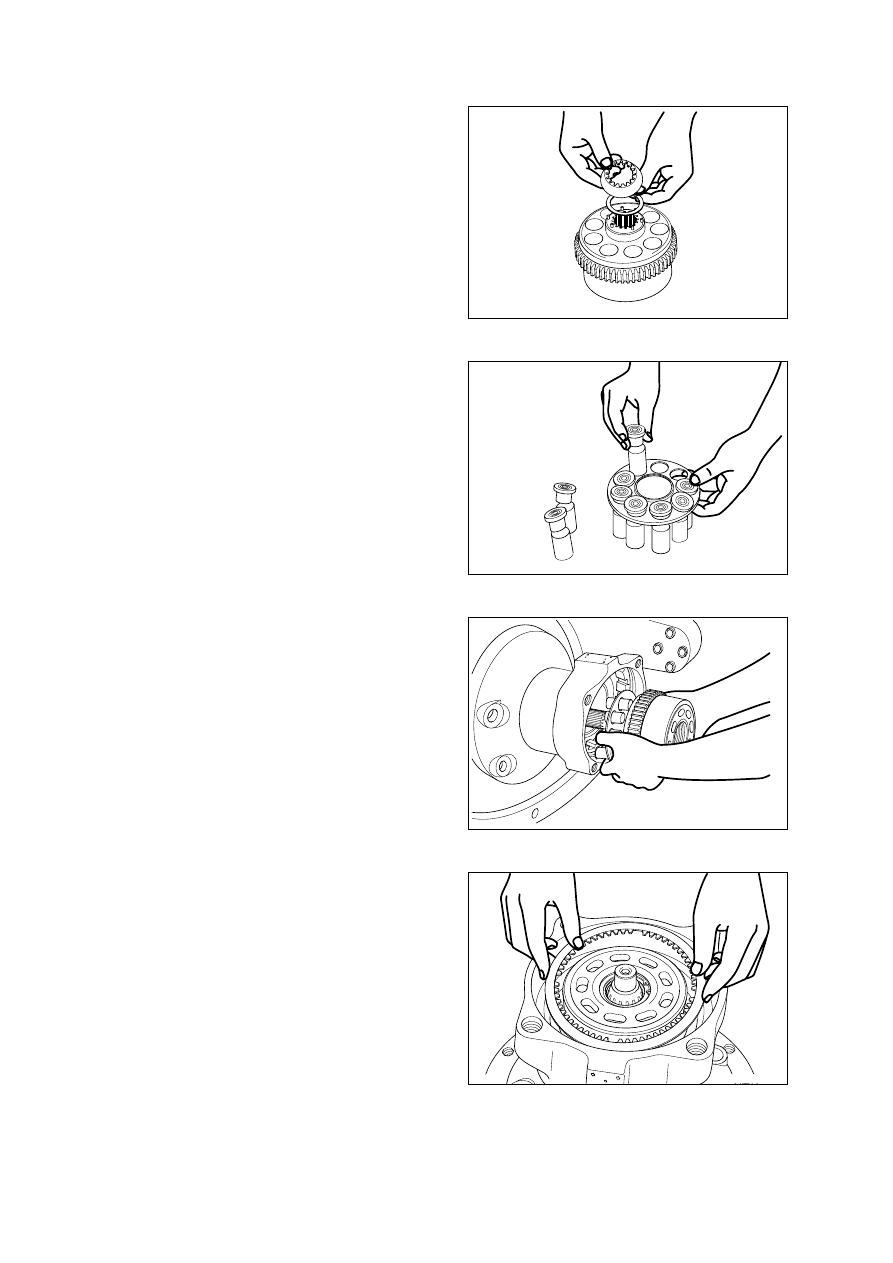

Reassemble the piston assembly(121,
122) to the cylinder(111).

(10)

Install the piston sub-assembly(121, 122)
to the retainer(123).

(9)

Insert the push rod(116) into the cylinder
(111).   Place the spherical bushing(113)
assembled with spacer(117) onto the
cylinder.
Insert two push rods in each hole.

(8)

※

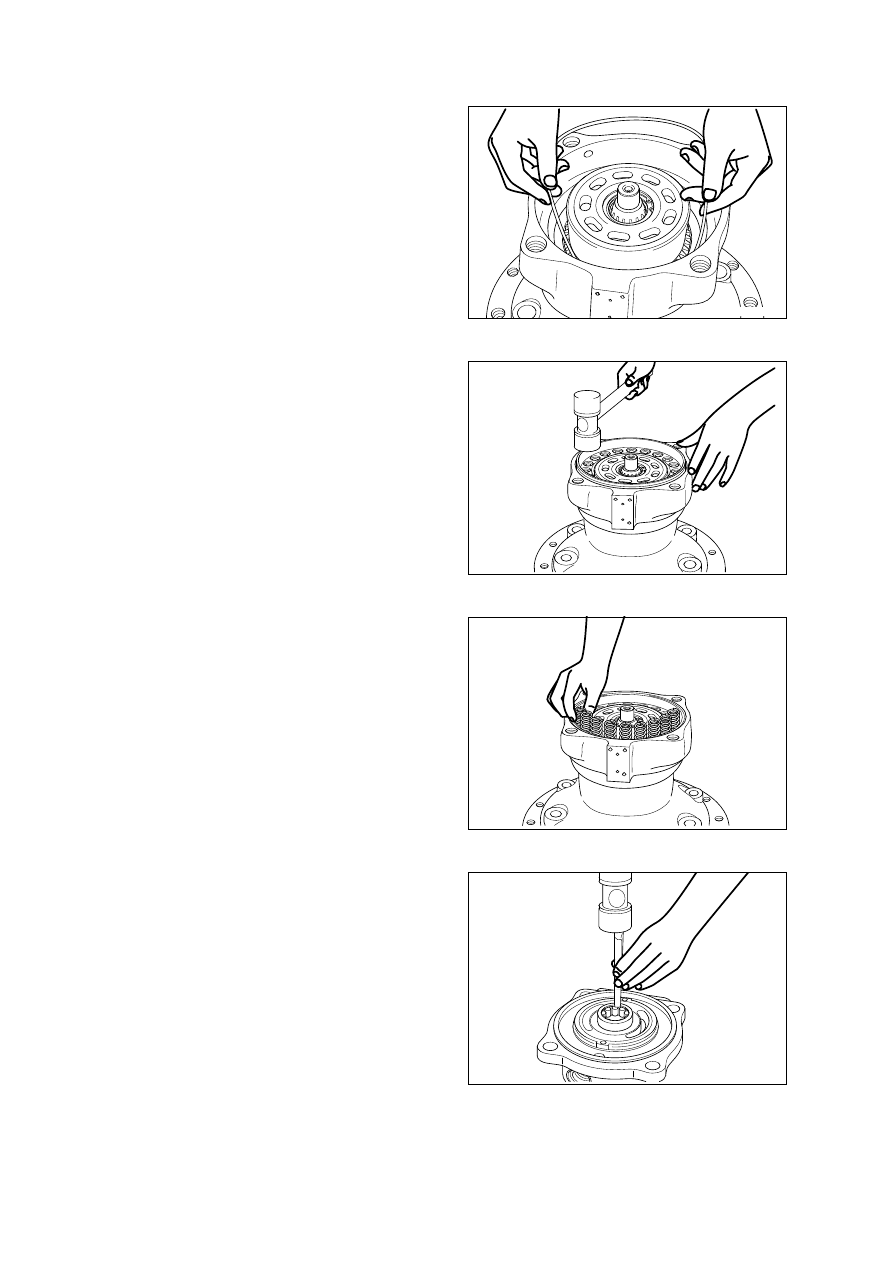

Place the casing(301) under the front
cover(304) and reassemble 3 sheets of
separate plate(743) and then 2 sheets of
friction plate(742) to the casing(301).

(11)

32038SM29

32038SM30

32038SM31

32038SM32

8-73-11

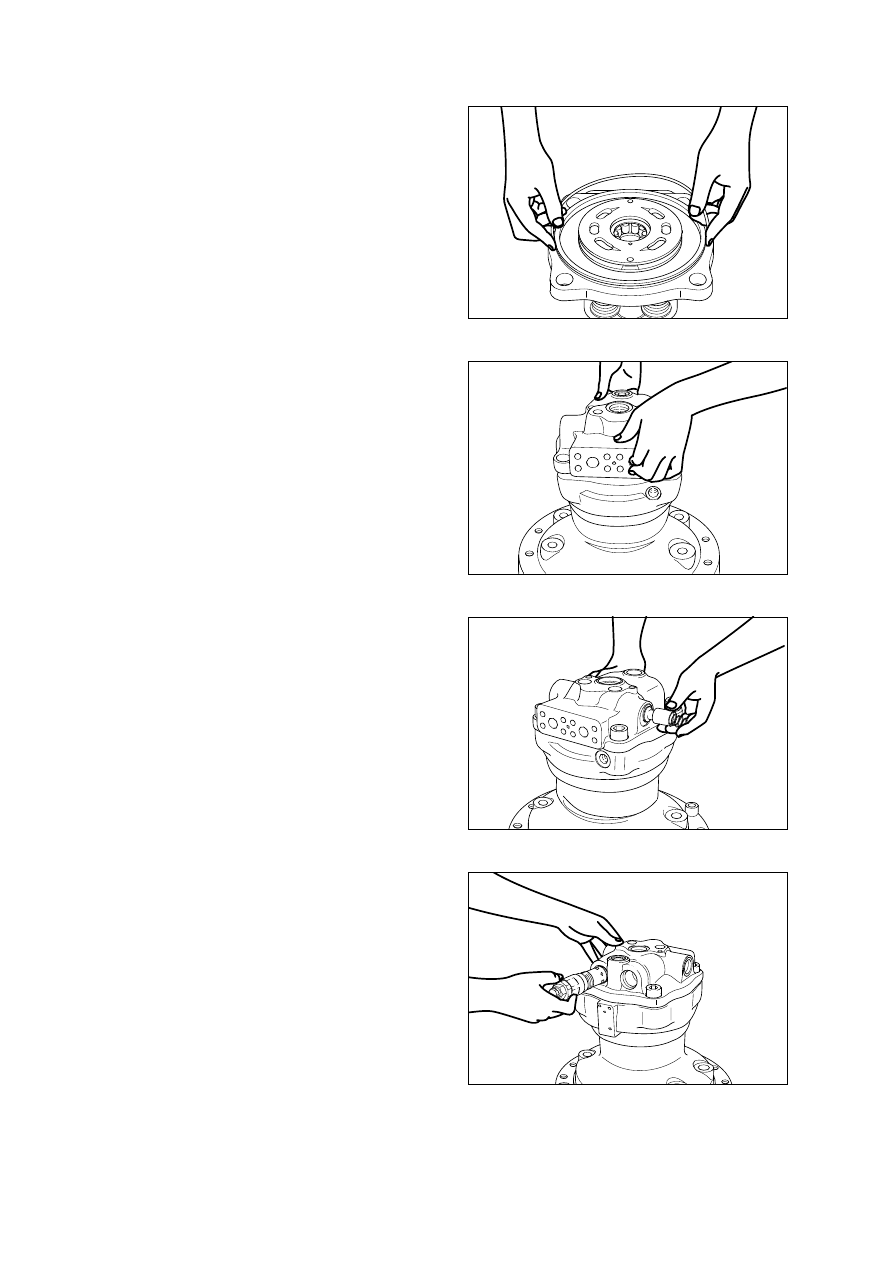

Reassemble brake spring(712) to the
brake piston(702).

(14)

Reassemble brake piston(702) to the
casing(301).

(13)

Insert O-ring(706, 707) inside the casing
(301).

(12)

When assembling the roller bearing(444),
insert the roller bearing(444) into valve
casing(303) by hammering.

(15)

32038SM33

32038SM34

32038SM35

32038SM36

8-73-12

Insert plunger(351) and spring(355) in the
valve casing and install O-ring(488).
Tighten plug(469) to the valve casing.

(18)

Connect the valve casing(303) with the
casing(301) and tighten the hexagon
socket bolt(401).

(17)

Reassemble valve plate(131) to the valve
casing(303) and reassemble O-ring(472).

(16)

Insert O-rings(051-1) to the relief valve
(051) and reassemble them to valve
casing(303).

(19)

32038SM37

32038SM38

32038SM39

32038SM42

8-73-13

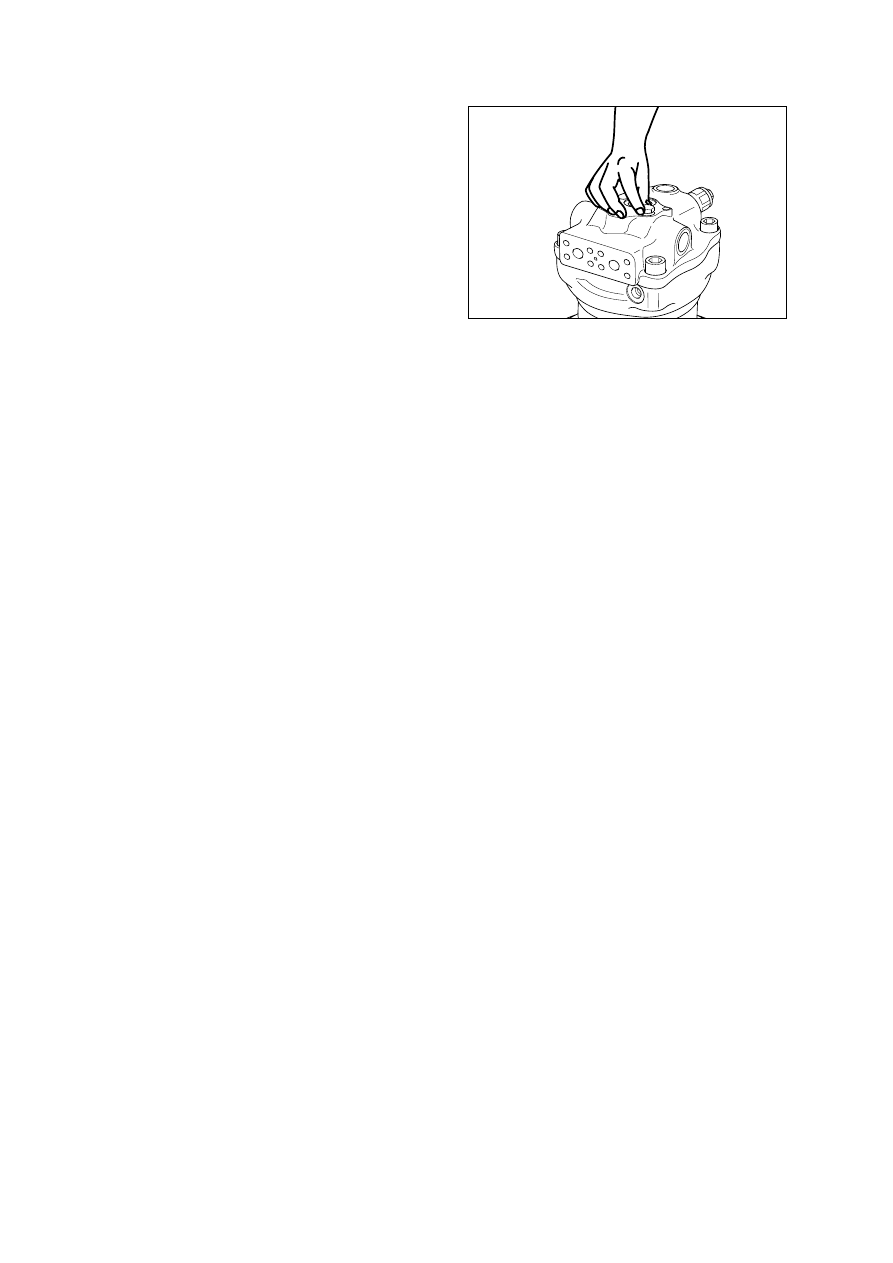

Connect the valve casing(303) with the
casing(301).

This completes assembly.

(21)

Tighten the plug(468) to valve casing(303)
with O-ring(487) and tighten the plug(464)
to casing(301) with O-ring(485).

(20)

32038SM43

8-73-14

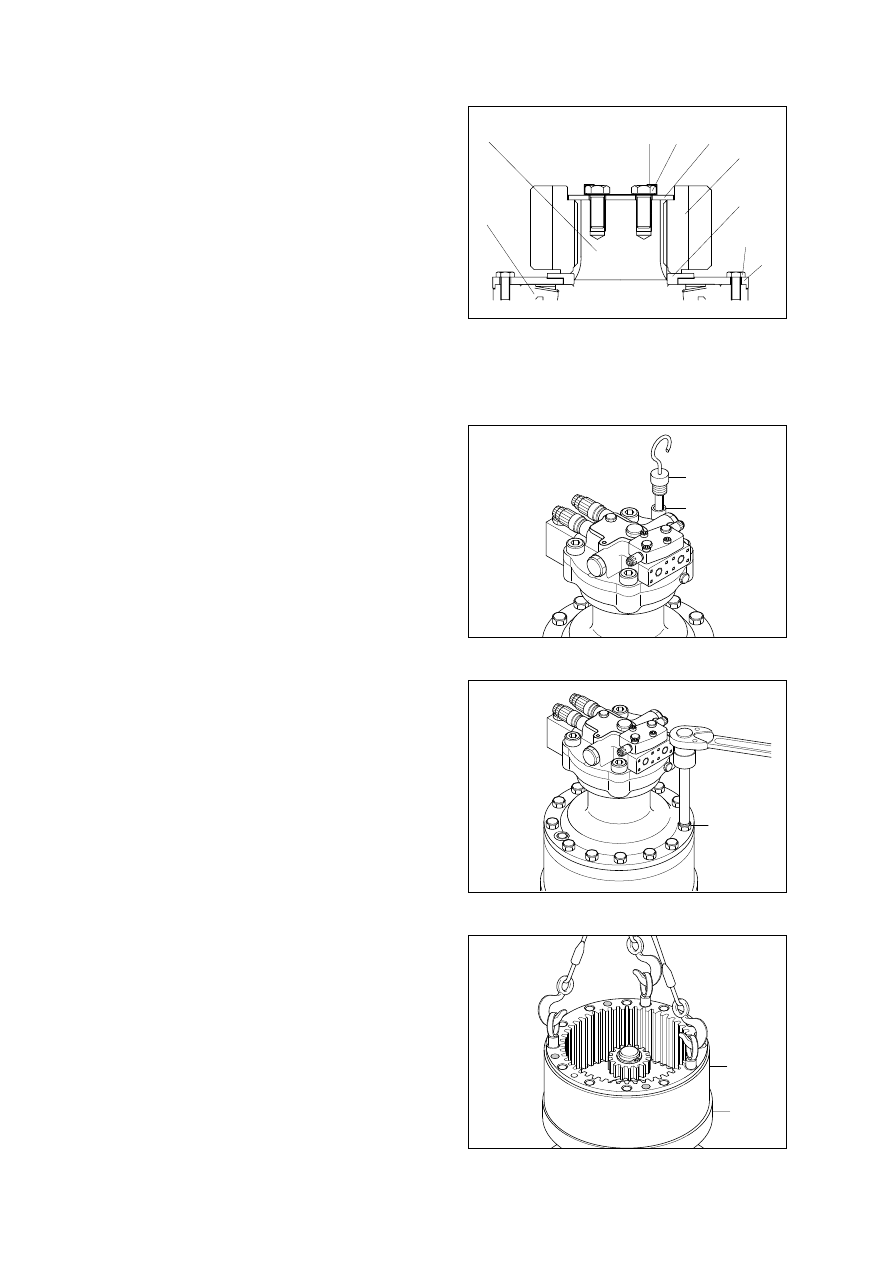

3. REMOVAL AND INSTALL OF REDUCTION GEAR

REMOVAL

Remove the swing motor assembly.
For details, see removal  of  swing  motor
assembly.

Sling reduction gear assembly(1) and
remove mounting bolts(2).

Remove the reduction gear assembly.

·

Reduction gear device weight : 180kg

(396lb)

I

I

NSTALL

Carry out installation in the reverse order
to removal.

·

Tightening torque : 49.2~66.6kgf

·

m

(356~481lbf

·

ft)

2

1

(1)

(2)

(3)

1)

2)

(1)

13031GE18

21078DA05

8-73-15

4.  REDUCTION GEAR

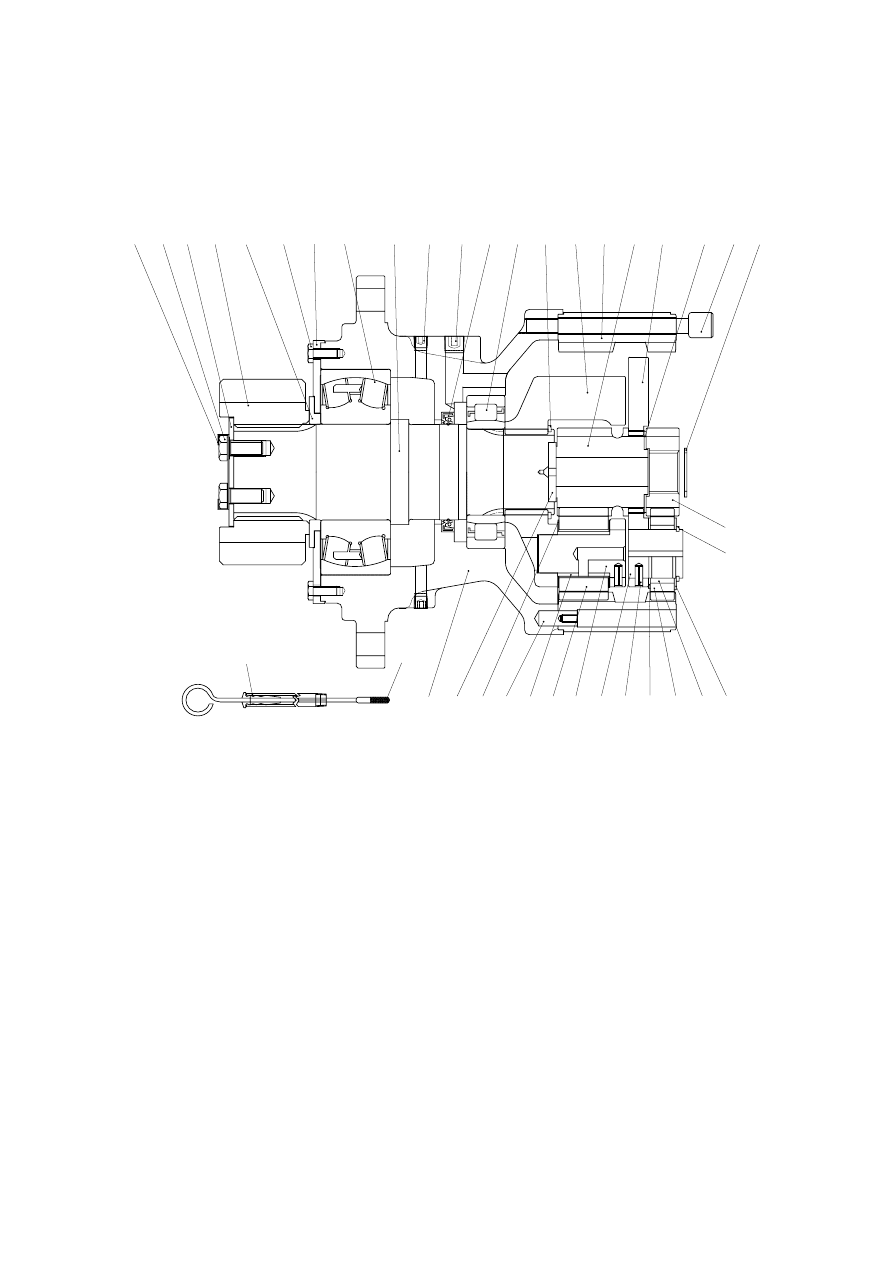

STRUCTURE

1)

1

Casing

2

Drive shaft

3

Spacer

5

Roller bearing

6

Oil seal

7

Roller bearing

8

Thrust plate

9

Carrier 2

10

Stop ring

11

Ring gear

12

Knock pin

13

Pinion gear

14

Thrust washer

15

Planet gear 2

16

Pin 2

17

Spring pin

18

Sun gear 2

19

Carrier 1

20

Side plate 1

21

Pin 1

22

Needle cage

23

Bushing

24

Planet gear 1

25

Lock washer

26

Side plate 3

27

Sun gear 1

28

Stop ring

29

Plug

30

Plug

31

Socket bolt

32

Gage pipe 39

33

Gage bar side plate2

34

Cover plate

35

Hex bolt

36

Lock plate

37

Hex bolt

38

Stop ring

39

Side plate 2

40

Air breather assy

25

13

37 36

20

30

1

5

35

34

3

2

23

12

14

8

17

21

16

15

10

6

29

7

18

11

9

39

27

38

22

24

26

19

31 28

32

33
