Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 50
FIG NO. ：Y1662-19A0

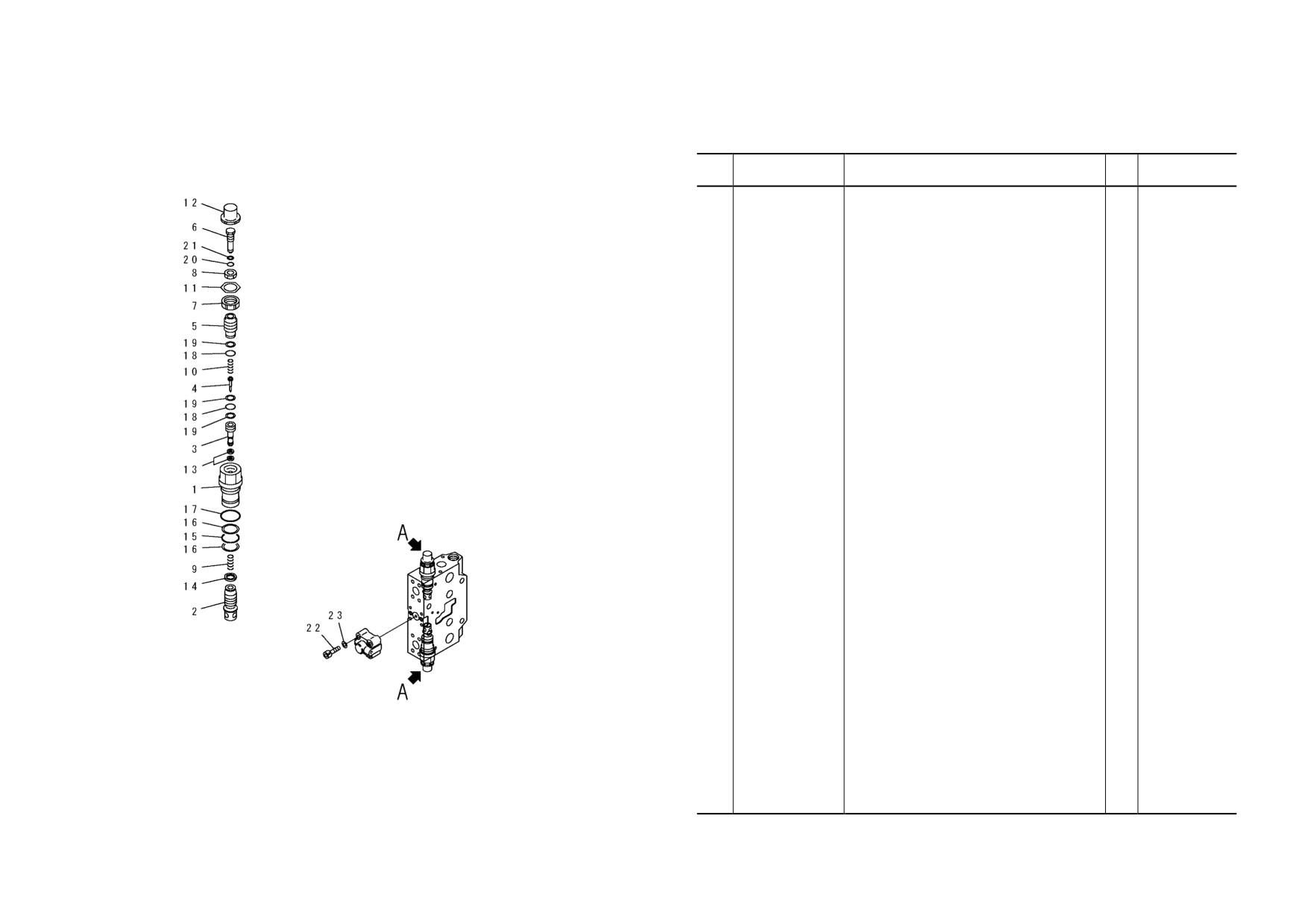

FIG. Y1662-19A0 MAIN VALVE (1-ACTUATOR) (19/19)(OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
31
☆
.. PISTON
1
DBB0001~
32
☆
.. SPRING
1
DBB0001~
33
☆
.. SPRING
1
DBB0001~
34
☆
.. SPRING
1
DBB0001~
35
☆
.. SEAL
1
DBB0001~
36
☆
.. SEAL
1
DBB0001~
37
07000-13024
.. O-RING
1
DBB0001~
38
☆
.. O-RING
1
DBB0001~
39
☆
.. NUT
1
DBB0001~
40
☆
.. NUT
1
DBB0001~
41
☆
.. HOLDER
1
DBB0001~
42
☆
.. O-RING
1
DBB0001~
43
☆
.. SPRING
1
DBB0001~
44
☆
.. O-RING
1
DBB0001~
Detail B
Detail A
PW5H661
Y1- 146
PC200, 210(LC)-7
PC200, 210(LC)-7
Y1- 147

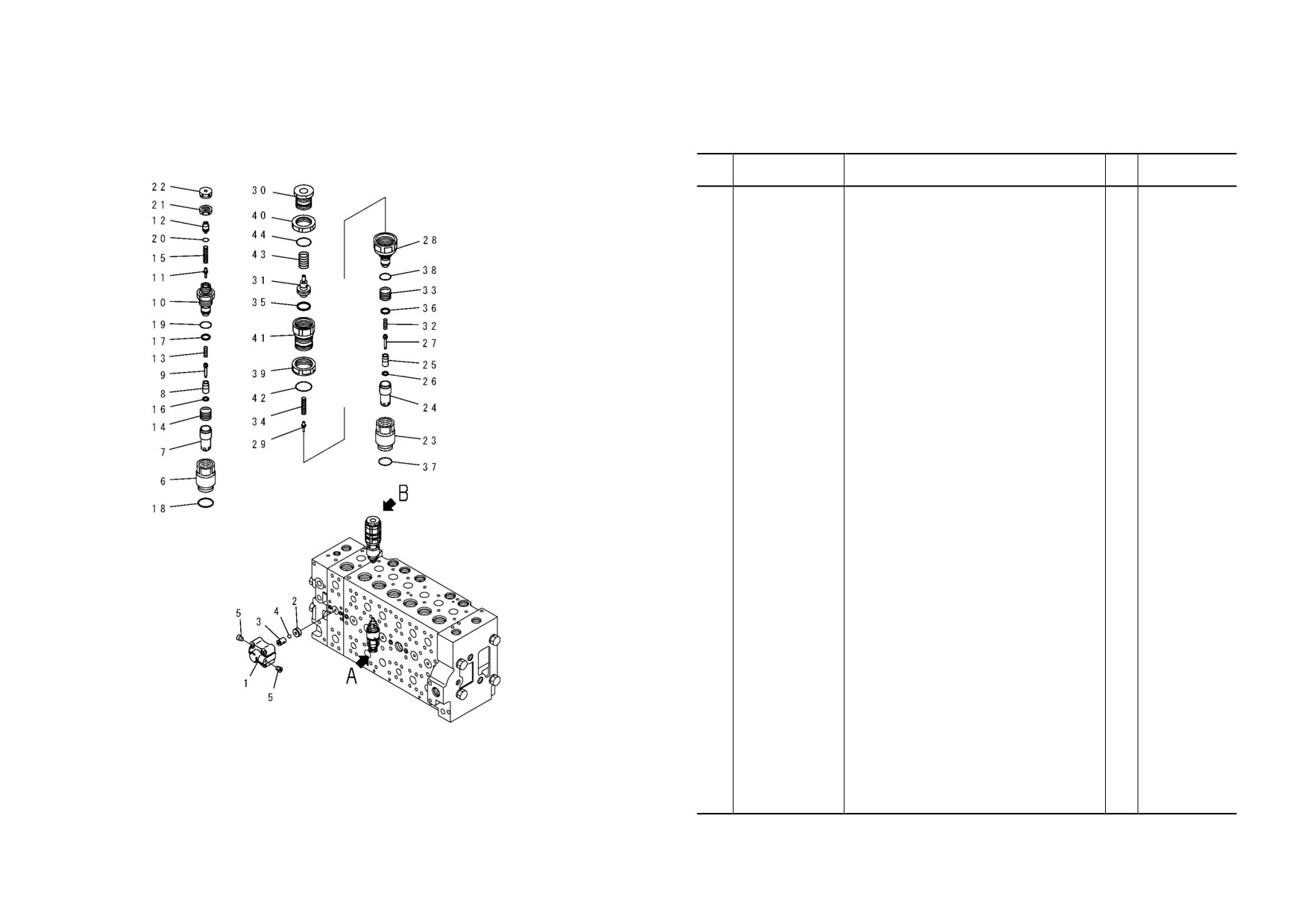

FIG NO. ：Y1669-01A0
FIG.
Y1669-01A0
SERVICE VALVE (1/3)(OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
723-41-07600
VALVE ASS'Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1669-01A0 TO Y1669-03A0
☆
. BODY SUB ASS'Y
1
DBB0001~
1
☆
.. BLOCK, VALVE
1
DBB0001~
2
☆
.. SPOOL
1
DBB0001~
3
723-46-15130
.. PLUG
2
DBB0001~
4
07002-10823
.. O-RING
2
DBB0001~
5
708-7T-16460
.. BALL
2
DBB0001~
6
723-46-15120
.. RETAINER
2
DBB0001~
7
723-46-14110
.. SPRING
2
DBB0001~
8
723-46-15111
.. CASE
2
DBB0001~
9
07430-71380
.. O-RING
2
DBB0001~
10
01252-60820
.. BOLT
4
DBB0001~
11
07000-11009
.. O-RING
2
DBB0001~
12
07000-12021
.. O-RING
1
DBB0001~
13
723-11-19130
.. O-RING
2
DBB0001~
14
07000-13032
.. O-RING
2
DBB0001~
15
723-46-17510
.. O-RING
2
DBB0001~
16
723-46-17520
.. RING, BACK-UP
2
DBB0001~
17
723-46-17530
.. O-RING
2
DBB0001~
PW5H791
Y1- 148
PC200, 210(LC)-7
PC200, 210(LC)-7
Y1- 149

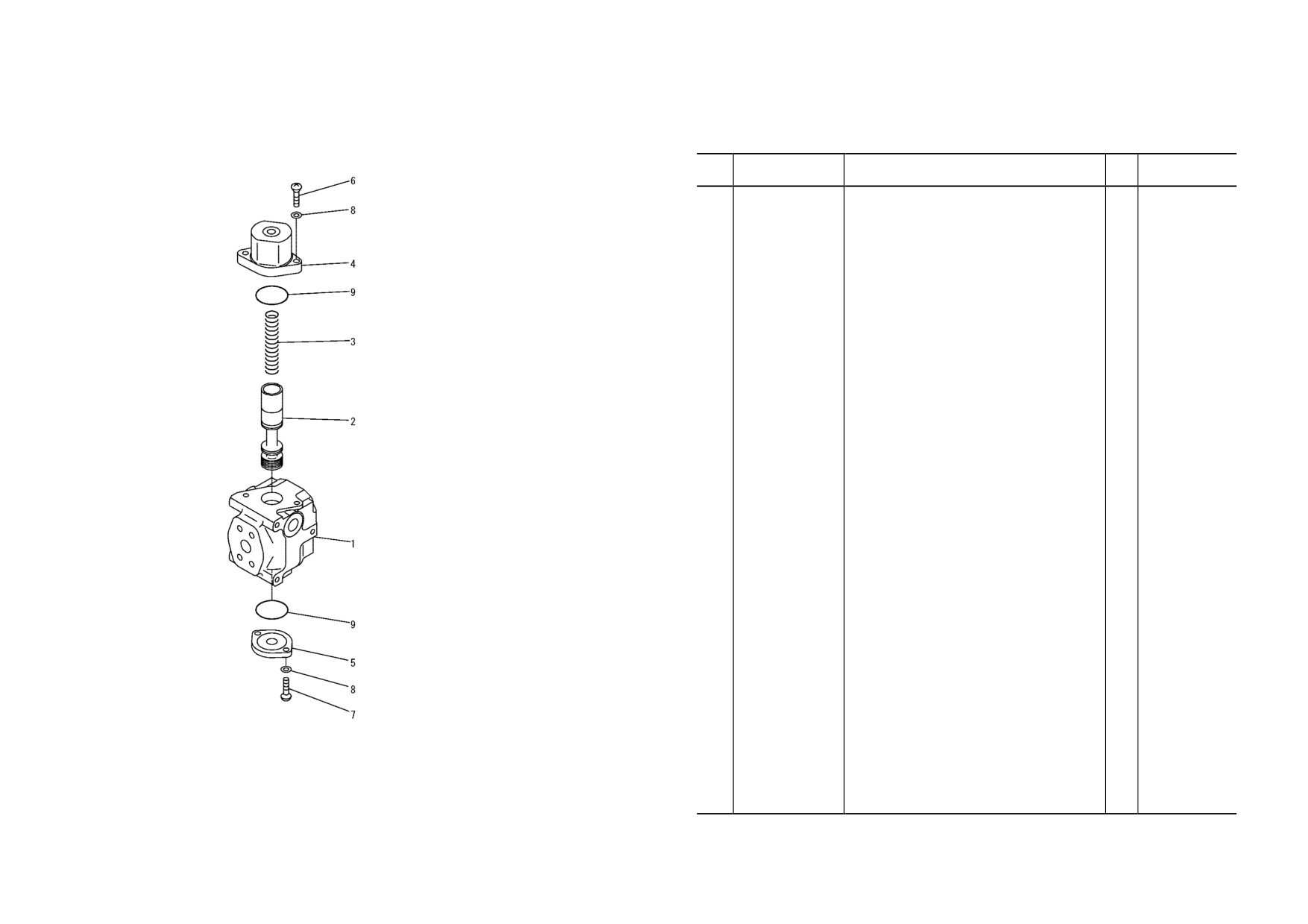

FIG NO. ：Y1669-02A0
FIG. Y1669-02A0 SERVICE VALVE (2/3)(OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-41-07600)
VALVE ASS'Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1669-01A0 TO Y1669-03A0
☆
. BODY SUB ASS'Y
1
DBB0001~
723-46-48100
.. VALVE ASS'Y
2
DBB0001~
1
☆
... SLEEVE
1
DBB0001~
2
☆
... VALVE
1
DBB0001~
3
☆
... SEAT
1
DBB0001~
4
☆
... POPPET
1
DBB0001~
5
☆
... PLUG
1
DBB0001~
6
☆
... SCREW
1
DBB0001~
7
☆
... NUT
1
DBB0001~
8
☆
... NUT
1
DBB0001~
9
☆
... SPRING
1
DBB0001~
10
☆
... SPRING
1
DBB0001~
11
☆
... PLATE
1
DBB0001~
12
☆
... CAP
1
DBB0001~
13
☆
... SEAL
2
DBB0001~
14
☆
... SEAL
1
DBB0001~
15
700-93-11320
... O-RING
1
DBB0001~
16
723-46-41950
... RING
2
DBB0001~
17
07002-13634
... O-RING
1
DBB0001~
18
☆
... O-RING
2
DBB0001~
Detail A
19
☆
... RING
3
DBB0001~
20
☆
... O-RING
1
DBB0001~
21
☆
... RING, BACK-UP
1
DBB0001~
22
01252-60845
.. BOLT
4
DBB0001~
23
01643-50823
.. WASHER
4
DBB0001~
PW5H792
Y1- 150
PC200, 210(LC)-7
PC200, 210(LC)-7
Y1- 151

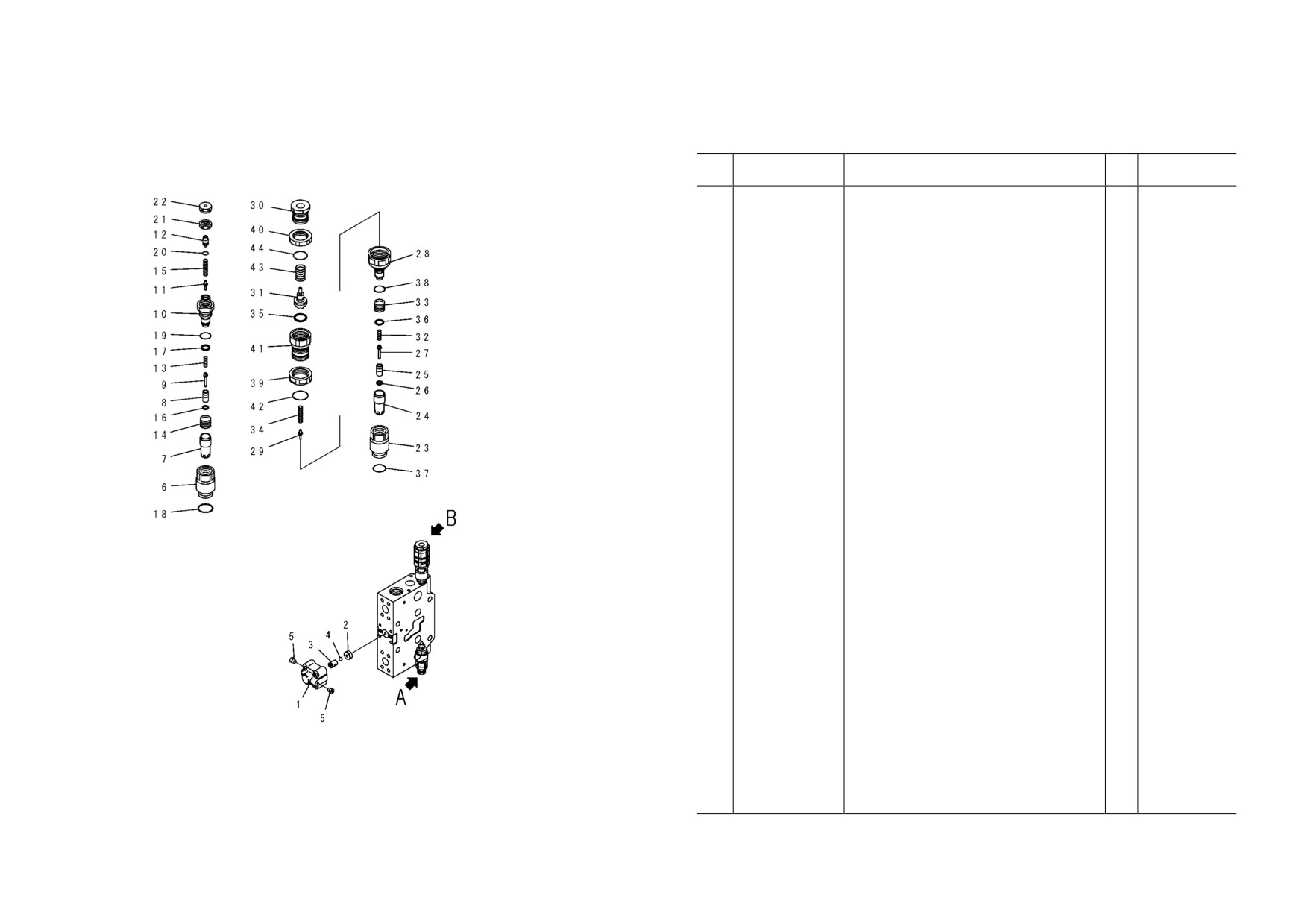

FIG NO. ：Y1669-03A0
FIG. Y1669-03A0 SERVICE VALVE (3/3)(OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
（723-41-07600）
VALVE ASS'Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1669-01A0 TO Y1669-03A0
723-40-66300
. VALVE ASS'Y
1
DBB0001~
1
☆
.. CASE
1
DBB0001~
2
☆
.. SEAT
1
DBB0001~
3
☆
.. SEAT
1
DBB0001~
4
☆
.. BALL
1
DBB0001~
5
☆
.. PLUG
2
DBB0001~
723-90-61400
. VALVE ASS'Y, SUCTION AND SAFETY
1
DBB0001~
6
☆
.. SLEEVE
1
DBB0001~
7
☆
.. SLEEVE
1
DBB0001~
8
☆
.. POPPET
1
DBB0001~
9
☆
.. PISTON
1
DBB0001~
10
☆
.. PLUG
1
DBB0001~
11
☆
.. POPPET
1
DBB0001~
12
☆
.. SPACER
1
DBB0001~
Detail B
13
☆
.. SPRING
1
DBB0001~
14
☆
.. SPRING
1
DBB0001~
15
☆
.. SPRING
1
DBB0001~
16
☆
.. SEAL
1
DBB0001~
Detail A
17
☆
.. SEAL
1
DBB0001~
18
07000-13024
.. O-RING
1
DBB0001~
19
☆
.. O-RING
1
DBB0001~
20
☆
.. O-RING
1
DBB0001~
21
☆
.. NUT
1
DBB0001~
22
☆
.. NUT
1
DBB0001~
723-90-76101
. VALVE ASS'Y, SUCTION AND SAFETY
1
DBB0001~
23
☆
.. SLEEVE
1
DBB0001~
24
☆
.. SLEEVE
1
DBB0001~
25
☆
.. POPPET
1
DBB0001~
26
☆
.. SEAL
1
DBB0001~
27
☆
.. PISTON
1
DBB0001~
PW5H793
28
☆
.. SLEEVE
1
DBB0001~
29
☆
.. POPPET
1
DBB0001~
30
☆
.. UNION
1
DBB0001~
Y1- 152
PC200, 210(LC)-7
PC200, 210(LC)-7
Y1- 153

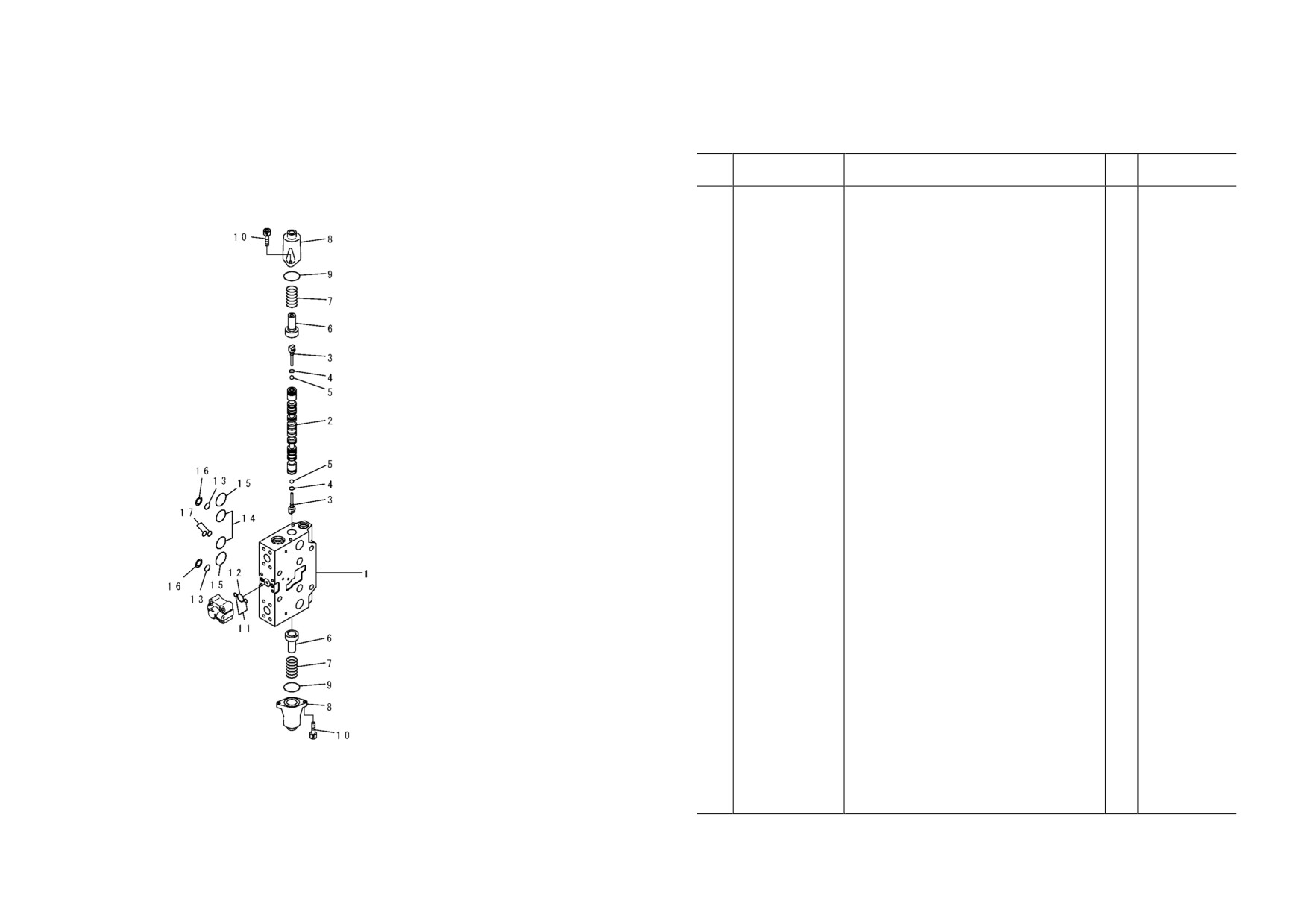

FIG NO. ：Y1679-01A0
FIG. Y1679-01A0 SELECTOR VALVE(OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
702-21-01910
VALVE ASS'Y
1
DBB0001~
1
☆
. BLOCK
1
DBB0001~
2
☆
. SPOOL
1
DBB0001~
3
702-21-11930
. SPRING
1
DBB0001~
4
702-21-11940
. CASE
1
DBB0001~
5
709-10-91240
. FLANGE
1
DBB0001~
6
01252-61040
. BOLT
2
DBB0001~
7
01252-61030
. BOLT
2
DBB0001~
8
01643-51032
. WASHER
4
DBB0001~
9
07000-12055
. O-RING
2
DBB0001~
PW5X053
Y1- 174
PC200, 210(LC)-7
PC200, 210(LC)-7
Y1- 175

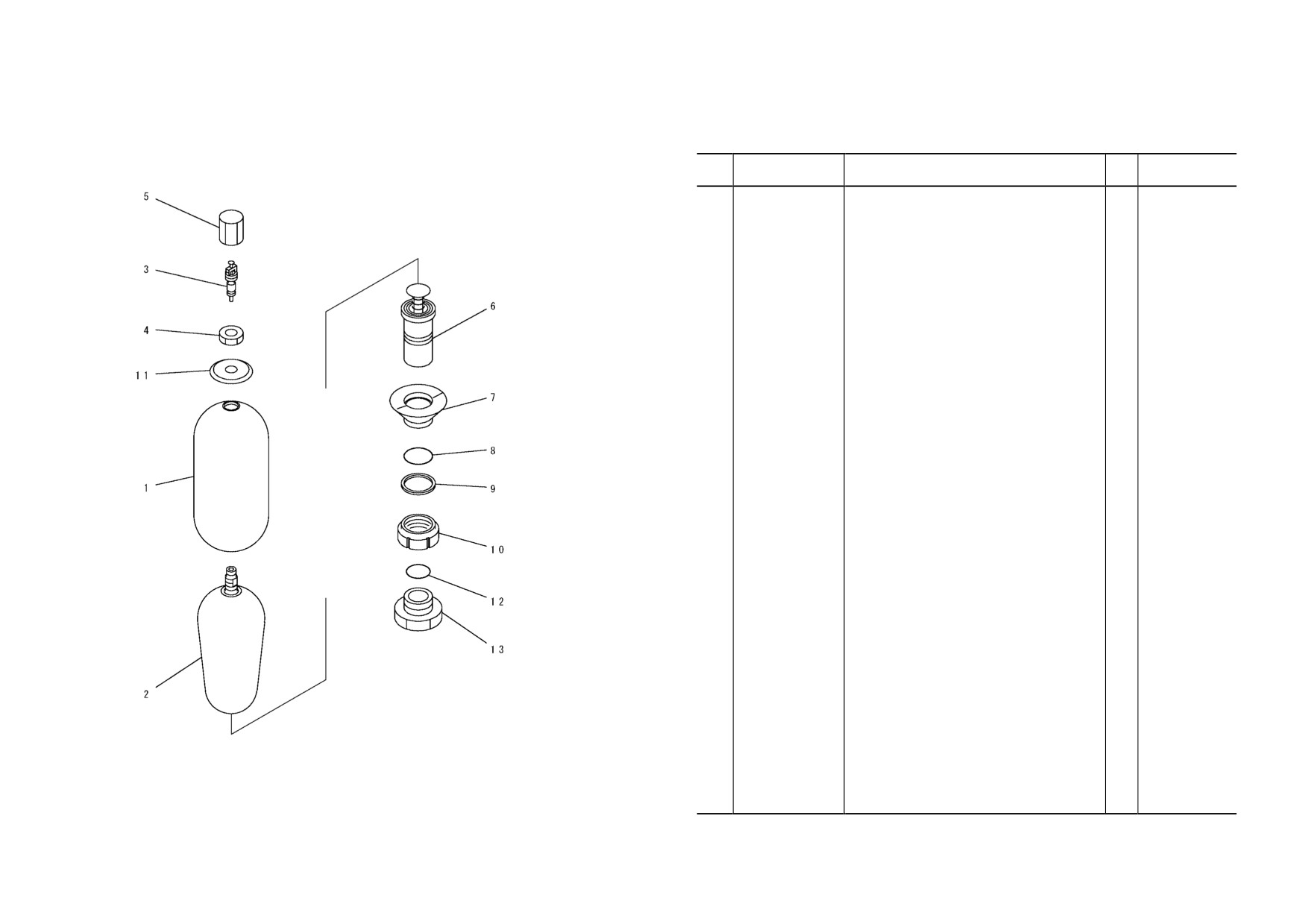

FIG NO. ：Y1840-01A0
FIG. Y1840-01A0 ACCUMULATOR (AL300-1) (INNER PARTS)(OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-970-6450
ACCUMULATOR
1
DBB0001~
1
☆
. SHELL
1
DBB0001~
NFEB3401 A1
. BLADDER ASS'Y
1
DBB0001~
2
NFEB3026 A1
.. BLADDER
1
DBB0001~
3
NFEB4475 Z0
.. CORE
1
DBB0001~
4
☆
. NUT
1
DBB0001~
5
☆
. CAP
1
DBB0001~
6
NFEB0427 Z0
. BODY ASS'Y
1
DBB0001~
7
NFEB4477 Z0
. RING
1
DBB0001~
8
☆
. O-RING (K1)
1
DBB0001~
9
☆
. BACK-UP RING (K1)
1
DBB0001~
10
☆
. RING
1
DBB0001~
11
☆
. PLATE
1
DBB0001~
12
205-970-5560
. O-RING (K1)
1
DBB0001~
13
☆
. BUSHING
1
DBB0001~
SERVICE KIT
K1
NFEB1601 P8
SEAL KIT
1
DBB0001~
205-970-5560
. O-RING
1
DBB0001~
PJL2450
Y1- 176
PC200, 210(LC)-7
PC200, 210(LC)-7
Y1- 177
NUMERICAL INDEX
PARTS NO.
FIG NO.
INDEX
PAGE
PARTS NO.
FIG NO.
INDEX
PAGE
PARTS NO.
FIG NO.
INDEX
PAGE
PARTS NO.
FIG NO.
INDEX
PAGE
HM6400-0012
Y1061-01A0
1
YO-
17
ND021626-0190
A601P-02A1
24
AA-
137
ND047372-0660
Y1979-01A0
6
YO- 185
ND116682-3440
Y1979-21A0
58
YO- 191
HM6400-0012
Y1061-01A0
2
YO-
17
ND021626-0240
A601P-02A0
11
AA-
135
ND047410-1570
Y1979-01A0
4
YO- 185
ND117200-0843
Y1979-11A0
2
YO- 187
HM6400-0013
Y1061-01A0
3
YO-
17
ND021626-0250
A601P-02A1
25
AA-
137
ND047410-1580
Y1979-01A0
4
YO- 185
ND117200-0843
Y1979-31A0
1
YO- 193
HM6400-0013
Y1061-01A0
4
YO-
17
ND021660-0510
A601P-02A0
12
AA-
135
ND047761-2760
Y1979-41A0
3
YO- 195
ND121400-0800
A601P-02A1
1
AA-
137
HM6400-0016
Y1061-01A0
6
YO-
17
ND021700-2680
A601P-02A0
30
AA-
135
ND047762-0540
Y1979-41A0
4
YO- 195
ND121400-0840
A601P-02A0
1
AA-
135
HM6400-0016
Y1061-01A0
7
YO-
17
ND021700-2680
A601P-02A1
31
AA-
137
ND047762-3000
Y1979-41A0
5
YO- 195
ND126000-2310
A601P-02A0
14
AA-
135
HM6409-0071
Y1061-01A0
1
YO-
17
ND021751-1990
A601P-02A0
27
AA-
135
ND047764-0021
Y1979-41A0
7
YO- 195
ND126000-2320
A601P-02A1
11
AA-
137
HM6409-0071
Y1061-01A0
2
YO-
17
ND021751-1990
A601P-02A1
30
AA-
137
ND047765-0020
Y1979-41A0
8
YO- 195
ND128401-5621
A621P-02A1
11
AA-
151
HM6409-0072
Y1061-01A0
3
YO-
17
ND028062-0130
A621P-02A0
2
AA-
147
ND047782-3720
Y1979-41A0
11
YO- 195
ND128950-0520
A621P-02A0
31
AA-
149
HM6409-0072
Y1061-01A0
4
YO-
17
ND028062-0130
A621P-02A1
29
AA-
151
ND053404-0240
A621P-02A0
18
AA-
147
ND128961-0010
A621P-02A0
25
AA-
147
HM6409-0075
Y1061-01A0
6
YO-
17
ND028062-5790
A621P-02A0
40
AA-
149
ND053404-0240
A621P-02A1
16
AA-
151
ND146525-6041
Y1979-11A0
3
YO- 187
HM6409-0075
Y1061-01A0
7
YO-
17
ND028062-5790
A621P-02A1
43
AA-
153
ND053480-0110
A621P-02A0
20
AA-
147
ND146525-6070
Y1979-21A0
51
YO- 191
HM6440-0128
Y1061-01A0
5
YO-
17
ND028063-0030
A621P-02A0
29
AA-
147
ND053480-7560
A621P-02A1
18
AA-
151
ND146530-9530
Y1979-31A0
26
YO- 193
HM6440-0128
Y1061-01A0
8
YO-
17
ND028063-0030
A621P-02A1
28
AA-
151
ND053505-0290
A621P-02A0
19
AA-
147
ND146535-0411
Y1979-21A0
50
YO- 191
HM6440-0129
Y1061-01A0
5
YO-
17
ND028065-0250
A621P-02A0
21
AA-
147
ND053505-0290
A621P-02A1
17
AA-
151
ND146535-0421
Y1979-21A0
56
YO- 191
HM6440-0129
Y1061-01A0
8
YO-
17
ND028065-0250
A621P-02A1
20
AA-
151
ND053660-0443
A621P-02A1
15
AA-
151
ND146535-1311
Y1979-21A0
49
YO- 191
ND017231-1400
Y1979-21A0
26
YO-
189
ND028099-2790
A621P-02A0
15
AA-
147
ND053660-7170
A621P-02A0
17
AA-
147
ND146535-1320
Y1979-31A0
10
YO- 193
ND017321-3202
Y1979-31A0
3
YO-
193
ND028099-3160
A621P-02A0
16
AA-
147
ND056700-8170
Y1979-31A0
18
YO- 193
ND146622-6880
Y1979-31A0
19
YO- 193
ND017321-3212
Y1979-31A0
4
YO-
193
ND028099-3270
A621P-02A0
7
AA-
147
ND056800-3130
Y1979-31A0
25
YO- 193
ND146625-4450
Y1979-31A0
24
YO- 193
ND017660-3490
Y1979-21A0
27
YO-
189
ND028099-3270
A621P-02A1
5
AA-
151
ND063700-7200
Y1979-21A0
32
YO- 189
ND146637-5650
Y1979-21A0
64
YO- 191
ND017730-8380
Y1979-21A0
59
YO-
191
ND028099-3570
A621P-02A0
3
AA-
147
ND063700-7210
Y1979-21A0
33
YO- 191
ND146647-0712
Y1979-21A0
65
YO- 191
ND021041-8620
A601P-02A1
22
AA-
137
ND028099-5090
A621P-02A1
13
AA-
151
ND063700-7210
Y1979-31A0
6
YO- 193
ND146647-0790
Y1979-31A0
22
YO- 193
ND021041-8680
A601P-02A0
25
AA-
135
ND028099-5100
A621P-02A1
14
AA-
151
ND077500-0710
Y1979-21A0
12
YO- 189
ND146647-3880
Y1979-21A0
66
YO- 191
ND021045-0530
A601P-02A0
7
AA-
135
ND028100-2882
A621P-02A0
1
AA-
147
ND116120-7990
Y1979-21A0
6
YO- 189
ND146678-4901
Y1979-31A0
20
YO- 193
ND021045-0530
A601P-02A1
4
AA-
137
ND028100-5410
A621P-02A1
1
AA-
151
ND116241-3220
Y1979-31A0
1
YO- 193
ND146678-4930
Y1979-21A0
23
YO- 189
ND021100-4210
A601P-02A1
1
AA-
137
ND028200-1590
A621P-02A0
4
AA-
147
ND116241-3230
Y1979-31A0
2
YO- 193
ND146678-5060
Y1979-31A0
21
YO- 193
ND021100-4360
A601P-02A0
6
AA-
135
ND028200-5250
A621P-02A1
2
AA-
151
ND116340-3860
Y1979-31A0
5
YO- 193
ND146690-6020
Y1979-21A0
29
YO- 189
ND021200-4132
A601P-02A0
22
AA-
135
ND028300-6551
A621P-02A0
6
AA-
147
ND116569-5010
Y1979-21A0
3
YO- 189
ND146691-4470
Y1979-01A0
14
YO- 185
ND021200-4141
A601P-02A1
19
AA-
137
ND028300-6551
A621P-02A1
4
AA-
151
ND116569-5020
Y1979-21A0
34
YO- 191
ND146698-6930
Y1979-21A0
61
YO- 191
ND021401-3671
A601P-02A0
5
AA-
135
ND028300-6751
A621P-02A0
8
AA-
147
ND116569-5030
Y1979-21A0
38
YO- 191
ND146698-6950
Y1979-21A0
62
YO- 191
ND021401-4980
A601P-02A1
2
AA-
137
ND028300-6751
A621P-02A1
6
AA-
151
ND116569-5041
Y1979-21A0
41
YO- 191
ND146698-8480
Y1979-21A0
63
YO- 191
ND021411-0450
A601P-02A0
1
AA-
135
ND028306-0070
A621P-02A0
28
AA-
147
ND116569-5051
Y1979-21A0
42
YO- 191
ND153400-2410
A621P-02A0
14
AA-
147
ND021411-0570
A601P-02A1
3
AA-
137
ND028306-0070
A621P-02A1
27
AA-
151
ND116569-5062
Y1979-21A0
44
YO- 191
ND153400-2600
A621P-02A1
12
AA-
151
ND021501-8050
A601P-02A1
8
AA-
137
ND028327-0171
A621P-02A0
30
AA-
147
ND116640-4652
Y1979-21A0
17
YO- 189
ND170400-4310
Y1979-21A0
28
YO- 189
ND021501-9560
A601P-02A0
8
AA-
135
ND028327-0171
A621P-02A1
35
AA-
153
ND116650-8800
Y1979-21A0
14
YO- 189
ND228401-0633
A621P-02A0
13
AA-
147
ND021506-0070
A601P-02A0
24
AA-
135
ND028371-1500
A621P-02A0
27
AA-
147
ND116650-8820
Y1979-21A0
15
YO- 189
ND245450-1721
Y1979-21A0
2
YO- 189
ND021506-0070
A601P-02A1
21
AA-
137
ND028371-3200
A621P-02A1
38
AA-
153
ND116650-8840
Y1979-21A0
16
YO- 189
ND245450-2221
Y1979-21A0
1
YO- 189
ND021542-0160
A601P-02A1
26
AA-
137
ND028371-3210
A621P-02A1
26
AA-
151
ND116660-2770
Y1979-21A0
60
YO- 191
ND246460-9451
Y1979-11A0
5
YO- 187
ND021542-0220
A601P-02A0
9
AA-
135
ND028381-0071
A621P-02A0
12
AA-
147
ND116660-4680
Y1979-31A0
7
YO- 193
ND246634-6010
Y1979-21A0
30
YO- 189
ND021551-2480
A601P-02A1
12
AA-
137
ND028381-0071
A621P-02A1
10
AA-
151
ND116662-4850
Y1979-21A0
37
YO- 191
ND246690-2840
Y1979-21A0
13
YO- 189
ND021551-2910
A601P-02A0
15
AA-
135
ND028501-7711
A621P-02A1
23
AA-
151
ND116662-4860
Y1979-21A0
43
YO- 191
ND246770-6990
Y1979-21A0
25
YO- 189
ND021580-4820
A601P-02A1
9
AA-
137
ND028501-8091
A621P-02A0
24
AA-
147
ND116662-7120
Y1979-31A0
12
YO- 193
ND247300-0510
Y1979-01A0
1
YO- 185
ND021580-5060
A601P-02A0
10
AA-
135
ND028510-0880
A621P-02A1
21
AA-
151
ND116682-0910
Y1979-21A0
46
YO- 191
ND443440-0030
Y1979-21A0
18
YO- 189
ND021602-5230
A601P-02A1
29
AA-
137
ND028510-5390
A621P-02A0
22
AA-
147
ND116682-0920
Y1979-21A0
45
YO- 191
ND445013-0521
Y1979-41A0
10
YO- 195
ND021605-1360
A601P-02A0
16
AA-
135
ND028520-0011
A621P-02A1
22
AA-
151
ND116682-0930
Y1979-21A0
35
YO- 191
ND445013-0811
Y1979-41A0
9
YO- 195
ND021605-1970
A601P-02A1
13
AA-
137
ND028530-1090
A621P-02A1
40
AA-
153
ND116682-0940
Y1979-21A0
39
YO- 191
ND445021-0060
Y1979-41A0
12
YO- 195
ND021605-2480
A601P-02A1
14
AA-
137
ND028530-1100
A621P-02A1
41
AA-
153
ND116682-0951
Y1979-21A0
40
YO- 191
ND445021-0070
Y1979-41A0
13
YO- 195
ND021605-2490
A601P-02A0
17
AA-
135
ND028901-0361
A621P-02A1
37
AA-
153
ND116682-0960
Y1979-21A0
36
YO- 191
ND446810-9520
Y1979-21A0
21
YO- 189
ND021620-2201
A601P-02A0
10
AA-
135
ND028901-5190
A621P-02A0
42
AA-
149
ND116682-0970
Y1979-31A0
9
YO- 193
ND446830-3880
Y1979-21A0
20
YO- 189
ND021620-2720
A601P-02A1
10
AA-
137
ND047310-7240
Y1979-01A0
2
YO- 185
ND116682-0980
Y1979-31A0
8
YO- 193
ND446870-5650
Y1979-21A0
9
YO- 189
ZZ- 1
PC200, 210(LC)-7
PC200, 210(LC)-7
ZZ- 2
PARTS NO.
FIG NO.
INDEX
PAGE
PARTS NO.
FIG NO.
INDEX
PAGE
PARTS NO.
FIG NO.
INDEX
PAGE
PARTS NO.
FIG NO.
INDEX
PAGE
ND447220-4051
Y1979-01A0
1
YO-
185
ND949020-0600
A621P-02A0
32
AA-
149
NFEB1601 P8
Y1840-01A0
K1
Y1-
177
01010-D0820
K0830-01A1
6
KO-
57
ND447500-1390
Y1979-21A0
7
YO-
189
ND949042-3680
A621P-02A1
30
AA-
151
NFEB3026 A1
Y1840-01A0
2
Y1-
177
01010-D0820
K1110-07A0
2
KO-
77
ND447600-4970
Y1979-21A0
4
YO-
189
ND949042-3690
A621P-02A1
32
AA-
153
NFEB3401 A1
Y1840-01A0
1
Y1-
177
01010-D0820
K1110-14D0
2
KO-
89
ND448800-5222
Y1979-11A0
1
YO-
187
ND949043-2000
A601P-02A0
4
AA-
135
NFEB4475 Z0
Y1840-01A0
3
Y1-
177
01010-D0820
K1110-14A0
2
KO- 89a
ND448800-5222
Y1979-21A0
1
YO-
189
ND949043-2000
A601P-02A1
7
AA-
137
NFEB4477 Z0
Y1840-01A0
7
Y1-
177
01010-D0820
K1110-14A0
8
KO- 89a
ND499300-2051
Y1979-21A0
31
YO-
189
ND949046-2150
Y1979-21A0
8
YO- 189
NY01720-10600
Y1860-01A0
24
YO- 181
01010-D0820
K1110-15A0
5
KO-
91
ND7922-571450
Y1979-41A0
2
YO-
195
ND949047-2370
Y1979-31A0
13
YO- 193
NY05062-1170A
Y1860-01A0
10
YO- 181
01010-D0820
K1110-15A0
12
KO-
91
ND7930-591100
Y1979-41A0
1
YO-
195
ND949047-2950
Y1979-01A0
5
YO- 185
NY05062-11800
Y1860-01A0
11
YO- 181
01010-D0820
K1110-15A0
19
KO-
91
ND7935-163610
Y1979-41A0
6
YO-
195
ND949047-4440
A621P-02A1
19
AA-
151
NY06277-1320A
Y1860-01A0
13
YO- 181
01010-D0825
K0110-01A2
4
KO-
5
ND90170-10061
A621P-02A0
35
AA-
149
ND949047-7870
A601P-02A0
29
AA-
135
NY06339-10200
Y1860-01A0
16
YO- 181
01010-D1016
E0310-01A1
3
EO-
23
ND90170-10061
A621P-02A1
44
AA-
153
ND949048-0430
Y1979-01A0
12
YO- 185
NY06339-10200
Y1861-01A0
4
YO- 183
01010-D1020
K1110-10A0
19
KO-
81
ND90200-06241
A621P-02A0
39
AA-
149
ND949056-1001
A601P-02A0
21
AA-
135
NY07207-11700
Y1860-01A0
3
YO- 181
01010-D1025
K0230-01A1
19
KO-
25
ND90200-06241
A621P-02A1
46
AA-
153
ND949056-2481
A601P-02A0
20
AA-
135
NY07493-10200
Y1860-01A0
17
YO- 181
01010-D1025
K1110-19A1
8
KO- 101
ND90258-10001
A621P-02A0
37
AA-
149
ND949056-2481
A601P-02A1
17
AA-
137
NY07493-10200
Y1861-01A0
5
YO- 183
01010-D1025
K1110-04A1
8
K1-
87
ND90258-10001
A621P-02A1
36
AA-
153
ND949056-2520
A601P-02A0
26
AA-
135
NY07529-10200
Y1860-01A0
4
YO- 181
01010-D1030
E0310-01A0
3
EO-
21
ND90801-10050
A621P-02A0
33
AA-
149
ND949056-2520
A601P-02A1
23
AA-
137
NY07529-10300
Y1860-01A0
5
YO- 181
01010-D1045
K1110-17A0
12
KO-
95
ND90801-10050
A621P-02A1
31
AA-
153
ND949056-3080
A601P-02A1
18
AA-
137
NY07529-10400
Y1860-01A0
6
YO- 181
01010-
D1045
K1110-19A1
11
KO- 101
ND90801-20470
A621P-02A1
45
AA-
153
ND949056-4480
A621P-02A0
36
AA-
149
NY07529-10500
Y1860-01A0
7
YO- 181
01010-D1045
K1110-04A1
11
K1-
87
ND90930-05121
Y1979-21A0
54
YO-
191
ND949056-4480
A621P-02A1
34
AA-
153
NY07529-10600
Y1860-01A0
8
YO- 181
01010-D1220
E0340-01A0
4
EO-
27
ND90930-05161
Y1979-21A0
57
YO-
191
ND949057-0190
Y1979-31A0
17
YO- 193
NY07926-10100
Y1860-01A0
23
YO- 181
01010-D1220
K0220-01A0
14
KO-
21
ND90930-06141
Y1979-11A0
4
YO-
187
ND949070-0640
Y1979-01A0
7
YO- 185
NY08000-02200
Y1861-01A0
3
YO- 183
01010-D1225
K0230-01A1
14
KO-
25
ND90930-06141
Y1979-21A0
55
YO-
191
ND949070-1360
Y1979-01A0
7
YO- 185
NY09000-11400
Y1860-01A0
20
YO- 181
01010-D1230
K1110-20A0
19
KO- 103
ND91310-03081
Y1979-21A0
52
YO-
191
ND949070-1390
Y1979-01A0
8
YO- 185
NY09000-11400
Y1861-01A0
6
YO- 183
01010-D1240
K0230-01A2
3
KO-
27
ND91310-04251
A601P-02A0
19
AA-
135
ND949100-1750
A621P-02A0
6
AA-
147
NY80000-02100
Y1860-01A0
21
YO- 181
01010-D1275
K0230-01A1
10
KO-
25
ND91310-04251
A601P-02A1
16
AA-
137
ND949100-1920
A621P-02A0
10
AA-
147
NY80000-02200
Y1860-01A0
14
YO- 181
01010-D1285
K1120-01A0
14
KO- 151
ND91310-05081
Y1979-01A0
13
YO-
185
ND949100-1920
A621P-02A1
8
AA-
151
NY81446-05010
Y1861-01A0
8
YO- 183
01010-00820
K1110-14D0
8
KO-
89
ND91370-03081
Y1979-31A0
15
YO-
193
ND949100-1930
A621P-02A0
5
AA-
147
NY81446-05012
Y1860-01A0
19
YO- 181
01010-61450
Y1600-02A0
10
YO-
21
ND91570-06141
Y1979-31A0
23
YO-
193
ND949100-2790
A601P-02A0
23
AA-
135
NY84110-00248
Y1860-01A0
25
YO- 181
01010-61460
Y1660-14A0
29
YO-
99
ND92150-06061
A601P-02A1
32
AA-
137
ND949100-2790
A601P-02A1
20
AA-
137
NY84110-00264
Y1861-01A0
7
YO- 183
01010-61460
Y1662-14A0
29
Y1-
135
ND949001-1730
Y1979-21A0
53
YO-
191
ND949100-3161
A621P-02A1
3
AA-
151
NY86711-01008
Y1860-01A0
22
YO- 181
01010-61470
Y1660-14A0
28
YO-
99
ND949001-1730
Y1979-31A0
14
YO-
193
ND949100-3361
A601P-02A0
3
AA-
135
NY86711-01010
Y1860-01A0
12
YO- 181
01010-61470
Y1662-14A0
28
Y1-1
35
ND949006-4720
A621P-02A0
38
AA-
149
ND949100-3540
A621P-02A1
4
AA-
151
NY86711-02011
Y1860-01A0
15
YO- 181
01010-61490
Y1660-07A0
24
YO-
83
ND949006-4720
A621P-02A1
33
AA-
153
ND949100-4500
A621P-02A0
9
AA-
147
NY86711-02011
Y1861-01A0
9
YO- 183
01010-61490
Y1660-07A0
26
YO-
83
ND949006-5460
A601P-02A0
18
AA-
135
ND949100-4500
A621P-02A1
7
AA-
151
NY89103-00090
Y1860-01A0
9
YO- 181
01010-61490
Y1662-07A0
26
Y1-
119
ND949006-5460
A601P-02A1
15
AA-
137
ND949100-5010
A601P-02A1
6
AA-
137
X210703740
Y0260-01A0
1
YO-
3
01010-61655
R0110-01A0
17
RO-
5
ND949006-5590
A601P-02A1
5
AA-
137
ND949100-5290
A621P-02A1
3
AA-
151
X990001890
T1510-01B5
13
TO-
95
01010-61655
R0110-02A1
17
RO-
7
ND949006-6401
A601P-02A1
27
AA-
137
ND949120-0240
A621P-02A1
24
AA-
151
X990001900
T1510-01B9
13
TO-
101
01010-61660
P1210-01A0
37
PO-
9
ND949006-6970
A601P-02A0
2
AA-
135
ND949142-0010
Y1979-21A0
11
YO- 189
X990001910
T1510-01B2
13
TO-
89
01010-62050
R1200-01A1
2
RO-
55
ND949007-2350
K1110-08A0
7
KO-
77
ND949142-0030
Y1979-21A0
5
YO- 189
X990001920
T1510-01B6
16
TO-
97
01010-62050
R1200-01A2
3
RO-
57
ND949007-5110
A601P-02A1
16
AA-
137
ND949142-0030
Y1979-21A0
10
YO- 189
X990001970
T1510-01B9
13
TO-
99
01010-62050
R1200-01A3
3
RO-
59
ND949007-6280
A601P-02A1
28
AA-
137
ND949142-0030
Y1979-21A0
22
YO- 189
002896-11008
K1110-37A0
17
KO-139
01010-62055
T1510-01B2
9
TO-
89
ND949007-6530
A621P-02A0
34
AA-
149
ND949142-0040
Y1979-21A0
19
YO- 189
01010-D0625
K0230-01A1
16
KO-
25
01010-62055
T1510-01B5
9
TO-
95
ND949007-6530
A621P-02A1
39
AA-
153
ND949170-4040
A621P-02A0
11
AA-
147
01010-D0816
K0830-01A1
2
KO-
57
01010-62055
T1510-01B6
9
TO-
97
ND949007-6850
A621P-02A0
41
AA-
149
ND949170-4040
A621P-02A1
9
AA-
151
01010-D0816
K1110-38A0
1
KO- 145
01010-62055
T1510-01B9
9
TO-
99
ND949007-6850
A621P-02A1
42
AA-
153
ND949170-4070
A621P-02A0
26
AA-
147
01010-D0820
K0180-01A0
6
KO-
15
01010-62055
T1510-01B9
9
TO-
101
ND949007-7000
A601P-02A0
28
AA-
135
ND949170-4070
A621P-02A1
25
AA-
151
01010-D0820
K0180-01A0
14
KO-
15
01010-80612
D0100-01A0
8
DO-
3
ND949008-0460
Y1979-21A0
47
YO-
191
ND949170-6990
A601P-02A0
13
AA-
135
01010-D0820
K0180-01A0
27
KO-
15
01010-80612
M1130-01A0
9
MO-
7
ND949013-7480
Y1979-01A0
9
YO-
185
ND949173-0571
A621P-02A0
23
AA-
147
01010-D0820
K0180-01A0
31
KO-
15
01010-80612
M1140-01A0
5
MO-
11
ND949013-7500
Y1979-01A0
10
YO-
185
ND949321-9940
Y1979-21A0
24
YO- 189
01010-D0820
K0180-01A0
36
KO-
15
01010-80616
CO100-02A0
33
CO-
5
ND949013-7510
Y1979-01A0
11
YO-
185
NFEB0427 Z0
Y1840-01A0
6
Y1-
177
01010-D0820
K0230-01A1
24
KO-
25
01010-80616
K0350-01A0
3
KO-
47
ZZ- 3
PC200, 210(LC)-7
PC200, 210(LC)-7
ZZ- 4
PARTS NO.
FIG NO.
INDEX
PAGE
PARTS NO.
FIG NO.
INDEX
PAGE
PARTS NO.
FIG NO.
INDEX
PAGE
PARTS NO.
FIG NO.
INDEX
PAGE
01010-80616
K1110-39A0
6
KO- 147
01010-81020
K1110-17A0
2
KO-
95
01010-81030
C0310-01A0
8
CO -
11
01010-81080
H0210-01A0A
25
HO-
29
01010-80616
M1130-01A0
26
MO-
7
01010-81020
K1110-17A0
5
KO-
95
01010-81030
C0310-01A1
2
CO -
13
01010-81090
C0100-03A0
3
CO -
7
01010-80616
M1140-01A0
21
MO-
11
01010-81020
K1110-18A0
5
KO-
97
01010-81030
C0310-01A1
5
CO -
13
01010-81095
H1831-01A0
17
HO-
79
01010-80620
E0200-01A0
26
EO-
7
01010-81020
K1110-19A0
5
KO-
99
01010-81030
C0310-01A1
8
CO -
13
01010-81095
H1831-01A1
19
H1-
81
01010-80620
Y1670-11A0
17
YO- 167
01010-81020
K1110-19A1
14
KO- 101
01010-81030
H1310-01A0
15
HO-
73
01010-81220
BO400-01A0
15
BO-
11
01010-80816
K0840-01A0
4
KO-
59
01010-81020
K1110-22A0
14
KO- 107
01010-81030
H1310-01A0
17
HO-
73
01010-81220
D0200-01A0
32
DO-
5
01010-80816
K1110-14A0
25
KO- 89a
01010-81020
K1110-22A0
22
KO- 107
01010-81030
H1831-02A0
8
HO-
83
01010-81220
E0200-04A0
5
EO-
15
01010-80816
K1110-21A0
2
KO- 105
01010-81020
K1110-22A0
25
KO- 107
01010-81030
K1110-16A0
9
KO-
93
01010-81220
E0200-04A0
8
EO-
15
01010-80816
K1110-21A0
12
KO- 105
01010-81020
K1110-23A0
3
KO- 109
01010-81030
K1110-17A0
14
KO-
95
01010-81220
E0200-06A0
7
EO-
19
01010-80816
K1110-24A0
2
KO-
111
01010-81020
K1110-33A0
7
KO- 129
01010-81030
K1110-28A0
32
KO- 119
01010-81220
M1150-01A0
42
MO-
15
01010-80816
Y1670-01A0
17
YO- 163
01010-81020
K1110-36A0
2
KO- 137
01010-81030
N1210-01A0
47
NO-
9
01010-81220
M1510-01A0
6
MO-
29
01010-80820
BO400-01A0
4
BO-
11
01010-81020
K1110-36A0
8
KO- 137
01010-81035
D0200-02A0
23
DO-
7
01010-81220
T1110-04A0A
7
TO-
19
01010-80820
C0100-03A0
26
CO -
7
01010-81020
K1110-04A1
14
K1-
87
01010-81035
H1270-02A0
2
HO-
67
01010-81220
T1110-06A0
4
TO-
23
01010-80820
E0200-01A0
21
EO-
7
01010-81020
P1210-01A0
9
PO-
7
01010-81035
H1270-03A0
13
HO-
69
01010-81225
C0100-03A0
29
CO -
7
01010-80820
E0200-01A0
23
EO-
7
01010-81020
T1510-01A0
14
TO-
63
01010-81035
H1270-03A0
24
HO-
69
01010-81225
D0200-01A0
16
DO-
5
01010-80820
H1840-02A1
2
HO-
89
01010-81020
Y0270-01A0
9
YO-
7
01010-81035
H1270-03A0
13
H1-
69
01010-81225
D0200-01A0
23
DO-
5
01010-80820
H1840-02A1
2
H1-
89
01010-81025
B0920-01A0
13
BO -
13
01010-81035
H1270-03A0
24
H1-
69
01010-81225
D0200-01A0
26
DO-
5
01010-80820
K1110-06A0
19
KO-
73
01010-81025
C0100-01A0A
16
CO -
3
01010-81035
J1110-02A0
10
JO-
5
01010-81225
D0200-02A0
11
DO-
7
01010-80820
K1110-25A13
13
KO- 113
01010-81025
C0100-01A0A
22
CO -
3
01010-81035
K0160-01A2
3
KO-
13
01010-81225
D0200-02A0
17
DO-
7
01010-80820
K1110-28A0
13
KO- 121
01010-81025
CO100-02A0
21
CO-
5
01010-81035
KO700-01A0
3
KO-
51
01010-81225
E0100-01A1
8
EO-
5
01010-80820
K1110-04A1
42
K1-
89
01010-81025
CO100-02A0
24
CO-
5
01010-81035
K1120-01A0
2
KO- 151
01010-81225
E0200-01A0
8
EO-
7
01010-80825
B0100-02A0
2
BO -
7
01010-81025
C0100-04A0
18
CO -
9
01010-81035
N1210-01A0
35
NO-
9
01010-81225
E0200-01A0
15
EO-
7
01010-80825
E0410-01A0
3
EO-
29
01010-81025
D0200-02A0
6
DO-
7
01010-81035
Y0260-01A0
29
YO-
3
01010-81225
EO200-02A0
5
EO-
9
01010-80825
K1110-31A0
3
KO- 125
01010-81025
E0200-05A0
6
EO-
17
01010-81040
A9999-01A1
8
AA-
171
01010-81225
EO200-02A0
8
EO-
9
01010-80830
E0200-01A0
5
EO-
7
01010-81025
H1831-02A0
26
HO-
83
01010-81040
B0000-01A0
8
BO -
3
01010-81225
EO200-02A0
11
EO-
9
01010-80835
Y1627-01A0
11
YO-
55
01010-81025
H1840-02A1
5
HO-
89
01010-81040
BO400-01A0
7
BO-
11
01010-81225
EO200-02A0
14
EO-
9
01010-80845
K1110-14A0
23
KO- 89a
01010-81025
H1270-01A0
13
H1-
57
01010-81040
H1270-02A0
2
H1-
67
01010-81225
EO200-02A0
17
EO-
9
01010-80855
Y1670-01A0
15
YO- 163
01010-81025
H1840-02A1
5
H1-
89
01010-81040
K1110-22A0
6
KO- 107
01010-81225
EO200-02A0
21
EO-
9
01010-80875
KO700-01A0
13
KO-
51
01010-81025
KO700-02A0
35
KO-
53
01010-81040
K1110-22A0
10
KO- 107
01010-81225
EO200-02A0
25
EO-
9
01010-80885
KO700-01A0
15
KO-
51
01010-81025
K1110-18A0
3
KO-
97
01010-81040
K1110-22A0
19
KO- 107
01010-81225
EO200-02A0
29
EO-
9
01010-81016
E0200-03A0
25
EO-
13
01010-81025
K1110-19A0
3
KO-
99
01010-81040
Y1660-14A0
33
YO-
99
01010-81225
EO200-02A0
32
EO-
9
01010-81016
E0200-06A0
11
EO-
19
01010-81025
K1110-19A1
4
KO- 101
01010-81040
Y1662-14A0
33
Y1-
135
01010-81225
EO200-02A0
35
EO-
9
01010-81016
K1110-16A0
11
KO-
93
01010-81025
K1110-04A1
4
K1-
87
01010-81045
A9999-01A1
11
AA-
171
01010-81225
EO200-02A0
38
EO-
9
01010-81016
K1110-19A1
34
KO- 101
01010-81025
M1210-01A0
19
MO-
19
01010-81045
B0000-01A0
11
BO -
3
01010-81225
E0200-03A0
2
EO-
13
01010-81016
K1110-33A0
10
KO- 129
01010-81025
M1210-01A0
22
MO-
19
01010-81045
H1840-02A1
23
H1-
89
01010-81225
E0200-03A0
5
EO-
13
01010-81016
K1110-36A0
13
KO- 137
01010-81025
N1210-01A0
49
NO-
9
01010-81045
K1110-37A0
2
KO- 139
01010-81225
E0200-03A0
10
EO-
13
01010-81016
K1110-04A1
34
K1-
89
01010-81025
R0300-01A0
11
RO-
13
01010-81045
K1110-37A0
11
KO- 139
01010-81225
E0200-03A0
13
EO-
13
01010-81016
N1110-01A0
12
NO-
3
01010-81025
T1200-04A1
19
TO-
53
01010-81045
K1110-37A1
2
KO- 141
01010-81225
E0200-03A0
16
EO-
13
01010-81020
A9999-01A1
3
AA-
171
01010-81025
T1200-04A3
19
TO-
57
01010-81045
K1110-37A1
12
KO- 141
01010-81225
E0200-03A0
19
EO-
13
01010-81020
B0000-01A0
3
BO -
3
01010-81025
T1200-05A3
10
TO-
59
01010-81045
K1110-37B5
2
KO- 143
01010-81225
E0200-03A0
22
EO-
13
01010-81020
CO100-02A0
10
CO-
5
01010-81025
T1200-04A1
19
T1-
53
01010-81045
K1110-37B5
11
KO- 143
01010-81225
E0200-03A0
28
EO-
13
01010-81020
CO100-02A0
14
CO-
5
01010-81025
T1200-04A3
19
T1-
57
01010-81045
K1110-21A2
2
K1-
136
01010-81225
E0200-04A0
27
EO-
15
01010-81020
CO100-02A0
18
CO-
5
01010-81025
T1200-05A3
10
T1-
59
01010-81045
K1110-21A16
16
K1-
150
01010-81225
E0200-04A0
34
EO-
15
01010-81020
CO100-02A0
27
CO-
5
01010-81030
BO400-01A0
10
BO-
11
01010-81045
T1200-04A1
21
TO-
53
01010-81225
E0200-05A0
10
EO-
17
01010-81020
E0200-01A0
18
EO-
7
01010-81030
B0920-01A0
2
BO -
13
01010-81045
T1200-04A3
21
TO-
57
01010-81225
E0320-01A0
4
EO-
25
01010-81020
E0200-03A0
7
EO-
13
01010-81030
C0100-01A0A
28
CO -
3
01010-81045
T1200-05A3
12
TO-
59
01010-81225
E0320-01A0
7
EO-
25
01010-81020
H0210-01A0A
22
HO-
29
01010-81030
CO100-02A0
12
CO-
5
01010-81045
T1200-04A1
21
T1-
53
01010-81225
E0420-01A0
6
EO-
31
01010-81020
KO700-02A0
29
KO-
53
01010-81030
CO100-02A0
30
CO-
5
01010-81045
T1200-04A3
21
T1-
57
01010-81225
E0100-01A1
8
ER-
3
01010-81020
K1110-09A0
13
KO-
79
01010-81030
C0310-01A0
2
CO -
11
01010-81045
T1200-05A3
12
T1-
59
01010-81225
H0120-03A0
12
HO-
23
01010-81020
K1110-16A0
14
KO-
93
01010-81030
C0310-01A0
5
CO -
11
01010-81055
C0100-03A0
17
CO -
7
01010-81225
H0120-03A1
22
HO-
25
ZZ- 5
PC200, 210(LC)-7
PC200, 210(LC)-7
ZZ- 6
