Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 24

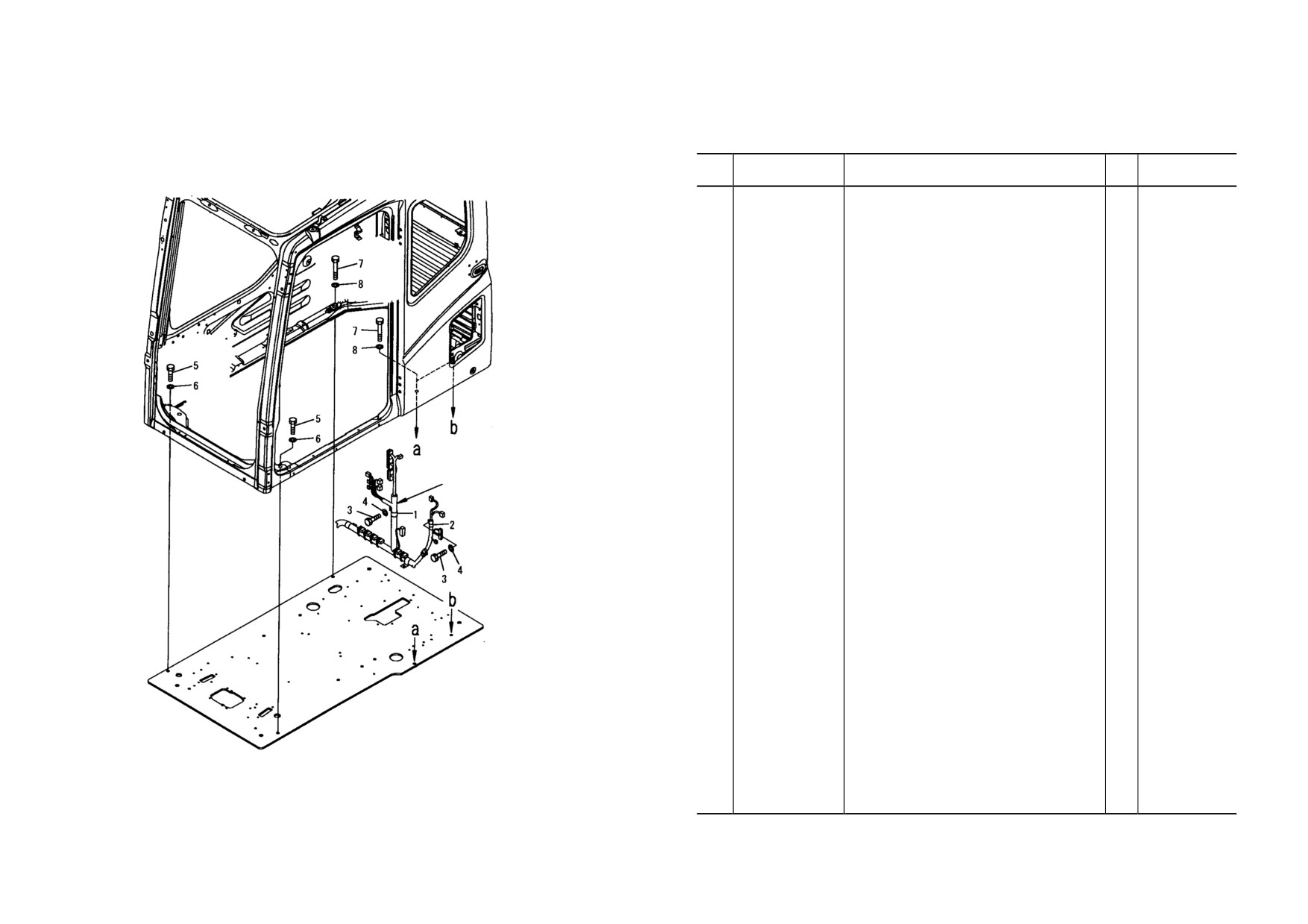

FIG NO. ：K1110-23A0
FIG. K1110-23A0 FLOOR FRAME (OPERATOR’S CAB) (CLAMP AND BOLT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
04434-53411
CLIP
1
DBB4709~
2
04434-52208
CLIP
1
DBB4709~
3
01010-81020
BOLT
2
DBB4709~
4
01643-31032
WASHER
2
DBB4709~
5
01010-81240
BOLT
2
DBB4709~
6
01643-31232
WASHER
2
DBB4709~
7
01010-81285
BOLT
3
DBB4709~
8
01643-31232
WASHER
3
DBB4709~
Cab
See Fig. K1110-25D0
Floor Frame
00018135
KO- 108
PC200,210(LC)-7
PC200,210(LC)-7
KO- 109
FIG NO. ：K1110-24A0

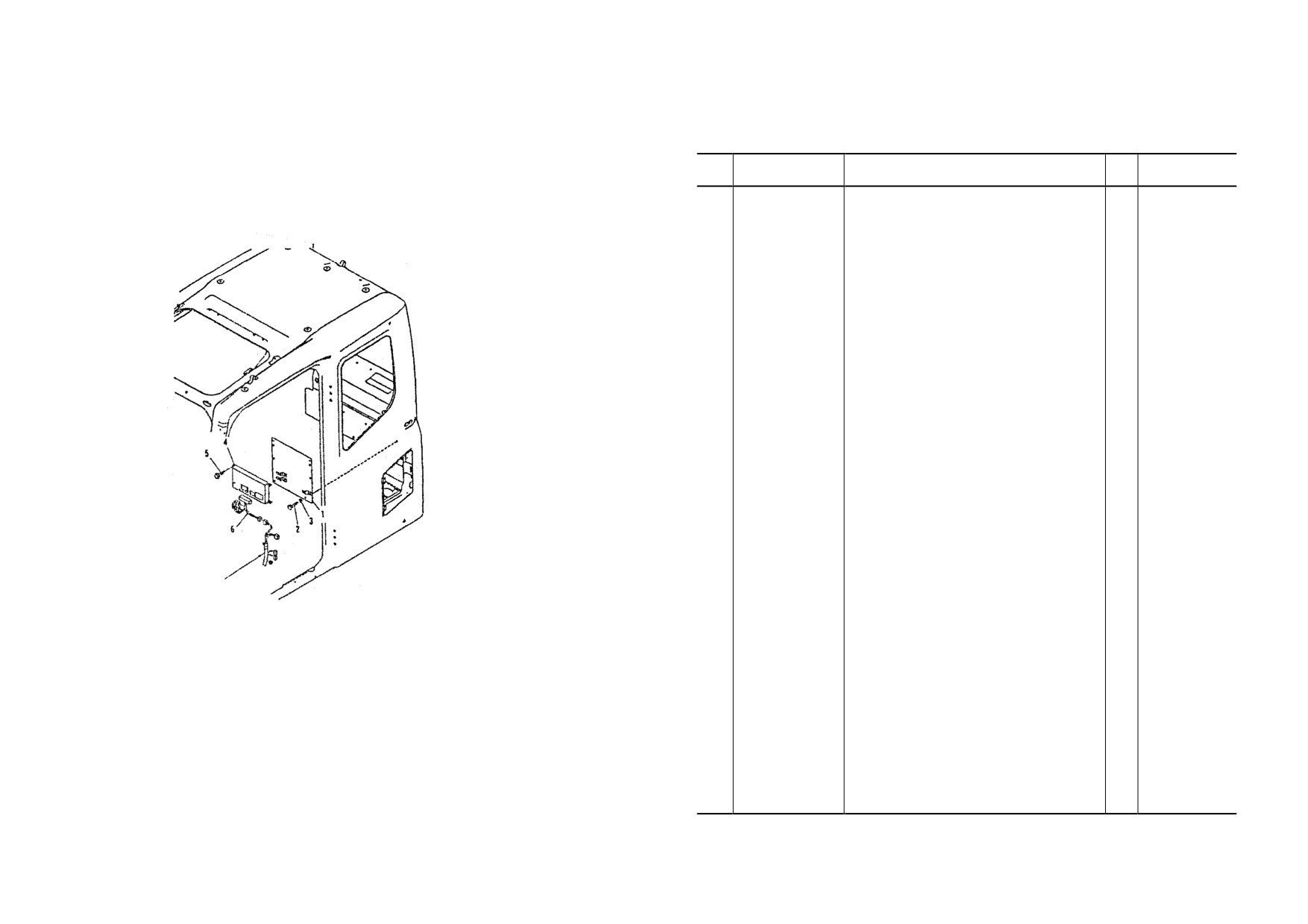

FIG. K1110-24A0 FLOOR FRAME
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
208-53-12870
PLATE
1
DBB3507~
2
01010-80816
BOLT
4
DBB3507~
3
01643-30823
WASHER
4
DBB3507~
4
7826-22-1000
CONTROLLER TC400
1
DBB3507~
7826-22-1100
. TC400 CONTROLLER MOD
1
DBB3507~
7826-22-1500
. GSM MODEM
1
DBB3507~
7826-22-1510
. SHIM
1
DBB3507~
7826-22-5830
. PLATE
1
DBB3507~
7826-22-1260
. SCREW
3
DBB3507~
5
01435-00825
BOLT
4
DBB3507~
6
208-06-71530
WIRING HARNESS
1
DBB3507~
See Fig. K1110-24A0
PW1B839
KO- 110
PC200,210(LC)-7
PC200,210(LC)-7
KO- 111
FIG NO. ：K1110-25A0

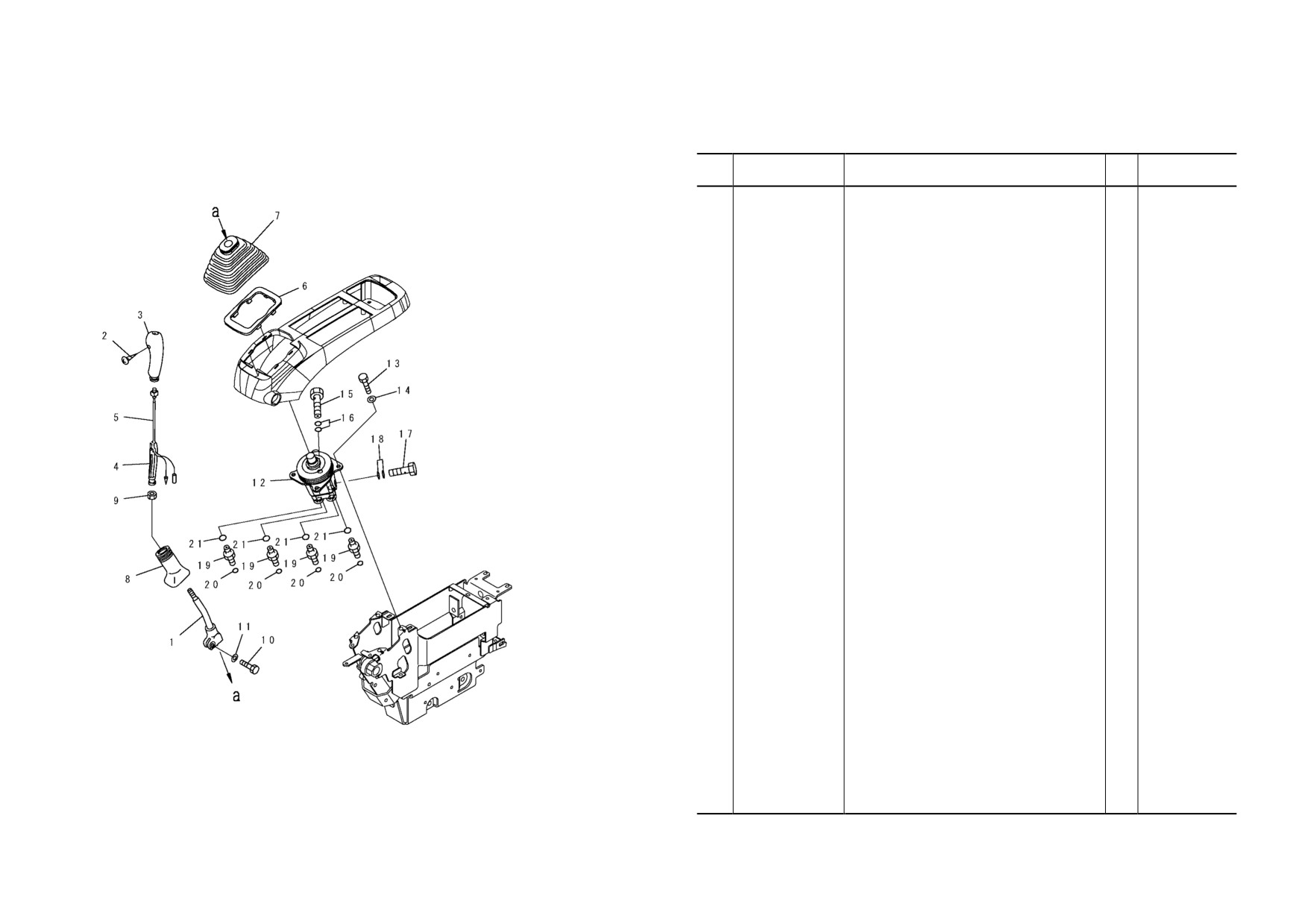

FIG. K1110-25A0 FLOOR FRAME (LEVER AND VALVE) (L. H.)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-43-22211
LEVER, L. H
1
DBB0001~
22U-43-21181
KNOB, L. H
1
DBB0001~
2
01370-10308
. SCREW
1
DBB0001~
3
20Y-43-22381
. KNOB, L. H
1
DBB0001~
4
20Y-43-22421
. INSERT
1
DBB0001~
5
22U-43-21211
. SWITCH
1
DBB0001~
6
20Y-43-22250
PLATE
1
DBB0001~
7
20Y-43-22261
BOOT
1
DBB0001~
8
20Y-43-22370
BOOT
1
DBB0001~
9
600-411-1280
NUT
1
DBB0001~
10
01252-41025
BOLT
1
DBB0001~
11
01643-51032
WASHER
1
DBB0001~
12
702-16-03910
PILOT VALVE
1
DBB0001~
13
01010-80820
BOLT
4
DBB0001~
14
01643-30823
WASHER
4
DBB0001~
15
20Y-62-18910
BOLT
1
DBB0001~
16
07000-12018
O-RING
2
DBB0001~
17
20Y-62-18890
BOLT
1
DBB0001~
18
07000-12015
O-RING
2
DBB0001~
19
11Y-62-12130
NIPPLE
4
DBB0001~
20
02896-11008
O-RING
4
DBB0001~
21
07002-11423
O-RING
4
DBB0001~
PW1B840
KO- 112
PC200,210(LC)-7
PC200,210(LC)-7
KO- 113

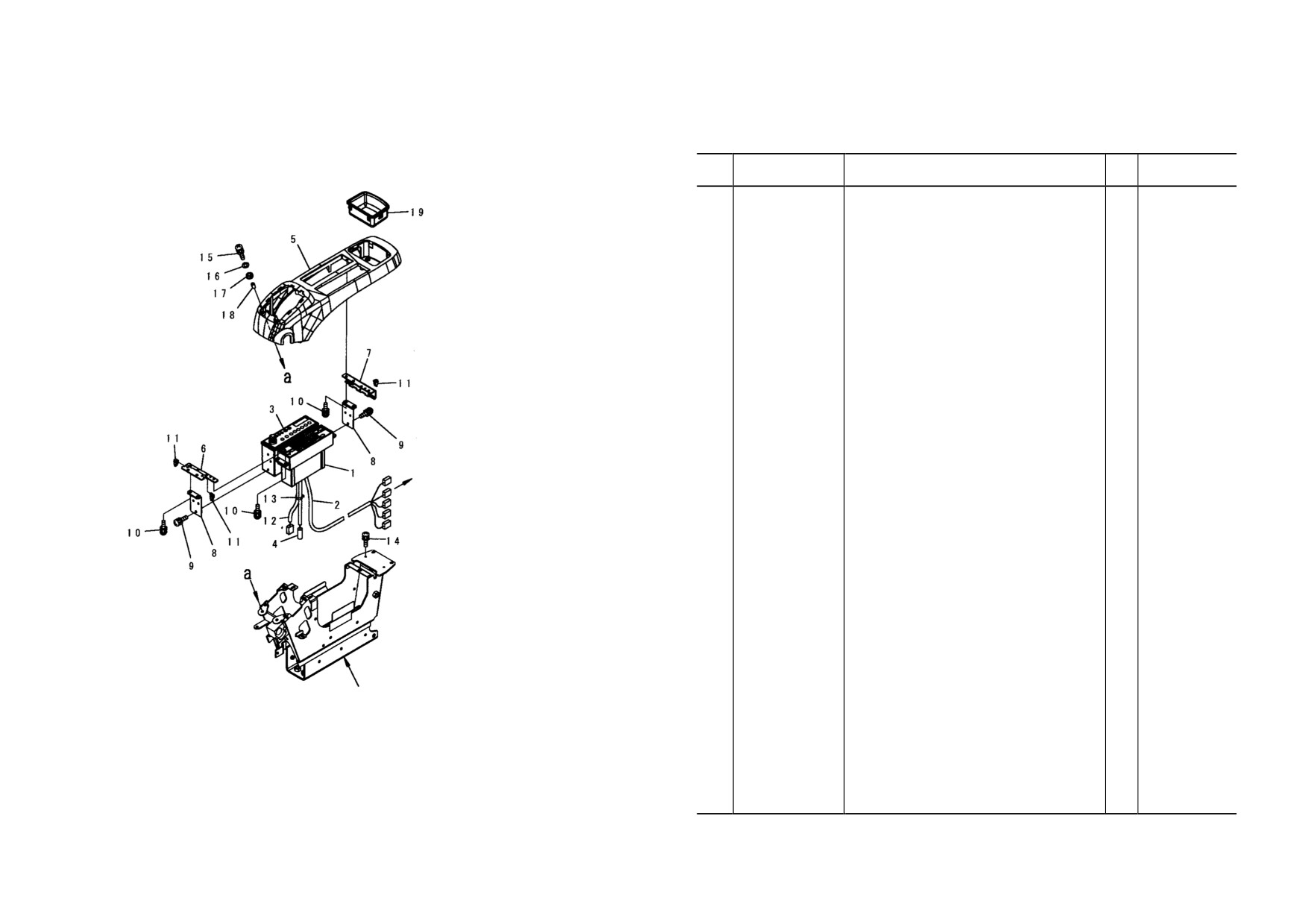

FIG NO. ：K110-26A0
FIG. K1110-26A0 FLOOR FRAME (OPERATOR’S CAB) (CONSOLE) (UPPER) (WITH AIR CONDITIONER AND RADIO) (L.H.)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-979-6141
PANEL ASS’Y
1
DBB0001~DBB4708
20Y-979-7630
PANEL ASS’Y
1
DBB4709~
2
20Y-979-6151
WIRING HARNESS
1
DBB0001-DBB4708
208-979-7550
WIRING HARNESS
1
DBB4709~
3
20Y-06-22730
RADIO
1
DBB0001~
4
08912-51600
CORD
1
DBB0001~
5
22U-43-22210
COVER
1
DBB001~DBB4708
208-43-71680
COVER
1
DBB4709~
6
22U-43-22220
PLATE
1
DBB0001~
7
22U-43-22230
STAY
1
DBB0001~
8
22U-06-22510
BRACKET
2
DBB0001~
9
01023-60510
SCREW
4
DBB0001~
10
01023-60516
SCREW
10
DBB0001~
11
20Y-06-23770
CLIP
3
DBB0001~
To Air Conditioner Unit
12
22U-06-22350
WIRING HARNESS
1
DBB0001~
13
08034-00310
BAND
1
DBB0001~
14
01023-60620
SCREW
2
DBB0001~
15
01023-60630
SCREW
2
DBB4709~
16
01640-20610
WASHER
2
DBB4709~
17
208-43-71610
CUSHION
2
DBB4709~
18
208-43-71620
PIPE
2
DBB4709~
19
22U-43-22110
TRAY
1
DBB0001~
See Fig. K1110-2900
00018140
KO- 114
PC200,210(LC)-7
PC200,210(LC)-7
KO- 115

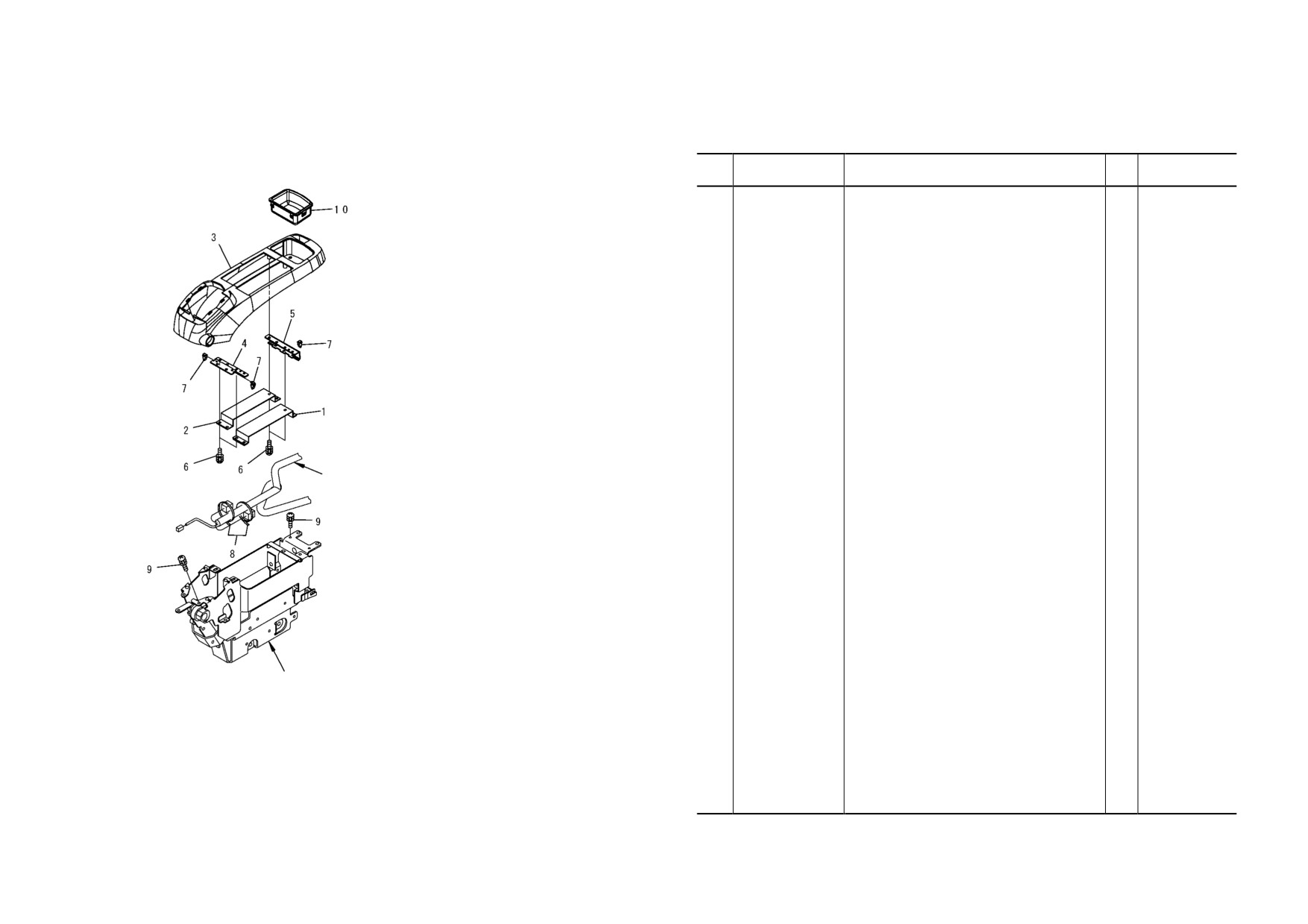

FIG NO. ：K1110-27A0
FIG. K1110-27A0 FLOOR FRAME (CONSOLE) (UPPER) (L.H.)(WITHOUT AIR CONDITIONER AND RADIO) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-43-31460
COVER
1
DBB0001~
2
20Y-43-31470
COVER
1
DBB0001~
3
22U-43-22210
COVER
1
DBB0001~
4
22U-43-22220
PLATE
1
DBB0001~
5
22U-43-22230
STAY
1
DBB0001~
6
01023-60516
SCREW
10
DBB0001~
7
20Y-06-23770
CLIP
3
DBB0001~
8
08034-00414
BAND
2
DBB0001~
9
01023-60620
SCREW
4
DBB0001~
10
22U-43-22110
COVER
1
DBB0001~
See Fig. K1110-06A0
See Fig. K1110-11A0
PW1D471
KO- 116
PC200,210(LC)-7
PC200,210(LC)-7
KO- 117

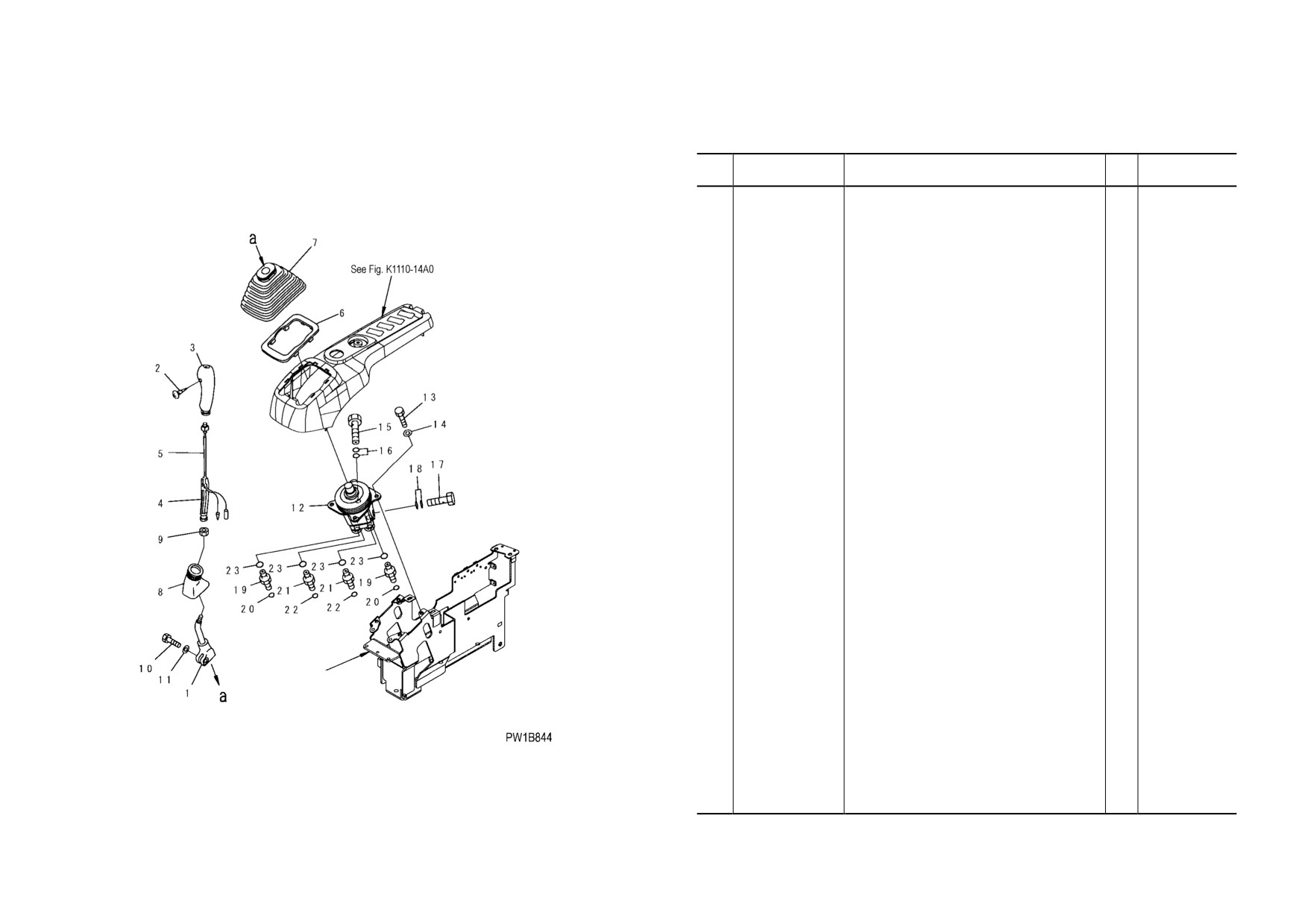

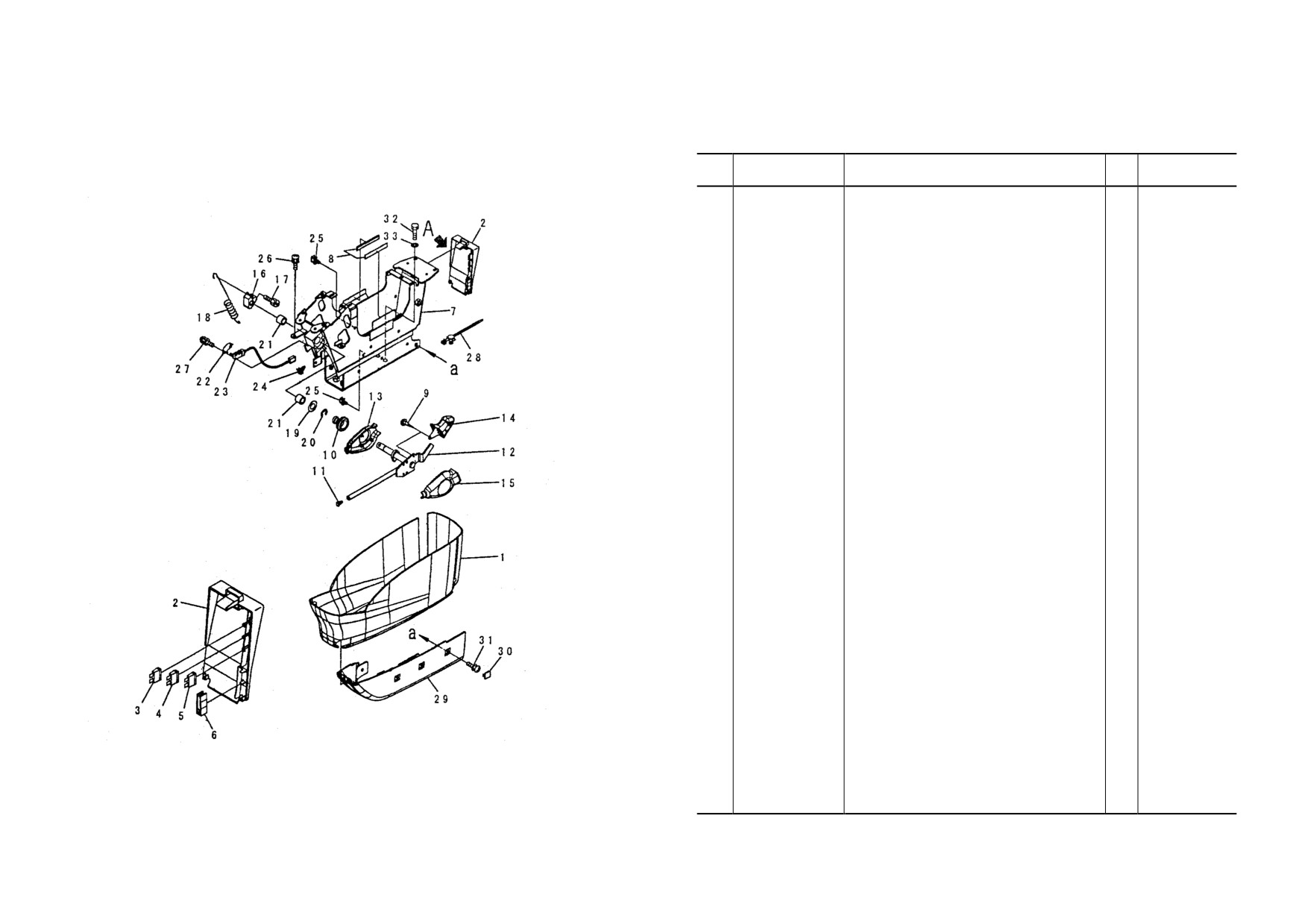

FIG NO. ：K1110-28A0
FIG.
K1110-28A0 FLOOR FRAME (OPERATOR’S CAB) (CONSOLE) (LOWER) (L.H.)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
22U-43-22310
COVER
1
DBB0001~
22U-43-22320
COVER ASS’ Y
1
DBB0001~
2
☆
. COVER
1
DBB0001~
3
08041-01000
. FUSE, 10A
1
DBB0001~
4
08041-02000
. FUSE, 20A
1
DBB0001~
5
08041-02500
. FUSE, 25A
1
DBB0001~
6
22U-43-22340
. PULLER
1
DBB0001~
7
20Y-43-31411
FRAME
1
DBB4709~
8
208-43-71410
. SHEET
2
DBB4709~
9
01370-00410
SCREW
4
DBB0001~
10
08037-11425
GROMMET
1
DBB4709~
11
208-53-12280
CAP
1
DBB4709~
12
20Y-43-31512
LEVER
1
DBB4709~
13
20Y-43-31522
COVER
1
DBB4709~
14
20Y-43-31610
KNOB
1
DBB4709~
15
20Y-43-31621
COVER
1
DBB4709~
16
20Y-43-31432
CAM
1
DBB4709~
17
01252-70816
BOLT
1
DBB4709~
18
20Y-43-31421
SPRING
1
DBB4709~
19
20Y-43-31440
RING
1
DBB4709~
20
20Y-43-31450
RING
1
DBB4709~
21
06124-01616
BEARING
2
DBB4709~
22
22U-06-22490
PLATE
1
DBB4709~
23
22U-06-22360
SWITCH ASS’Y
1
DBB4709~
24
22U-43-22410
CLIP
1
DBB4709~
25
08059-00310
CLIP
2
DBB4709~
26
01023-60616
SCREW
4
DBB4709~
27
01023-60316
SCREW
2
DBB4709~
28
22U-43-22430
CLIP
1
DBB4709~
29
20Y-43-31690
COVER
1
DBB4709~
30
22U-43-22830
CAP
3
DBB4709~
Detail A
31
01023-20614
SCREW
4
DBB4709~
00018141
32
01010-81030
BOLT
4
DBB4709~
33
01643-31032
WASHER
4
DBB4709~
KO- 118
PC200,210(LC)-7
PC200,210(LC)-7
KO- 119
FIG NO. ：K1110-28A0
FIG.
K1110-29A0 FLOOR FRAME (LEVER AND VALVE) (R.H.)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-43-22221
LEVER, R.H
1
DBB0001~
22U-43-21191
KNOB, R.H
1
DBB0001~
2
01370-10308
. SCREW
1
DBB0001~
3
20Y-43-22390
. KNOB, R.H
1
DBB0001~
4
20Y-43-22421
. INSERT
1
DBB0001~
5
22U-43-21211
. SWITCH
1
DBB0001~
6
20Y-43-22250
PLATE
1
DBB0001~
7
20Y-43-22261
BOOT
1
DBB0001~
8
20Y-43-22370
BOOT
1
DBB0001~
9
600-411-1280
NUT
1
DBB0001~
10
01252-41025
BOLT
1
DBB0001~
11
01643-51032
WASHER
1
DBB0001~
12
702-16-03910
PILOT VALVE
1
DBB0001~
13
01010-80820
BOLT
4
DBB0001~
14
01643-30823
WASHER
4
DBB0001~
15
20Y-62-18910
BOLT
1
DBB0001~
16
07000-12018
O-RING
2
DBB0001~
17
20Y-62-18890
BOLT
1
DBB0001~
18
07000-12015
O-RING
2
DBB0001~
19
11Y-62-12130
NIPPLE
2
DBB0001~
20
02896-11008
O-RING
2
DBB0001~
21
11Y-62-12520
NIPPLE
2
DBB0001~
22
02896-11009
O-RING
2
DBB0001~
23
07002-11423
O-RING
4
DBB0001~
See Fig. K1110-14A0
KO- 120
PC200,210(LC)-7
PC200,210(LC)-7
KO- 121

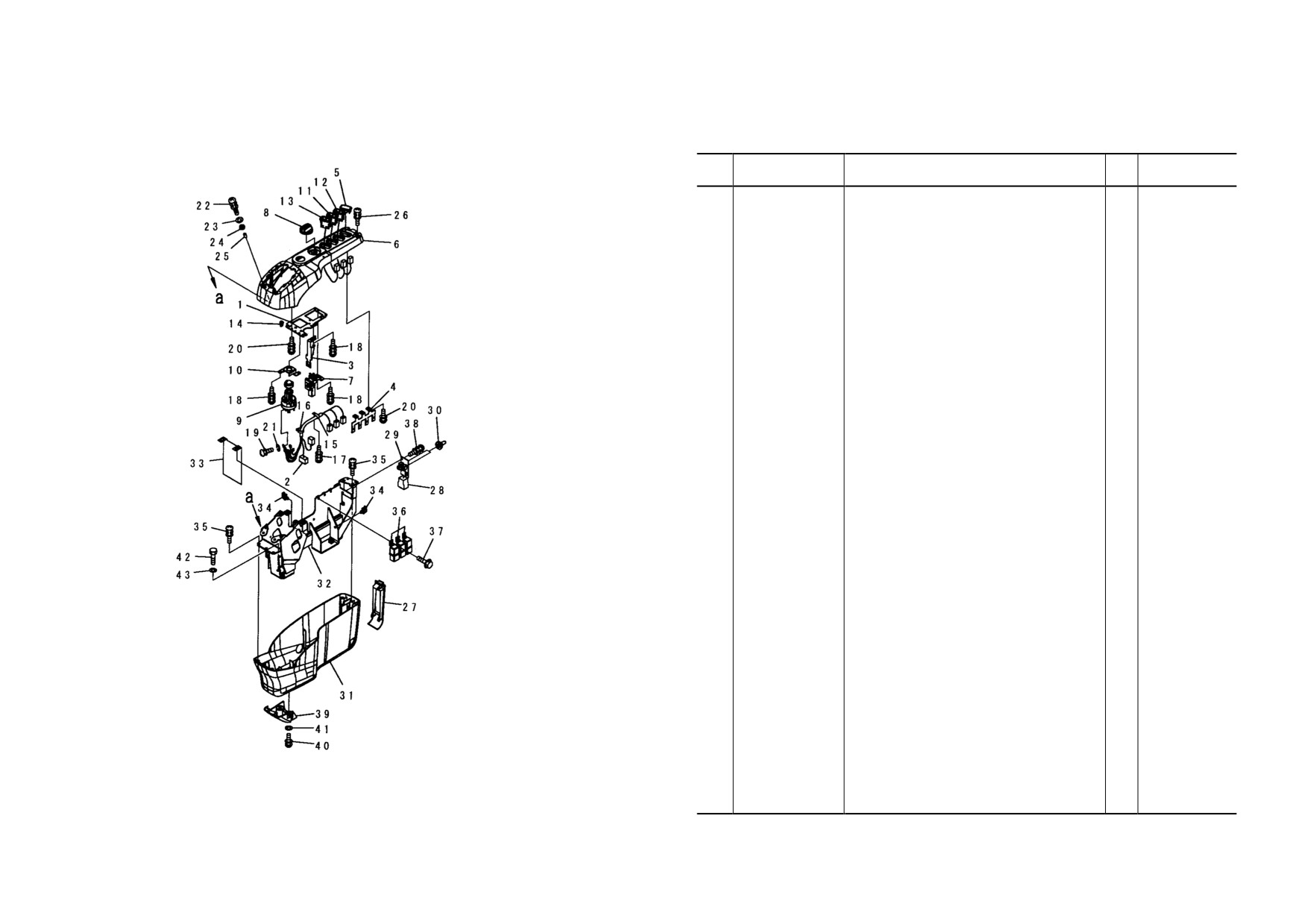

FIG NO. ：K1110-30A0
FIG.
K1110-30A0 FLOOR FRAME (OPERATOR’S CAB) (CONSOLE) (MASTER KEY) (R.H.)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
22U-43-23111
PLATE
1
DBB0001~
2
22U-06-22330
WIRING HARNESS
1
DBB0001~
3
22U-43-23120
BRACKET
1
DBB0001~
4
22U-43-23130
STAY
1
DBB0001~
5
22U-06-22320
COVER
1
DBB0001~
6
208-43-71690
COVER
1
DBB0001~
7
22U-06-22420
POTENTIOMETER ASS’Y
1
DBB0001~
8
22U-06-22470
KNOB
1
DBB0001~
9
08086-20000
SWITCH
1
DBB0001~
10
22U-06-22480
PLATE
1
DBB0001~
11
22U-06-22190
SWITCH
1
DBB0001~
12
22U-06-22290
SWITCH
1
DBB0001~
13
22U-06-22390
SWITCH
1
DBB0001~
14
22Y-06-23770
CLIP
2
DBB0001~
15
22Y-06-23920
CLAMP
1
DBB0001~
16
08034-10414
BAND
2
DBB0001~
17
01023-60408
SCREW
1
DBB4709~
18
01023-60512
SCREW
6
DBB0001~
19
01023-10508
SCREW
5
DBB0001~
20
01023-10512
SCREW
6
DBB0001~
21
01601-20513
WASHER
5
DBB0001~
22
01023-60630
SCREW
2
DBB4709~
23
01640-20610
WASHER
2
DBB4709~
24
208-43-71610
CUSHION
2
DBB4709~
25
208-43-71620
PIPE
2
DBB4709~
26
01023-70514
SCREW
2
DBB0001~
27
22U-43-23210
COVER
1
DBB0001~
20Y-06-31320
SWITCH ASS’Y
1
DBB0001~
28
20Y-06-31330
. WIRING HARNESS
1
DBB0001~
29
☆
. PLATE
1
DBB0001~
30
208-43-71420
. CAP
2
DBB0001~
31
22U-43-23230
COVER
1
DBB0001~
32
208-43-71670
FRAME
1
DBB4709~
33
22U-43-23250
SHEET
1
DBB0001~
34
08059-00310
CLIP
2
DBB4709~
35
01023-60616
SCREW
4
DBB0001~
36
569-06-61960
RELAY
3
DBB0001~
00018143
37
01435-00612
BOLT
3
DBB0001~
38
01023-60410
SCREW
2
DBB0001~
39
22U-43-23711
COVER
1
DBB0001~
40
01023-10614
SCREW
2
DBB0001~
41
01643-30623
WASHER
2
DBB0001~
KO- 122
PC200,210(LC)-7
PC200,210(LC)-7
KO- 123

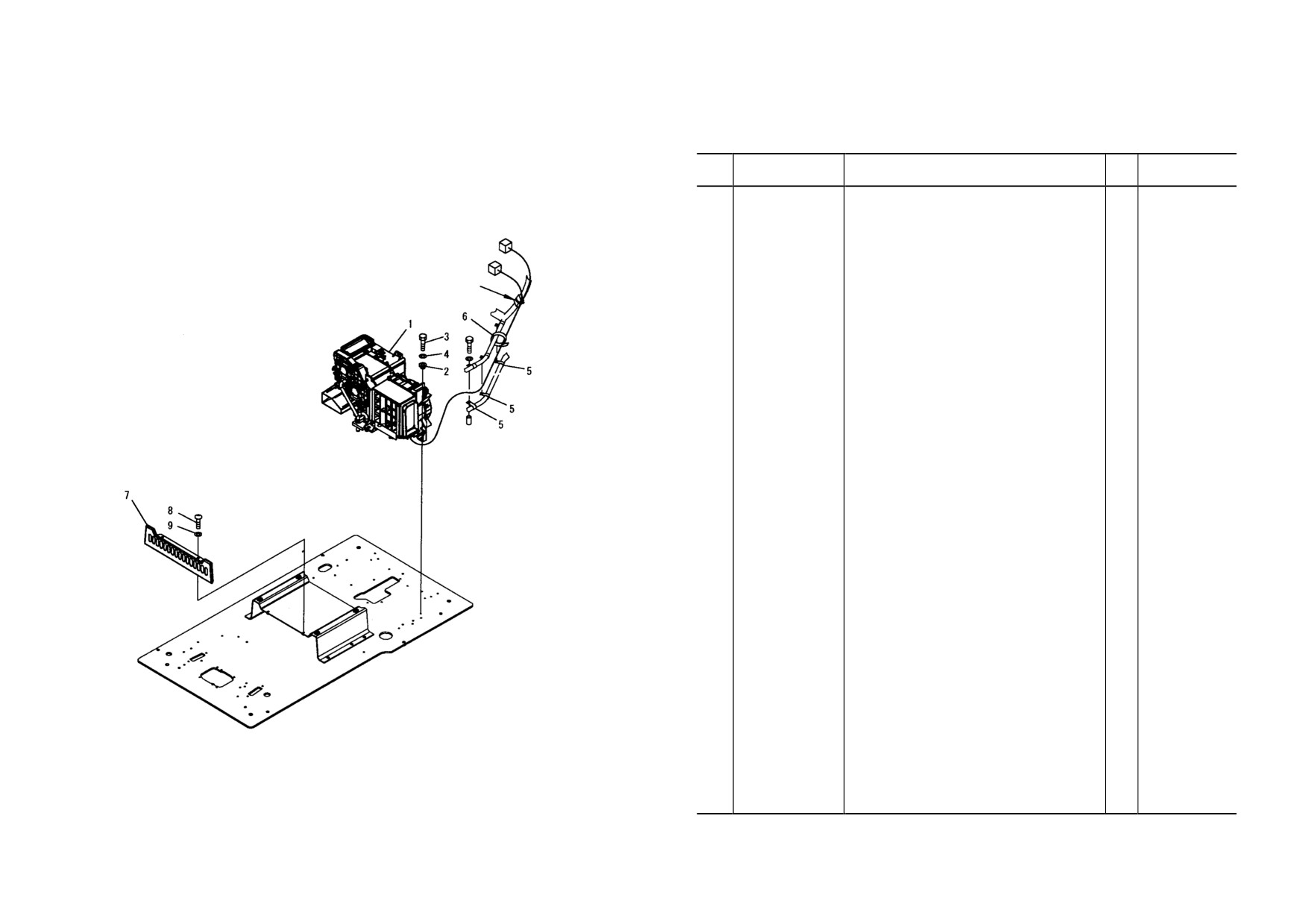

FIG NO. ：K1110-31A0
FIG. K1110-31A0 FLOOR FRAME (OPERATOR’S CAB) (AIR CONDITIONER AND FOOT COVER)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
208-979-7610
AIR COMPRESSOR UNIT
1
DBB4709~
2
208-979-7540
COLLAR
7
DBB4709~
3
01010-80825
BOLT
7
DBB4709~
4
01643-30823
WASHER
7
DBB4709~
5
04434-51410
CLIP
2
DBB4709~
See Fig. K1110-25D0
6
08034-20536
BAND
1
DBB4709~
7
208-43-71580
COVER
1
DBB4709~
8
01245-00820
SCREW
2
DBB4709~
9
01643-70823
WASHER
2
DBB4709~
Floor Frame
00018144
KO- 124
PC200,210(LC)-7
PC200,210(LC)-7
KO- 125

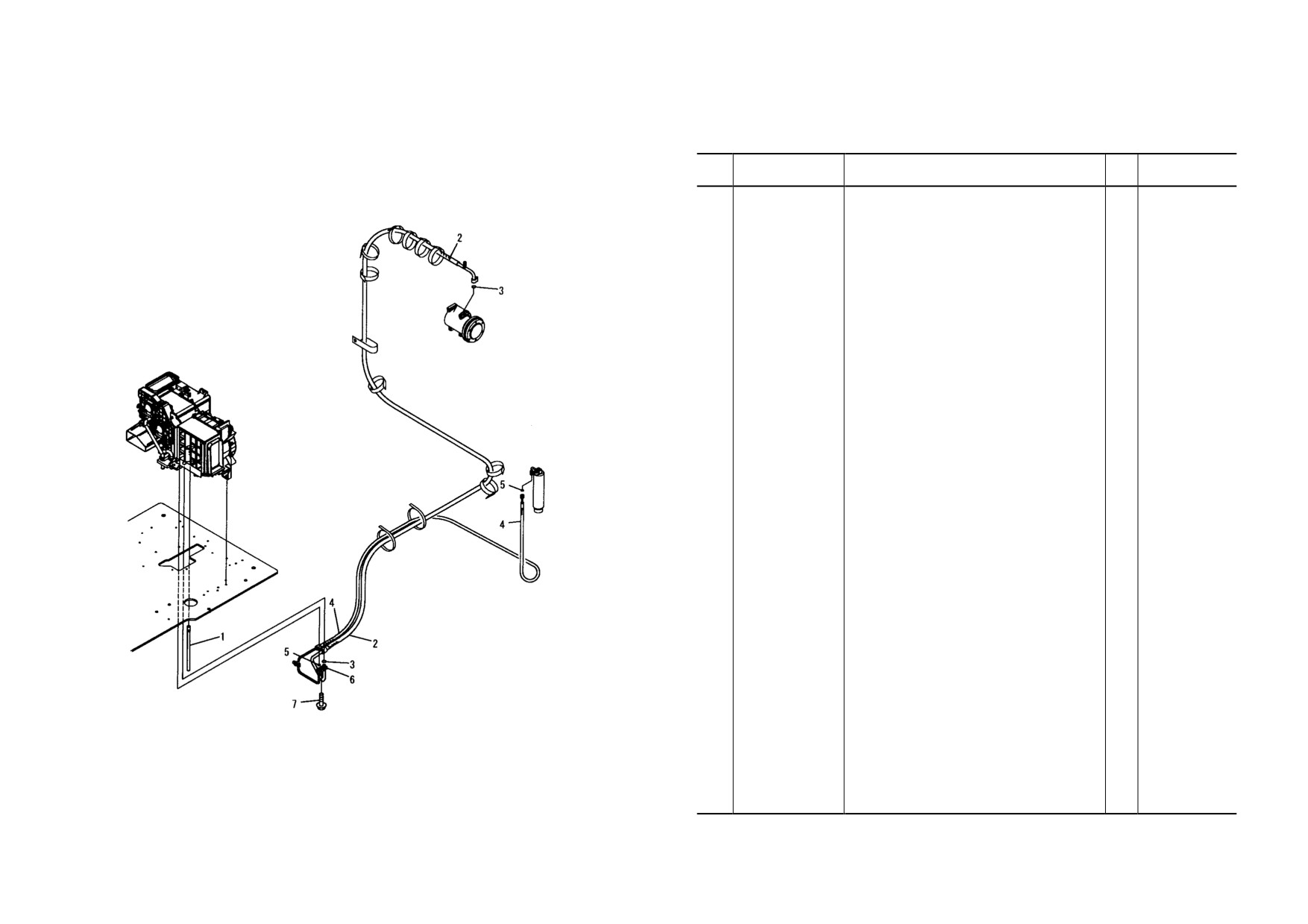

FIG NO. ：K1110-32A0
FIG. K1110-32A0 FLOOR FRAME (OPERATOR’S CAB) (AIR CONDITIONER HOSE)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
208-979-7640
HOSE
1
DBB4709~
2
20Y-979-7351
HOSE
1
DBB4709~
3
20Y-979-3130
. O-RING
2
DBB4709~
4
20Y-979-7341
HOSE
1
DBB4709~
5
20Y-979-3150
. O-RING
2
DBB4709~
6
208-979-7650
CONNECTOR
1
DBB4709~
7
01435-40620
BOLT
1
DBB4709~
Air Compressor
Air Conditioner
Receiver Drier
Floor Frame
00018145
KO- 126
PC200,210(LC)-7
PC200,210(LC)-7
KO- 127
