ENGINE
FIG NO. ：A1009-01A0

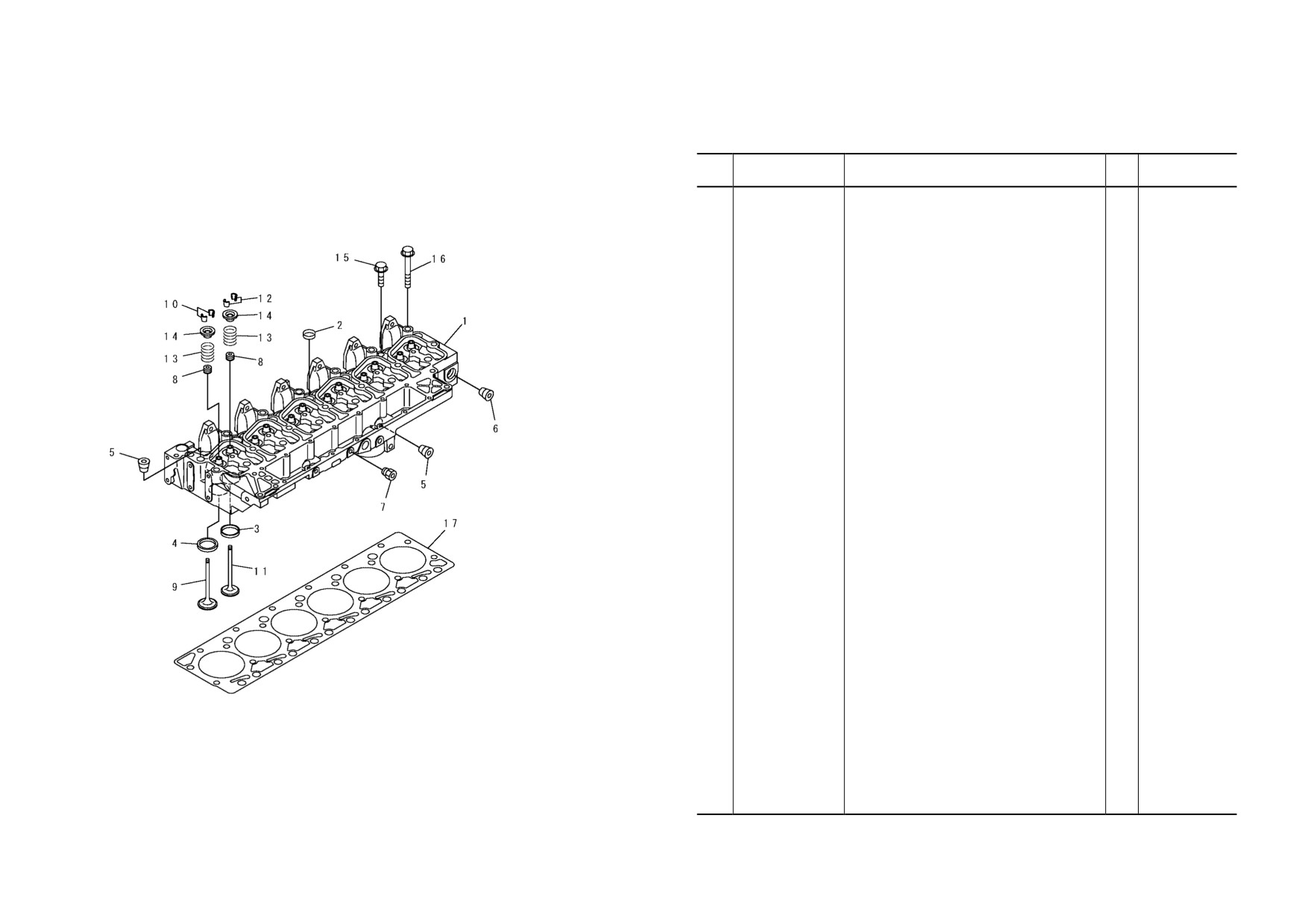

FIG. A1009-01A0 CYLNDER HEAD
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
6731-11-1370
HEAD ASS’Y
1
26274903-
1
☆
. HEAD
1
26274903-
2
6736-11-1150
. PLUG
5
26274903-
3
6732-11-1170
. INSERT,EXHAUST
6
26274903-
4
6732-11-1180
. INSERT,INTAKE
6
26274903-
5
6732-11-1910
. PLUG
5
26274903-
6
6732-11-1920
. PLUG
1
26274903-
7
6732-11-1930
. PLUG
2
26274903-
8
6732-41-4540
SEAL
12
26274903-
6736-41-4110
INTAKE VALVE ASS’Y
6
26274903-
9
☆
. VALVE
1
26274903-
10
6732-41-4520
. COTTER
2
26274903-
6736-41-4120
EXHAUST VALVE ASS’Y
6
26274903-
11
☆
. VALVE
1
26274903-
12
6732-41-4520
. COTTER
2
26274903-
13
6732-41-4430
SPRING
12
26274903-
14
6731-41-4510
RETAINER
12
26274903-
15
6732-11-1610
BOLT
6
26274903-
16
6732-11-1620
BOLT
14
26274903-
17
6735-11-1821
GASKET
1
26274903-
REFER TO FIG. NOS. OF REPAIR PARTS FOR
O.S., U.S., AND SERVICE PARTS.
PJ6B436
AA- 2
SAA6D102E-2
SAA6D102E-2
AA- 3
FIG NO. ：A101V-01A1

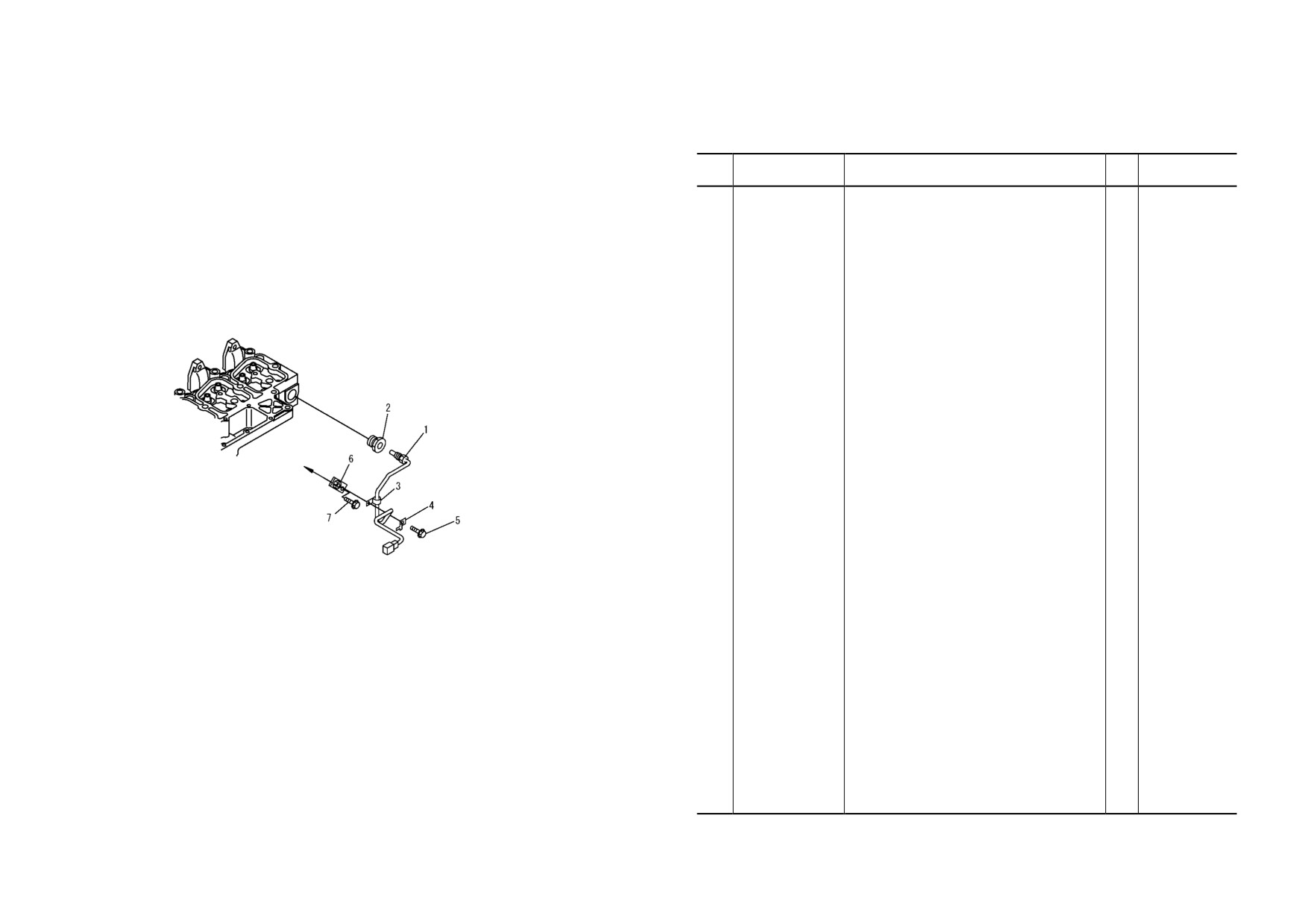

FIG. A101V-01A1 WATER TEMPERATURE SENSOR
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
7861-93-3320
SENSOR,WATER TEMPERATURE
1
26282903-
2
512-06-11281
ADAPTER
1
26282900-
3
04434-50610
CLIP
1
26282900-
4
08193-20010
CLIP
1
26282903-
5
6734-71-5610
BOLT
1
26282900-
6
6136-11-8510
BRACKET
1
26282900-
7
6732-21-5160
BOLT
1
26282900-
Cylinder Head
To Cylinder Block
PJ6B404
AA-4
SAA6D102E-2
SAA6D102E-2
AA- 5
FIG NO. ：A105P-01A0

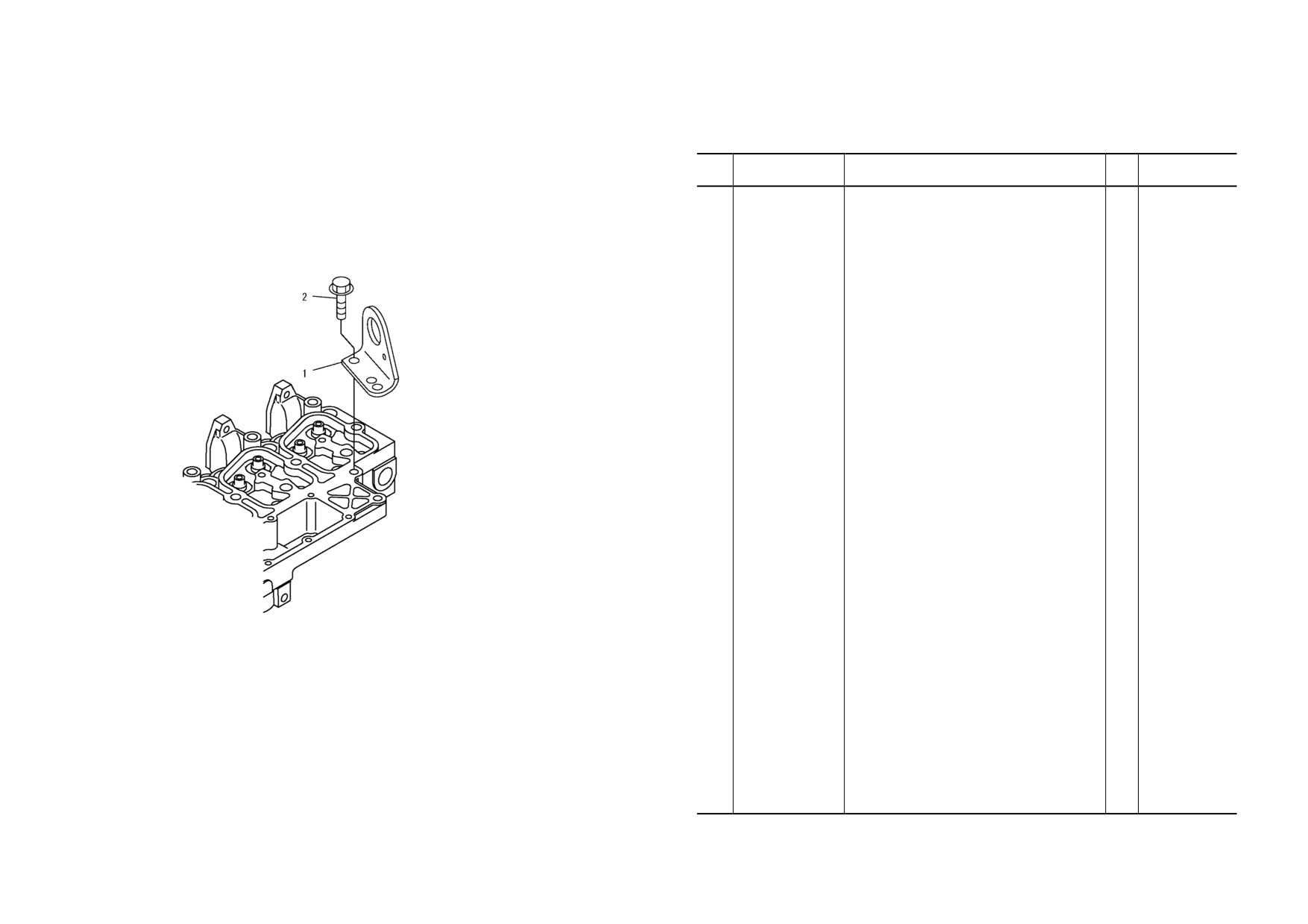

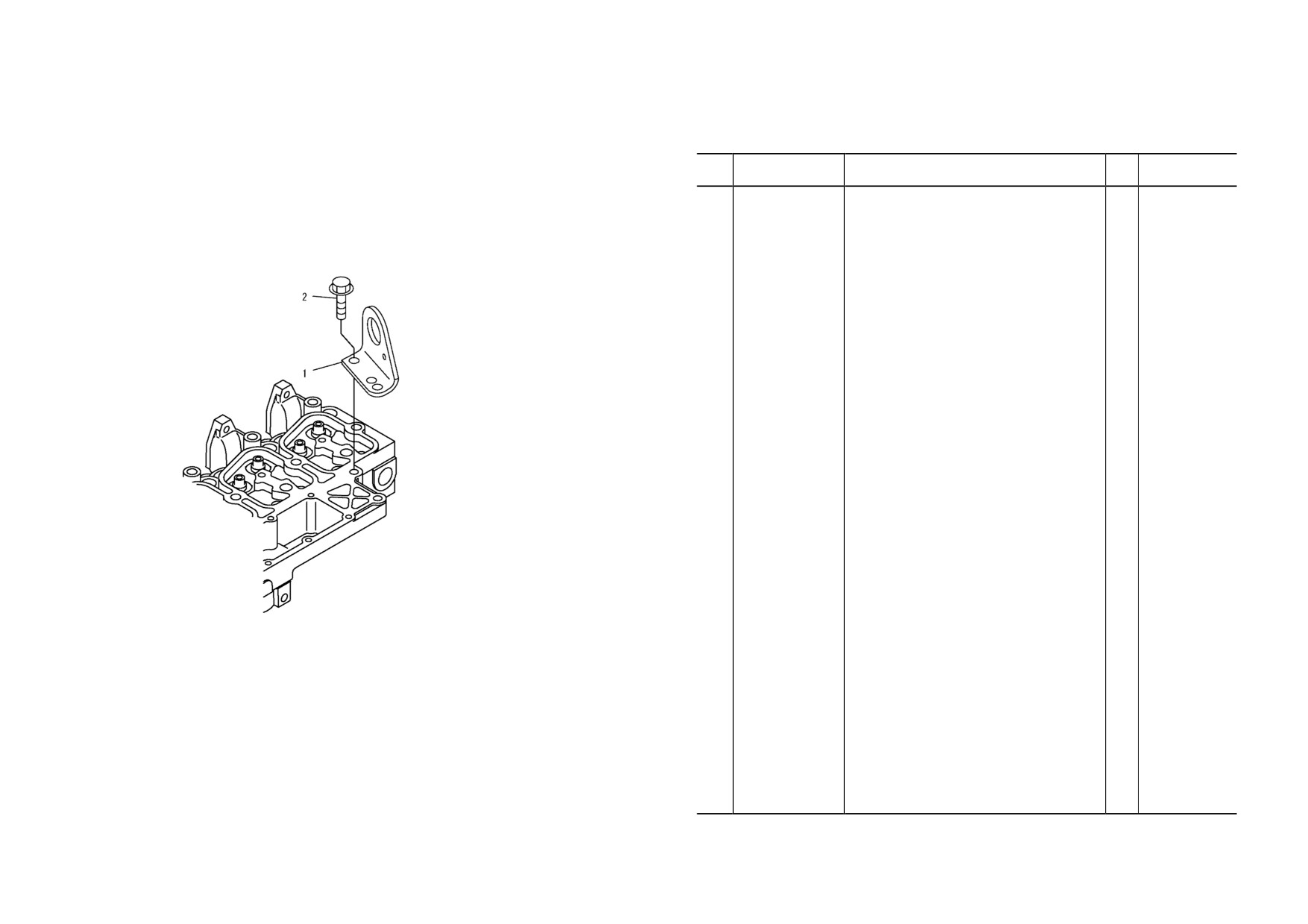

FIG. A105P-01A0 REAR HANGER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-11-1710
BRACKET,LIFTING
1
26274903-
2
6732-11-1720
BOLT
2
26274903-
Cylinder Head
PJ6B415
AA- 6
SAA6D102E-2
SAA6D102E-2
AA- 7
FIG NO. ：A111P-01A0

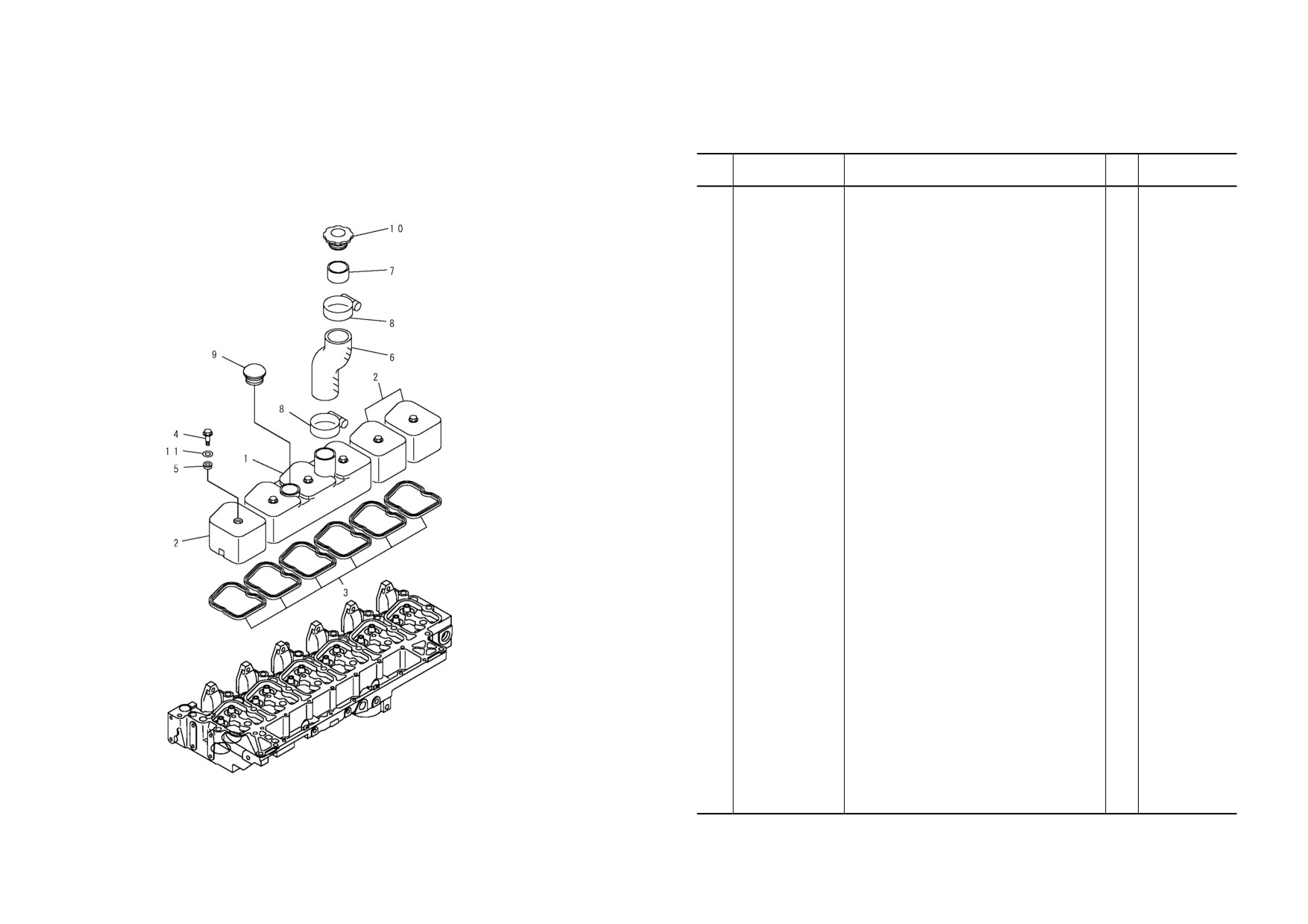

FIG. A111P-01A0 HEAD COVER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6738-11-8110
COVER
1
26274903-
2
6735-11-8120
COVER
3
26274903-
3
6732-11-8181
GASKET
6
26274903-
4
6732-11-8130
BOLT
6
26274903-
5
6732-11-8210
GASKET,SEAL
6
26277761-
6
6130-12-8720
HOSE
1
26274903-
7
6130-12-8630
PIPE
1
26274903-
8
07281-00709
CLAMP
2
26274903-
9
6204-11-8610
CAP
1
26274903-
10
6130-12-8610
CAP
1
26274903-
11
6732-11-8150
WASHER
6
26277761-
Cylinder Head
PJ6C308
AA- 8
SAA6D102E-2
SAA6D102E-2
AA- 9
FIG NO. ：A131P-01A1
FIG. A131P-01A1 AIR CONNECTOR
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6734-11-4150
CONNECTOR
1
26280116-
2
6732-11-1920
PLUG
1
26280116-
3
6732-11-4811
GASKET
1
26280116-
4
6734-11-5210
BOLT
1
26280116-
5
6736-81-8730
BOLT
2
26280116-
Air Intake Heater
Air Intake Cover
PJ6B412
AA- 10
SAA6D102E-2
SAA6D102E-2
AA- 11
FIG NO. ：A131R-01A0

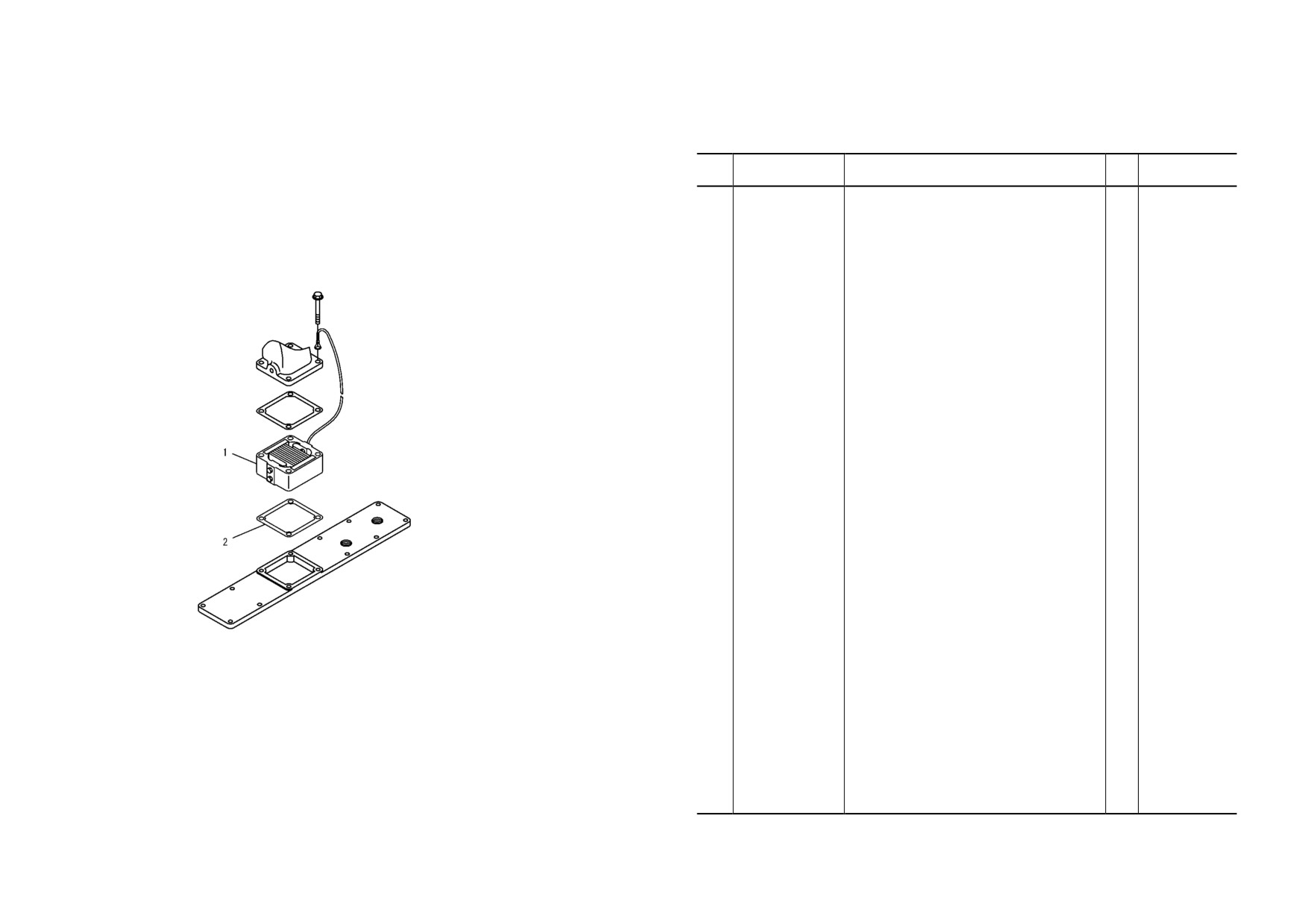

FIG. A131R-01A0 AIR INTAKE HEATER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-81-5120
HEATER ASS’Y
1
26274903-
2
6732-11-4811
GASKET
1
26274903-
Air Connector
Air Intake Cover
PJ6B399
AA- 12
SAA6D102E-2
SAA6D102E-2
AA- 13
FIG NO. ：A131V-01A0

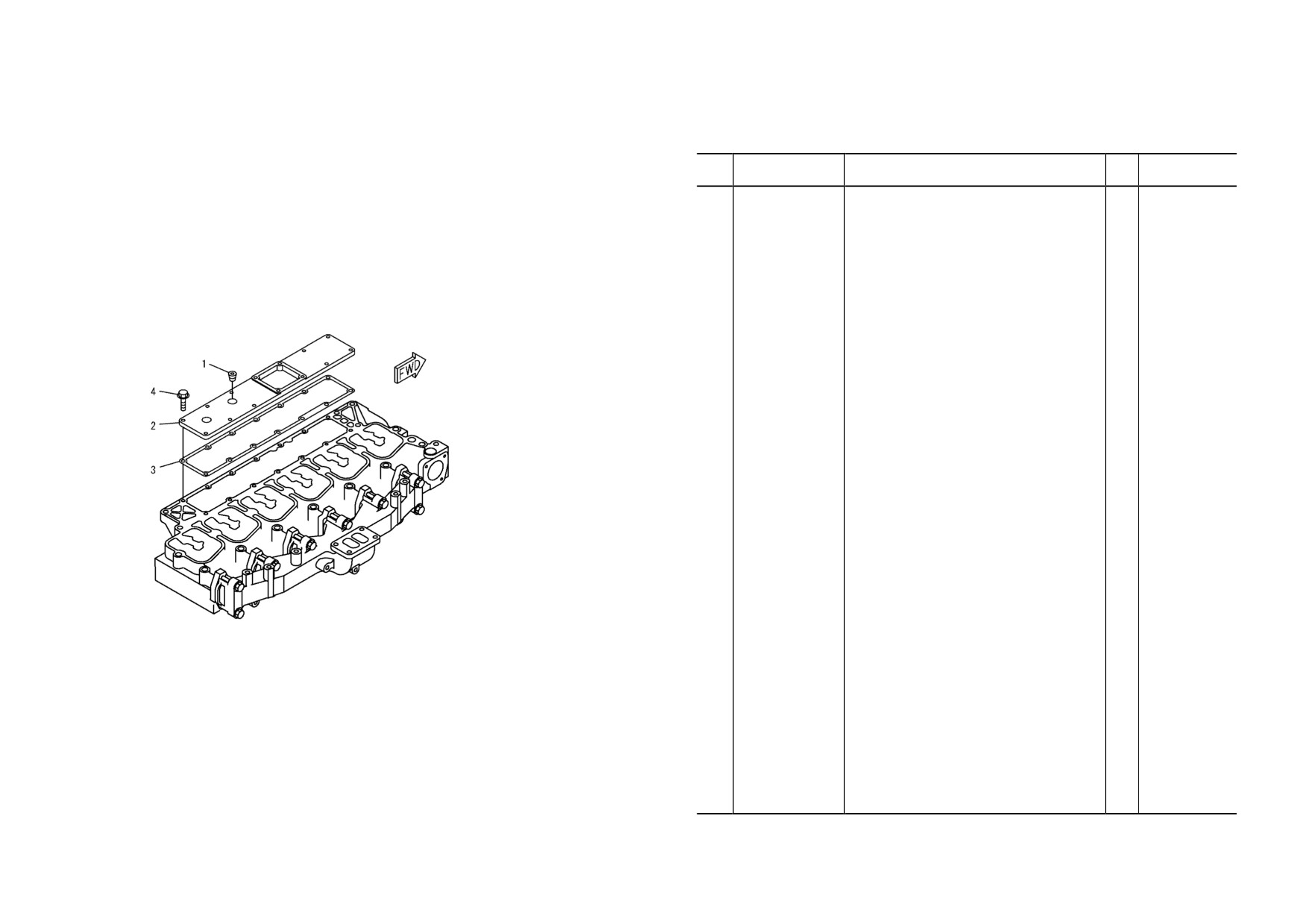

FIG. A131V-01A0 AIR INLET COVER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-11-1910
PLUG
2
26274903-
2
6735-11-4110
COVER, INTAKE
1
26274903-
3
6735-11-4812
GASKET
1
26287624-
4
6732-11-4160
BOLT
8
26274903-
Cylinder Head
PJ6B414
AA- 14
SAA6D102E-2
SAA6D102E-2
AA- 15
FIG NO. ：A151R-01A0

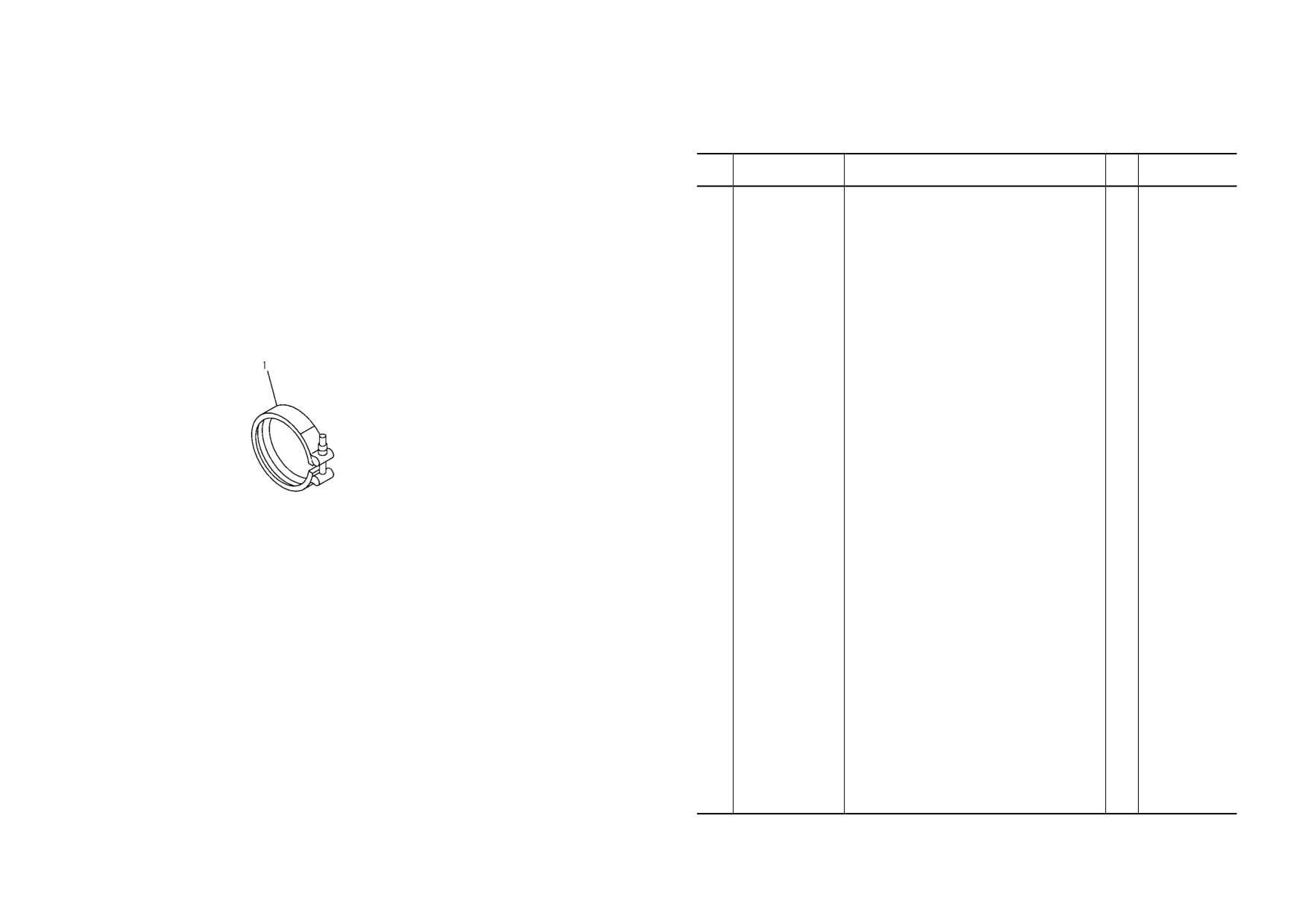

FIG. A151R-01A0 EXHAUST CONNECTOR CLAMP
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-81-8220
CLAMP
1
26274903-
PMD1036
AA- 16
SAA6D102E-2
SAA6D102E-2
AA- 17
FIG NO. ：A151T-01A0

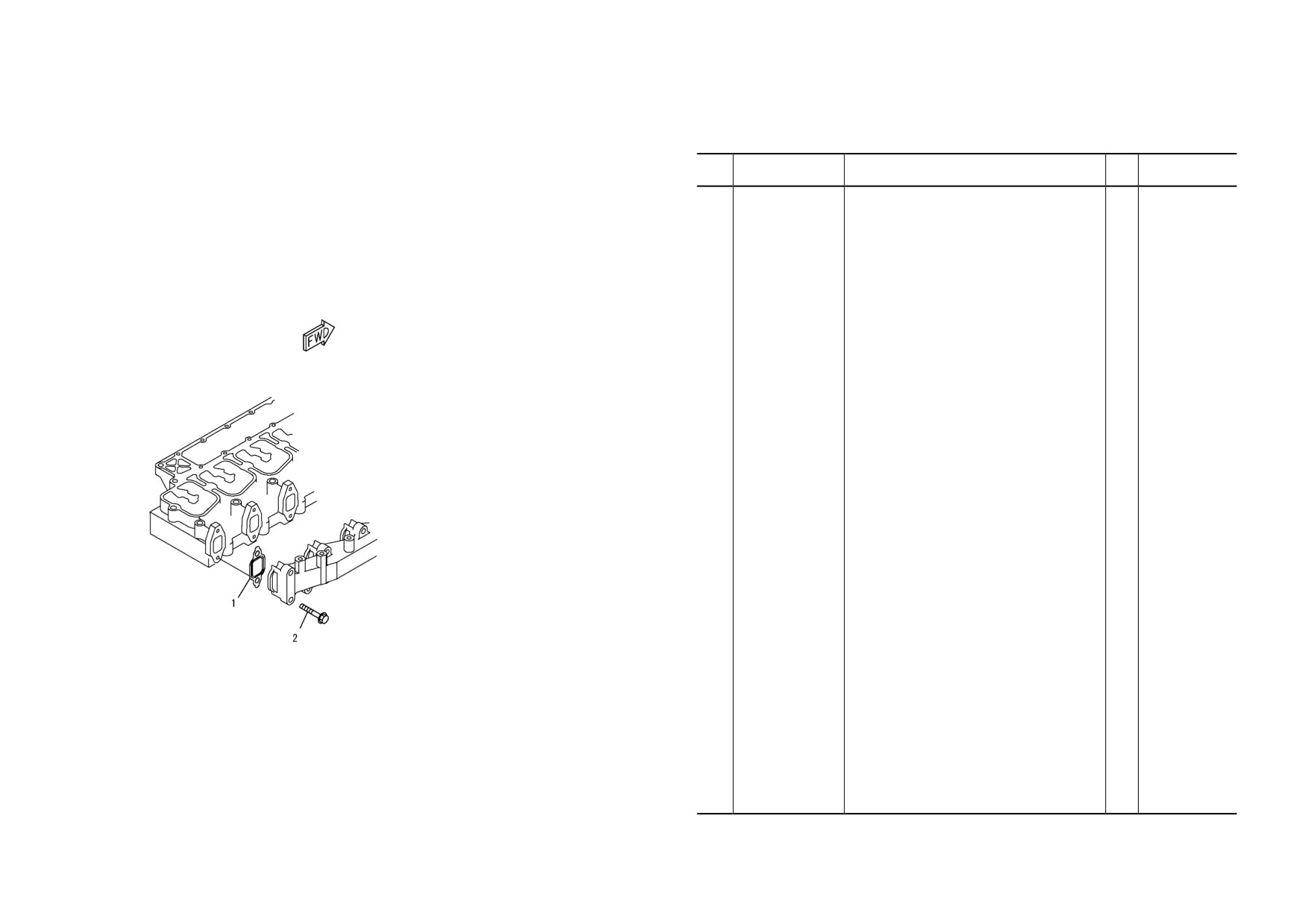

FIG. A151T-01A0 EXHAUST MANIFOLD GASKET AND BOLT
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6736-11-5820
GASKET
6
26274903-
2
6735-11-4150
BOLT
12
26274903-
Cylinder Head
Exhaust Manifold
PFD1324
AA- 18
SAA6D102E-2
SAA6D102E-2
AA- 19
