CHENGGONG CG938H. Каталог запчастей

零件目录使用说明

本零件目录包括

CG938H

型轮式装载机的零、部件，按照装配使用位置作了详细的标

注和说明。

零件目录的使用

1.1

所需的零部件，先在图册上找到它的位置，查出它的序号，然后在对应的目录表上

找到相应序号的那一格，即可查出所需零部件的代号、名称和每台机器所需的数量。

1.2

一部分组合件没有分别画出所属零件，只标以组合件。

1.3

本零件目录使用了左右位置，均按机器前进方向作基准来区别左右方向。

1.4

目录表中所列数量，是指每台机器装配时应有的件数。

1.5

注：

组——必要时使用体积、厚度或数量加以对照；

△——没有进行图示的零部件；

——中国国家标准；

——中国机械工业部标准。

订购零部件

凡订购本公司机器的零部件时请提供下列说明：

写明机器的型号、出厂编号和出厂日期；

写明所订零部件的代号、名称、实际所需数量。

注意事项

3.1

更换零部件时，除标准件、外购件外，务必使用本公司机器的零部件，而不要随意

使用其它产品零部件，以防止机器遭受严重损坏后不能更换使用。

3.2

产品的结构和性能在不断改进和提高，本零件目录的内容可能会与出厂产品实际结

构稍有差异，除较大变动要补充说明外，一般均在新版时进行修改，请用户在使用时加以

注意。

INSTRUCTIONS FOR THE USE OF

THE PARTS CATALOGUE

All the parts of CG938H Wheel Loader, marked and described in detail, are included in this

parts catalogue.

The use of parts catalogue

1.1First, check up the required parts which are marked by sign number from the figure. Then,

in accordance with this sign number, you can the part’s code No., name and quantity for each

machine from the parts catalogue table.

1.2Some assembles are not given the all parts but only the assemble themselves.

1.3The direction of right or left used in this parts catalogue is accordance with the forward

direction of the machine.

1.4The quantity on the parts catalogue table is the possessive quantity for the use of each

machine.

1.5Note:

Group-to contrast with volume, thickness and quantity when it is necessary.

△

-The parts does not show in figure.

GB-Chinese standard.

JB-Standard of the First Machine-Building Ministry of China.

2.Order the spare parts

Those who order the spare parts should give the detail contents described below.

1.The model of the grader

、

the number of manufacture and date production.

2.The code No., the name and required quantity of the parts.

3.Attention

3.1When the parts of the grader need replace, you have to replace them with the parts made by

our work. In order to prevent the machine from damage, don't’ use the parts of other to vehicle to

substitute for with exception of the standard-parts.

3.2The construction of the grader will be given some improvements after a certain period time.

So there will be some differences in the parts catalogue.

目

录

Contents

发动机装置

·················································································································································· 5

Engine Assembly

变矩器变速箱

·············································································································································· 16

Torque Converter Transmission

变速油路及操纵系统

·································································································································· 19

Transmission Oil Line And Control

前桥、后桥

·················································································································································· 21

Front Axle & Rear Axle

前传动轴

······················································································································································ 38

Front Driving Shaft

转向系统

Steering System

制动系统

Braking System

工作液压系统

·············································································································································· 74

Implement Hydraulic System

后传动轴

···················································································································································· 102

Rear Drive Shaft

车身车架

Frame Group

驾驶室

Cab

工作装置

···················································································································································· 127

Implement

电气设备

···················································································································································· 134

Electrical Apparatus

找平装置

···················································································································································· 146

Level Device

空调系统

···················································································································································· 152

Air-conditioner System

风扇控制系统

············································································································································ 156

Fan Control System

提升臂架支承装置

···································································································································· 161

Safety Support Of Lift Cylinder

手动集中润滑油路系统……………………………………………………………………………….

164

Manual Ceneralized Lubricating System

Z38G01

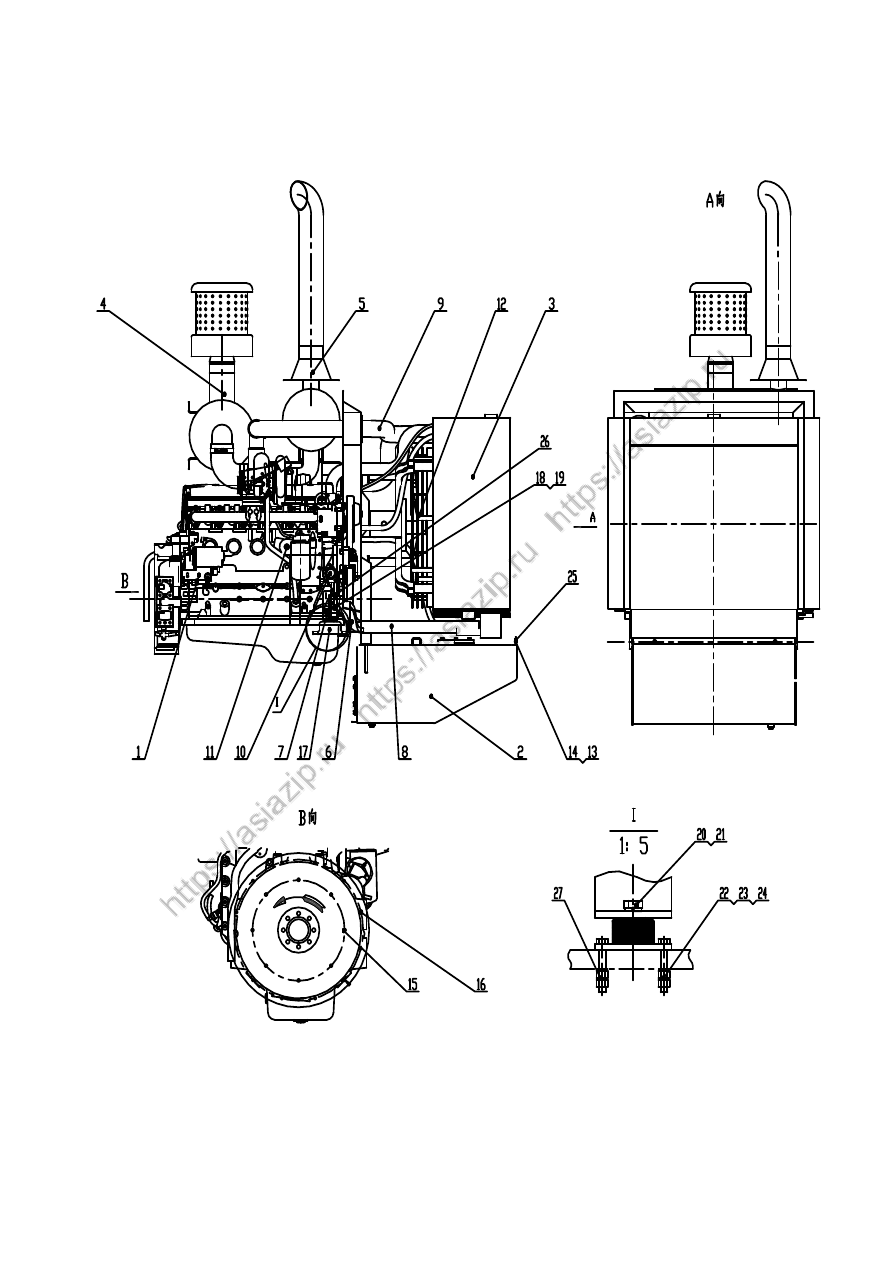

发动机装置 Engine Assembly

序号

Item

代号

Part No.

名

称

Parts Name

数量

Q'ty

备注

Remark

QSB6.7(F-CG35-QSB6.7)

柴油机 Diesel Engine

Z38G0101

燃油箱总成

Fuel Tank Assembly

Z38G0102

冷却系统

Cooling Assembly

Z38G0103

进气系统

Admission Assembly

Z38G0104

排气装置

Exhaust Assembly

Z50G0107T17

进回油管路

Inlet Oil Hose Assembly

Z35G0110T4

柴油机后支架（左）Back Support

Z38G0105

进水管总成

Inlet Hose Assembly

Z38G0106

回水管总成

Outlet Hose Assembly

10 Z50G010000001T7

取暖回水管接头 Tie_Out Warm Water Pipe

11 Z50G010000002T7

取暖进水管接头 Tie_in Warm Water Pipe

711/9-9/32.5°/PAG/2ZR/6

0/5x8.5/BC90A

风扇

Fan

13 GB/T5783-2000

螺栓 M10X30

Bolt M10X30

14 GB/T93-1987

垫圈 10

Washer 10

15 3/8X18.5-16

螺栓

Bolt

16 GB/T5783-2000

螺栓 M10X40

Bolt M10X40

17 EA400

减震垫

Damper

18 GB/T5783-2000

螺栓 M12X35

Bolt M12X35

19 GB/T93-1987

垫圈 12

Washer 12

20 GB/T5782-2000

螺栓 M27X50

Bolt M27X50

21 GB/T93-1987

垫圈 27

Washer 27

22 GB/T5782-2000

螺栓 M14X75

Bolt M14X75

23 GB/T93-1987

垫圈 14

Washer 14

24 GB/T6170-2000

螺母 M14

Nut M14

25 GB/T97.1

垫圈 10

Washer 10

26 GB/T97.1

垫圈 12

Washer 12

27 GB/T97.1

垫圈 14

Washer 14

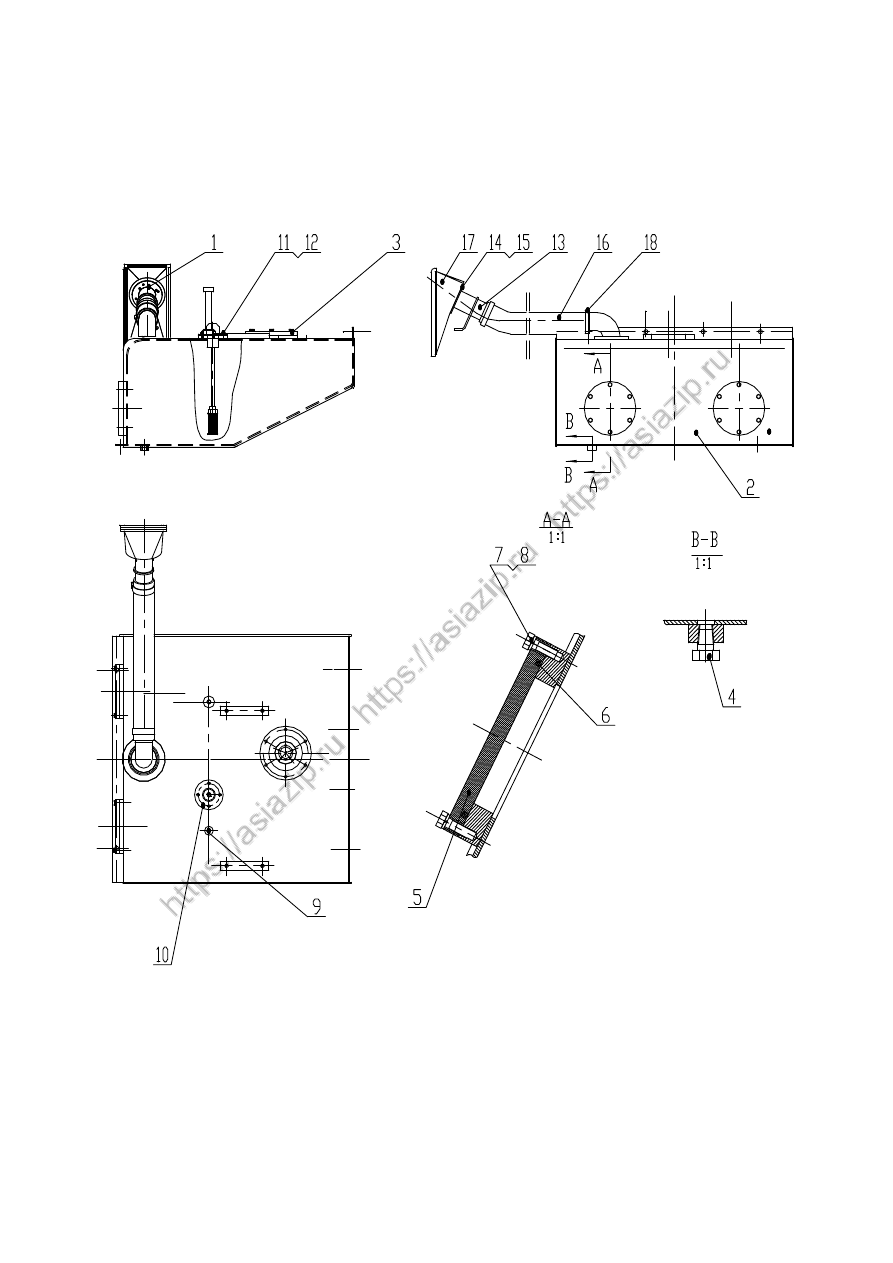

Z38G0101 燃油箱总成 Fuel Tank Assembly

序号

Item

代号

Part No.

名

称

Parts Name

数量

Q'ty

备注

Remark

TK50C

空气滤清器

Air Cleaner

Z38G010101

燃油箱体

Tank Body

Z35C010100001

连接法兰

Jioned Flange

ZL30B.1.1-10

放油塞

Thread Plug

ZL30B.1.1-2

发兰盘

Flange

GB/T3452.1-1982 O型圈132X2.65

O-Ring 132X2.65

GB/T5783-2000

螺栓M8X25

Bolt M8X25

GB/T93-1987

垫圈8

Washer 8

LG-ZL50-13A

呼吸螺塞

Breath Plug

Z38G010102

吸油管总成

Suck Vitta Assembly

GB/T93-1987

垫圈5

Washer 5

GB/T5783-2000

螺栓M5X20

Bolt M5X20

Z50G010103T17

焊接管总成

Jionting Pipe Assembly

GB/T70.1-2000

螺栓M8X12

Bolt M8X12

GB/T93-1987

垫圈8

Washer 8

Z38G010100002

胶管

Collloid Pipe

Z38G010100001

胶套

Collloid Knot

φ65-φ75

卡箍

Clip

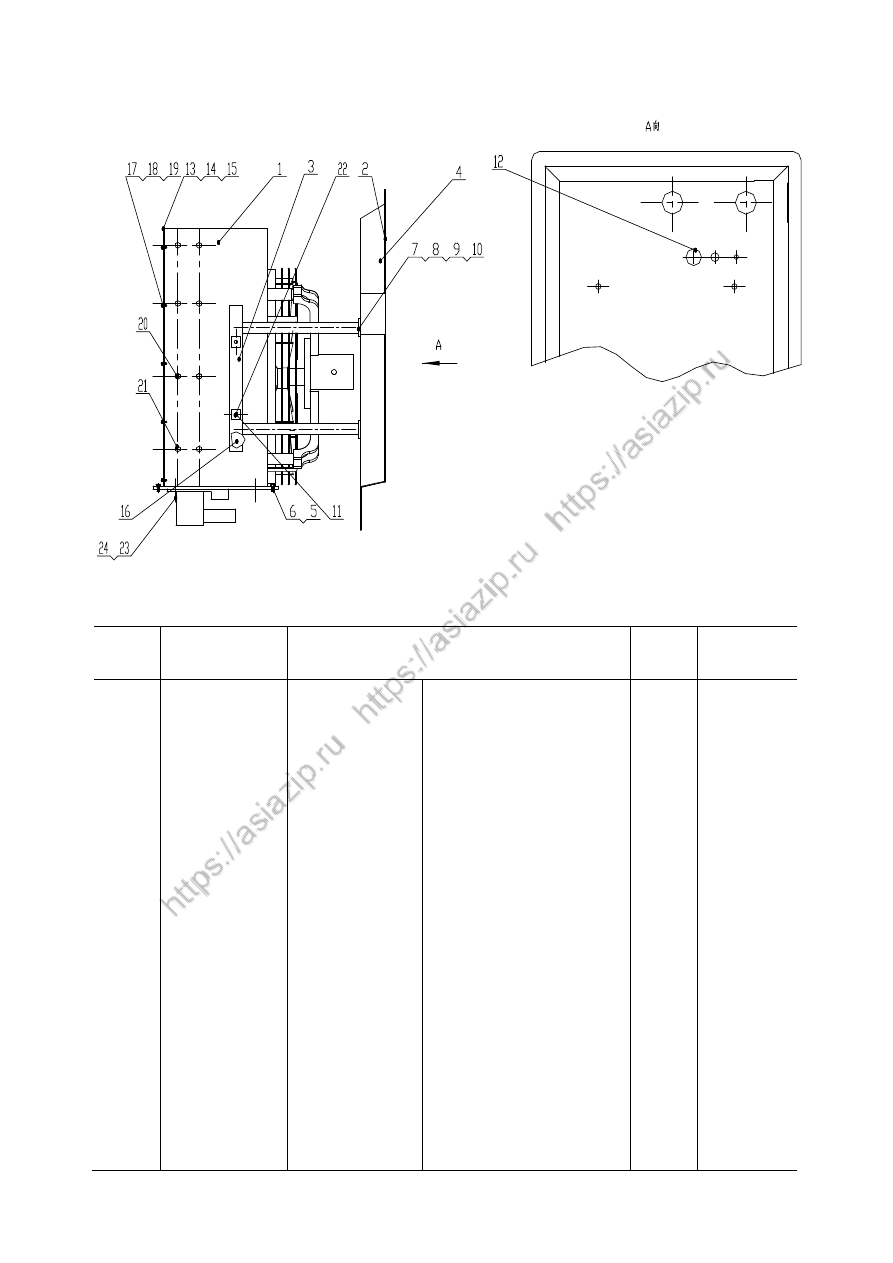

Z38G0102 冷却系统 Cooling Assembly

序号

Item

代号

Part No.

名

称

Parts Name

数量

Q'ty

备注

Remark

Z38G010204

水箱总成

Water Tank Assembly

密封橡胶条

Rubber Bar

4米

Z38G010201

支架结合组

Support Assembly

Z38G010202

隔板组件

Clapboard Assembly

GB/T93-1987

垫圈12

Washer 12

GB/T5783-2000

螺栓M12X40

Bolt M12X40

GB/T5783-2000

螺栓M10X20

Bolt M10X20

GB/T93-1987

垫圈10

Washer 10

GB/T6170-2000

螺母 M10

Nut M10

GB/T955-2000

垫圈10

Washer 10

GB/T70.1-2000

螺栓M10X25

Bolt M10X25

Z38G010200003

橡胶护套

Collloid Knot

1组

Z38G010200004

板一

Board One

Z38G010200005

板二

Board Two

球头密封胶条

Rubber Bar

2米

Z38G010203

支架结合组二

Support Assembly Two

Z38G0102 冷却系统 Cooling Assembly

序号

Item

代号

Part No.

名

称

Parts Name

数量

Q'ty

备注

Remark

GB/T 5783-2000 螺栓M8X15

Bolt M8X15

GB/T93-1987

垫圈8

Washer 8

GB/T97.1-2000

垫圈8

Cushion 8

GB/T 5783-2000 螺栓M12X25

Bolt M12X25

GB/T97.1-2000

垫圈12

Cushion 12

GB/T97.1-2000

垫圈10

Cushion 10

GB/T 5783-2000 螺栓M8X20

Bolt M18X20

GB/T97.1-2000

垫圈8

Cushion 8

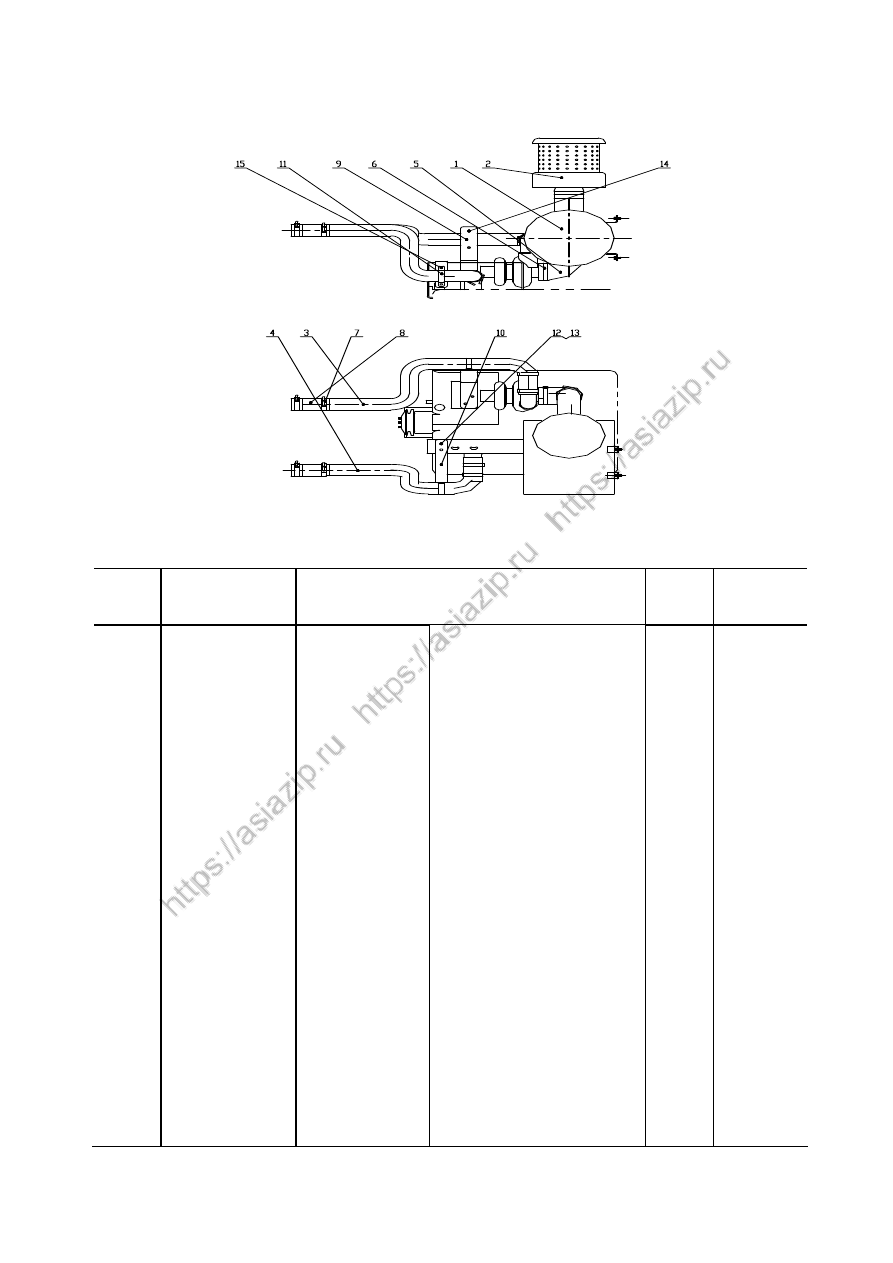

Z38G0103

进气系统 Admission Assembly

Z38G0103

进气系统 Admission Assembly

序号

Item

代号

Part No.

名

称

Parts Name

数量

Q'ty

备注

Remark

A927

空气滤清器

Air Cleaner

KA50-5

空气预滤器

Air Beforehand Cleaner

Z38G010301

中冷器进气管I

Inlet Gas Pipe Of Middle

Cooling I

Z38G010302

中冷器进气管

Ⅱ

Inlet Gas Pipe Of Middle

Cooling Ⅱ

Z50G010300001T7 进气胶管

Inlet Gas Colloid Pipe

Φ130-Φ140

卡箍

Clamp

卡箍

Clamp

IC9288

硅胶管

Silica Gel Pipe

Z38G010300002

支架一

Bracket one

Z38G010300001

支架

Bracket

Z50G010300003T17 夹子

Clip

GB/T 5783-2000

螺栓M10X25

Bolt M10X25

GB/T93-1987

垫圈10

Washer 10

GB/T6170-2000

螺母 M10

Nut M10

GB/T97.1-2000

垫圈10

Cushion 10

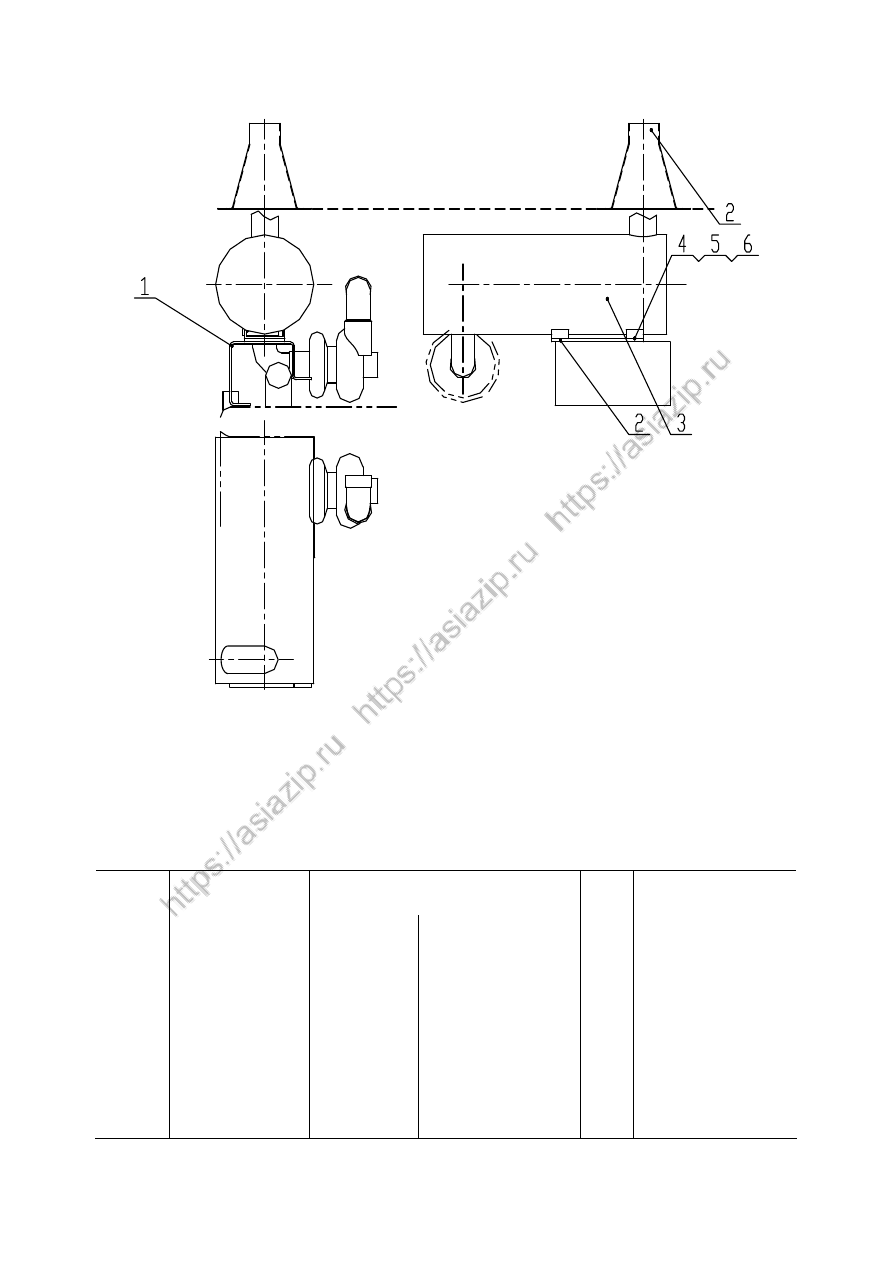

Z38G0104

排气装置 Exhaust Assembly

Z38G0104

排气装置 Exhaust Assembly

序号

Item

代号

Part No.

名

称

Parts Name

数量

Q'ty

备注

Remark

Z50G010400001T17 支架

BBracket Support

Z35G010400002T4 垫板

Cushion

XH.G503X.W

消声器

Muffler

GB/T5783-2000

螺栓 M10×25

Bolt M10×25

GB/T6170-2000

螺母 M10

Nut10

GB/T93-1987

垫圈 10

Washer 10

Z38G010401

排气尾管总成

Bolt M10×25

Z38G0105 进水管总成 Inlet Water Pipe Assembly

Z38G0105

进水管总成 Inlet Water Pipe Assembly

序号

Item

代号

Part No.

名

称

Parts Name

数量

Q'ty

备注

Remark

Z38G010500001

进水胶管

Innet Water Pipe

Φ50-Φ60

卡箍

Clam

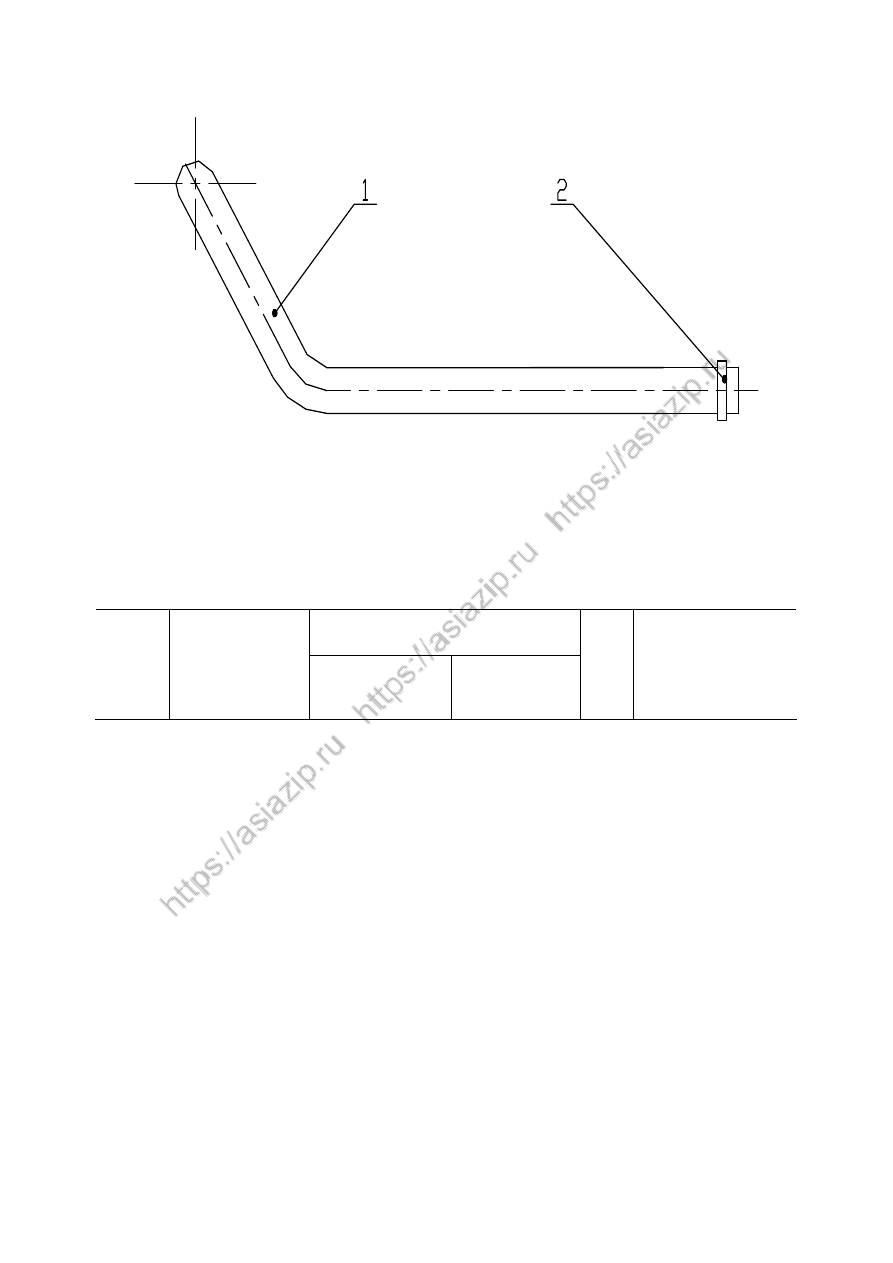

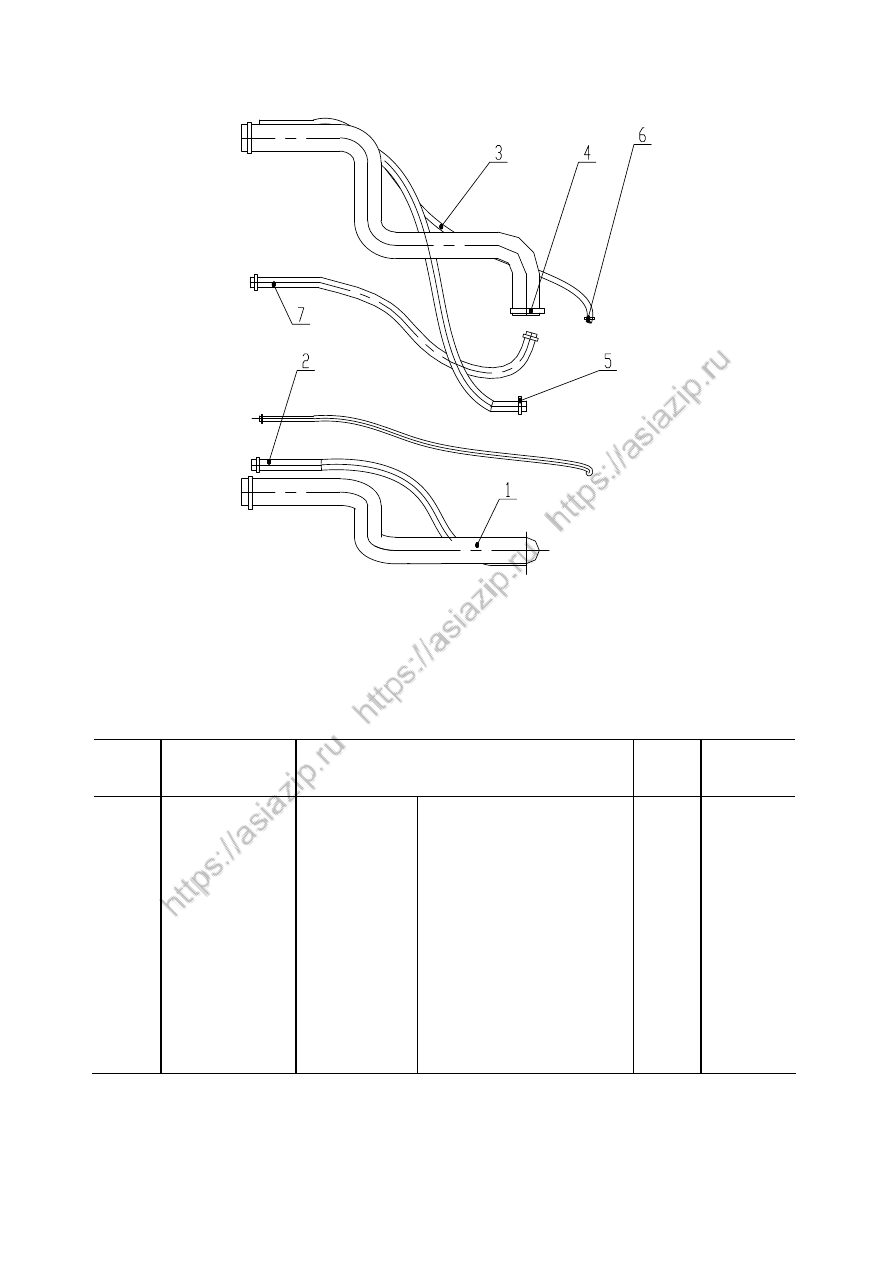

Z38G0106

回水胶管总成 Outlet Water Pipe Assembly

Z38G0106

出水胶管总成 Water Outlet Pipe Assembly

序号

Item

代号

Part No.

名

称

Parts Name

数量

Q'ty

备注

Remark

Z38G010600001

出水胶管

Inlet Water Pipe

Z38G010600002

φ21补水管

Supply Water

Pipe

3米

Z38G010600003

φ10蒸汽管

Steam

Pipe

2米

φ50-φ60

卡箍

Clamp

φ20-φ30

卡箍

Clamp

φ10-φ20

卡箍

Clamp

Z38G010600004

φ16小循环管

Small Circle

Pipe

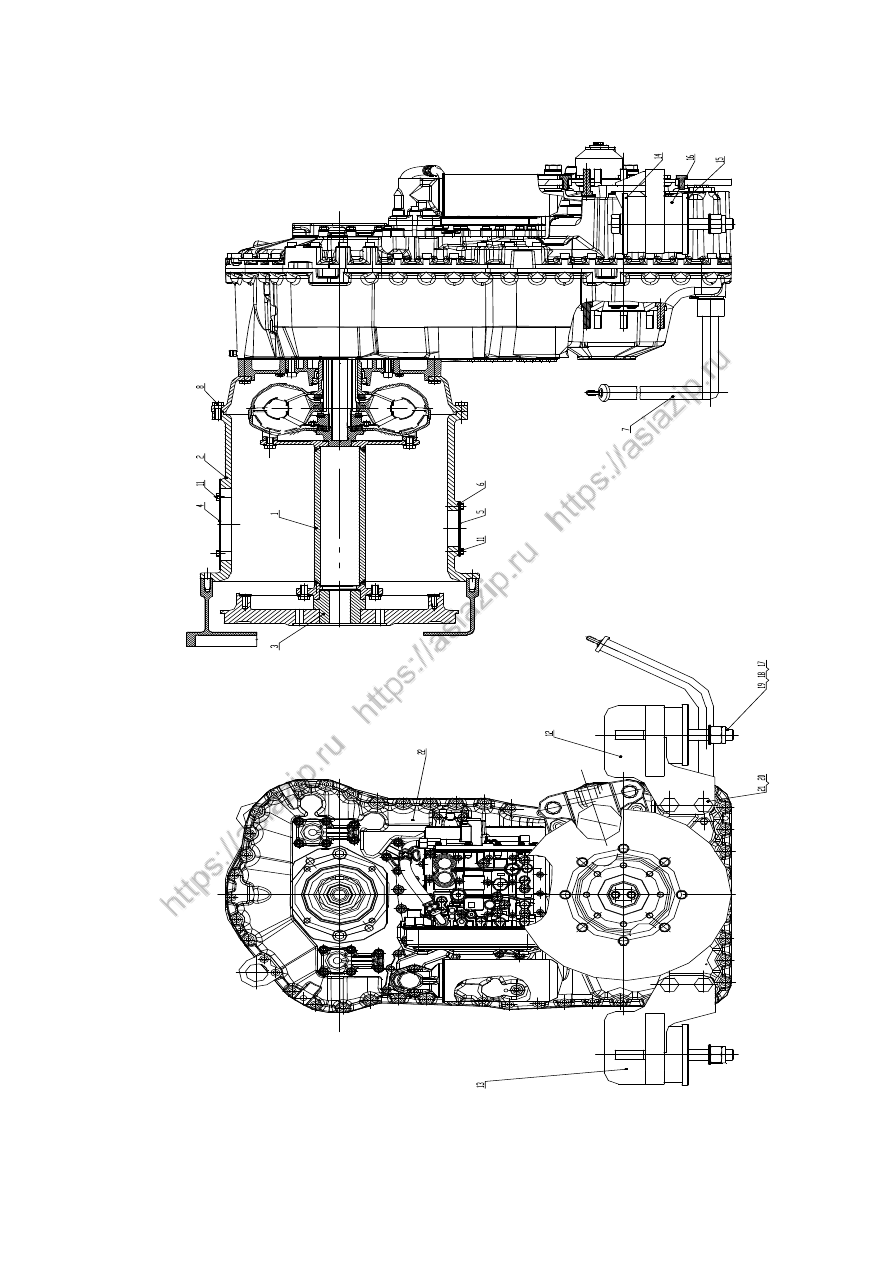

Z38G03T2

变矩器变速箱

Torque Converter Transmission

序号

Item

代号

Part No.

名

称

Parts Name

数量

Q'ty

备注

Remark

Z38G0301T2

连接筒

Horn Driving Sleeve

Z38G030000001T2

变矩器壳体

Pump Body

Z38G030000002T2

过渡套

Interim Cover

Z35G020000002T1

上盖板

Plate

Z35G020000003T1

下盖板

Plate

Z35G020000004T1

下盖板纸垫

Seal Gasket

Z35G0309T1

加油管总成

Oil

Pipe

Assembly

GB/T5783-2000

螺栓M10X30

Bolt M12X30

GB/T5783-2000

螺栓M8X16

Bolt M8X16

Z35G0303T3

变速箱左支架

Left Support

Z35G0302T3

变速箱右支架

Right Support

Z35G030000003T3

垫板Ⅱ

Washer

Ⅱ

Z35G030000004T3

调整垫Ⅱ

Adjusting Shim

Ⅱ

2组

CB-2205-1

减振垫

Pamper

外购LORD

GB/T97.2-2002

垫圈24

Washer 24

GB/T889.1-2000

螺母

M24 Bolt

M24

GB/T5783-2000

螺栓M24X200

Bolt M24X200

GB/T97.2-2002

垫圈20

Washer 20

GB/T5783-2000

螺栓M20X40

Bolt M20X40

ZF 4WG-158

双变总成

Torque Converter Transmission

外购德国ZF

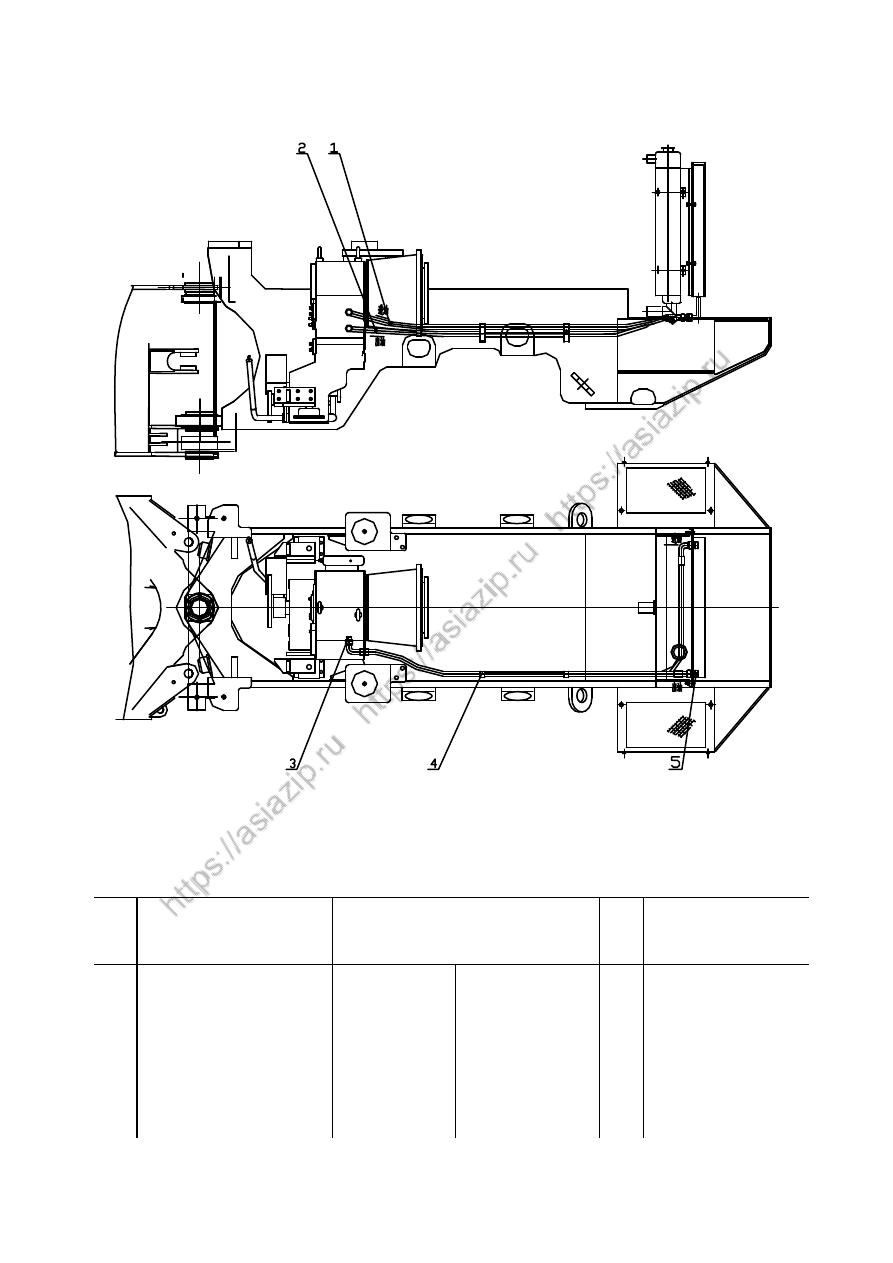

Z38G04T1

变速油路及操作系统

Transmission Oil Line And Control System

Z38G04T1

变速油路及操作系统

Transmission Oil Line And Control System

序号

Item

代号

Part No.

名

称

Parts Name

数量

Q'ty

备注

Remark

20491-36-12TZ/20411-30-12
ZX1T12GTX2140

软管总成

Hose

20491-30-12TZ/20491-36-12
ZX1T12GTX2560V180

软管总成

Hose

3 1CO-36-16Z

接头

Connector

4 TTPG1-430

管夹总成

Clamp

5 1CH-30-27DZ

接头

Connector

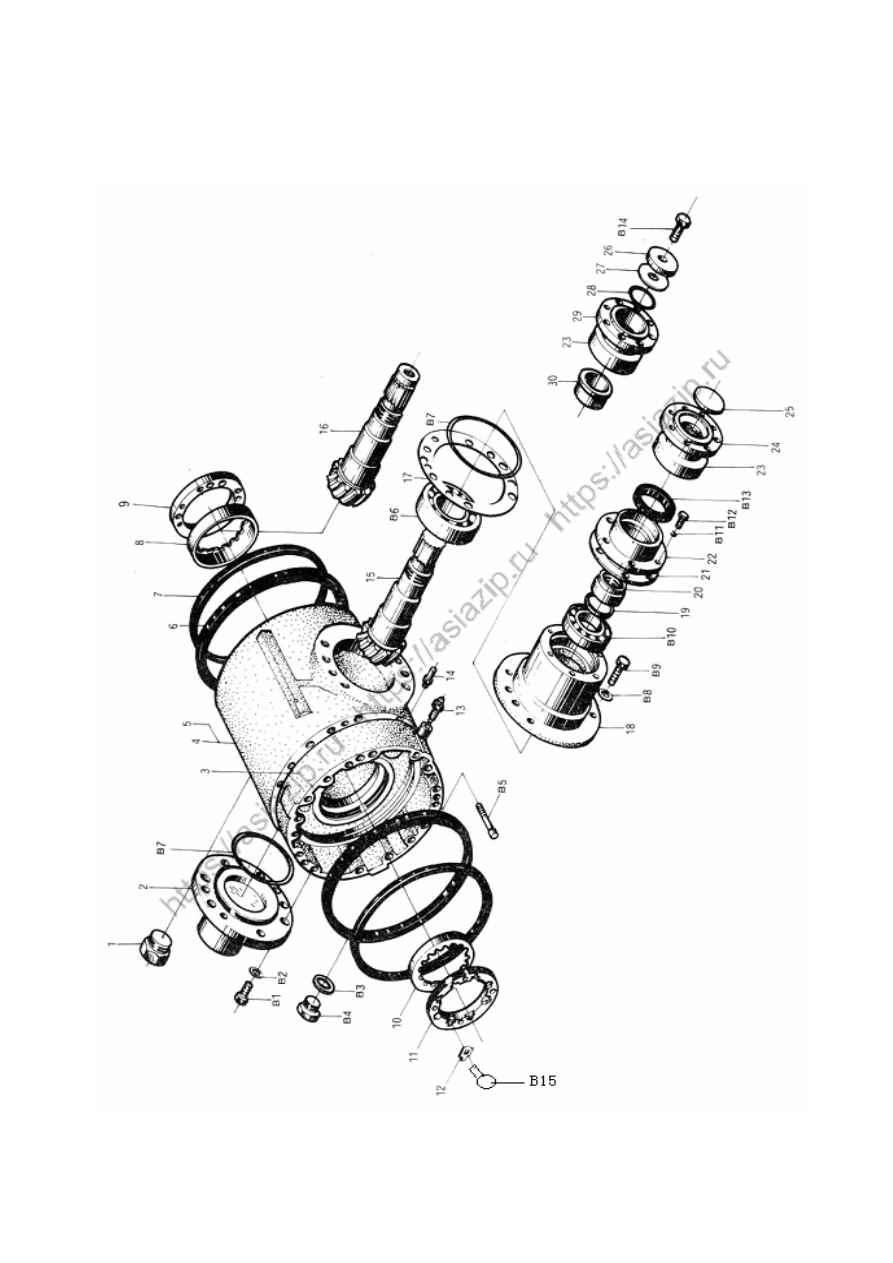

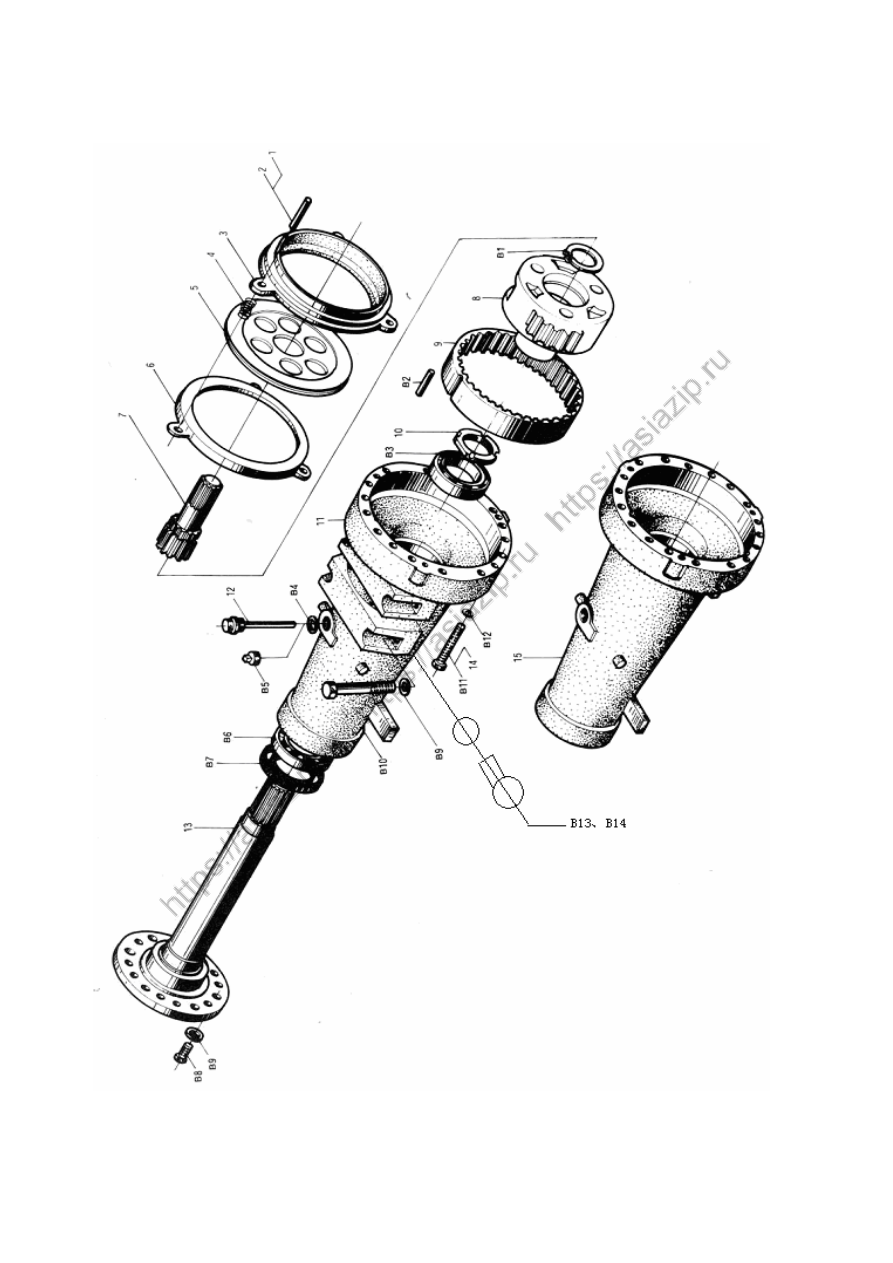

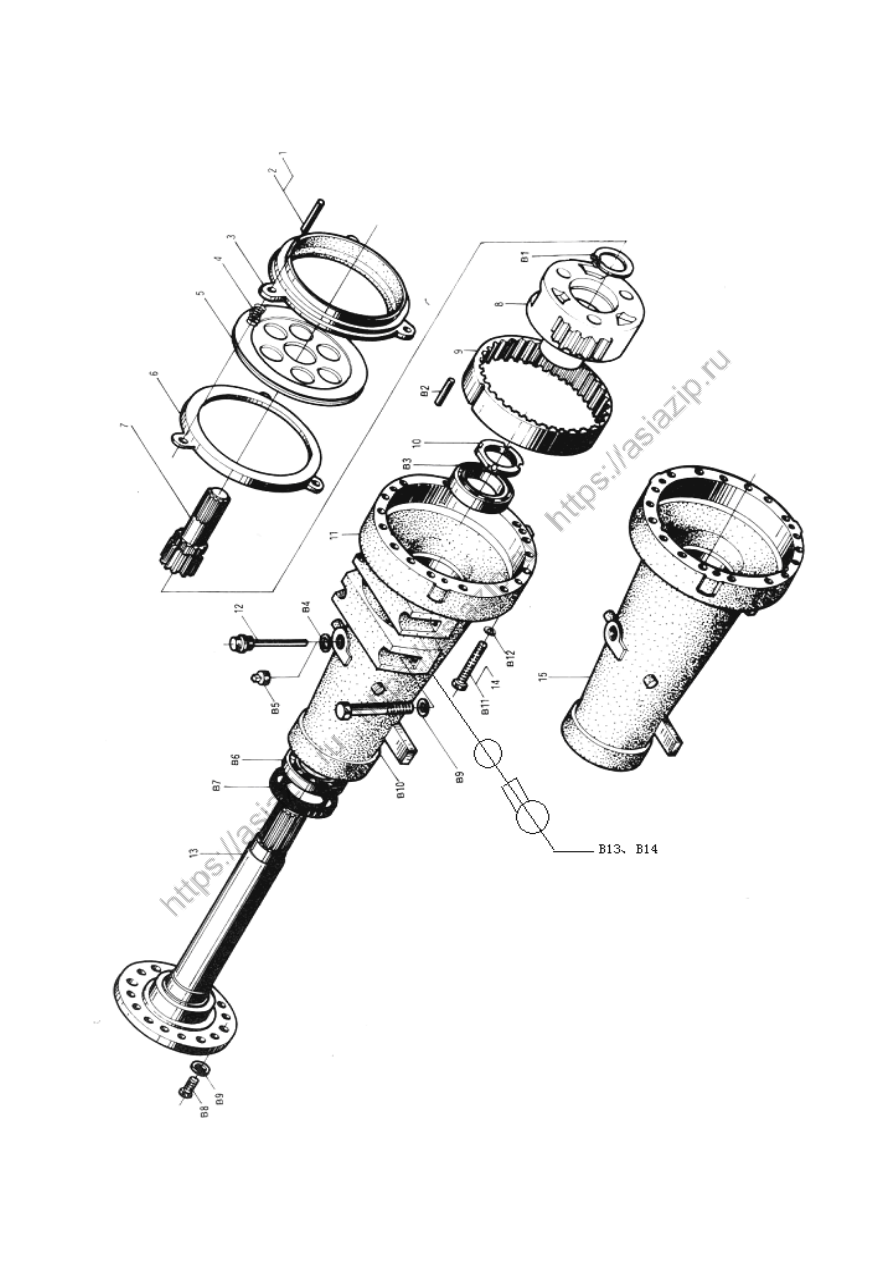

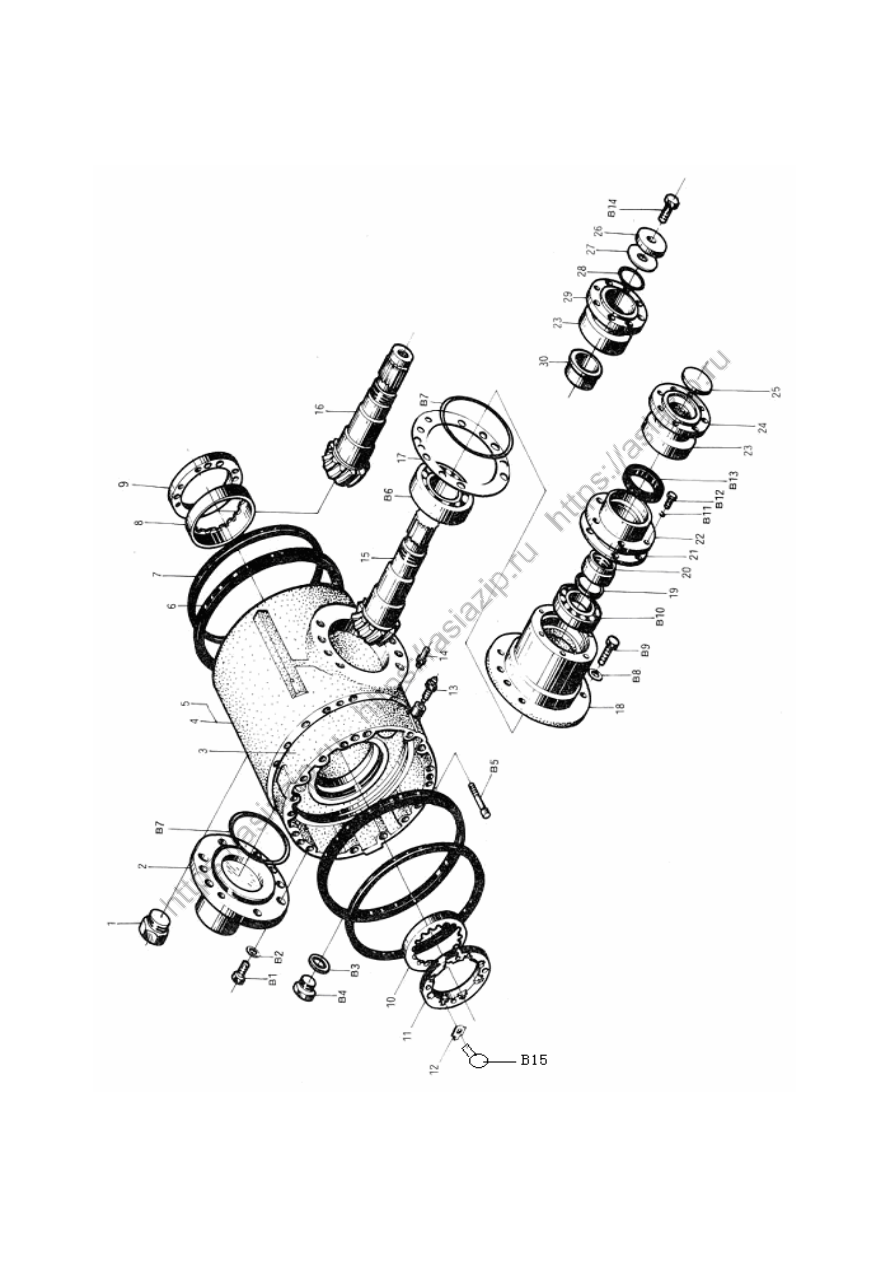

Z35G05T9

后桥

Rear Axle

Z35G06T9

前桥

Front Axle

序号

Item

代号

Part No.

名

称

Parts Name

数量

Q'ty

备注

Remark

1 GB119-86

销

A12X120 Pin

A12X120

2 GB119-86

销

A12X100 Pin

A12X100

3 Z30060000006c

制动器活塞

Piston

4 06F5701

回位弹簧

Spring

5 Z35F0602

制动片

Brake

Disc 2

6 Z30060000005c

支板

Axle

7 Z30060000007

太阳轮

Sun

Gear

8 Z300602

轮边减速器

Hub

Reducer

9 Z30060000004

内齿圈

Inner

Gear

Ring

10 Z30060000003

锁紧螺母

Nut

11 Z30060000002

桥壳

Axle

Case 2

12 Z300605

呼吸螺塞总成

Connector

13 Z30060000001

半轴

Half

Shaft 2

14 Z30060000009

桥壳长螺栓

Bolt

15 Z30050000001

桥壳

Axle

Case 2

B1 GB894.1-86

挡圈

Snap Ring 75

B2 GB120-86

销

B12X35 Pin

B12X35

B3 GB297-94

轴承

32018 Bearing

32018 2

B4 Q/CG302.11-95

垫圈

33 Washer

B5 Q/CG302.12-95

螺塞

Plug

M33X2

B6 GB297-94

轴承

32020 Bearing

32020 2

Z35G05T9

后桥

Rear Axle

Z35G06T9

前桥

Front Axle

序号

Item

代号

Part No.

名

称

Parts Name

数量

Q'ty

备注

Remark

B7 GB13871-92

密封圈

FB150180 Seal Ring FB150180

B8 GB5786-86

螺栓

M24X2X50 Bolt

M24X2X50

B9 GB97.2-85

垫圈

24 Washer

前桥

，后桥

B10 GB5785-86

螺栓

M24X2X180 Bolt

M24X2X180

B11 GB5785-86

螺

栓

M16X1.5X100

Bolt M16X1.5X100

B12 GB97.2-85

垫圈

16 Washer

B13 JB982-77

垫圈

14 Washer14

B14 CG302.12-95

螺塞

M14X1.5 Plug

M14X1.5

Z35G0501T9

齿箱

Differential

Z35G0601T9

序号

Item

代号

Part No.

名

称

Parts Name

数量

Q'ty

备注

Remark

1 CG50.6.5

磁铁油塞

Plug

2 Z30050100001

后支承轴

Shaft

3 Z30060100011c

制动器油缸

Cylinder

4 Z30050100005c

齿箱壳体

Differential Body

5 Z30060100001c

齿箱壳体

Differential Body

6 Z30060000010

活塞密封圈（II）

Seal Ring (II)

7 Z30060000011

活塞密封圈（I）

Seal Ring (I)

8 Z30060100005

轴承外套（大端）

Sleeve

9 Z30060100009

调整螺母（大端）

Nut

10 Z30060100013

轴承外套（小端）

Sleeve

11 Z30060100014

调整螺母（小端）

Nut

12 Z30060100006

调整螺母锁紧垫圈

Nut

13 Z30060100027

排气塞

Plug

15 Z35G050100001T9

主动锥齿轮（后桥） Drive Bevel Gear

16 Z35G060100001T9

主动锥齿轮（前桥） Drive Bevel Gear

17 Z30060100016

主传动调节垫片

Gasket

1组

18 Z35G060100003T9

中壳

Housing

19 GB858-88

垫圈64

Gasket 64

20 GB/T810-88

螺母M64X2

Nut M64X2

21 Z30060100024

小盖纸垫

Gasket

22 Z40F060100005

小盖

Cap

23 CG50.6.1-21a

防尘罩

Dust Cowl

24 Z40F050100002

连接凸缘（后桥）

flange

Z35G0501T9

齿箱

Differential

Z35G0601T9

序号

Item

代号

Part No.

名

称

Parts Name

数量

Q'ty

备注

Remark

25 CG50.6.1-23S

挡板

Retaining

Plate

26 06F1802

压板

Plate

GB858-88

垫圈

Gasket 64

28 06F3501

型圈

o-Ring

29 Z40F060100004

连接凸缘（前桥）

Flange

GB/T810-88

螺母

M64X2

Nut M64X2

B1 GB5786-86

螺栓

M16X1.5X40 Bolt

M16X1.5X40

B2 GB97.2-85

垫圈

16 Washer

16 8

B3 Q/CG302.11-95

垫圈

33 Washer

33 2

B4 Q/CG302.12-95

螺塞

M33X2 Plug

M33X2

B5 GB70-85

螺钉

M12X80 Screw

M12X80

B6 GB297-94

轴承

33215 Bearing

33215 1

B7 GB3452.1-92

形圈

140X3.55 O-Ring

140X3.55

前桥

，后桥

B8 GB97.2-85

垫圈

16 Washer

16 8

B9 GB5786-86

螺栓

M16X1.5X35 Bolt

M16X1.5X35

B10 GB297-94

轴承

33213 Bearing

33213 1

B11 GB97.2-85

垫圈

8 Washer

8 6

B12 GB5786-86

螺栓

M8X1X25 Bolt

M8X1X25

B13 GB13871-92

密封圈

075095

Seal Ring 075095

B14 GB5782-86

螺栓

M16X50 Bolt

M16X50

B15 GB5783-86

螺栓

M6X12 Bolt

M6X12

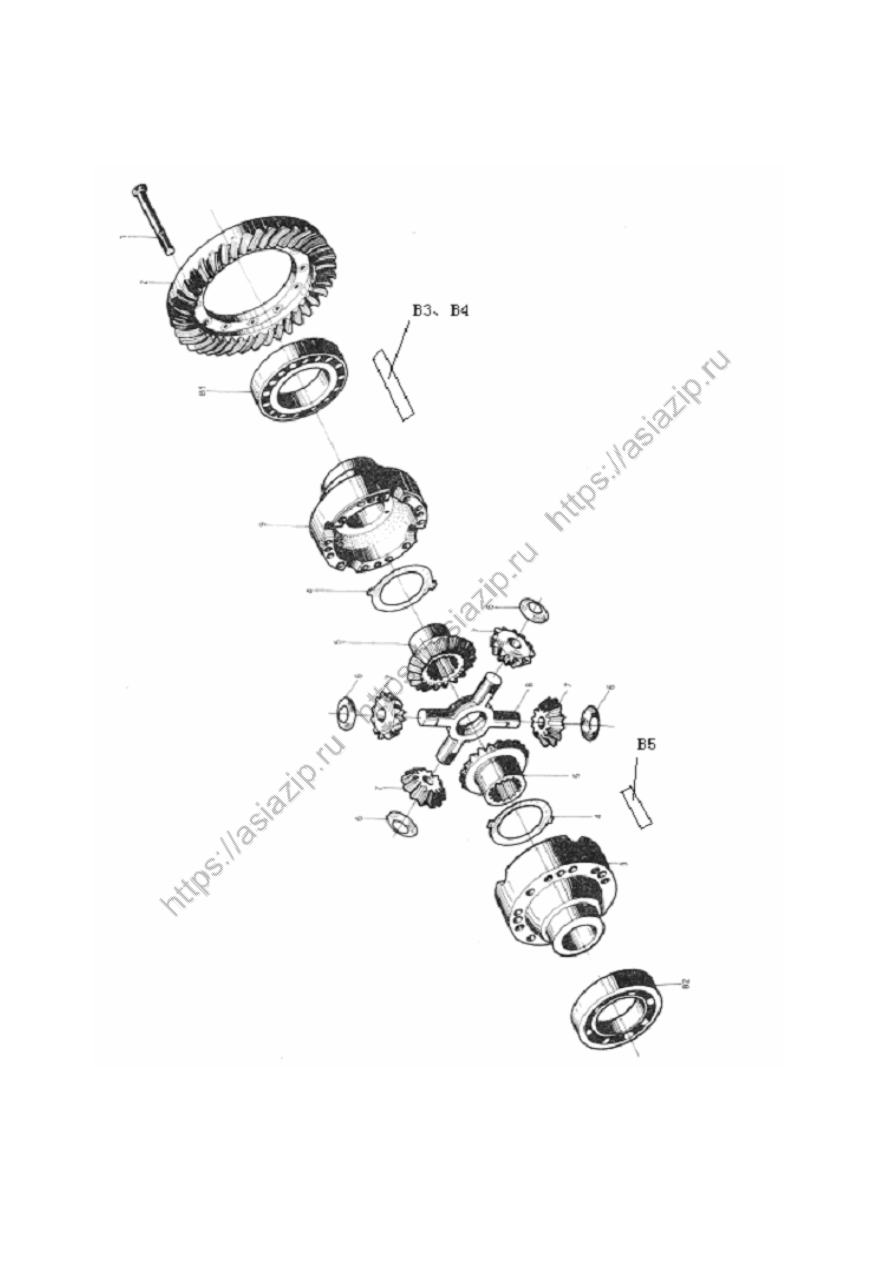

Z35G0501T9

齿箱

Differential

Z35G0601T9

序号

Item

代号

Part No.

名

称

Parts Name

数量

Q'ty

备注

Remark

1 Z30060100025

半壳螺栓

Bolt

2 Z35G060100002T9

从动锥齿轮

Driven Bevel Gear

3 Z30060100012

差速器半壳

I Differential

Case

4 CG50.6.1-9

大锥齿轮垫片

Pinion

Gasket

5 CG50.6.1-12

大锥齿轮

Bevel

Gear

6 CG50.6.1-14

小锥齿轮垫

Pinion

Gasket

7 CG50.6.1-13

小锥齿轮

Pinion

8 Z30060100028

十字轴

Cross

Shaft

9 Z30060100008

差速器半壳（

）

Differential Case II

B1 GB297-94

轴承

32019 Bearing

32019

B2 GB297-94

轴承

32017 Bearing

32017

B3 GB879-86

销

B12X50 Pin

12X50

B4 GB879-86

销

8X50 Pin

8X50

B5 GB119-86

销

A6X18 Pin

A6X18

CHENGGONG CG938H. Каталог запчастей - часть 1
