Электросхемы вертикального обрабатывающего центра ABAMET VF-3SM - часть 1

ABAMET VF-3SM - Wiring Diagrams

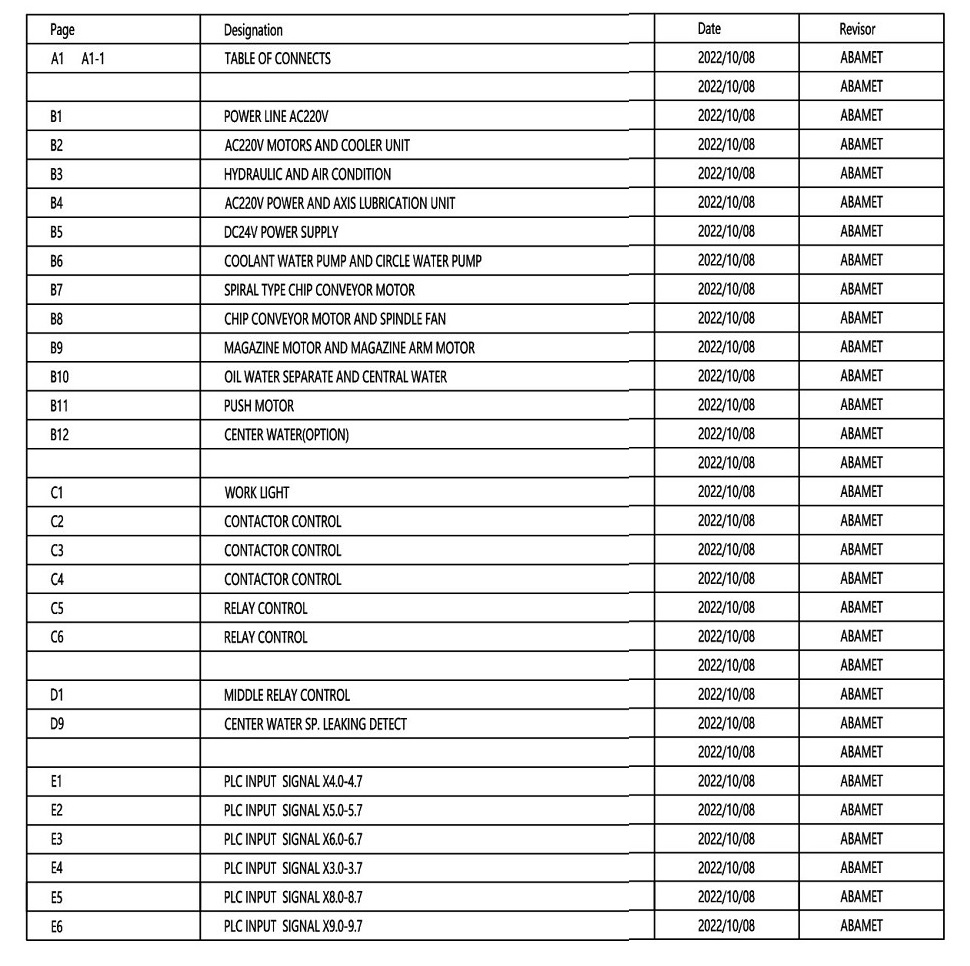

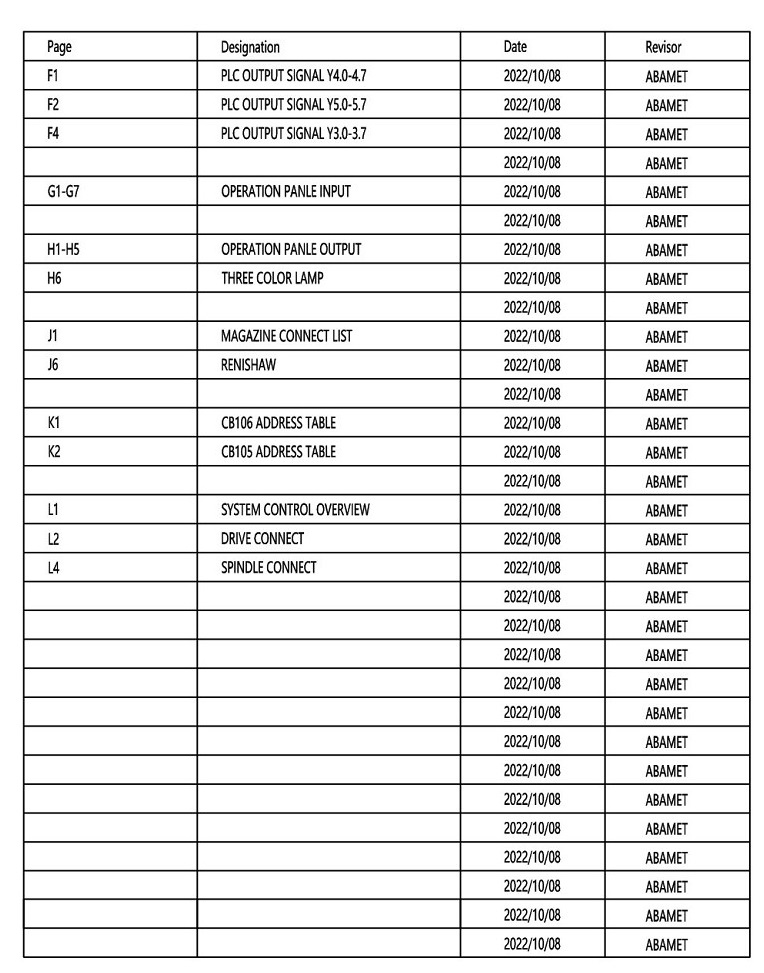

Page	Designation	Date	Revisor
A1 AM	TABLE OF CONNECTS	2022/10/08	ABAMET
		2022/10/08	ABAMET
В1	POWER LINE AC220V	2022/10/08	ABAMET

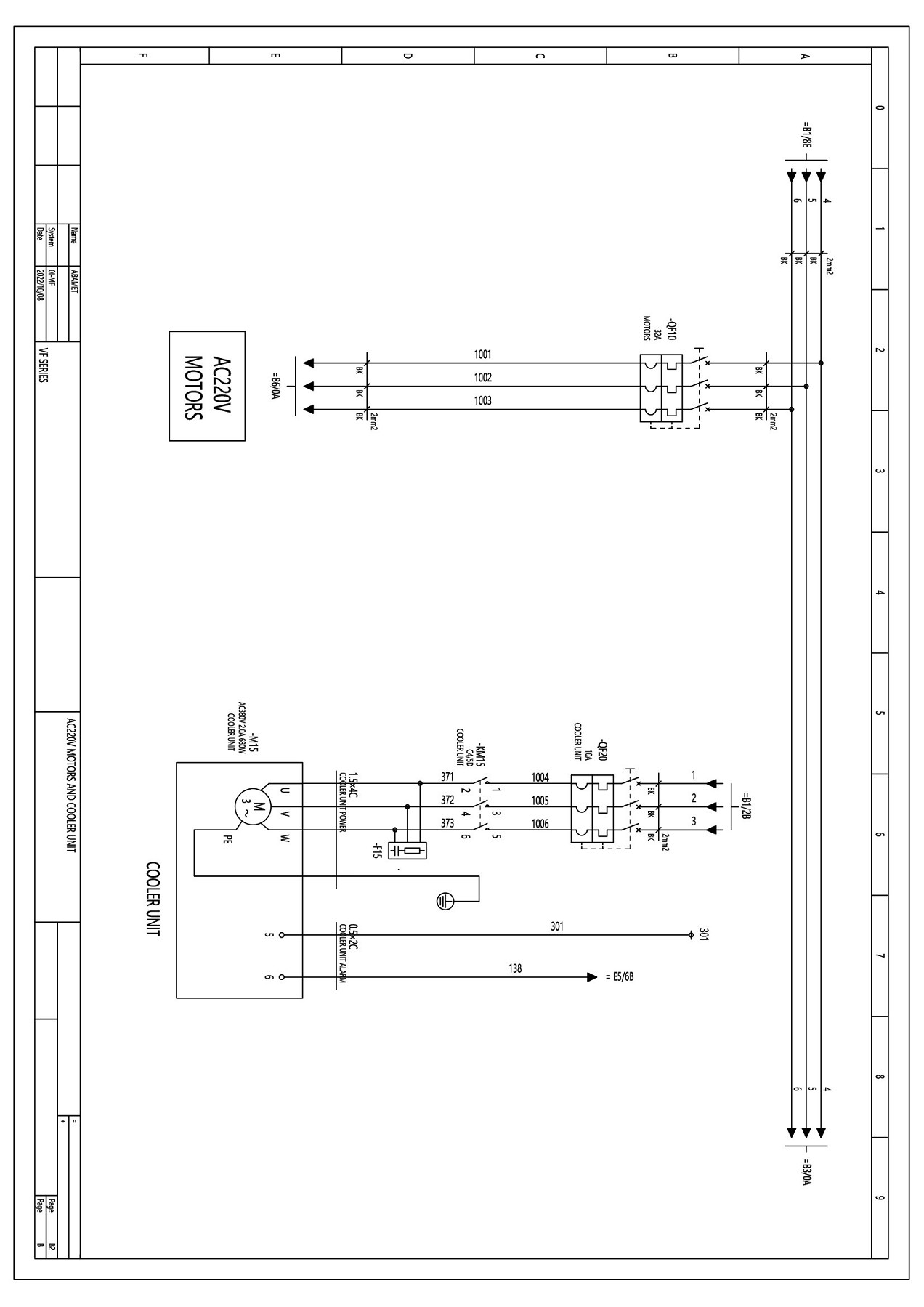

B2	AC220V MOTORS AND COOLER UNIT	2022/10/08	ABAMET

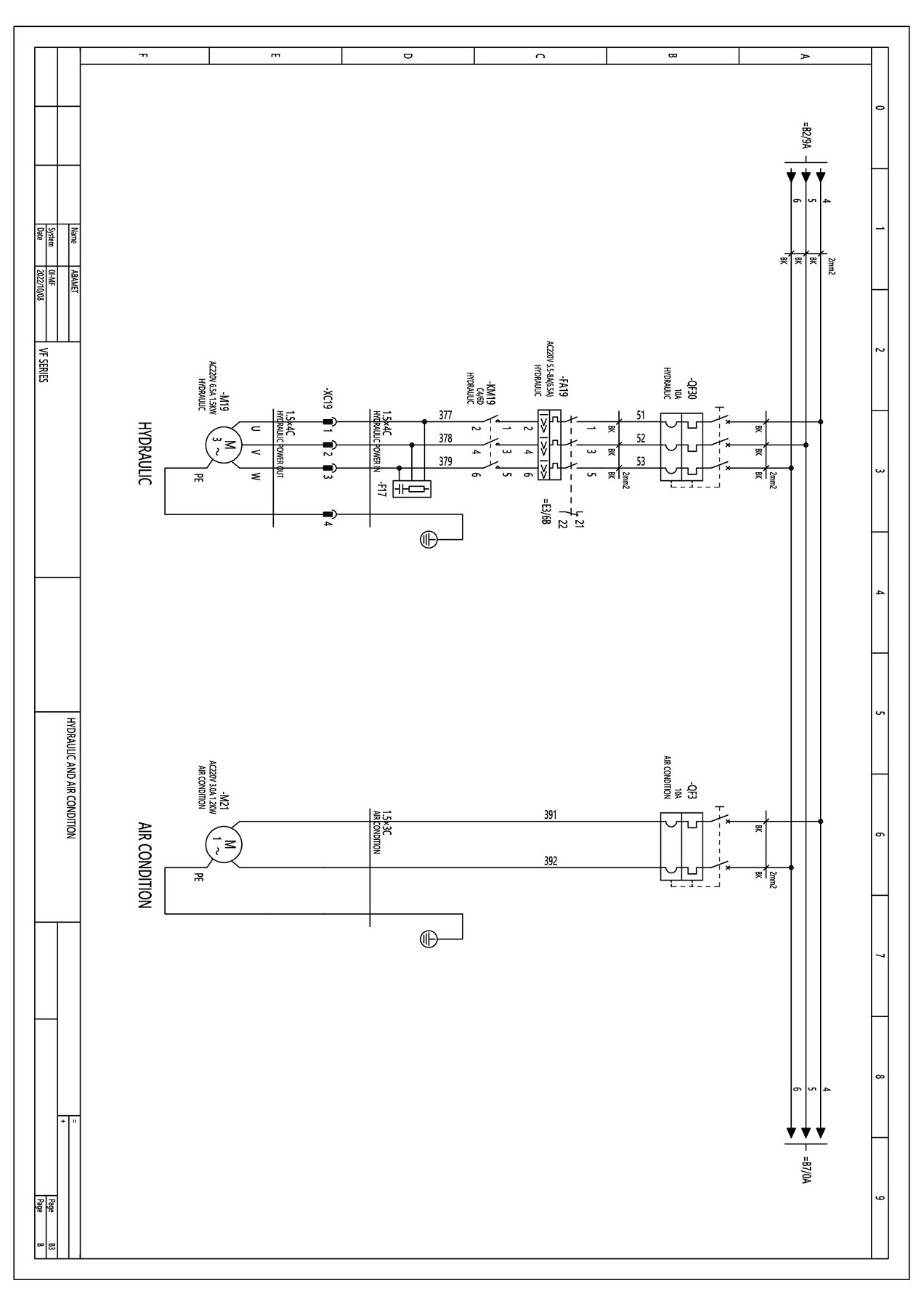

m со	HYDRAULIC AND AIR CONDITION	2022/10/08	ABAMET

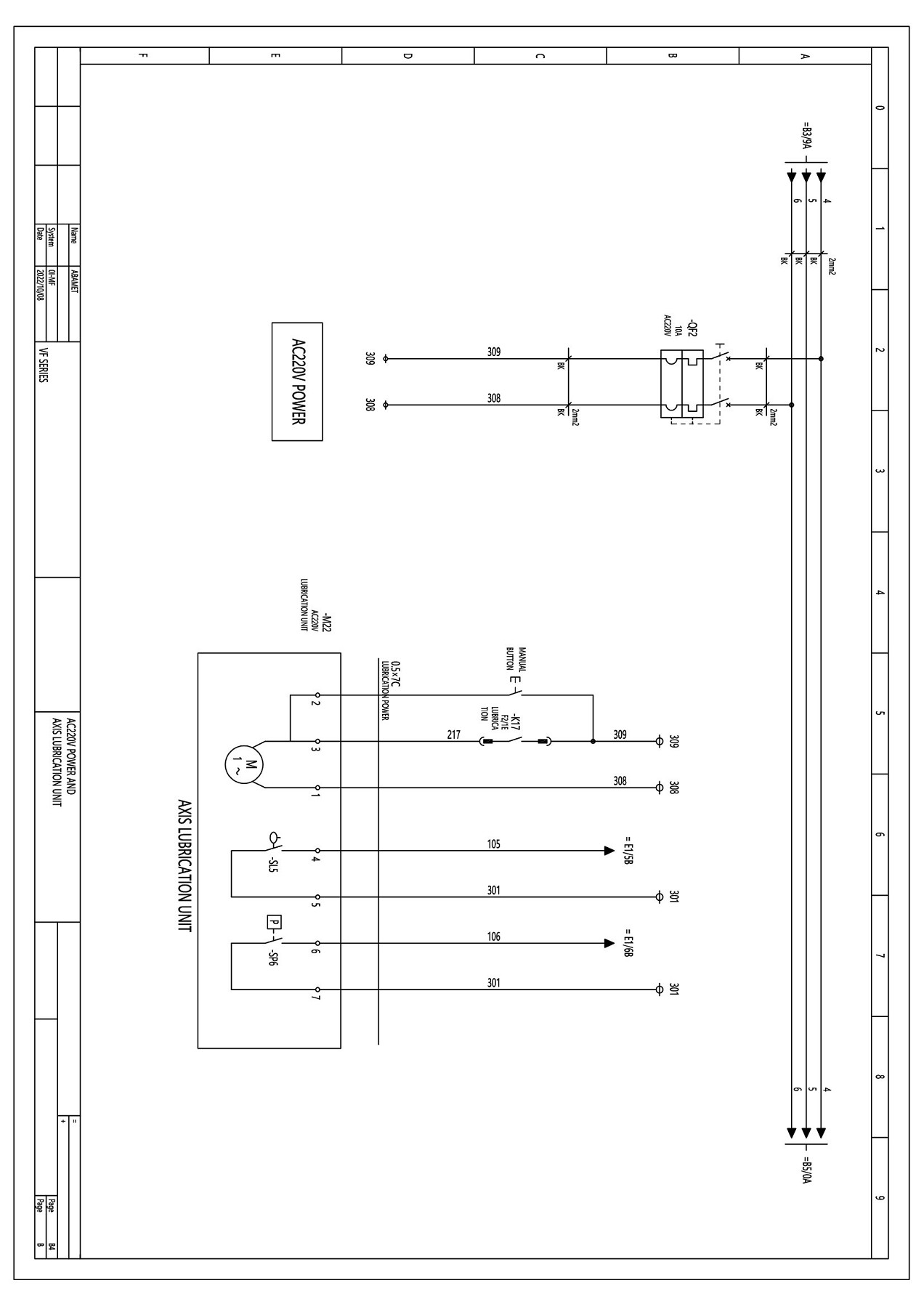

В4	AC220V POWER AND AXIS LUBRICATION UNIT	2022/10/08	ABAMET

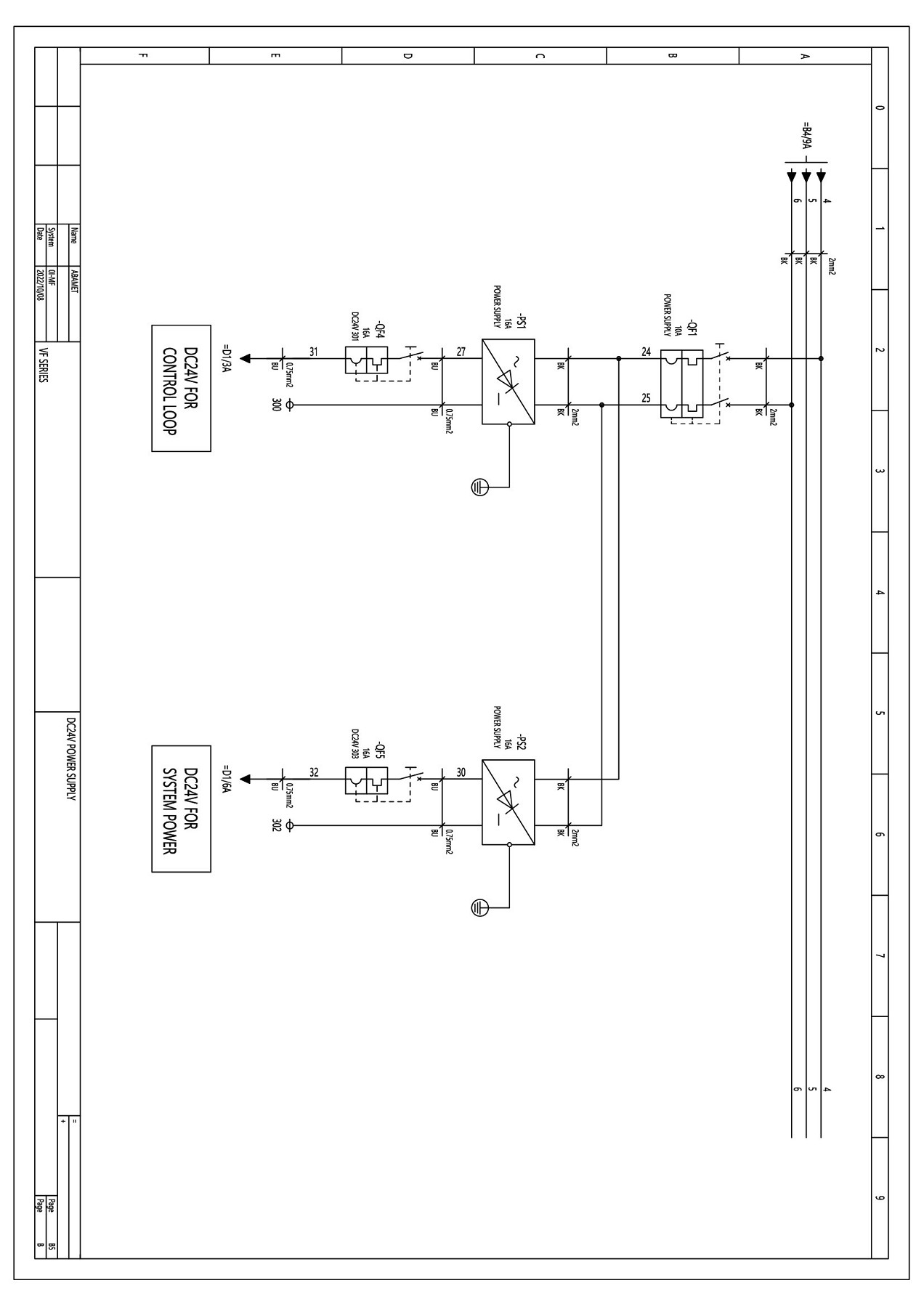

В5	DC24V POWER SUPPLY	2022/10/08	ABAMET

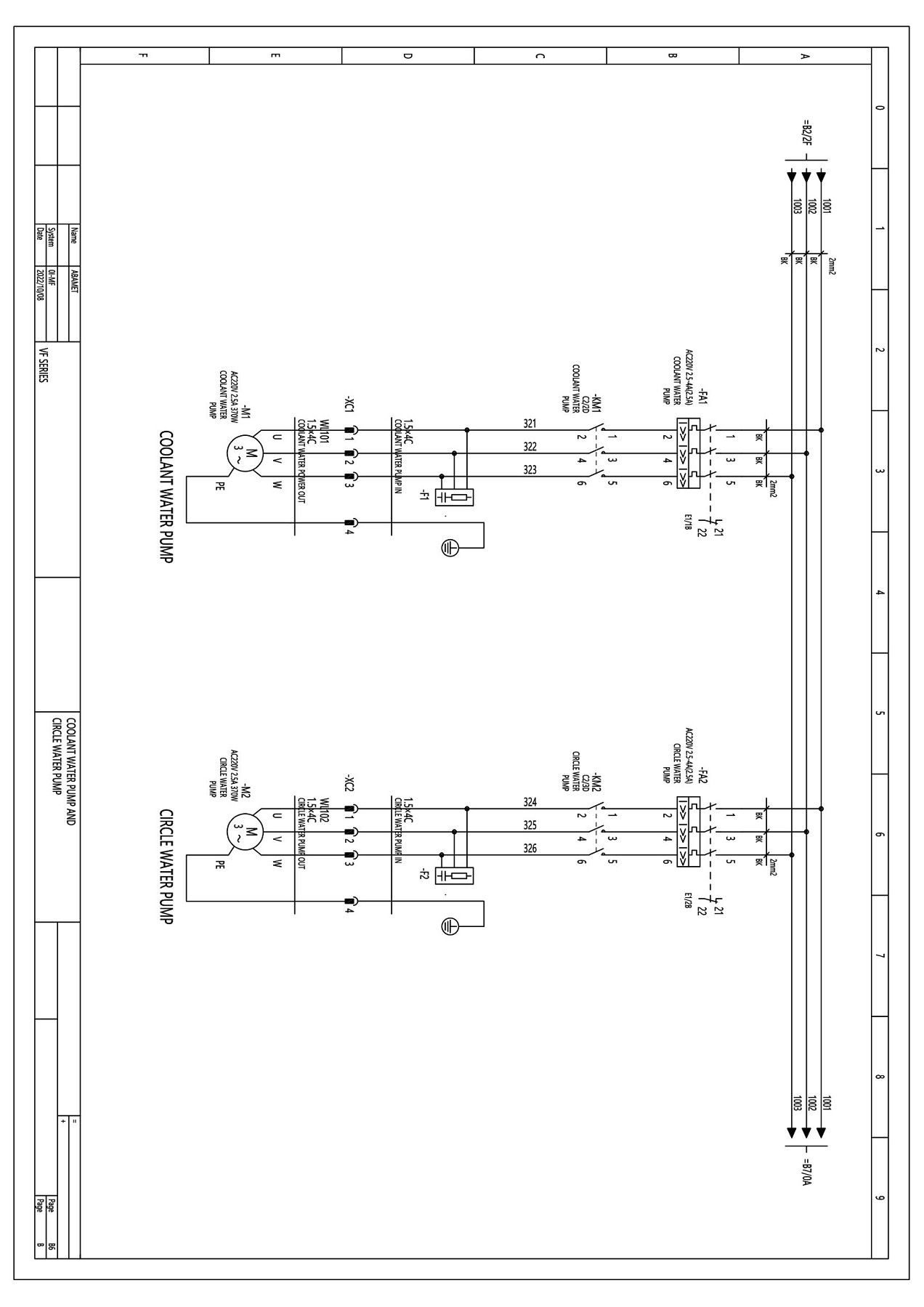

В6	COOLANT WATER PUMP AND CIRCLE WATER PUMP	2022/10/08	ABAMET

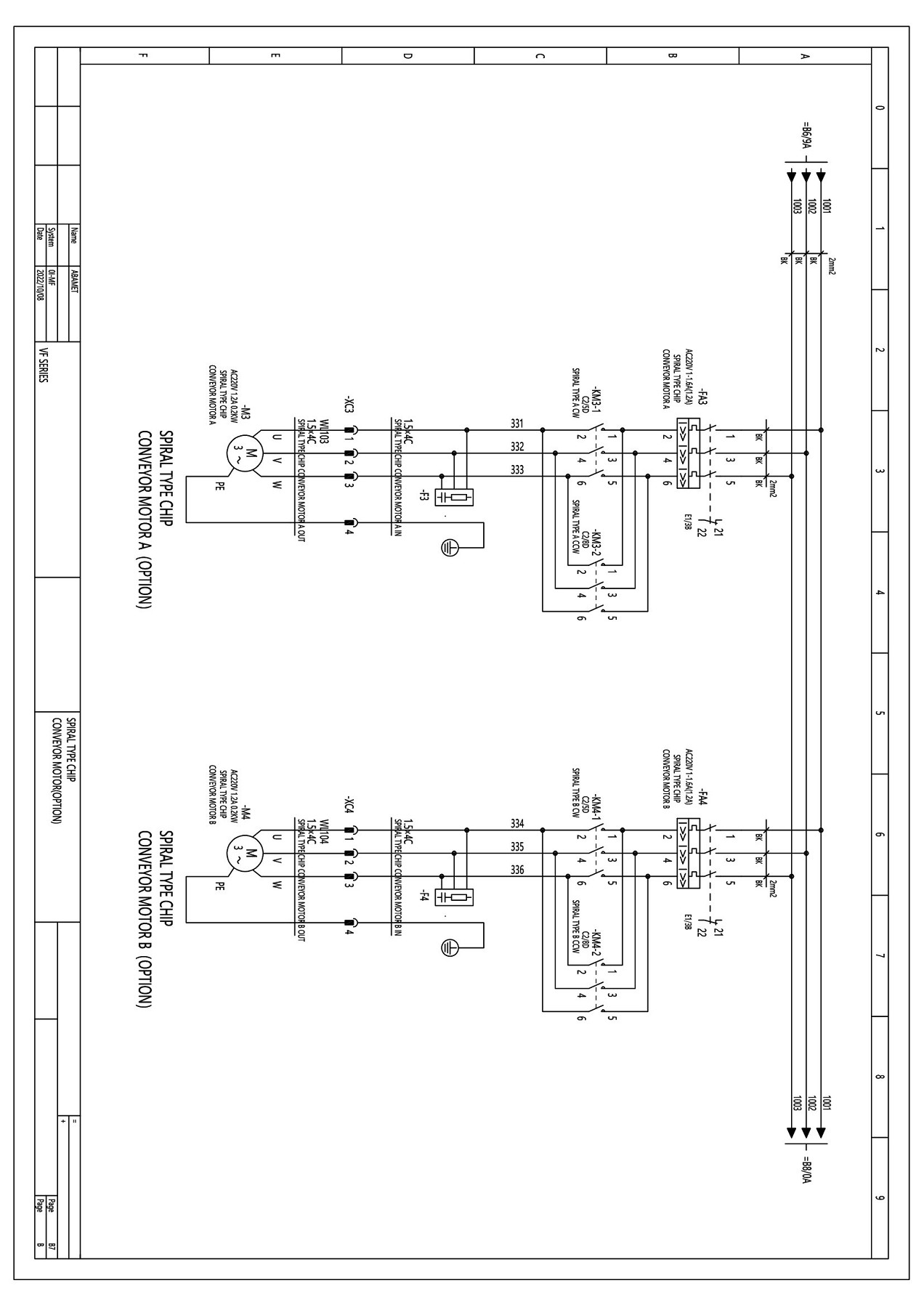

В7	SPIRAL TYPE CHIP CONVEYOR MOTOR	2022/10/08	ABAMET

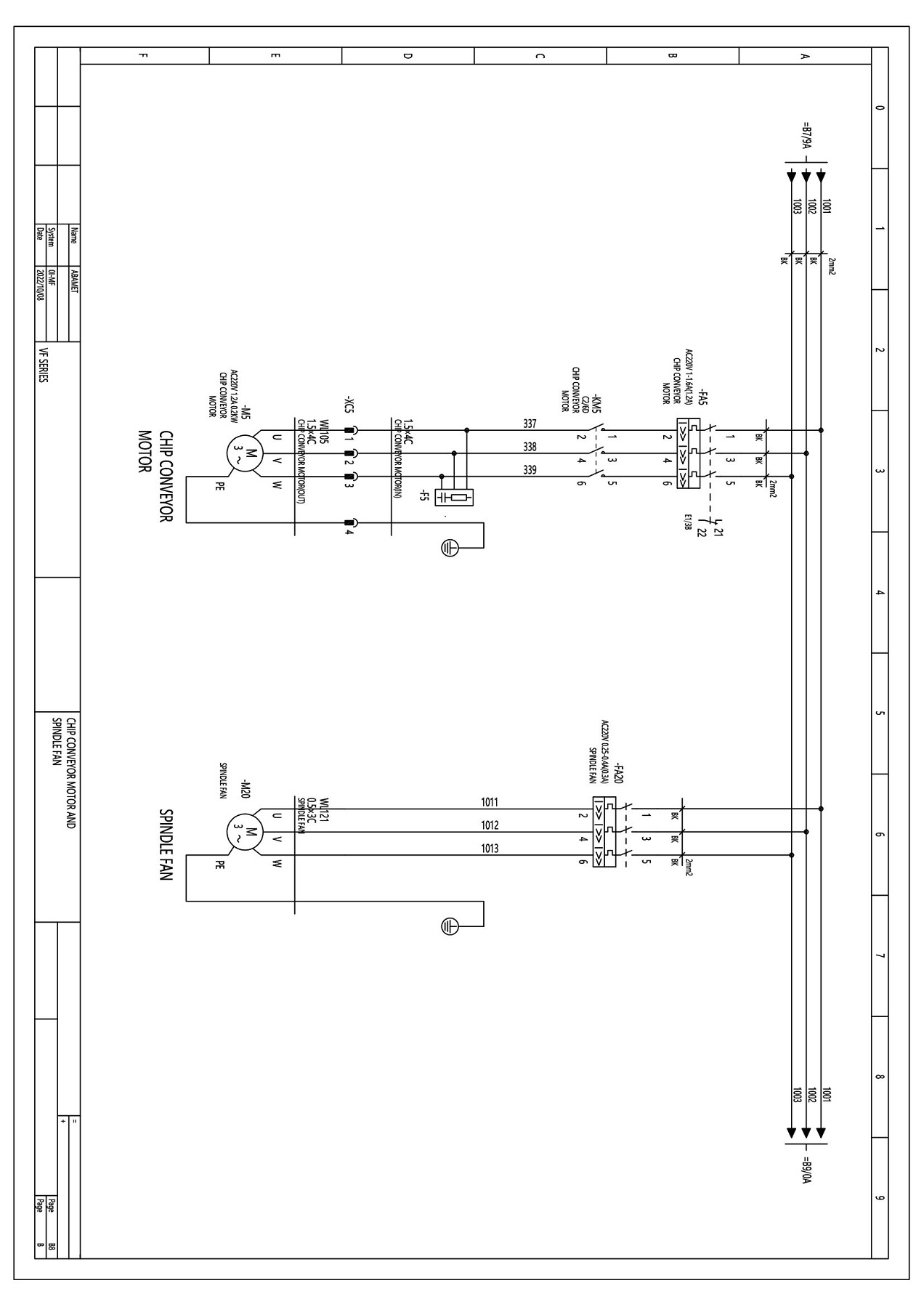

В8	CHIP CONVEYOR MOTOR AND SPINDLE FAN	2022/10/08	ABAMET

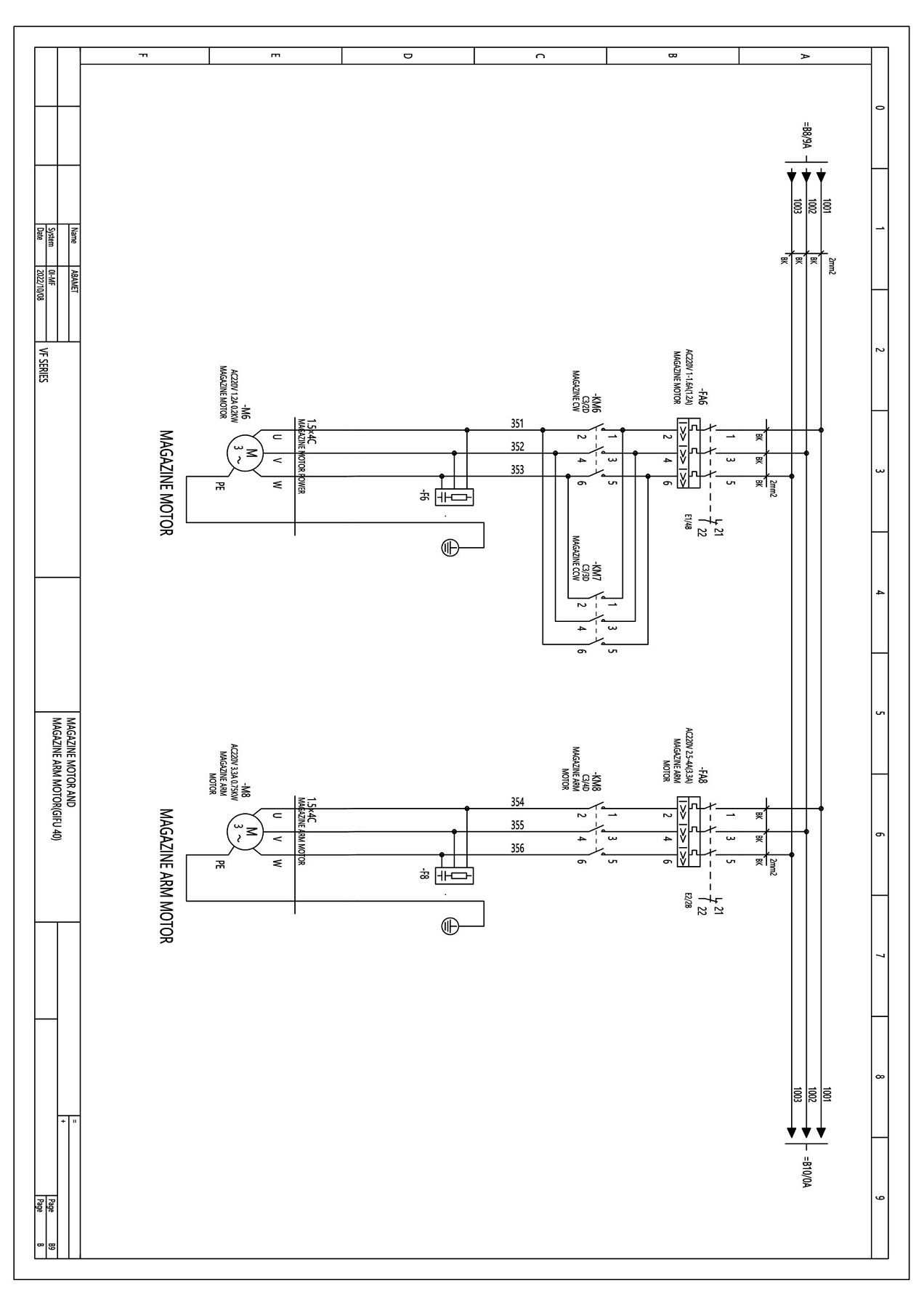

В9	MAGAZINE MOTOR AND MAGAZINE ARM MOTOR	2022/10/08	ABAMET

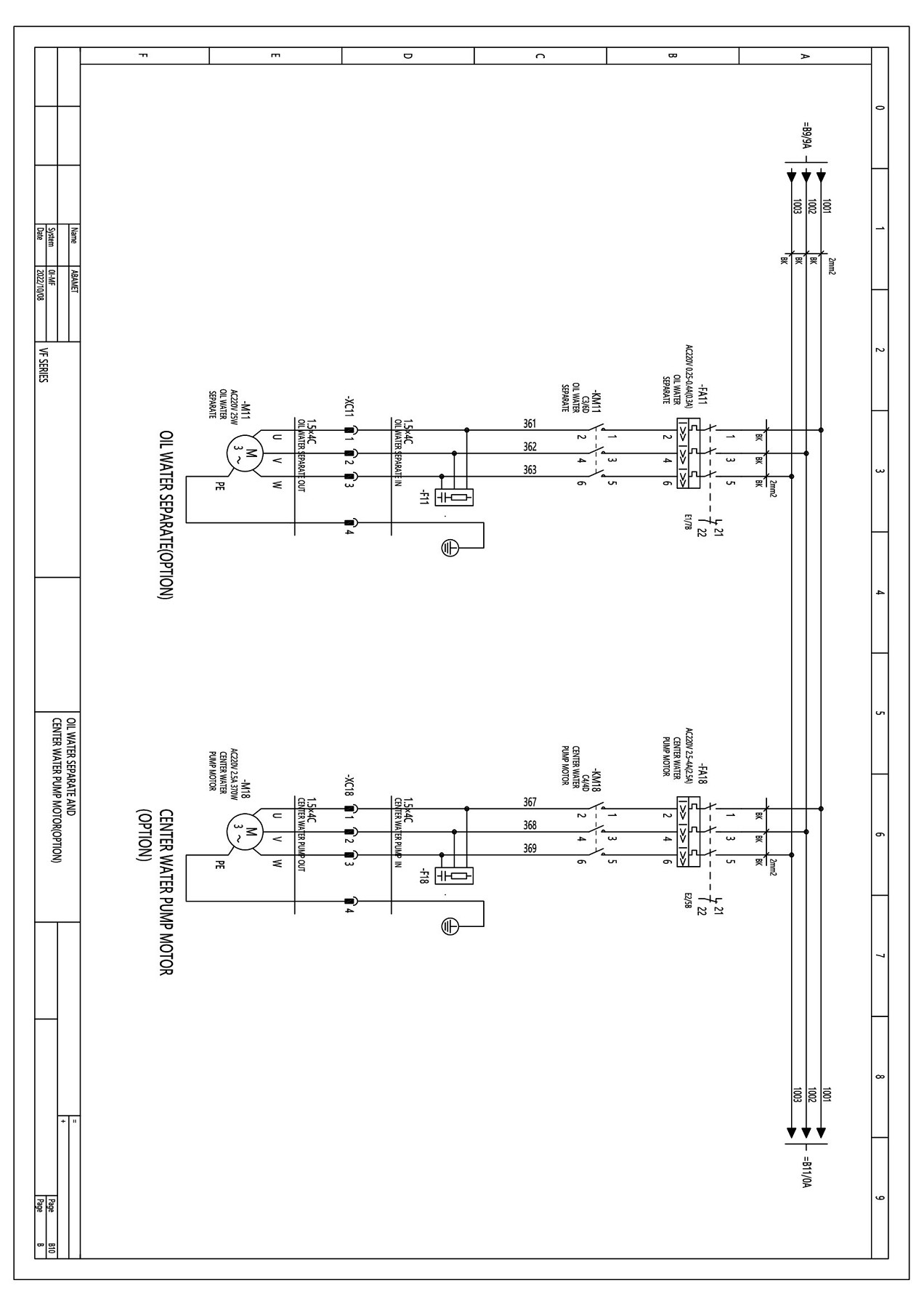

В10	OIL WATER SEPARATE AND CENTRAL WATER	2022/10/08	ABAMET

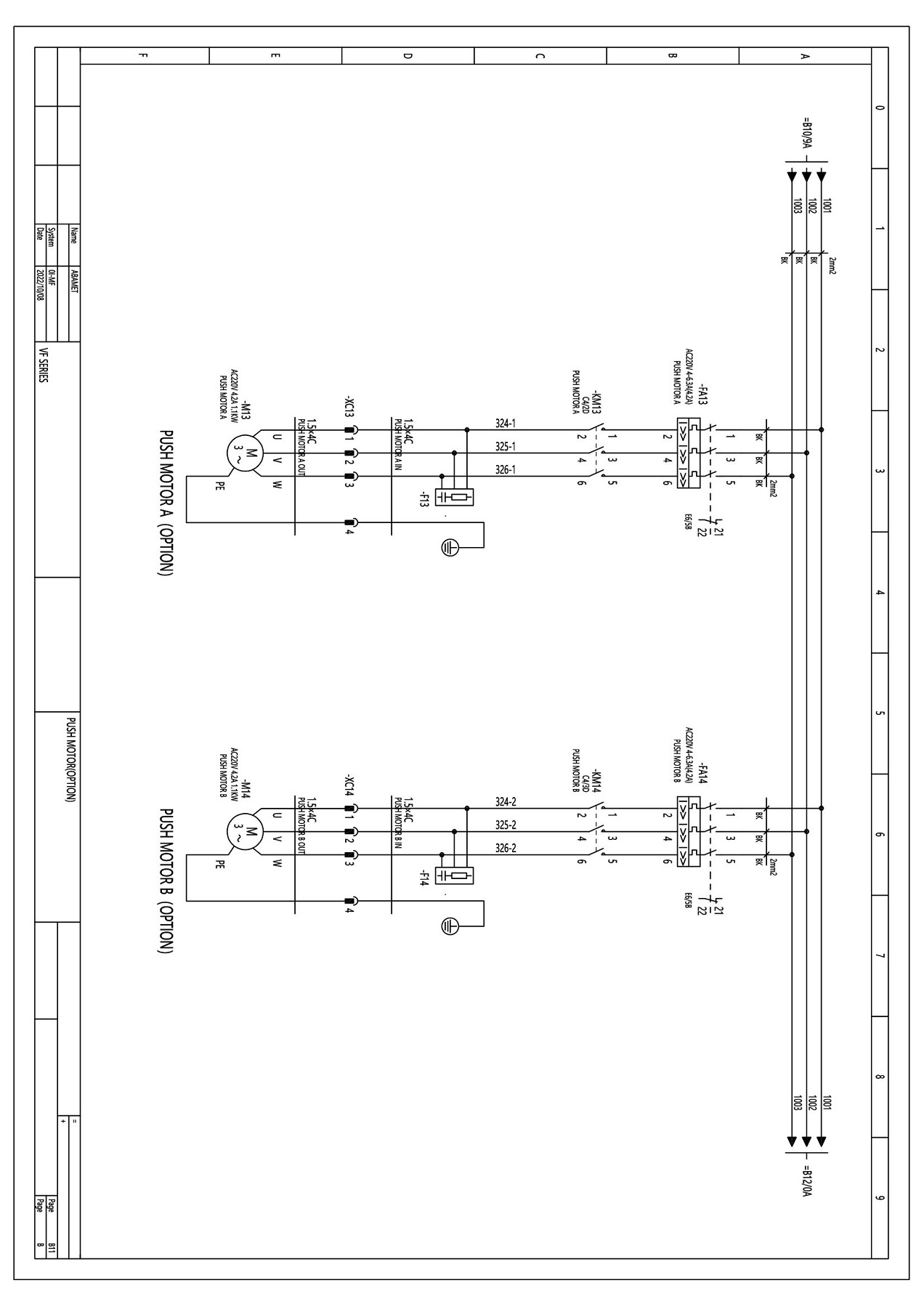

В11	PUSH MOTOR	2022/10/08	ABAMET

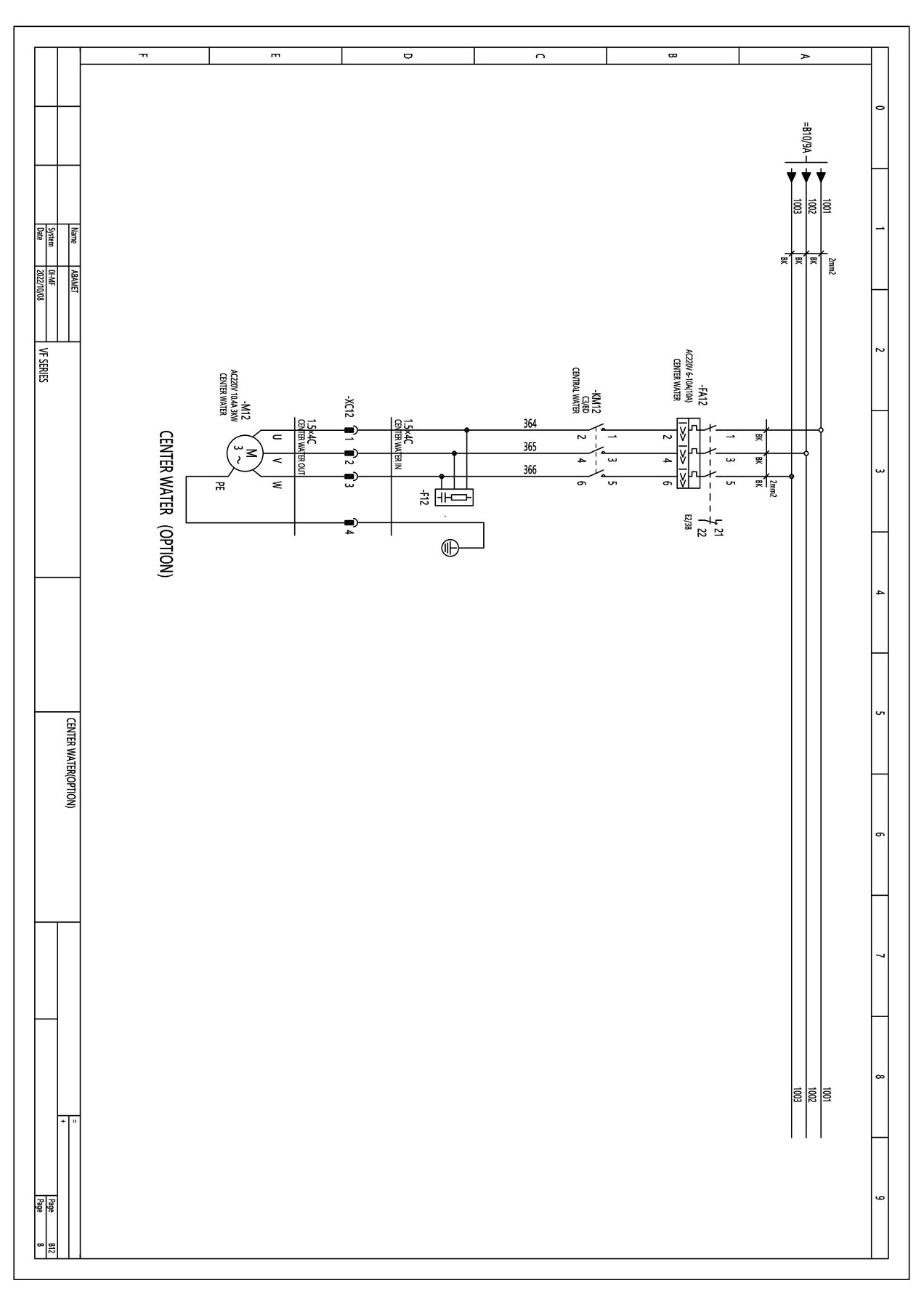

В12	CENTER WATER(OPTION)	2022/10/08	ABAMET
		2022/10/08	ABAMET

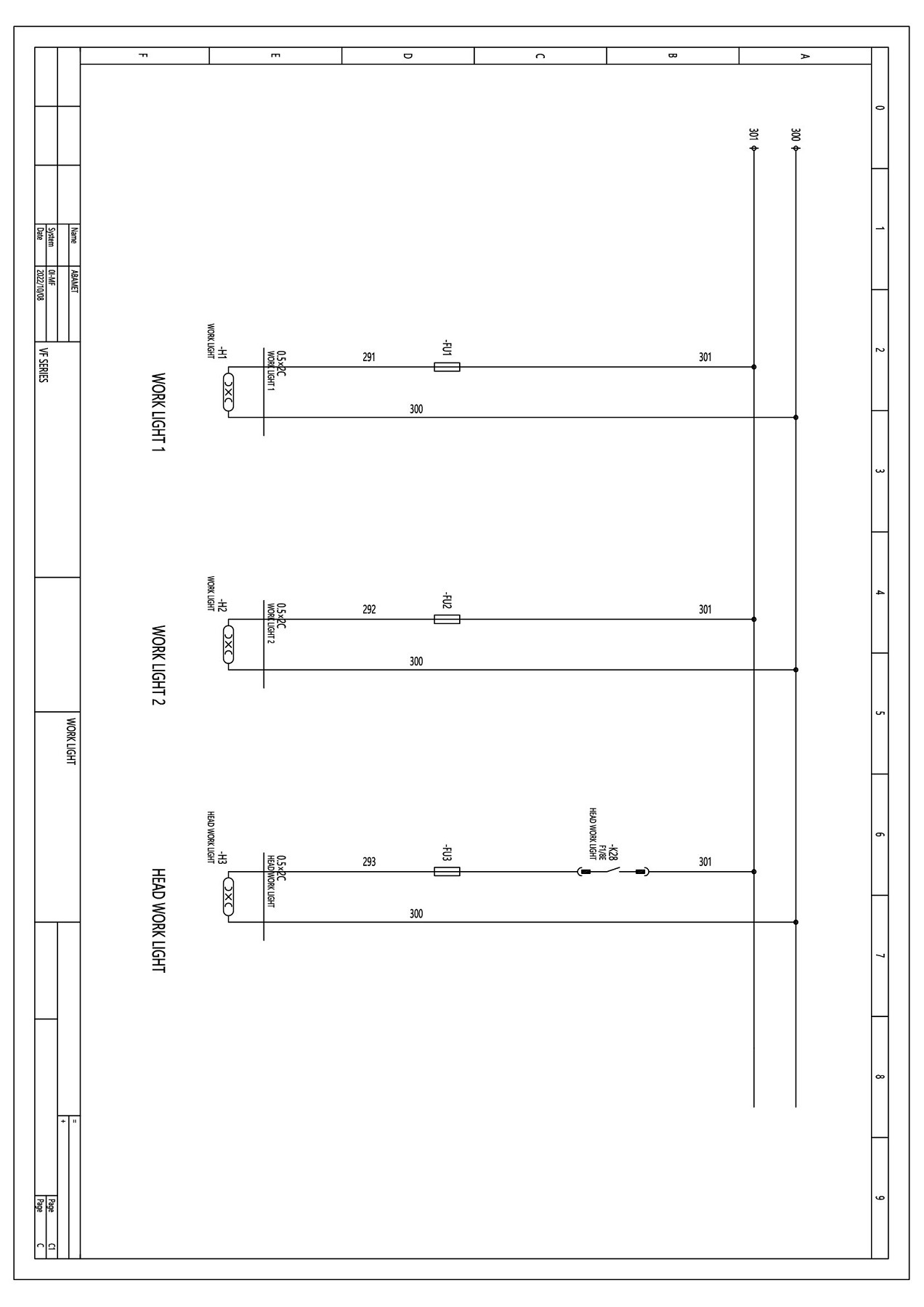

С1	WORK LIGHT	2022/10/08	ABAMET

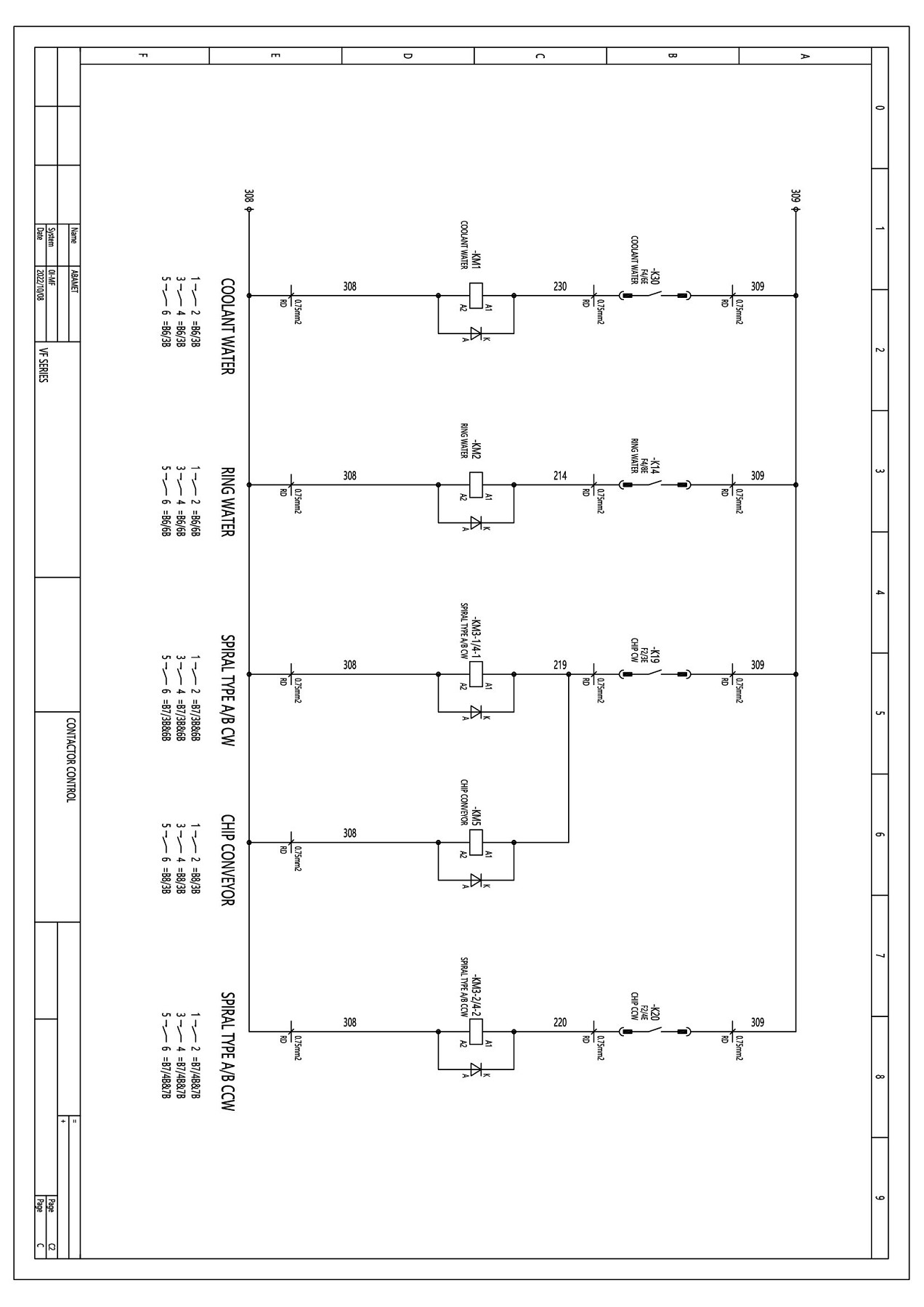

С2	CONTACTOR CONTROL	2022/10/08	ABAMET
СЗ	CONTACTOR CONTROL	2022/10/08	ABAMET
С4	CONTACTOR CONTROL	2022/10/08	ABAMET
С5	RELAY CONTROL	2022/10/08	ABAMET
Сб	RELAY CONTROL	2022/10/08	ABAMET
		2022/10/08	ABAMET
D1	MIDDLE RELAY CONTROL	2022/10/08	ABAMET
D9	CENTER WATER SP. LEAKING DETECT	2022/10/08	ABAMET
		2022/10/08	ABAMET
Е1	PLC INPUT SIGNAL X4M7	2022/10/08	ABAMET
Е2	PLC INPUT SIGNAL X5.0-5.7	2022/10/08	ABAMET
ЕЗ	PLC INPUT SIGNAL X6.0-6.7	2022/10/08	ABAMET
Е4	PLC INPUT SIGNAL X3.0-3.7	2022/10/08	ABAMET
Е5	PLC INPUT SIGNAL X8.0-8.7	2022/10/08	ABAMET
Е6	PLC INPUT SIGNAL X9.0-9.7	2022/10/08	ABAMET

//////////////////////////
