1.  General

1

1. General

1.1 Engine nomenclature

The engine specification class

Ú

 The engine specification class (CL or VM) is described in the specifications table.

1.2 Specifications

NOTE:

1)The information described in the engine specifications tables (the next page and after) is for "standard"

engine. To obtain the information for the engine installed in each machine unit, refer to the manual pro-
vided by the equipment manufacturer.

2)Engine rating conditions are as follows (SAE J1349, ISO 3046/1)

• Atmospheric condition: Room temp. 25 °C, Atmospheric press. 100 kPa (750 mm Hg), Relative humidity

30 %

• Fuel temp: 25 °C (Fuel injection pump inlet)
• With cooling fan, air cleaner, exhaust silencer (Yanmar standard parts)
• After running-in hours. Output allowable deviation: ± 3 %

Classification

Load

Engine speed

Available engine speed (min

-1

)

CL

Constant load

Constant speed

1500/1800

VM

Variable load

Variable speed

2000-3000

4 TNV

٤٤

 (A) (T) -

٤٤



٤

Destination code

Nominal engine speed or output code

T: With turbocharger
None: Natural aspirated engine

The subdivision code of the model name

Cylinder bore (in mm)

Model series

Number of cylinders

1.  General

2

(1) 3TNV82A

* Items marked * may differ from the above depending on an engine installed on a machine unit.
** Engine mass and dimensions without radiator

Engine name

Unit

3TNV82A

Engine specification class

-

CL

VM

Type

-

Vertical, in-line, 4-cycle, water-cooled diesel engine

Combustion chamber

-

Direct injection

Number of cylinders

-

3

Cylinder bore × stroke

mm × mm

82 × 84

Displacement

L

1.331

Continuous
rating

Revolving
speed

Min

-1

1500 1800

-

Output

kW

(ps)

9.9

(13.5)

12.0

(16.3)

-

Rated output

Revolving
speed

Min

-1

1500 1800 2000 2200 2400 2500 2600 2800 3000

Output

kW

(ps)

11.0

(14.9)

13.2

(17.9)

14.6

(19.9)

16.0

(21.8)

17.5

(23.8)

18.2

(24.8)

19.0

(25.8)

20.4

(27.8)

21.9

(29.8)

Max. no-load speed (± 25)

min

-1

1600 1895 2180 2375 2570 2675 2780 2995 3180

Ignition order

-

1-3-2-1 (No.1 cylinder on flywheel side)

Power take off

-

Flywheel

Direction of rotation

-

Counterclockwise (viewed from flywheel)

Cooling system

-

Radiator

Lubrication system

-

Forced lubrication with trochoid pump

Starting system

-

Electric

Applicable fuel

-

Diesel oil-ISO 8217 DMA, BS 2869 A1 or A2

(Cetane No.45 min.)

Applicable lubricant

-

API grade class CD or CF

Lubricant capacity
(oil pan) *

Total

L

5.5

Effective

L

1.9

Cooling water capacity
(engine only)

L

1.8

Engine Dimensions **
(with flyw Crankshaft
V pulley diameter &
heel housing)



*

Overall
length

mm

553

528

Overall
width

mm

489

Overall
height

mm

565

Engine mass (dry) *,**
(with flywheel housing)

kg

138

128

Cooling fan (std.) *

mm

335 mm O/D, 6 blades pusher type F

Fun V pulley diameter (std.)



*

mm

120 × 90

110 × 110

1.  General

3

(2) 3TNV84

* Items marked * may differ from the above depending on an engine installed on a machine unit.
** Engine mass and dimensions without radiator

Engine name

Unit

3TNV84

Engine specification class

-

CL

VM

Type

-

Vertical, in-line, 4-cycle, water-cooled diesel engine

Combustion chamber

-

Direct injection

Number of cylinders

-

3

Cylinder bore × stroke

mm × mm

84 × 90

Displacement

L

1.496

Continuous
rating

Revolving
speed

Min

-1

1500 1800

-

Output

kW

(ps)

11.3

(15.3)

13.5

(18.3)

-

Rated output

Revolving
speed

Min

-1

1500 1800 2000 2200 2400 2500 2600 2800 3000

Output

kW

(ps)

12.4

(16.8)

14.8

(20.1)

16.4

(22.3)

18.1

(24.6)

19.7

(26.8)

20.5

(27.9)

21.3

(29.0)

23.0

(31.3)

24.6

(33.5)

Max. no-load speed (± 25)

min

-1

1600 1895 2180 2400 2590 2690 2810 2995 3210

Ignition order

-

1-3-2-1 (No.1 cylinder on flywheel side)

Power take off

-

Flywheel

Direction of rotation

-

Counterclockwise (viewed from flywheel)

Cooling system

-

Radiator

Lubrication system

-

Forced lubrication with trochoid pump

Starting system

-

Electric

Applicable fuel

-

Diesel oil-ISO 8217 DMA, BS 2869 A1 or A2

(Cetane No.45 min.)

Applicable lubricant

-

API grade class CD

Lubricant capacity
(oil pan) *

Total

L

6.7

Effective

L

2.8

Cooling water capacity
(engine only)

L

2.0

*

Engine dimensions **
(with flywheel housing)

Overall
length

mm

589

564

Overall
width

mm

486

Overall
height

mm

622

Engine mass (dry) *,**
(with flywheel housing)

kg

161

155

Cooling fan (std.)



*

mm

335 mm O/D, 6 blades pusher type F

Crankshaft V pulley diameter &
Fun V pulley diameter (std.) *

mm

120 × 90

110 × 110

1.  General

4

(3) 3TNV84T

* Items marked * may differ from the above depending on an engine installed on a machine unit.
** Engine mass and dimensions without radiator

Engine name

Unit

3TNV84T

Engine specification class

-

CL

VM

Type

-

Vertical, in-line, 4-cycle, water-cooled diesel engine

Combustion chamber

-

Direct injection

Number of cylinders

-

3

Cylinder bore × stroke

mm × mm

84 × 90

Displacement

L

1.496

Continuous
rating

Revolving
speed

Min

-1

1500 1800

-

Output

kW

(ps)

14.0

(19.0)

16.5

(22.5)

-

Rated output

Revolving
speed

Min

-1

1500 1800 2000 2200 2400 2500 2600 2800 3000

Output

kW

(ps)

15.8

(21.5)

18.8

(25.5)

25.0

(34.0)

26.0

(35.3)

26.8

(36.5)

29.1

(39.5)

30.9

(42.0)

Max. no-load speed (± 25)

min

-1

1600 1895

2590 2700 2810 2995 3210

Ignition order

-

1-3-2-1 (No.1 cylinder on flywheel side)

Power take off

-

Flywheel

Direction of rotation

-

Counterclockwise (viewed from flywheel)

Cooling system

-

Radiator

Lubrication system

-

Forced lubrication with trochoid pump

Starting system

-

Electric

Applicable fuel

-

Diesel oil-ISO 8217 DMA, BS 2869 A1 or A2

(cetane No.45 min.)

Applicable lubricant

-

API grade class CD or CF

Lubricant capacity
(oil pan) *

Total

L

6.7

Effective

L

2.8

Cooling water capacity
(engine only)

L

2.0

*

Engine dimensions **
(with flywheel housing)

Overall
length

mm

589

564

Overall
width

mm

486

Overall
height

mm

622

Engine mass (dry) *,**
(with flywheel housing)

kg

161

155

Cooling fan (std.)



*

mm

350 mm O/D, 6 blades pusher type F

Crankshaft V pulley diameter &
Fun V pulley diameter (std.)



*

mm

120 × 90

110 × 110

1.  General

5

(4) 3TNV88

* Items marked * may differ from the above depending on an engine installed on a machine unit.
** Engine mass and dimensions without radiator

(R.1)

Engine name

Unit

3TNV88

Engine specification class

-

CL

VM

Type

-

Vertical, in-line, 4-cycle, water-cooled diesel engine

Combustion chamber

-

Direct injection

Number of cylinders

-

3

Cylinder bore × stroke

mm × mm

88 × 90

Displacement

L

1.642

Continuous
rating

Revolving
speed

Min

-1

1500 1800

-

Output

kW

(ps)

12.3

(16.7)

14.8

(20.1)

-

Rated output

Revolving
speed

Min

-1

1500 1800 2000 2200 2400 2500 2600 2800 3000

Output

kW

(ps)

13.5

(18.4)

16.3

(22.1)

18.0

24.5)

19.9

(27.0)

21.6

(29.4)

22.6

(30.7)

23.5

(31.9)

25.2

(34.2)

27.1

(36.8)

Max. no-load speed (± 25)

min

-1

1600 1895 2180 2400 2590 2700 2810 2995 3210

Ignition order

-

1-3-2-1 (No.1 cylinder on flywheel side)

Power take off

-

Flywheel

Direction of rotation

-

Counterclockwise (viewed from flywheel)

Cooling system

-

Radiator

Lubrication system

-

Forced lubrication with trochoid pump

Starting system

-

Electric

Applicable fuel

-

Diesel oil-ISO 8217 DMA, BS 2869 A1 or A2

(Cetane No.45 min.)

Applicable lubricant

-

API grade class CD or CF

Lubricant capacity
(oil pan) *

Total

L

6.7

Effective

L

2.8

Cooling water capacity
(engine only)

L

2.0

*

Engine dimensions **
(with flywheel housing)

Overall
length

mm

589

564

Overall
width

mm

486

Overall
height

mm

622

Engine mass (dry) *,**
(with flywheel housing)

kg

155

Cooling fan (std.) *

Mm

335 mm O/D, 6 blades pusher type F

Crankshaft V pulley diameter &
Fun V pulley diameter (std.) *

Mm

120 × 90

110 × 110

1.  General

6

(5) 4TNV84

* Items marked * may differ from the above depending on an engine installed on a machine unit.
** Engine mass and dimensions without radiator

Engine name

Unit

4TNV84

Engine specification class

-

CL

VM

Type

-

Vertical, in-line, 4-cycle, water-cooled diesel engine

Combustion chamber

-

Direct injection

Number of cylinders

-

4

Cylinder bore × stroke

mm × mm

84 × 90

Displacement

L

1.995

Continuous
Rating

Revolving
speed

Min

-1

1500 1800

-

Output

kW

(ps)

14.9

(20.3)

17.7

(24.1)

-

Rated output

Revolving
speed

Min

-1

1500 1800 2000 2200 2400 2500 2600 2800 3000

Output

kW

(ps)

16.4

(22.3)

19.5

(26.5)

21.9

(29.8)

24.1

(32.8)

26.3

(35.8)

27.4

(37.3)

28.5

(38.7)

30.7

41.7)

32.9

(44.7)

Max. no-load speed (± 25)

min

-1

1600 1895 2180 2400 2590 2700 2810 2995 3210

Ignition order

-

1-3-4-2-1 (No.1 cylinder on flywheel side)

Power take off

-

Flywheel

Direction of rotation

-

Counterclockwise (viewed from flywheel)

Cooling system

-

Radiator

Lubrication system

-

Forced lubrication with trochoid pump

Starting system

-

Electric

Applicable fuel

-

Diesel oil-ISO 8217 DMA, BS 2869 A1 or A2

(cetane No.45 min.)

Applicable lubricant

-

API grade class CD or CF

Lubricant capacity
(oil pan) *

Total

L

7.4

Effective

L

3.4

Cooling water capacity
(engine only)

L

2.7

*

Engine dimensions **
(with flywheel housing)

Overall
length

mm

683

658

Overall
width

mm

498.5

Overall
height

mm

617

Engine mass (dry) *,**
(with flywheel housing)

kg

183

170

Cooling fan (std.)



*

mm

370 mm O/D, 6 blades pusher type F

Crankshaft V pulley diameter &
Fun V pulley diameter (std.)



*

mm

120 × 90

110 × 110

1.  General

7

(6) 4TNV84T

* Items marked * may differ from the above depending on an engine installed on a machine unit.
** Engine mass and dimensions without radiator

Engine name

Unit

4TNV84T

Engine specification class

-

CL

VM

Type

-

Vertical, in-line, 4-cycle, water-cooled diesel engine

Combustion chamber

-

Direct injection

Number of cylinders

-

4

Cylinder bore × stroke

mm × mm

84 × 90

Displacement

L

1.995

Continuous
rating

Revolving
speed

Min

-1

1500

1800

-

Output

KW

(ps)

19.1

(26.0)

24.3

(33.0)

-

Rated output

Revolving
speed

Min

-1

1500

1800

2000

2200

2400

2600

2800

3000

Output

KW

(ps)

21.3

(29.0)

26.9

(36.5)

27.9

(38.0)

30.5

(41.5)

33.5

(45.5)

35.7

(48.5)

38.6

(52.5)

41.2

(56.0)

Max. no-load speed (± 25)

min

-1

1600

1895

2180

2400

2590

2810

2995

3210

Ignition order

-

1-3-4-2-1 (No.1 cylinder on flywheel side)

Power take off

-

Flywheel

Direction of rotation

-

Counterclockwise (viewed from flywheel)

Cooling system

-

Radiator

Lubrication system

-

Forced lubrication with trochoid pump

Starting system

-

Electric

Applicable fuel

-

Diesel oil-ISO 8217 DMA, BS 2869 A1 or A2

(Cetane No.45 min.)

Applicable lubricant

-

API grade class CD or CF

Lubricant capacity
(oil pan) *

Total

L

7.4

Effective

L

3.4

Cooling water capacity
(engine only)

L

3.2

Engine
dimensions *,**

Overall
length

mm

683

649

Overall
width

mm

498.5

Overall
height

mm

713

Engine mass (dry) *,**
(with flywheel housing)

kg

183

170

Cooling fan (std.)



*

mm

370 mm O/D, 6 blades pusher type F

Crankshaft V pulley diameter &
Fun V pulley diameter (std.) *

mm

120 × 90

110 × 110

1. General

(7) 4TNV88

1.  General

9

(8) 4TNV94L

* Items marked * may differ from the above depending on an engine installed on a machine unit.
** Engine mass and dimensions without radiator

Engine name

Unit

4TNV94L

Engine specification class

-

CL

VM

Type

-

Vertical, in-line, 4-cycle, water-cooled diesel engine

Combustion chamber

-

Direct injection

Number of cylinders

-

4

Cylinder bore × stroke

mm × mm

94 × 110

Displacement

L

3.054

Continuous
rating

Revolving
speed

Min

-1

1500

1800

-

Output

kW

(ps)

26.1

(35.5)

31.3

(42.5)

-

Rated output

Revolving
speed

Min

-1

1500

1800

2000

2200

2400

2500

Output

kW

(ps)

29.1

(39.5)

34.6

(47.0)

35.3

(48.0)

38.2

(52.0)

41.6

(56.5)

43.0

(58.5)

Max. no-load speed (± 25)

min

-1

1600

1895

2180

2400

2590

2700

Ignition order

-

1-3-4-2-1 (No.1 cylinder on flywheel side)

Power take off

-

Flywheel

Direction of rotation

-

Counterclockwise (viewed from flywheel)

Cooling system

-

Radiator

Lubrication system

-

Forced lubrication with trochoid pump

Starting system

-

Electric

Applicable fuel

-

Diesel oil-ISO 8217 DMA, BS 2869 A1 or A2

(Cetane No.45 min.)

Applicable lubricant

-

API grade class CD or CF

Lubricant capacity
(oil pan) *

Total

L

10.5

Effective

L

4.5

Cooling water capacity
(engine only)

L

4.2

*

Engine dimensions **
(with flywheel housing)

Overall
length

mm

719

Overall
width

mm

498

Overall
height

mm

742

Engine mass (dry) *,**
(with flywheel housing)

kg

245

(equivalent to SAE # 3)

235

(equivalent to SAE # 4)

Cooling fan (std.)



*

mm

410 mm O/D, 6 blades pusher type F

Crankshaft V pulley diameter &
Fun V pulley diameter (std.)



*

mm

130 × 130

1.  General

10

(9) 4TNV98

* Engine oil capacity may differ from the above depending on an engine installed on a machine unit.
** Engine mass and dimensions without radiator

Engine name

Unit

4TNV98

Engine specification class

-

CL

VM

Type

-

Vertical, in-line, 4-cycle, water-cooled diesel engine

Combustion chamber

-

Direct injection

Number of cylinders

-

4

Cylinder bore × stroke

mm × mm

98 × 110

Displacement

L

3.319

Continuous
rating

Revolving
speed

Min

-1

1500

1800

-

Output

kW

(ps)

30.9

(42.0)

36.8

(50.0)

-

Rated output

Revolving
speed

Min

-1

1500

1800

2000

2200

2400

2500

Output

kW

(ps)

34.6

(47.0

41.2

(56.0)

41.9

(57.0)

45.6

(62.0)

49.3

(67.0)

51.1

(69.5)

Max. no-load speed (± 25)

min

-1

1600

1895

2180

2400

2590

2700

Ignition order

-

1-3-4-2-1 (No.1 cylinder on flywheel side)

Power take off

-

Flywheel

Direction of rotation

-

Counterclockwise (viewed from flywheel)

Cooling system

-

Radiator

Lubrication system

-

Forced lubrication with trochoid pump

Starting system

-

Electric

Applicable fuel

-

Diesel oil-ISO 8217 DMA, BS 2869 A1 or A2

(Cetane No.45 min.)

Applicable lubricant

-

API grade class CD or CF

Lubricant capacity
(oil pan) *

Total

L

10.5

Effective

L

4.5

Cooling water capacity
(engine only)

L

4.2

*

Engine dimensions **
(with flywheel housing)

Overall
length

mm

719

Overall
width

mm

498

Overall
height

mm

742

Engine mass (dry) *,**
(with flywheel housing)

kg

248

(equivalent to SAE # 3)

235

(equivalent to SAE # 4)

Cooling fan (std.)



*

mm

410 mm O/D, 6 blades pusher type F

Crankshaft V pulley diameter &
Fun V pulley diameter (std.)



*

mm

130 × 130

1.  General

11

(10)4TNV98T

* Items marked * may differ from the above depending on an engine installed on a machine unit.
** Engine mass and dimensions without radiator

Engine name

Unit

4TNV98T

Engine specification class

-

CL

VM

Type

-

Vertical, in-line, 4-cycle, water-cooled diesel engine

Combustion chamber

-

Direct injection

Number of cylinders

-

4

Cylinder bore × stroke

mm × mm

88 × 110

Displacement

L

3.319

Continuous
rating

Revolving
speed

Min

-1

1500

1800

-

Output

kW

(ps)

37.9

(51.5)

45.6

(62.0)

-

Rated output

Revolving
speed

Min

-1

1500

1800

2000

2200

2400

2500

2600

Output

kW

(ps)

41.9

(57.0)

50.4

(68.5)

50.7

(69.0)

55.5

(75.5)

60.3

(82.0)

62.5

(85.0)

64.0

(87.0)

Max. no-load speed (± 25)

min

-1

1600

1895

2180

2400

2590

2700

2810

Ignition order

-

1-3-4-2-1 (No.1 cylinder on flywheel side)

Power take off

-

Flywheel

Direction of rotation

-

Counterclockwise (viewed from flywheel)

Cooling system

-

Radiator

Lubrication system

-

Forced lubrication with trochoid pump

Starting system

-

Electric

Applicable fuel

-

Diesel oil-ISO 8217 DMA, BS 2869 A1 or A2

(cetane No.45 min.)

Applicable lubricant

-

API grade class CD or CF

Lubricant capacity
(oil pan) *

Total

L

10.5

Effective

L

4.5

Cooling water capacity
(engine only)

L

4.2

*

Engine dimensions **
(with flywheel housing)

Overall
length

mm

715

Overall
width

mm

575

Overall
height

mm

804

Engine mass (dry) *,**
(with flywheel housing)

kg

258

(equivalent to SAE # 3)

245

(equivalent to SAE # 4)

Cooling fan (std.)

mm

430 mm O/D, 8 blades suction type

Crankshaft V pulley diameter &
Fun V pulley diameter (std.)

 *

mm

130 × 130

1.  General

12

(11)4TNV106

* Items marked * may differ from the above depending on an engine installed on a machine unit.
** Engine mass and dimensions without radiator

Engine name

Unit

4TNV106

Engine specification class

-

CL

VM

Type

-

Vertical, in-line, 4-cycle, water-cooled diesel engine

Combustion chamber

-

Direct injection

Number of cylinders

-

4

Cylinder bore × stroke

mm × mm

106 × 125

Displacement

L

4.412

Continuous
rating

Revolving
speed

Min

-1

1500

1800

-

Output

kW

(ps)

41.2

(56.0)

49.3

(67.0)

-

Rated output

Revolving
speed

Min

-1

1500

1800

2000

2200

2400

2500

Output

kW

(ps)

45.6

(62.0

54.4

(74.0)

56.6

(77.0)

61.4

(83.5)

65.5

(89.0)

67.7

(92.0)

Max. no-load speed (± 25)

min

-1

1600

1895

2180

2400

2590

2700

Ignition order

-

1-3-4-2-1 (No.1 cylinder on flywheel side)

Power take off

-

Flywheel

Direction of rotation

-

Counterclockwise (viewed from flywheel)

Cooling system

-

Radiator

Lubrication system

-

Forced lubrication with trochoid pump

Starting system

-

Electric

Applicable fuel

-

Diesel oil-ISO 8217 DMA, BS 2869 A1 or A2

(Cetane No.45 min.)

Applicable lubricant

-

API grade class CD or CF

Lubricant capacity
(oil pan) *

Total

L

14.0

Effective

L

9.0

7.5

Cooling water capacity
(engine only)

L

6.0

*

Engine dimensions **
(with flywheel housing)

Overall
length

mm

808

776

Overall
width

mm

629

629

Overall
height

mm

803

803

Engine mass (dry)



*, **

(with flywheel housing)

kg

345

(equivalent to SAE # 3)

330

(equivalent to SAE # 3)

Cooling fan (std.)



*

mm

500 mm O/D,

7 blades pusher type

500 mm O/D,

7 blades suction type

Crankshaft V pulley diameter &
Fun V pulley diameter (std.)



*

mm

150 × 150

1.  General

13

(12)4TNV106T

* Items marked * may differ from the above depending on an engine installed on a machine unit.
** Engine mass and dimensions without radiator

Engine name

Unit

4TNV106T

Engine specification class

-

CL

VM

Type

-

Vertical, in-line, 4-cycle, water-cooled diesel engine

Combustion chamber

-

Direct injection

Number of cylinders

-

4

Cylinder bore × stroke

mm × mm

106 × 125

Displacement

L

4.412

Continuous
rating

Revolving
speed

Min

-1

1500

1800

-

Output

kW

(ps)

51.5

(70.0)

61.8

(84.0)

-

Rated output

Revolving
speed

Min

-1

1500

1800

2000

2200

Output

kW

(ps)

56.8

(77.2

68.0

(92.5)

69.9

(95.0)

72.0

(97.9)

Max. no-load speed (± 25)

min

-1

1600

1895

2180

2400

Ignition order

-

1-3-4-2-1(No.1 cylinder on flywheel side)

Power take off

-

Flywheel

Direction of rotation

-

Counterclockwise (viewed from flywheel)

Cooling system

-

Radiator

Lubrication system

-

Forced lubrication with trochoid pump

Starting system

-

Electric

Applicable fuel

-

Diesel oil-ISO 8217 DMA, BS 2869 A1 or A2

(Cetane No.45 min.)

Applicable lubricant

-

API grade class CD or CF

Lubricant capacity
(oil pan) *

Total

L

14.0

Effective

L

9.0

7.5

Cooling water capacity
(engine only)

L

6.0

*

Engine dimensions **
(with flywheel
housing)

Overall
length

mm

808

776

Overall
width

mm

629

629

Overall
height

mm

866

866

Engine mass (dry)



*, **

(with flywheel housing)

kg

355

(equivalent to SAE # 3)

340

(equivalent to SAE # 3)

Cooling fan (std.)



*

mm

500 mm O/D,

7 blades pusher type

500 mm O/D,

7 blades suction type

Crankshaft V pulley diameter &
Fun V pulley diameter (std.)



*

mm

150 × 150

1.  General

14

1.3 Fuel oil, lubricating oil and cooling water

1.3.1 Fuel oil

IMPORTANT:

Only use the recommended fuel to obtain the best engine performance and to keep the durability of the
engine, also to comply with the emission regulations.

(1) Selection of fuel oil

Diesel fuel oil should comply with the following specifications.
• The fuel specifications need to comply with each national standard or international standards.

•  ASTM D975  No.1-D, No.2-D ------------- for USA
• EN590:96-------------------------------------- for EU
• ISO 8217 DMX -------------------------------------- International
• BS 2869-A1 or A2 ---------------------------------- for UK
• JIS K2204    ---------------------------------------- for JAPAN

The following requirements also need to be fulfilled.

• Cetane number should be equal to 45 or higher.
• Sulphur content of the fuel

It should not exceed 0.5%by volume. (Preferably it should be below 0.05 %)

• For alternative fuel (Bio fuel such as FAME, JP-8), please contact YANMAR.
• Water and sediment in the fuel oil should not exceed 0.05% by volume.
• Ash should not exceed 0.01%by mass.
• 10% Carbon residue content of the fuel

It should not exceed 0.35%by volume. (Preferably it should be below 0.1 %)

• Aromatics(total) content of the fuel

It should not exceed 35% by volume. (Preferably it should be below 30%
and aromatics(PAH*) content of the fuel preferably it should be below 10%)
PAH*:polycyclic aromatic hydrocarbons

• DO NOT use Biocide.
• DO NOT use Kerosene, residual fuels.
• DO NOT mix winter fuel and summer fuel.

Note : Engine breakdown can be attributed to insufficient quality of fuel oil.

(2) Fuel handling

• Water and dust in the fuel oil can cause operation

failure. Use containers which are clean inside to store
fuel oil. Store the containers away from rain water
and dust.

• Before supplying fuel, let the fuel container rest for

several hours so that water and dust in the fuel are
deposited on the bottom. Pump up only the clean
fuel.

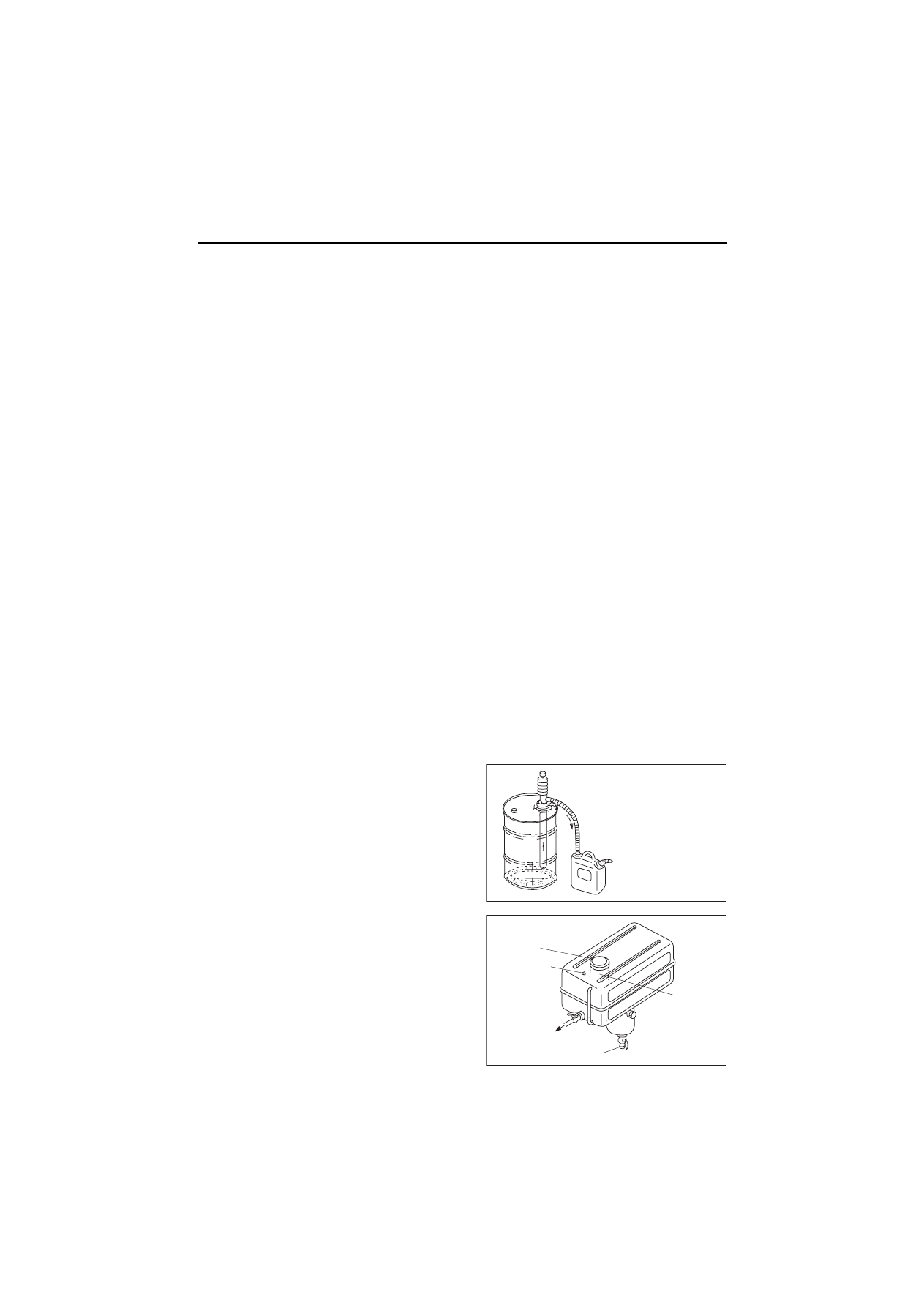

(3) Fuel tank

Fuel tank inside should be always clean enough and dry
it inside for the first use.

Drain the water according to the maintenance (section 5)
with a drain valve.

(R.1))

Pump up only the fuel
in the upper half to
leave dregs near the bottom

Filler port

Fuel return
connection

Outlet
(to engine)

Drain cock

Primary
strainer

1.  General

15-1

1.3.2 Lubricating oil

IMPORTANT:

Only use the recommended engine oil to keep the durability of the engine.

(1) Selection of lube oil

Engine oil shoud comply with the following specifications.

1)Classification
• API classification



 CD, CF, CF-4, CI-4

TBN value :

º

9(CD),

º

9(CF),

º

7(CF-4),

º

7(CI-4)

• ACEA classification



 E-3, E-4, E-5

TBN value :

º

10(E-3),

º

10(E-4),

º

10(E-5)

• JASO classification



 DH-1

TBN value :

º

10(DH-1)

The oil must be changed when the Total Base Number (TBN) has been reduced to 2.0.

*TBN(mgKOH/g) test method; JIS K-2501-5.2-2(HCI), ASTM D4739(HCI)

DO NOT use The following engine oils.
• API : CG-4 , CH-4
• ACEA : E-1, E-2 , B grade
• JASO : DH-2 , DL-1

Reason

API CG-4, CH-4
In case CG-4, CH-4 is to be used for YANMAR TNV diesel engine series, there is a possibility that
excessive wears occur on the valve train system due to the content of oil.

ACEA E-1,E-2, B
These fuels are developed for the different type of diesel engines.

JASO DH-2, DL-1
These fuels are developed for the different type of diesel engines.

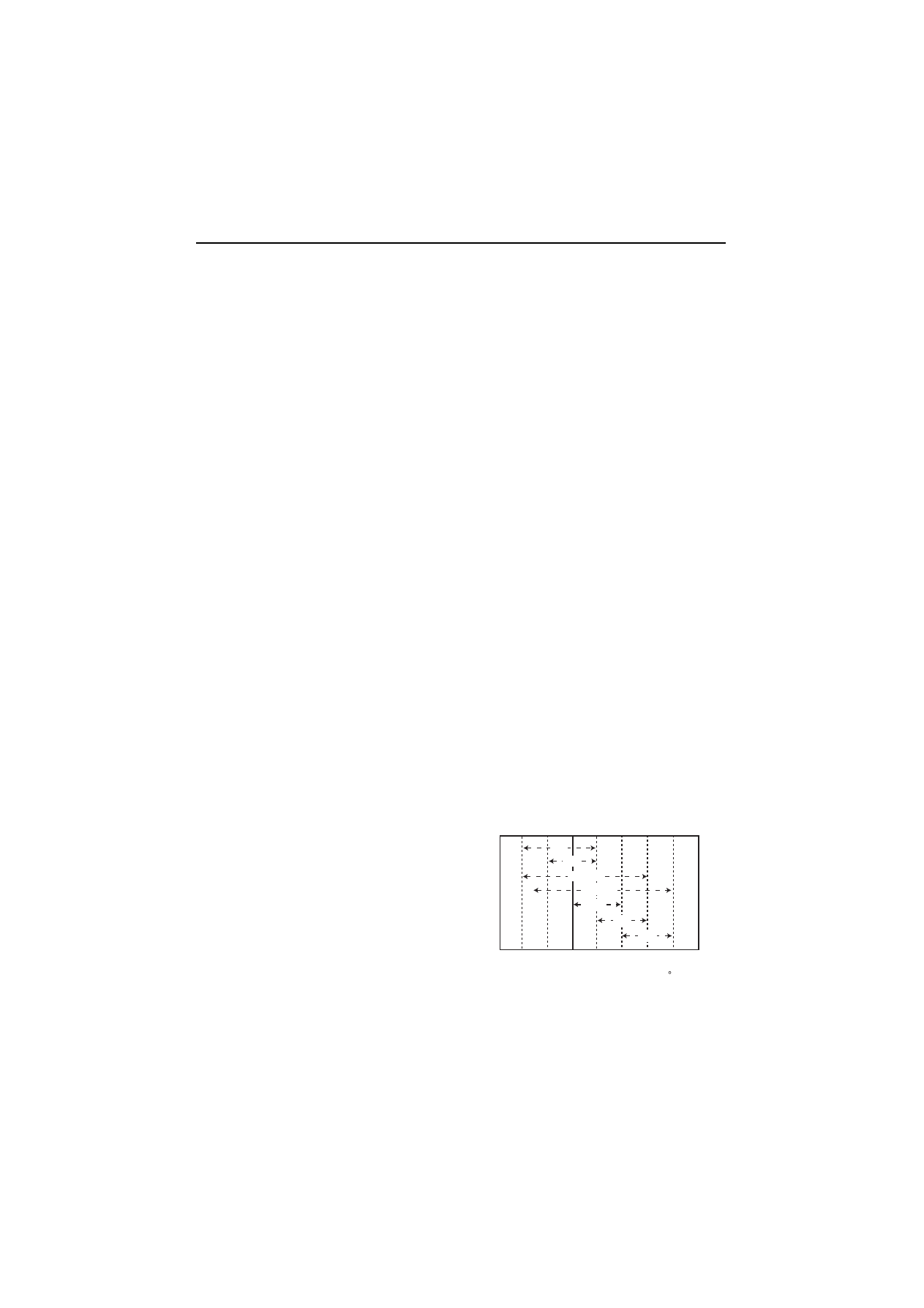

2)Viscosity

Selection of viscosity will be determined depending
on the ambient temperature.
(Refer to the chart on the right.)

The following requirements are also need to be
fulfilled.
• Standard engine oil service interval is 250 hrs or

every 12 months.

• DO NOT add any additives to the engine oil.
• DO NOT mix the different types (brand) of engine

oil.

• DO NOT use synthetic oil.

(R.1)

ޓ ޓ ޓ ޓ ޓ ޓ ޓ

9

9

9

9

Selection of viscosity

(SAE Service grade)

Atmospheric temperature ( C)

15W-40/10W-30 can be used
almost throughout the year.
