Takeuchi Hydraulic excavator TB135 (Serial No.13510004~). Parts Manual - page 4





ENGINE & ACCESSORIES (2/3) (13516745-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
ENGINE ASSY
X03740-14000-6
(cab)
ENGINE ASSY
X03740-15000-6
(canopy)
ENGINE ASSY
X03740-16000-6
(with air
conditioner)
ENGINE ASSY
X03740-17000-6
(for China)
5
0374014100
BRACKET ASSY
1
13516745~13517686
0374014300
BRACKET ASSY
1
13517687~
5-1
0374014110
BRACKET
1
13516745~13517686
0374014310
BRACKET
1
13517687~
5-2
0374010130
PLATE
1
5-3
0374010140
BRACKET
1
13516745~13517686
5-4
0374010150
BRACKET
1
13516745~13517686
0374014320
BRACKET
1
13517687~
5-6
1654303048
SPONGE
2
sold by the meter
5-8
1651014003
RUBBER,
4
cushion
5-10
1100040816
BOLT
2
5-12
1130040008
NUT
4
5-13
1140020008
WASHER,
6
spring
5-14
1141110008
WASHER
6
5-15
1654303034
SPONGE
1
13516745~13517686
sold by the meter
7
1531115025
PROTECTOR
1
sold by the meter
8
0374010008
URETHANE
1
9
0374010009
URETHANE
1
10
0374010010
URETHANE
1
without air con.
12
0374014200
PLATE
1
15
0374010500
SHROUD ASSY
1
13516745~13519306
0374014400
SHROUD ASSY
1
13519307~
M
15-1
0374010550
SHROUD
1
13516745~13519306
0374014410
SHROUD
1
13519307~
M
15-2
1654318042
SPONGE
2
sold by the meter
15-3
1654606044
SEAL
2
sold by the meter
19
1910006013
BAND
2
Y23010-038000
22
1910170052
RUBBER, cushion
2
Y119255-44660
26
1910201003
RADIATOR
1
Y129642-44520
28
1910193011
HOSE
1
Y129612-49030
29
1910193012
HOSE
1
(L)
13516745~13517278
Y129612-49040
0394010029
HOSE
1
(H)
13517279~
30
0374010600
GUARD
1
13516745~13519306
without air con.
0374014550
GUARD
1
13519307~
M
without air con.
31
1910047040
TANK
1
Y171064-44510
32
1910047052
BRACKET
1
Y121256-44600
33
1910047047
BAND
1
Y124450-44550
34
1911300060
COOLER, oil
1
“Œƒ‰ƒW1412-180-1000
35
1910078037
VALVE
1
Y129150-49100
36
1530808042
TUBE
1
sold by the meter
37
1654601095
TRIM
1
sold by the meter
38
1531115037
PROTECTOR
1
sold by the meter
39
1533120512
BAND
4
41
1530808027
TUBE
1
sold by the meter
44
1910195015
BAND
2
Y23010-044000
45
0374010045
SPONGE
2
sold by the meter
54
1100040616
BOLT
4
55
1100040816
BOLT
6
56
1100040820
BOLT
1
57
1100040825
BOLT
2
59
1100041025
BOLT
3
62
1130040008
NUT
4
65
1140020008
WASHER, spring
15
66
1140020010
WASHER, spring
3
67
1141110008
WASHER
8
68
1100040830
BOLT
2
72
1531115020
PROTECTOR
1
sold by the meter
Reference:G4C262
Page:3-10
TB135 Book No. BG4Z010 S/N 13510004-

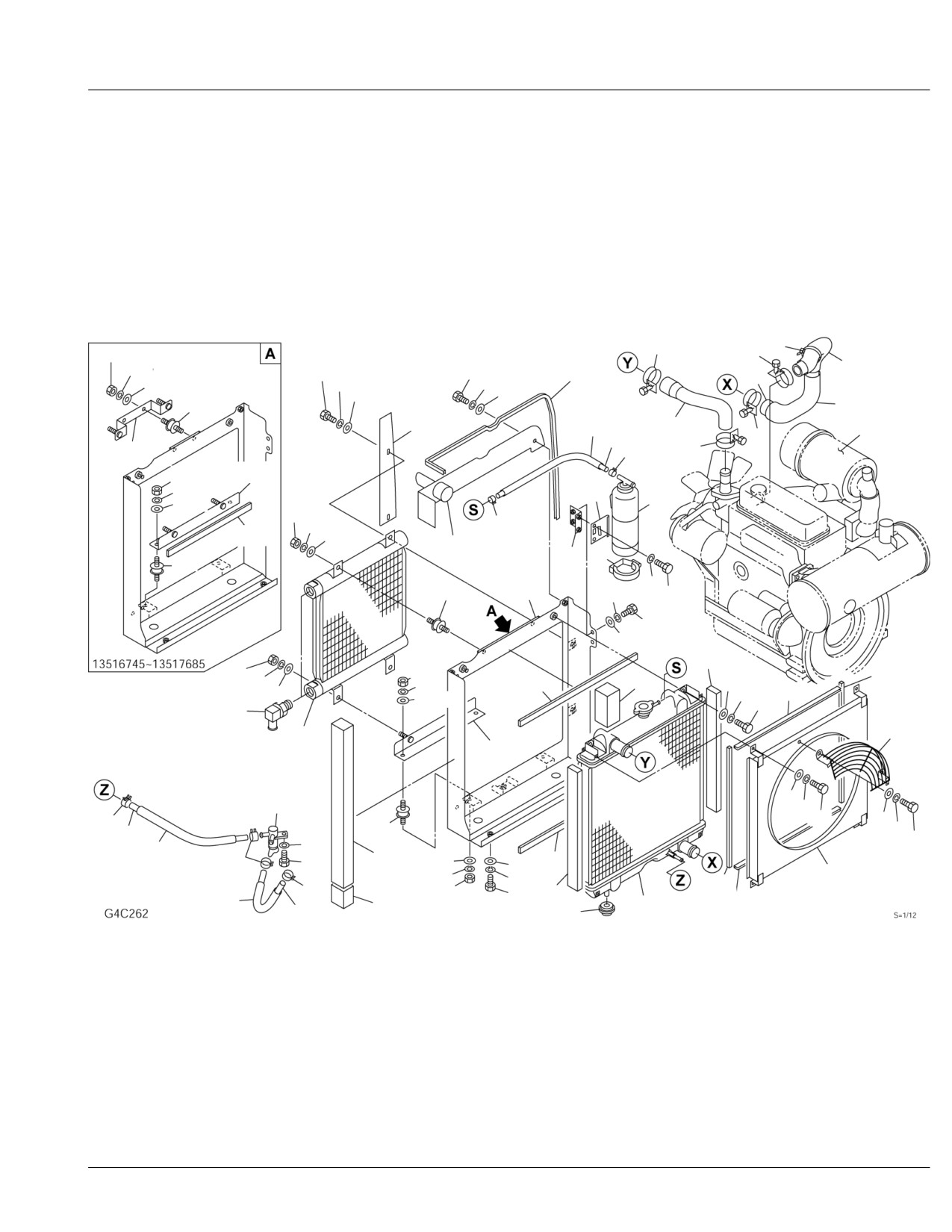

ENGINE & ACCESSORIES (2/3) (13516745-)
44
80
5-12
19
5-13
81
55
57
37
29
5-14
65
65
67
67
5-8
82
87
7
28
94
84
44
5-3
85
19
5-12
5-4
5-13
32
31
5-14
62
65
85
5-15
67
12
5-2
33
5-8
65
5-8
5-1
5-13
55
5-10
5-14
45
62
5-12
15-2
65
5-13
5-6
10
67
67
65
15-3
5-14
68
86
34
30
5-4
89
35
88
54
67
39
5-8
65
41
55
65
72
8
39
56
5-14
5-6
90
5-13
15-1
66
15-2
39
5-12
45
59
38
9
26
15-3
36
22
Ref G4C262
Page
3-10
ENGINE & ACCESSORIES (2/3) (13516745-)
Item
Part number
Description
Q'ty Chan.
Serial No.
Serv.
Remarks
80
1652231250
BAND
1
81
1531345010
PROTECTOR
1
sold by the meter
82
1531350030
PROTECTOR
1
13516745~13517278
sold by the meter
84
1531407030
HOSE
1
85
1533120012
CLAMP
2
86
1513350027
ELBOW
2
86
1420010290
O-RING
1
87
0374010086
PLATE
1
88
1140020006
WASHER, spring
4
89
1141110006
WASHER
4
90
0003600020
WASHER
3
94
Y12961212691
AIR CLEANER
1
engine parts
G4c264
Reference:G4C262
Page:3-10
TB135 Book No. BG4Z010 S/N 13510004-

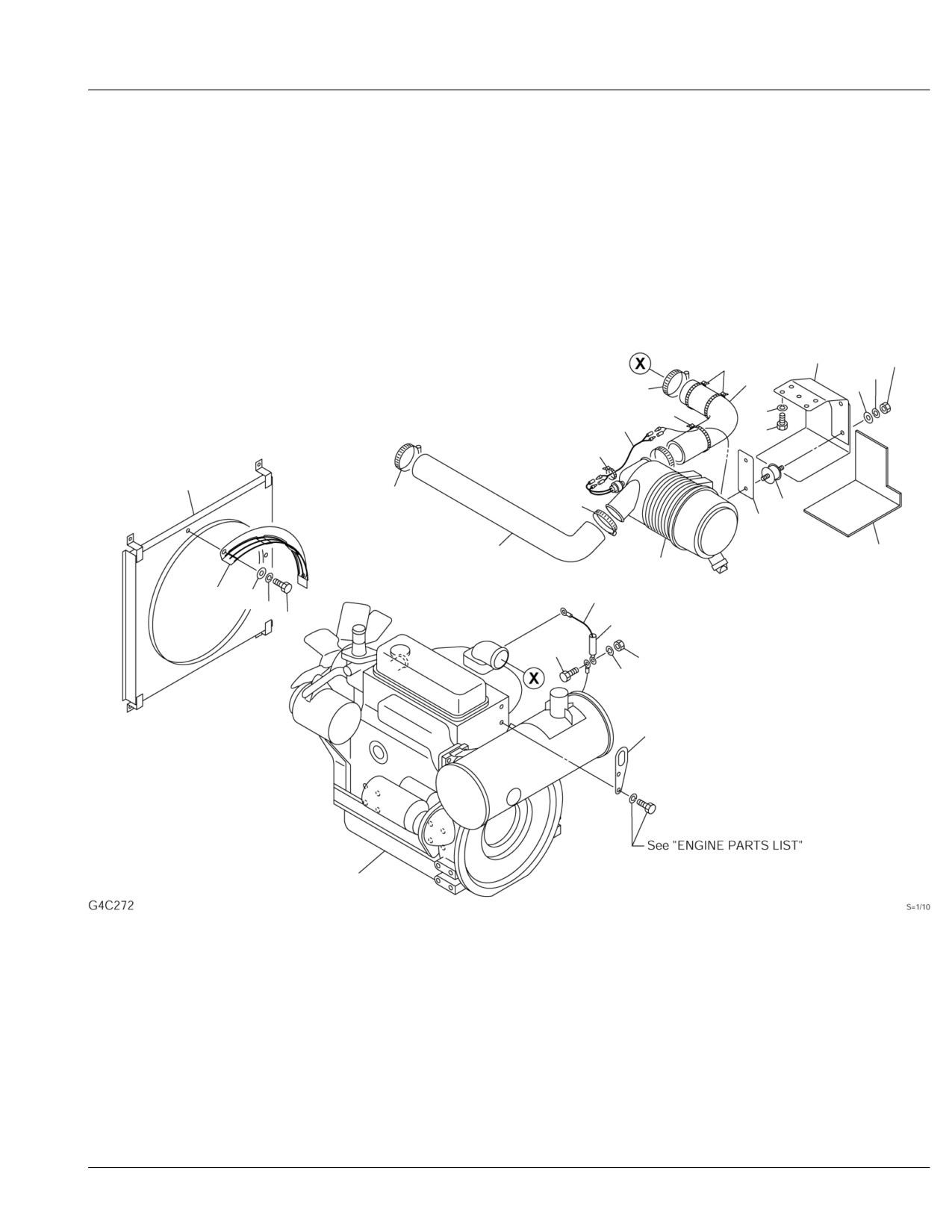

ENGINE & ACCESSORIES (3/3) (with air conditioner 13516745-)
75
62
80
65
77
67
18
80
65
73
56
80
15
18
18
71
70
79
76
92
30
93
67
65
50
55
51
52
88
78
25
Ref G4C272
Page
3-11
ENGINE & ACCESSORIES (3/3) (with air conditioner 13516745-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
ENGINE ASSY (with air
X03740-16000-6
conditioner)
ENGINE ASSY (for China)
X03740-17000-6
15
0374014400
SHROUD ASSY
1
a, b
13519307~
18
1910032047
BAND
4
Y23000-060000
25
1910222001
ENGINE (with air conditioner)
1
A
13516745~13519311
3TNV88-QTB2
1910243001
ENGINE (with air conditioner)
1
a
13519312~
M
3TNV88-QTB2
1910229001
ENGINE (for China)
1
B
13516745~13519306
3TNV88-QTB3
1910244001
ENGINE (for China)
1
b
13519307~
M
3TNV88-QTB3
30
0374010650
GUARD
1
13516745~13519306
0374014500
GUARD
1
a, b
13519307~
M
50
1531115005
PROTECTOR
1
sold by the meter
51
1100040612
BOLT
1
52
1130040006
NUT
1
55
1100040816
BOLT
2
56
1100040820
BOLT
4
62
1130040008
NUT
2
65
1140020008
WASHER, spring
8
67
1141110008
WASHER
4
70
0374006690
SPACER
1
71
1651014005
RUBBER, cushion
2
73
0374006680
HARNESS, wiring
1
75
0374011110
PLATE
1
76
0374011120
INSULATOR
1
77
0374011130
PIPE
1
78
0374011140
HOOK
1
79
0374014220
PIPE
1
80
1652231250
BAND
4
88
1140020006
WASHER, spring
1
92
1910204007
CLEANER, air (with air
1
conditiner)
93
0374011190
HARNESS, wiring
1
<<NOTE>>
"A" is interchangeable with
SET "a".
"B" is interchangeable with
SET "b".
G4c274
Reference:G4C272
Page:3-11
TB135 Book No. BG4Z010 S/N 13510004-

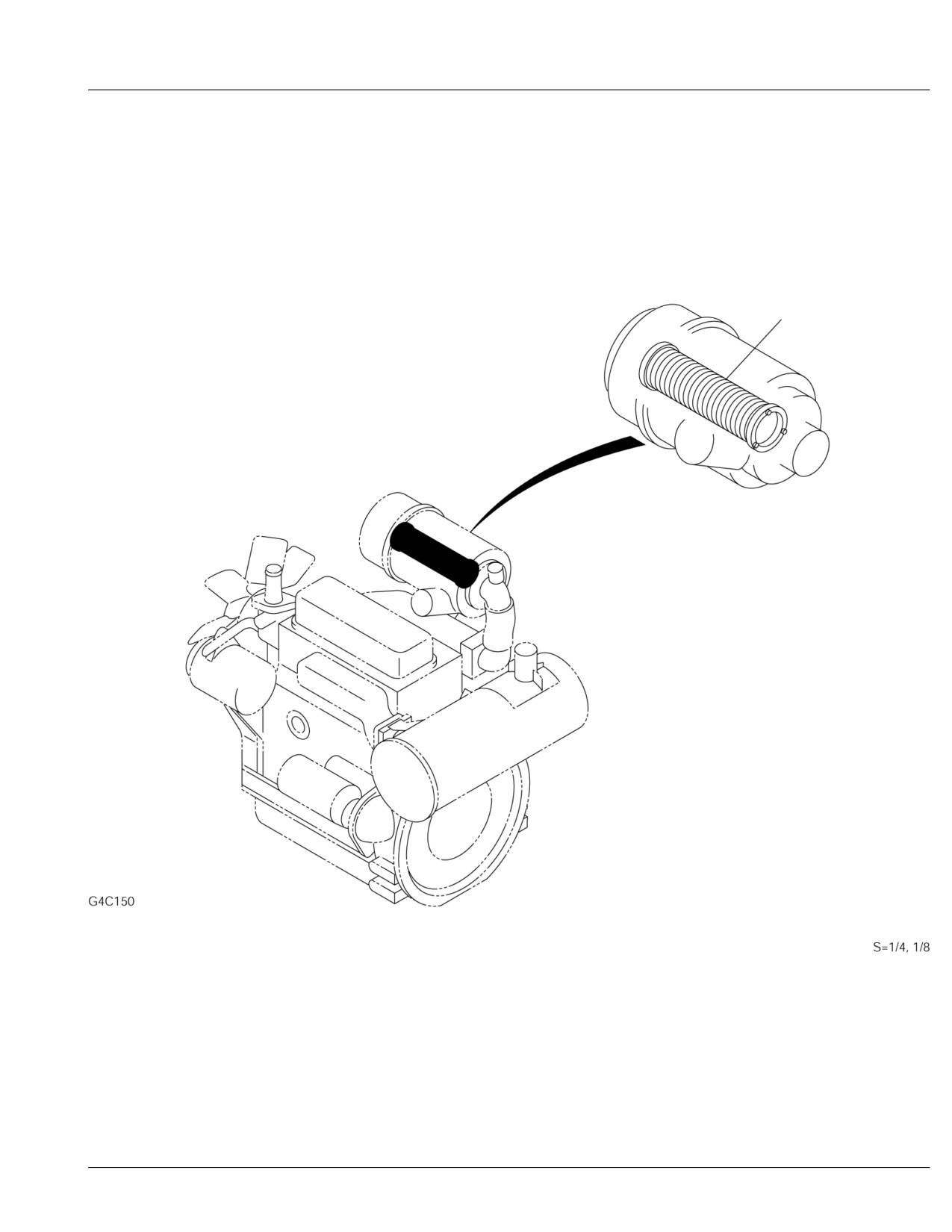

AIR CLEANER (for double element)
1
Ref G4C150
Page
3-12
AIR CLEANER (for double element)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
CLEANER ASSY, air
X03740-07500-0
1
1911102772
ELEMENT
1
G4c150
Reference:G4C150
Page:3-12
TB135 Book No. BG4Z010 S/N 13510004-

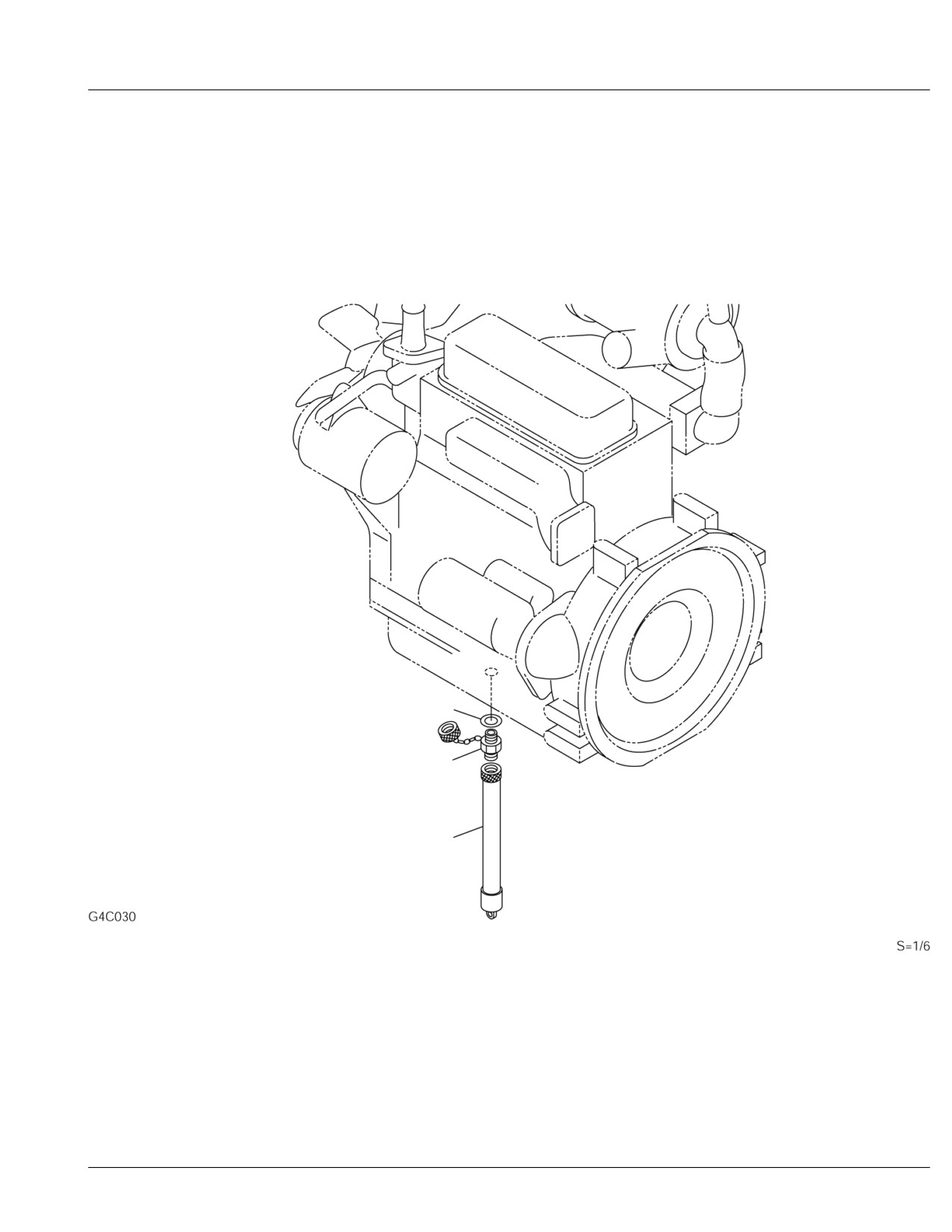

DRAIN PLUG
2
1
3
Ref G4C030
Page
3-13
DRAIN PLUG
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
PLUG ASSY, drain
X03540-02000-2
1
1554502250
PLUG
1
2
1432122302
WASHER
1
3
1554512600
TUBE
1
G4c031
Reference:G4C030
Page:3-13
TB135 Book No. BG4Z010 S/N 13510004-

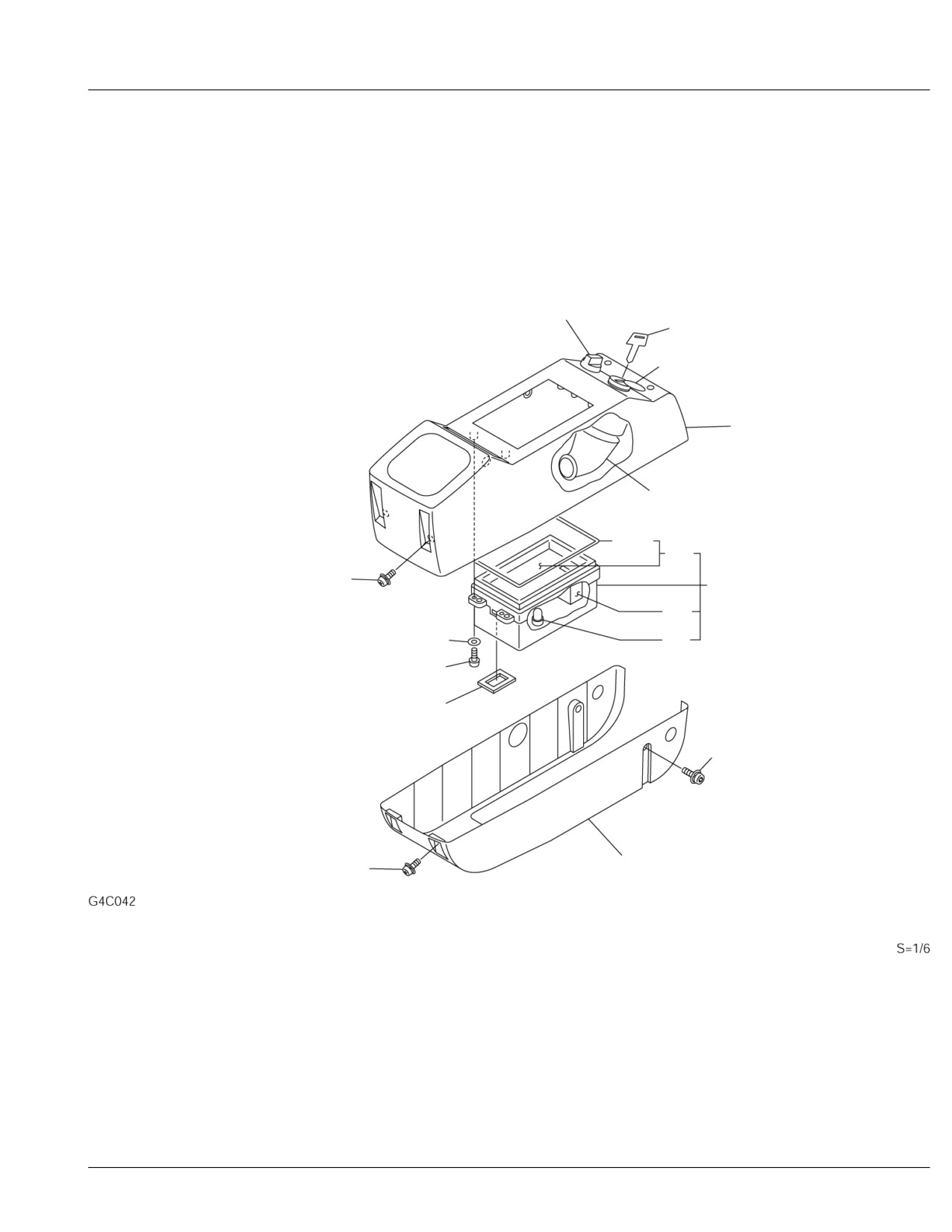

CONTROL BOX; R.H.
5
4-1
4
1
3
6-3-1
6-3
10
6
6-2
12
6-1
9
7
8
2
10
Ref G4C042
Page
3-14
CONTROL BOX; R.H.
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
BOX ASSY, (R.H.) (cab)
X03743-03000-6
BOX ASSY, (R.H.) (canopy)
X03743-03500-6
1
0334326150
COVER (R.H.)
1
2
0334326250
COVER (R.H.)
1
3
0870431821
COVER
1
4
1700100023
SWITCH, starter
1
cab
1700100072
SWITCH, starter
1
13517771~
canopy
4-1
1700100019
KEY
1
5
1700000010
SWITCH, lamp
1
6
1730140650
GAUGE, cluster
1
6-1
1730140634
BULB (14V, 1.4W)
10
6-2
1730140652
METER, hour
1
6-3
1730140653
GLASS ASSY
1
6-3-1
1730140654
PACKING
1
7
0334326010
SPONGE
1
13511879~
8
1110540614
SCREW
2
9
1120530416
SCREW
4
10
1150410614
BOLT, sems
6
12
1141190004
WASHER
4
G4c043
Reference:G4C042
Page:3-14
TB135 Book No. BG4Z010 S/N 13510004-

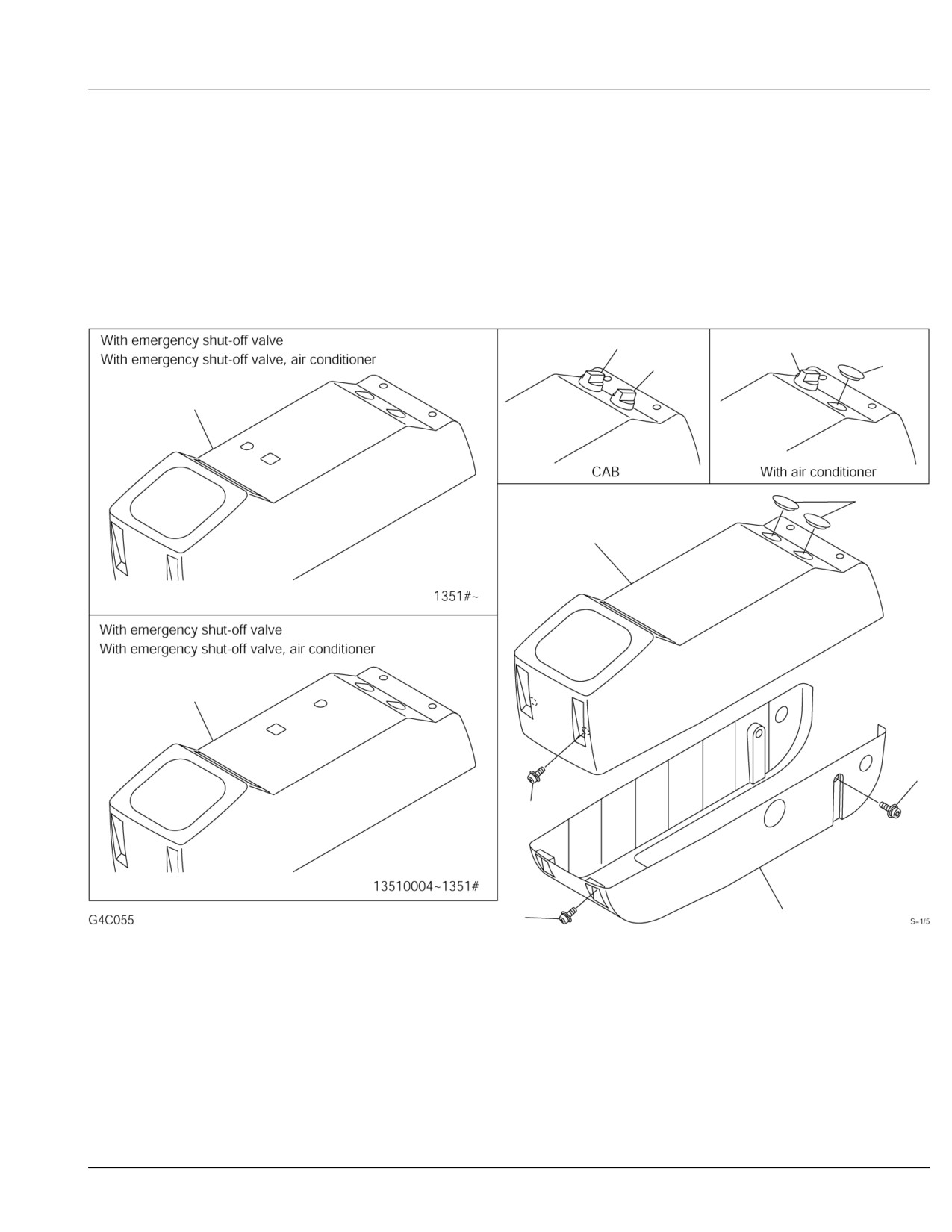

CONTROL BOX; L.H.
3
3
4
5
10
5
1
10
9
6
6
2
Ref G4C055
Page
3-15
CONTROL BOX; L.H.
Item
Part number
Description
Q'ty Chan.
Serial No.
Serv.
Remarks
BOX ASSY (L.H.) (cab)
X03743-04000-6
BOX ASSY (L.H.)
X03743-05000-6
(canopy)
BOX ASSY (L.H.) (with
X03743-04300-6
shut-off valve) (cab)
BOX ASSY (L.H.) (with
X03743-05300-6
shut-off valve)
(canopy)
BOX ASSY (L.H.) (with
X03743-05400-6
air con.) (cab)
BOX ASSY (L.H.) (with
X03743-05500-6
air con., shut-off valve)
(canopy)
1
0334327150
COVER (L.H.)
1
except for shut-off valve
2
0334327250
COVER (L.H.)
1
3
1704300007
SWITCH, wiper
1
cab, with air con.
4
1700000011
SWITCH, heater
1
cab
5
1652533019
CAP
2
canopy, with air con.
6
1150410614
BOLT, sems
6
9
1110540614
SCREW
2
10
0397313270
COVER (L.H.)
1
13510004~1351#
with shut-off valve
0374304100
COVER (L.H.)
1
(H)
1351#~
M with shut-off valve No.23692
G4c055
Reference:G4C055
Page:3-15
TB135 Book No. BG4Z010 S/N 13510004-

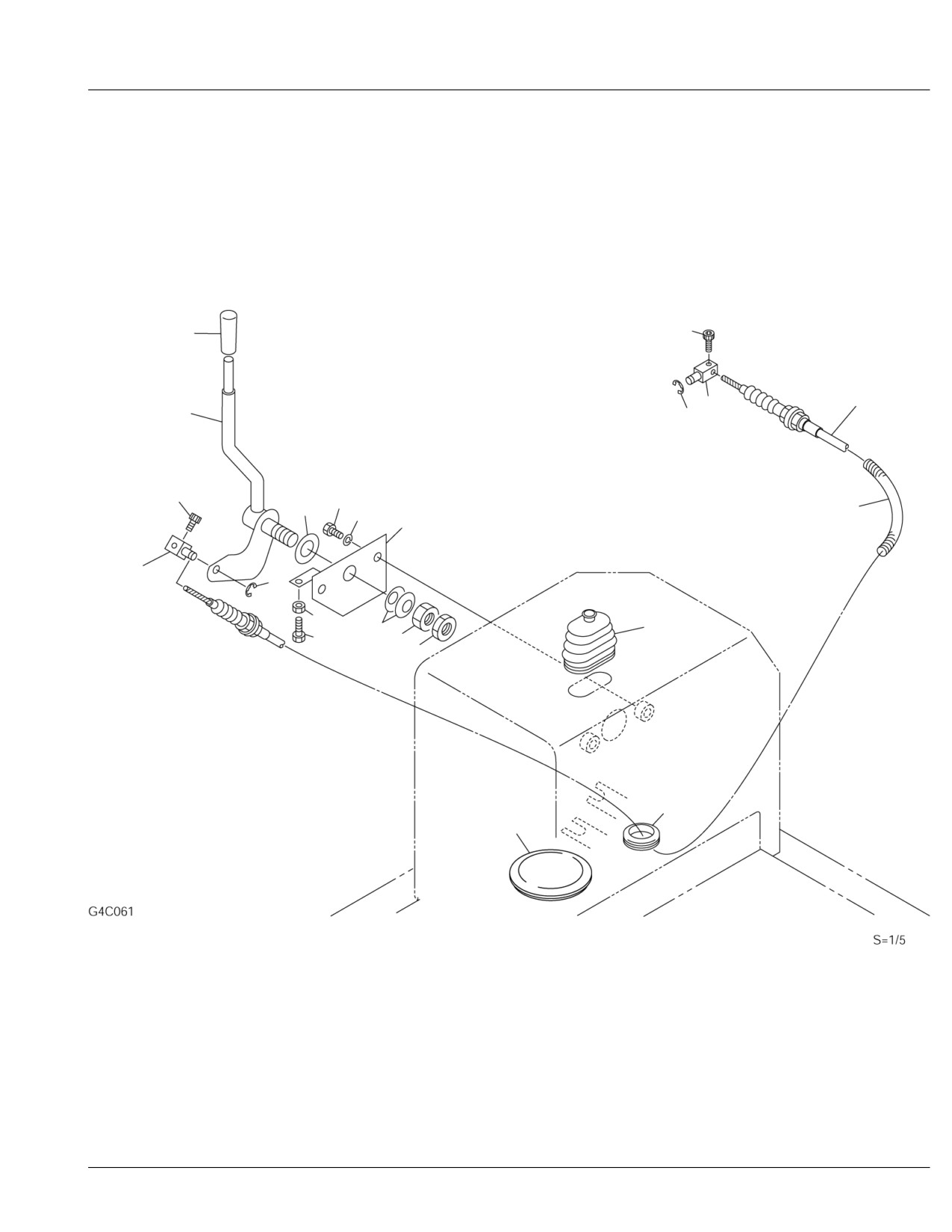

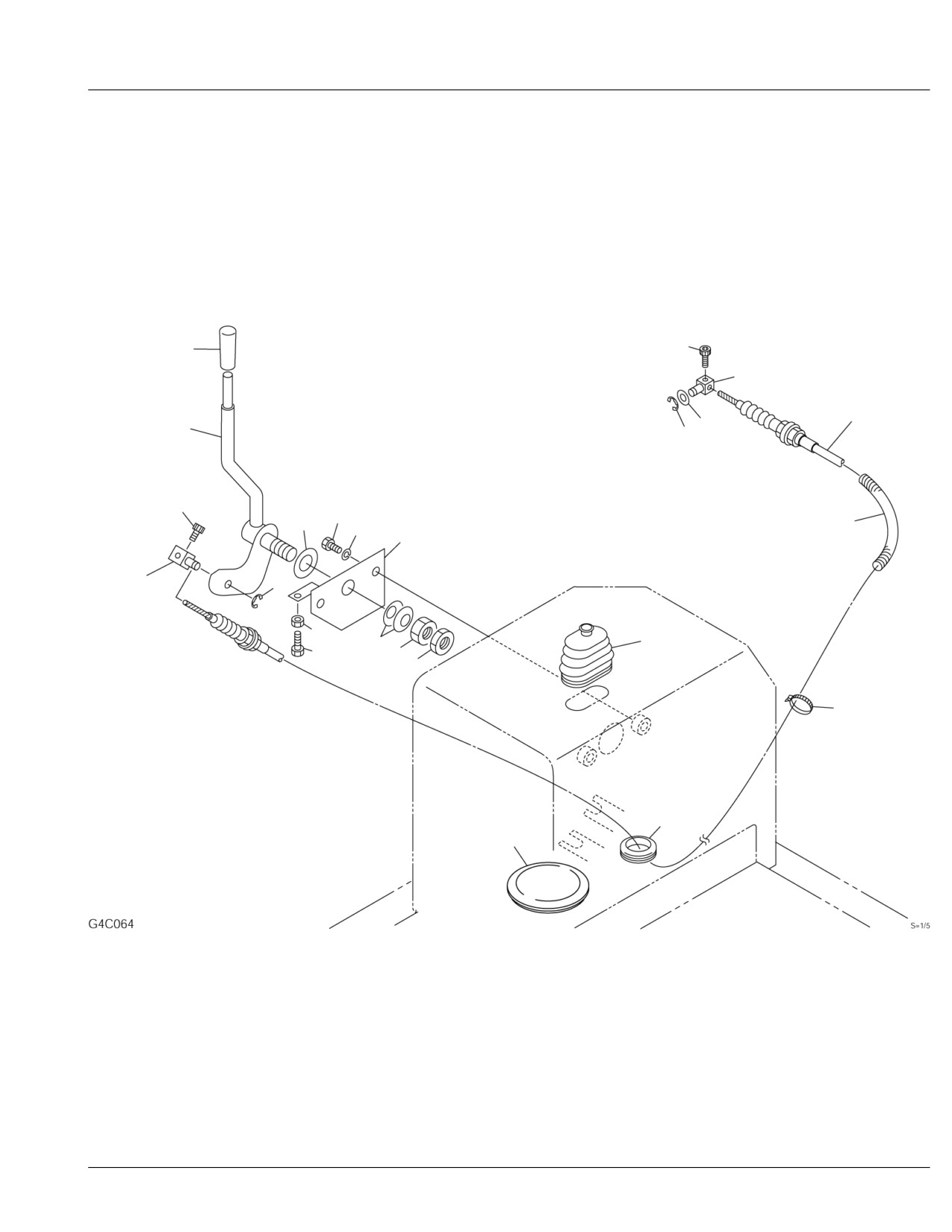

ENGINE CONTROL (13510004-13514050)
12
11
3
8
1
9
12
14
6
16
18
2
7
9
15
21
10
13
1722
19
23
Ref G4C061
Page
3-16
ENGINE CONTROL (13510004-13514050)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
CONTROL ASSY, engine
X03741-04000-3
CONTROL ASSY, engine (with air
X03741-04400-3
conditioner)
1
0374104100
LEVER
1
2
0374104200
PLATE
1
3
0374102040
WIRE
1
6
1141550018
WASHER
1
7
0007900020
PIN
1
8
0007900050
PIN
1
9
1224010006
E-RING
2
10
1225120018
WASHER, conical
2
11
1650132050
GRIP
1
12
1110040510
SCREW, cap
2
13
1100040825
BOLT
1
14
1100041020
BOLT
2
15
1130040008
NUT
1
16
1532208015
PROTECTOR
1
sold by the meter
17
1130640018
NUT
1
18
1140020010
WASHER, spring
2
19
1652060035
BUSHING
1
without air con.
21
0334120100
BOOT
1
22
0064111700
NUT
1
23
1652060085
GROMMET
1
without air con.
G4c062
Reference:G4C061
Page:3-16
TB135 Book No. BG4Z010 S/N 13510004-
ENGINE CONTROL (13514051-)
12
11
7
3
1
5
9
12
14
6
16
18
2
7
9
15
21
10
13
1722
20
19
23
Ref G4C064
Page
3-17
ENGINE CONTROL (13514051-)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
CONTROL ASSY, engine
X03741-04500-1
CONTROL ASSY, engine (with air
X03741-04600-1
conditioner)
1
0374104510
LEVER
1
2
0374104200
PLATE
1
3
0374102040
WIRE
1
5
1141110008
WASHER
1
6
1141550018
WASHER
1
7
0007900020
PIN
2
9
1224010006
E-RING
2
10
1225120018
WASHER, conical
2
11
1650132050
GRIP
1
12
1110040510
SCREW, cap
2
13
1100040820
BOLT
1
14
1100041020
BOLT
2
15
1130040008
NUT
1
16
1532208015
PROTECTOR
1
sold by the meter
17
1130640018
NUT
1
18
1140020010
WASHER, spring
2
19
1652060035
BUSHING
1
without air con.
20
1652231140
BAND
1
21
0334120100
BOOT
1
22
0064111700
NUT
1
23
1652060085
GROMMET
1
without air con.
G4c064
Reference:G4C064
Page:3-17
TB135 Book No. BG4Z010 S/N 13510004-

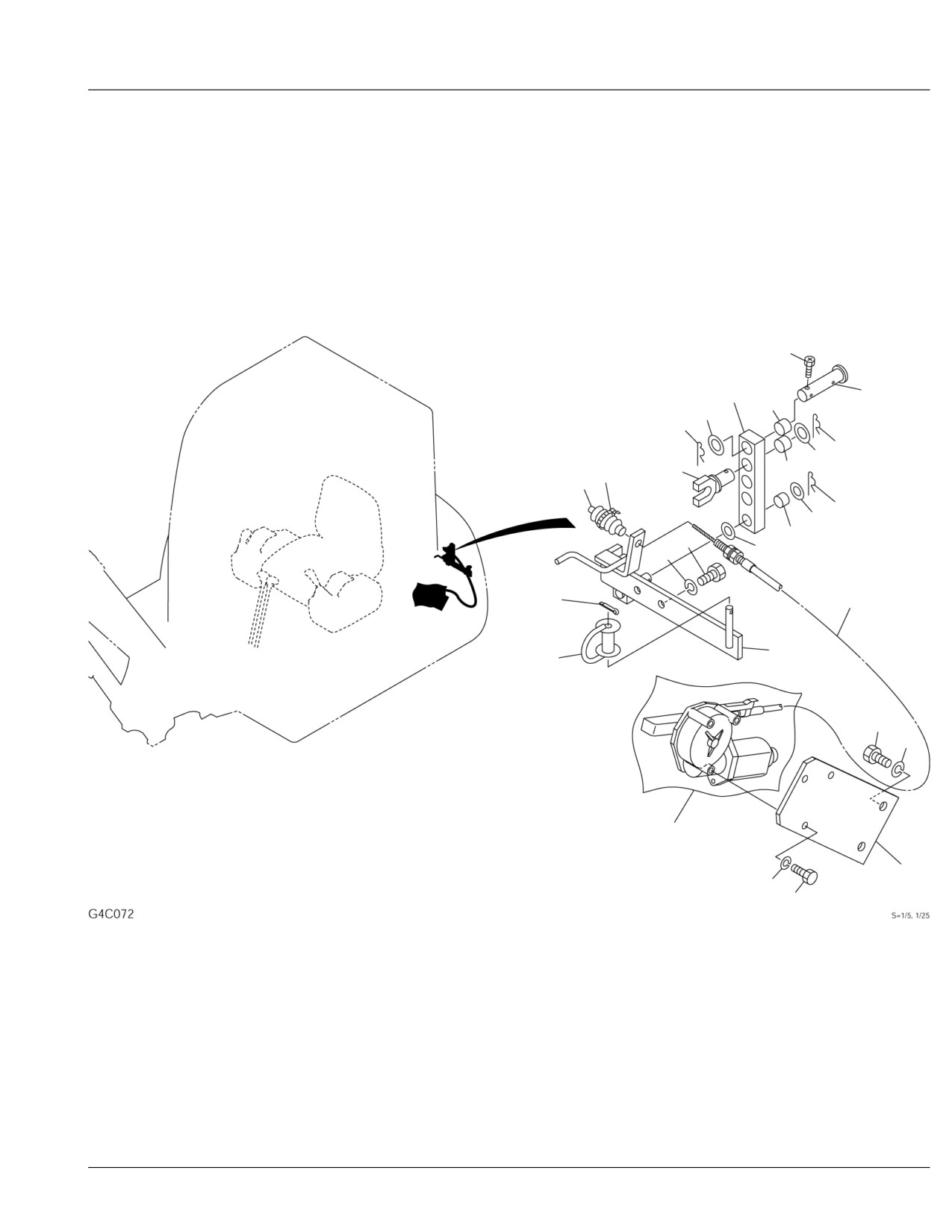

DECEL. UNIT (13510004-13514050)
12
3
4
3-7
11
9
9
11
2
3-7
20
19
8
10
3-8
14
17
10
21
7-1
1
6
15
18
7
5
16
13
Ref G4C072
Page
3-18
DECEL. UNIT (13510004-13514050)
Item
Part number
Description
Q'ty Chan. Serial No.
Serv.
Remarks
UNIT ASSY, decel.
X03741-03000-1
1
0374103040
BRACKET
1
2
0434107200
BRACKET
1
3
0434107300
LEVER
1
3-7
1333001415
BUSHING
2
3-8
1333001215
BUSHING
1
4
0374103020
PIN
1
5
0374103030
BRACKET
1
6
0374103050
GUIDE
1
7
1910087166
MOTOR, decel.
1
Y119032-77910
7-1
1910087167
WIRE
1
8
1214000012
PIN, snap
1
9
1214000014
PIN, snap
2
10
1141210012
WASHER
2
11
1141210014
WASHER
2
12
1105090510
BOLT
1
13
1100040616
BOLT
3
14
1100040820
BOLT
2
15
1100041025
BOLT
2
16
1140020006
WASHER, spring
3
17
1140020008
WASHER, spring
2
18
1140020010
WASHER, spring
2
19
0007900014
BOOT
1
20
1652201004
BAND
1
21
1210010220
PIN, split
1
G4c072
Reference:G4C072
Page:3-18
TB135 Book No. BG4Z010 S/N 13510004-

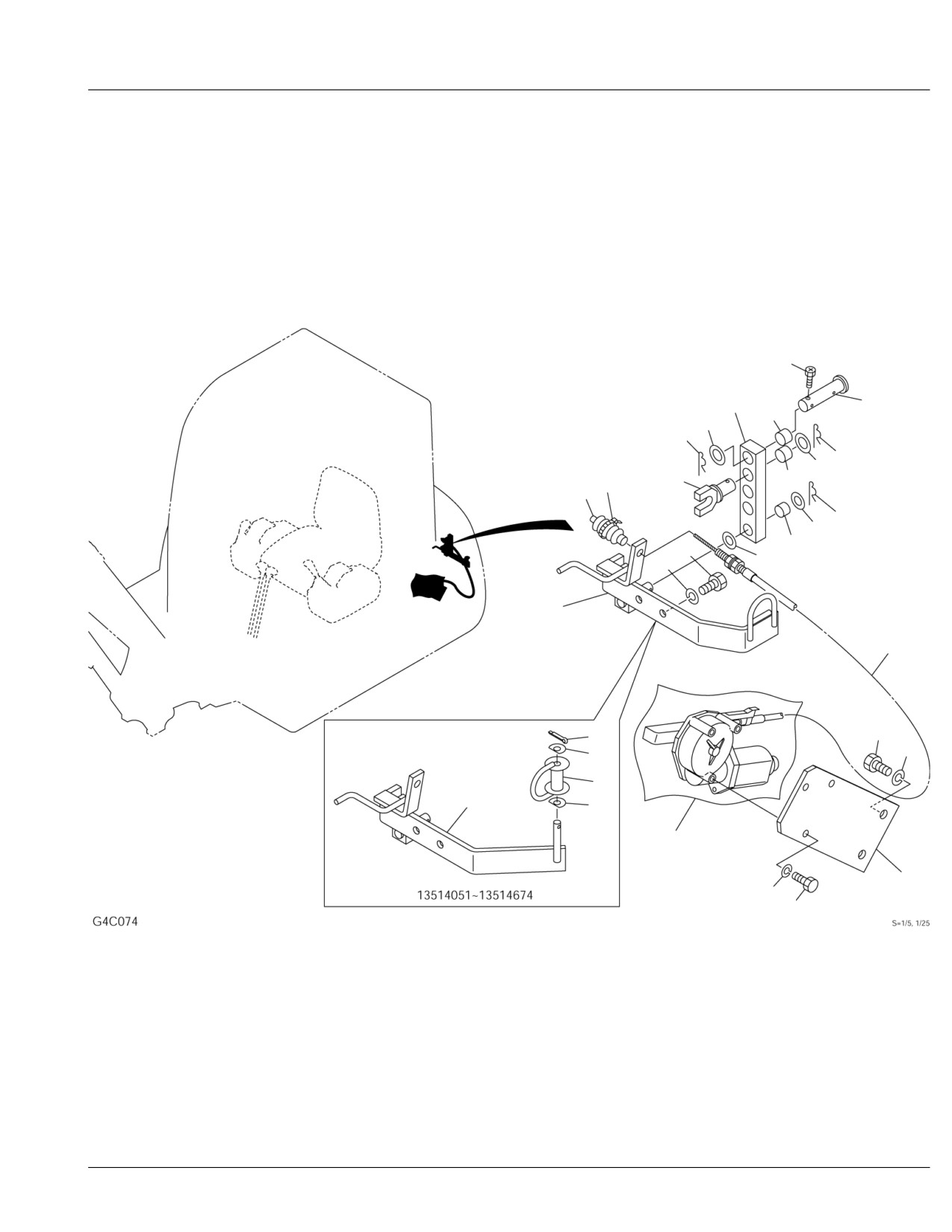

DECEL. UNIT (13514051-)
12
3
4
3-7
11
9
9
11
2
3-7
20
19
8
10
3-8
14
17
10
1
7-1
21
15
18
22
6
1
22
7
5
16
13
Ref G4C074
Page
3-19
DECEL. UNIT (13514051-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
UNIT ASSY, decel.
X03741-03100-2
1
0394108610
BRACKET
1
13514051~13514674
0394108650
BRACKET
1
(H)
13514675~
2
0434107200
BRACKET
1
3
0434107300
LEVER
1
3-7
1333001415
BUSHING
2
3-8
1333001215
BUSHING
1
4
0374103020
PIN
1
5
0374103030
BRACKET
1
6
0374103050
GUIDE
1
13514051~13514674
7
1910087166
MOTOR, decel.
1
Y119032-77910
7-1
1910087167
WIRE
1
8
1214000012
PIN, snap
1
9
1214000014
PIN, snap
2
10
1141210012
WASHER
2
11
1141210014
WASHER
2
12
1105090510
BOLT
1
13
1100040616
BOLT
3
14
1100040820
BOLT
2
15
1100041020
BOLT
2
16
1140020006
WASHER, spring
3
17
1140020008
WASHER, spring
2
18
1140020010
WASHER, spring
2
19
0007900014
BOOT
1
20
1652201004
BAND
1
21
1210010220
PIN, split
1
13514051~13514674
22
0394108630
SHEET
2
13514051~13514674
G4c074
Reference:G4C074
Page:3-19
TB135 Book No. BG4Z010 S/N 13510004-

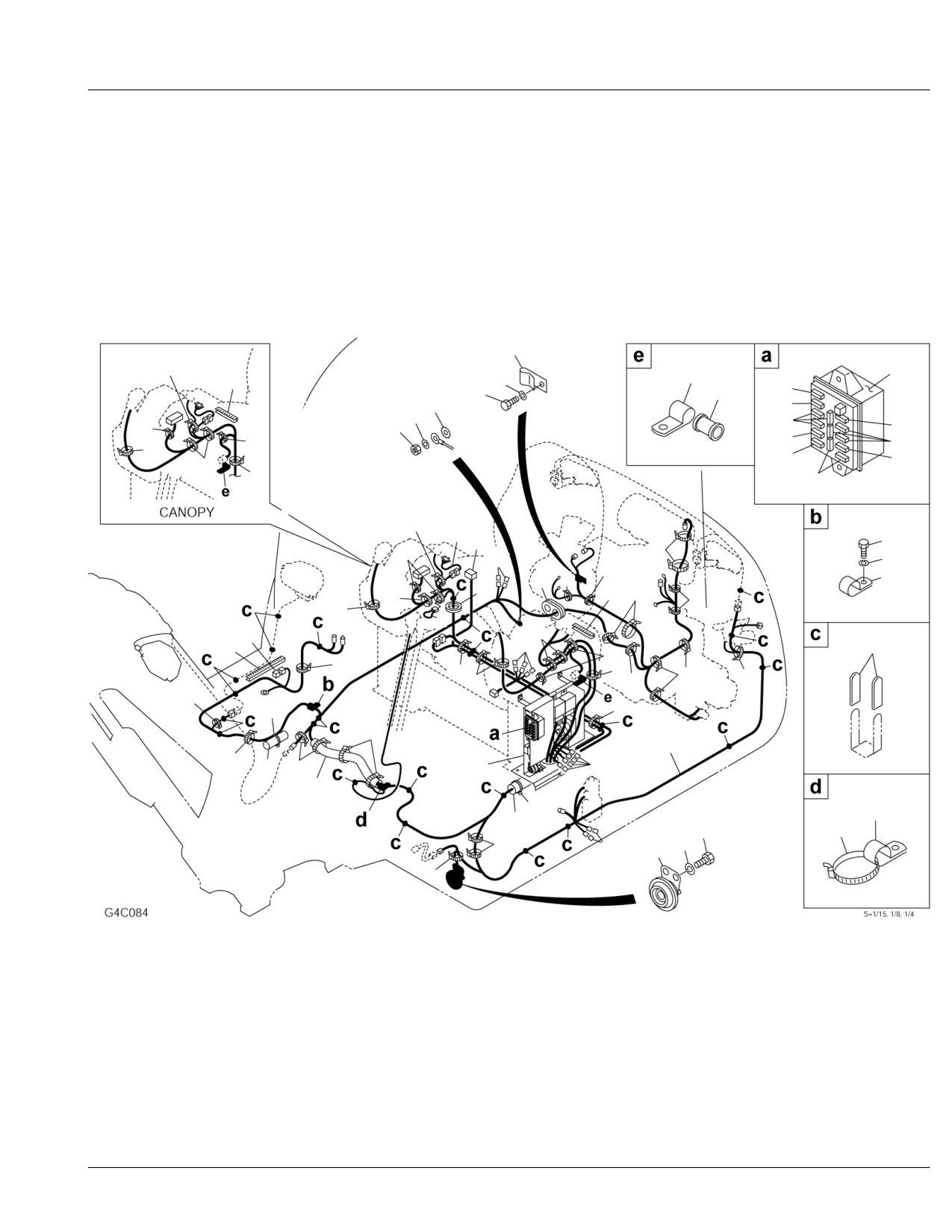

ELECTRICAL (1/2) (13510004-13514050)
19
6
2-8
29
12
32
2-5
22
33
9
2-6
8
2-3
30
7
2-4
30
2-4
2-5
6
2-5
2-2
2-4
6
6
2-6
6
26
11
3
6
30
2-1
12
6
17
6
20
25
29
6
6
6
6
4
2-2
6
28
3-1
13
30
6
15
6
6
6
27
6
6
6
6
6
2
6
14
1
2-1
6
2-7
6
31
24
11
6
6
12
2-1
10
6
Ref G4C084
Page
3-20
ELECTRICAL (1/2) (13510004-13514050)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
ELECTRICAL ASSY (cab)
X03742-05000-12
ELECTRICAL ASSY
X03742-06000-12
(canopy)
1
X
0374205100
UNIT, control
1
13510004~13510420
see page (2/2)
X
0354217100
UNIT, control
1
13510421~
see page (2/2)
2
0374205400
HARNESS, wiring
1
13510004~13510420
0374205500
HARNESS, wiring
1
13510421~
2-1
1730500008
DIODE (3A, yellow)
8
2-2
1701330065
LINK, fusible
1
65A
2-3
1701310010
FUSE
3
10A
2-4
1701310015
FUSE
3
15A
2-5
1701310020
FUSE
5
20A
2-6
1701310030
FUSE
3
30A
2-7
1531335050
PROTECTOR
1
sold by the meter
2-8
1701200002
BOX, fuse
1
3
0354217300
HARNESS, wiring
1
cab
3-1
1730500008
DIODE (3A, yellow)
3
4
0334230400
CONNECTOR
1
cab
6
1652231250
BAND
38
cab
1652231250
BAND
37
canopy
7
1130040010
NUT
1
8
1140020010
WASHER, spring
1
9
1140330010
WASHER
1
10
1703500612
HORN
1
11
1100040816
BOLT
2
12
1140020008
WASHER, spring
3
13
0872433150
CLAMP
66
14
0374205010
GUARD
1
15
1652201007
BAND
1
17
0337017300
GUARD
1
19
0007300023
CLAMP
1
20
0007300050
CLAMP
1
22
1100040812
BOLT
1
24
0374205030
COVER
1
25
1652060063
BUSHING
1
26
0374205600
HARNESS, wiring
1
27
1652241400
BAND
1
28
1653916017
TRIM
1
sold by the meter
29
1653917009
TRIM (cab)
1
sold by the meter
1653917009
TRIM (canopy)
2
sold by the meter
30
1652201005
BAND
4
31
0007300003
CLAMP
1
32
0007300001
CLAMP
2
13512923~
canopy
0007300001
CLAMP
1
13512923~
cab
33
0868423862
GROMMET
2
13512923~
canopy
0868423862
GROMMET
1
13512923~
cab
G4c084
Reference:G4C084
Page:3-20
TB135 Book No. BG4Z010 S/N 13510004-

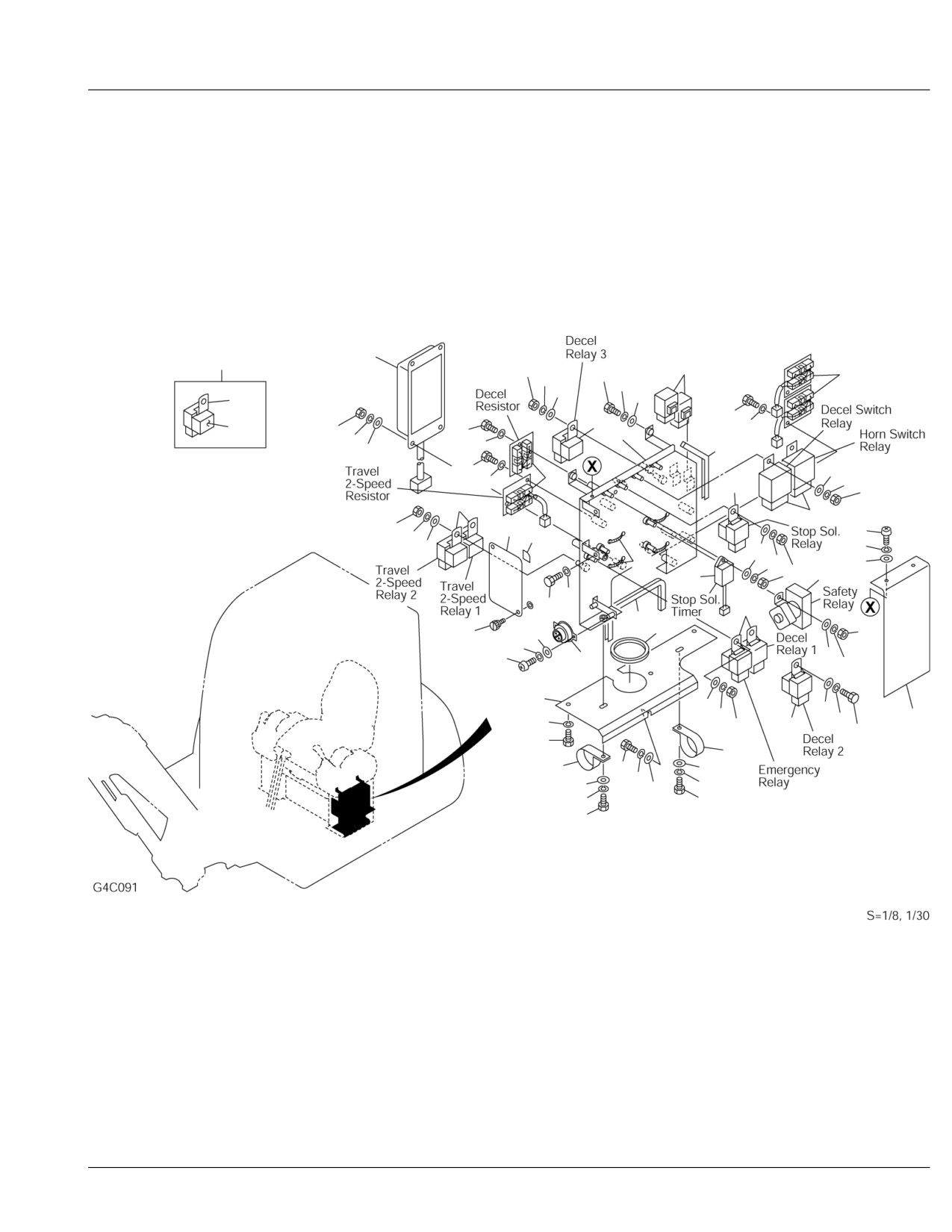

ELECTRICAL (2/2) (13510004-13510420)
10
7
21
29
25
8
34
34
39
7-1
39
24
7-2
7
33
29
24
1
33
18
3439
39
2433
6
34
7
29
7
9
29
2
23
34
4
39
32
3934
38
15
29
13
12
34
25
7
19
14
29
17
37
31
22
11
3934
3
39
39
34
5
34
34
29
7
25
25
20
20
26
39
39
34
34
39
34
25
25
Ref G4C091
Page
3-21
ELECTRICAL (2/2) (13510004-13510420)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
ELECTRICAL ASSY (cab)
X03742-05000
ELECTRICAL ASSY (canopy)
X03742-06000
0-1
X
0374205100
UNIT, control
1
1
0374205110
PLATE
1
2
0374205140
COVER
1
3
0374205120
COVER
1
4
0374205150
RUBBER
2
5
0374205130
RUBBER
1
6
0334230120
RESISTOR
2
7
0334230130
RELAY ASSY
7
7-1
1711900042
RELAY
1
7-2
1654302003
SPONGE
1
sold by the meter
8
0374203120
RESISTOR
2
9
1711900062
RELAY
2
10
1730140660
CONTROLER
1
11
1730140680
BUZZER
1
12
1910095116
UNIT, timer
1
‚x119632-77920
13
1910080106
RELAY
1
Y129136-77100
14
1653916020
TRIM
1
sold by the meter
15
1652231250
BAND
4
17
1652711698
SCREW
2
18
1653916020
SEAL
1
sold by the meter
19
1653916029
SEAL
1
sold by the meter
20
0007300030
CLAMP
2
21
1730500010
UNIT, diode
2
22
1120530310
SCREW
2
23
1120530410
SCREW
2
24
1100040510
BOLT
8
25
1100040616
BOLT
10
26
1100040610
BOLT
1
29
1130040006
NUT
15
31
1140020003
WASHER, spring
2
32
1140020004
WASHER, spring
2
33
1140020005
WASHER, spring
8
34
1140020006
WASHER, spring
26
37
1141110003
WASHER
2
38
1141110004
WASHER
2
39
1141110006
WASHER
22
G4c091
Reference:G4C091
Page:3-21
TB135 Book No. BG4Z010 S/N 13510004-

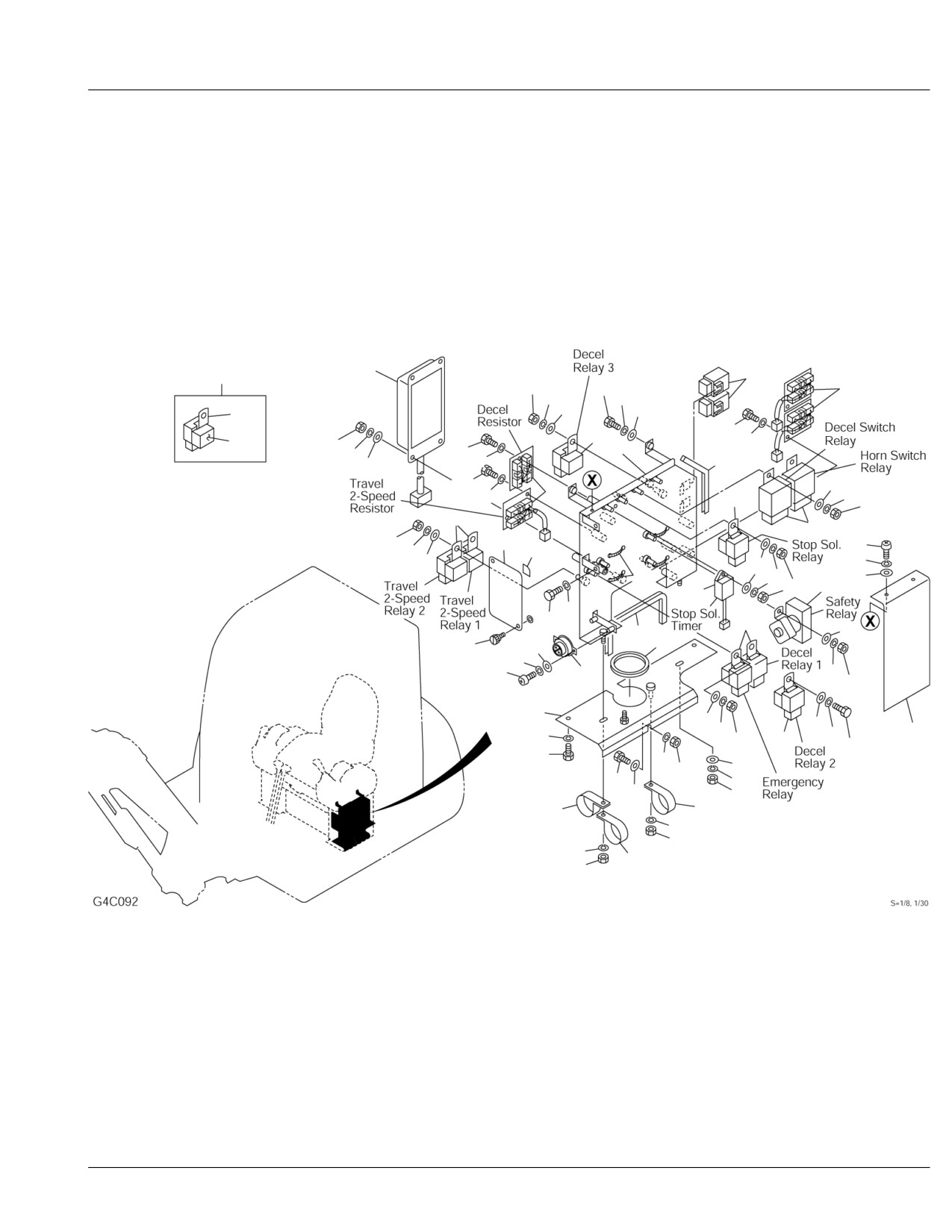

ELECTRICAL (2/2) (13510421-13514050)
10
7
21
29
8
34
2534
39
39
7-1
24
7-2
7
33
29
24
1
33
18
3439
39
2433
6
34
7
29
7
9
29
2
23
34
4
39
32
15
3934
38
29
13
12
34
25
7
39
19
14
17
37
31
22
11
3429
3
39
39
34
5
34
29
7
3425
25
34
40
29
25
35
39
30
36
20
35
30
35
20
30
Ref G4C092
Page
3-22
ELECTRICAL (2/2) (13510421-13514050)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
ELECTRICAL ASSY (cab)
X03742-05000-12
ELECTRICAL ASSY (canopy)
X03742-06000-12
0-1
X
0354217100
UNIT, control
1
1
0354217150
PLATE
1
2
0374205140
COVER
1
3
0394213130
COVER
1
4
0374205150
RUBBER
2
5
0394213150
RUBBER
1
6
0334230120
RESISTOR
2
7
0334230130
RELAY ASSY
7
7-1
1711900042
RELAY
1
7-2
1654302003
SPONGE
1
sold by the meter
8
0374203120
RESISTOR
2
9
1711900062
RELAY
2
10
1730140660
CONTROLER
1
11
1730140680
BUZZER
1
12
1910095116
UNIT, timer
1
‚x119632-77920
13
1910080106
RELAY
1
Y129136-77100
14
1653916023
TRIM
1
sold by the meter
15
1652231250
BAND
4
17
1652711698
SCREW
2
18
1653916020
SEAL
1
sold by the meter
19
1653916029
SEAL
1
sold by the meter
20
0007300030
CLAMP
2
21
1730500010
UNIT, diode
2
22
1120530310
SCREW
2
23
1120530410
SCREW
2
24
1100040510
BOLT
8
25
1100040616
BOLT
8
29
1130040006
NUT
16
30
1130040008
NUT
3
31
1140020003
WASHER, spring
2
32
1140020004
WASHER, spring
2
33
1140020005
WASHER, spring
8
34
1140020006
WASHER, spring
23
35
1140020008
WASHER, spring
3
36
0007300003
CLAMP
1
37
1141110003
WASHER
2
38
1141110004
WASHER
2
39
1141110006
WASHER
19
40
1141110008
WASHER
1
G4c092
Reference:G4C092
Page:3-22
TB135 Book No. BG4Z010 S/N 13510004-

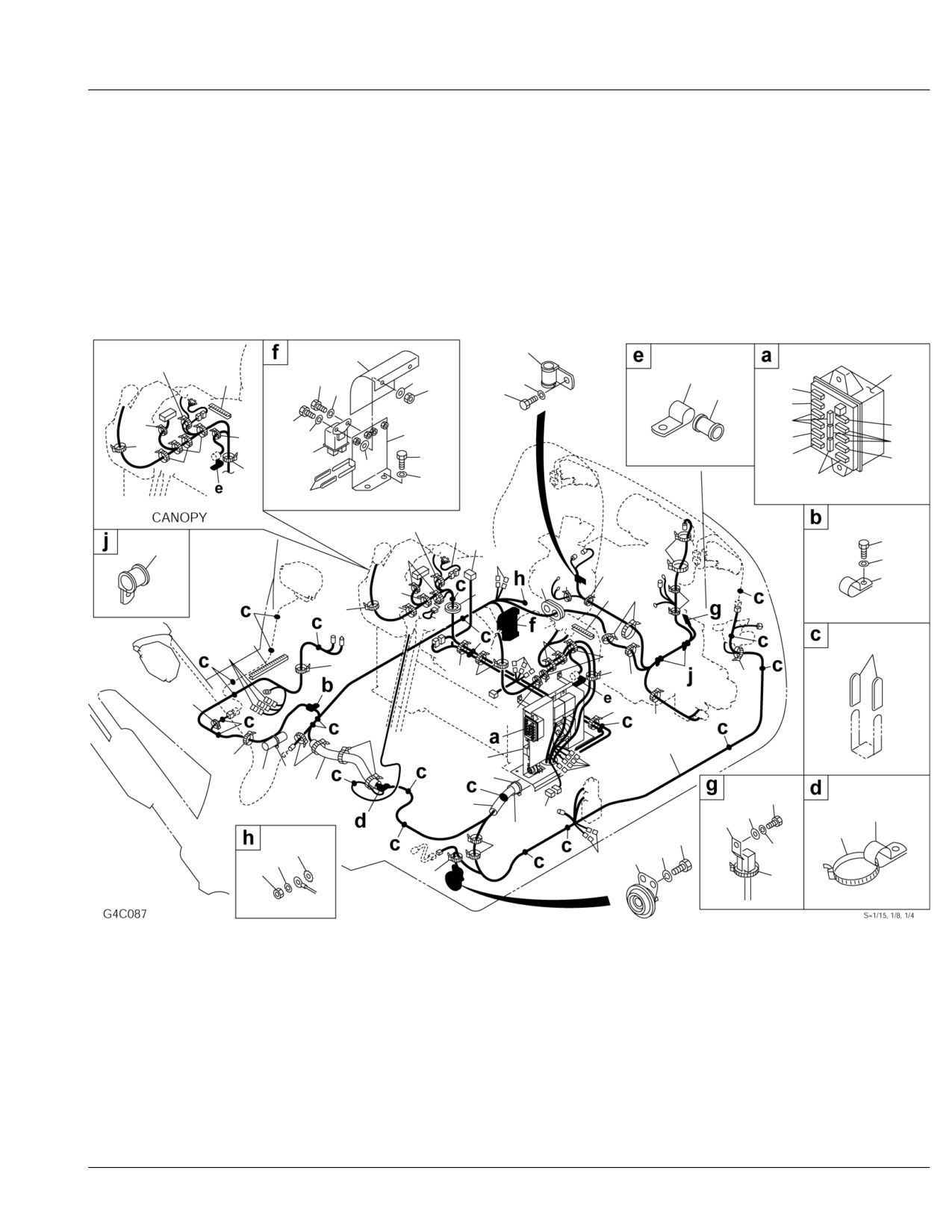

ELECTRICAL (1/2) (13514051-)
19
16
6
2-9
29
36
38
12
32
35
34
2-5
22
33
2-6
2-3
30
37
2-4
30
35
5
2-4
2-5
6
23
22
2-5
6
2-4
27
6
38
12
2-6
13
6
26
11
3
39
6
30
2-1
12
6
17
6
20
6
25
29
6
6
27
6
4
28
6
2-2
3-1
13
30
6
15
6
6
27
6
6
6
27
6
6
2
6
1
2-1
14
6
6
2-7
11
2-8
2-10
21
31
18
24
6
11
6
9
12
12
8
10
2-1
7
6
6
Ref G4C087
Page
3-23
ELECTRICAL (1/2) (13514051-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
ELECTRICAL ASSY (cab)
X03742-14000-0
ELECTRICAL ASSY
X03742-14100-0
(canopy)
1
X
**********
UNIT, control
1
see page (2/2)
2
0374209200
HARNESS, wiring
1
13514051~13516744
0374214300
HARNESS, wiring
1
13516745~
2-1
1730500008
DIODE (3A, yellow)
9
2-2
1701330045
LINK, fusible
3
45A
2-3
1701310010
FUSE
3
10A
2-4
1701310015
FUSE
3
15A
2-5
1701310020
FUSE
5
20A
2-6
1701310030
FUSE
3
30A
2-7
1531335050
PROTECTOR
1
sold by the meter
2-8
1531335035
PROTECTOR
1
sold by the meter
2-9
1701200002
BOX, fuse
1
2-10
0394221010
CONNECTOR
1
13516745~
3
0394214600
HARNESS, wiring
1
cab
3-1
1730500008
DIODE (3A, yellow)
3
4
0334230400
CONNECTOR
1
cab
5
0374209010
BRACKET
1
6
1652231250
BAND
38
7
1130040010
NUT
1
8
1140020010
WASHER, spring
1
9
1140330010
WASHER
1
10
1703500712
HORN
1
11
1100040816
BOLT
4
12
1140020008
WASHER, spring
7
13
0872433150
CLAMP
66
14
0374205010
GUARD
1
15
1652201007
BAND
1
16
0374209020
COVER, relay
1
17
0337017300
GUARD
1
18
1711900064
CLIP
1
19
1652900005
CLAMP
1
20
0007300050
CLAMP
1
21
1141110008
WASHER
1
22
1100040812
BOLT
3
23
1910161119
RELAY
2
Y119646-77900
24
0374205030
COVER
1
25
1652060063
BUSHING
1
26
0374205600
HARNESS, wiring
1
27
1652241400
BAND
2
cab
1652241400
BAND
3
canopy
28
1653916017
TRIM
1
sold by the meter
29
1653917009
TRIM (cab)
1
sold by the meter
1653917009
TRIM (canopy)
2
sold by the meter
30
1652201005
BAND
4
31
0007300003
CLAMP
1
32
0007300001
CLAMP
2
canopy
0007300001
CLAMP
1
cab
33
0868423862
GROMMET
2
canopy
0868423862
GROMMET
1
cab
34
1130040006
NUT
2
35
1140020006
WASHER, spring
4
36
1100040612
BOLT
2
37
1100040620
BOLT
2
38
1141110006
WASHER
4
39
1711900076
CLAMP
2
G4c087
Reference:G4C087
Page:3-23
TB135 Book No. BG4Z010 S/N 13510004-

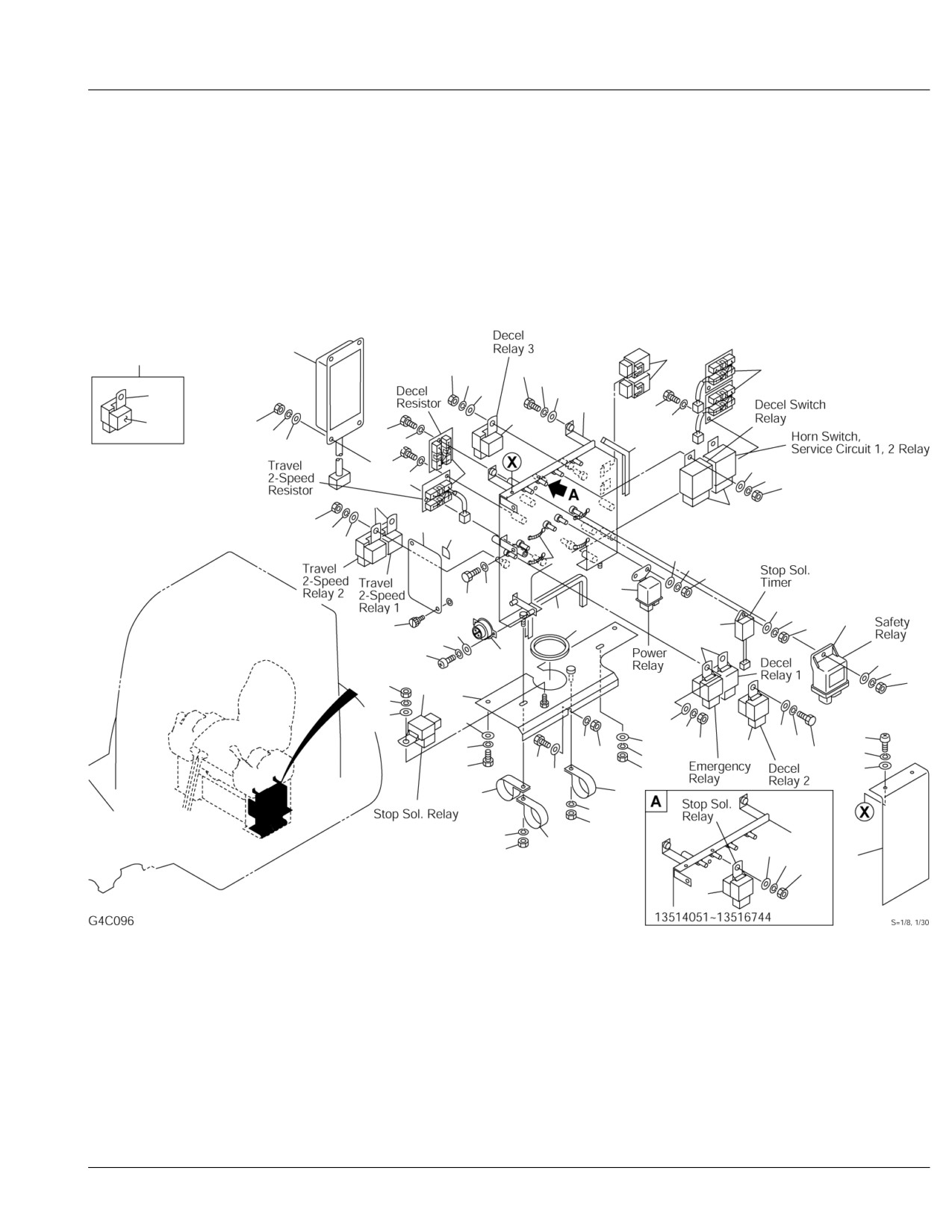

ELECTRICAL (2/2) (13514051-)
10
7
21
29
25
8
34
34
39
39
7-1
1
24
7-2
7
33
29
24
34
33
18
39
6
3934
2433
29
7
9
29
26-1
34
26-2
39
15
3934
29
34
41
25
39
19
13
26-3
14
12
34 29
37
31
7
22
11
3934
29
29
7
34
3
39
39
39
34
39
23
34
40
29
34
34
7
29
35
25
32
25
25
38
39
30
36
20
35
30
35
20
39
30
34
5
29
7
Ref G4C096
Page
3-24
ELECTRICAL (2/2) (13514051-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0-1
X
**********
UNIT, control
1
13514051~13516744
X03742-09300-1
X
**********
UNIT, control
1
13516745~
X03742-14200-1
1
0394214500
PLATE
1
13514051~13516744
0394220800
PLATE
1
13516745~
3
0394213130
COVER
1
5
0394213150
RUBBER
1
6
0334230120
RESISTOR
2
7
0334230130
RELAY ASSY
7
13514051~13516744
0394221200
RELAY ASSY
7
13516745~
7-1
1711900042
RELAY
1
13514051~13516744
1711900124
RELAY
1
13516745~
7-2
1654302003
SPONGE
1
sold by the meter
8
0374203120
RESISTOR
2
9
1711900062
RELAY
2
10
1730140910
CONTROLER
1
11
1730140680
BUZZER
1
12
1910150118
UNIT, timer
1
‚x129211-77920
13
1910181106
RELAY
1
Y119802-77200
14
1653916023
TRIM
1
sold by the meter
15
1652231250
BAND
4
18
1653916020
SEAL
1
sold by the meter
19
1653916029
SEAL
1
sold by the meter
20
0007300030
CLAMP
2
21
1730500010
UNIT, diode
2
22
1120530310
SCREW
2
23
1120530410
SCREW
2
24
1100040510
BOLT
8
25
1100040616
BOLT
9
26
0374205160
COVER ASSY
1
26-1
0374205140
COVER
1
26-2
0374205150
RUBBER
2
26-3
1652711698
SCREW
2
29
1130040006
NUT
16
30
1130040008
NUT
3
31
1140020003
WASHER, spring
2
32
1140020004
WASHER, spring
2
33
1140020005
WASHER, spring
8
34
1140020006
WASHER, spring
25
35
1140020008
WASHER, spring
3
36
0007300003
CLAMP
1
37
1141110003
WASHER
2
38
1141110004
WASHER
2
39
1141110006
WASHER
22
40
1141110008
WASHER
1
41
1910161119
RELAY
1
13516745~
Y119646-77900
G4c096
Reference:G4C096
Page:3-24
TB135 Book No. BG4Z010 S/N 13510004-

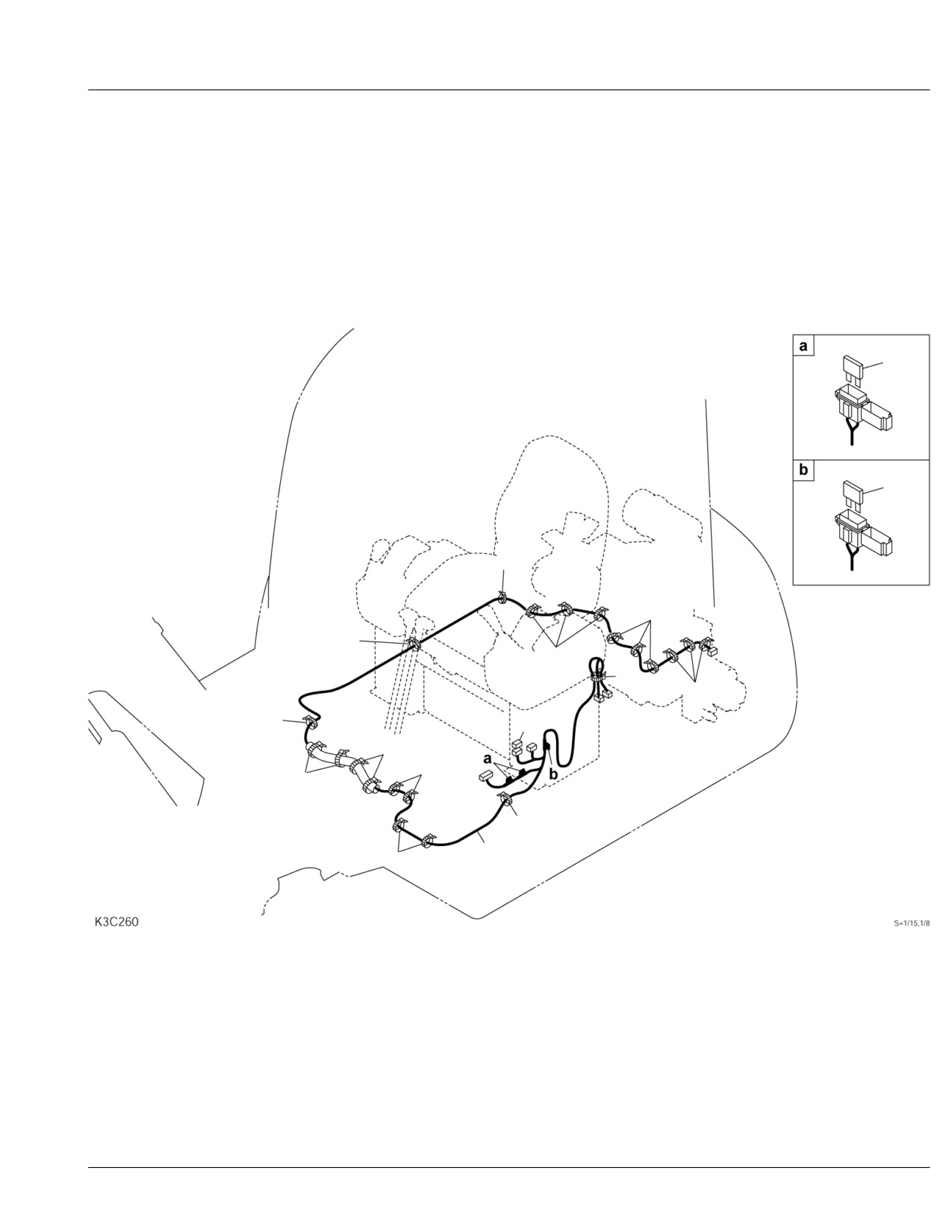

ELECTRICAL (for KOSRAN)
1-2
1-3
2
2
2
2
2
2
2
1-1
2
2
2
2
1
2
Ref K3C260
Page
3-25
ELECTRICAL (for KOSRAN)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
0374214600
ELECTRICAL ASSY (for KOSRAN)
1
M X03742-14600-0
1
0374214610
HARNESS ASSY, wiring
1
M
1-1
0394224120
CONNECTOR, short
1
M
1-2
1701310005
FUSE (5A)
2
M
1-3
1701310002
FUSE (2A)
1
M
2
1652231250
BAND
25
M
G4c280
Reference:K3C260
Page:3-25
TB135 Book No. BG4Z010 S/N 13510004-

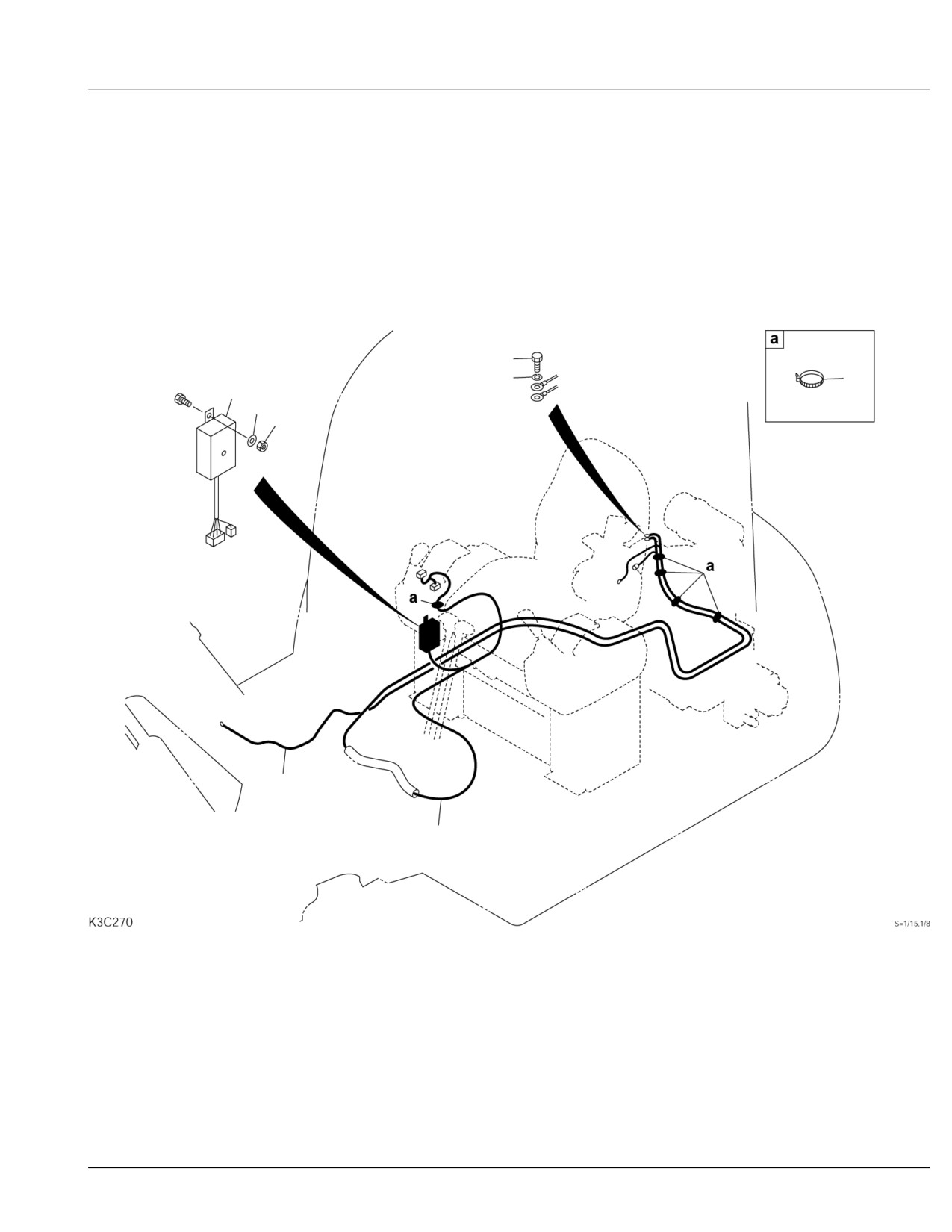

WATER TEMPERATURE CONTROLLER
5
6
4
3
8
7
2
1
Ref K3C270
Page
3-26
WATER TEMPERATURE CONTROLLER
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
CONTROLLER ASSY, water temp.
X03942-24600-1
1
0394221700
HARNESS ASSY, wiring
1
M
2
0394404130
HARNESS ASSY, wiring
1
M
3
1730111520
DRIVER, meter
1
M
4
1652231250
BAND
9
M
5
1100040812
BOLT
1
6
1140020008
WASHER, spring
1
7
1130040008
NUT
1
8
1141110008
WASHER
1
K3c270
Reference:K3C270
Page:3-26
TB135 Book No. BG4Z010 S/N 13510004-

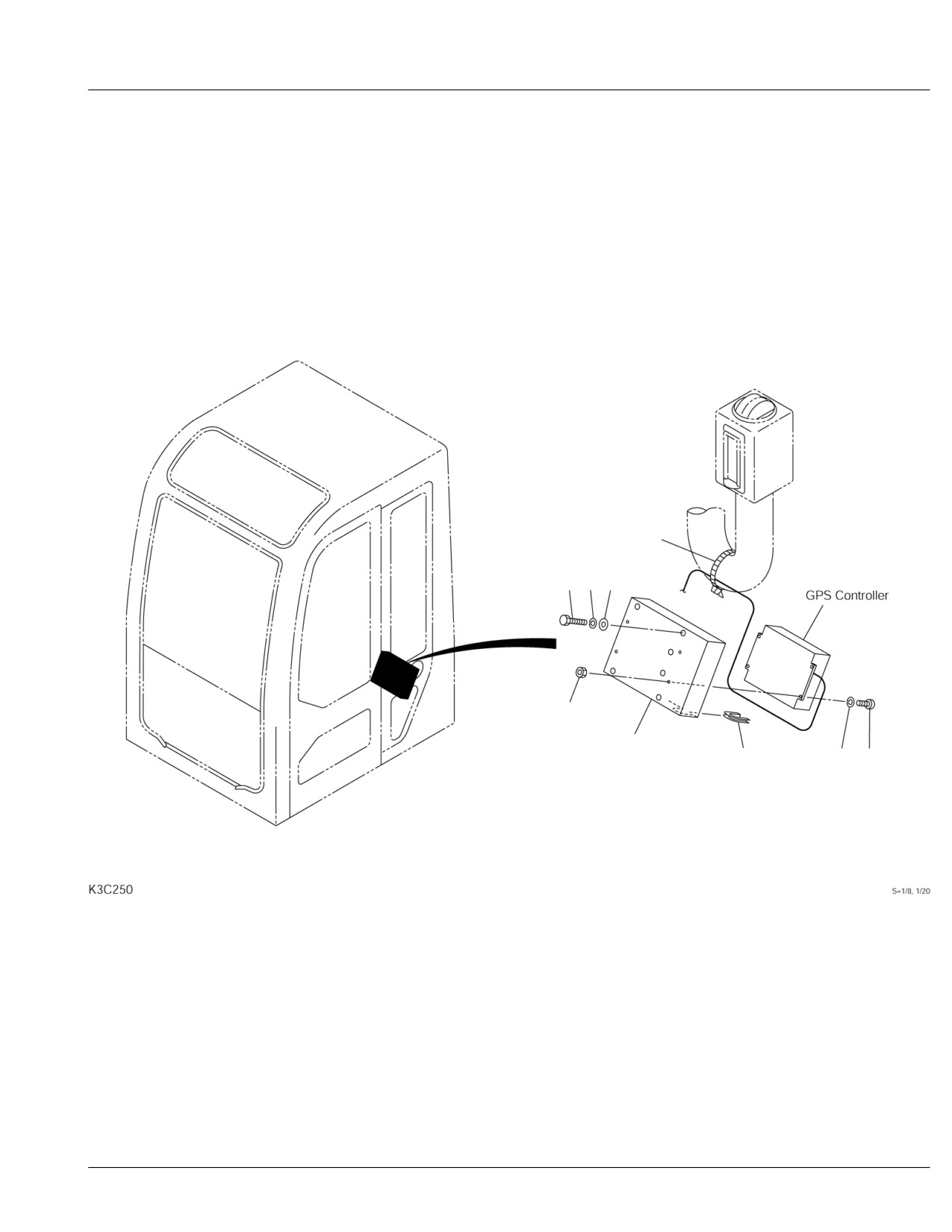

GPS DEVICE (for China only)
6
2
7
8
5
1
9
4
3
Ref K3C250
Page
3-27
GPS DEVICE (for China only)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
GPS DEVICE ASSY
X03942-24000-0
1
0394224010
COVER
1
2
1100040865
BOLT
4
3
1120530412
SCREW
4
4
1140020004
WASHER, spring
4
5
1130040004
NUT
4
6
1652241400
BAND
1
7
1140020008
WASHER, spring
4
8
1141110008
WASHER
4
9
1653917009
TRIM
1
sold by the meter
K3c250
Reference:K3C250
Page:3-27
TB135 Book No. BG4Z010 S/N 13510004-

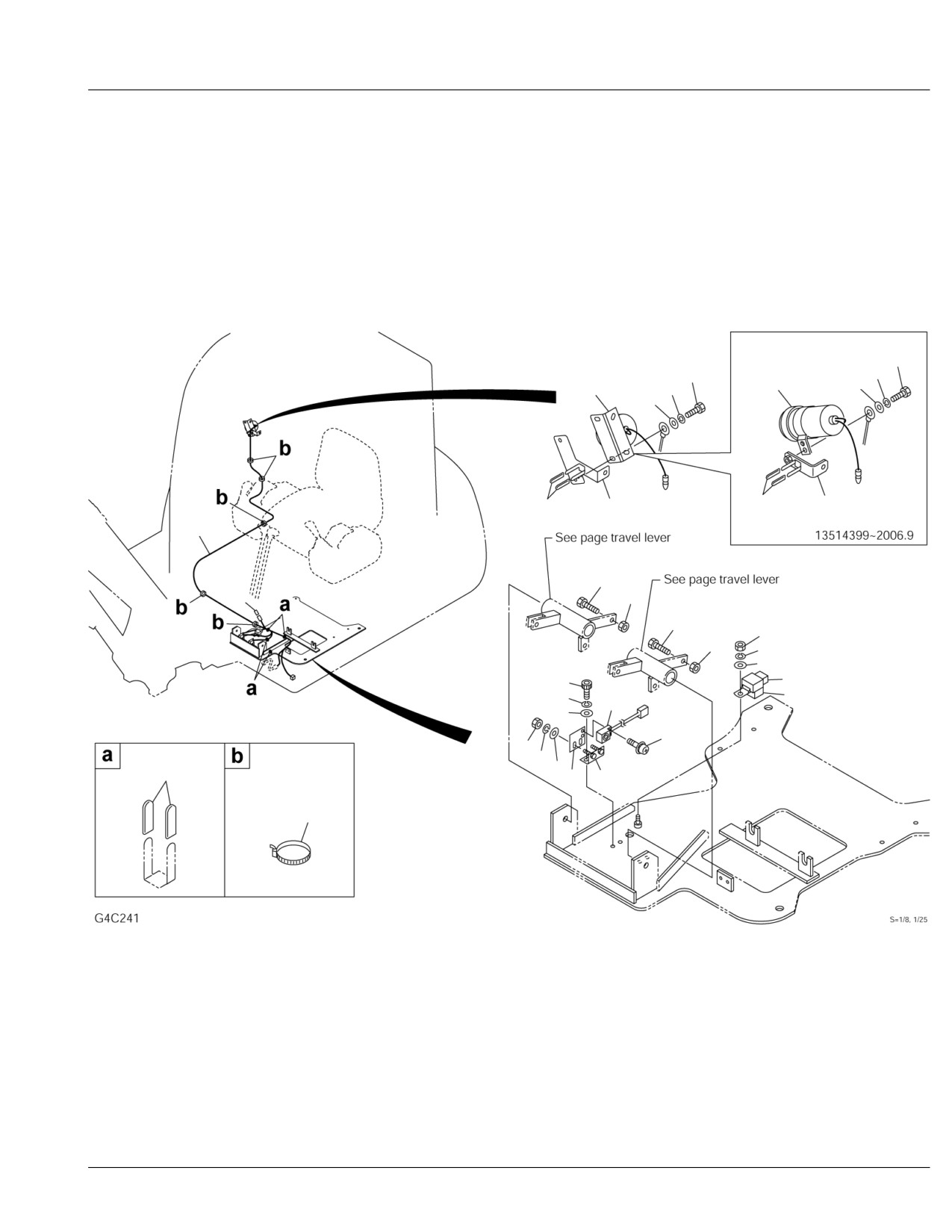

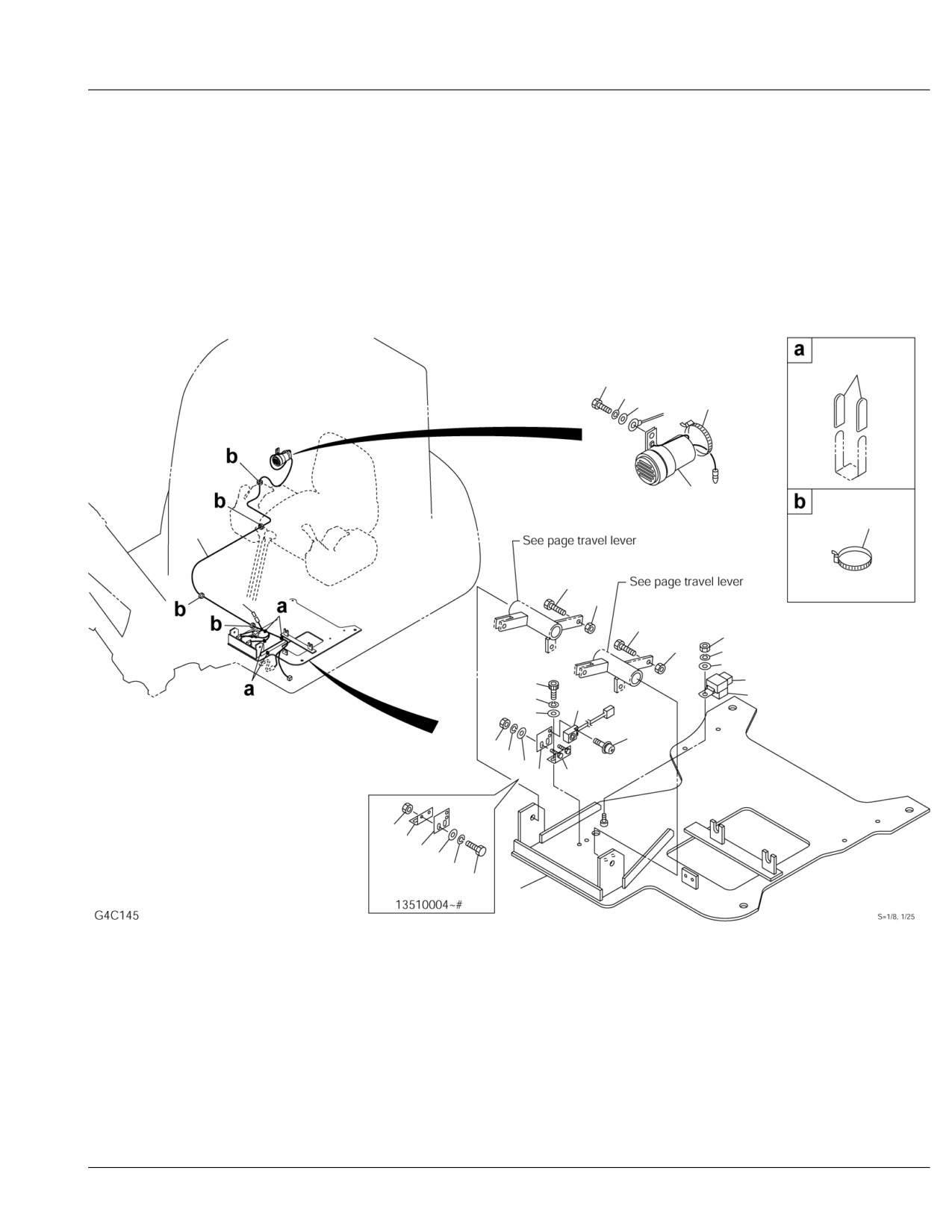

TRAVEL ALARM (13510004-13514398)
9
12
2429
11
8
11
6
15
6-1
18
15
18
18
23
28
14
7-1
23
7-2
10
28
16
2022
27
3
2
20
2
3
27
22
13
1
Ref G4C145
Page
3-28
TRAVEL ALARM (13510004-13514398)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
TRAVEL ALARM ASSY
X03742-07000-8
1
0374207100
BACKET
1
13510094~13511214
0374207150
BACKET
1
(H)
13511215~13511290
2
0374207200
BACKET
2
13510004~1351#
0374207250
BACKET
2
(H)
1351#~
3
0374207300
PLATE
2
6
0374207600
HARNESS, wiring
1
6-1
1730500008
DIODE (3A, yellow)
1
7
0334230130
RELAY ASSY
1
7-1
1711900042
RELAY
1
7-2
1654302003
SPONGE
1
8
0354211050
BUZZER
1
9
0872433150
TUBE
8
10
1700009010
SWITCH
2
11
1652231250
BAND
5
12
1100040820
BOLT
1
13
1100040514
BOLT
4
13510004~1351#
14
1110040610
SCREW, cap
4
15
1100040616
BOLT
2
16
1150410312
SCREW
4
18
1130030006
NUT
3
20
1130030005
NUT
4
22
1140020005
WASHER, spring
4
23
1140020006
WASHER, spring
5
24
1140020008
WASHER, spring
1
27
1141110005
WASHER
4
28
1141110006
WASHER
5
29
1141110008
WASHER
1
G4c145
Reference:G4C145
Page:3-28
TB135 Book No. BG4Z010 S/N 13510004-
TRAVEL ALARM (13514399-)
12
15
24
23
8
29
8
26
31
30
31
30
6
15
6-1
18
15
18
18
23
28
14
7-1
23
7-2
10
28
16
2022
9
27
3
2
11
Ref G4C241
Page
3-29















Content      ..     2      3      4      5     ..
