YOUR VOLVO

}}

* Option/accessory.

29

Contributing to a better environment

An energy-efficient and economical car can
contribute to reduced environmental impact
and also involve reduced costs for the owner
of the car. As the driver, it is easy to reduce
fuel consumption and thereby save money and
contribute to a better environment - here is
some advice:

Plan for an effective average speed.
Speeds above approx. 80 km/h (approx.
50 mph) and below 50 km/h (approx.
30 mph) lead to increased energy con-
sumption.

Follow the Service and Warranty Book-
let's recommended intervals for service
and maintenance of the car.

Avoid letting the engine idle - switch off
the engine when stationary for longer peri-
ods. Pay attention to local regulations.

Plan the journey - a lot of unnecessary
stops and uneven speed contribute to
increased fuel consumption.

Use preconditioning – it can improve the
range of the hybrid battery and reduce the
energy requirement while driving.

Make it a habit to charge the car from the
mains power circuit on a regular basis.

Also remember to always dispose of environ-
mentally hazardous waste, such as batteries
and oil, in an environmentally safe manner.
Consult a workshop in the event of uncertainty

about how this type of waste should be dis-
carded - an authorised Volvo workshop is rec-
ommended.

Efficient emission control

Your Volvo is manufactured following the con-
cept "Clean inside and out" – a concept that
encompasses a clean interior environment as
well as highly efficient emission control. In
many cases the exhaust emissions are well
below the applicable standards.

Clean air in the passenger
compartment

An air filter helps prevent dust and pollen
entering the passenger compartment via the
air intake.

The Interior Air Quality System (IAQS)

*

ensures that the incoming air is cleaner than
the air in the traffic outside.

The system cleans the air in the passenger
compartment from contaminants such as par-
ticles, hydrocarbons, nitrous oxides and
ground-level ozone. If the outside air is conta-
minated then the air intake is closed and the
air is recirculated. Such a situation may arise
in heavy traffic, queues and tunnels for exam-
ple.

IAQS is a part of the Clean Zone Interior Pack-
age (CZIP)

*

, which also includes a function

that allows the fan to start when the car is
unlocked with the remote control key.

Interior

The material used in the interior of a Volvo is
carefully selected and has been tested in order
to be pleasant and comfortable. Some of the
details are hand-made, such as the seams of
the steering wheel that are sewn by hand. The
interior is monitored in order not to emit
strong odours or substances that cause dis-
comfort in the event of e.g. high heat and
bright light.

Volvo workshops and the environment

Regular maintenance creates the conditions
for a long service life and low fuel consump-
tion for your car. In this way you also contrib-
ute to a cleaner environment. When Volvo's
workshops are entrusted with the service and
maintenance of your car it becomes part of
Volvo's system. Volvo makes clear demands
regarding the way in which workshop prem-
ises shall be designed in order to prevent spills
and discharges into the environment. The
workshop staff have the knowledge and the
tools required to guarantee good environmen-
tal care.

Recycling

Since Volvo works from a life cycle perspec-
tive, it is also important that the car is recycled
in an environmentally sound manner. Almost
all of the car can be recycled. The last owner
of the car is therefore requested to contact a
retailer for referral to a certified/approved
recycling facility.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

YOUR VOLVO

* Option/accessory.

31

IntelliSafe – driver support and

safety

IntelliSafe is the Volvo Cars concept for car
safety. IntelliSafe comprises a number of sys-
tems

6

, whose purpose is to make a car jour-

ney safer, to prevent injuries and to protect
passengers and other road users.

WARNING

The functions are supplementary aids -

they cannot handle all situations in all con-

ditions.
The driver always bears responsibility that

the vehicle is driven safely and that applica-

ble road traffic rules and regulations are fol-

lowed.

Support

With the aim of assisting the driver to drive
the car in a safer way, IntelliSafe has the fol-
lowing functions.

Active main beam

Tunnel detection

Pilot Assist

Cross Traffic Alert

*

Blind Spot Information

*

Park Assist

*

Park Assist Pilot

*

Park assist camera

*

Road Sign Information

*

Electronic stability control

Roll Stability Control

Speed limiter

*

Cruise control

Adaptive cruise control

*

Rear Collision Warning

Driver Alert Control

All-wheel drive

7

Prevention

With the aim of assisting the driver to avoid an
accident, IntelliSafe has the following func-
tions.

City Safety

Distance Warning

*

Lane assistance

Collision Avoidance

Protection

With the aim of protecting the driver and pas-
sengers in certain situations in the event of an
accident, IntelliSafe has the following collabo-
rative functions.

Whiplash Protection System

Seatbelts with seatbelt tensioners

Airbags

NOTE

Read the individual sections on each sys-
tem in order to fully understand the func-
tions and learn about important warnings.

Related information

Active main beam (p. 145)

Safety (p. 44)

Driving support systems (p. 274)

6

Some of the systems are fitted as standard, while others are options. This may vary depending on market, model year and car model.

7

All Wheel Drive

-------------------------------------------------------------------------------------------------------------------------------------------------------------

YOUR VOLVO

* Option/accessory.

32

Sensus - online connectivity and

entertainment

Sensus makes it possible to use different
types of apps and turn the car into a Wi-Fi
hotspot.

This is Sensus

Sensus offers an intelligent interface and
online connectivity with the digital world. An
intuitive navigation structure makes it possible
to receive relevant support, information and
entertainment when it is necessary, without
distracting the driver.

Sensus covers all solutions in the car that are
connected with entertainment, online connec-
tivity, navigation

*

 and the user interface

between driver and car. It is Sensus that
makes communication possible between you,
the car and the outside world.

Information when it is needed, where
it is needed

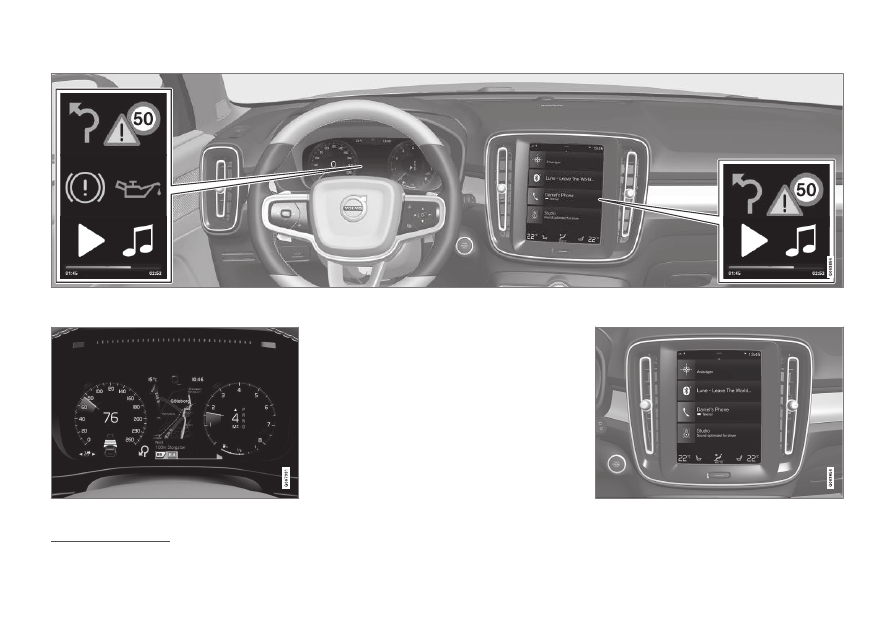

The different displays in the car provide infor-
mation at the right time. The information is
shown in different locations based on how it
should be prioritised by the driver.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

YOUR VOLVO

}}

33

Different types of information are shown in different displays depending on how the information should be prioritised.

Driver display

Driver display

8

.

The driver display shows information on speed
and e.g. incoming calls or song tracks being
played. The display is operated via the two
steering wheel keypads.

Centre display

8

The figure is schematic - parts may vary depending on car model.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

||

YOUR VOLVO

* Option/accessory.

34

Many of the main functions of the car are con-
trolled from the centre display, a touch screen
which reacts to touch. The number of physical
buttons and controls in the car is therefore
minimal. The screen can even be operated
while wearing gloves.

From here, for example, you can control the
climate control system, the entertainment sys-
tem and seat position

*

. The information that is

shown in the centre display can be acted on
by the driver or someone else in the car when
the opportunity arises.

Voice recognition system

The voice recognition system
can be used without the
driver needing to take his/her
hands off the steering wheel.
The system can understand
natural speech. Use voice
recognition to, for example,

play back a song, call someone, increase the
temperature or read out a text message.

Related information

Driver display (p. 77)

Overview of centre display (p. 99)

Voice recognition (p. 132)

Internet-connected car

*

 (p. 529)

Sharing Internet access from the car via a
Wi-Fi hotspot (p. 532)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

YOUR VOLVO

}}

35

Software updates

So that you as a Volvo customer get the best
experience of your car, Volvo continuously
develops the systems in the cars and the ser-
vices that you are offered.

In connection with service at an authorised
Volvo dealer, the software in your Volvo will be
updated to the latest version. The latest soft-
ware update allows you to benefit from availa-
ble improvements, including improvements
from earlier software updates.

For more information about available updates
and frequently asked questions, visit
volvocars.com/support.

NOTE

Functionality after updating may vary
depending on market, model, model year
and options.

Related information

Sensus - online connectivity and entertain-
ment (p. 32)

Managing system updates via the Down-
load Centre (p. 591)

Recording data

As part of Volvo's safety and quality assur-
ance, certain information about the vehicle's
operation, functionality and incidents are
recorded in the car.

Event Data Recorder (EDR)

This vehicle is equipped with an "Event Data
Recorder" (EDR). Its primary purpose is to
register and record data related to traffic acci-
dents or collision-like situations, such as times
when the airbag deploys or the vehicle strikes
an obstacle in the road. The data is recorded in
order to increase understanding of how vehi-
cle systems work in these types of situations.
The EDR is designed to record data related to
vehicle dynamics and safety systems for a
short time, usually 30 seconds or less.

The EDR in this vehicle is designed to record
data related to the following in the event of
traffic accidents or collision-like situations:

How the various systems in the car
worked

Whether the driver and passenger seat-
belts were fastened/tensioned

The driver's use of the accelerator or brake
pedal

The travel speed of the vehicle

This information can help us understand the
circumstances in which traffic accidents, inju-
ries and damage occur. The EDR only records

data when a non-trivial collision situation
occurs. The EDR does not record any data
during normal driving conditions. Similarly, the
system never registers who is driving the vehi-
cle or the geographic location of the accident
or near-miss situation. However, other parties,
such as the police, could use the recorded
data in combination with the type of person-
ally identifiable information routinely collected
after a traffic accident. Special equipment and
access to either the vehicle or the EDR is
required to be able to interpret the registered
data.

In addition to the EDR, the car is equipped
with a number of computers designed to con-
tinually check and monitor the function of the
car. They can record data during normal driv-
ing conditions, but in particular register faults
affecting the vehicle's operation and function-
ality, or upon activation of the vehicle's driver
support function (e.g. City Safety and the auto
brake function).

Some of the recorded data is required to ena-
ble service and maintenance technicians to
diagnose and remedy any faults that occurred
in the vehicle. The registered information is
also needed to enable Volvo to satisfy legal
requirements laid out in laws and by govern-
ment authorities. Information registered in the
vehicle is stored in its computer until the vehi-
cle is serviced or repaired.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

||

YOUR VOLVO

36

In addition to the above, the registered infor-
mation can be used in aggregate form for
research and product development with the
aim of continuously improving the safety and
quality of Volvo cars.

Volvo will not contribute to the above-descri-
bed information being disclosed to third par-
ties without the vehicle owner's consent. To
comply with national legislation and regula-
tions, Volvo may be forced to disclose infor-
mation of this nature to the police or other
authorities who may assert a legal right to
access such. Special technical equipment
which Volvo and workshops that have entered
into agreements with Volvo have access to is
required to be able to read and interpret the
recorded data. Volvo is responsible that the
information, which is transferred to Volvo dur-
ing servicing and maintenance, is securely
stored and managed and that its management
complies with relevant legal requirements. For
further information - contact a Volvo retailer.

Vehicle Connectivity Module (VCM
High)

Vehicles equipped with VCM High can collect
data on the vehicle's safety functions as well
as other functions in the vehicle. Data are col-
lected for product development, quality fol-
low-up and safety work, as well as to improve
and monitor the vehicle's quality and its safety
functions. The purpose of data collection is

also to manage Volvo Car Corporation's war-
ranty undertakings, as well as to meet legal
requirements related to engine emissions
data.

NOTE

In conjunction with data collection, Volvo
may use a small part of the vehicle's data
plan of up to 10 MB/month.

Terms & Conditions for Services

Volvo offers services that help to enhance car
safety and comfort.

These services include everything from assis-
tance in emergencies to navigation and vari-
ous maintenance services.

Before using the services, it is important for
you to read the support information relating to
the Terms & Conditions for Services at
volvocars.com.

Related information

Customer Privacy Policy (p. 37)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

YOUR VOLVO

37

Customer Privacy Policy

Volvo respects and safeguards the personal
integrity of everyone visiting our website.

This policy regards to the handling of cus-
tomer data and personal information. The pur-
pose is to give current, past and potential cus-
tomers a general understanding of:

The circumstances in which we gather
and process your personal data.

The types of personal data we gather.

The reason we gather your personal data.

How we handle your personal data.

For more information on the policy, search
support information at volvocars.com.

Related information

User terms and conditions and data shar-
ing (p. 535)

Terms & Conditions for Services (p. 36)

Recording data (p. 35)

Important information on

accessories and auxiliary

equipment

The incorrect connection and installation of
accessories and extra equipment can nega-
tively affect the car's electronic system.

We strongly recommend that Volvo owners
only install Volvo approved original accesso-
ries, and that installation of accessories is only
carried out by trained and qualified Volvo serv-
ice technicians. Certain accessories only func-
tion when associated software is installed in
the car's computer system.

The equipment described in the owner's man-
ual is not available in all cars - they have differ-
ent equipment depending on adaptations for
the needs of different markets and national or
local laws and regulations.

Options or accessories described in this man-
ual are marked with an asterisk. In the event of
uncertainty over what is standard or an
option/accessory, contact a Volvo retailer.

WARNING

The driver always bears the ultimate

responsibility that the car is used safely

and that laws and regulations in force are

followed.
It is also important that the car has mainte-

nance and service according to Volvo's rec-

ommendations, the owner's information

and the service and warranty booklet.
If the on-board information differs from the

printed owner's manual then the printed

information always has precedence.

Related information

Installation of accessories (p. 38)

Connection of equipment to the car's
diagnostic socket (p. 38)

Reading the owner's manual (p. 21)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

YOUR VOLVO

38

Installation of accessories

We strongly recommend that Volvo owners
only install Volvo approved original accesso-
ries, and that installation of accessories is
only carried out by trained and qualified Volvo
service technicians. Certain accessories only
function when associated software is instal-
led in the car's computer system.

Volvo original accessories are tested to
ensure that they function with the car sys-
tems for performance, safety and emis-
sions control. In addition, a trained and
qualified Volvo service technician knows
where accessories may or may not be
safely installed in your Volvo. Always seek
the advice of a trained and qualified Volvo
service technician before installing any
accessories in or on your car.

Accessories that are not approved by
Volvo may not have been specifically tes-
ted for use with your car.

Some of the car's performance or safety
systems can be negatively affected if you
install accessories that have not been tes-
ted by Volvo, or if you permit someone
without experience of the car to install
accessories.

Damage that is caused by accessories
installed in a non-approved or incorrect
way is not covered by any new car war-
ranty. More warranty information can be
found in the service and warranty booklet.

Volvo does not accept any liability for
deaths, personal injury or costs arising as
a result of the installation of non-original
accessories.

Related information

Important information on accessories and
auxiliary equipment (p. 37)

Connection of equipment to the

car's diagnostic socket

Incorrect connection and installation of soft-
ware or diagnostic tools may have a negative
effect on the car's electronic system.

We strongly recommend that Volvo owners
only install Volvo approved original accesso-
ries, and that installation of accessories is only
carried out by trained and qualified Volvo serv-
ice technicians. Certain accessories only func-
tion when associated software is installed in
the car's computer system.

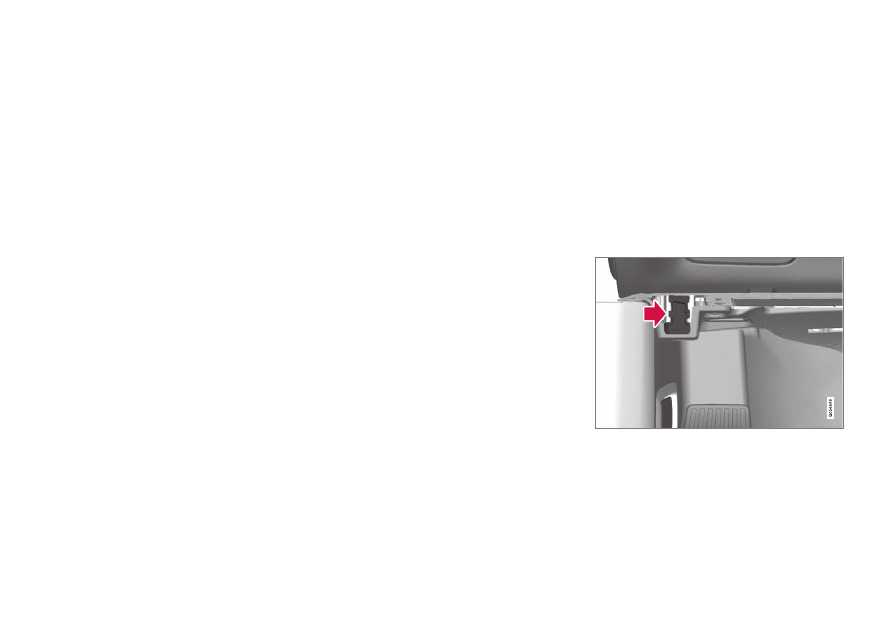

Data link connector (On-board Diagnostic, OBDII) is

under the instrument panel on the driver's side.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

YOUR VOLVO

39

NOTE

Volvo Cars accepts no liability for the con-
sequences if unauthorised equipment is
connected to the On-board Diagnostic
socket (OBDII). This socket should only be
used by trained and qualified Volvo service
technicians.

Related information

Important information on accessories and
auxiliary equipment (p. 37)

Showing the car's identification

number

When contacting a Volvo dealer concerning
your Volvo On Call subscription, for example,
you will need the car's identification number
(VIN

9

).

1. Tap on

Settings

 in the centre display's

top view.

2. Continue to

System

System

Information

Vehicle Identification

Number

.

> The car's identification number is

shown.

Another way of finding VIN is:

on the first page of the service and war-
ranty booklet

in the car's registration document

look on the dashboard through the car's
windscreen.

VIN is positioned in a similar place on all models.

9

Vehicle Identification Number

-------------------------------------------------------------------------------------------------------------------------------------------------------------

YOUR VOLVO

40

Change of market when importing

or relocating

When you import a car or relocate a car to
another country, it is important that you reg-
ister the car in the new market in order, for
example, for the online services to work cor-
rectly, as well as to ensure that the car com-
plies with local requirements and laws.

Visit an authorised Volvo dealer

To get help to register the car, visit an author-
ised Volvo dealer.

If you do not do this then you may experience
that apps, Volvo On Call

10

, software down-

loads and other online services are affected
and do not work correctly.

Creating a new Volvo ID in your new home
market

When you relocate to another country you
should create a Volvo ID in the new country.

If you have already created a Volvo ID in
another country and want to use the same
email address, you must first delete your Volvo
ID in the region you originally created it. Alter-
natively, you can create a new Volvo ID using
another e-mail address.

For cars with Volvo On Call

10

Download the Volvo On Call app from the
country where the car will be used and link the
app to your car.

NOTE

Visit an authorised Volvo dealer if you have
imported or relocated with your car to a
new country.

Available services may vary depending on
market and car model.

NOTE

If the car is exported to another market,
Volvo is not responsible for any adapta-
tions to the car in order to comply with
requirements or laws that apply in the
importing market. Read more in Service
and Warranty or contact your Volvo work-
shop for more information.

Related information

Book service and repair (p. 593)

Driver distraction

The driver is responsible for doing everything
possible to ensure the safety of themselves,
their passengers and other road users. Part of
this responsibility is avoiding distractions
such as carrying out an activity that is not
related to operating the car in a driving envi-
ronment.

Your new Volvo is, or can be, equipped with
content-rich entertainment and communica-
tions systems. This could be mobile phones
with handsfree, navigation systems and audio
systems with lots of functions. You may also
have other portable electronic devices for your
own convenience. Used correctly, in a safe
way they can enrich the driving experience. If
they are used in the wrong way they could dis-
tract you.

We wish to give the following warnings regar-
ding such systems, to indicate Volvo's con-
cern for your safety. Never use a device or
function in the car in such a way that it will
distract you from the task of driving safely.
Distractions can lead to serious accidents.
Apart from these general warnings, we offer
the following advice regarding the new func-
tions that may be in the car:

10

Applicable only to markets that have access to Volvo On Call.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

YOUR VOLVO

41

WARNING

Never use a hand-held mobile phone
while driving. In some areas it is forbid-
den for the driver to use a mobile
phone while the car is moving.

If the car is equipped with a navigation
system you must only set and change
the itinerary when the car is parked.

Never program the audio system while
the car is moving. Program the radio's
presets when the car is parked and
then use the programmed presets for
faster and simpler use of the radio.

Never use laptops or hand-held com-
puters while the car is moving.

Related information

Sound, media and Internet (p. 488)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY

44

Safety

The vehicle is equipped with several safety
systems that work together to protect the
vehicle's driver and passengers in the event
of an accident.

The car is equipped with a number of sensors
that react in the event of an accident and acti-
vate different safety systems, such as different
types of airbags and seatbelt tensioners.
Depending on the specific accident situation,
such as collisions at different angles, roll-over
or driving off the road, the systems react in dif-
ferent ways to provide good protection.

There are also mechanical safety systems
such as Whiplash Protection System. The car
is also constructed so that a large part of the
force of a collision is distributed to beams, pil-
lars, floor, roof and other parts of the body.

The car's safety mode may be activated after a
collision if an important function in the car has
been damaged.

Warning symbol in driver display

The warning symbol is illuminated in
the driver display when the car's
electrical system is set in ignition
position

II

. The symbol is extin-

guished after approx. 6 seconds if the car's
safety system is fault-free.

WARNING

If the warning symbol remains illuminated

or is switched on during driving and the

message

SRS airbag



Service urgent

Drive to workshop

 is shown in the driver

display, it means that part of one of the

safety systems does not have full function-

ality. Volvo recommends that an authorised

Volvo workshop should be contacted as

soon as possible.

WARNING

Never modify or repair the car's various

safety systems yourself. Defective work in

one of the systems can cause malfunction

and result in serious personal injury. Volvo

recommends that an authorised Volvo

workshop should be contacted.

If the specific warning symbol is bro-
ken then the general warning symbol
is illuminated instead and the driver
display shows the same message.

Related information

Safety during pregnancy (p. 44)

Seatbelts (p. 46)

Airbags (p. 51)

Whiplash Protection System (p. 45)

Safety mode (p. 58)

Child safety (p. 60)

Safety during pregnancy

It is important that the seatbelt is used cor-
rectly during pregnancy, and that pregnant
drivers adjust their seating position.

Seatbelt

The diagonal section should wrap over the
shoulder then be routed between the breasts
and to the side of the abdomen.

The lap section should lay flat over the thighs
and as low as possible under the abdomen. –
It must never be allowed to ride upward.
Remove the slack from the seatbelt and
ensure that it fits as close to the body as pos-
sible. In addition, check that there are no
twists in the seatbelt.

Seating position

As the pregnancy progresses, pregnant drivers
must adjust the seat and steering wheel such

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAFETY

}}

* Option/accessory.

45

that they can easily maintain control of the
vehicle as they drive (which means that they
must be able to easily operate the foot pedals
and steering wheel). The aim should be to
position the seat with as large a distance as
possible between abdomen and steering
wheel.

Related information

Safety (p. 44)

Seatbelts (p. 46)

Manual front seat (p. 174)

Power

*

 front seat (p. 175)

Whiplash Protection System

Whiplash Protection System (WHIPS)
reduces the risk of whiplash injuries. The sys-
tem consists of energy absorbing backrests
and seat cushion, as well as a specially
designed head restraint in the front seats.

WHIPS is deployed in the event of a rear-end
collision, where the angle and speed of the
collision and the nature of the colliding vehicle
all have an influence.

When WHIPS is deployed, the front seat
backrests are lowered backward and the seat
cushions move downward to change the seat-
ing position of the driver and front seat pas-
senger. Its movement helps to absorb some of
the forces that can arise and cause whiplash.

WARNING

WHIPS is a supplement to the seatbelts.

Always use a seatbelt.

WARNING

Never modify or repair the seat or WHIPS

yourself. Volvo recommends that an

authorised Volvo workshop should be con-

tacted.
If the front seats have been subjected to a

major load, such as in conjunction with a

collision, the seats must be replaced. Some

of the seats' protective properties may

have been lost even if they do not appear

damaged.

Do not leave any objects on the floor behind or under

the front seats or in the rear seat that may prevent

WHIPS from functioning.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

||

SAFETY

* Option/accessory.

46

WARNING

Do not squeeze rigid objects between the

rear seat cushion and the front seat's back-

rest.
If a backrest in the rear seat is lowered

then any load must be secured to prevent it

from sliding up to the front seat backrest in

the event of a collision.

WARNING

If a backrest in the rear seat is lowered or a

rear-facing child seat is used in the rear

seat, the corresponding front seat must be

moved forward so that it does not make

contact with the lowered backrest or child

seat.

Seating position

For good protection from WHIPS the driver
and passenger must have the correct seating
position and make sure that the system's
function is not obstructed.

Set the correct seating position in the front
seat before driving starts.

Driver and front seat passenger should sit in
the centre of the seat with as little space as
possible between the head and the head
restraint.

WHIPS and child seats

The protection provided by the car to children
seated in a child seat or on a booster cushion
is not diminished by WHIPS.

Related information

Safety (p. 44)

Manual front seat (p. 174)

Power

*

 front seat (p. 175)

Rear Collision Warning

*

 (p. 353)

Seatbelts

Heavy braking can have serious consequen-
ces if the seatbelts are not used.

It is important that the seatbelt lies against the
body so it can provide good protection. Do not
lean the backrest too far back. The seatbelt is
designed to protect in a normal seating posi-
tion.

WARNING

Remember not to clip or hook the seatbelt

to hooks or other interior fittings, as this

prevents the belt from tightening properly.

WARNING

The seatbelts and airbags interact. If a

seatbelt is not used or is used incorrectly,

this may diminish the protection provided

by the airbag in the event of a collision.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

















Content      ..      1       2         ..





///////////////////////////////////////
