Do not break the bottle's seal before use.
The seal is broken automatically when the
bottle is screwed in.

WARNING

Please keep the following points in mind

when using the tyre sealing system:

•

The sealing fluid bottle contains 1) rub-
ber latex, natural and 2) ethanediol.
These substances are harmful if swal-
lowed.

•

The contents of this bottle may cause
allergic skin reactions or otherwise be
potentially harmful to the respiratory
tract, the skin, the central nervous sys-
tem, and the eyes.

Precautions:

•

Store out of the reach of children.

•

Harmful if ingested.

•

Avoid prolonged or repeated contact
with the skin. If sealing fluid has come
into contact with your clothes, remove
them.

•

Wash thoroughly after handling.

First aid:

•

Skin: Wash affected areas of skin with
soap and water. Get medical attention
if symptoms occur.

•

Eyes: Flush with plenty of water for
least 15 minutes, occasionally lifting

Temporary Mobility Kit

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TYRES

584

the upper and lower eyelids. Get medi-
cal attention if symptoms occur.

•

Inhalation: Move the exposed person
to fresh air. If irritation persists, get
medical attention.

•

Ingestion: Do NOT induce vomiting
unless directed to do so by medical
personnel. Get medical attention.

•

Disposal: Dispose of this material and
its container at a hazardous or special
waste collection point.

WARNING

Do not remove the bottle or air hose when

the puncture repair kit is being used.

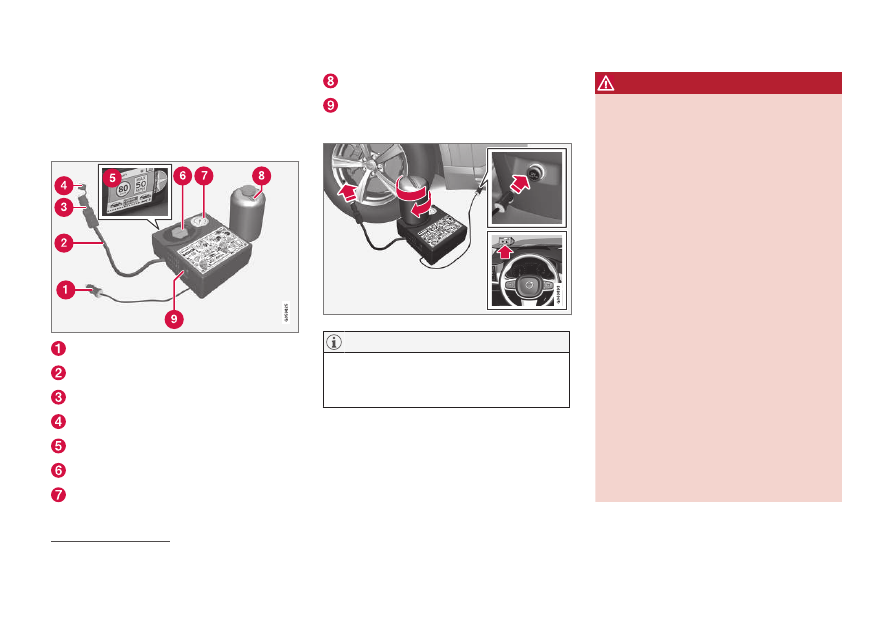

Preparations

Set up the warning triangle and activate
the hazard warning lights if a tyre is being
sealed in a trafficked location.

If the puncture was caused by a nail or
similar, allow this to remain in the tyre. It
helps to seal the hole.

2. Detach the decal for maximum permitted

speed that is affixed on one side of the
compressor. Affix it visibly on the wind-
screen as a reminder to observe the speed
limit. You should not drive faster than
80 km/h (50 mph) after the emergency
tyre repair kit has been used.

3. Check that the switch is in position

(Off), and locate the electrical cable and
the air hose.

4. Unscrew the orange-coloured cap from

the compressor, and unscrew the cork
from the sealing fluid bottle.

5. Screw in the bottle to the bottom of the

bottle holder.

The bottle and the bottle holder are equip-
ped with a reverse catch to prevent seal-
ant leakage. When the bottle is screwed in
it cannot be unscrewed from the bottle
holder again. The bottle must be removed
at a workshop

WARNING

Do not unscrew the bottle, it is equipped

with a reverse catch to prevent leakage.

6. Unscrew the tyre's dust cap and screw in

the air hose's valve connection to the bot-
tom of the thread on the tyre's air valve.

Check that the pressure reducing valve on
the air hose is fully screwed in.

Begin puncture repair

Connect the electrical cable to the closest
12 V socket and start the car.

Make sure that none of the other 12 V
sockets is in use when the compressor is
operating.

WARNING

Do not leave children in the car without

supervision when the engine is running.

WARNING

Inhaling car exhaust fumes could result in

danger to life. Never leave the engine run-

ning in sealed areas or areas that lack suffi-

cient ventilation.

An authorised Volvo workshop is recommended.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TYRES

}}

585

8. Start the compressor by flicking the

switch to position

(On).

When the compressor starts, the pressure
can increase up to 6 bar (88 psi), but the
pressure drops after about 30 seconds.

WARNING

Never stand next to the tyre when the

compressor is running. If cracks or uneven-

ness arise then the compressor must be

switched off immediately. The journey

should not be continued. Call roadside

assistance for recovery to a tyre centre.

Volvo recommends an authorised tyre cen-

tre.

9. Inflate the tyre for 7 minutes.

The compressor must not be operated for
longer than 10 minutes - risk of overheat-
ing.

10. Switch off the compressor to check the

pressure on the pressure gauge. Minimum
pressure is 1.8 bar (22 psi) and maximum
is 3.5 bar (51 psi). Release air using the
pressure reducing valve if the tyre pres-
sure is too high.

WARNING

If the pressure is below 1.8 bar (22 psi)

then the hole in the tyre is too big. The jour-

ney should not be continued. Call roadside

assistance for recovery to a tyre centre.

Volvo recommends an authorised tyre cen-

tre.

11. Switch off the compressor and detach the

electrical cable.

12. Unscrew the air hose from the tyre valve

and refit the dust cap on the tyre.

•

After a tyre has been inflated, always
refit the dust cap in order to avoid dam-
age to the valve from gravel, dirt, etc.

•

Only use plastic dust caps. Metal dust
caps can rust and become difficult to
unscrew.

13. Fit the protective cap on the air hose in

order to avoid leakage of the remaining
sealing fluid. Place the equipment in the
cargo area.

14. As soon as possible, drive at least 3 km

(2 miles) at a maximum speed of 80 km/h
(50 mph) so that the sealing fluid can seal
the tyre, and then perform a follow-up
check.

WARNING

Sealant will spurt out of the puncture dur-

ing the first few rotations of the tyre. Make

sure that nobody is standing near the car

and gets the sealing fluid splashed onto

them when the car is driven away. The dis-

tance should be at least 2 metres (7 feet).

15.

Follow-up inspection

Connect the air hose on the tyre valve and
screw in the valve connection to the bot-
tom of the tyre valve's thread. The com-
pressor must be switched off.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TYRES

586

16. Read the tyre pressure on the pressure

gauge.

•

If it is below 1.3 bar (19 psi) then the
tyre is insufficiently sealed. The journey
should not be continued. Call roadside
assistance for recovery.

•

If the tyre pressure is higher than
1.3 bar (19 psi), the tyre must be infla-
ted to the pressure specified in accord-
ance with the tyre pressure label on the
driver's side door pillar (1 bar = 100 kPa
= 14.5 psi). Release air using the pres-
sure reducing valve if the tyre pressure
is too high.

WARNING

Check the tyre pressure regularly.

Volvo recommends that the car is driven to the
nearest authorised Volvo workshop for the
replacement/repair of the damaged tyre.
Advise the workshop that the tyre contains
sealing fluid.

The sealing fluid bottle and hose must be
replaced after use. Volvo recommends that
these replacements be performed by an
authorised Volvo workshop.

WARNING

Maximum mileage with tyres containing

sealing fluid is 200 km (120 miles).

Recommended tyre pressure (p. 570)

The compressor is an electrical device. Fol-
low local regulations related to waste man-
agement.

Related information

•

•

Emergency puncture repair kit (p. 582)

•

Inflating tyres with the compressor from
the puncture repair kit (p. 586)

Inflating tyres with the compressor

from the puncture repair kit

The car's original tyres can be inflated using
the compressor in the emergency puncture
repair kit.

1. The compressor must be switched off.

Make sure that the switch is in position

(Off), and take out the electrical cable and
the air hose.

2. Unscrew the tyre's dust cap and screw in

the air hose's valve connection to the bot-
tom of the thread on the tyre's air valve.

Check that the pressure reducing valve on
the air hose is fully screwed in.

3. Connect the electrical cable to the closest

12 V socket and start the car.

WARNING

Inhaling car exhaust fumes could result in

danger to life. Never leave the engine run-

ning in sealed areas or areas that lack suffi-

cient ventilation.

WARNING

Do not leave children in the car without

supervision when the engine is running.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TYRES

587

4. Start the compressor by flicking the

switch to position

(On).

Risk of overheating. The compressor must
not run for more than 10 minutes.

5. Inflate the tyre to the pressure specified

on the tyre pressure label on the driver
side door pillar. Release air using the pres-
sure reducing valve if the tyre pressure is
too high.

6. Switch off the compressor. Detach the air

hose and the electrical cable.

7. Refit the dust cap on the tyre.

•

After a tyre has been inflated, always
refit the dust cap in order to avoid dam-
age to the valve from gravel, dirt, etc.

•

Only use plastic dust caps. Metal dust
caps can rust and become difficult to
unscrew.

Recommended tyre pressure (p. 570)

The compressor is an electrical device. Fol-
low local regulations related to waste man-
agement.

Related information

•

•

Using a puncture repair kit (p. 583)

•

Emergency puncture repair kit (p. 582)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

590

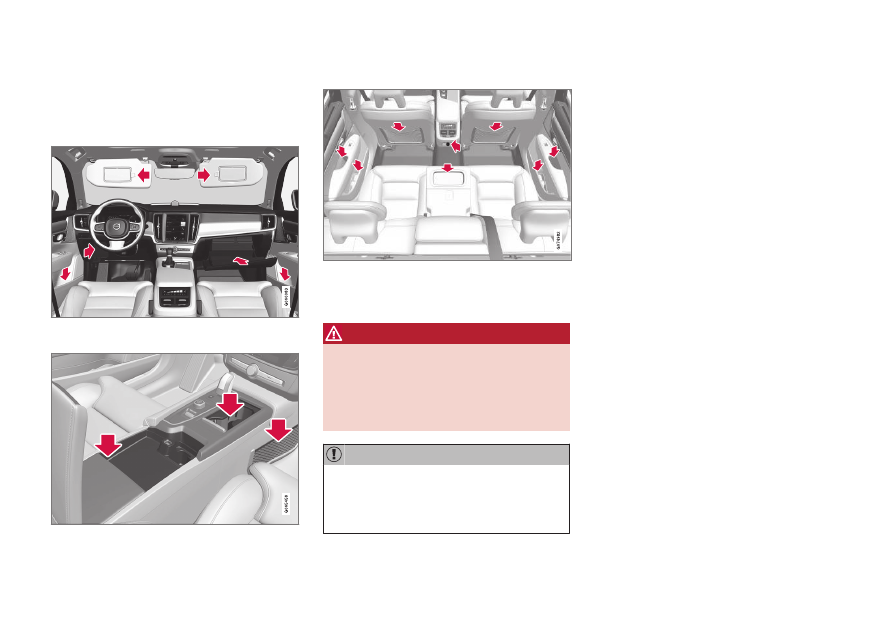

Passenger compartment interior

Overview of the passenger compartment's
interior and storage locations.

Front seat

Storage compartment in the door panel and by the

steering wheel, glovebox and sun visors.

Storage spaces with cup holder, electrical socket,
mesh pocket

and USB port in the tunnel console.

Rear seat

Storage compartment in the door panel, cup holder

in the centre seat backrest, storage pocket

on the

front seat backrest and also USB ports in the tunnel

console.

WARNING

Keep loose objects such as mobile phones,

cameras, remote controls for accessories,

etc. in the glove compartment or other

compartments. Otherwise they may injure

people in the car in the event of sudden

braking or a collision.

Electrical sockets (p. 591)

Keep in mind that high gloss surfaces, for
example, are easily scratched by metal
objects. Do not place keys, phones and
other items on sensitive surfaces.

Related information

•

•

Using the glovebox (p. 593)

•

Sun visors (p. 594)

•

Tunnel console (p. 591)

•

Connecting a device via USB port (p. 526)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

591

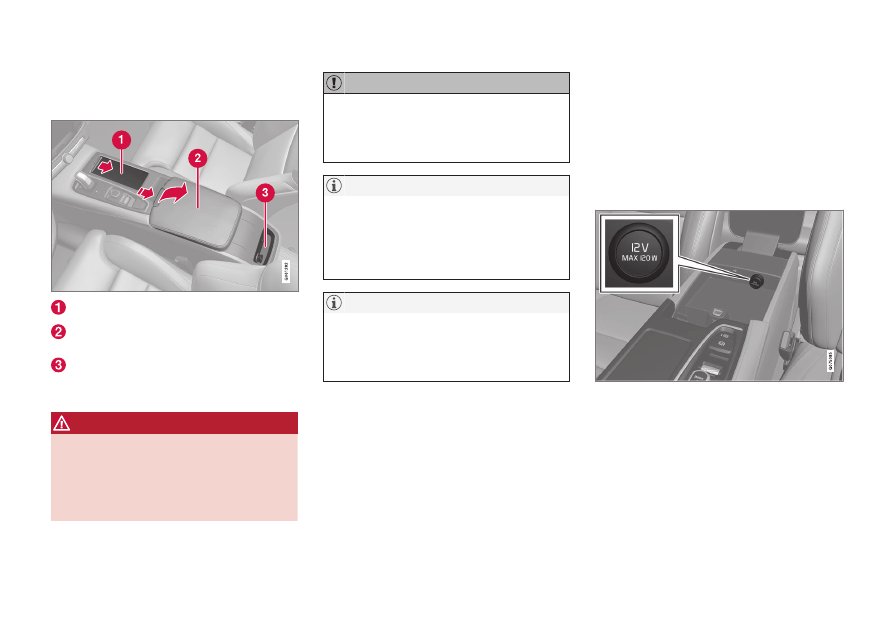

Tunnel console

The tunnel console is located between the
front seats.

Storage compartment with cup holder.

Storage compartment with 12 V socket
and USB port under the armrest.
Climate controls for the rear seat climate
functions

or storage compartment. There

are also USB ports underneath.

WARNING

Keep loose objects such as mobile phones,

cameras, remote controls for accessories,

etc. in the glove compartment or other

compartments. Otherwise they may injure

people in the car in the event of sudden

braking or a collision.

Keep in mind that high gloss surfaces, for
example, are easily scratched by metal
objects. Do not place keys, phones and
other items on sensitive surfaces.

One of the detectors for the alarm

located under the tunnel console's cup
holder. Avoid leaving coins, keys and other
metal objects in the cup holder, since this
may trigger the alarm.

The USB sockets can be used for charging
a mobile phone or tablet, for example. Only
the front USB input can be used to play
media in the car's audio system.

Related information

•

Electrical sockets (p. 591)

•

•

Climate controls (p. 210)

Electrical sockets

There is one 12V electrical socket in the tun-
nel console and one 12V electrical socket

the luggage compartment/cargo area.

If a problem occurs with an electrical socket,
contact a workshop - an authorised Volvo
workshop is recommended.

12 V electrical socket

12 V electrical socket in tunnel console, front seat.

The 12 V sockets can be used for various
accessories designed for this, such as music
players, cooler boxes and mobile phones.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

592

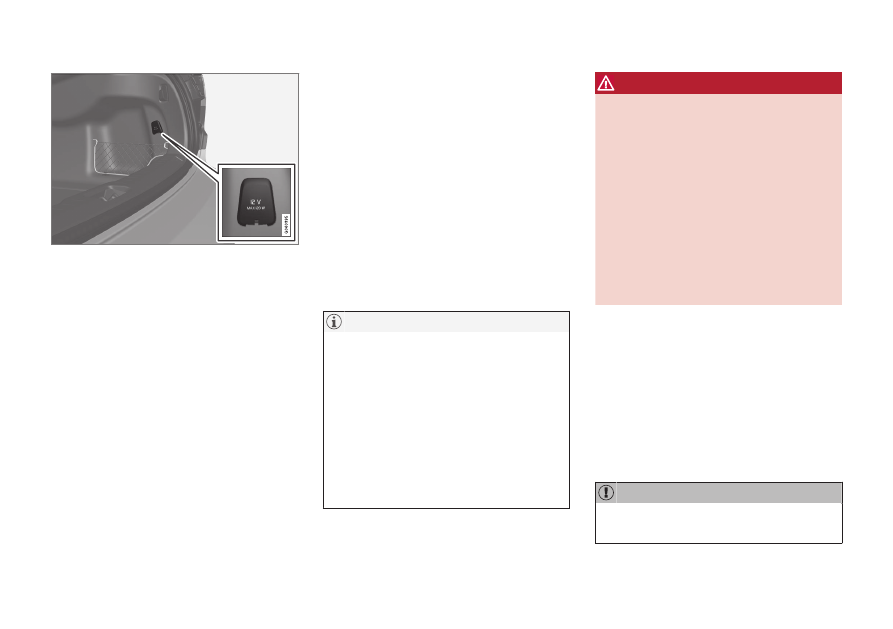

12 V electrical socket in cargo area

Related information

•

Using electrical sockets (p. 592)

•

Using electrical sockets

12 V sockets can be used for various acces-
sories designed for this, such as music play-
ers, cooler boxes and mobile phones.

For the sockets to supply current, the car's
electrical system must be set in the lowest
ignition position

. The sockets are then active

as long as the starter battery level does not
become too low.

If the engine is switched off and the car is
locked, the sockets are deactivated. If the
engine is switched off and the car is not
locked, or is locked with double lock tempo-
rarily deactivated, then the sockets continue to
be active for a further seven minutes.

Remember that use of the electrical socket
with the engine switched off entails a risk
of discharging the starter battery, which
can limit functionality.

Accessories that are connected to the elec-
trical sockets may be activated even when
the car's electrical system is disconnected
or if preconditioning is used. For this rea-
son, disconnect the connectors when they
are not in use in order to avoid the starter
battery being discharged.

WARNING

•

Do not use accessories with large or
heavy connectors - they can damage
the socket or come loose when driving.

•

Do not use accessories that can cause
interference to the car's radio receiver
or electrical system for example.

•

Position the accessory so that it is not
at risk of injuring the driver or passen-
gers in the event of heavy braking or
collision.

•

Keep an eye on connected accessories
as they can generate heat that can
burn passengers or the interior.

Using 12 V sockets

1. Remove the blanking plug (tunnel con-

sole) or fold down the cover (cargo area)
in front of the socket and plug in the
accessory's connector.

2. Unplug the accessory's connector and

refit the blanking plug (tunnel console) or
fold up the cover (cargo area) when the
socket is not in use or if the socket is left
unattended.

Electrical sockets (p. 591)

Maximum socket output is 120 W (10 A)
per socket.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

593

Related information

•

•

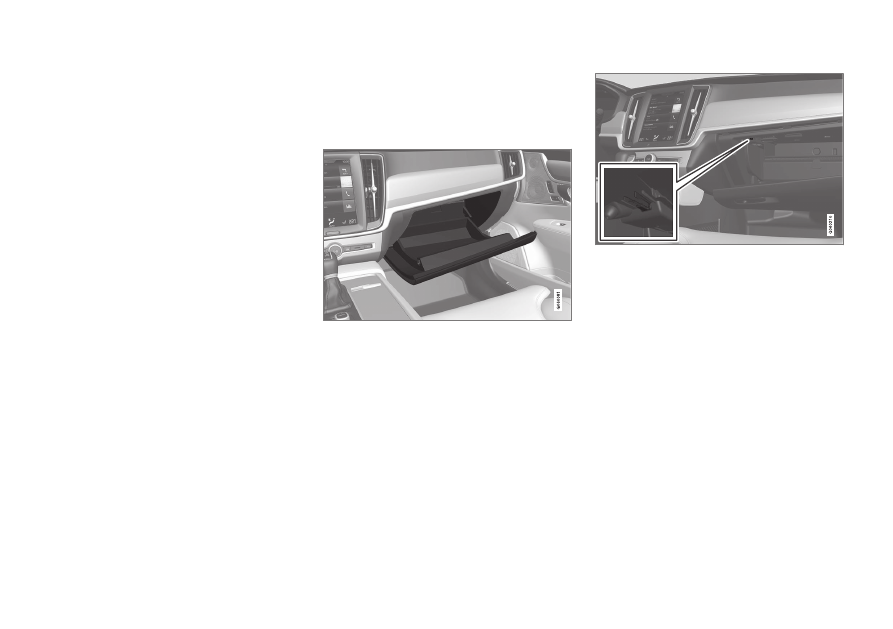

Using the glovebox

The glovebox is located on the passenger
side. The printed owner's manual and maps
can be kept in the glovebox, for example.
There is also space for a pen and card holder.

Locking and unlocking the glovebox

The glovebox can be locked, e.g. when the car
is taken in for service, left at a hotel or similar.
The glovebox can only be locked/unlocked
with the accompanying key.

The key's designated storage space. The figure is

schematic - the design may vary.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

594

The figure is schematic - the design may vary.

Locking the glovebox:
Insert the key in the glovebox lock cylin-
der.
Turn the key 90 degrees clockwise.

Pull out the key.

–

Unlock by carrying this out in reverse
order.

Related information

•

•

Private locking (p. 279)

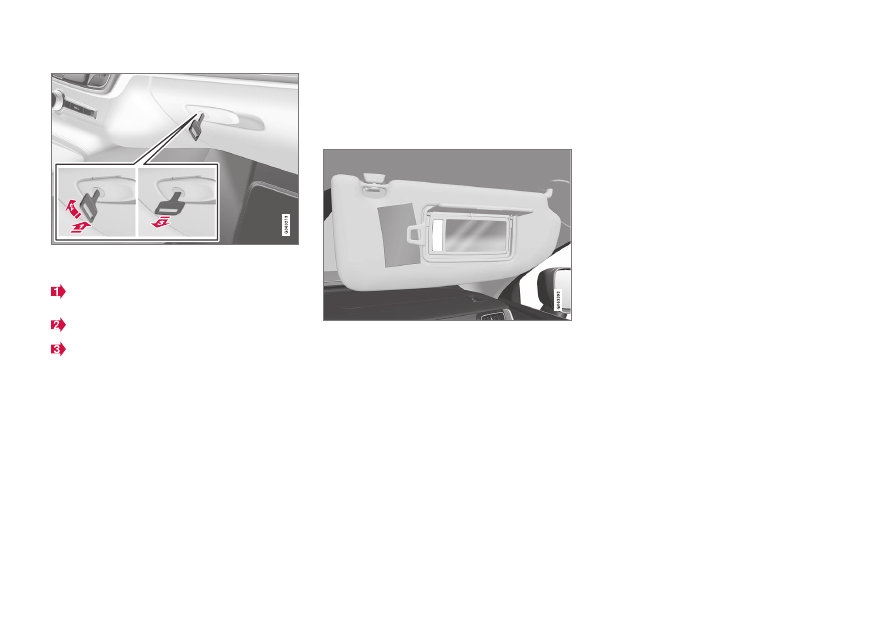

Sun visors

There are sun visors in the roof in front of the
driver seat and the front seat passenger seat
which can be folded down and angled out to
the side when necessary.

The figure is schematic - the design may vary.

The mirror lighting

is switched on automati-

cally when the guard is lifted up.

The mirror frame incorporates a holder for e.g.
cards or tickets.

Related information

•

Cargo area

Inside the car's cargo area, it is possible to
secure the load so that it stays in place while
driving.

With folding

backrests in the rear seat, the

cargo area can be made more spacious. There
are load retaining eyelets and bag holders
available for holding the load securely in place.

If the car is equipped with a spare wheel then
this is attached on the cargo area floor. The
car's towing eye and puncture repair kit are
stored under the cargo area floor.

Related information

•

Load retaining eyelets (p. 597)

•

Bag hooks (p. 596)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

595

Recommendations for loading

There are a number of things that are impor-
tant to bear in mind when loading the car.

Payload depends on the car's kerb weight. The
total of the weight of the passengers and all
accessories reduces the car's payload by a
corresponding weight.

WARNING

The car’s driving properties change

depending on the weight and positioning

of the load.

Loading in the cargo area

Good things to remember when loading:

•

Position the load firmly against the rear
seat's backrest.

•

Heavy objects should be placed as low as
possible. Avoid placing heavy loads on
lowered backrests.

•

Cover sharp edges with something soft to
avoid damaging the upholstery.

•

Secure all loads to the load retaining eye-
lets with straps or web lashings.

WARNING

A loose object weighing 20 kg (44 pounds)

can, in a frontal collision at a speed of

50 km/h (30 mph) carry the impact of an

item weighing 1000 kg (2200 pounds).

WARNING

Leave 10 cm (4 inches) space between the

load and the side windows if the car is loa-

ded to above the top edge of the door win-

dows. Otherwise, the intended protection

of the inflatable curtain, which is concealed

in the headlining, may be compromised.

WARNING

Always secure the load. During heavy brak-

ing the load may otherwise shift, causing

injury to the car's occupants.
Cover sharp edges and sharp corners with

something soft.
Switch off the engine and apply the park-

ing brake when loading/unloading long

items. Otherwise you may accidentally

knock the gear lever or gear selector with

the load into a drive position - and the car

could then move off.

Increasing the space in the cargo area

To expand the cargo area and simplify loading,
the rear seat's backrest can be lowered

. Note

that objects must not prevent the function of
the WHIPS system for the front seats if any of
the rear seat's backrests is folded down.

A through-load hatch

in the rear seat can be

folded down for carrying long and narrow
loads.

Related information

•

Load retaining eyelets (p. 597)

•

Lowering the backrests in the rear seat

(p. 192)

•

Through-load hatch in the rear seat

(p. 597)

•

Roof load and loading on load carriers
(p. 596)

•

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

596

Roof load and loading on load

carriers

For loading on the car's roof, the load carriers
that Volvo have developed are recommended.

This is in order to avoid damage to the car and
in order to achieve the maximum possible
safety during a journey. Volvo's load carriers
are available for purchase at authorised Volvo
retailers.

Carefully follow the installation instructions
supplied with the carriers.

•

Distribute the load evenly over the load
carriers. Put the heaviest objects at the
bottom.

•

Check periodically that the load carriers
and load are properly secured. Lash the
load securely with retaining straps.

•

If the load is longer than the car at the
front, e.g. a canoe or kayak, fit the towing
eye to its front socket and attach the bun-
gee to this.

•

The size of the area exposed to the wind,
and therefore fuel consumption, increase
with the size of the load.

•

Drive gently. Avoid quick acceleration,
heavy braking and hard cornering.

WARNING

The car's centre of gravity and driving cha-

racteristics are altered by roof loads.
Follow the car's specifications with regard

to weights and maximum permitted load.

Related information

•

•

Weights (p. 663)

Bag hooks

Bag hooks keep carrier bags in place and pre-
vent them from overturning and spreading
their contents across the cargo area.

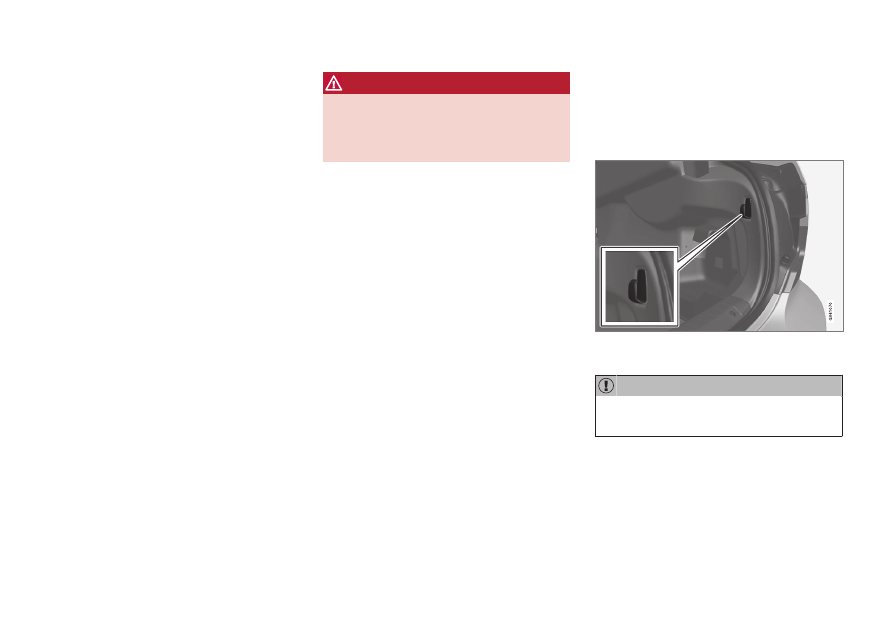

Along the sides

There is a bag hook in the side panel on each
side of the cargo area.

The bag hooks may be loaded with a maxi-
mum of 5 kg (11 lbs).

Related information

•

Using the glovebox (p. 593)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

597

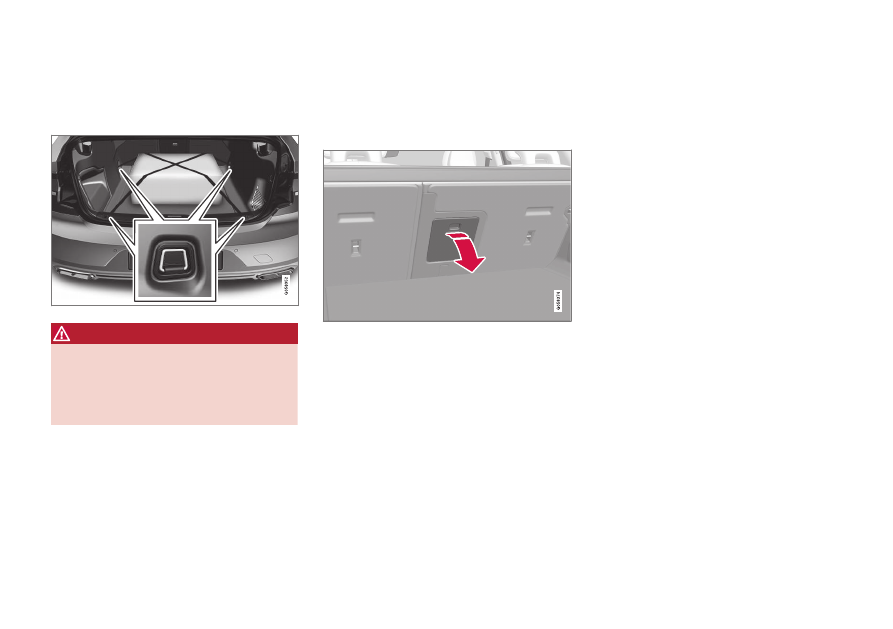

Load retaining eyelets

Use the load retaining eyelets to attach
straps in order to anchor items in the cargo
area.

WARNING

Hard, sharp and/or heavy objects which

protrude may cause injury under violent

braking.
Always secure large and heavy objects

with a seatbelt or cargo retaining straps.

Related information

•

•

Weights (p. 663)

Through-load hatch in the rear

seat

The hatch in the rear seat's backrest can be
opened to transport long narrow items, e.g.
skis.

The figure is schematic - parts may vary depending

on car model.

1. In the cargo area, grip the hatch's handle

and fold down the hatch.

2. Fold forward the armrest in the rear seat.

If the private locking function is used then the
through-load hatch must be closed.

Related information

•

Load retaining eyelets (p. 597)

•

Private locking (p. 279)

•

First aid kit

The first aid kit contains first aid equipment.

Store the first aid kit in an appropriate place in
the cargo area, e.g. in the space on the right-
hand side. The first aid kit has Velcro straps
and can be attached directly to the panel.

Related information

•

Cargo area (p. 594)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

598

Warning triangle

Use the warning triangle to warn other road
users if the car is stationary in traffic.

Also activate the hazard warning flashers.

Storage spaces

The warning triangle is fitted with two clips on
the inside of the boot lid.

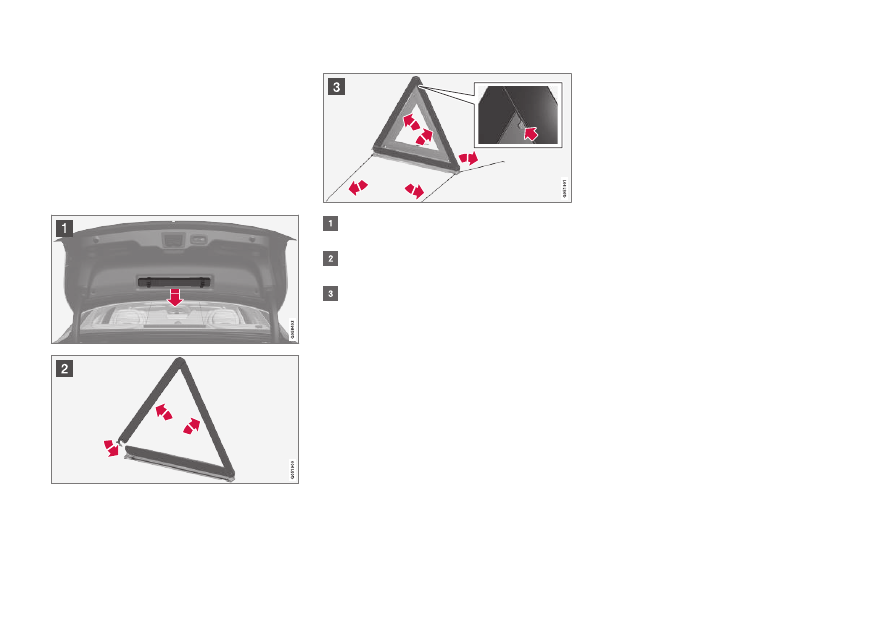

Folding up the warning triangle

Remove the warning triangle's case by
opening both latches.

Remove the warning triangle from the
case, unfold it and put the ends together.

Fold out the warning triangle's support
legs.

Follow the regulations for the use of a warning
triangle. Position the warning triangle in a suit-
able place with regard to traffic.

Replace the warning triangle with case on the
inside of the boot lid after use.

Related information

•

Cargo area (p. 594)

•

Hazard warning flashers (p. 159)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

600

Volvo service programme

To keep the car as safe and reliable as possi-
ble, follow the Volvo service programme as
specified in the Service and Warranty Book-
let.

Volvo recommends engaging an authorised
Volvo workshop to perform the service and
maintenance work. Volvo workshops have the
personnel, special tools and service literature
that can provide the highest quality of service.

For the Volvo warranty to apply, check and
follow the instructions in the Service and
Warranty Booklet.

Service and repair

Service the car regularly. Follow Volvo's rec-
ommended service intervals.

If inspection and repair are required then only
an authorised Volvo workshop may carry out
the work.

WARNING

Do not carry out any repairs of your own on

this vehicle. Electrical cables and/or com-

ponents that have detached must only be

rectified by an authorised workshop - an

authorised Volvo workshop is recom-

mended.

Charging cable with control unit
