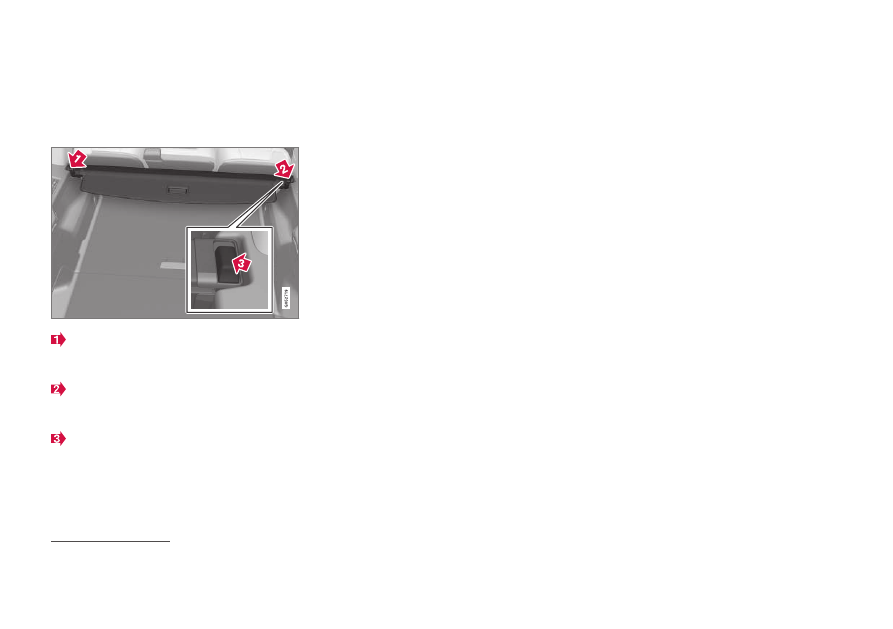

Fitting and removing cargo cover

Do not load objects on top of the cargo
cover.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

622

WARNING

In a 7-seat car, never have the cargo cover

fitted when there are passengers in the

rear seats. This may lead to serious injury in

the event of a collision.

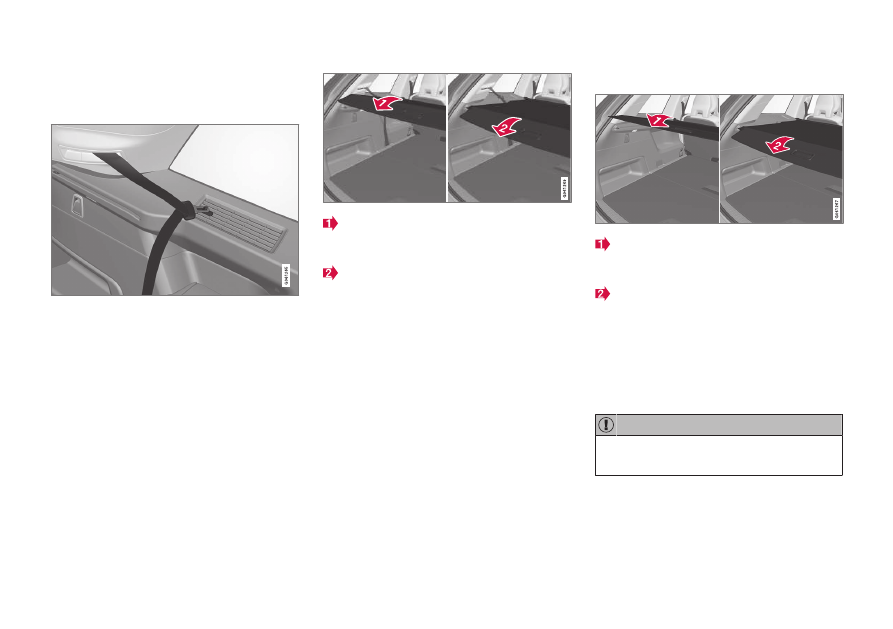

Loading mode

From retracted position - grip the handle
and pull out the cover so it slides over the
side panels in the cargo area - pull to the
end position and guide the cargo cover's
attachment pins into the grooves in the
side panels. (If the cover is already in the
full-cover position - see the next point)

From full-cover position - grip the handle
and guide the cargo cover's attachment
pins into the grooves in the side panels
and release.
> Retract the cover until it stops in the

loading position.

In the event that your hands are occupied:

In the extended full-cover position - lightly
push the handle part of the cargo cover
upward, e.g. with an elbow.
>

The cover retracts until it stops in

the loading position.

To return to full-cover position from loading
position:

1. Grip the handle and pull the cargo cover

out to the end position.

2. Release slightly and angle the handle by

means of a light downward pressure.
> The cover is locked in the full-cover

position.

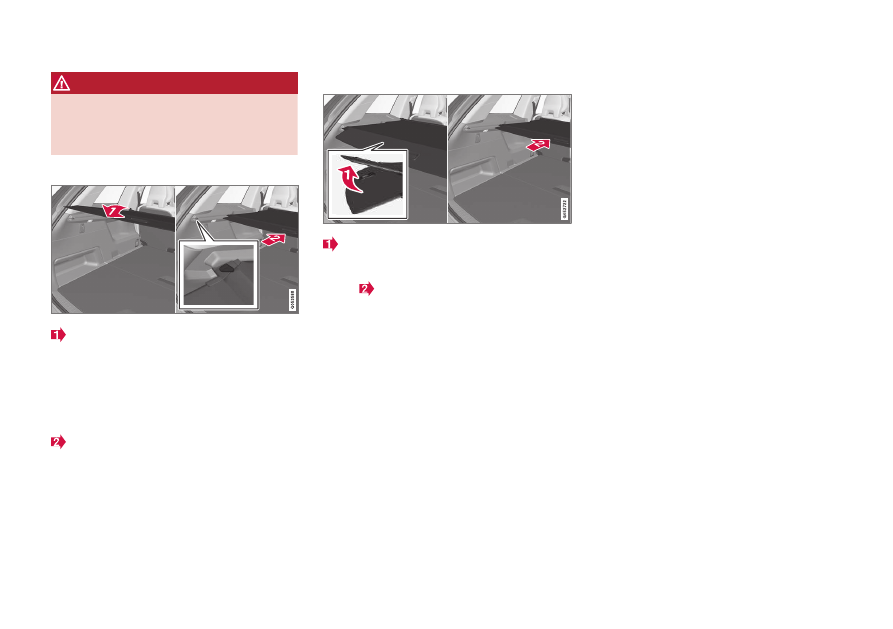

Retracting

1. From the full-cover position:

Lift up the handle and pull it backward to
disengage the cargo cover's attachment
pins and then release.

From loading position:

Grip the handle and pull out the cargo
cover in the grooves - pull to the full-cover
position. Lift up the handle and pull it
backward to disengage the attachment
pins and then release.

2. Retract the cover with its attachment pins

outside of the side panels until it stops in
the retracted position.

Related information

•

(p. 620)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

623

Fitting and removing safety grilles

The safety grille prevents loads or pets in the
cargo area from being thrown forward in the
passenger compartment under heavy brak-
ing.

The safety grille is crash-tested in accordance
with the ECE R17 legal requirement and fulfils
Volvo's strength requirements.

For safety reasons, the safety grille must
always be attached and anchored correctly.

WARNING

Under no circumstances may anybody

remain in the cargo area while the car is

moving. This is to avoid injury in the event

of heavy braking or an accident.

The safety grille's parts consist of the grille
and two loose attaching braces. The attaching
braces each come with a screw cap and there
are two plastic sleeves for the safety grille.

WARNING

The safety grille must only be used in the

rear position described here. The roof

mountings behind the front seats are not

intended for the safety grille.

WARNING

For safety reasons, the third seat row

must be lowered when the safety grille is

fitted in the car.

Recommendations for loading (p. 617)

It is not possible to have the protective
grille fitted at the same time as the cargo
cover.

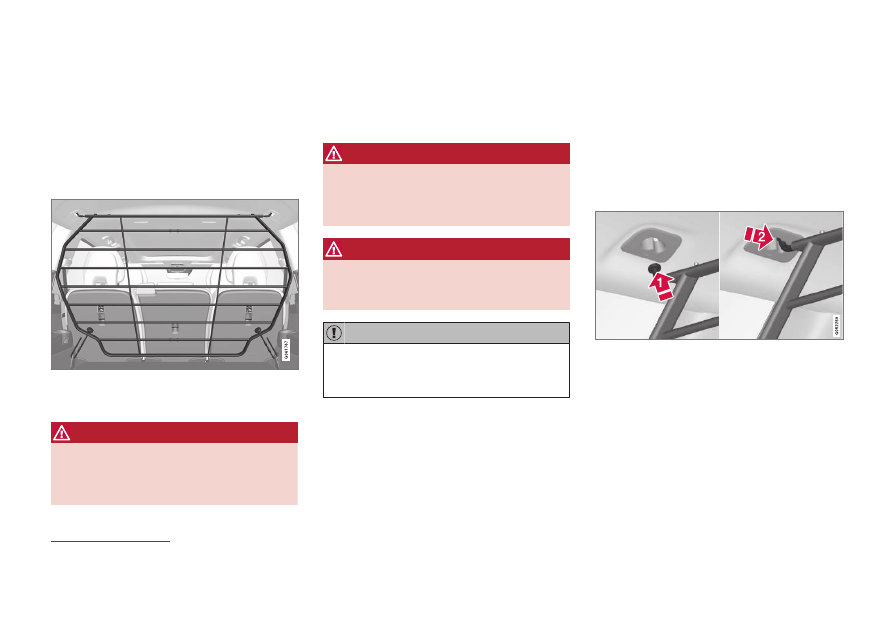

Installation

1. Lower the rear seat and then lift the safety

grille in through one of the rear side doors
or via the tailgate - the arched/convex side
of the grille should face the cargo area
while the hooks on each side point up. The
attaching braces and plastic sleeves are
not used in this stage.

Guide one of the safety grille's hooks into
the larger opening in the roof mounting (1).

Grasp the grille near the hook and pull/
slide it towards the smaller opening (2).
> The hook is now secured in the roof

mounting's end position.

Applies to 7-seat cars.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

624

3. Repeat the steps in point 2 above to

secure the other hook in the mounting on
the other side.

WARNING

Make sure the hooks of the safety grille are

securely fitted in the roof mountings so

there is no risk of the grille coming loose.

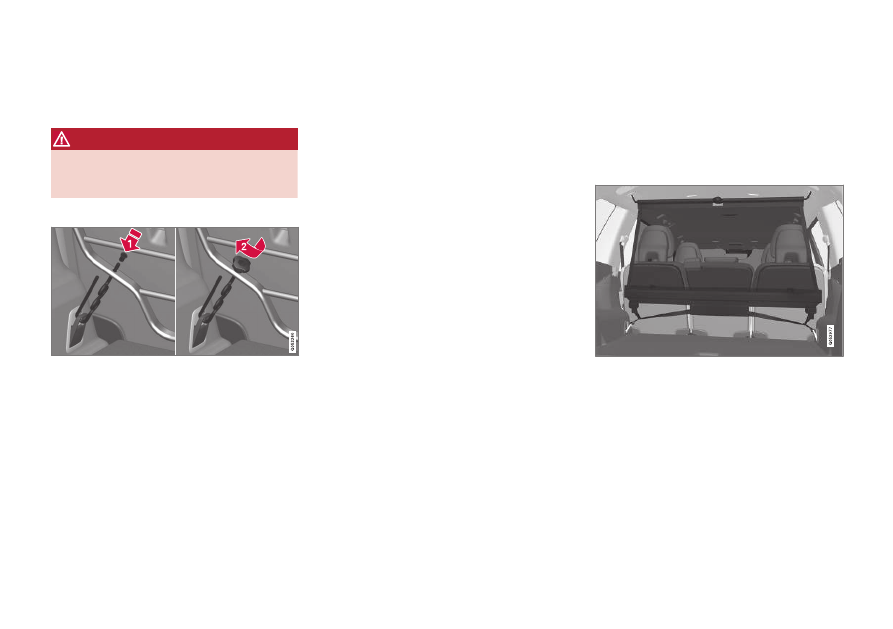

Hook the attaching brace's hook through
the load securing eyelet at the cargo floor
from underneath, and guide the threaded
part through the cargo grille's lower
attachment hole from underneath (1).

Slide a plastic sleeve on the threaded part
of the attaching brace - the sleeve flange
should face up - and guide it down
through the hole. Then screw on the screw
cap until its lower edge is approx. 5 mm
from the grille (2).

5. Repeat the steps in point 4 on the other

side.

6. Centre the safety grille and then tighten

the two attaching braces alternately until
the grille is properly secured.

Removal

Remove the safety grille by performing the
above steps in reverse order.

Note that the attaching braces can be
removed before the plastic sleeves are
removed from the holes in the grille.

Related information

•

•

Load retaining eyelets (p. 619)

Fitting and removing the safety

net

The safety net prevents loads from being
thrown forward in the passenger compart-
ment in the event of sudden braking.

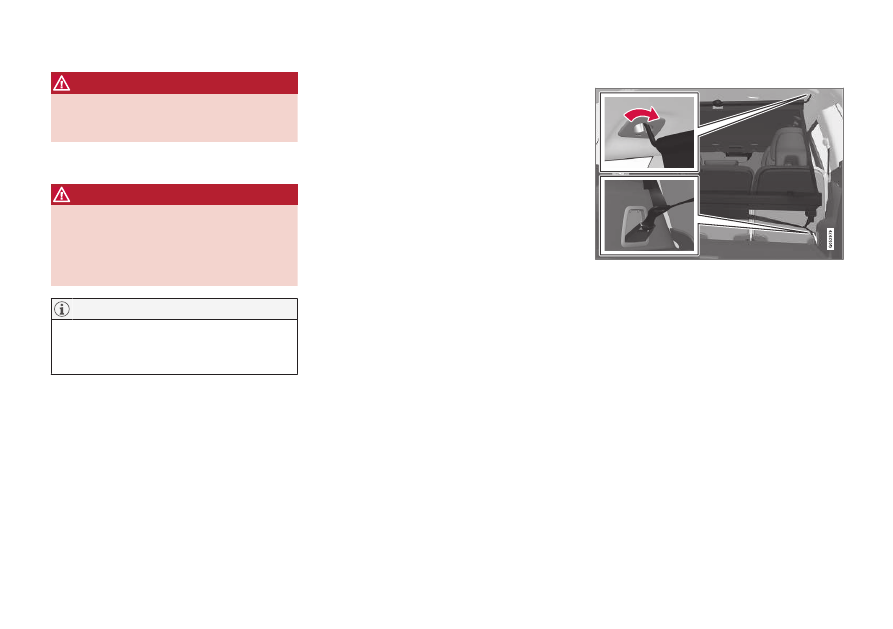

The safety net is fitted into four mounting
points.

For reasons of safety, the safety net must
always be fastened and anchored as descri-
bed below.

The net is made of a strong nylon fabric and
can be secured two different locations in the
car:

•

Rear fitting - behind second seat row.

•

Front fitting - behind the front seats.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

625

WARNING

Loads in the luggage compartment must

be anchored well, and also using a cor-

rectly fitted safety net.

Fitting the safety net

WARNING

It is necessary to ensure that the upper

securing points of the safety net are fitted

correctly and that the puller-straps are

hooked in properly.
Damaged safety nets must not be used.

With forward mounting, the safety net is
most easily mounted via one of the rear
doors.

1. Unfold the safety net and make sure that

the split upper rod in the net is locked in
its extended position.

2. Hook one retaining hook of the net into

the front or rear roof mounting with the
anchoring strap locks turned towards you.

3. Hook the net's second attachment hook

to the roof bracket on the opposite side.

The telescopically sprung attachment
hooks make it easier to fit.

Take care to press forward the net's
retaining hooks for each respective roof
mounting's front end position.

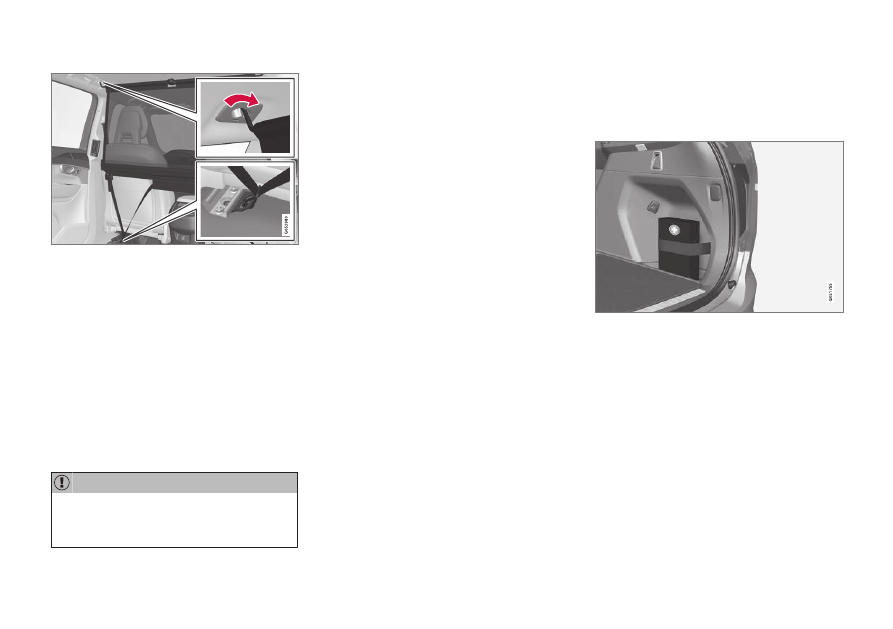

Rear fitting.

For rear fitting:

With the net fitted in the rear roof mount-
ings, hook the safety net's puller-straps
into the front load retaining eyelets in the
cargo area.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

626

Front fitting.

For front fitting:

With the net fitted in the front roof mount-
ings, hook the anchoring straps into the
outer eyes on the rear of the seat slide rails
- it is easier if the backrests are straight-
ened and the seats are moved forward
slightly.

Pay attention to make sure that you do not
press the seat and backrest hard against
the net when they are moved back again -
only adjust until the seat or backrest
makes contact with the net.

Recommendations for loading (p. 617)

If a seat or backrest is pushed backwards
hard into the safety net, the net and roof
mounts may be damaged.

5. Tension the safety net with the anchoring

straps.

Removing the safety net

The safety net can be easily removed and
folded up.

1. Reduce safety net tension by pressing the

button in the anchoring strap lock and
feeding out a little of the anchoring strap
on each side.

2. Press in the catches and detach both of

the anchoring strap's hooks.

3. Undo the upper attachments and release

the net from the roof mountings.

4. Press the red button on the rod to enable

folding and then roll up the net. Store the
net in its case.

Related information

•

•

Load retaining eyelets (p. 619)

First aid kit

The first aid kit contains first aid equipment.

Store the first aid kit behind the elastic strap, if
the car is equipped with one of these.

Related information

•

Cargo area (p. 616)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

627

Warning triangle

Use the warning triangle to warn other road
users if the car is stationary in traffic.

Also activate the hazard warning flashers.

Storage spaces

The warning triangle is located in the compart-
ment on the inside of the tailgate.

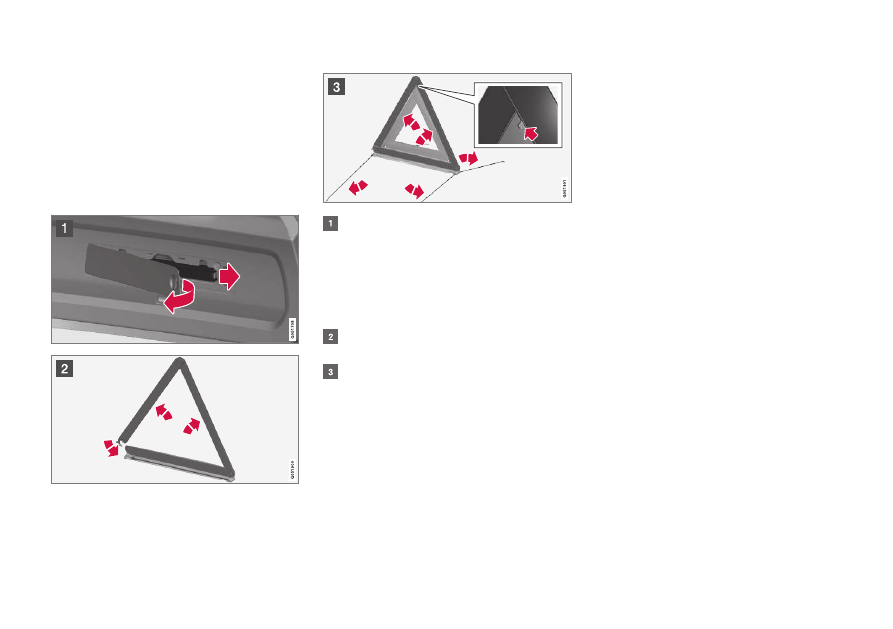

Folding up the warning triangle

Open the hatch by first turning the knob a
quarter turn and then pulling the hatch
from its brackets in the top and bottom
edges.

Press the latch that secures the warning
triangle slightly to the right and remove
the case.

Remove the warning triangle from the
case, unfold it and put the ends together.

Fold out the warning triangle's support
legs.

Follow the regulations for the use of a warning
triangle. Position the warning triangle in a suit-
able place with regard to traffic.

Make sure that the warning triangle and case
are properly secured in their storage space
and that the hatch is fully closed after use.

Related information

•

Cargo area (p. 616)

•

Hazard warning flashers (p. 167)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

630

Volvo service programme

To keep the car as safe and reliable as possi-
ble, follow the Volvo service programme as
specified in the Service and Warranty Book-
let.

Volvo recommends engaging an authorised
Volvo workshop to perform the service and
maintenance work. Volvo workshops have the
personnel, special tools and service literature
that can provide the highest quality of service.

For the Volvo warranty to apply, check and
follow the instructions in the Service and
Warranty Booklet.

Service and repair

Service the car regularly. Follow Volvo's rec-
ommended service intervals.

If inspection and repair are required then only
an authorised Volvo workshop may carry out
the work.

WARNING

Do not carry out any repairs of your own on

this vehicle. Electrical cables and/or com-

ponents that have detached must only be

rectified by an authorised workshop - an

authorised Volvo workshop is recom-

mended.

Charging cable with control unit

Do not modify the control unit in any way.

Related information

•

Car status (p. 632)

•

Connection of equipment to the car's
diagnostic socket (p. 40)

•

•

Servicing the climate control system
(p. 637)

•

Brake system maintenance (p. 464)

•

Engine compartment overview (p. 639)

Data transfer between car and

workshop via Wi-Fi

Volvo's workshops have a specific Wi-Fi net-
work for data transfer between your car and
the workshop. Your workshop visit will be
simpler and more efficient when the transfer
of diagnostic information and software can
take place via the workshop's network.

During a workshop visit, your service techni-
cian may want to connect your car to the
workshop's network via Wi-Fi to perform
fault-tracing and software download. For this
type of communication, the car only connects
to a workshop's network. It is not possible to
connect the car to another Wi-Fi network,
such as at home, in the same way as to a
workshop's network.

Connection with the remote control
key

Connection is normally handled by the service
technician who then uses the remote control
key buttons. That's why it's important to take
a key with buttons with you for the workshop
visit. Press three times on the lock button on
the remote control key to connect the car to
the workshop's network via Wi-Fi.

When the car is connected to a Wi-Fi net-
work, the

symbol appears in the centre

display.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

}}

* Option/accessory.

631

WARNING

The car must not be driven when con-

nected to the workshop's networks and

systems.

Related information

•

Managing system updates via the Down-
load Centre (p. 631)

•

Managing system updates via the Down-
load Centre (p. 631)

Download Center

Several of the car's systems can be updated
from the centre display with an online car

The

Download Centre

app is

started from app view in the
centre display and enables:

•

searching for and updating system soft-
ware

•

updating map data for Sensus Navigation

•

downloading, updating and uninstalling
apps.

Related information

•

•

Downloading apps (p. 527)

•

Updating apps (p. 528)

•

Deleting apps (p. 528)

•

•

Managing system updates via the

Download Centre

Functions for online car and infotainment can
be updated via the Download Centre.
Updates can be made one at a time or all at
once.

Searching for update

If an update is available, the
message

New software

updates available

is shown

in the centre display's status
bar.

For system updates to be possible, the car
must be connected to the Internet

–

Go to

Download Centre

in the centre dis-

play's app view.
> If no search has been performed since

the last time the infotainment system
was started, a search is performed. No
search is performed if a software instal-
lation is in progress.

A number on

System updates

shows

how many updates are available. One
tap shows a list of the updates that can
be installed in the car.

Data is transferred (data traffic) when using the Internet, and this may involve a cost.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

* Option/accessory.

632

Data download may affect other services
that transmit data, e.g. Internet radio. If the
effect on other services is experienced as
disruptive then the download can be inter-
rupted. Alternatively, it may be appropriate
to switch off or interrupt other services.

An update can be interrupted when the
ignition is switched off and the car is left.

However, the update does not have to be
completed before the car is left, this is
because the update is resumed the next
time the car is used.

Update all system software

–

Select

Install all

at the bottom of the list.

If no list is desired, then the

Install all

option

can be selected at

System updates

Update individual system software
programs

–

Select

Install

for the software required.

Cancelling software download

–

Tap on X in the activity indicator that has
replaced

Install

at the start of the down-

load.

Note that only the download can be cancelled,
when the installation phase has started, this
cannot be cancelled.

Deactivating the background search
for software update

Automatic search for software updates is acti-
vated when the car is delivered from the fac-
tory, but this function can be deactivated.

1. Tap on

Settings

in the centre display's

top view.

2. Press

System

Download Centre

3. Deselect

Auto Software Update

Related information

•

Download Center (p. 631)

•

•

Handling a message saved from the driver
display (p. 113)

Car status

The car's general status can be shown in the
centre display along with the opportunity to
book service

The

Car Status

app is started

from app view in the centre
display and has four tabs:

•

Messages

- status messages

•

Status

- checking engine oil level and

AdBlue level

•

TPMS

- checking the tyre pressure

•

Appointments

- appointment information

and car information

Related information

•

•

Checking and filling with engine oil
(p. 641)

•

Tyre pressure monitoring system

(p. 588)

•

Sending car information to a workshop
(p. 634)

•

•

Sending car information to a workshop
(p. 634)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

}}

633

Book service and repair

This service provides a way to send a booking
request for service and workshop visit
directly in the car.

When it is time for service, and in some cases
when the car is in need of repair, a message
will appear in the driver display and at the top
of the centre display. The service date is deter-
mined by how much time has passed, hours
that the engine has been running, or distance
driven since the last service.

Before the service can be used

•

Create a Volvo ID and register it to the car.

•

Select the Volvo retailer you would like to
contact by going to www.volvocars.com
and logging in.

•

To send and receive booking information,
the car must be connected to the Inter-
net

Book a service

Fill in a booking request when so required or
when a message indicating that the car needs
a service or repair is shown.

1. Open the

Car Status

app from the app

view in the centre display.

2. Press

Appointments

3. Press

Request appointment

4. Make sure that the correct

Volvo ID

filled in.

5. Make sure that the desired

Workshop

filled in.

6. Fill in the field

Tap to write information

to the workshop

if there is anything you

would like done during the workshop visit
or any other important information to your
workshop.

7. Press

Send appointment request

> You will receive an appointment sug-

gestion via e-mail within a couple of
days

You will also receive the same commu-
nication via e-mail and when you go to
www.volvocars.com and log in.

In certain markets, once you have sent
the appointment request, the message
that the car needs service is extin-
guished in the driver display.

8. Tap on

Cancel request

to cancel your

request.

The booking enquiry sent from the car
includes car information that facilitates work-
shop planning.

The retailer comes back with a digital booking
proposal. Information about your dealer is also
available in the car so that you can contact
your workshop.

Accept the appointment suggestion

When the car has received an appointment
suggestion, a message will be shown at the
top of the centre display.

Applies to certain markets.

AdBlue Applies to cars with diesel engines.

Applies to certain markets.

Data is transferred (data traffic) when using the Internet, and this may involve a cost.

This time frame may vary depending on market.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

* Option/accessory.

634

1. Tap the message.

2. If the suggested booking is acceptable,

tap on

. Otherwise, tap on

Send

new proposal

Decline

For certain markets, the system reminds you
of a scheduled appointment time as it
approaches and the navigation system

can

also guide you to the workshop when the time
comes.

Related information

•

Car status (p. 632)

•

•

•

Volvo ID (p. 28)

•

Sending car information to a

workshop

It is possible to send information for the car
at any time, e.g. if you book a workshop
appointment and want to help your workshop
by providing them with better data so that
your visit can be planned. Sending car infor-
mation is not the same as booking a service
appointment.

1. Open the

Car Status

app from the app

view in the centre display.

2. Press

Appointments

3. Press

Send car data

> A message that vehicle data are being

sent is shown at the top of the centre
display. You can cancel data transmis-
sion by tapping the X in the activity
indicator.

The information is sent via the car's
Internet connection

This car information can be accessed by any
retailer if they have the car's identification
number (VIN

Car information content

The data sent is the last information saved (the
last time the car was running) and includes
information in the following areas:

•

service requirement

•

time since last service

•

function status

•

fluid levels

•

meter reading

•

the car's vehicle identification number
(VIN

)

•

the car's software version

•

the car's diagnostics data.

Related information

•

•

Car status (p. 632)

•

•

Applies to Sensus Navigation

Applies to certain markets.

Data is transferred (data traffic) when using the Internet, and this may involve a cost.

Vehicle Identification Number.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

}}

* Option/accessory.

635

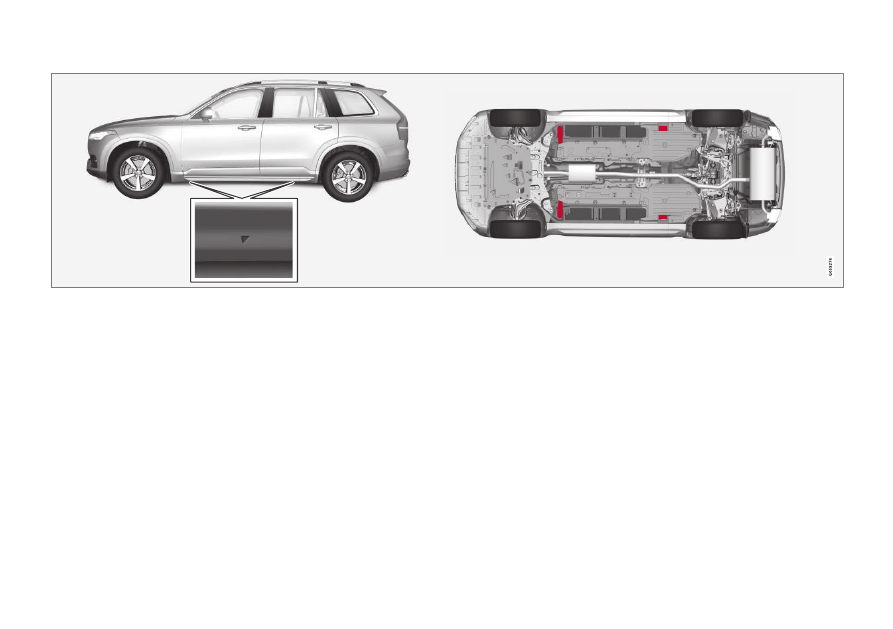

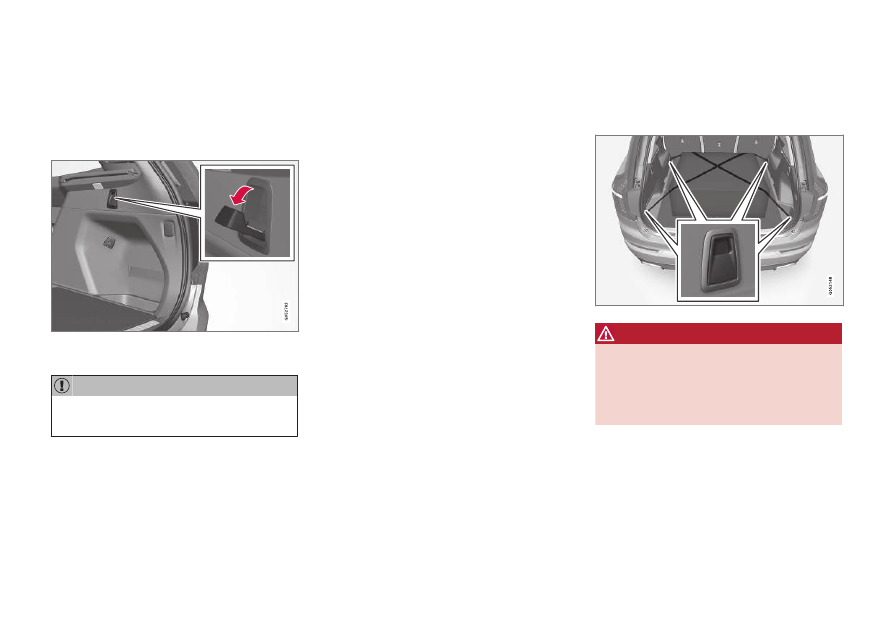

Raise the car

When raising the car, it is important that the
jack is fitted in the intended points on the
car's underbody.

Applies to cars with

Leveling Control

: If the

car is equipped with air suspension, this must
be disabled before the car is raised.

WARNING

If the car is raised using a workshop jack,

this must be placed beneath one of the

four jacking points. Take care to position

the workshop jack so that the car cannot

slip off. Make sure that the jack plate is fit-

ted with a rubber guard so that the car

remains stable and is not damaged. Always

use axle stands or similar.
