MAINTENANCE AND SERVICING

}}

* Option/accessory.

363

Fuses – glove compartment

The fuses under the glove compartment protect
components such as the infotainment system
and optional power seat.

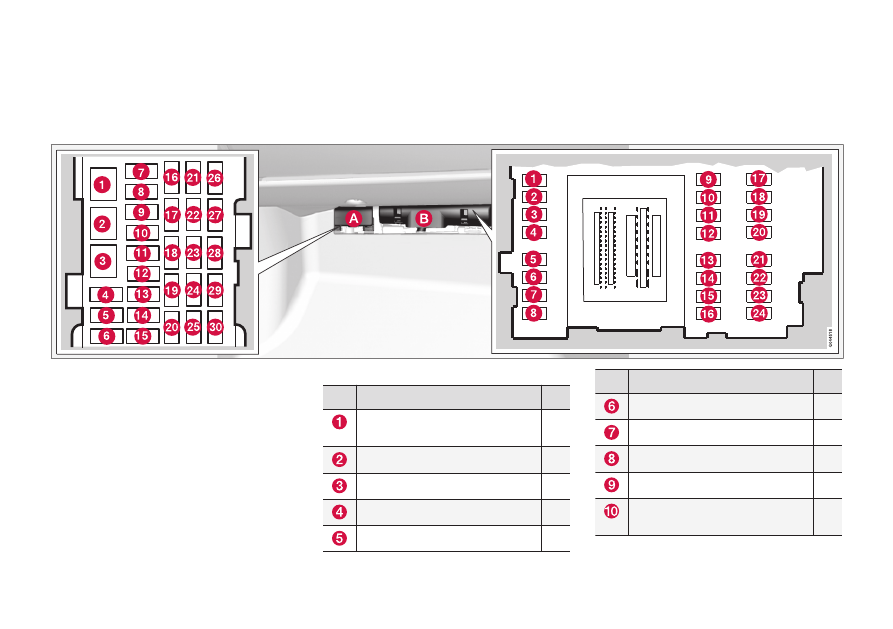

Fusebox A: General fuses

Fusebox B: Control module fuses

Fold aside the upholstery covering the fuseboxes.

1. Press the cover's lock and fold it up.

2. The fuses are accessible.

Positions: fusebox A

Pos

Function

Circuit breaker for the infotain-
ment system and for fuses 16-20

Windshield/tailgate washers

Pos

Function

Keyless drive

* (door handles)

Controls in driver's door

Controls in front passenger's door

Controls in right rear passenger's
door

MAINTENANCE AND SERVICING

* Option/accessory.

364

Pos

Function

Controls in left rear passenger's
door

Keyless drive

7.5

Power driver's seat

Power front passenger's seat

Infotainment system display

Infotainment system: amplifier, Sir-
iusXM

™ satellite radio*

Sensus control module

Bluetooth hands-free system

Power moonroof

Courtesy lighting, climate system
sensor

12-volt sockets in tunnel console

Heated rear seat

* (passenger's

side)

Heated rear seat

* (driver's side)

Pos

Function

Heated front passenger's seat

Heated driver's seat

Park assist

Blind Spot Information System
(BLIS)

*, park assist camera*

All Wheel Drive

* control module

Active chassis system

Positions: fusebox B

Pos

Function

Tailgate wiper

Front courtesy lighting, driver's
door power window controls,
power seat(s)

7.5

Instrument panel

Adaptive cruise control/collision
warning

Pos

Function

Courtesy lighting, rain sensor

HomeLInk

Wireless Control Sys-

tem

7.5

Steering wheel module

7.5

Cental locking: fuel filler door

Electrically heated steering wheel

Electrically heated windshield

Tailgate unlock

Electrical folding rear seat out-
board head restraints

Fuel pump

Climate system control panel

Alarm, On-board diagnostic sys-
tem

Satellite radio

*, audio system

amplifier

Airbag system, occupant weight
sensor

Collision warning system

MAINTENANCE AND SERVICING

* Option/accessory.

365

Pos

Function

Accelerator pedal sensor, auto-
dim mirror function, heated rear
seats

7.5

Brake lights

Power moonroof

Immobilizer

Related information

•

Fuses – engine compartment (p. 360)

•

Fuses – cargo area/trunk (p. 366)

•

Fuses – engine compartment cold zone
(Start/Stop only) (p. 367)

MAINTENANCE AND SERVICING

* Option/accessory.

366

Fuses – cargo area/trunk

The fuses in the cargo area/trunk protect com-
ponents such as trailer connections, the parking
brake, etc.

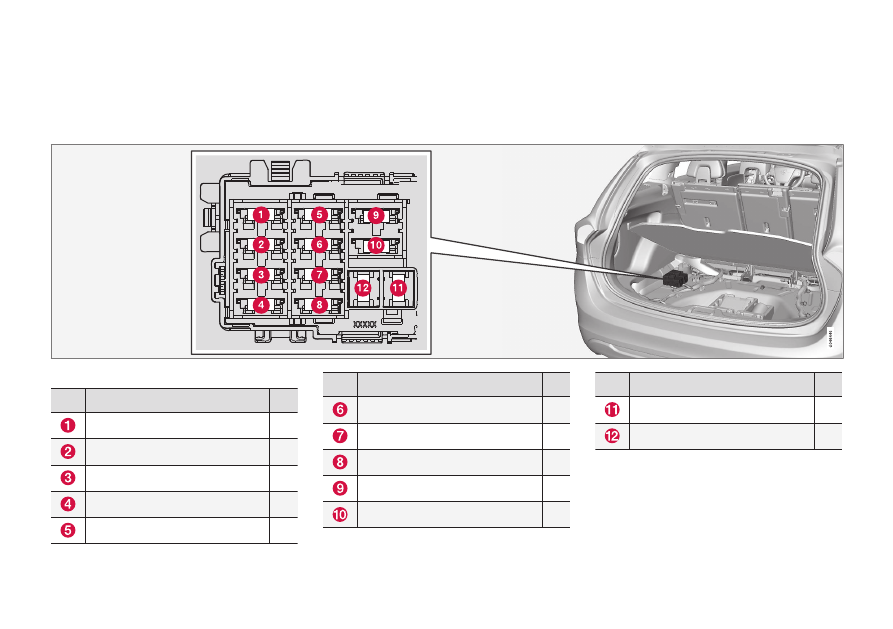

Positions

Pos

Function

Electric parking brake (left side)

Electric parking brake (right side)

Heated rear window

Trailer socket 2

Pos

Function

12-volt socket in cargo area

Pos

Function

Trailer socket 1

Related information

•

Fuses – engine compartment (p. 360)

•

Fuses – glove compartment (p. 363)

•

Fuses – engine compartment cold zone
(Start/Stop only) (p. 367)

MAINTENANCE AND SERVICING

}}

367

Fuses – engine compartment cold

zone (Start/Stop only)

There are fuses in the engine compartment cold
zone on models with the Start/Stop function.

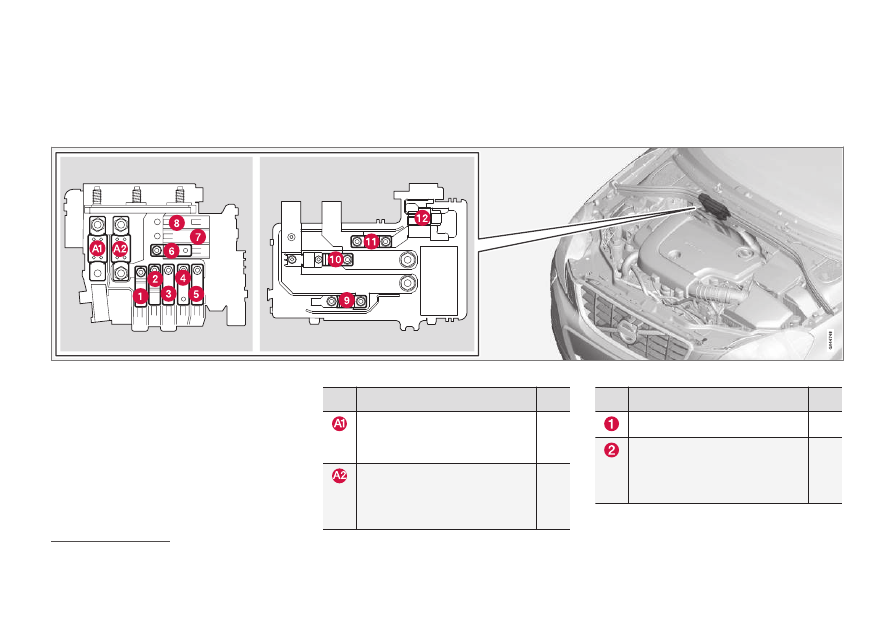

Location of Start/Stop fuses

Positions

•

Fuses A1, A2 and 1–11 are relays/circuit
breakers and should only be removed or
replaced by a trained and qualified Volvo
service technician.

•

Fuse 12 may be changed at any time when
necessary.

Pos

Function

Circuit breaker: central electrical
module in the engine compart-
ment

175

Circuit breaker: fuseboxes under
the glove compartment, central
electrical module in the cargo
area

175

Pos

Function

Circuit breaker: fusebox B under
the glove compartment (see
Fuses – glove compartment
(p. 363))

Option on 4-cyl. engines

MAINTENANCE AND SERVICING

368

Pos

Function

Circuit breaker: fusebox A under
the glove compartment (see
Fuses – glove compartment
(p. 363))

Circuit breaker: central electrical
module in the cargo area

Climate system blower

–

Starter motor relay

Internal diode

Auxiliary battery

Central electrical module: auxili-
ary battery reference voltage,
auxiliary battery charging point

Related information

•

Fuses – engine compartment (p. 360)

•

Fuses – glove compartment (p. 363)

•

Fuses – cargo area/trunk (p. 366)

•

Start/Stop – introduction (p. 268)

MAINTENANCE AND SERVICING

}}

* Option/accessory.

369

Washing the vehicle

The vehicle should be washed at regular inter-
vals since dirt, dust, insects and tar spots
adhere to the paint and may cause damage. To
help prevent corrosion, it is particularly important
to wash the car frequently in the wintertime.

The following points should be kept in mind when
washing and cleaning the car:

CAUTION

Avoid using car washing detergents with a pH
value lower than 3.5 or higher than 11.5.
Doing so could result in discoloring of ano-
dized aluminum surfaces on e.g., roof rails or
the frames around the side windows.

•

Avoid washing your car in direct sunlight.
Doing so may cause detergents and wax to
dry out and become abrasive. To avoid
scratching, use lukewarm water to soften the
dirt before you wash with a soft sponge, and
plenty of sudsy water.

•

Bird droppings: Remove from paintwork as
soon as possible. Otherwise the finish may
be permanently damaged.

•

A detergent can be used to facilitate the
softening of dirt and oil.

•

Dry the car with a clean chamois and
remember to clean the drain holes in the
doors and rocker panels.

•

Tar spots can be removed with tar remover
after the car has been washed.

•

A stiff-bristle brush and lukewarm soapy
water can be used to clean the wiper blades.
Frequent cleaning of the windshield and
wiper blades improves visibility considerably
and also helps prolong the service life of the
wiper blades.

•

Wash off the dirt from the underside (wheel
housings, fenders, etc).

•

In areas of high industrial fallout, more fre-
quent washing is recommended.

NOTE

When washing the vehicle, remember to
remove dirt from the drain holes in the doors
and sills.

CAUTION

•

During high pressure washing, the spray
mouthpiece must never be closer to the
vehicle than 13" (30 cm). Do not spray
into the locks.

•

Dirt, snow, etc., on the headlights can
reduce lighting capacity considerably.
Clean the headlights regularly, for exam-
ple when refueling.

Special moonroof cautions:

•

Always close the moonroof and sun
shade before washing your vehicle.

•

Never use abrasive cleaning agents on
the moonroof.

•

Never use wax on the rubber seals
around the moonroof.

Exterior components

Volvo recommends the use of special cleaning
products, available at your Volvo retailer, for
cleaning colored plastic, rubber, or ornamental
components such as chromed strips on the exte-
rior of your vehicle. The instructions for using
these products should be followed carefully. Sol-
vents or stain removers should not be used.

The frames around the side windows, roof rails
and door frames near the windows

* are made of

anodized aluminum and should only be washed

MAINTENANCE AND SERVICING

370

with a cleaning product with a pH value between
3.5 till 11.5.

Components that should be washed with a cleaning
product with a pH value between 3.5 till 11.5 (generic
illustration)

CAUTION

•

Avoid waxing or polishing plastic or rub-
ber components

•

Polishing chromed strips can wear away
or damage the surface

•

Polishes containing abrasive substances
should not be used

Related information

•

Polishing and waxing (p. 371)

•

Cleaning the interior (p. 371)

Automatic car wash

•

We do NOT recommend washing your car in
an automatic wash during the first few
months (because the paint will not have
hardened sufficiently).

•

An automatic wash is a simple and quick way
to clean your car, but it is worth remembering
that it may not be as thorough as when you
yourself go over the car with sponge and
water. Keeping the underbody clean is most
important, especially in the winter. Some
automatic washers do not have facilities for
washing the underbody.

NOTE

Condensation may form temporarily on the
inside of the lenses of exterior lights such as
headlights, fog lights, or taillights. This is nor-
mal and the lights are designed to withstand
moisture. Normally, condensation will dissi-
pate after the lights have been on for a short
time.

CAUTION

•

Before driving into an automatic car
wash, turn off the optional rain sensor to
avoid damaging the windshield wipers.

•

Make sure that side view mirrors, auxiliary
lamps, etc, are secure, and that any
antenna(s) are retracted or removed. Oth-
erwise there is risk of the machine dis-
lodging them.

•

Chromed wheels: Clean chrome-plated
wheels using the same detergents used
for the body of the vehicle. Aggressive
wheel-cleaning agents can permanently
stain chrome-plated wheels.

WARNING

•

When the vehicle is driven immediately
after being washed, apply the brakes,
including the parking brake, several times
in order to remove any moisture from the
brake linings.

•

Engine cleaning agents should not be
used when the engine is warm. This con-
stitutes a fire risk.

Related information

•

Polishing and waxing (p. 371)

•

Cleaning the interior (p. 371)

•

Washing the vehicle (p. 369)

MAINTENANCE AND SERVICING

}}

371

Polishing and waxing

Normally, polishing is not required during the
first year after delivery, however, waxing may be
beneficial.

•

Before applying polish or wax the vehicle
must be washed and dried. Tar spots can be
removed with kerosene or tar remover. Diffi-
cult spots may require a fine rubbing com-
pound.

•

After polishing use liquid or paste wax.

•

Several commercially available products con-
tain both polish and wax.

•

Waxing alone does not substitute for polish-
ing a dull surface.

•

A wide range of polymer-based waxes can
be purchased today. These waxes are easy to
use and produce a long-lasting, high-gloss
finish that protects the bodywork against oxi-
dation, road dirt and fading.

•

Do not polish or wax your vehicle in direct
sunlight (the surface of the vehicle should
not be warmer than 113 °F (45 °C).

CAUTION

Volvo does not recommend the use of long-
life or durable paint protection coatings, some
of which may claim to prevent pitting, fading,
oxidation, etc. These coatings have not been
tested by Volvo for compatibility with your
vehicle's clear coat. Some of them may cause
the clear coat to soften, crack, or cloud. Dam-
age caused by application of paint protection
coatings may not be covered under your vehi-
cle's paint warranty.

Do not use metal polishing agents on ano-
dized aluminum surfaces. Doing so could
result in discoloring and damage the surface
finish.

Related information

•

Washing the vehicle (p. 369)

Cleaning the interior

Only use cleaning agents and car care products
recommended by Volvo. Clean regularly and fol-
low the instructions included with the car care
product.

Cleaning the interior

Upholstery care

Fabric

Clean with soapy water or a detergent. For more
difficult spots caused by oil, ice cream, shoe pol-
ish, grease, etc., use a clothing/fabric stain
remover. Consult your Volvo retailer.

Alcantera

suede-like material

Suede-like upholstery can be cleaned with a soft
cloth and mild soap solution.

MAINTENANCE AND SERVICING

372

Leather care

Volvo's leather upholstery is manufactured with a
protectant to repel soiling. Over time, sunlight,
grease and dirt can break down the protection.
Staining, cracking, scuffing, and fading can result.

Volvo offers an easy-to-use, non-greasy leather
care kit formulated to clean and beautify your
vehicle's leather, and to renew the protective
qualities of its finish. The cleaner removes dirt
and oil buildup. The light cream protectant
restores a barrier against soil and sunlight.

Volvo also offers a special leather softener that
should be applied after the cleaner and protec-
tant. It leaves leather soft and smooth, and
reduces friction between leather and other fin-
ishes in the vehicle.

Volvo recommends cleaning, protecting and con-
ditioning your vehicle's leather two to four times a
year. Ask your Volvo retailer about Leather Care
Kit 951 0251 and Leather Softener 943 7429.

Cleaning leather upholstery

1. Pour leather cleaner on a damp sponge and

squeeze it until the cleaner foams.

2. Apply the foam to the stain by moving the

sponge with circular movements.

3. Dampen the stain thoroughly with the

sponge. Let the sponge absorb the stain, do
not rub.

4. Dry the stain with soft paper towels or a

towel, and allow the leather to dry completely.

Protecting leather upholstery

1. Put a small amount of protectant cream on a

cloth and apply a thin coating of cream to the
upholstery with light circular movements.

2. Allow the leather to dry for 20 minutes.

This will help the leather resist staining and pro-
tect against sunlight's harmful UV rays.

CAUTION

•

Under no circumstances should gasoline,
naphtha or similar cleaning agents be
used on the plastic or the leather since
these can cause damage.

•

Take extra care when removing stains
such as ink or lipstick since the coloring
can spread.

•

Use solvents sparingly. Too much solvent
can damage the seat padding.

•

Start from the outside of the stain and
work toward the center.

•

Sharp objects (e.g. pencils or pens in a
pocket) or Velcro fasteners on clothing
may damage the textile upholstery.

•

Clothing that is not colorfast, such as
new jeans or suede garments, may stain
the upholstery.

Cleaning a leather-covered steering wheel

•

Remove soil, dust, etc., with a damp sponge
and a neutral soap solution.

•

Leather should be allowed to breath. Never
cover the steering wheel with a plastic pro-
tector.

•

Volvo recommends cleaning, protecting and
conditioning the steering wheel with Volvo's
Leather Care Kit 951 0251 and Leather
Softener 943 7429.

If there are stains on the steering wheel:

Type 1 (ink, wine, coffee, milk, sweat or blood)

–

Use a soft cloth or sponge. Wipe the wheel
with a solution with 5% ammonia. For blood
stains, mix approx. 1 cup (2 dl) of water and
one ounce (25g) of salt and wipe the stain.

Type 2 (fat, oil, sauces, or chocolate)

1. Same procedure as for type I stains.

2. Finish by rubbing the wheel with absorbent

paper or a towel.

Type 3 (dry soil or dust)

1. Remove the soil/dust with a soft brush.

2. Same procedure as for type I stains.

CAUTION

Sharp objects, such as rings, could damage
the leather on the steering wheel.

MAINTENANCE AND SERVICING

}}

373

Cleaning the seat belts

Clean only with lukewarm water and a mild soap
solution.

Cleaning floor mats

The floor mats should be vacuumed or brushed
clean regularly, especially during winter when
they should be taken out for drying. Spots on tex-
tile mats can be removed with a mild detergent.
For best protection in winter, Volvo recommends
the use of Volvo rubber floor mats. Consult your
Volvo retailer.

Spots on interior plastic, metal, or wood
surfaces

Cleaning interior plastic components should be
done with a cleaning agent specially designed for
this purpose. Consult your Volvo retailer.

CAUTION

•

Do not use cleaning agents with high
alcohol content such as washer fluid to
clean instrument panel glass.

•

Never spray cleaning agents or water
directly onto components with electrical
buttons or controls. Clean components of
this type by applying the cleaning agent/
water sparingly to a cloth and wiping the
components so that no liquid penetrates
into these components.

Related information

•

Washing the vehicle (p. 369)

Touching up paintwork

Paint damage requires immediate attention to
avoid rusting. Make it a habit to check the finish
regularly, for instance washing the vehicle.
Touch-up if necessary.

Paint repairs require special equipment and skill.
Contact your Volvo retailer for any extensive dam-
age.

Minor scratches can be repaired by using Volvo
touch-up paint.

Color code

Sample color code: US models

MAINTENANCE AND SERVICING

374

Sample color code: Canadian models

Make sure you have the right color. See Label
information (p. 376) for the location of this label
(label number 4 in the illustration).

Minor stone chips and scratches

Material:

•

Primer – can

•

Paint – touch-up pen

•

Brush

•

Masking tape

If the stone chip has not gone down to the bare
metal and an undamaged color coat remains, you
can add paint immediately after removing dirt.

NOTE

When touching up the vehicle, it should be
clean and dry. The surface temperature
should be above 60 °F (15 °C).

Repairing stone chips

G021832

1. Place a strip of masking tape over the dam-

aged surface. Pull the tape off so that any
loose flakes of paint adhere to it.

2. Thoroughly mix the primer and apply it with a

small brush.

3. When the primer surface is dry, the paint can

be applied using a brush. Mix the paint thor-
oughly; apply several thin paint coats and let
dry after each application.

4. If there is a longer scratch, you may want to

protect surrounding paint by masking it off

5. After a few days, polish the touched-up

areas. Use a soft rag and a small amount of
polish.

Related information

•

Label information (p. 376)

SPECIFICATIONS

378

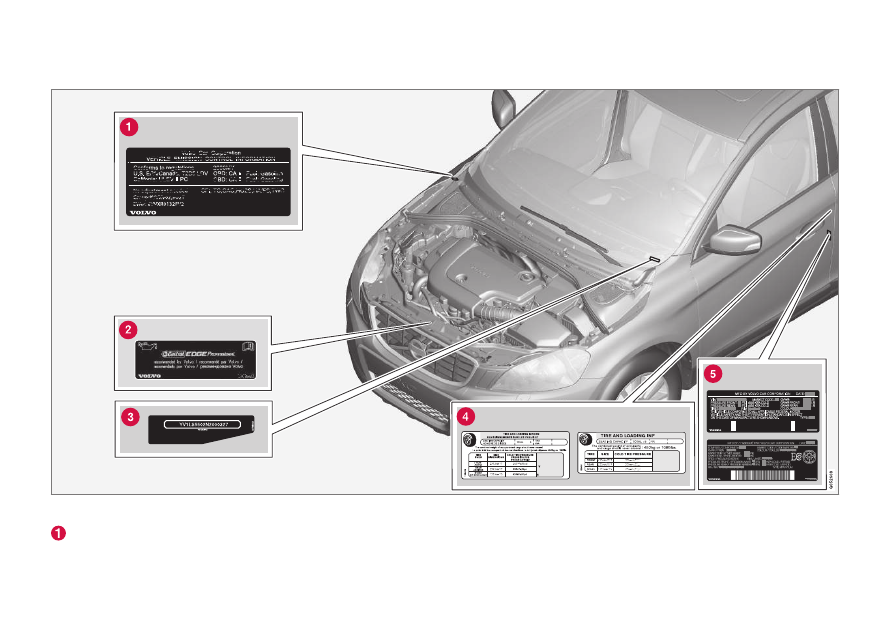

Engine oil. This label contains the recom-
mended engine oil specifications.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of
the dashboard. The Vehicle Identification
Number (VIN) should always be quoted in all
correspondence concerning your vehicle with
the retailer and when ordering parts.
Tire inflation pressures. This label indicates
the correct inflation pressures for the tires
that were on the vehicle when it left the fac-
tory.
Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Minis-
try of Transport (CMVSS) standards
(Canada). Your Volvo is designed to meet all
applicable safety standards, as evidenced by
the certification label on the driver's side B-
pillar (the structural member at the side of
the vehicle, at the rear of the driver's door
opening). This label also includes codes for
paint color, etc. For further information regar-
ding these regulations, please consult your
Volvo retailer. U.S. models have the upper
decal; Canadian models have the lower one.

Related information

•

Weights (p. 381)

•

Engine specifications (p. 382)

SPECIFICATIONS

380

Dimensions–V60CC

Position

Dimension

in. (mm)

Ground clearance
(curb weight + 2
people)

7.5 (191)

Wheelbase

109.2 (2774)

Length

182.6 (4637)

Load length, floor,
seatback down

68.9 (1749)

Load length, floor

38.5 (978)

Height

60.8 (1545)

Position

Dimension

in. (mm)

Load height

25.9 (658)

Track, front

63.7 (1619)

63.3 (1609)

Track, rear

62.1 (1577)

61.7 (1567)

Load width, floor

42.6 (1082)

Width

73.5 (1866)

Position

Dimension

in. (mm)

Width incl. door
mirrors (folded
out)

82.6 (2097)

Width incl. door
mirrors (folded in)

74.8 (1899)

Varies slightly depending on tire size, optional sport chassis, etc.

with 50 mm offset

with 55 mm offset

SPECIFICATIONS

381

Weights

The following table lists important weight data
for your vehicle.

Volvo V60 Cross Country (2018 year). Instruction - part 22
