DRIVER SUPPORT

}}

247

Rear Park Assist Camera (PAC) –

introduction

The Park Assist Camera is designed to provide
the driver with a view of the area behind the vehi-
cle when backing up.

Introduction

PAC uses the display in the center console to
show the area behind the car while you are back-
ing up.

PAC also shows guiding lines in the on-screen
image to indicate the direction that the vehicle
will take as it moves rearward, which helps sim-
plify parallel parking, backing into a tight space or
when attaching a trailer to the vehicle.

The images of vehicles in this section are generic
and may not depict your specific model.

NOTE

A trailer hitch whose wiring is integrated with
the vehicle's electrical system will be taken
into account when measuring the available
space behind the vehicle.

WARNING

PAC is designed to be a supplementary
aid when parking the vehicle. It is not,
however, intended to replace the driver’s
attention and judgment.

The camera has blind spots where it can-
not detect objects or people around or
near the vehicle.

Pay particular attention to people or ani-
mals that are close to the vehicle.

Objects seen on the screen may be
closer than they appear to be.

Related information

Rear Park Assist Camera (PAC) – operation
(p. 248)

Rear Park Assist Camera (PAC) – limitations
(p. 251)

Rear Park Assist Camera (PAC) –

function

Function

The driver sees what is behind the vehicle and if
a person or animal should suddenly appear from
the side.

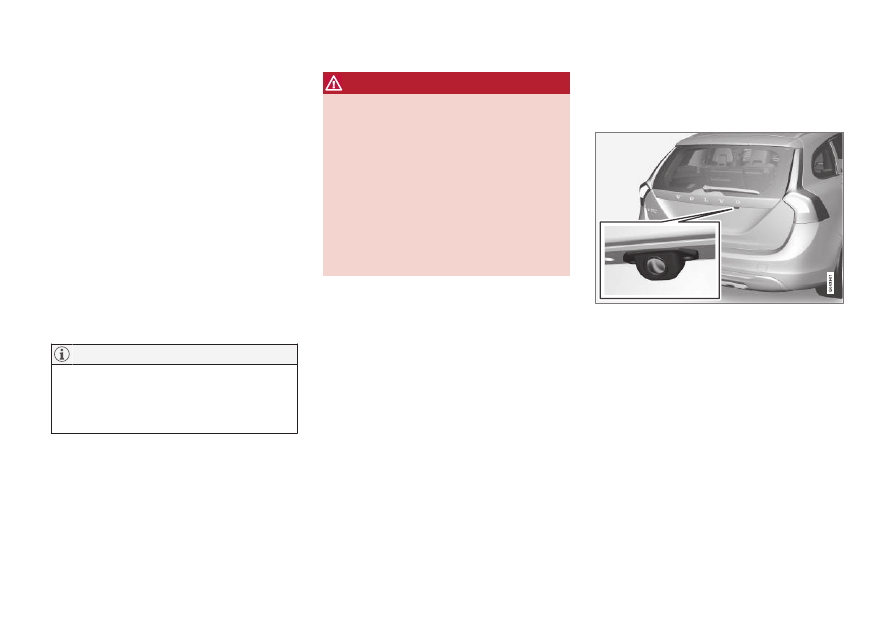

PAC is mounted on the tailgate, near the opening
handle.

The camera has built-in electronics that help
reduce the “fish-eye” effect so that the image
shown on the screen is as natural as possible.
This may cause some objects on the screen to
“lean,” which is normal.

||

DRIVER SUPPORT

248

Ambient lighting conditions

The camera automatically monitors the ambient
lighting conditions behind the vehicle and con-
stantly adjusts sensitivity to light. This may cause
the brightness and quality of the image on the
screen to vary slightly. Sensitivity to light is
increased in dark conditions or in bad weather,
which may affect image quality.

If the image on the screen seems too dark,
brightness can be increased with the thumb
wheel on the lighting panel.

NOTE

In order to function properly, the camera lens
should always be kept clean. This is particu-
larly important in bad weather. Keep the lens
free of dirt, ice or snow.

Related information

Rear Park Assist Camera (PAC) – introduc-
tion (p. 247)

Rear Park Assist Camera (PAC) – operation
(p. 248)

Rear Park Assist Camera (PAC) – limitations
(p. 251)

Rear Park Assist Camera (PAC) –

operation

Activation

PAC is activated when the gear selector is moved
to R if the system is selected in the MY CAR

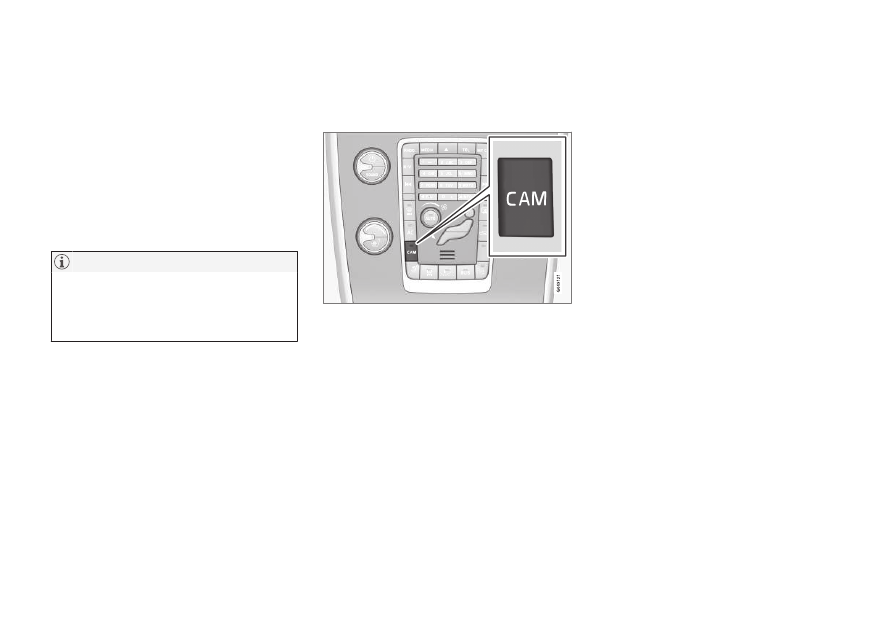

menu system or by pressing the CAM button in
the center console. See My Car – introduction
(p. 79) for a description of the menu system.

If PAC is not activated when the gear selector is
moved to R, press the CAM button on the center
console.

PAC will automatically override the view currently
on the screen and will display the camera's view
behind the vehicle.

Trailer hitches

The camera can be useful when attaching a
trailer. With the camera zoomed in on the trailer

hitch, a guiding line showing the hitch's path
toward the trailer will be projected.

The guiding lines for the wheels and for the
trailer hitch cannot be displayed at the same
time. To select a view:

1. Press OK/MENU when a camera view is dis-

played.

2. Turn TUNE to scroll to

Tow bar trajectory

guide line

.

3. Confirm by pressing OK/MENU and press

EXIT.

Zoom

When necessary, the camera view can be
zoomed:

Press CAM or turn TUNE. Pressing or turn-
ing again returns you to normal view.

If there are additional alternatives, press/turn
until the desired camera view is displayed.

Automatic zoom

Automatic zoom

 is a feature that is available on

models equipped with a trailer hitch and the
optional (p. 238)Park assist system. With this
alternative selected, the camera will zoom in on
the trailer hitch automatically if the vehicle
approaches an object/trailer.

See also the "Settings" section below.

DRIVER SUPPORT

}}

249

Deactivation

Move the gear selector from R to another gear.
The camera remains active for approx. 5 seconds
after the gear selector has been moved from R or
until the vehicle's forward speed exceeds
6 mph/10 km/h (21 mph/35 km/h in reverse).
The screen will then revert to the view that was
displayed before R was selected.

NOTE

If any button on the center console control
panel is pressed, the camera image will disap-
pear from the display. Pressing CAM will
return the camera image to the display.

Settings

By default, PAC is set to activate when the gear
selector is moved to R

To change PAC settings when a camera view is
displayed:

1. Press OK/MENU when a camera view is on

the screen. A menu will be displayed.

2. Turn TUNE to scroll to the desired setting.
3. Press OK/MENU to make the setting and

exit the menu by pressing EXIT.

Summary

Pressing CAM will activate the camera even
if the gear selector is not in Reverse.

Toggle between normal view and zoom by
pressing CAM or by turning TUNE.

Related information

Park assist – introduction (p. 238)

Park assist – function (p. 238)

Park assist – troubleshooting (p. 246)

Park assist – limitations (p. 241)

Rear Park Assist Camera (PAC) – introduc-
tion (p. 247)

Rear Park Assist Camera (PAC) –

guiding and marker lines

Guiding lines

The lines on the screen are projected as if they
were a path on the ground behind the vehicle
and are directly affected by the way in which the
steering wheel is turned. This enables the driver
to see path the vehicle will take, even if he/she
turns the steering wheel while backing up.

NOTE

When backing up with a trailer, the trajectory
lines show the path that the vehicle will take,
not the trailer.

Trajectory lines will not be displayed while
zooming in.

||

DRIVER SUPPORT

250

WARNING

Keep in mind that the image on the screen
only shows the area behind the vehicle. The
driver must always watch for people, animals,
other vehicles, etc., near the sides of the vehi-
cle when turning while backing up.

Marker lines

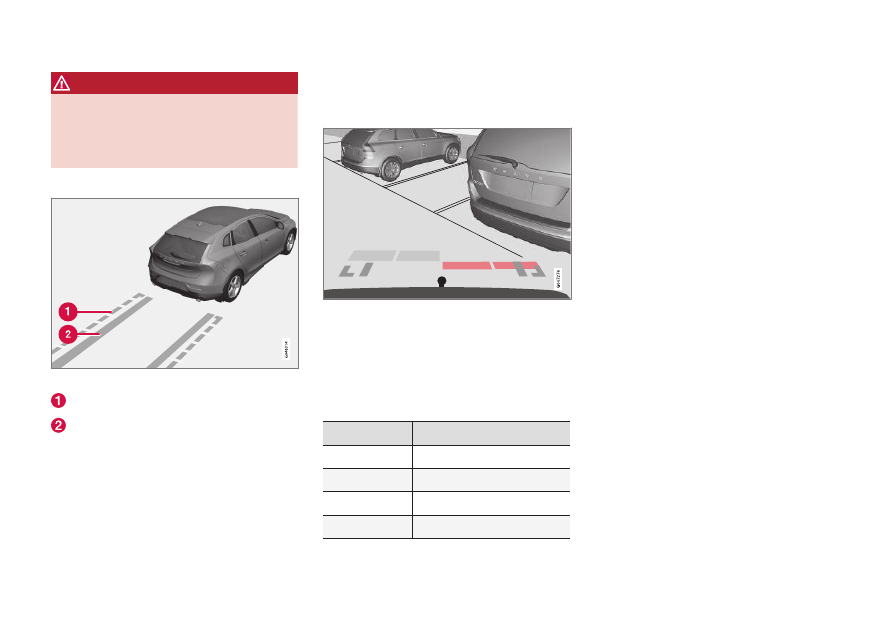

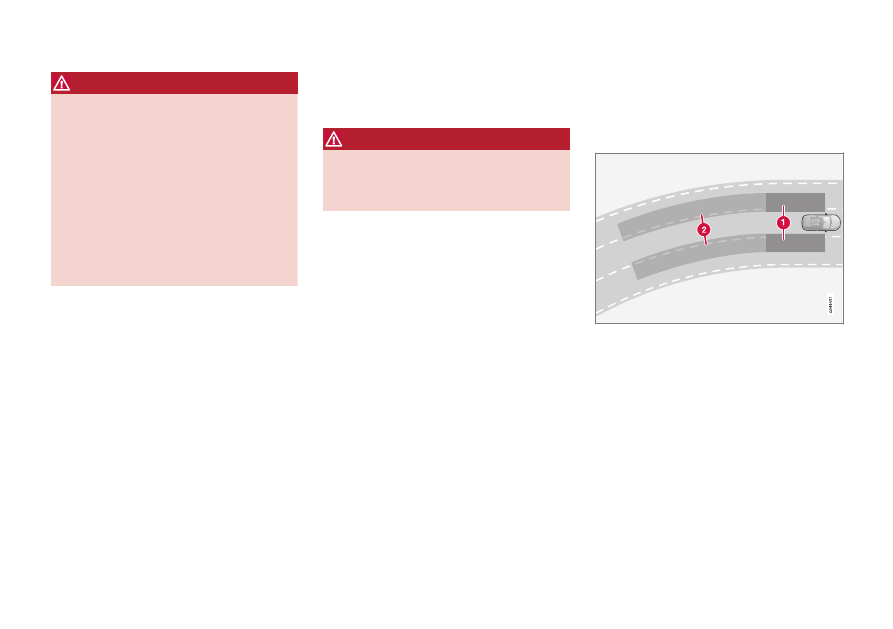

The PAC system's lines

The unobstructed area behind the vehicle

"Wheel tracks"

The dashed line (1) indicates the clear zone of
approximately 5 feet (1.5 m) behind the bumper.
These lines also indicate the outermost limits that
any object (door mirrors, corners of the body, etc.)
extends out from the vehicle, even when it turns.

The "wheel tracks" (2) show where the wheels
will roll and can extend up to approximately

10.5 ft (3.2 m) behind the bumper if there are no
objects in the way.

Vehicles equipped with Park Assist

Colored markers (one for each sensor) indicate distance

If the vehicle is equipped with the optional Park
Assist system (see Park assist – introduction
(p. 238)), the distance to an object will be indi-
cated more exactly and colored markers in the
display indicate which of the sensor(s) has
detected the object.

Color

Distance to object

Pale yellow

2.3–5 ft (0.7–1.5 m )

Yellow

1.6–2.3 ft (0.5–0.7 m)

Orange

1–1.6 ft (0.3–0.5 m)

Red

0–1 ft (0–0.3 m)

Related information

Rear Park Assist Camera (PAC) – operation
(p. 248)

Rear Park Assist Camera (PAC) – limitations
(p. 251)

DRIVER SUPPORT

}}

* Option/accessory.

251

Rear Park Assist Camera (PAC) –

limitations

Limitations

Even if a fairly small section of the screen image
appears to be obstructed, this may mean that a
relatively large area behind the vehicle is hidden
and objects there may not be detected until they
are very near the vehicle.

NOTE

Bicycle carriers or other accessories mounted
on the tailgate may obstruct the camera's
field of view.

Keep in mind

Keep the camera's lens free of dirt, ice and
snow. Remove ice and snow carefully to
avoid scratching the lens.

Clean the lens regularly with warm water and
a suitable car washing detergent.

Related information

Rear Park Assist Camera (PAC) – introduc-
tion (p. 247)

Rear Park Assist Camera (PAC) – operation
(p. 248)

Park assist – introduction (p. 238)

BLIS* – introduction

The Blind Spot Information System (BLIS) is an
information system that indicates the presence
of another vehicle moving in the same direction
as your vehicle on roads with several lanes.

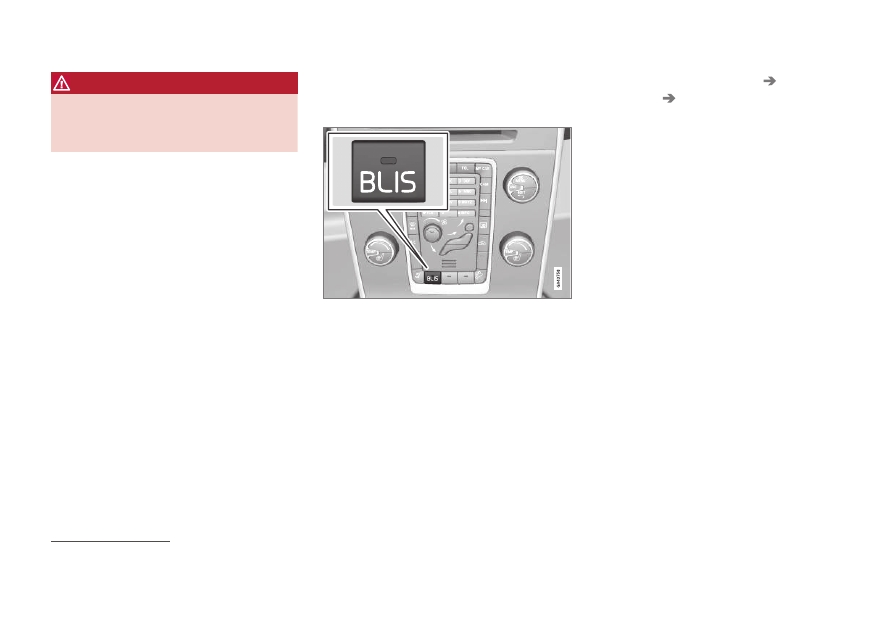

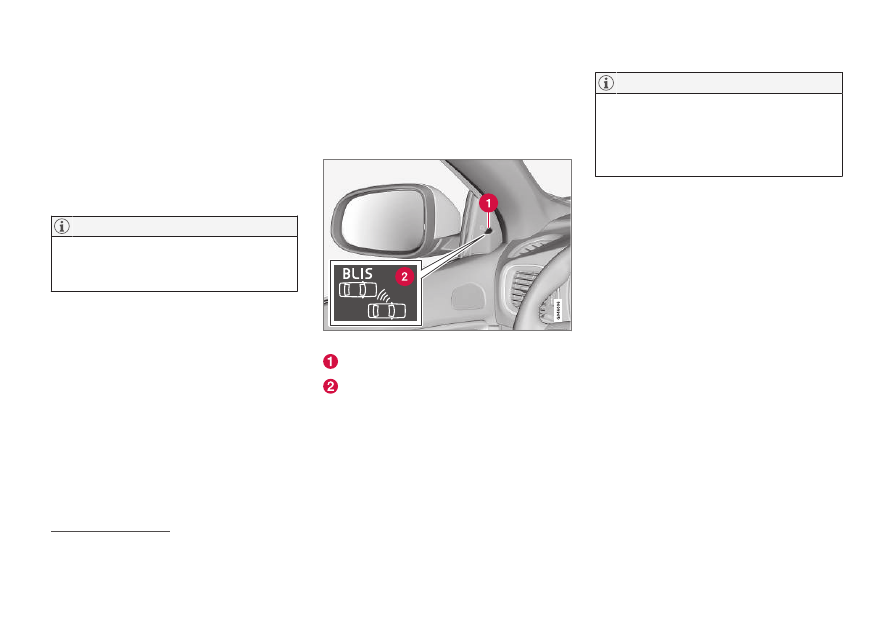

Location of the BLIS indicator light

14

.

Indicator light

BLIS symbol

BLIS and CTA

15

 are activated when the engine is

started; this is confirmed when the indicator
lights on the front door panels flash once.

NOTE

The door panel indicator light illuminates on
the side of the vehicle where the system has
detected another vehicle. If your vehicle is
passed on both sides at the same time, both
lights will illuminate.

The system helps provide information about:

Other vehicles in your door mirrors' "blind
area"

Vehicles that are about to pass your vehicle
in the left and/or right lanes

Cross Traffic Alert (CTA) is a supplemen-
tary BLIS function intended to detect vehi-
cles crossing behind your vehicle while you
are backing up.

14

The illustration is generic; certain details may vary from model to model

15

Cross Traffic Alert

||

DRIVER SUPPORT

* Option/accessory.

252

WARNING

BLIS and CTA are information systems,
NOT warning or safety systems and do
not function in all situations.

BLIS and CTA do not eliminate the need
for you to visually confirm the conditions
around you, and the need for you to turn
your head and shoulders to make sure
that you can safely change lanes or back
up.

As the driver, you have full responsibility
for changing lanes/backing up in a safe
manner.

Radar sensor type approval

USA

FCC ID: L2C0055TR

Canada

IC: 3432A-0055TR

This device complies with Part 15 of the FCC
Rules and with Industry Canada license-exempt
RSS standard(s). Operation is subject to the fol-
lowing two conditions: (1) This device may not
cause harmful interference, and (2) This device
must accept any interference received, including
interference that may cause undesired operation.

The term “IC:” before the radio certification num-
ber only signifies that Industry Canada technical
specifications were met.

WARNING

Changes or modifications not expressively
approved by the party responsible for compli-
ance could void the user's authority to oper-
ate the equipment.

Related information

BLIS

* – function (p. 252)

BLIS

* – operation (p. 253)

BLIS

* – Cross Traffic Alert (CTA) (p. 254)

BLIS

* – limitations (p. 255)

BLIS

* – messages (p. 256)

BLIS* – function

When does BLIS function

The system functions when your vehicle is mov-
ing at speeds above 6 mph (10 km/h).

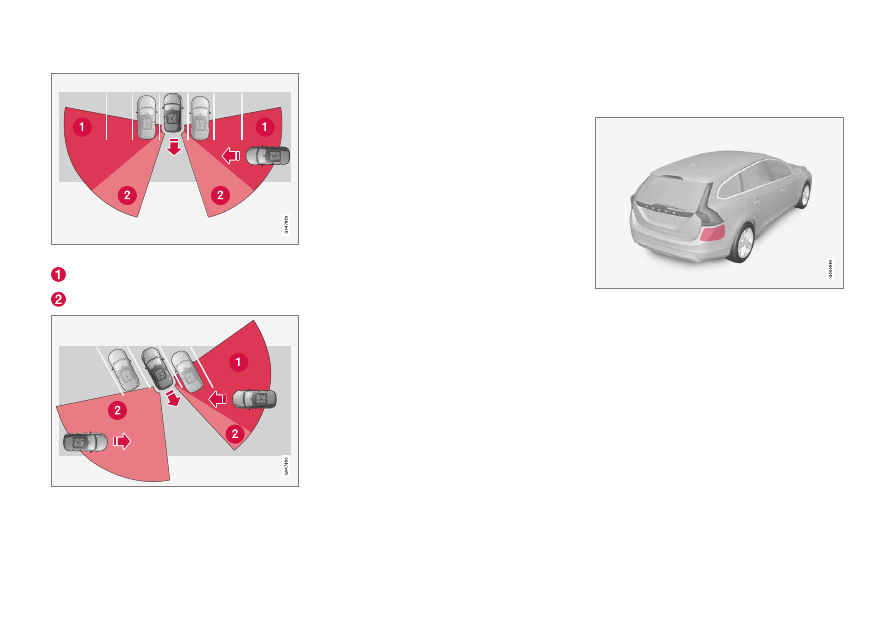

Zone 1. Blind area, Zone 2. Area for passing vehicles

BLIS is designed to react to:

Other vehicles in your door mirrors' "blind
area"

Vehicles that are passing your vehicle

When BLIS detects a vehicle in zone 1 or a pass-
ing vehicle in zone 2, the indicator light in the
door panel will glow steadily. If the driver then
uses the turn signal on the side on which the
warning is given, the indicator light will flash and
become brighter.

DRIVER SUPPORT

* Option/accessory.

253

WARNING

BLIS does not function in sharp curves.

BLIS does not function when your vehicle
is backing up.

Related information

BLIS

* – introduction (p. 251)

BLIS

* – operation (p. 253)

BLIS

* – Cross Traffic Alert (CTA) (p. 254)

BLIS

* – limitations (p. 255)

BLIS

* – messages (p. 256)

BLIS* – operation

Activating/deactivating BLIS

Button for activating/deactivating BLIS

BLIS and CTA

16

 are activated when the engine is

started; this is confirmed when the indicator
lights on the front door panels flash once.

BLIS can be deactivated/reactivated by pressing
the button on the center console.

The number or combinations of options on the
vehicle may not leave a space available on the
center console for the BLIS button. If this is the
case, BLIS can be deactivated/reactivated in the
MY CAR menu system, see My Car – introduction
(p. 79)

Select Off or On in

Settings

Car

settings

BLIS

.

When BLIS is deactivated/reactivated, the indica-
tor lights will go out/illuminate (the indicators will
also flash once when the function is reactivated)
and a message will appear in the instrument
panel.

To erase the message:

Press the OK button on the left steering
wheel lever

or

Wait for approx. 5 seconds for the message
to disappear

Related information

BLIS

* – introduction (p. 251)

BLIS

* – function (p. 252)

BLIS

* – Cross Traffic Alert (CTA) (p. 254)

BLIS

* – limitations (p. 255)

BLIS

* – messages (p. 256)

16

Cross Traffic Alert

DRIVER SUPPORT

* Option/accessory.

254

BLIS* – Cross Traffic Alert (CTA)

Cross Traffic Alert (CTA) is a supplementary
BLIS

17

 function intended to detect vehicles

crossing behind your vehicle while you are back-
ing up.

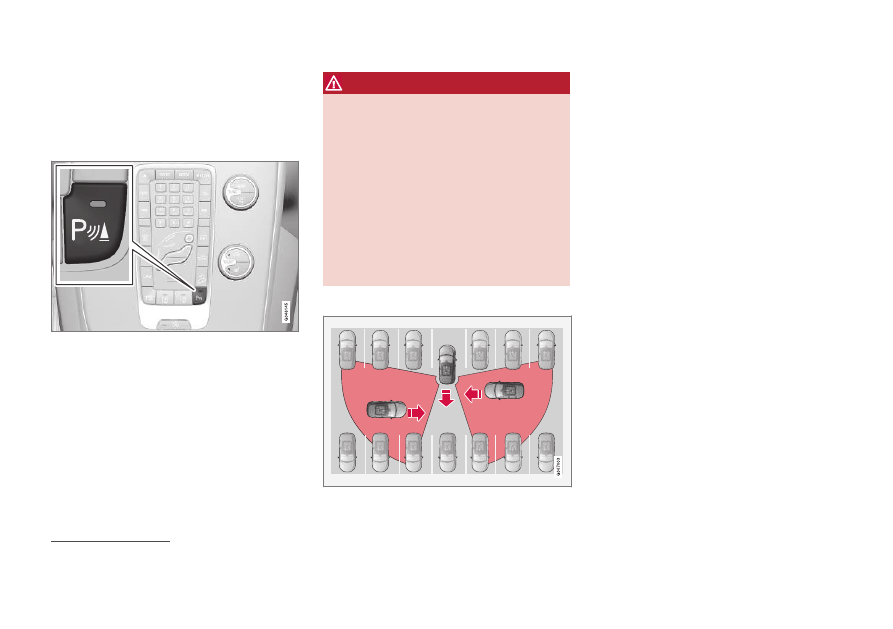

Park assist/CTA button

On vehicles equipped with the optional Park
assist system (p. 238), Cross Traffic Alert (CTA)
can be deactivated/reactivated by pressing the
Park assist button on the center console. The
BLIS indicator lights on the front doors will flash
when CTA is reactivated by pressing the button.

WARNING

BLIS and CTA are information systems,
NOT warning or safety systems and do
not function in all situations.

BLIS and CTA do not eliminate the need
for you to visually confirm the conditions
around you, and the need for you to turn
your head and shoulders to make sure
that you can safely change lanes or back
up.

As the driver, you have full responsibility
for changing lanes/backing up in a safe
manner.

When does CTA function

How CTA works

CTA supplements BLIS by warning the driver of
crossing traffic behind your vehicle, for example,
when backing out of a parking space.

It is primarily designed to detect another vehicle
but in certain cases may also detect pedestrians
or smaller objects such as bicycles.

CTA is only activated when the vehicle is backing
up and is activated automatically when the gear
selector is put in reverse.

An audible signal indicates that CTA has
detected something that is approaching from
the side. The signal will come from either the
left or right audio system speakers, depend-
ing on which the side of your vehicle the
approaching vehicle/object has been
detected.

CTA also provides a warning by illuminating
the BLIS indicator lights.

An icon will also illuminate in the Park assist
graphic on the center console display.

Limitations

CTA has limitations in certain situations, for
example, the CTA sensors cannot "see" through
other parked vehicles or obstructions.

The following are several examples where CTA's
"field of vision" may initially be limited and
approaching vehicles cannot be detected until
they are too close:

17

Blind Spot Information System

DRIVER SUPPORT

}}

* Option/accessory.

255

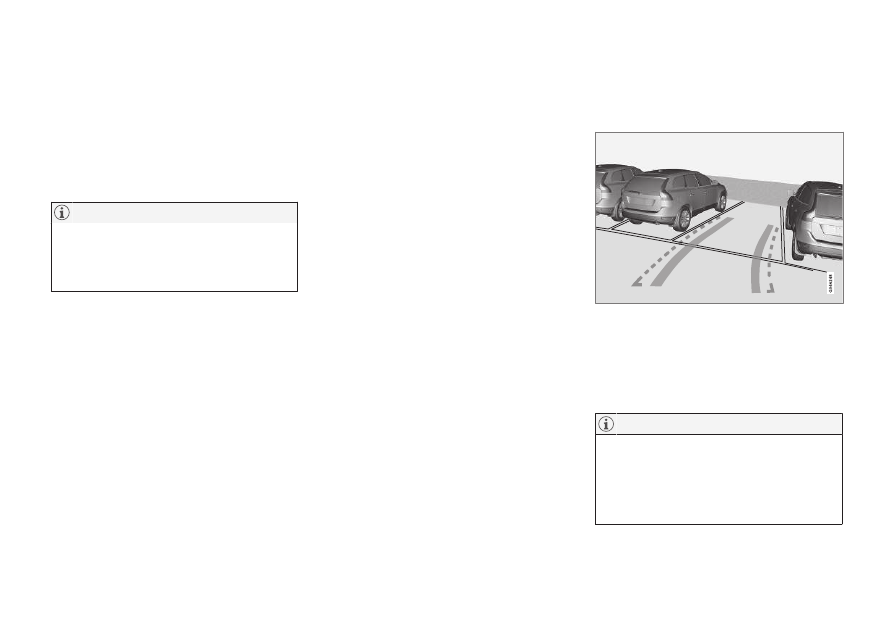

The vehicle is pulled far into a parking space

CTA's blind area

CTA's "field of vision"

In angled parking spaces, CTA may be "blind" on one
side

However, as you back your vehicle out of a park-
ing space, CTA's "field of vision" expands.

Examples of other limitations include:

Dirt, ice or snow obstructing the sensors may
reduce the system's function or make it
impossible to detect other vehicles or
objects.

Do not attach tape, decals, etc., on the sur-
face of the sensors (see the illustration in the
following "Maintenance" section).

BLIS and CTA are deactivated if a trailer's
wiring is connected to the vehicle's electrical
system.

Related information

BLIS

* – introduction (p. 251)

BLIS

* – function (p. 252)

BLIS

* – operation (p. 253)

BLIS

* – limitations (p. 255)

BLIS

* – messages (p. 256)

BLIS* – limitations

Maintenance

Keep the highlighted surface clean (on both sides of the
vehicle)

||

DRIVER SUPPORT

* Option/accessory.

256

The BLIS/CTA

18

 sensors are located on the

inside of the rear fenders/bumper.

The surfaces in front of the sensors must be kept
clean for the system to function optimally.

CAUTION

Repairs to the BLIS/CTA systems and/or
repainting the rear bumper should only be
done by a trained and qualified Volvo service
technician.

Related information

BLIS

* – introduction (p. 251)

BLIS

* – function (p. 252)

BLIS

* – operation (p. 253)

BLIS

* – Cross Traffic Alert (CTA) (p. 254)

BLIS

* – messages (p. 256)

BLIS* – messages

If BLIS/CTA

19

 are not functioning normally, a

symbol will illuminate in the instrument panel and
a text message will be displayed. Follow any
instructions that may be provided.

These messages include:

Message

System status

CTA OFF

CTA has been switched off
manually. BLIS remains active.

BLIS and
CTA OFF
Trailer
attached

BLIS and CTA are temporarily
deactivated because a trailer's
wiring has been connected to
the vehicle's electrical system.

BLIS and
CTA Service
required

BLIS and CTA are not func-
tioning normally.

If this message recurs,
the systems should be
inspected by a trained
and qualified Volvo serv-
ice technician.

Messages can be erased by pressing the OK
button on the left steering wheel lever.

Related information

BLIS

* – introduction (p. 251)

BLIS

* – function (p. 252)

BLIS

* – operation (p. 253)

BLIS

* – Cross Traffic Alert (CTA) (p. 254)

BLIS

* – limitations (p. 255)

18

Cross Traffic Alert

19

Cross Traffic Alert

STARTING AND DRIVING

STARTING AND DRIVING

* Option/accessory.

258

Starting the engine

The engine can be started/switched off using
the remote key and the

START/STOP ENGINE

button.

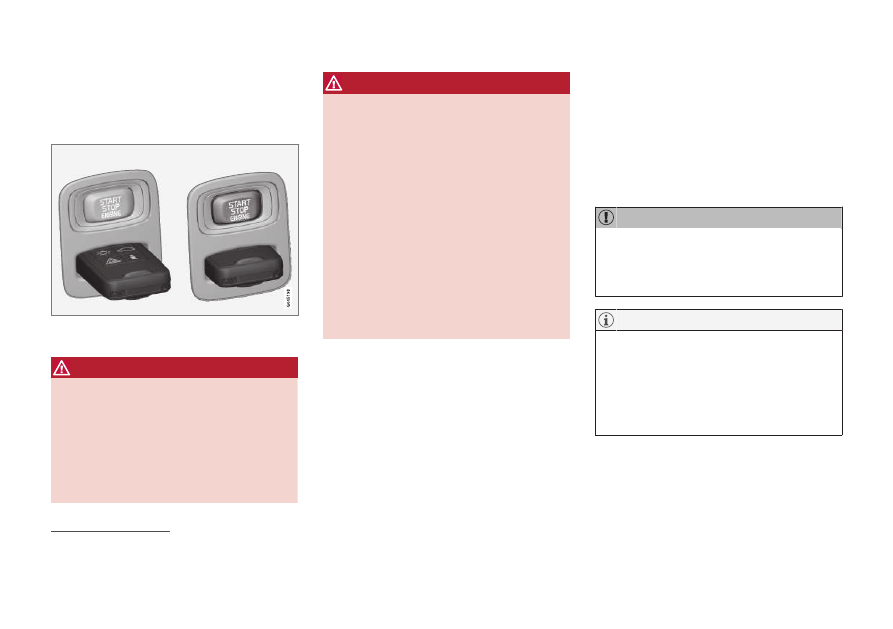

Ignition slot with remote key inserted (see Ignition
modes (p. 82) for more information on ignition modes)

WARNING

Before starting the engine:

Fasten the seat belt.

Check that the seat, steering wheel and
mirrors are adjusted properly.

Make sure the brake pedal can be
depressed completely. Adjust the seat if
necessary.

WARNING

Never use more than one floor mat at a
time on the driver's floor. Before driving,
remove the original mat from the driver's
seat floor before using any other type of
floor mat. Any mat used in this position
should be securely and properly anchored
in the attaching pins. An extra mat on the
driver's floor can cause the accelerator
and/or brake pedal to catch. Check that
the movement of these pedals is not
impeded.

Volvo's floor mats are specially manufac-
tured for your car. They must be firmly
secured in the clips on the floor so that
they cannot slide and become trapped
under the pedals on the driver's side.

1. Press the remote key into the ignition slot as

far as possible, with the metallic key blade
pointing outward (not inserted into the slot)

1

.

2. Depress the brake pedal

2

.

3. Press and release the START/STOP

ENGINE button. The autostart function will
operate the starter motor until the engine
starts or until its overheating function stops
it.

The starter motor operates for a maximum of
10 seconds. If the engine has not started,
repeat the procedure.

CAUTION

If the engine does not start after the third try,
wait for approximately 3 minutes before trying
to start it again to give the battery time to
recover its starting capacity.

NOTE

Keyless drive

*

To start a vehicle equipped with the keyless
drive feature, one of the remote keys must be
in the passenger compartment. Follow the
instructions in steps 2 and 3 to start the vehi-
cle.

1

On vehicles with the optional keyless drive, it is only necessary to have a remote key in the passenger’s compartment.

2

If the vehicle is moving, it is only necessary to press the START/STOP ENGINE button to start the vehicle.

STARTING AND DRIVING

259

WARNING

Always remove the remote key from the
ignition slot when leaving the vehicle and
ensure that the ignition in mode 0 (see
Ignition modes (p. 82) for information
about the ignition modes).

On vehicles with the optional keyless
drive, never remove the remote key from
the vehicle while it is being driven or
towed.

Always place the gear selector in Park
and apply the parking brake before leav-
ing the vehicle. Never leave the vehicle
unattended with the engine running.

Always open garage doors fully before
starting the engine inside a garage to
ensure adequate ventilation. The exhaust
gases contain carbon monoxide, which is
invisible and odorless but very poisonous.

NOTE

After a cold start, idle speed may be
noticeably higher than normal for a short
period. This is done to help bring compo-
nents in the emission control system to
their normal operating temperature as
quickly as possible, which enables them
to control emissions and help reduce the
vehicle's impact on the environment

3

.

CAUTION

When starting in cold weather, the auto-
matic transmission may shift up at slightly
higher engine speeds than normal until
the automatic transmission fluid reaches
normal operating temperature.

Do not race a cold engine immediately
after starting. Oil flow may not reach
some lubrication points fast enough to
prevent engine damage.

The engine should be idling when you
move the gear selector. Never accelerate
until after you feel the transmission
engage. Accelerating immediately after
selecting a gear will cause harsh engage-
ment and premature transmission wear.

Selecting P or N when idling at a stand-
still for prolonged periods of time will help
prevent overheating of the automatic
transmission fluid.

Related information

Switching off the engine (p. 260)

3

If the gear selector is in the D or R positions and the car is not moving, engine speed (rpm) will be lower and it will take longer for the engine to reach normal operating temperature.

STARTING AND DRIVING

* Option/accessory.

260

Switching off the engine

Switch off the engine by pressing the

START/

STOP ENGINE button.

If the gear selector is not in the P position or if
the vehicle is moving, press the START/STOP
ENGINE button twice or press and hold it in until
the engine switches off.

Related information

Ignition modes (p. 82)

Engine Remote Start (ERS)* –

introduction

ERS is a feature that makes it possible to
remotely start the engine using the remote key to
cool or heat the passenger compartment before
driving.

The climate system will start using automatic set-
tings.

When the engine is started using ERS, it will run
for a maximum of 15 minutes before automati-
cally switching off again. After 2 ERS starts, the
engine must be started in the normal way before
ERS can be used again.

NOTE

Always adhere to applicable State, Prov-
ince and/or Local laws regarding engine
idling when using ERS.

The service life of the remote key's bat-
tery is affected by ERS use. If this feature
is used frequently, the battery should be
replaced once a year, see Remote key –
replacing the battery (p. 159).

WARNING

Keep the following in mind before using ERS:

The vehicle should be in view.

The vehicle should be unoccupied.

The vehicle must not be parked indoors
or in an enclosed area. Exhaust fumes are
harmful to the health.

Related information

Engine Remote Start (ERS)

* – starting the

engine (p. 261)

Engine Remote Start (ERS)

* – switching off

the engine (p. 261)

STARTING AND DRIVING

* Option/accessory.

261

Engine Remote Start (ERS)* –

starting the engine

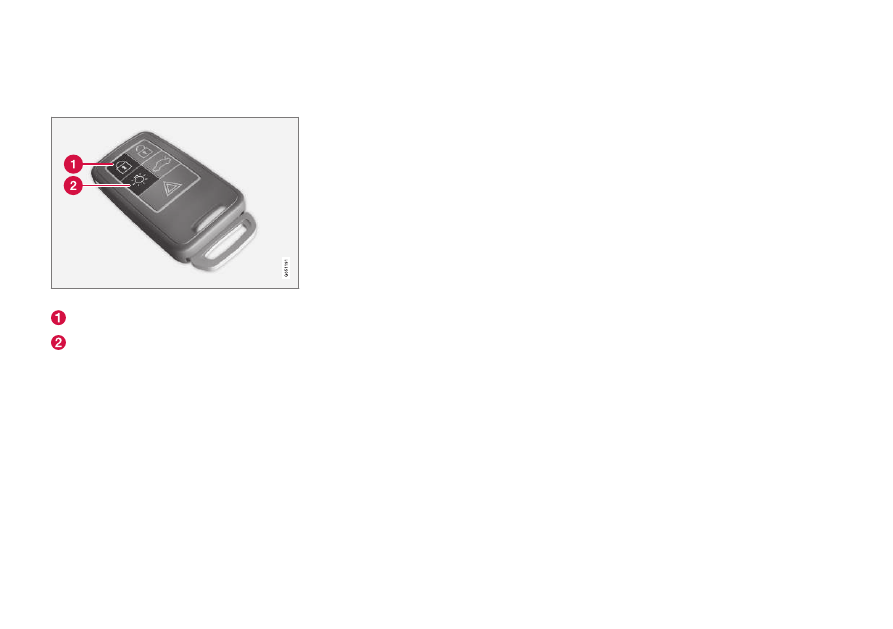

Remote key buttons used for remote engine start

Lock

Approach lighting

Starting the engine

The maximum range for ERS is approximately
100 ft (30 meters) if the view of the vehicle is
unobstructed. The vehicle must also be
locked.

To start the engine:

1. Press the lock button (1 ) briefly.
2. Immediately press the approach lighting but-

ton (2) for approximately 2 seconds.

If the requirements for ERS have been met, the
following will occur:

1. The turn signals will flash several times.
2. The engine will start.
3. The turn signals will illuminate for 3 seconds

to indicate that the engine has started.

After the engine has started, the vehicle remains
locked but the alarm is disarmed.

Active functions

When the engine is started with ERS, the follow-
ing functions are activated:

The climate control system

The infotainment system.

Approach lighting

Deactivated functions

When the engine is started with ERS, the follow-
ing functions are deactivated:

Headlights

Parking lights

License plate lights

Windshield wipers

Related information

Engine Remote Start (ERS)

* – switching off

the engine (p. 261)

Engine Remote Start (ERS)

* – introduction

(p. 260)

Engine Remote Start (ERS)* –

switching off the engine

Any of the following will switch off the engine if it
has been started with ERS:

Pressing the lock button (1) or the unlock
button (2) on the remote key

Unlocking the vehicle

Opening a door

Depressing the accelerator or brake pedal

Moving the gear selector from the P position

If there are less than approx. 2.5 gallons
(10 liters) of fuel in the tank

More than 15 minutes have elapsed.

If the engine has been started with ERS and
switches off, the turn signals will illuminate for
3 seconds.

Message in the instrument panel display

If ERS is interrupted, a text message will be dis-
played in the instrument panel.

Related information

Engine Remote Start (ERS)

* – introduction

(p. 260)

Engine Remote Start (ERS)

* – starting the

engine (p. 261)

STARTING AND DRIVING

262

Jump starting

Follow these instructions to jump start your vehi-
cle's dead battery or to jump start another vehi-
cle's dead battery using your vehicle.

G021347

Connecting the jumper cables

If the 12-volt auxiliary battery to be used is in
another vehicle, check that the vehicles are not
touching to prevent premature completion of a
circuit. Be sure to follow jump starting instruc-
tions provided for the other vehicle.

To jump start your vehicle:

1. Switch off the ignition (set the ignition to

mode 0, see Ignition modes (p. 82)).

2. First connect the red jumper cable to the

auxiliary battery's positive (+) terminal (1).

3. Fold back the cover over the positive (+) ter-

minal on your vehicle's battery (2), marked
with a "+" sign, located under a folding cover.

4. Connect the black jumper cable to the auxili-

ary battery's negative (–) terminal (3) and to
the ground point in your vehicle's engine
compartment (right engine mount at the top,
on the outer screw) (4).

5. Start the engine in the assisting vehicle, then

start the engine in the vehicle with dead bat-
tery.

6. After the engine has started, first remove the

negative (–) terminal jumper cable (black).
Then remove the positive (+) terminal jumper
cable (red).

WARNING

PROPOSITION 65 WARNING!
Battery posts, terminals, and related accesso-
ries contain lead and lead compounds, chemi-
cals known to the state of California to cause
cancer and reproductive harm. Wash hands
after handling.

CAUTION

Connect the jumper cables carefully to avoid
short circuits with other components in the
engine compartment.

WARNING

Do not connect the jumper cable to any
part of the fuel system or to any moving
parts. Avoid touching hot manifolds.

Batteries generate hydrogen gas, which
is flammable and explosive.

Battery fluid contains sulfuric acid. Do not
allow battery fluid to contact eyes, skin,
fabrics or painted surfaces. If contact
occurs, flush the affected area immedi-
ately with water. Obtain medical help
immediately if eyes are affected.

Never expose the battery to open flame
or electric spark.

Do not smoke near the battery.

Failure to follow the instructions for jump
starting can lead to injury.

Related information

Starting the engine (p. 258)















Content   ..  13  14  15  16   ..
