Volvo S90 (2019 year). Instruction

MAINTENANCE AND SERVICE

574

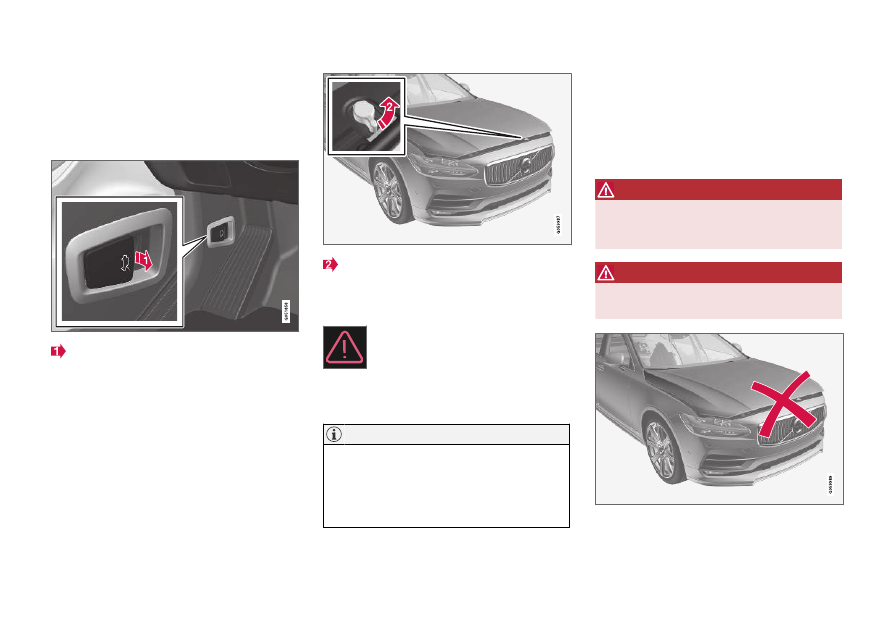

Opening and closing the hood

To open the hood, pull the lever in the passen-
ger compartment and then turn the handle under
the hood.

Opening the hood

Pull the lever near the pedals to release the
hood from its fully closed position.

Turn the handle under the front edge of the
hood counterclockwise to release the catch
and lift the hood.

Warning - hood not closed

When the hood is released, a warning
symbol and graphic will be displayed in
the instrument panel and an audible
signal will sound. If the vehicle begins

to roll, the audible signal will be repeated several
times.

NOTE

If the warning symbol is illuminated or an
audible warning signal sounds even though
the hood is securely closed, consult a work-
shop - an authorized Volvo workshop is rec-
ommended.

Closing the hood

1. Press down the hood until it begins to close

under its own weight.

2. When the hood reaches the catch at the

handle in the front edge of the vehicle, press
down on the hood to close it completely.

WARNING

Risk of injury! When closing, make sure that

the hood is completely unobstructed and that

no one can be injured.

WARNING

Make sure the hood locks securely after clos-

ing. It must audibly lock on both sides.

Hood not completely closed. The illustration is generic -
details may vary according to vehicle model.

MAINTENANCE AND SERVICE

* Option/accessory.

575

Hood completely closed. The illustration is generic -
details may vary according to vehicle model.

WARNING

Never drive with the hood open!
If there are any indications while driving that

the hood is not completely closed, stop imme-

diately and close it securely.

Related information

•

Engine compartment overview (p. 576)

•

Door and seat belt reminders (p. 51)

Climate control system service

Service and repairs on the air conditioning sys-
tem should only be done by an authorized work-
shop.

Troubleshooting and repairs

The air conditioning system contains a fluores-
cent tracer substance. Ultraviolet light is used to
search for leaks in the system.

Volvo recommends contacting an authorized
Volvo workshop.

Vehicles with R134a refrigerant

WARNING

The air conditioning system contains the

refrigerant R134a under pressure. Service

and repairs to the system should only be done

by an authorized workshop.

Related information

•

Volvo's service program (p. 564)

Replacing a windshield with head-

up display*

Vehicles with a head-up display have a special
type of windshield that meets the requirements
for displaying projected information.

Volvo recommends contacting an authorized
Volvo workshop for assistance replacing the
windshield. The correct type of replacement
windshield must be used in order for the head-up
display to function properly.

Related information

•

Head-up display* (p. 140)

•

Cleaning the head-up display* (p. 608)

MAINTENANCE AND SERVICE

576

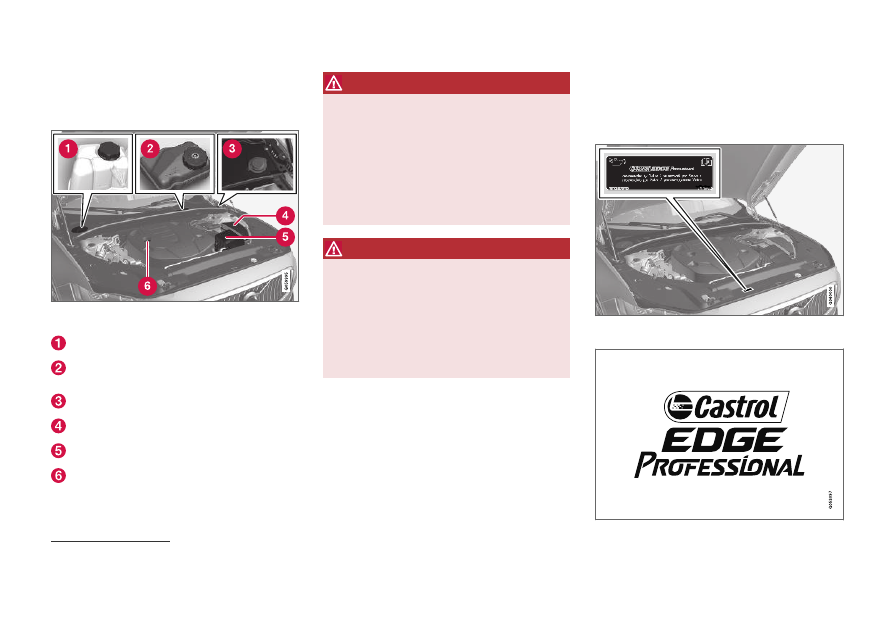

Engine compartment overview

This overview shows some service-related com-
ponents.

The layout of the engine compartment may vary depend-
ing on model and engine variant.

Coolant expansion tank

Brake fluid reservoir (located on the driver's
side)
Washer fluid filler pipe

Fusebox

Air filter

Engine oil filler pipe

WARNING

Bear in mind that the cooling fan (located at

the front of the engine compartment behind

the radiator) may start or continue running

automatically up to about 6 minutes after the

engine is turned off.
Always entrust engine washing to a workshop

– an authorized Volvo workshop is recom-

mended. If the engine is hot, there is a risk of

fire.

WARNING

The ignition system works with extremely high

and dangerous voltages. The vehicle electrical

system should always be in ignition mode 0

when work in being performed in the engine

compartment.
Do not touch any spark plugs or ignition coils

when the vehicle electrical system is in igni-

tion mode II or when the engine is warm.

Related information

•

Opening and closing the hood (p. 574)

•

Filling washer fluid (p. 623)

•

Refilling coolant (p. 579)

•

Fuses in the engine compartment (p. 597)

•

Checking and filling engine oil (p. 577)

•

Ignition modes (p. 410)

Engine oil

For the recommended service intervals and war-
ranties to be applied, an approved engine oil
must be used.

Volvo recommends:

Fill the washer fluid at regular intervals, e.g. when refueling.

MAINTENANCE AND SERVICE

}}

577

If the engine oil is not checked regularly and the
level becomes low, this could cause serious
engine damage.

CAUTION

To satisfy the requirements for the engine's
service intervals, all engines are factory-filled
with a specially adapted synthetic engine oil.
Great care has been put into the choice of oil,
with consideration given to service life, starta-
bility, fuel consumption and environmental
impact.

For the recommended service intervals to
apply, an approved engine oil must be used.
Only use the prescribed oil grade to top off or
change the oil. Otherwise, there is a risk of
the vehicle's service life, startability, fuel con-
sumption and environmental impact being
affected.

Failure to use engine oil of the prescribed
grade and viscosity could cause damage to
engine-related components. Volvo Car Corpo-
ration disclaims warranty liability for such type
of damage.

Volvo recommends entrusting oil changes to
an authorized Volvo workshop.

Volvo uses different systems to warn if the oil
level is too low/high or the oil pressure is low. On
engine variants with an oil pressure sensor, a

warning symbol is displayed in the instrument
panel when oil pressure is low

. On engine

variants with an oil level sensor, the

warn-

ing symbol in the instrument panel and display
messages are used to alert the driver. Some
engine variants have both systems. Contact a
Volvo retailer for more information.

Change the engine oil and oil filter according to
the schedule specified in the Warranty and Main-
tenance Records Information booklet. Oils of a
higher grade than that specified may be used. If
the vehicle is driven in adverse conditions, Volvo
recommends using an oil with a higher grade
than that specified.

Related information

•

Checking and filling engine oil (p. 577)

•

Engine oil specifications (p. 634)

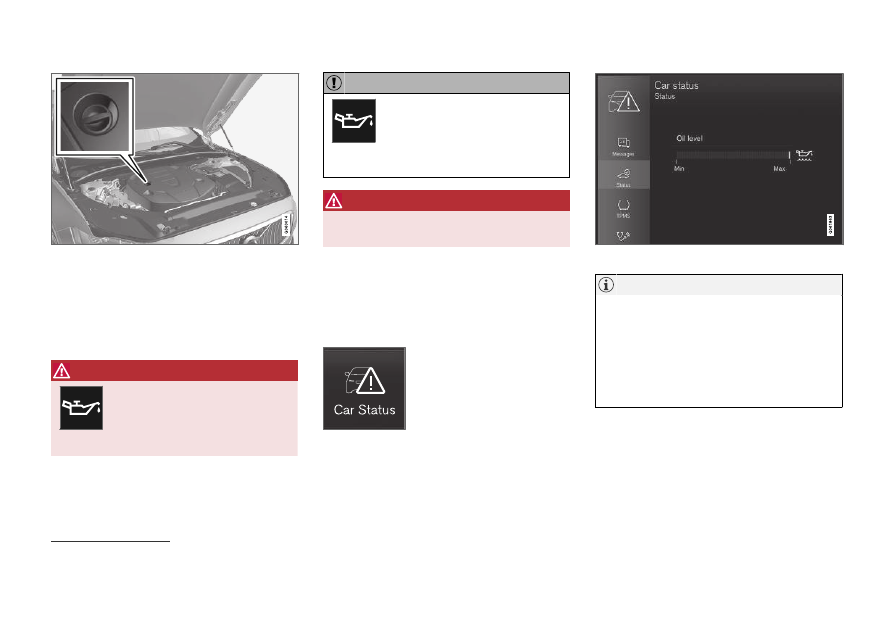

Checking and filling engine oil

The engine oil level is monitored by an electronic
oil level sensor.

MAINTENANCE AND SERVICE

578

Filler pipe

It may be necessary to top up engine oil between
regularly scheduled services.

No action is necessary with regard to engine oil
level until a message appears in the instrument
panel.

WARNING

If this symbol is shown together

with the message

Engine oil level

Service required

, visit a workshop

– an authorized Volvo workshop is

recommended. The oil level may be too high.

CAUTION

If this symbol is shown together
with a message about low oil level,
for example

Engine oil level low

Refill 1 liter

, fill only with the indi-

cated volume, e.g. 1 liter (1 quart).

WARNING

Do not spill oil on the hot exhaust pipes as

this could cause a fire.

Viewing oil level in the center display

The oil level can be viewed using the electronic
oil level gauge in the center display once the
vehicle has been started. The oil level should be
checked regularly.

1. Open the

Car Status

app from App view in

the center display.

2. Tap

Status

to display the oil level.

Oil level graphic in the center display.

NOTE

The system cannot directly detect changes
when the oil is filled or drained. The vehicle
must have been driven approximately 30 km
(20 miles) and have been stationary
5 minutes on a level surface and with the
engine off before the correct oil level will be
displayed.

Engines with an electronic oil level sensor do not have a dipstick.

MAINTENANCE AND SERVICE

}}

579

NOTE

If the conditions for measuring oil level are
not properly fulfilled (time after engine shut-
down, vehicle inclination, ambient tempera-
ture, etc.) the message

No value available

will be shown in the center display. This does
not mean that anything is wrong in the vehi-
cle systems.

Related information

•

Engine oil (p. 576)

•

Engine oil specifications (p. 634)

•

Ignition modes (p. 410)

•

Vehicle status (p. 568)

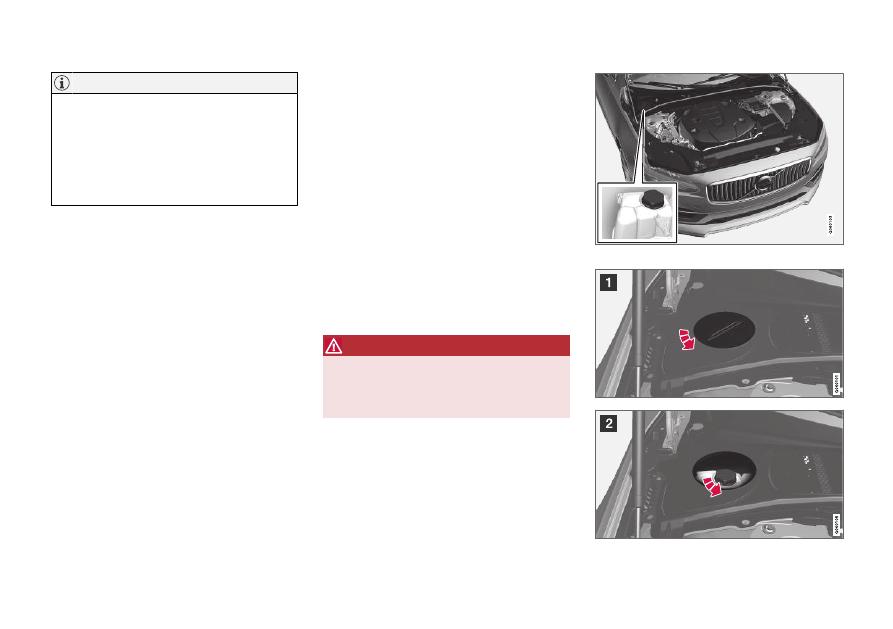

Refilling coolant

Coolant helps keep the combustion engine at
the right operating temperature. The heat trans-
ferred from the engine to the coolant can be
used to warm the passenger compartment.

When refilling coolant, follow the instructions on
the package. Never fill the cooling system with
only water. The risk of freezing is increased with
too low or too high amounts of coolant.

If there is coolant under the vehicle, smoke from
the cooling system, or if more than 2 liters (about
2 quarts) of coolant has been added to the sys-
tem, there could be something wrong with the
cooling system and starting the vehicle could
damage the engine. Call a tow truck and do not
attempt to start the engine.

WARNING

The coolant may be very hot. Never unscrew

the cap when the coolant is hot. If coolant

must be filled, unscrew the expansion tank

cap slowly to relieve overpressure.

Coolant expansion tank, left-hand drive vehicle.

MAINTENANCE AND SERVICE

580

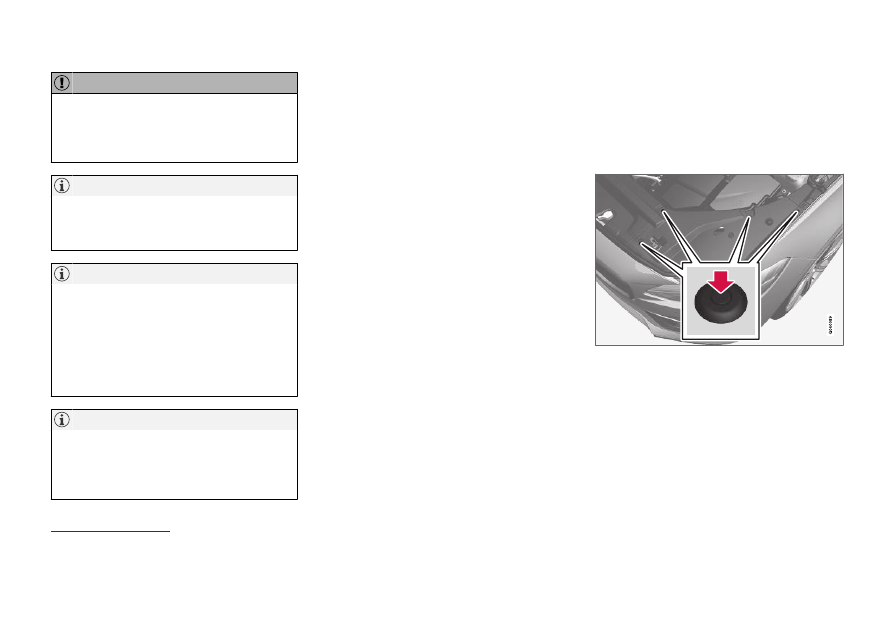

Unscrew the cover in the plastic covering.

Unscrew the expansion tank cap and fill
coolant as needed. The level should not
exceed the yellow MAX mark inside the
expansion tank.

Put the components back in place in the reverse
order.

CAUTION

•

Do not ingest the contents. May cause
damage to organs (kidneys).

•

Use premixed coolant according to Vol-
vo's recommendations. If concentrated
coolant is used, make sure that the cool-
ant mixture is 50% coolant and 50%
water of acceptable quality.

•

Do not mix different types of coolant.

•

To help ensure sufficient corrosion pro-
tection in the system, only use new cool-
ant when replacing larger components in
the cooling system.

•

Never run the engine unless the cooling
system is properly filled. An improperly
filled cooling system could lead to high
temperatures and cracks in the cylinder
heads.

•

High levels of chlorine, chlorides and
other salts may cause corrosion in the
cooling system.

Related information

•

Engine compartment overview (p. 576)

•

Coolant specifications (p. 635)

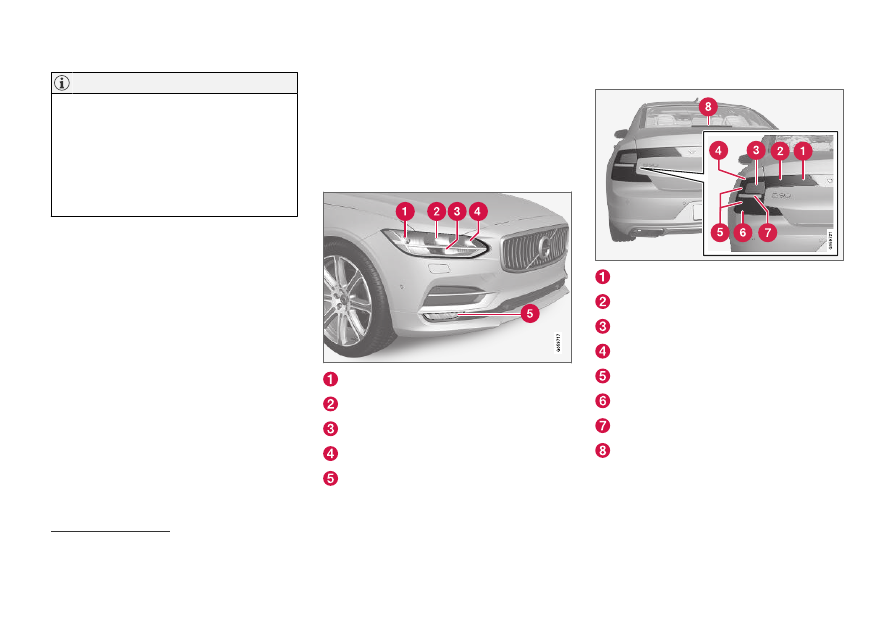

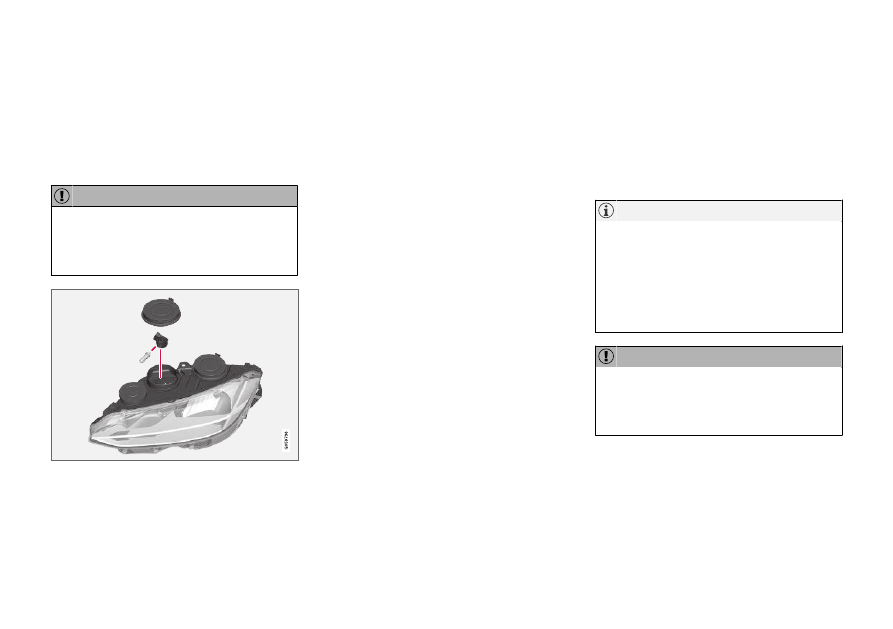

Replacing bulbs

The bulbs in the halogen headlights and rear fog
light can be changed without the help of a work-
shop.

Halogen headlights are not available on all mod-
els and markets. Contact a Volvo retailer for
more information.

LED

bulbs must be replaced by a workshop.

An authorized Volvo workshop is recommended.

NOTE

For information on lights not mentioned in
this article, contact a Volvo dealer or a certi-
fied Volvo service technician.

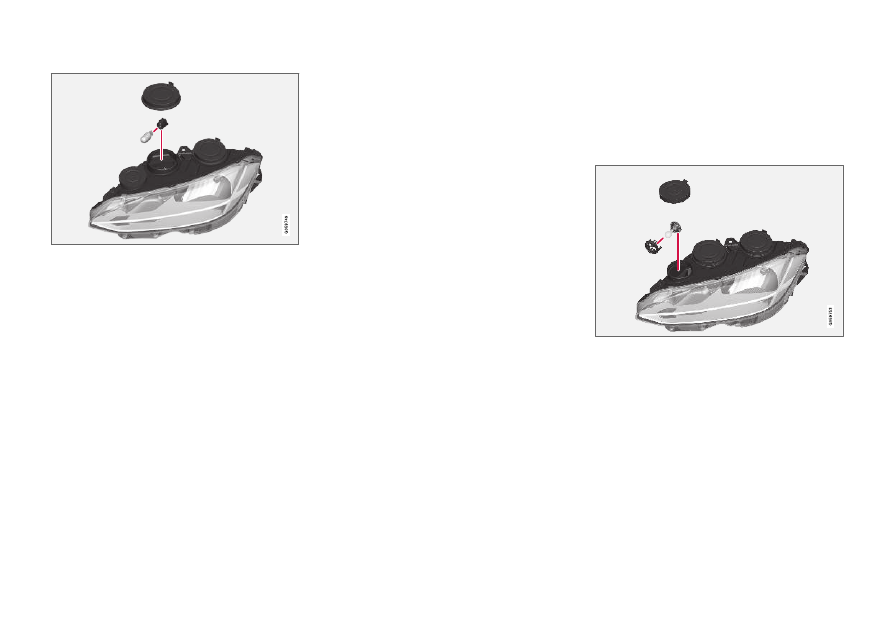

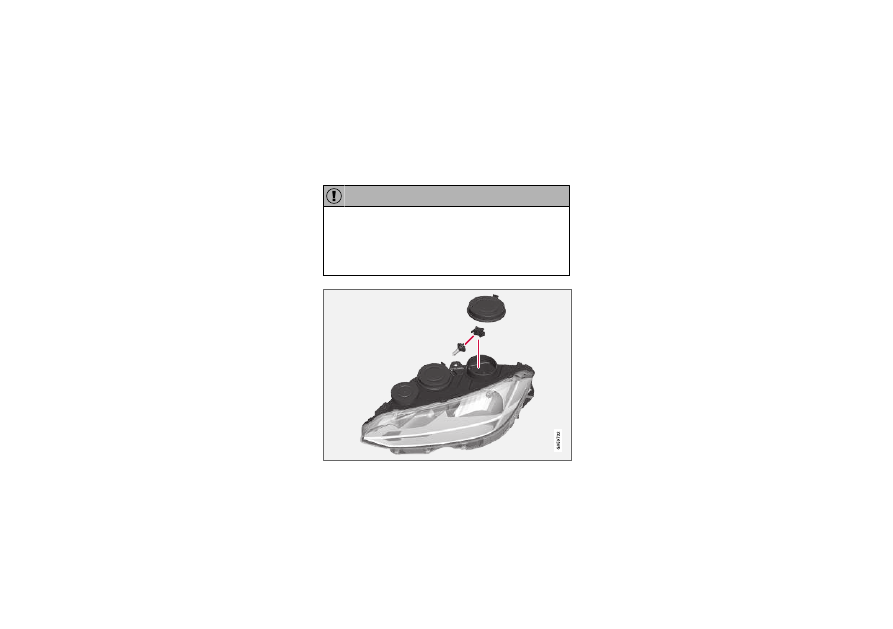

The bulbs in the halogen headlights can be
changed without the help of a workshop. Before
a bulb can be replaced, the plastic covering over
the headlight must be removed.

If you are experiencing problems with any lights
other than light bulbs, contact a workshop

. If

there is a problem with an LED

light, the entire

lamp unit will normally need to be replaced.

WARNING

The vehicle electrical system must be in igni-

tion mode 0 when bulbs are replaced.

MAINTENANCE AND SERVICE

}}

* Option/accessory.

581

CAUTION

Never touch the bulb glass with your bare fin-
gers. Grease and oils from your fingers vapor-
ize in the heat and will leave a deposit on the
reflector, which may damage it.

NOTE

If the error message persists after the defec-
tive bulb has been replaced, we recommend a
visit to an authorized Volvo workshop.

NOTE

Exterior lighting such as headlights and tail-
lights may develop temporary condensation
on the inside of the lens. This is normal. All
exterior lighting is designed to resist this.
Condensation is normally vented out of the
lamp housing once the light has been lit for
some period of time.

NOTE

Bulbs for active curve lighting* contain traces
of mercury and should therefore always be
submitted to a certified Volvo service techni-
cian.

Related information

•

Location of exterior lights (p. 582)

•

Removing the plastic cover to replace bulbs
(p. 581)

•

Replacing the low beam headlight bulbs
(p. 583)

•

Replacing the high beam headlight bulbs
(p. 584)

•

Replacing daytime running lights/front park-
ing light bulbs (p. 584)

•

Replacing front turn signal bulbs (p. 585)

•

Replacing the rear fog light bulb (p. 586)

•

Bulb specifications (p. 589)

Removing the plastic cover to

replace bulbs

The headlight bulbs can be replaced without the
assistance of a workshop, but before a bulb can
be replaced, the plastic cover over the headlight
needs to be removed.

–

Release the pins in the plastic cover's four
clips by pressing them down with a screw-
driver or similar object and remove the cover-
ing.

LED (Light Emitting Diode)

An authorized Volvo workshop is recommended.

MAINTENANCE AND SERVICE

* Option/accessory.

582

NOTE

To bear in mind when refitting the covering:

•

The pin in the clip must be pressed back
completely before the clip is reinstalled in
the covering.

•

When the covering is reinstalled, the pin
must be pressed in until the end surface
is level with the surface of the clip.

Related information

•

Replacing bulbs (p. 580)

•

Replacing the low beam headlight bulbs
(p. 583)

•

Replacing the high beam headlight bulbs
(p. 584)

•

Replacing daytime running lights/front park-
ing light bulbs (p. 584)

•

Replacing front turn signal bulbs (p. 585)

•

Bulb specifications (p. 589)

Location of exterior lights

The vehicle's exterior lighting consists of several
different bulbs. LED

bulbs must be replaced

by a workshop. An authorized Volvo workshop is
recommended.

Front bulbs (vehicles with halogen
headlights)

Low beams

High beams

Daytime running light/parking light

Turn signal

Front fog light/cornering illumination* (LED)

Rear bulbs

Fog light

Parking light (LED)

Turn signal

Parking light (LED)

Brake light (LED)

Parking light (LED)

Backup light

Brake light

‒ central, high-mounted (LED)

LED (Light Emmitting Diode)

Contact a workshop for replacement

‒ an authorized Volvo workshop is recommended.

MAINTENANCE AND SERVICE

583

Related information

•

Replacing bulbs (p. 580)

•

Bulb specifications (p. 589)

•

Lighting panel and controls (p. 150)

Replacing the low beam headlight

bulbs

The low beam bulbs in the halogen headlights
can be changed without the help of a workshop.

Before the bulbs can be replaced, the plastic cov-
ering over the headlight must be removed.

CAUTION

Never touch the bulb glass with your bare fin-
gers. Grease and oils from your fingers vapor-
ize in the heat and will leave a deposit on the
reflector, which may damage it.

Left headlight.

1. Remove the low beam rubber cover from the

headlight housing.

2. Remove the connector from the bulb.

3. Remove the bulb by pressing it slightly

upward and then pulling it out.

4. Insert the new bulb in the socket. The bulb's

guiding pin should point straight up.

5. Press the connector into place.

6. Put the rubber cover back in place.

Related information

•

Location of exterior lights (p. 582)

•

Removing the plastic cover to replace bulbs
(p. 581)

•

Bulb specifications (p. 589)

MAINTENANCE AND SERVICE

584

Replacing the high beam headlight

bulbs

The high beam bulbs in the halogen headlights
can be changed without the help of a workshop.

Before the bulbs can be replaced, the plastic cov-
ering over the headlight must be removed.

CAUTION

Never touch the bulb glass with your bare fin-
gers. Grease and oils from your fingers vapor-
ize in the heat and will leave a deposit on the
reflector, which may damage it.

Left headlight.

1. Remove the high beam rubber cover from

the headlight housing.

2. Remove the bulb by turning the bulb holder

upward and then pulling it straight out.

3. Carefully pry the plastic sleeve by the con-

nector's locking lug to release it.

4. Remove the connector from the bulb.

5. Replace the bulb.

6. Position the bulb in the socket and turn it

downward.

7. Put the rubber cover back in place.

Related information

•

Location of exterior lights (p. 582)

•

Removing the plastic cover to replace bulbs
(p. 581)

•

Bulb specifications (p. 589)

Replacing daytime running lights/

front parking light bulbs

The daytime running light/parking light bulbs in
the halogen headlights can be changed without
the help of a workshop.

Before the bulbs can be replaced, the plastic cov-
ering over the headlight must be removed.

NOTE

Daytime running lights/parking lights are eas-
ier to reach if the high beam headlight bulbs
are removed. The high beam headlights are
mounted above and to the side of the daytime
running lights/parking lights. Remove the
high beam headlight bulb by turning the bulb
holder upward and then pulling it straight out.

CAUTION

Never touch the bulb glass with your bare fin-
gers. Grease and oils from your fingers vapor-
ize in the heat and will leave a deposit on the
reflector, which may damage it.

MAINTENANCE AND SERVICE

}}

585

Left headlight.

1. Remove the daytime running light/parking

light rubber cover from the headlight hous-
ing.

2. Pull the daytime running light/parking light

bulb holder straight out.

3. Remove the bulb by pulling it straight out.

4. Replace the bulb.

5. Position the bulb holder in the socket and

push it into place.

6. If the high beam bulb holder has come loose,

position it in the socket and turn downward.

7. Put the rubber cover back in place.

Related information

•

Location of exterior lights (p. 582)

•

Removing the plastic cover to replace bulbs
(p. 581)

•

Bulb specifications (p. 589)

•

Replacing the high beam headlight bulbs
(p. 584)

Replacing front turn signal bulbs

The turn signal bulbs in the halogen headlights
can be changed without the help of a workshop.

Before the bulbs can be replaced, the plastic cov-
ering over the headlight must be removed.

Left headlight.

1. Remove the turn signal rubber cover from

the headlight housing.

2. Press the retaining catches together and pull

the bulb holder straight out.

3. The bulb holder and bulb must be replaced

as one unit.

4. Position the bulb holder in the socket and

push it into place.

5. Put the rubber cover back in place.

MAINTENANCE AND SERVICE

586

Related information

•

Location of exterior lights (p. 582)

•

Removing the plastic cover to replace bulbs
(p. 581)

•

Bulb specifications (p. 589)

Replacing the rear fog light bulb

The rear fog light bulb is located behind a panel
on the inside of the trunk lid on the driver's side.

NOTE

The rear fog light bulb should be replaced by
a workshop – an authorized Volvo workshop is
recommended.

To replace the rear fog light bulb:

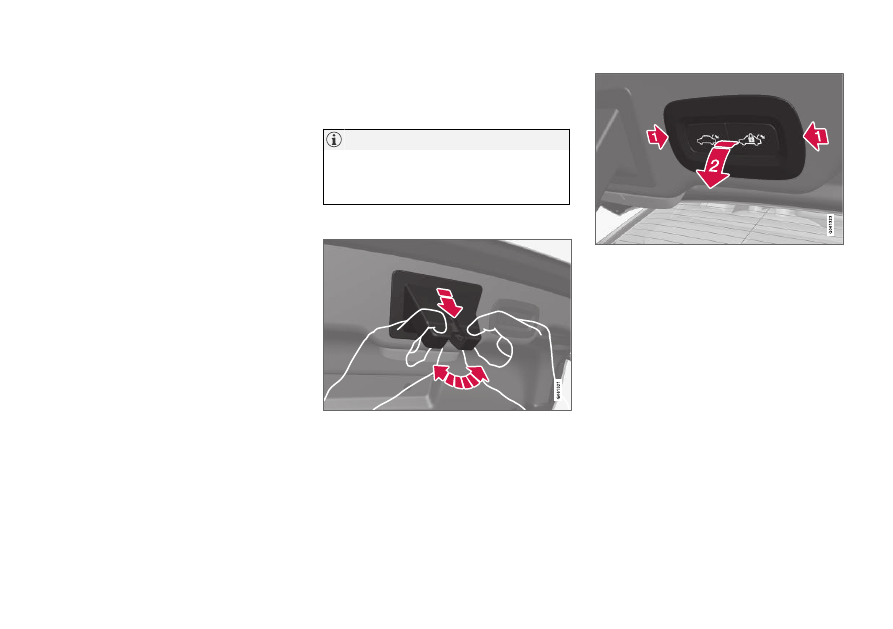

Rubber cover the trunk lid lock.

1. Remove the rubber cover over the trunk lid

lock by moving it from side to side and pull-
ing it straight off. It can be put back into
position by pressing it into place.

Buttons in the trunk lid.

2. Remove the buttons in the trunk lid by insert-

ing a flat object (e.g. a kitchen knife or
screwdriver) behind the short sides of the
button console and prying it out. The electri-
cal connector for the buttons does not need
to be disconnected.

MAINTENANCE AND SERVICE

}}

587

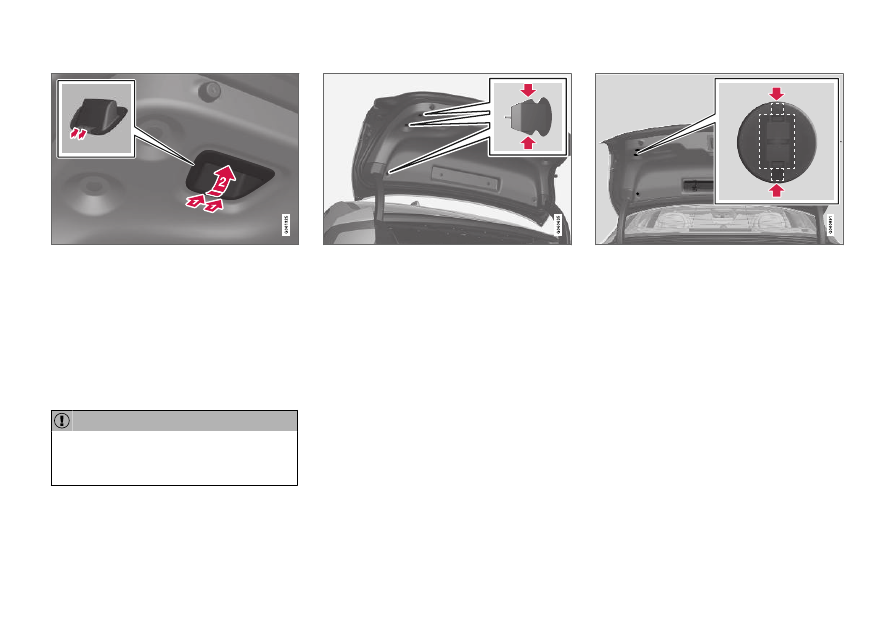

Trunk lid closing handle.

3. The closing handle on the inside of the trunk

lid must be removed on the side of the vehi-
cle in which the fog light is mounted. Insert a
flat object (kitchen knife, screwdriver, etc.)
into the sides of the handle console to
release the two catches while prying out the
handle. To put the handle back into position,
press hard until the catches click back into
the locked position.

CAUTION

Both lock lugs of the closing handle must be
pressed in at the same time before the han-
dle can be folded out and removed.

Attaching clips on the panel.

4. Remove the three outermost clips on the

panel on the inside of the trunk lid on the
side in which the fog light is mounted.

The rectangular section of the clip points toward the
front and rear of the vehicle.

5. To remove a clip: Insert a flat object (e.g.

kitchen knifes or screwdrivers) into both
short sides of the clip to release both
catches at the same time and then pry and
pull out the clip.

MAINTENANCE AND SERVICE

588

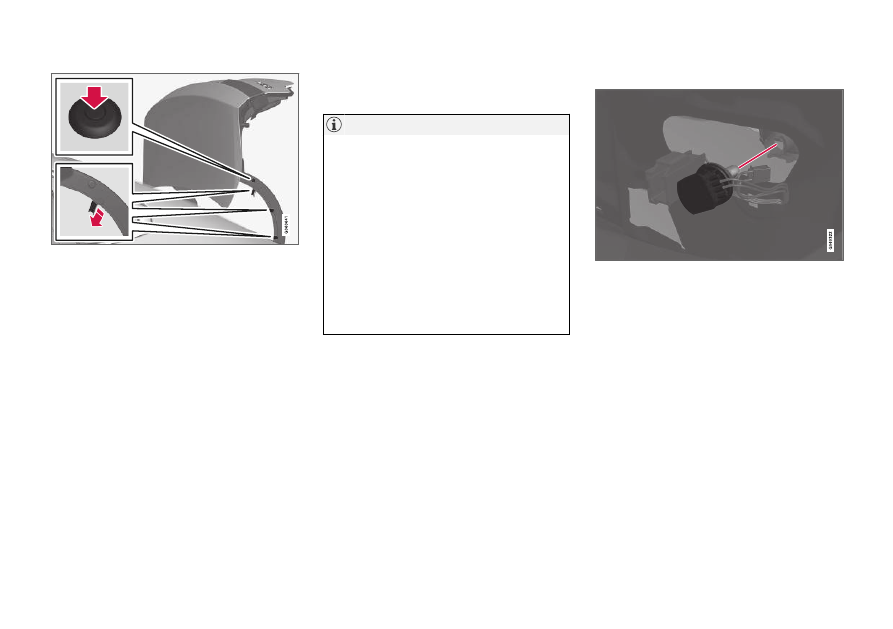

The hinge's plastic cover is held into place by a plastic
clip and three latches.

6. To remove the hinge's plastic cover on the

side in which the fog light is mounted: Press
down the pin in the center of the plastic clip
using a screwdriver or similar. Pry/pull out
the plastic clip.

7. Release the plastic cover's three latches

using e.g. a small screwdriver and remove the
plastic cover.

8. Carefully pry and pull down the loosened

section of panel to access the bulb.

NOTE

To bear in mind when reinstalling the plastic
rivet for the plastic guard of the hinge:

•

Before the plastic rivet can be used for
reinstallation, its center pin must first be
pressed back far enough that it protrudes
from the plastic rivet.

•

Once the plastic guard of the hinge is
secured in position, press the plastic rivet
into the hole of the plastic guard.

•

Finally, the pin is pressed into the plastic
rivet until its end surface is in line with the
surface of the plastic rivet.

Left-side rear fog light

Left-side bulb housing.

1. Remove the bulb holder by turning it a quar-

ter-turn counterclockwise and then pulling it
out.

2. Remove the old bulb from the bulb holder by

pressing it in and turning it counterclockwise.

3. Insert the new bulb by pressing it in and

turning it clockwise.

4. Wipe any dirt, grease or moisture from the

bulb's glass.

5. Insert the bulb into the bulb holder and turn

it a quarter-turn clockwise.

6. Put the panel, plastic cover over the hinge

and other parts back into place in the reverse
order.

MAINTENANCE AND SERVICE

589

Related information

•

Location of exterior lights (p. 582)

•

Bulb specifications (p. 589)

Bulb specifications

The following specifications apply to the bulbs in
the halogen headlights and the rear fog light.

If you are experiencing problems with any other
lights, contact a workshop

Function

Type

Low beams

H11

High beams

Front turn signal

PY24W

Daytime running light/
parking light, front

21/5

W21/5W

Rear fog light

H21W LL

Watt

Related information

•

Location of exterior lights (p. 582)

•

Replacing bulbs (p. 580)

An authorized Volvo workshop is recommended.

Volvo S90 (2019 year). Instruction - part 34
