disconnecting ignition- and Ground
(GND) wires. This is done e.g. by
briefly grasping chassis or door
striker.

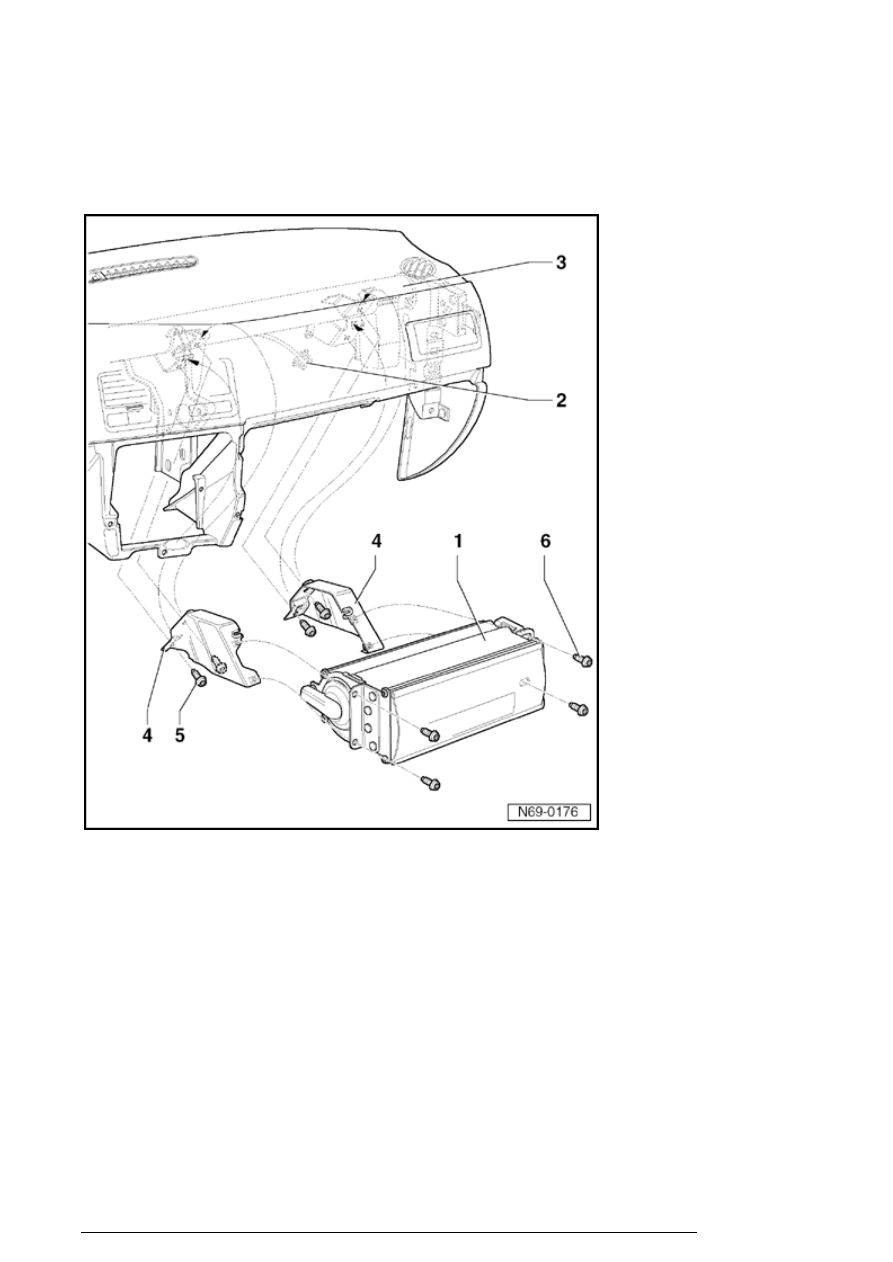

- Disconnect harness connector - 2 - and
remove airbag unit - 1 - downward.

Installing

- Installation is reverse of removal.

- Switch ignition on.

- Close doors.

Caution!

Make sure no one is in vehicle.

- Connect battery Ground (GND) strap

Airbag

13/2/2005

Repair Manual, Electrical Equipment, Repair Group 27,

disconnecting and connecting battery

Note:

If engine Electronic Control Module (ECM) is subject
to low voltage with ignition on, DTC memory and
Readiness code must be checked.

Repair Manual, OBD II Fuel Injection Ignition, Repair

Group 01,

Airbag control module -J234-, removing and
installing

Removing

- Disconnect battery Ground (GND) strap

Repair Manual, Electrical Equipment, Repair Group 27,

disconnecting and connecting battery

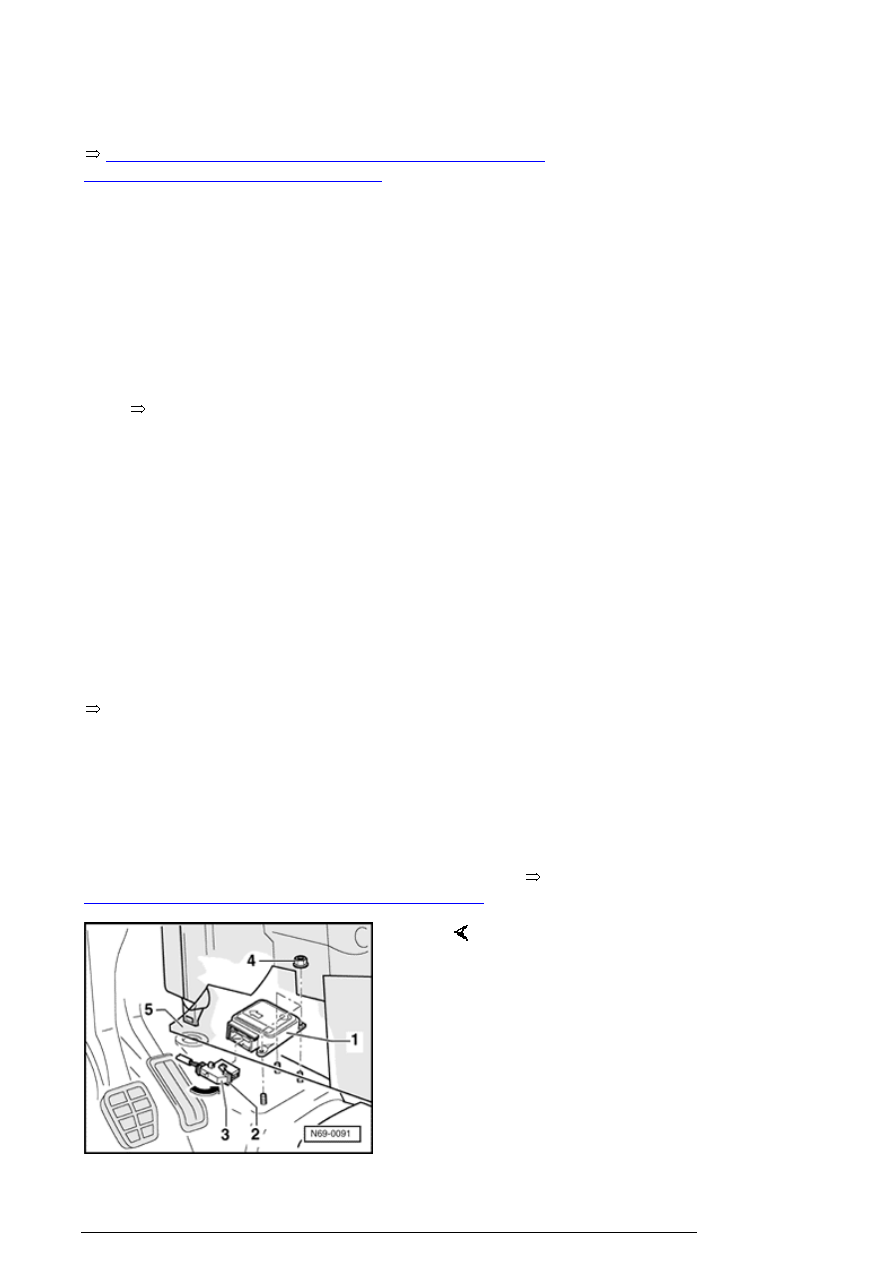

- Remove trim/footwell - 5 - .

Caution!

Observe safety precautions for working on airbags

69-4, Safety precautions when working on airbags

Airbag

13/2/2005

- Fold bracket - 2 - opposite direction of - arrow - and
disconnect connector - 3 - from control module - 1 - .

- Remove nuts - 4 - (qty. 3, 6 Nm) and remove control
module from studs.

Installing

- Installation is reverse of removal.

- Switch ignition on.

Caution!

Make sure no one is in vehicle.

- Connect battery Ground (GND) strap

Repair Manual, Electrical Equipment, Repair Group 27,

disconnecting and connecting battery

- If control module was replaced, it must be coded, adapt
(code) components

69-4, Components, adapting

Side curtain protection, driver and
passenger sides, assembly overview (Jetta)

Airbag

13/2/2005

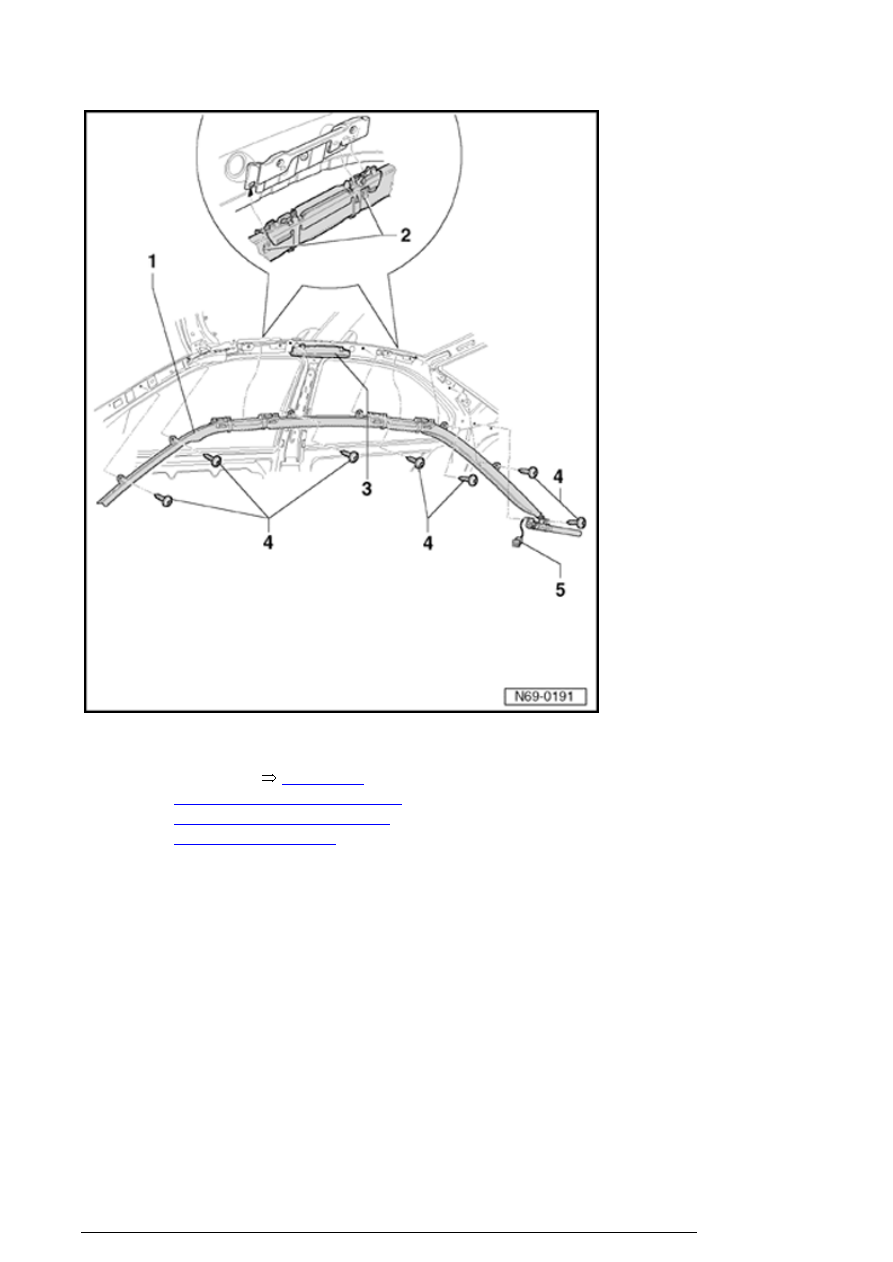

1. Side curtain protection

Removing

69-4, Side

curtain protection, driver and
passenger sides, removing
and installing (Jetta)

2. Catches

3. Side curtain guide

Clipped in

4. Bolt

Qty. 7

5 Nm

5. Connector

Airbag

13/2/2005
