Vehicles with 1.9 l TDI engine

Special tools and workshop

equipment required
♦ Torque wrench -V.A.G

1331-

♦ Torque wrench -V.A.G

1332-

♦ Spring-type clip pliers -VAS

5024-

Removing:
– Disconnect the battery

⇒ page 29

 .

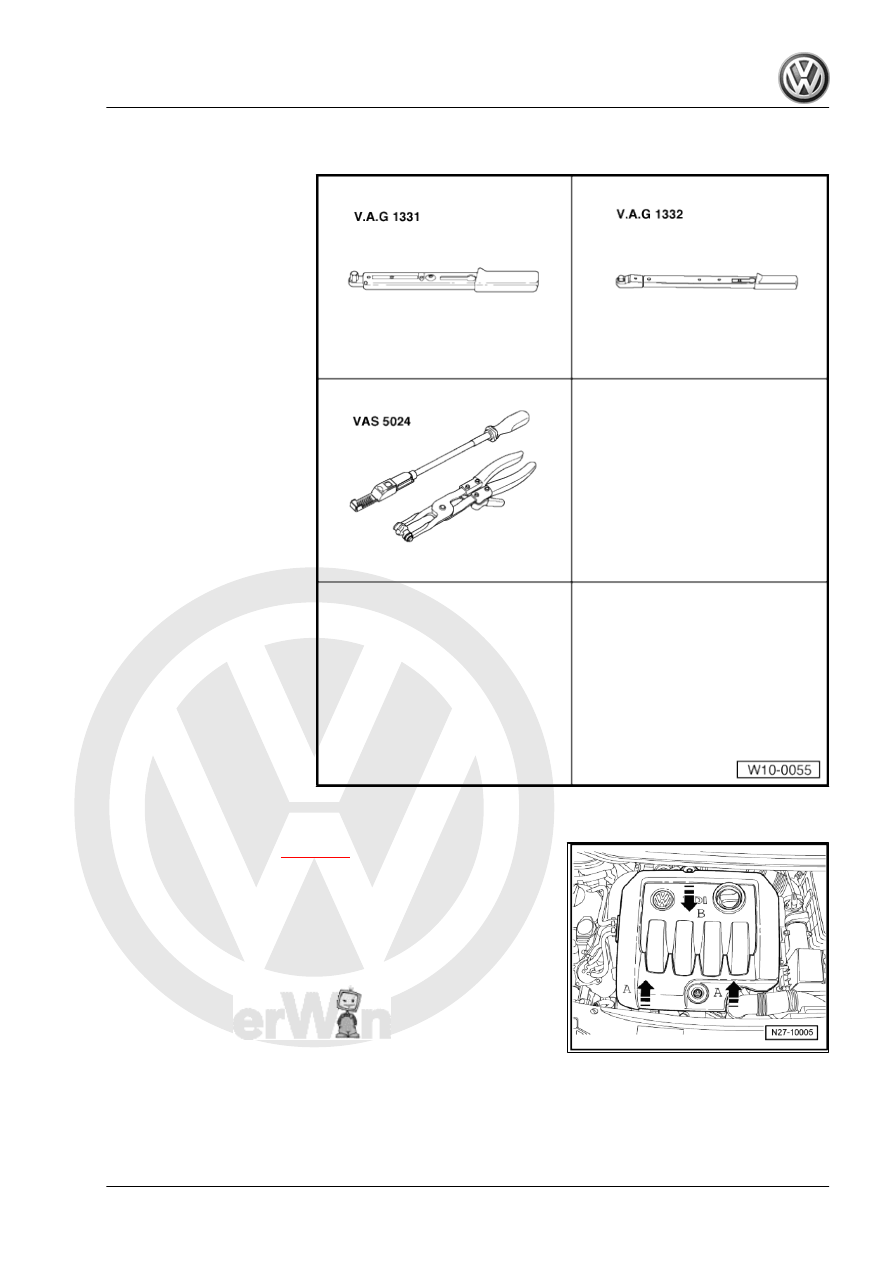

– Pull engine cover upwards -arrows A- and forwards

-arrow B-.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

69

spring type clip pliers -VAS 5024- .

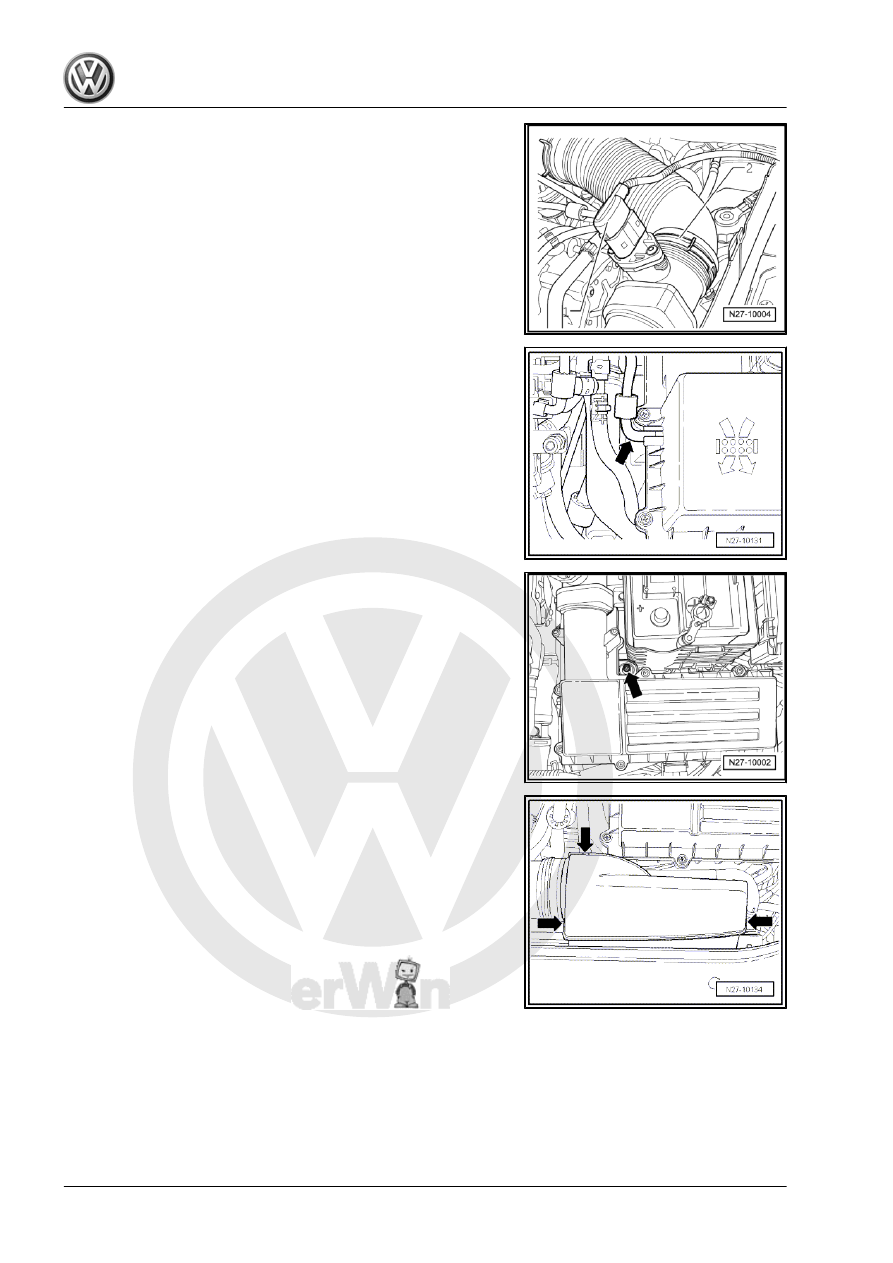

– Pull the vacuum hose -arrow- off air filter housing.

– Unscrew air filter housing securing bolt -arrow-.

– Unlock lugs -arrows- and take cover off.

Jetta 2005 ➤ , Bora 2006 ➤

70

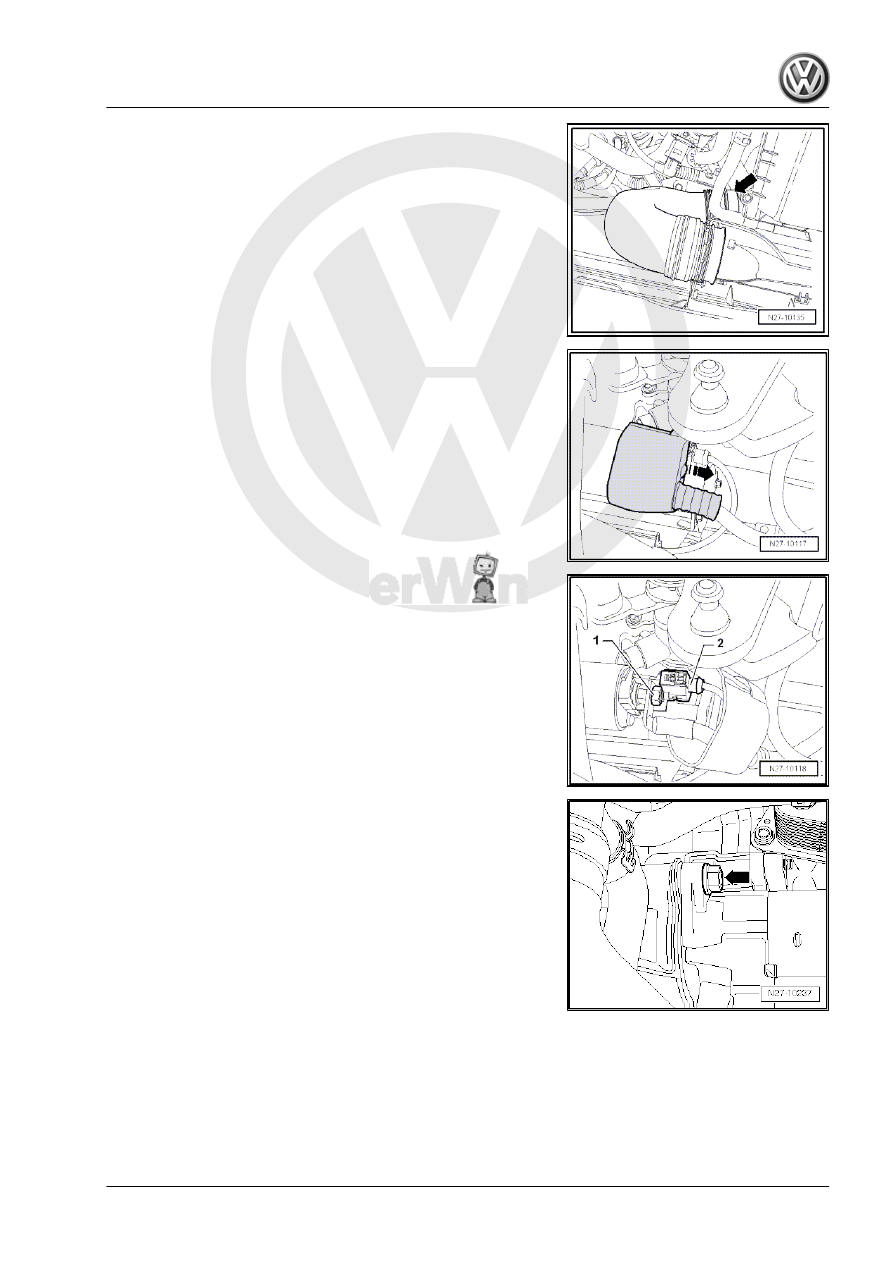

– Push down protective cap -direction of arrow- from solenoid

switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Remove upper securing bolt of starter -arrow-.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

71

note the following:
– Tighten threaded connections to specified torque settings

⇒ page 97

 .

7.3.5

Vehicles with 2,0 l TDI engine

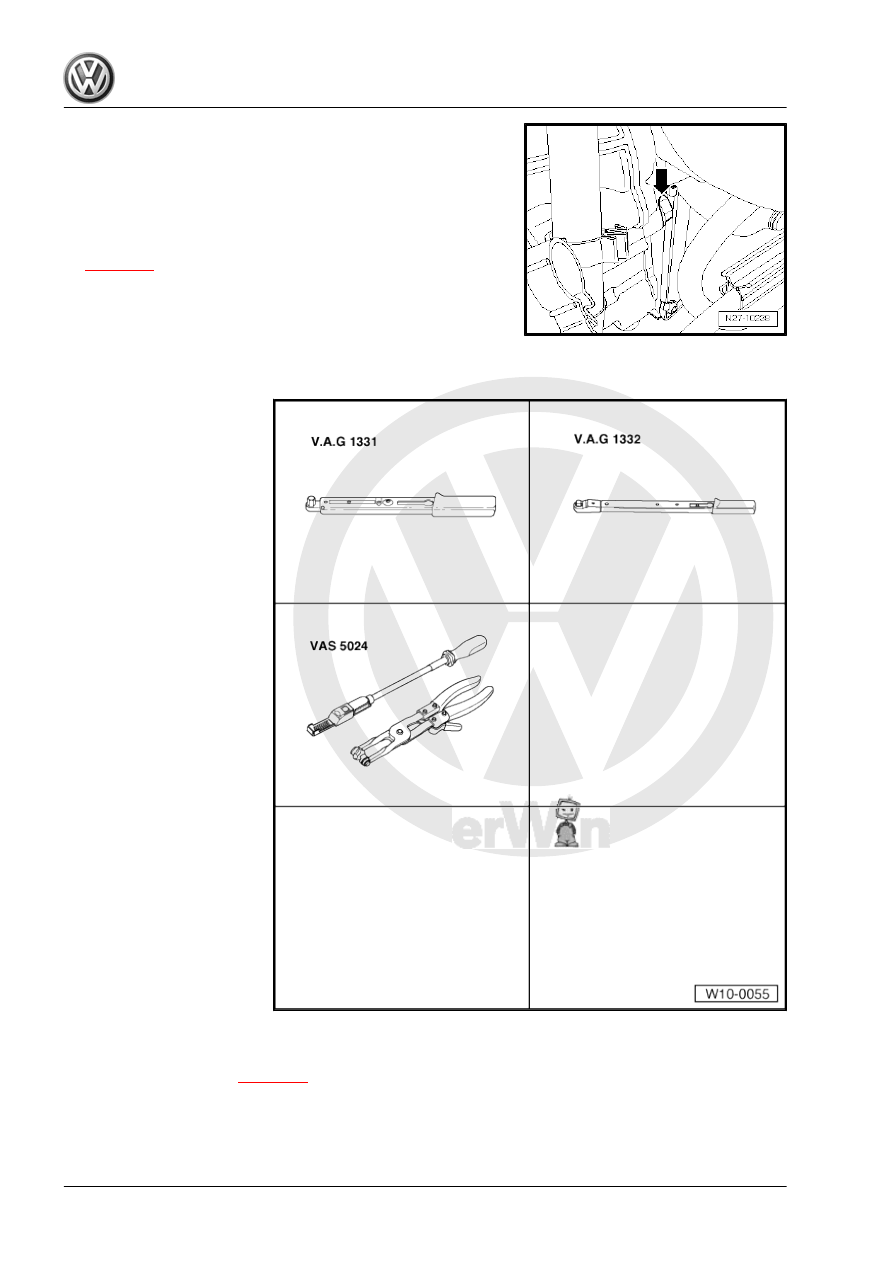

Special tools and workshop

equipment required
♦ Torque wrench -V.A.G

1331-

♦ Torque wrench -V.A.G

1332-

♦ Spring-type clip pliers -VAS

5024-

Removing:
– Disconnect the battery

⇒ page 29

 .

Jetta 2005 ➤ , Bora 2006 ➤

72
