Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 465

SE–40

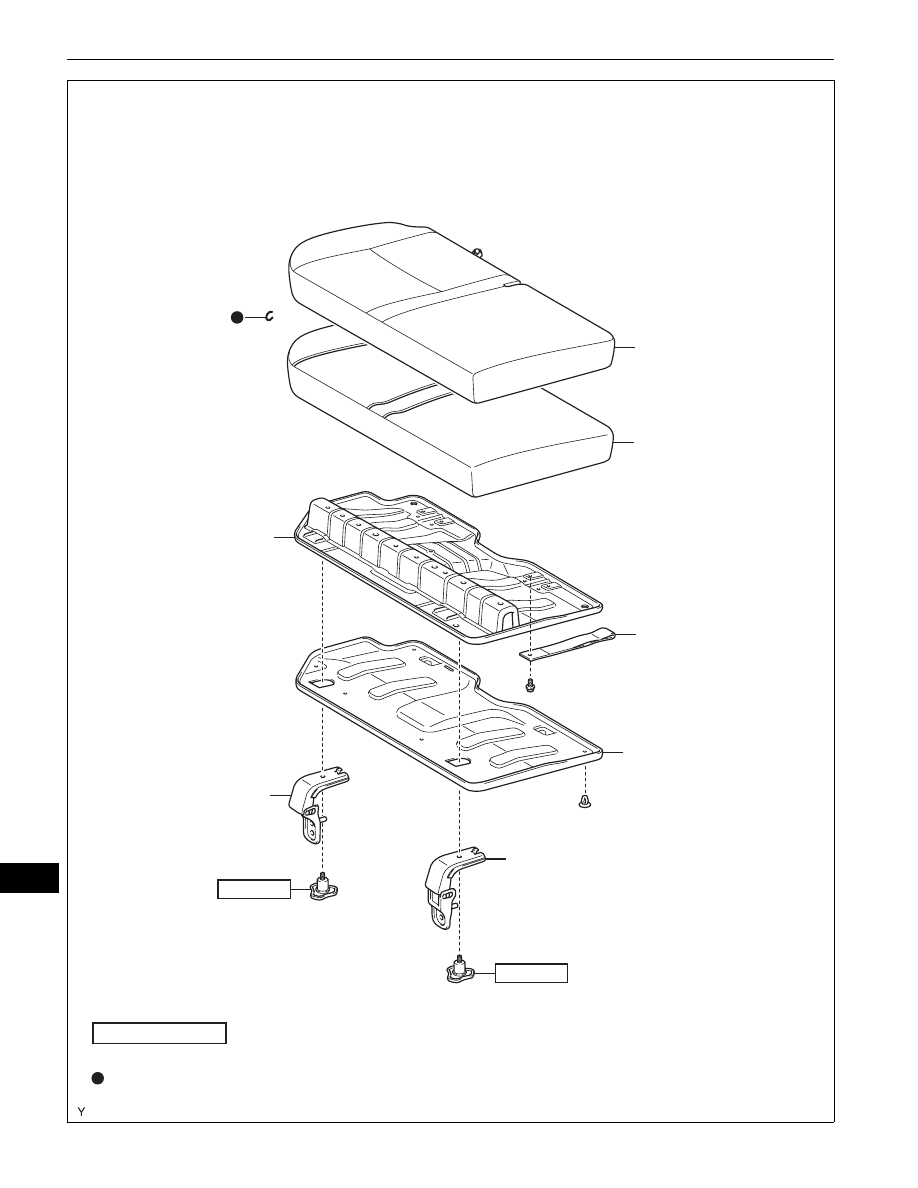

SEAT  –  REAR SEAT ASSEMBLY (for RH Side)

SE

REAR SEAT
CUSHION COVER

REAR SEAT CUSHION
FRAME SUB-ASSEMBLY

REAR SEAT CUSHION
HINGE SUB-ASSEMBLY

REAR SEAT CUSHION
STOPPER

REAR SEAT CUSHION
UNDER COVER

REAR SEAT CUSHION
HINGE SUB-ASSEMBLY

18 (185, 13)

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

REAR SEAT
CUSHION PAD

x10

18 (185, 13)

x8

B130751E01

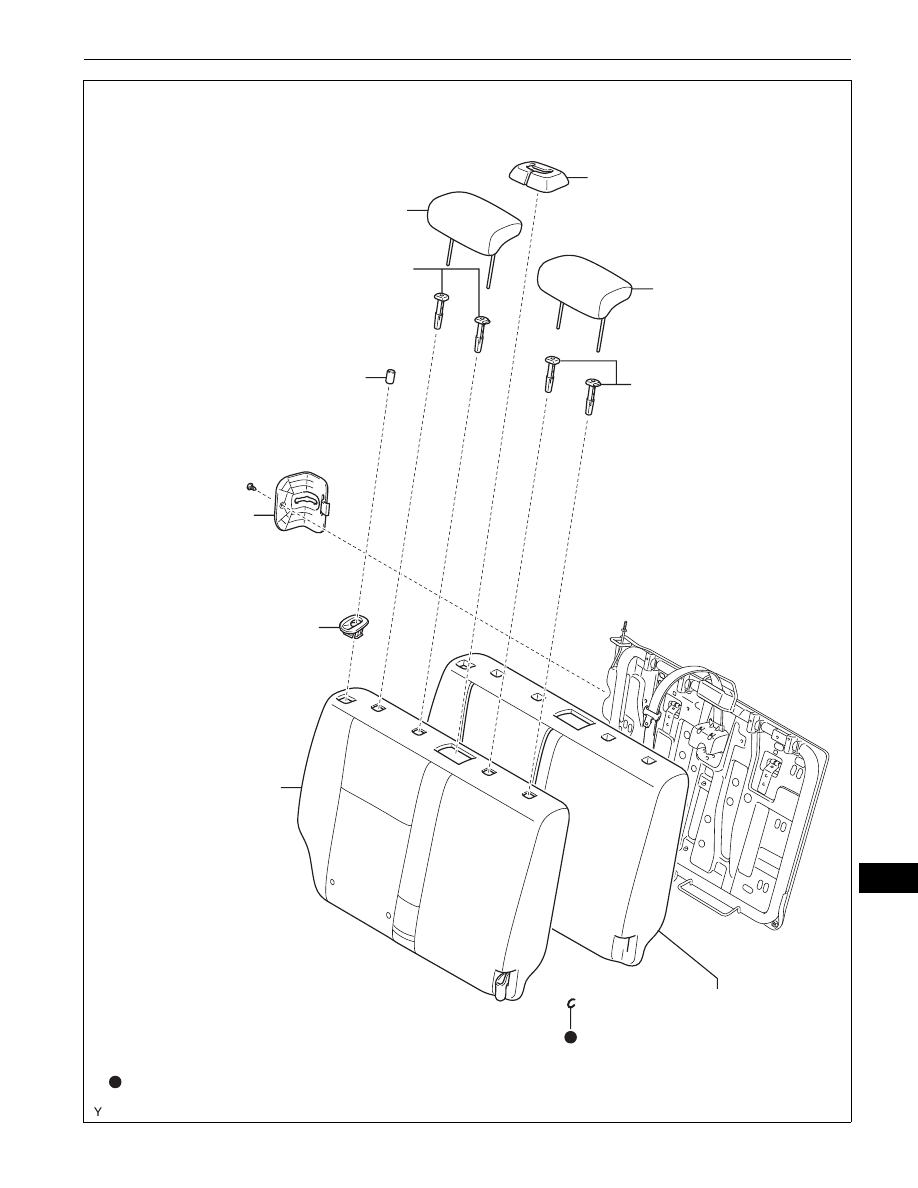

SEAT  –  REAR SEAT ASSEMBLY (for RH Side)

SE–41

SE

REAR CENTER SEAT
HEADREST ASSEMBLY

REAR SEAT HEADREST
ASSEMBLY

REAR SEAT HEADREST
SUPPORT

REAR SEAT SHOULDER
BELT COVER

REAR SEATBACK
LOCK COVER

REAR SEATBACK STOP
BUTTON GROMMET

REAR SEAT HEADREST
SUPPORT

REAR SEATBACK PAD

Non-reusable part

x25

REAR SEATBACK LOCK
RELEASE BUTTON

REAR SEATBACK COVER

B130758E01

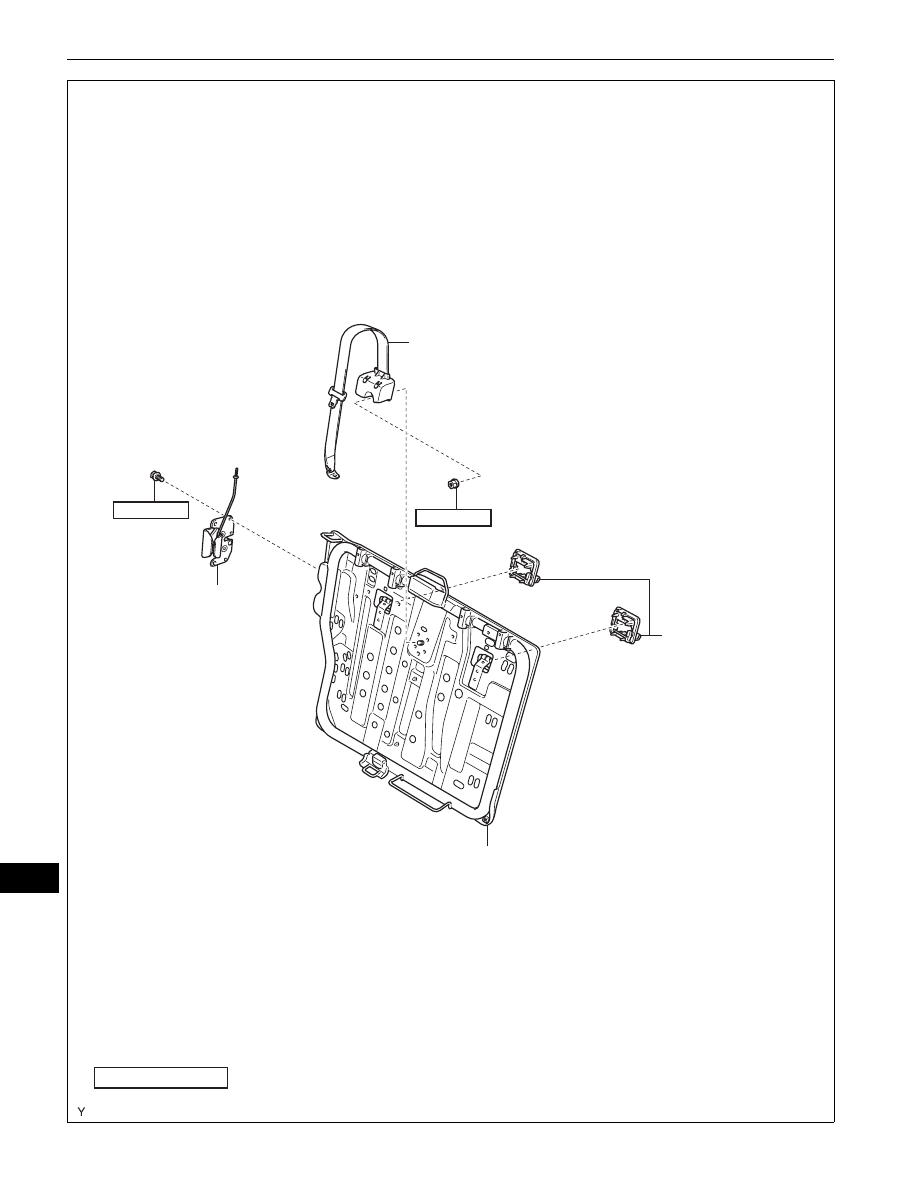

SE–42

SEAT  –  REAR SEAT ASSEMBLY (for RH Side)

SE

REAR CENTER SEAT
OUTER BELT ASSEMBLY

REAR SEATBACK FRAME
SUB-ASSEMBLY

REAR SEATBACK
LOCK ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

18 (185, 13)

x2

TETHER ANCHOR
COVER

44 (450, 33)

B135115E01

SERVICE SPECIFICATIONS  –  STANDARD BOLT

SS–1

SS

STANDARD BOLT

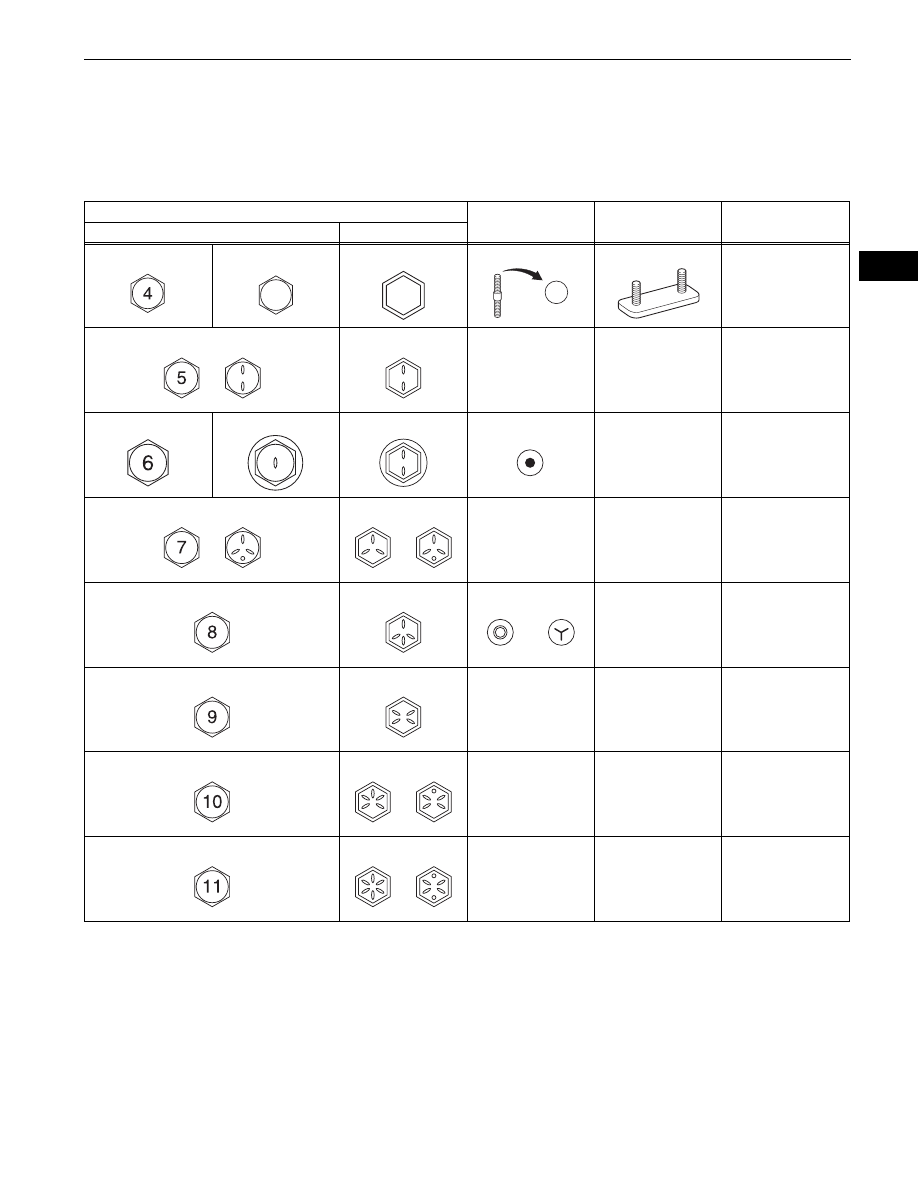

HOW TO DETERMINE BOLT
STRENGTH

Bolt Type

Hexagon Head Bolt

Stud Bolt

Weld Bolt

Class

Normal Recess Bolt

Deep Recess Bolt

No Mark

No Mark

No Mark

4T

5T

w/ Washer

w/ Washer

6T

7T

8T

9T

10T

11T
