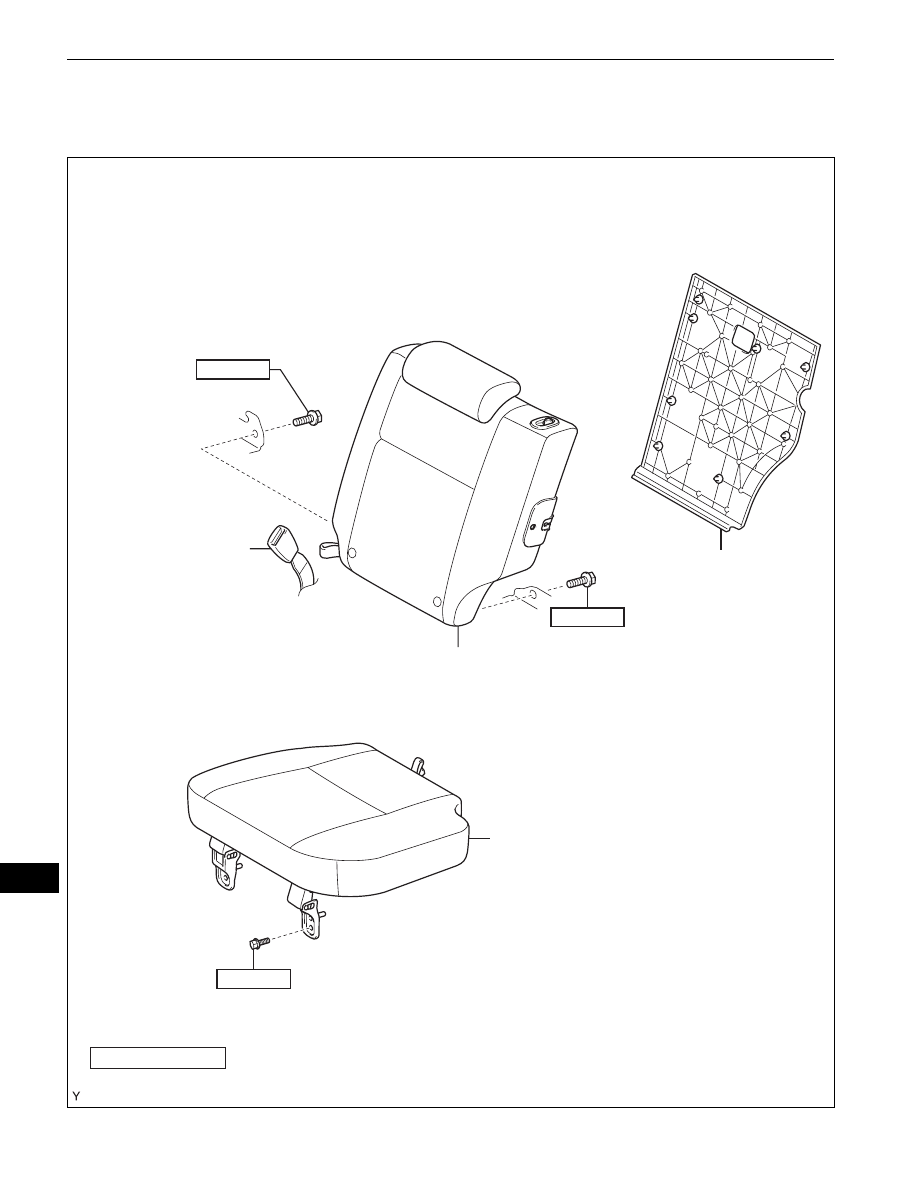

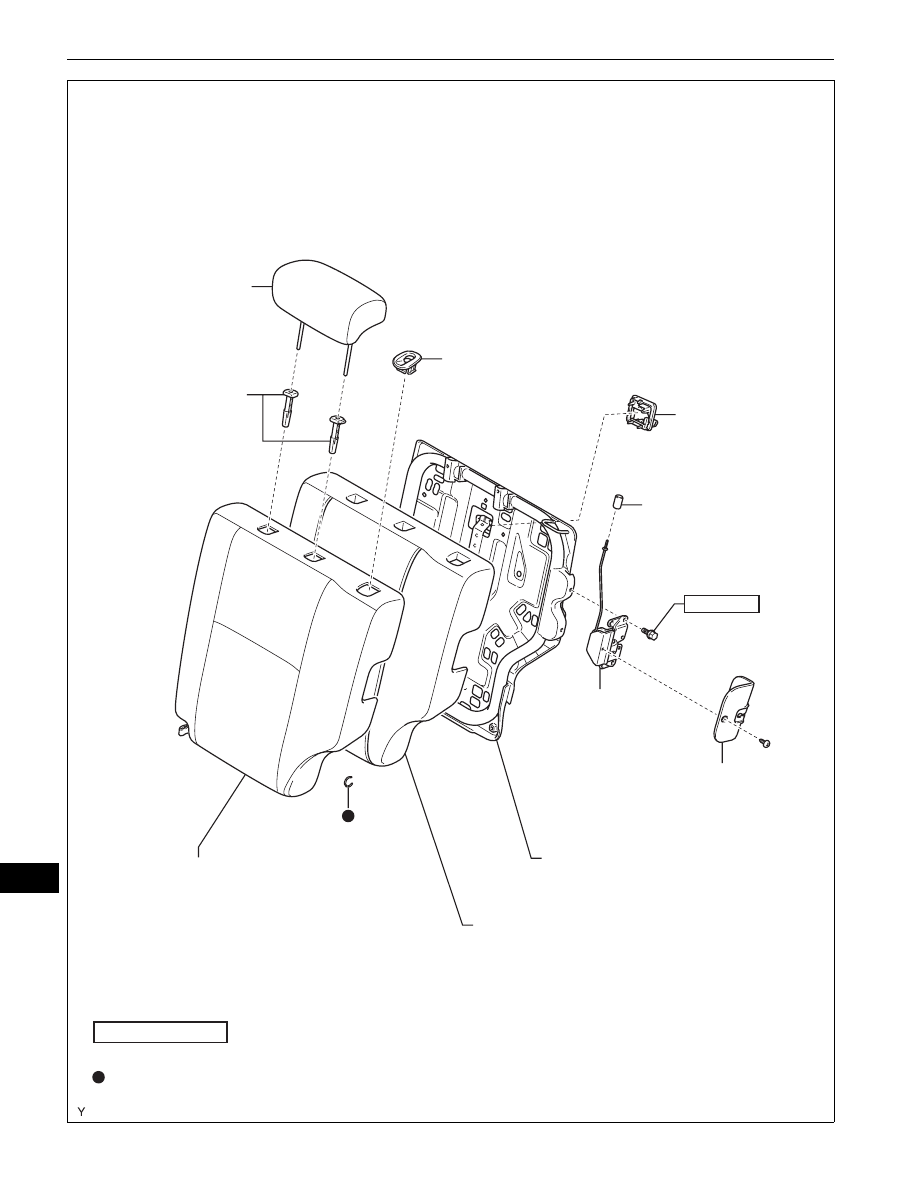

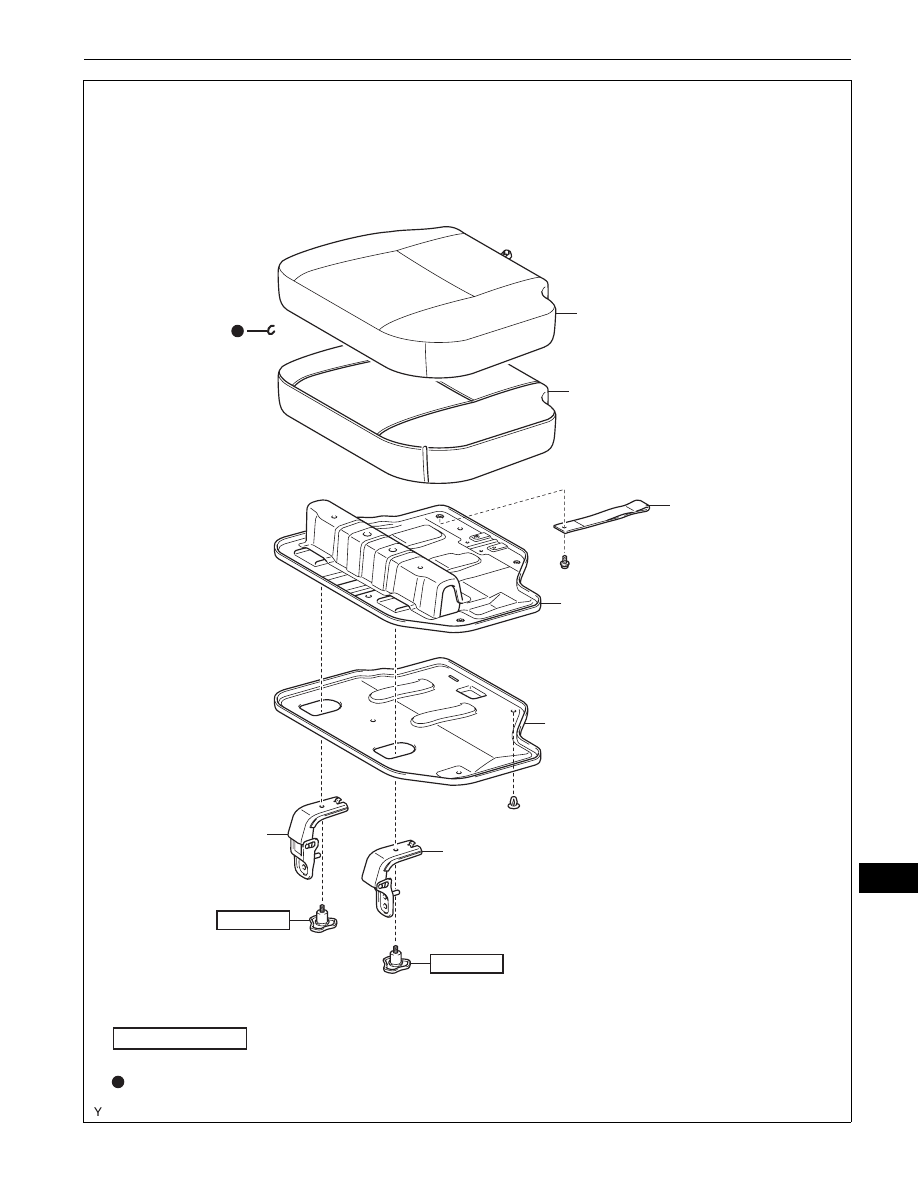

(g) for Front Passenger Side:
(1) Connect the connector.
(2) w/ Front Seat Side Airbag:
1. Connect the airbag connector.
(3) Install the clamp.
2.
INSTALL FRONT SEAT TRACK COVER
HINT:
Use the same procedure for both sides.

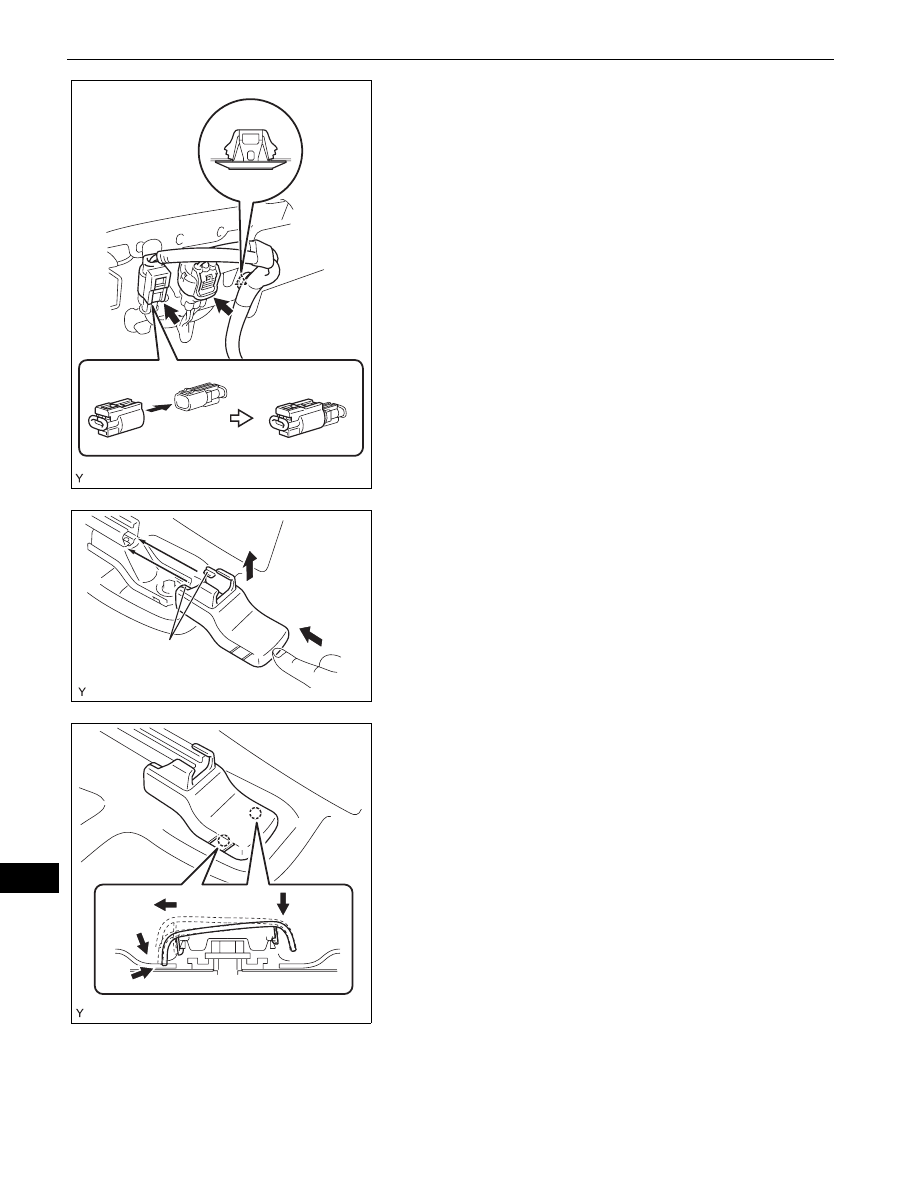

(a) Insert the front seat track cover 2 guides in between
the seat rail and the seat leg. Then slightly lift up the
front seat track cover rear part and carefully push
the front seat track cover in until it cannot be pushed
in any further.
(b) Carefully insert the front seat track cover outside
claw into the seat leg corner groove according to the
procedure shown in the illustration.
(c) Carefully push directly from the top of the front seat
track cover inside claw to insert it into the seat leg
corner groove, as shown in the illustration.
3.
CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
4.
INSPECT SRS WARNING LIGHT (w/ Front Seat Side
Airbag)
(See page
)
