ME–16
METER – METER / GAUGE SYSTEM
ME

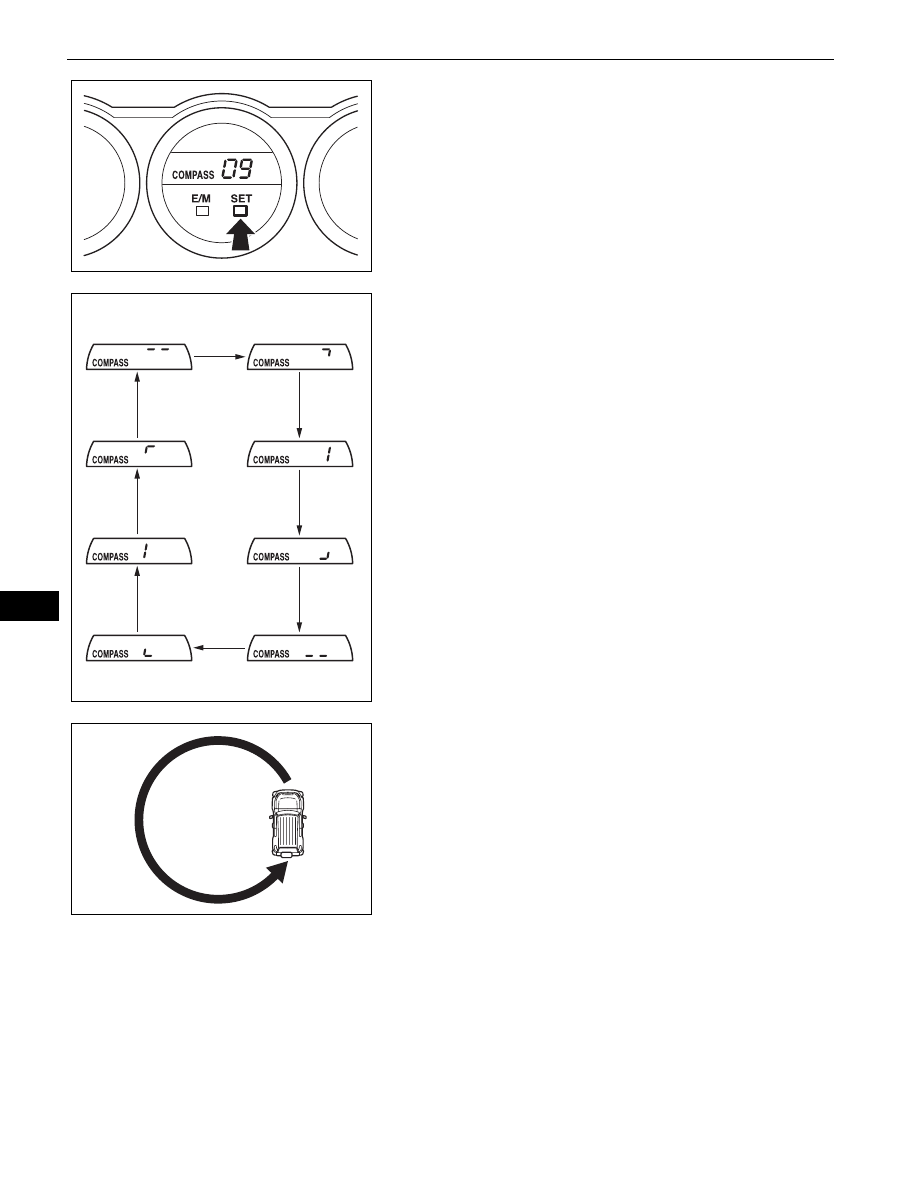

(2) Switch the mode to compass correction mode by
pushing the SET button for about 2 seconds,
until the zone number appears in the outside
temperature display.
HINT:
If no button operations occur for more than 6
seconds while in compass correction mode,
calibration is cancelled and the display returns to
the outside temperature indication. To restart,
perform the procedure from the first step again.
(3) Push the SET button again to change the mode
to turn correction mode.
HINT:
While in correction mode, the indication bars
move as shown in the illustration.
(4) If there is sufficient space to drive the vehicle in
a circle, perform the following procedure:
1. Drive the vehicle in a full circle within 2
minutes, at a vehicle speed of 5mph (8km/h)
or lower, as shown in the illustration.
NOTICE:
•
Do not perform the circling calibration of
the compass in a place where the earth's
magnetic field is subject to interference by
artificial magnetic fields (underground
parking, under a steel tower, between
buildings, roof parking, near a crossing,
near a large vehicle, etc.).
•
During the calibration, do not operate any
electric systems (power window, etc.) as
they may interfere with the calibration.
